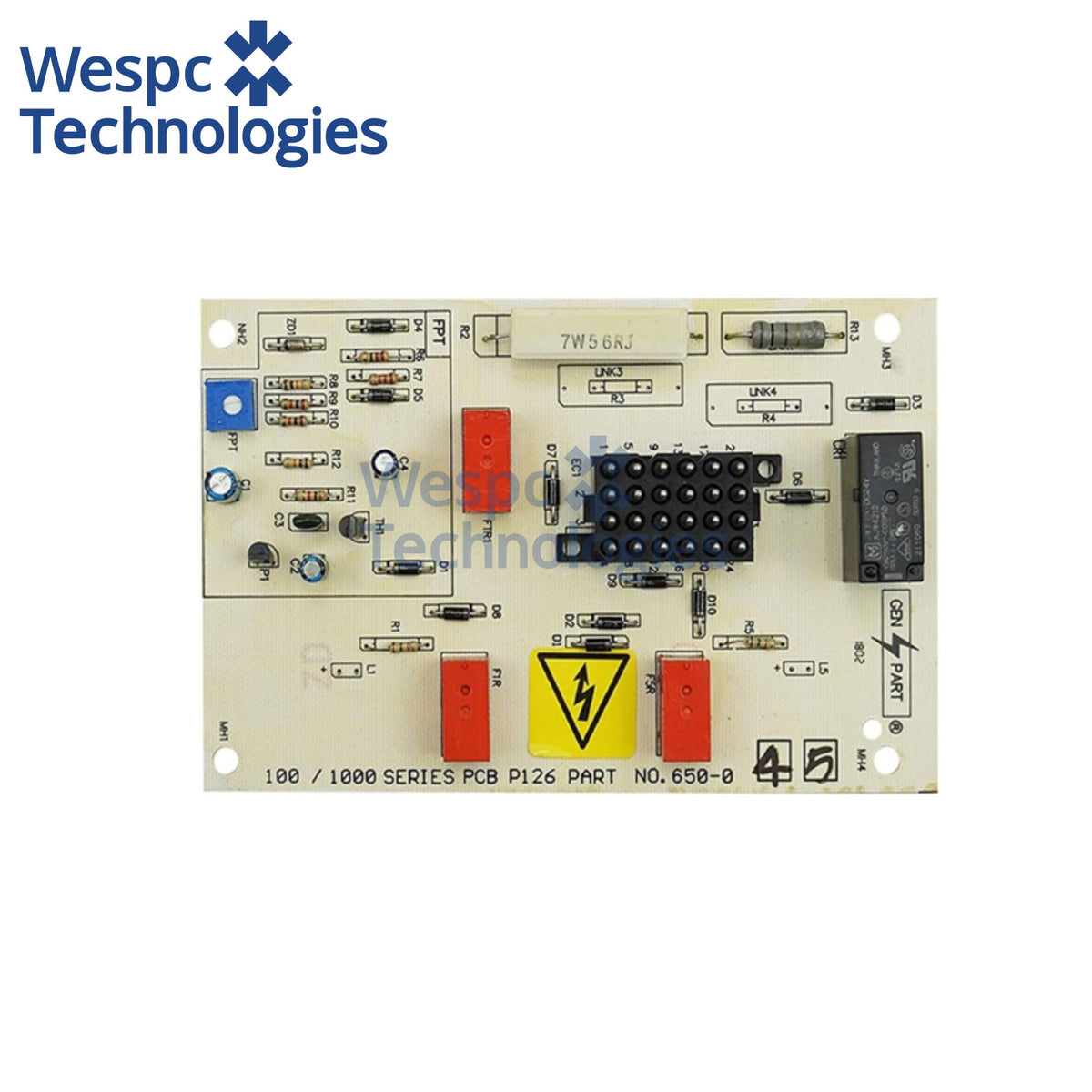

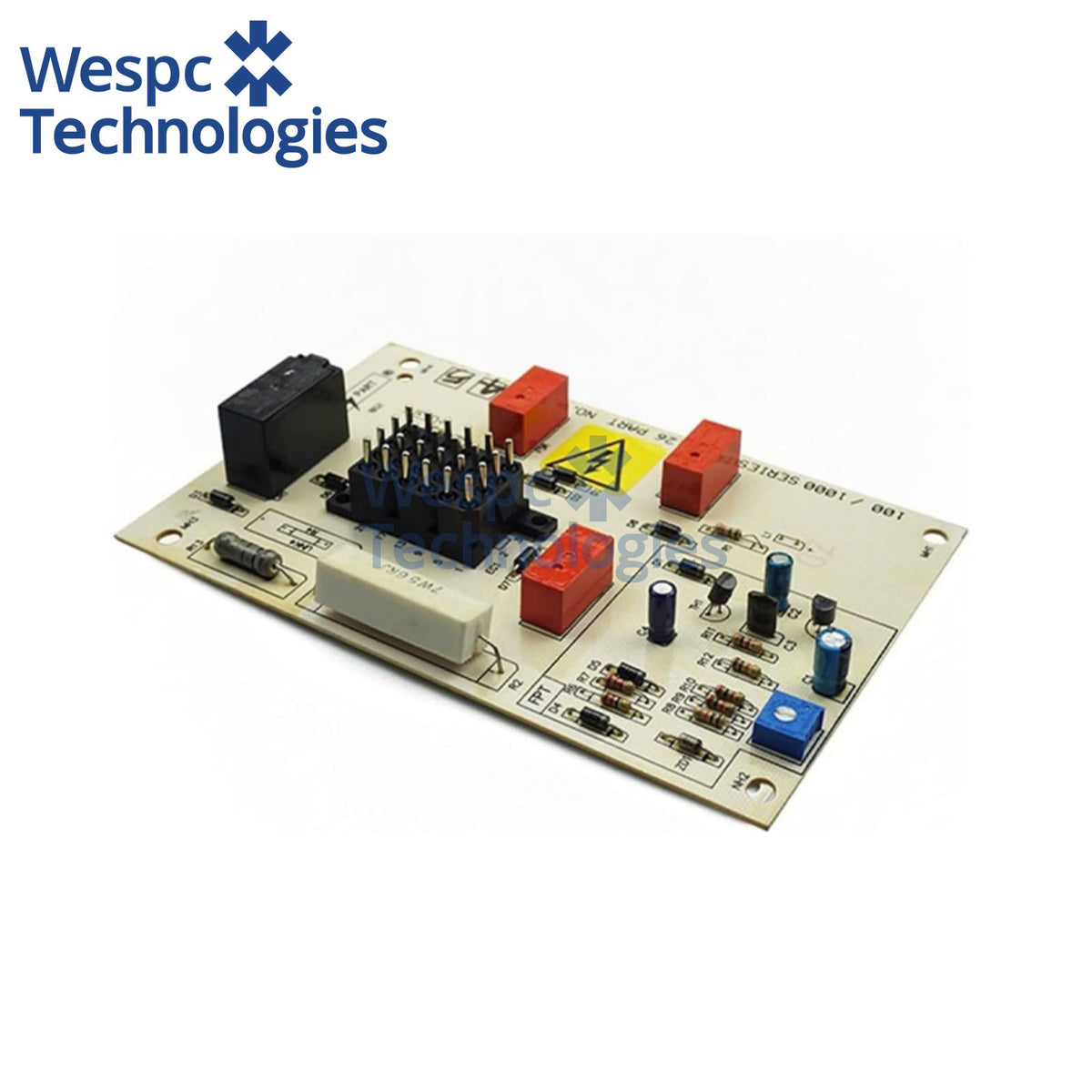

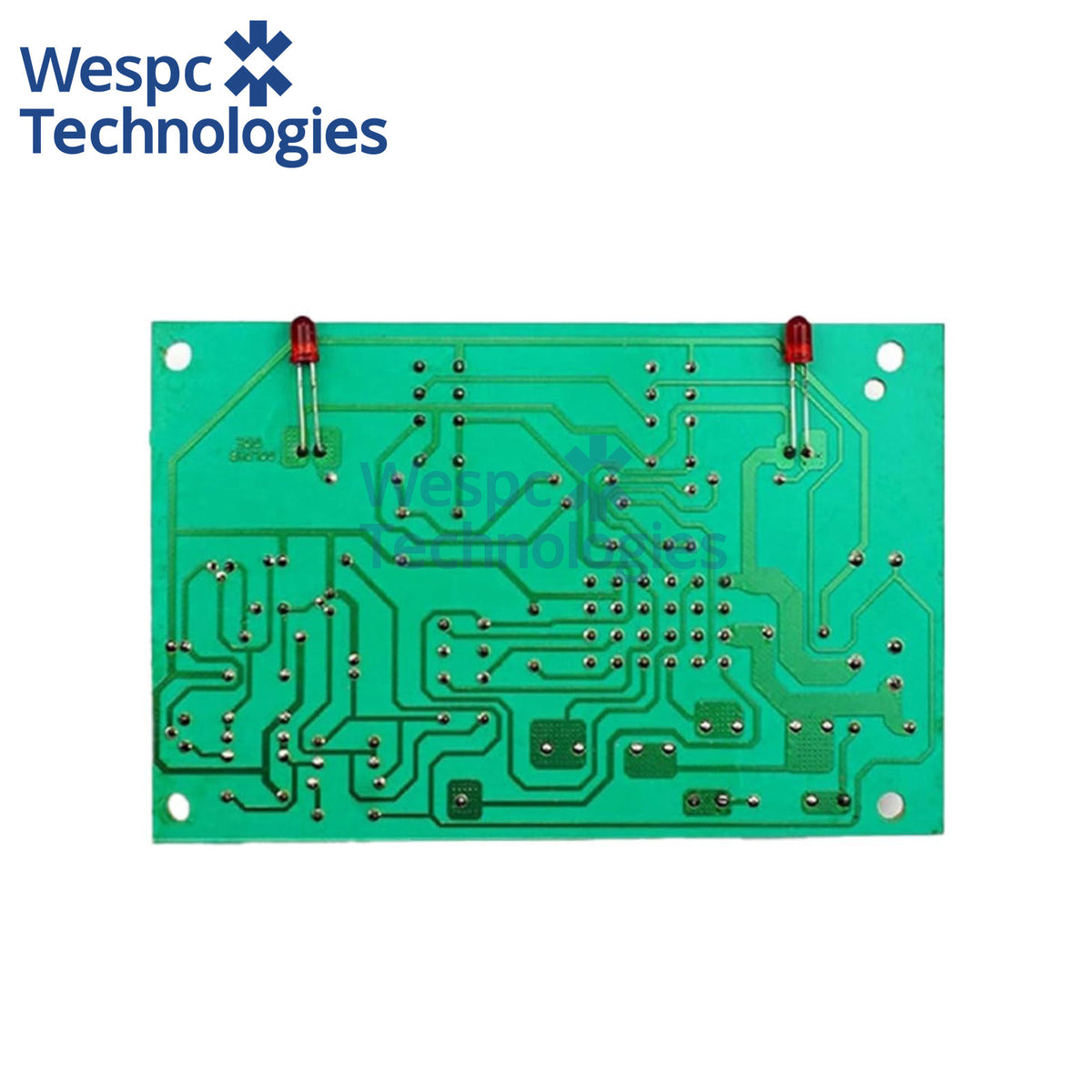

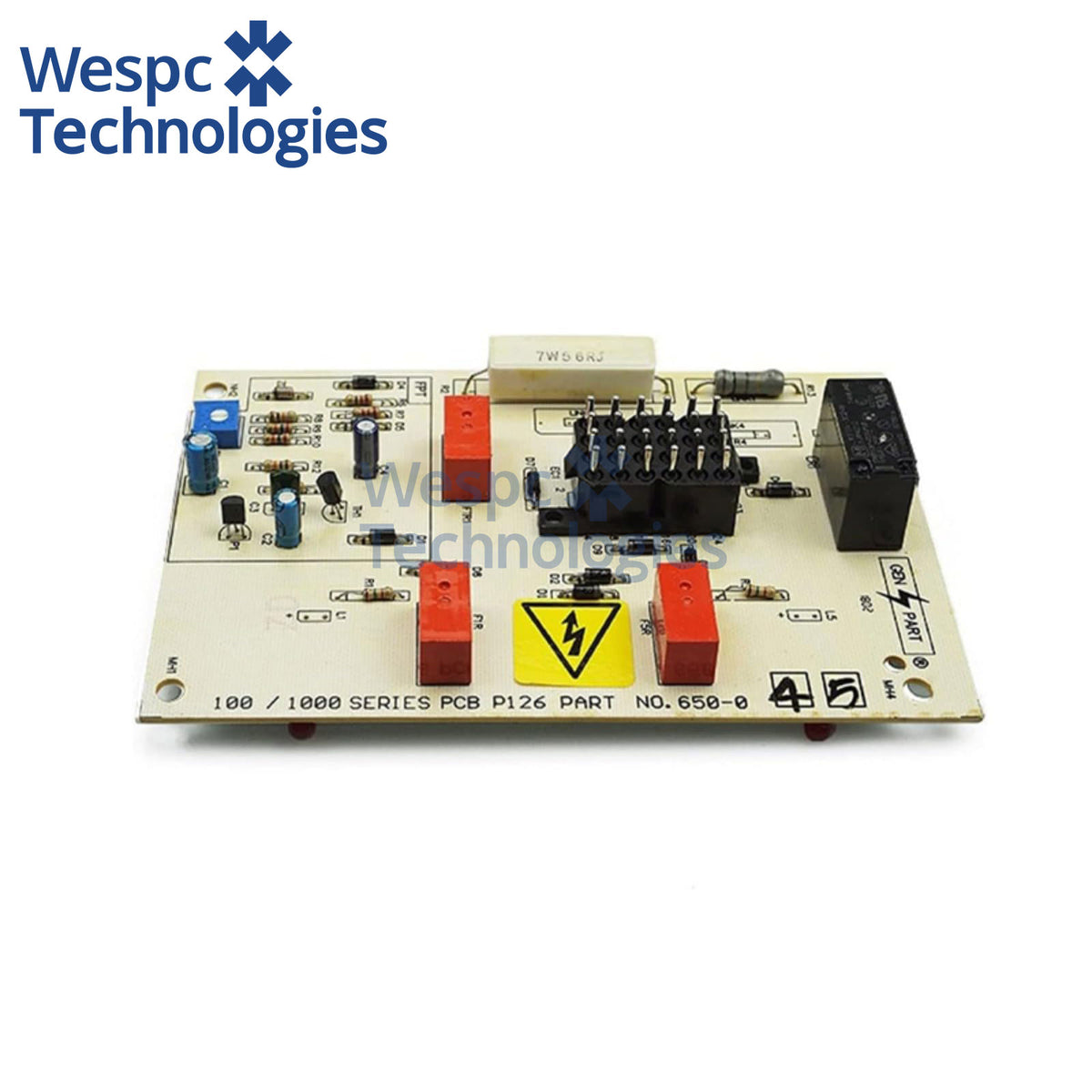

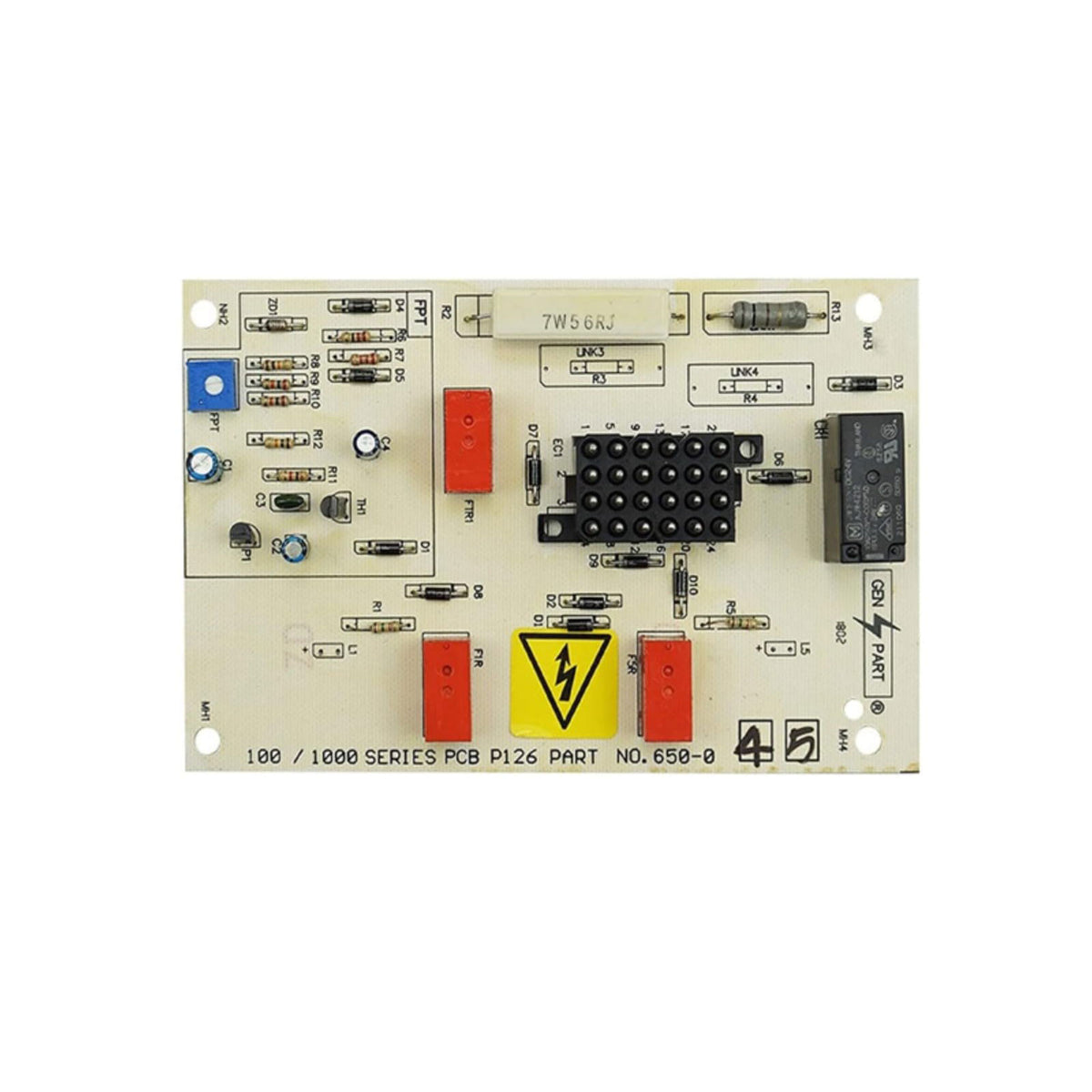

650-044 EIM Engine Interface PCB Board for FG Wilson Diesel Genset

Specifications

• Model: 650-044
• Full Name: EIM Plus Engine Interface PCB Board (Wilson EIM Board)
• Supplier: WESPC
• Working Voltage: DC 12V
• Compatible Genset: FG Wilson, Olympian diesel generator
• Core Function: MPU speed monitoring, overspeed protection, engine fault detection, start/stop & emergency shutdown control
• PCB Material: High quality FR-4 substrate
• Components: Industrial grade relays, resistors, capacitors
• Feature: Anti-vibration, stable signal, on-site speed calibration, fault indicator lights
• Installation: Panel mount, direct plug replacement
• Function: Engine signal collection, status monitoring, fault indication & protection
• Application: FG Wilson generator control panel repair, EIM interface board replacement,Olympian Diesel Generator
• Warranty: 12 months factory warranty
