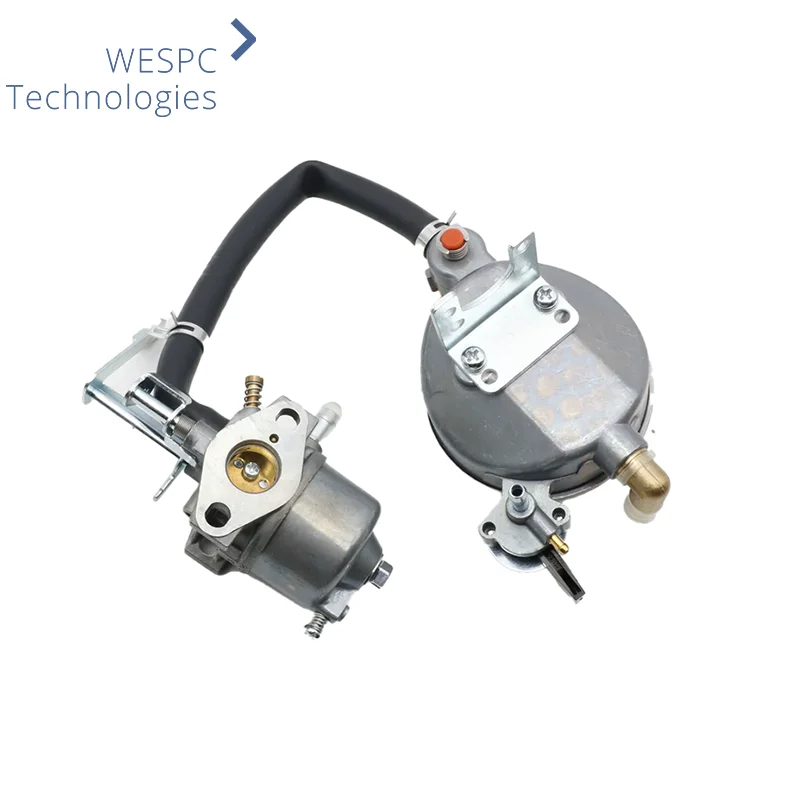

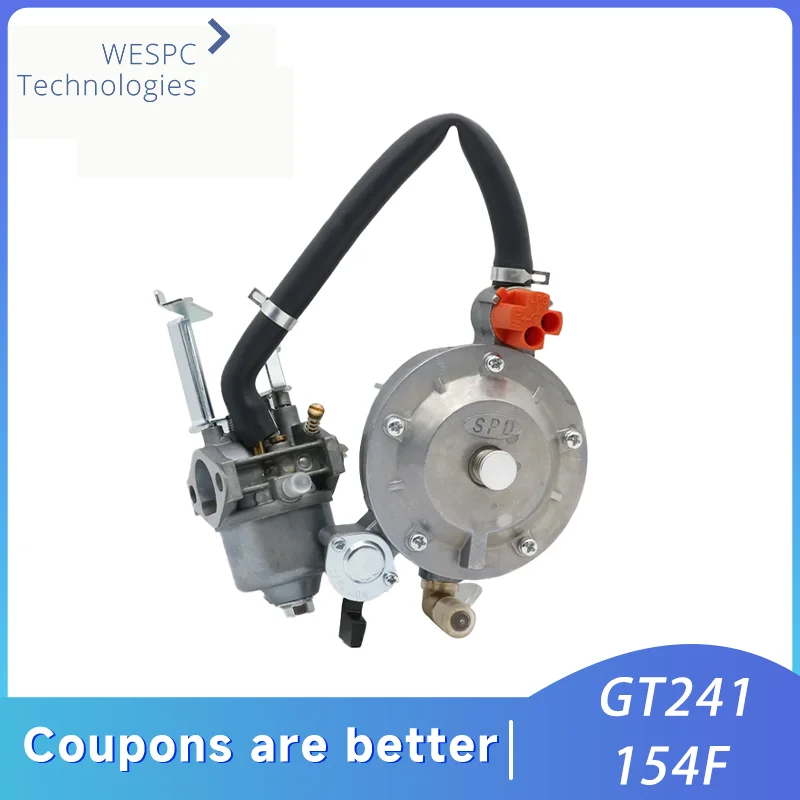

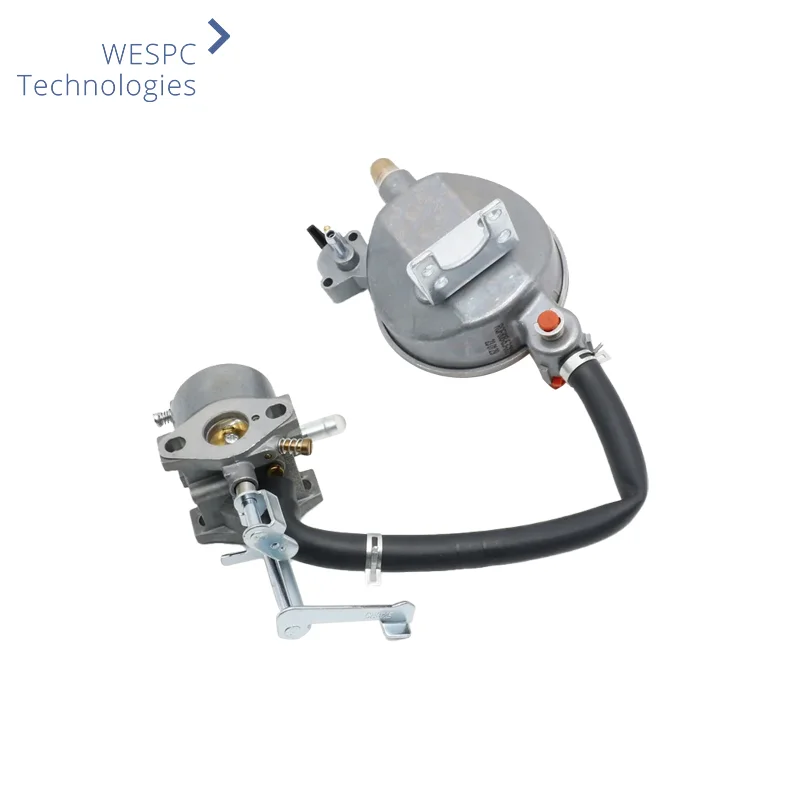

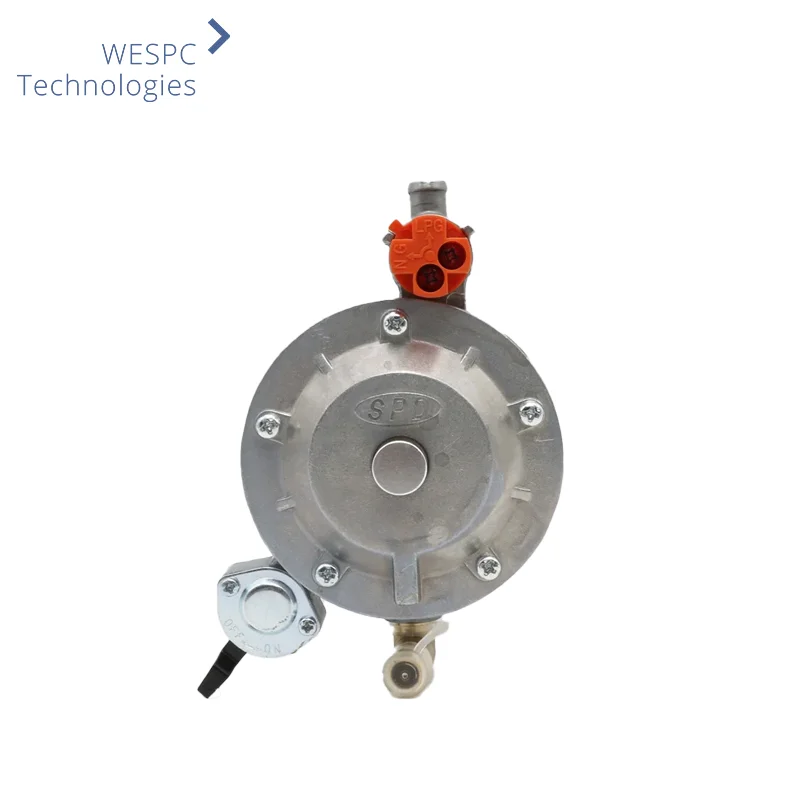

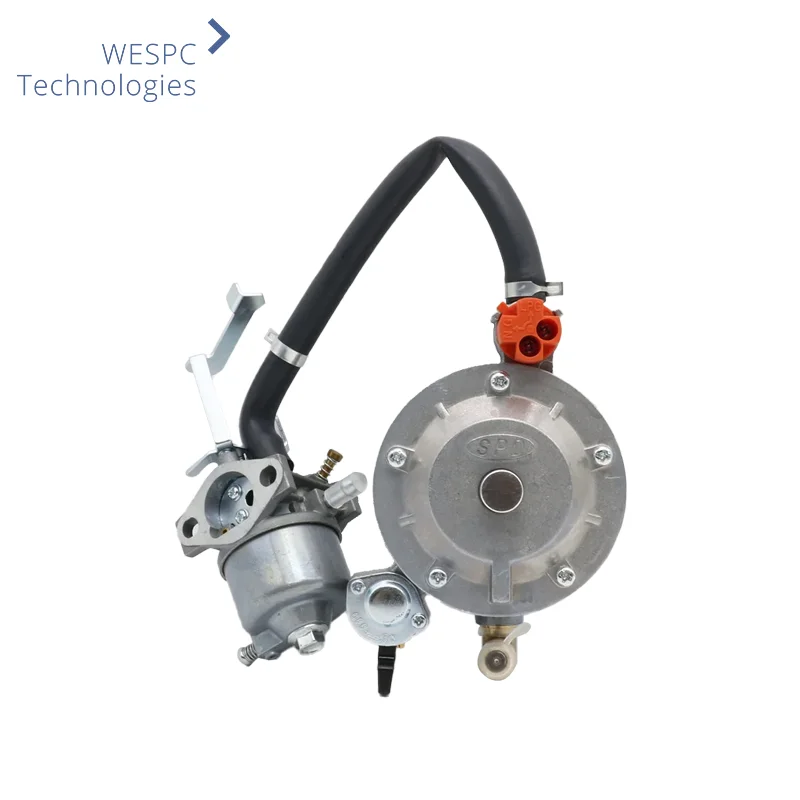

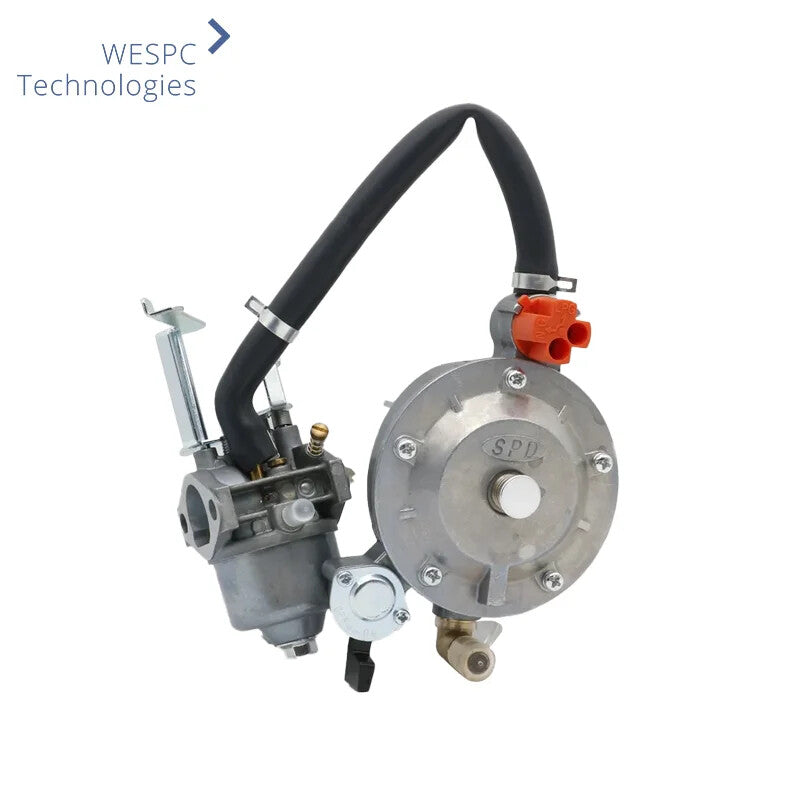

Carburetor GT241 154F Gasoline generator parts LPG Manual carburetor kit assy

Carburetor GT241 154F Gasoline generator parts Engine double use LPG Manual carburetor kit assy

Product sellpoints
Strong and durable: This product is made of high-quality materials, which is strong and durable. it can be used for a long time.
Wide range of use: Suitable for a variety of vehicles, such as cars, motorcycles, bicycles, etc.
Effortless install: The installation is very simple, just insert the generator into the lpg engine and then press the ignition switch to turn it on.

Features.

P15A-LPG dual fuel carburetor use mode:

1.Applicable to 87cc dual fuel carburetor series. (Export 154f/156f, also can be

for other similar generator models)

2.Applicable to generator set

Gas parameters

Burst pressure:30-1560KPa.

Outlet pressure:2.80±0.5KPa

Flow rate: 0.6m3/h.

Closing pressure:<3.5KPao



Specifications.

Gas start

11 Connect the gas tank pressure reducing valve to the carburetor gas valve (A) with a gas hose and select the switch (LPG or NG).

Switch (LPG or NG) gas channel and open the gas switch

2. Close the carburetor air damper and turn the air damper handle to the engine OFF position.

3 Press and hold the thickening button (B) on the side of the carburetor gas valve for 2-3 seconds to release it.

4 Turn on the engine flameout switch to the engine ON position. "oN1"

5 First gently pull the engine starter pull cord until you feel a greater resistance before pulling

pull outward.

6 If you can't start the engine with the damper fully closed for 2 times, please open the damper handle to 1/3 position and start again.

7 When the engine starts, slowly open the carburetor damper, the handle to the engine 0N (open) position

Oil start

1. Turn on the fuel switch.

2 Close the carburetor damper door is about to damper handle to engine 0FF (off) position.

3. Turn on the engine flameout switch to the engine ON (open) position.

4. First gently pull the engine starter pull rope until you feel a greater resistance in

Pull outward with force.

5. When the engine starts, slowly open the carburetor damper, and the handle to the engine 0n (open) position.

(open) position.

Oil to gas conversion when the engine is running



Parameters.

1. Oil to gas conversion:

A. Unload the engine to no load

B. Turn off the fuel switch

C. Open the fuel drain switch (C) on the carburetor gas valve and drain the fuel through the fuel drain tube

(D) drain the fuel from the carburetor float chamber and then close the drain switch (C).

D When you hear the engine running unsteadily with a sudden sound, open the gas switch and the

The engine will slowly run normally.

2 gas to oil:

A.Unload the engine to no load

B. Turn on the fuel switch

C. Turn off the gas switch when you hear the engine running unsteadily with a sudden sound.

The engine will slowly run normally.



Package includes.

A:1* carburetor regulator valve set

B:1*regulating valve
