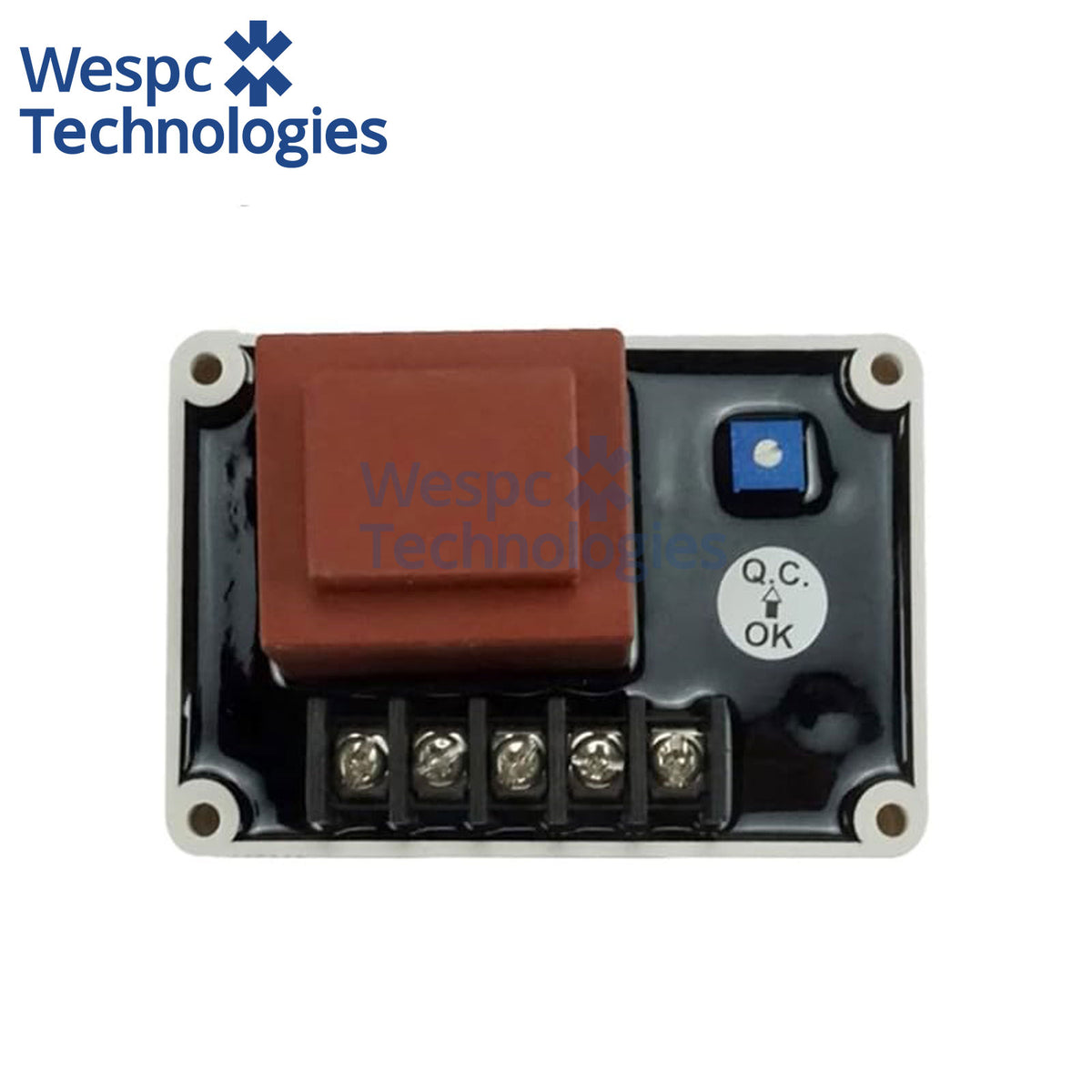

EP200 Paralleling Module Compatible Kutai Genset AVR Droop Module

Specification

• Model: EP200
• Type: Genset Reactive Droop Paralleling Module
• Condition: New
• CT Input: Selectable 1A / 5A
• Power Dissipation: Max 1 VA
• Droop Characteristic: 13% @50% CT (0PF), 26% @100% CT (0PF)
• Output Impedance: Adjustable 0~200Ω
• Operating Frequency: 50 / 60Hz
• Operating Temperature: -40°C ~ +60°C
• Storage Temperature: -65°C ~ +85°C
• Dimension: 101 × 69 × 47 mm
• Weight: Approx 255g
• Compatible AVR: Kutai EA04A, EA04C, ADVR-054, EA460, EA63-2.5, EA63-2.5S
• Application: Diesel generator parallel reactive load sharing system
• Compatible: Kutai EP200
• Warranty: 12 months factory warranty
