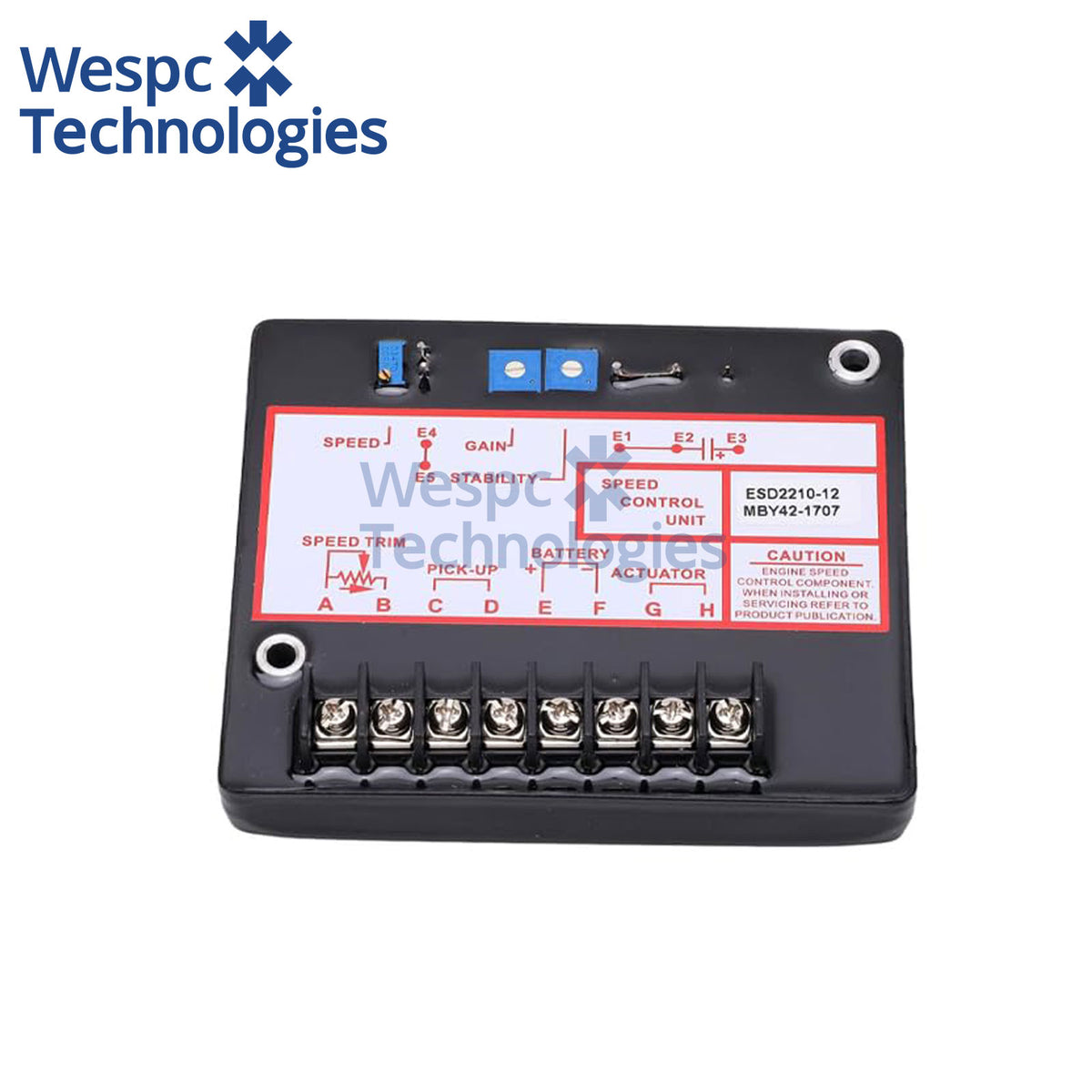

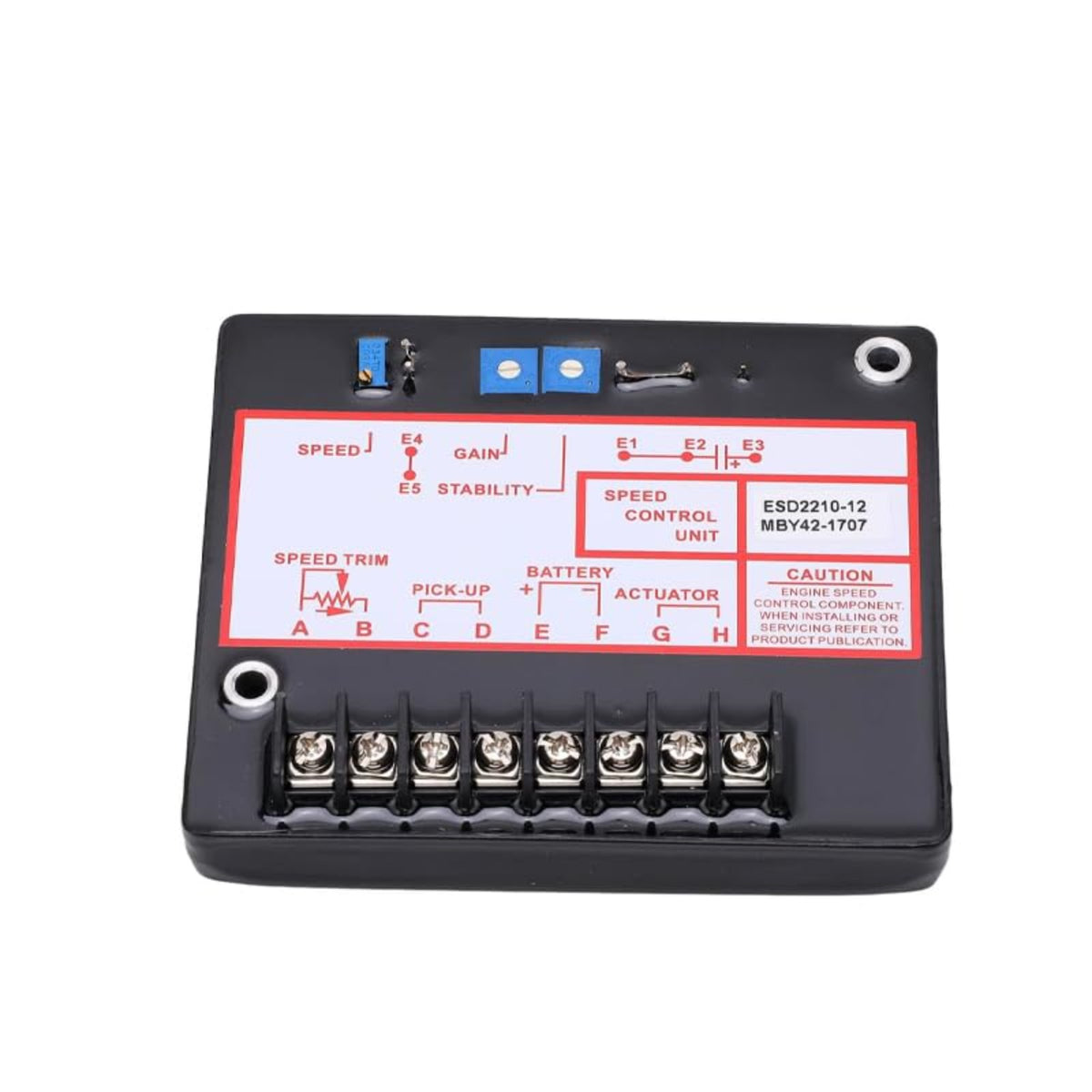

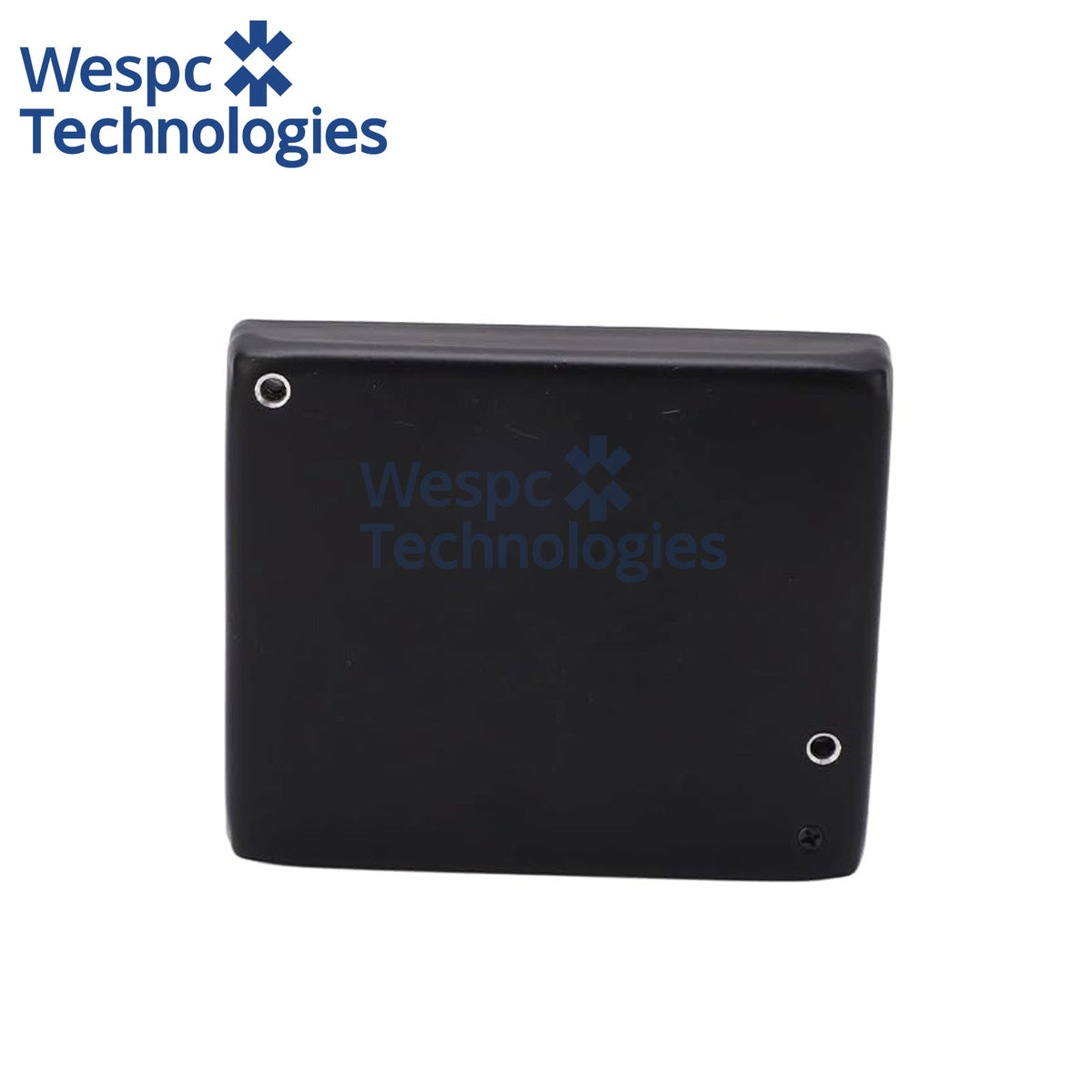

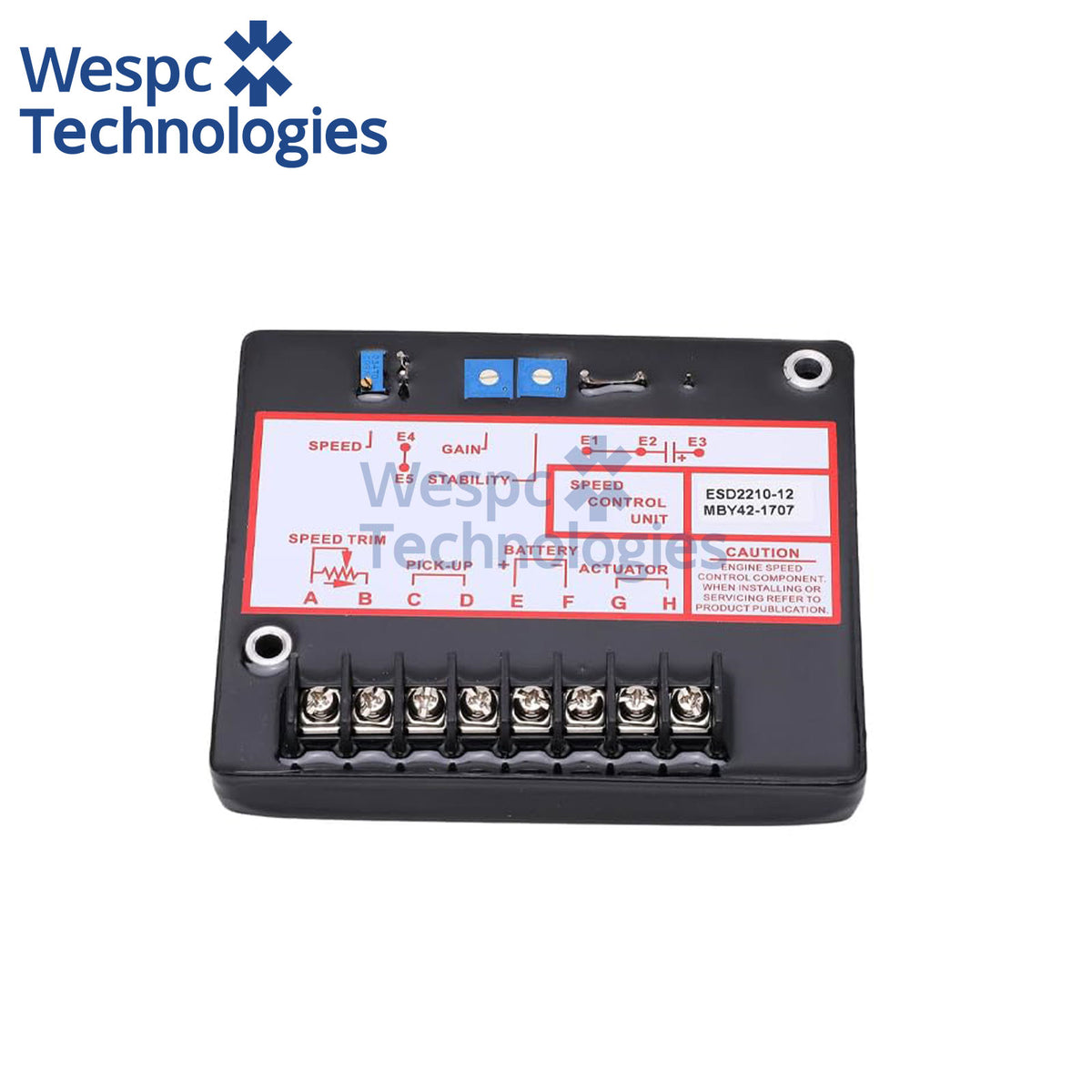

Part Number: ESD2210
-
Supplier: Wespc
-
Product Type: Electronic Governor / Speed Control Unit
-
Material: Hard potted encapsulated PCB, metal mounting base, adjustable potentiometers
-
Power Supply: 12VDC / 24VDC negative ground, reverse voltage & transient voltage protection
-
Speed Input Signal: 1 ~ 50 Volts RMS from magnetic pickup sensor
-
Speed Frequency Range: 1000Hz ~ 7500Hz continuous, steady state stability ±0.25% or better
-
Max Actuator Current: 10A continuous output
-
Application: Stationary diesel genset, standby power, light-duty industrial diesel engine
-
OE Reference: ESD2210, ESD2210-12, ESD2210-24
