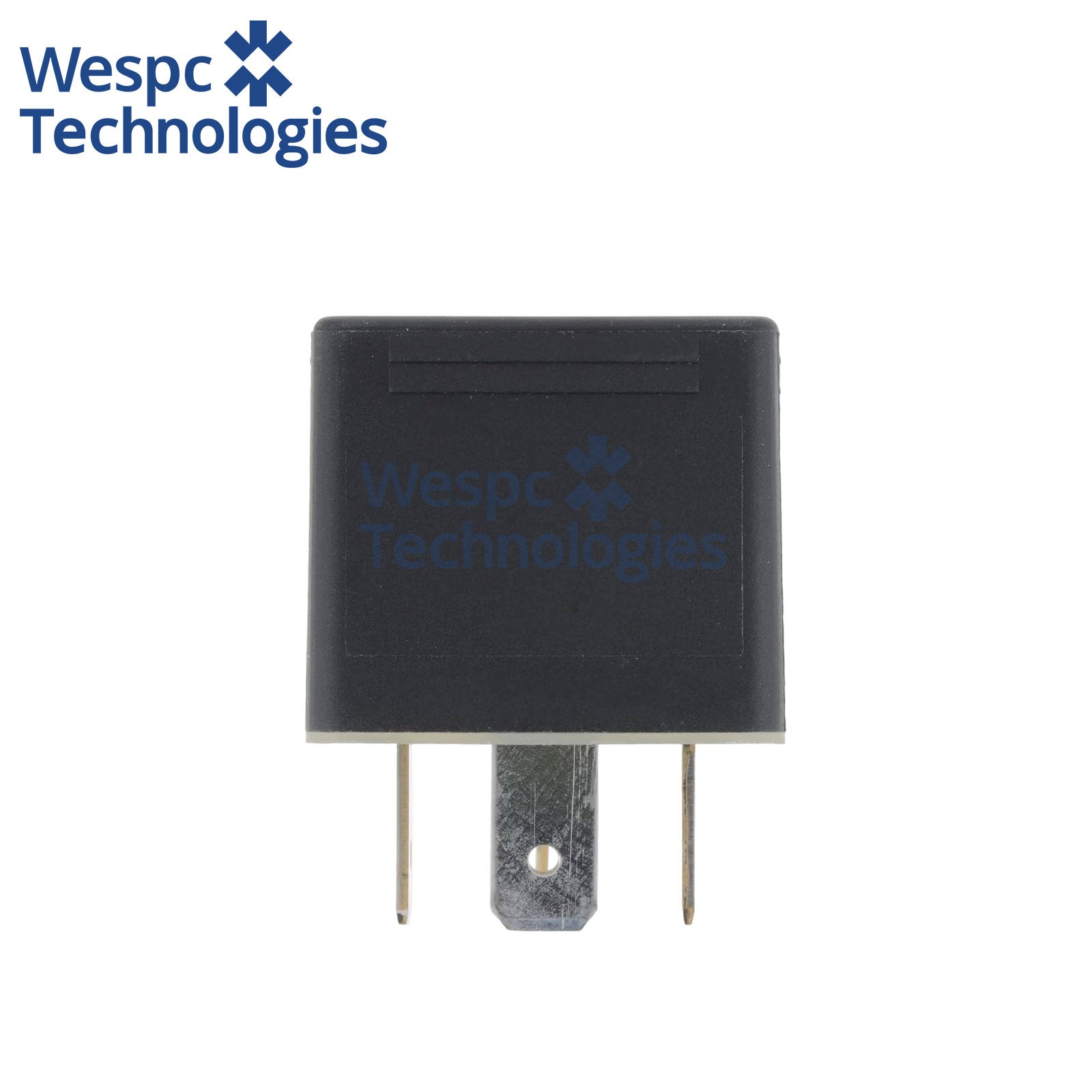

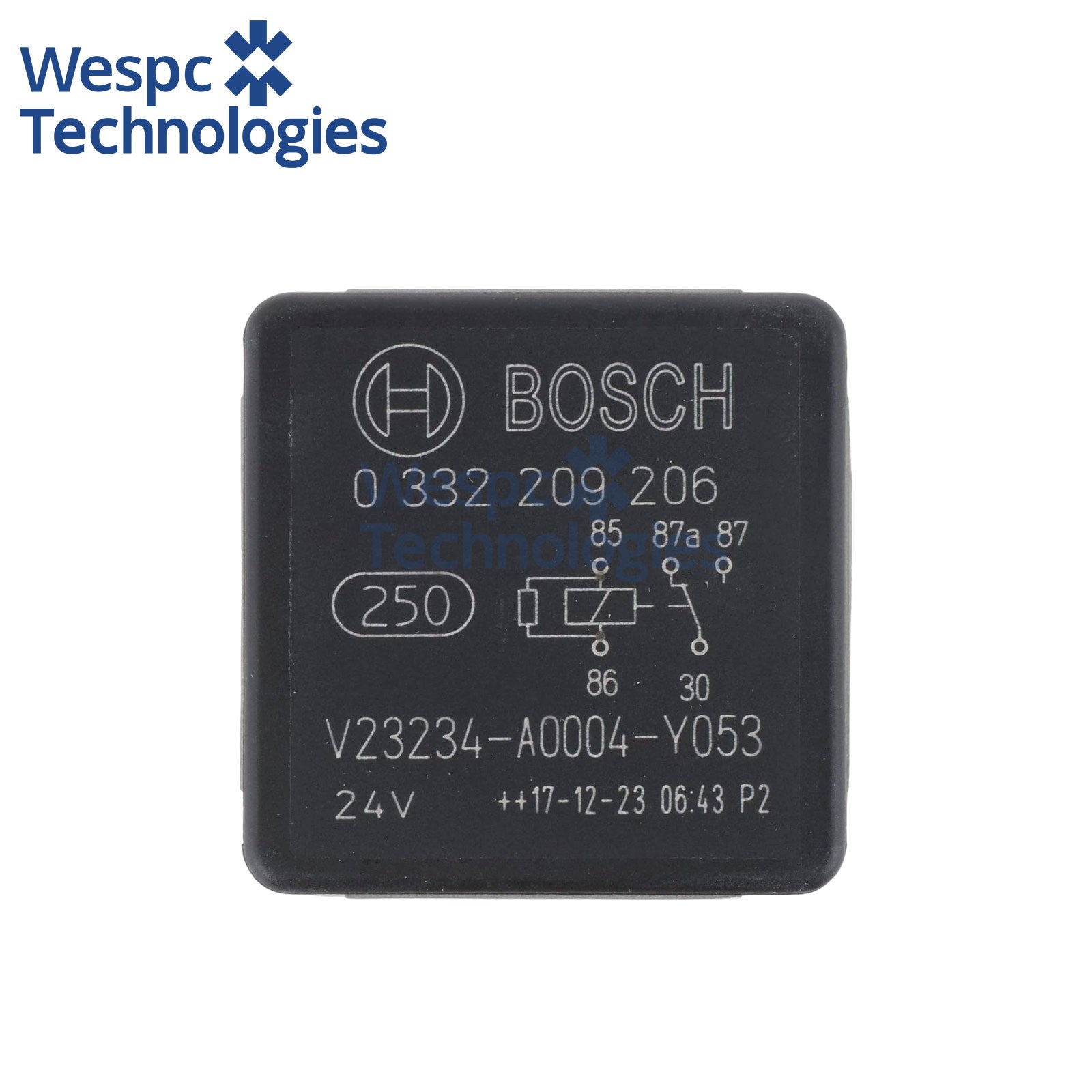

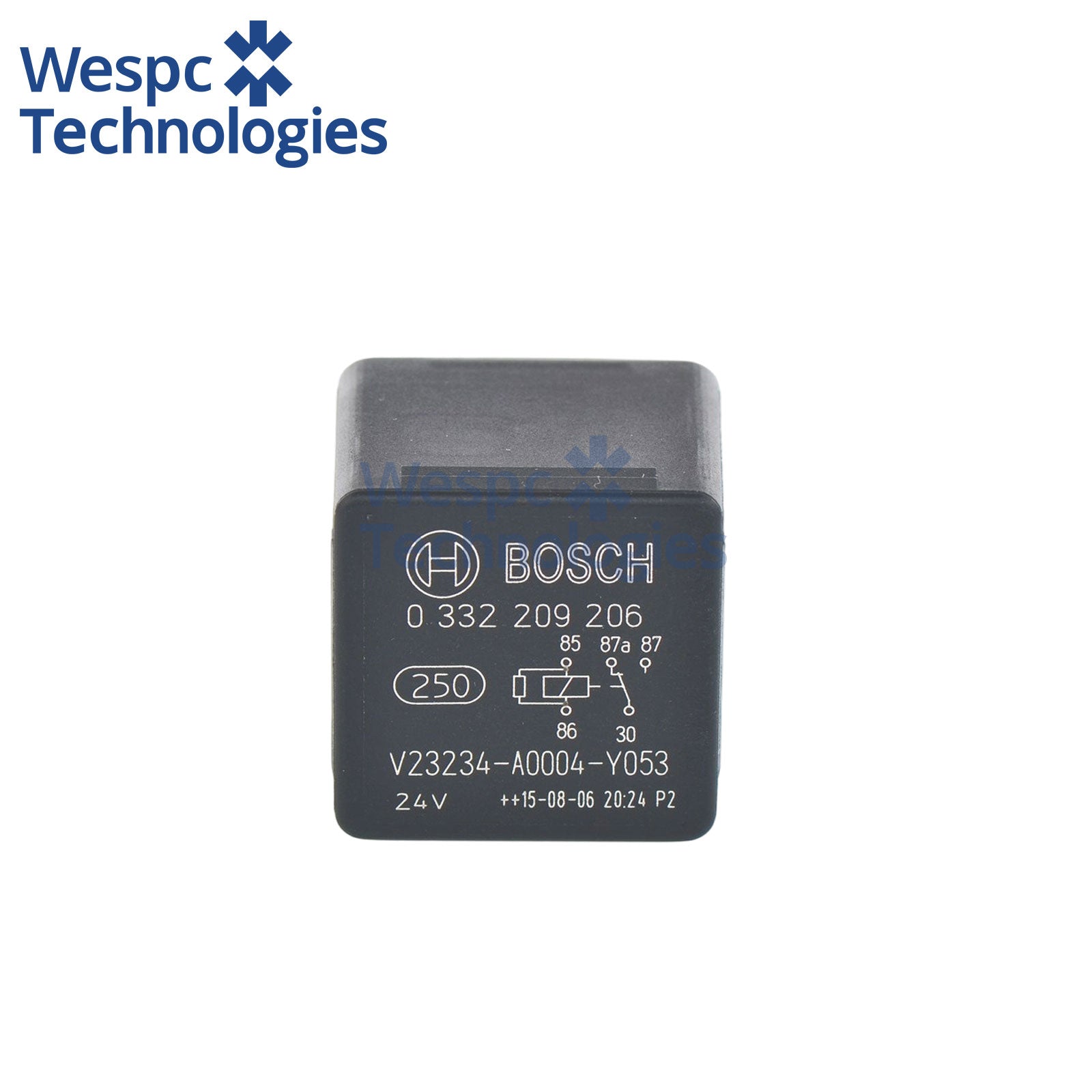

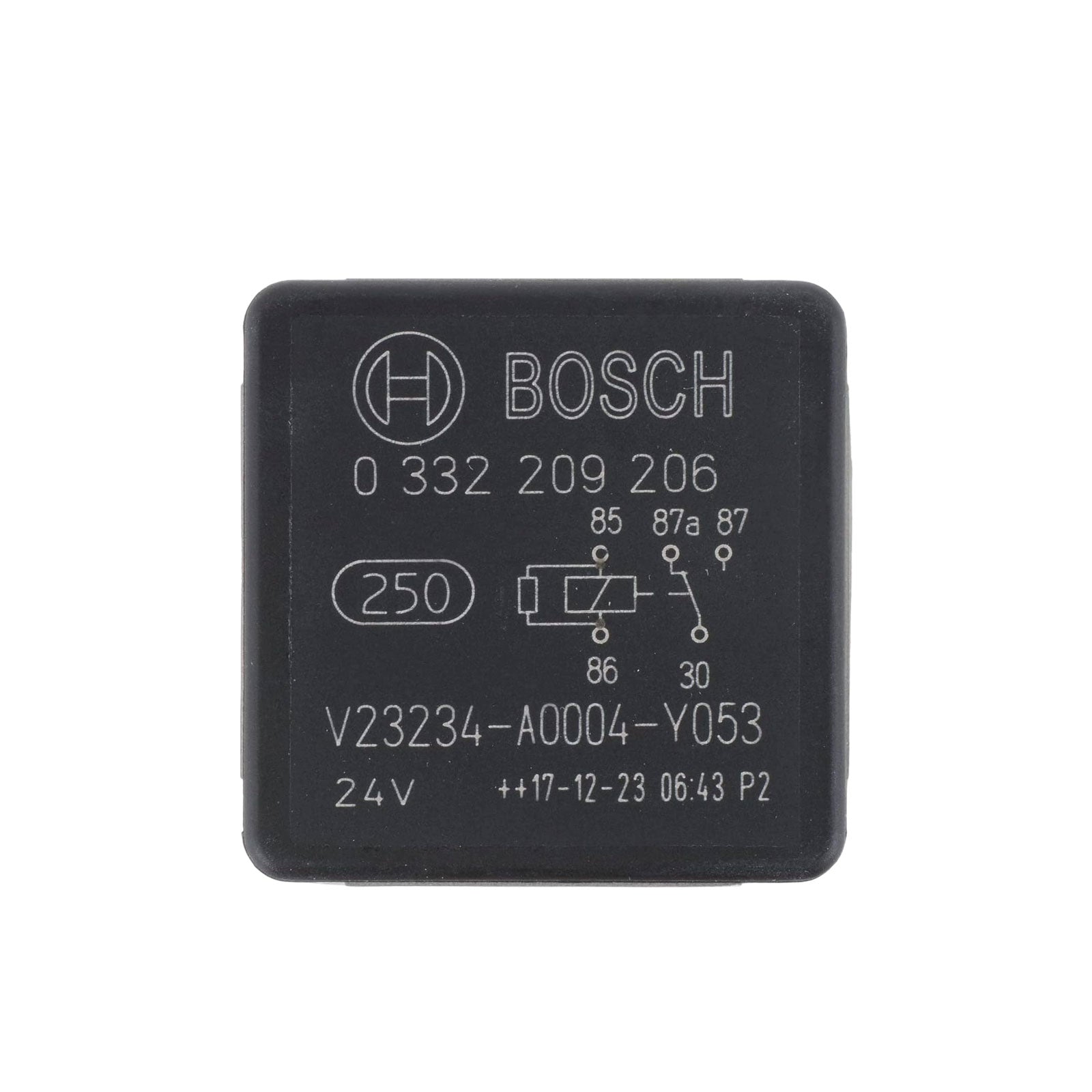

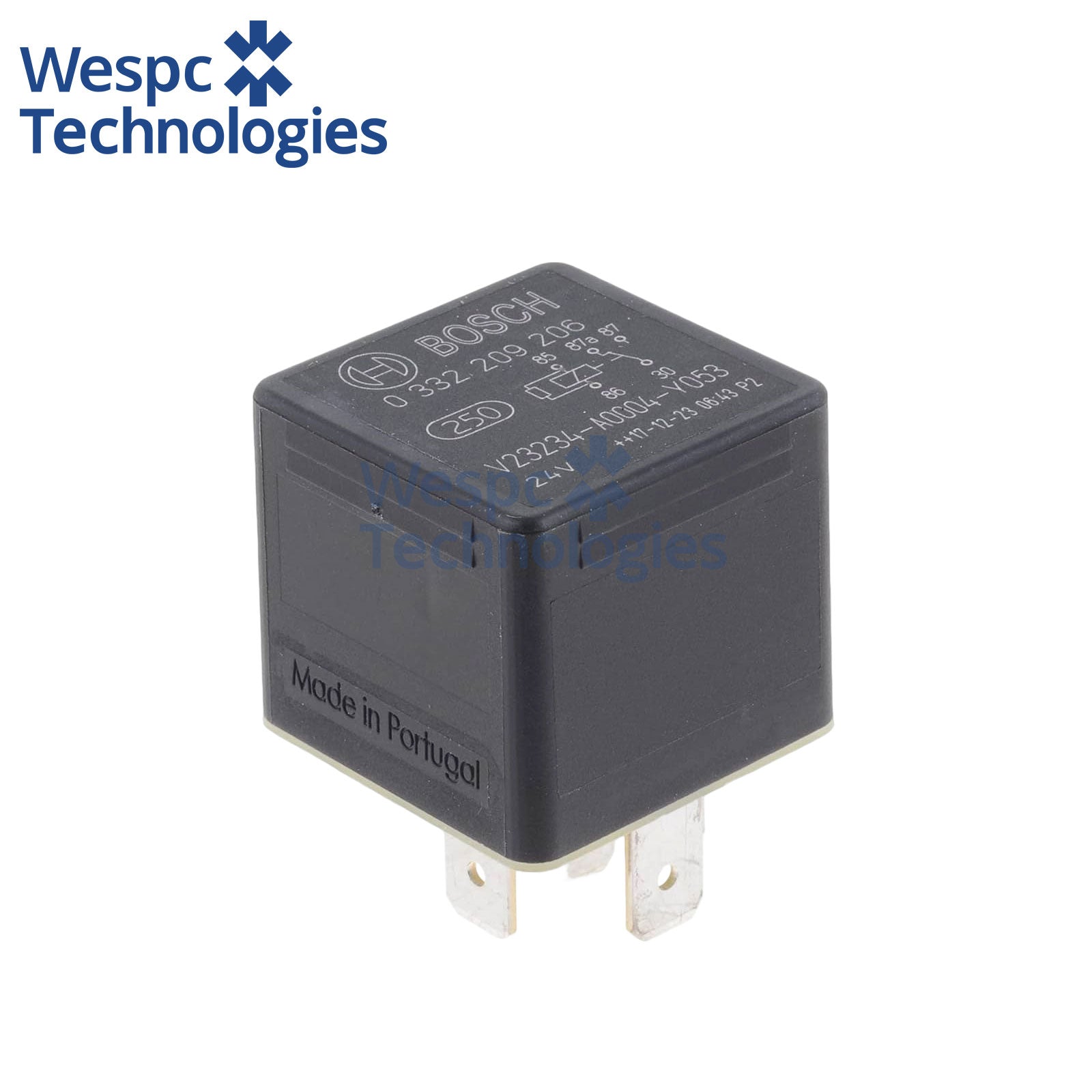

Original Bosch 0332209206 V23234-A0004-Y053 24V 20A 5 Pin Automotive Relay
Original Bosch 0332209206 V23234-A0004-Y053 24V 20A 5 Pin Automotive Relay
السعر العادي
$24.00 USD
السعر العادي
$0.00 USD
سعر البيع
$24.00 USD
سعر الوحدة
/
لكل
يتم احتساب الشحن عند الخروج.
لم نتمكن من تحميل توفر الاستلام
Original Bosch 0332209206 V23234-A0004-Y053 24V 20A 5 Pin Automotive Relay for Truck Van
Product Specifications
- Brand: Genuine Bosch Original
- Part No.: 0332209206
- Cross Mercedes OE: A0025420919
- Cross Renault OE: 7700844255
- Coil Voltage: 24V DC
- Coil Resistance: 72Ω standard range
- Contact Type: SPDT Single Pole Double Throw (5 Pin ISO Mini)
- Rated Current: 20A Normally Open / 10A Normally Closed Light Resistive Load
- Built-in Component: Internal freewheeling protection diode
- Extra Feature: Without fixed mounting tab
- Protection Grade: IP54 fully sealed anti-oil, dust & splash water
- Working Temperature: -40℃ ~ +85℃
- Housing: Compact standard black flame retardant mini plastic, no mounting ear
- Warranty: 12 Months Genuine Bosch Factory Warranty
Wide Application Range
- OEM matching small-load 5pin SPDT mini relay spare part for Mercedes/Renault light commercial vehicles and small 24V diesel gensets, dual-circuit switching control for auxiliary lights, small fans and signal alarm circuits
- Direct replacement for failed original 0332209206 OEM relay: signal equipment switching failure, intermittent power loss and ECU surge damage
- Universal core stock for Mercedes/Renault light truck repair shops and 24V generator rental companies for daily 24V light vehicle & 24V genset small circuit overhaul
- Safety control system upgrade retrofit for 24V mini gensets and light commercial vehicles, upgrade stable 20A/10A dual-path SPDT switching protection function with built-in anti-surge diode for standard 5pin mini relay installation slots
Common Equipment Failures Solved
- Cheap generic unprotected 24V relays lack surge diodes, inductive reverse voltage easily burns vehicle ECU and generator control panels
- Thin contacts of low-cost relays burn and melt under 20A load, leading to fan stall, indicator light failure and signal interruption
- Inferior thin plastic mini housing cracks under long-term vehicle vibration, internal coil breakage causing total loss of dual-circuit switching control function
- Mismatched 12V relays burn coil instantly after installation, unable to operate normally
- Original Bosch 0332209206 5pin SPDT mini relay damaged, direct plug-and-play replacement without harness modification
- Light 24V truck/genset requires standard 5pin SPDT changeover relay with protective diode for dual signal circuit switching; 4pin single normally open relays cannot realize two-way circuit switching
