Original BX50C Mebay Multi-function Meter Monitoring Controller Control Box

Original BX50C Mebay Multi-function Meter Monitoring Controller Control Box

1.Summary

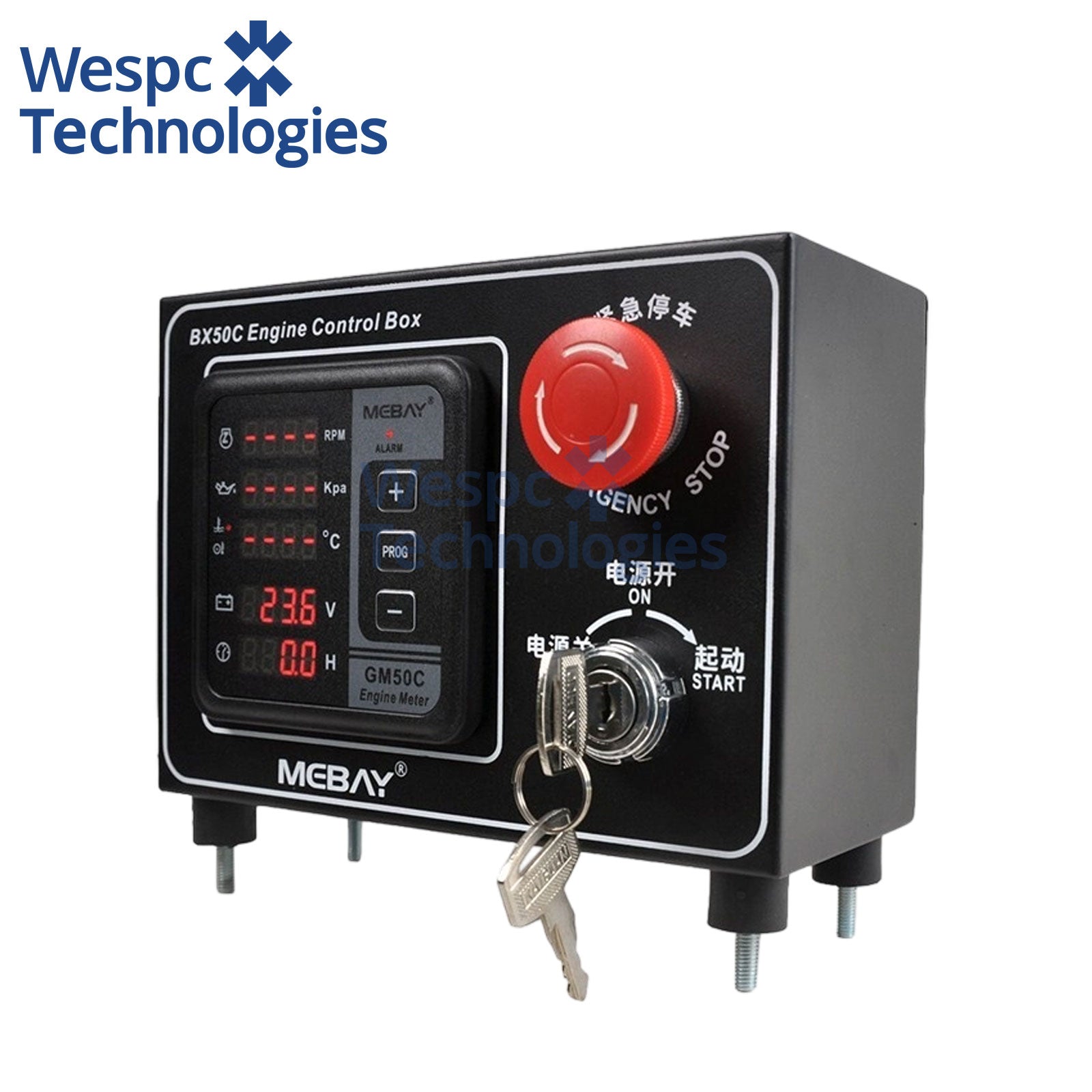

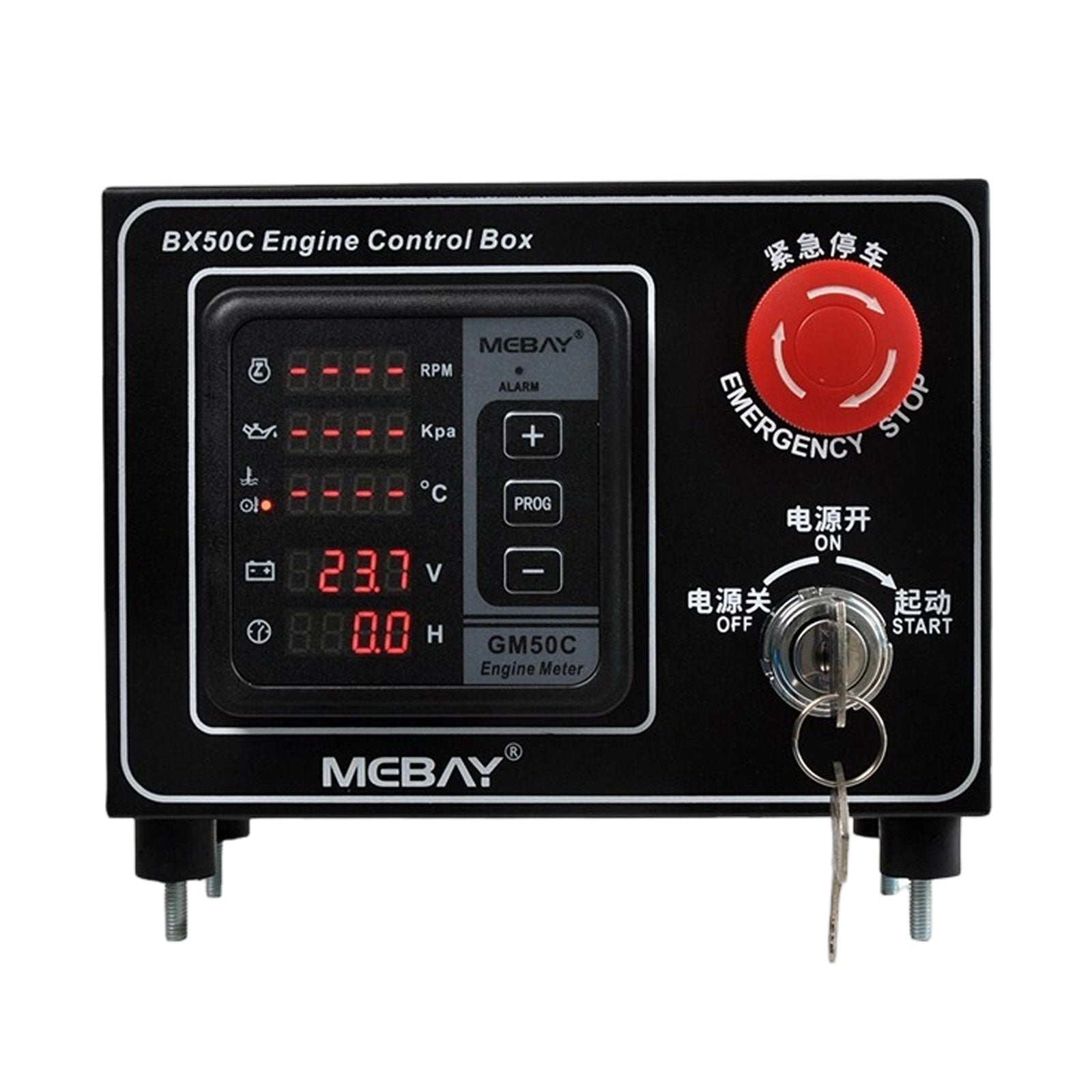

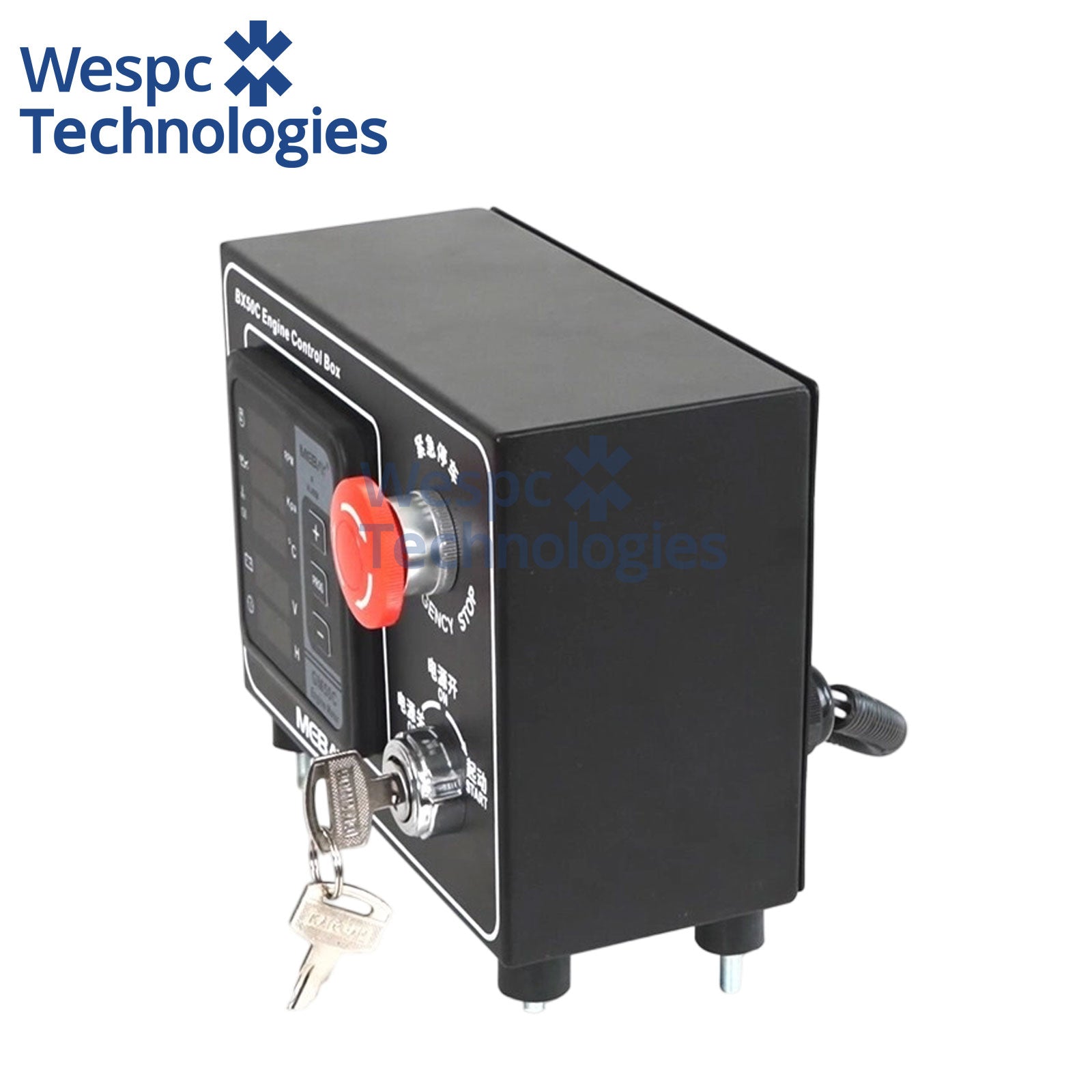

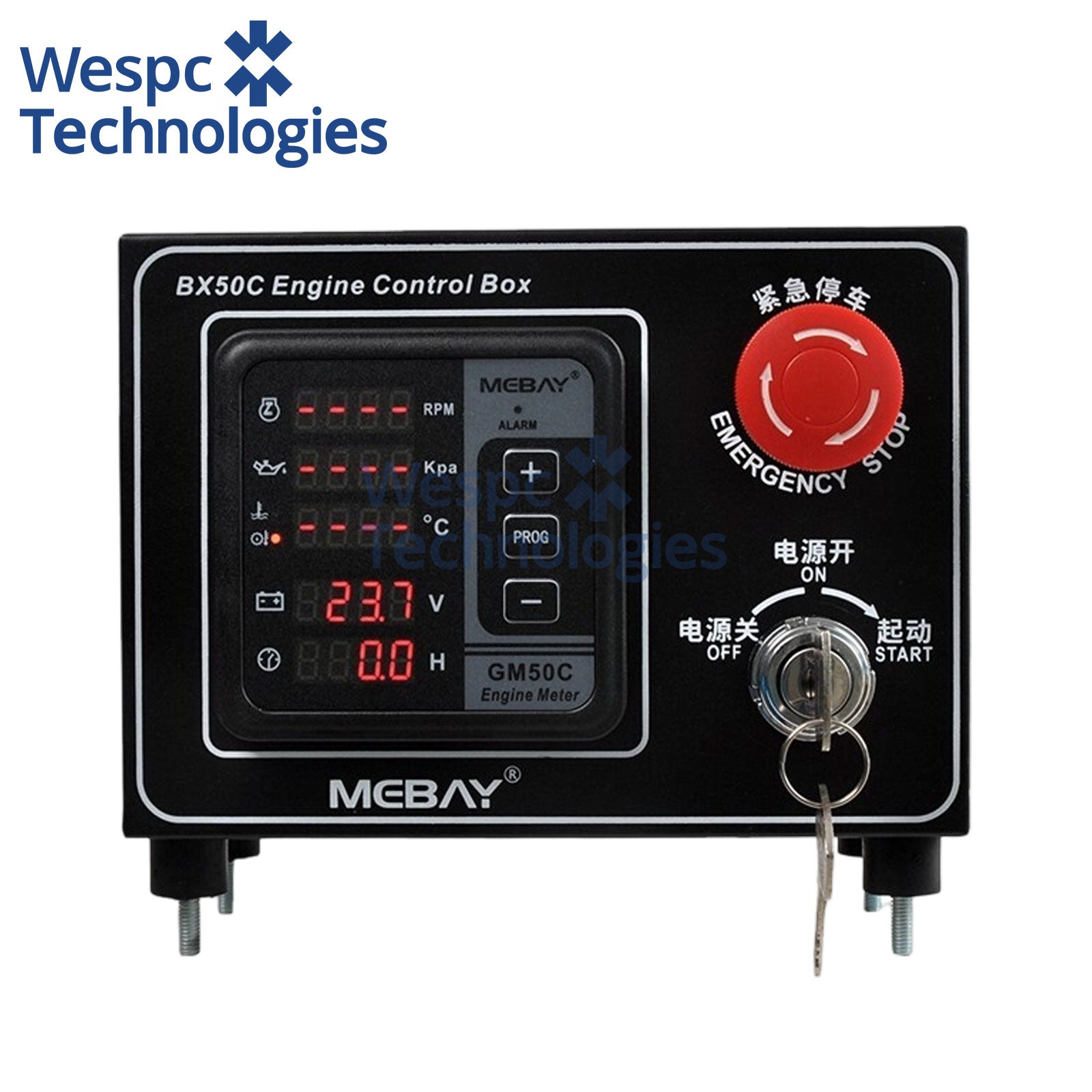

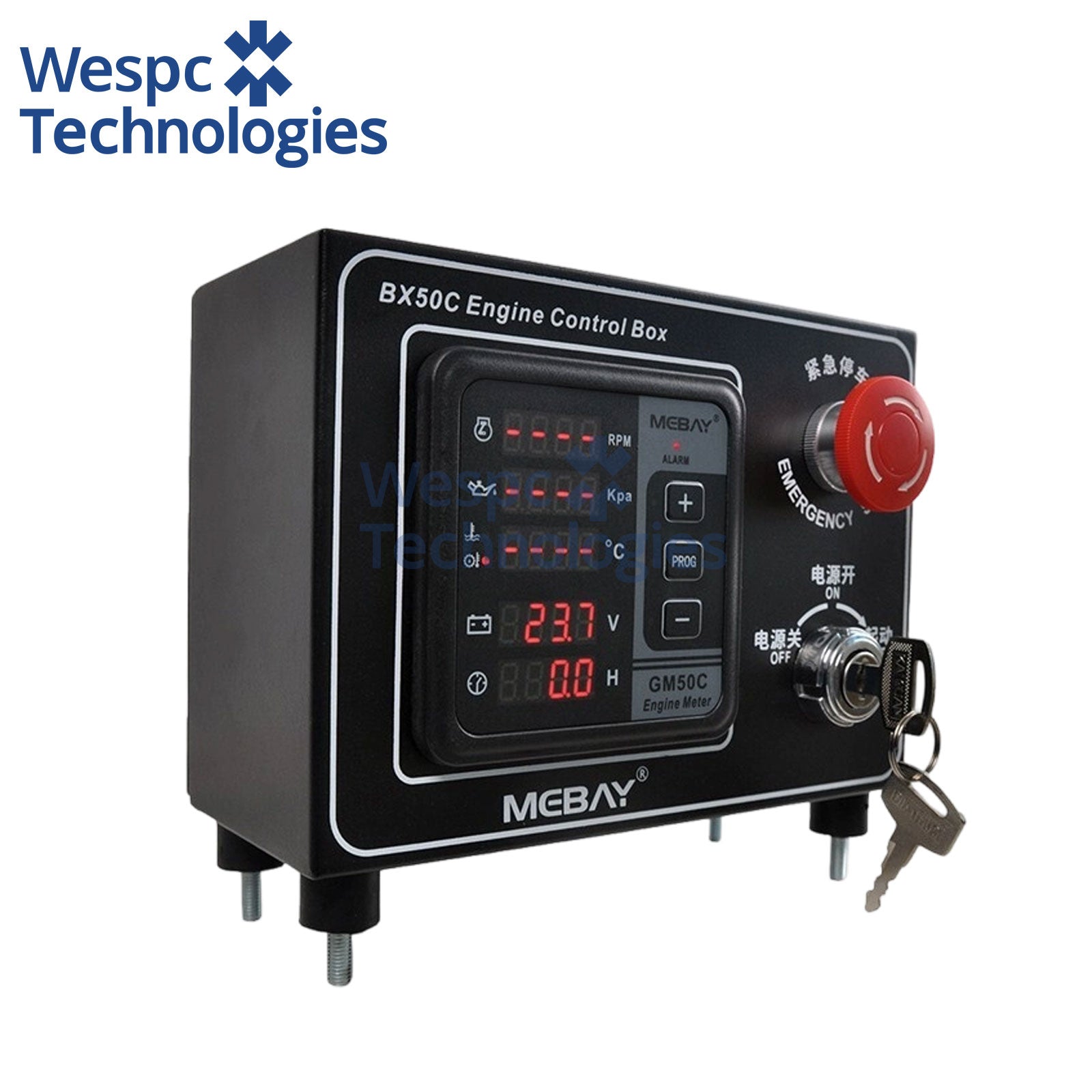

  BX50C is a complete set of control box using GM50C diesel engine multifunctional instrument independently developed by our company. For EFI engine, read engine related parameters through ECU and display alarm fault code. The control box adopts national standard flame retardant cable and CHINT brand switch button, which has the advantages of exquisite workmanship, reliable quality and high price ratio.


2.Features

  5 large LED displays

  Read engine parameters through can interface

  All parameters can be set through the panel keys

  The engine speed can be controlled through the panel keys

  Multiple alarm protection functions

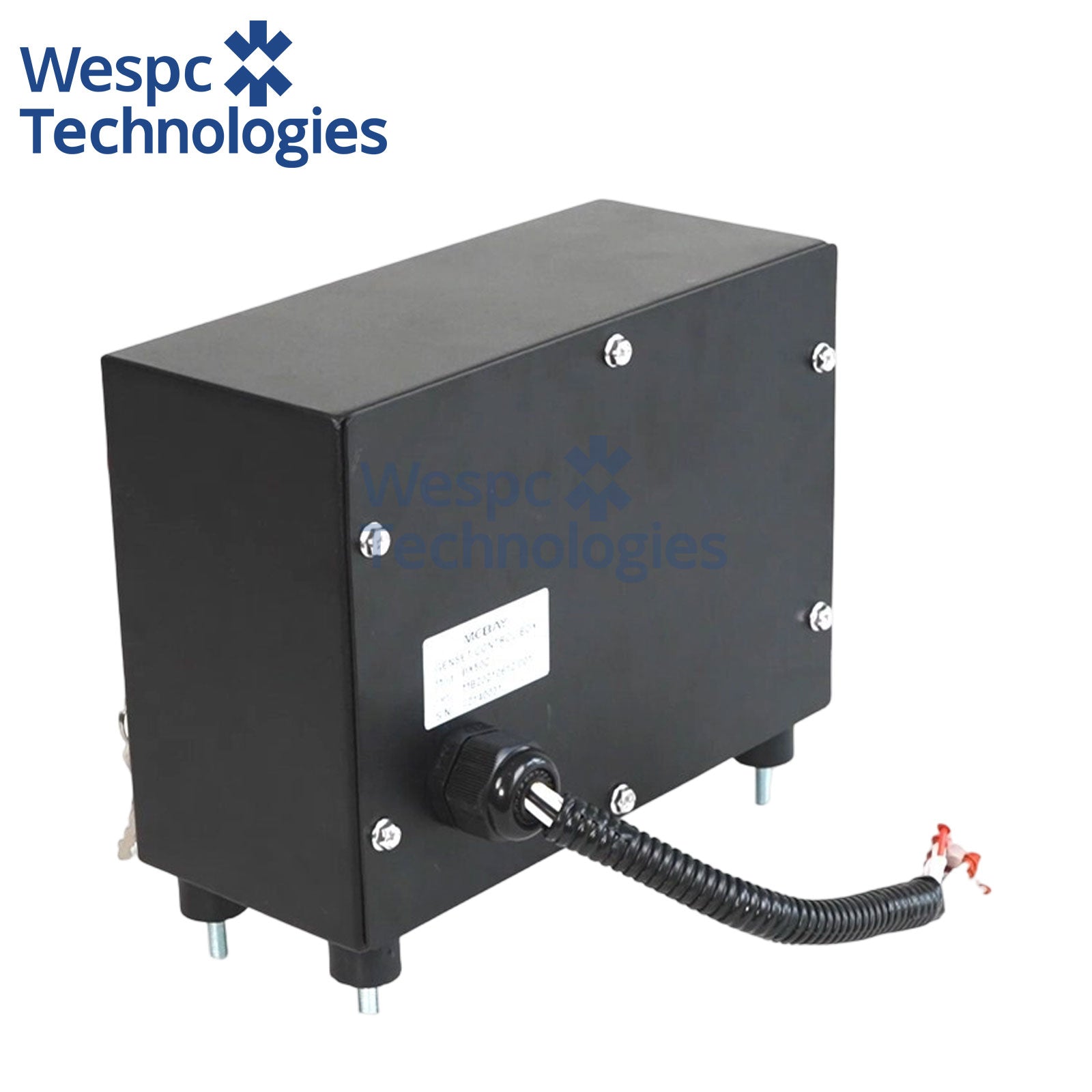

  Waterproof plug output


3.Parameters Display

  Engine RPM

  Engine Oil Pressure

  Engine Oil Temperature

  Engine Cooling Water Temperature

  Battery Voltage

  Accumulation Time.


4.Protections

  Over speed

  Low Oil Pressure

  High Oil Temperature

  High Water Temperature

  Low Battery Voltage

  Emergency stop


5.Specification

  Power：DC 8～36 V

  Consumption power：MAX：1.5 W

  Alarm output: Neg- output, Max DC1A；

  Operation Temperature：-25～65℃；

  Storage Temperature：-40～85℃；

  Ingress protection：IP54（the front face after installation）；

  Size (W * H * D)：210mm * 180mm * 90mm；

  Weight：1.6kg
