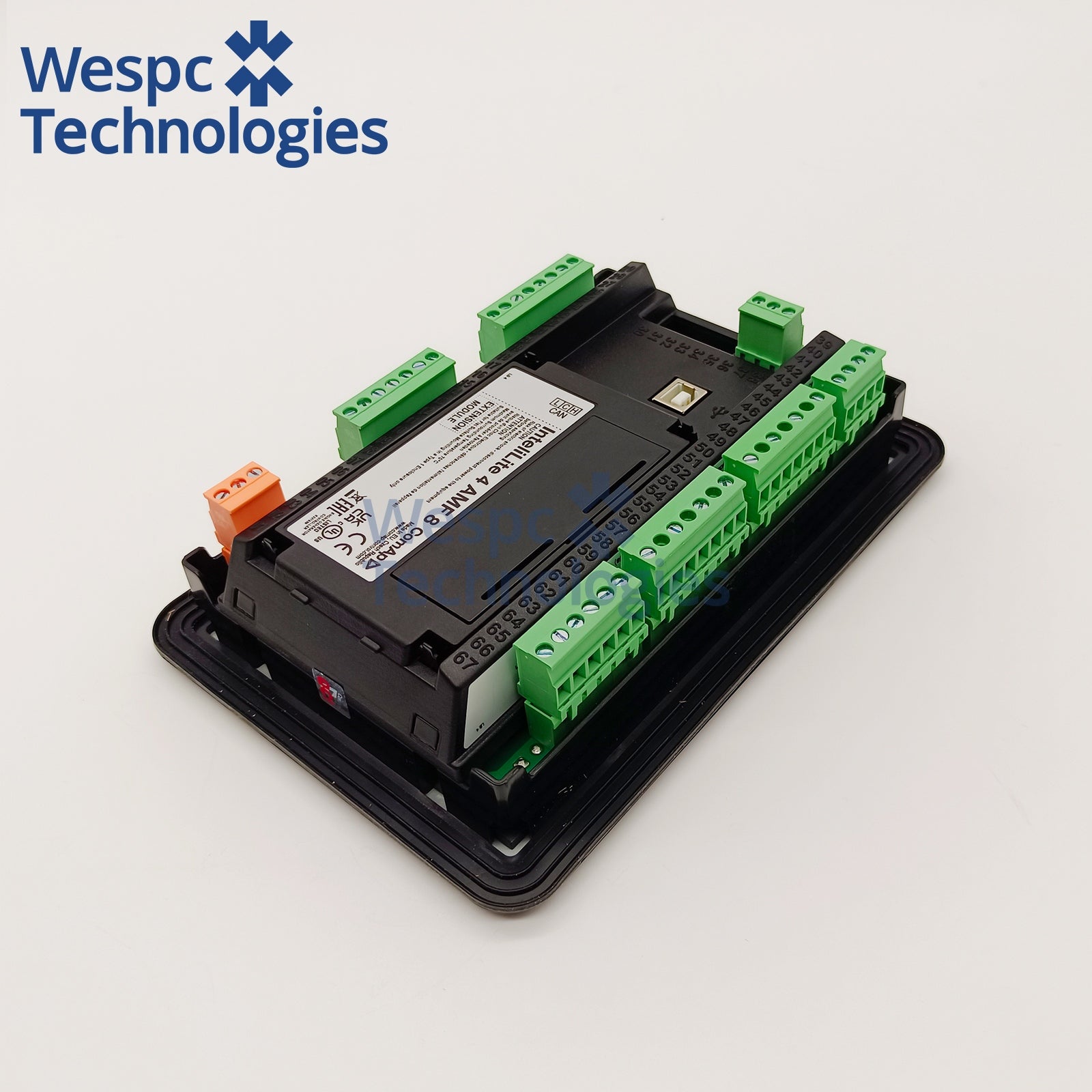

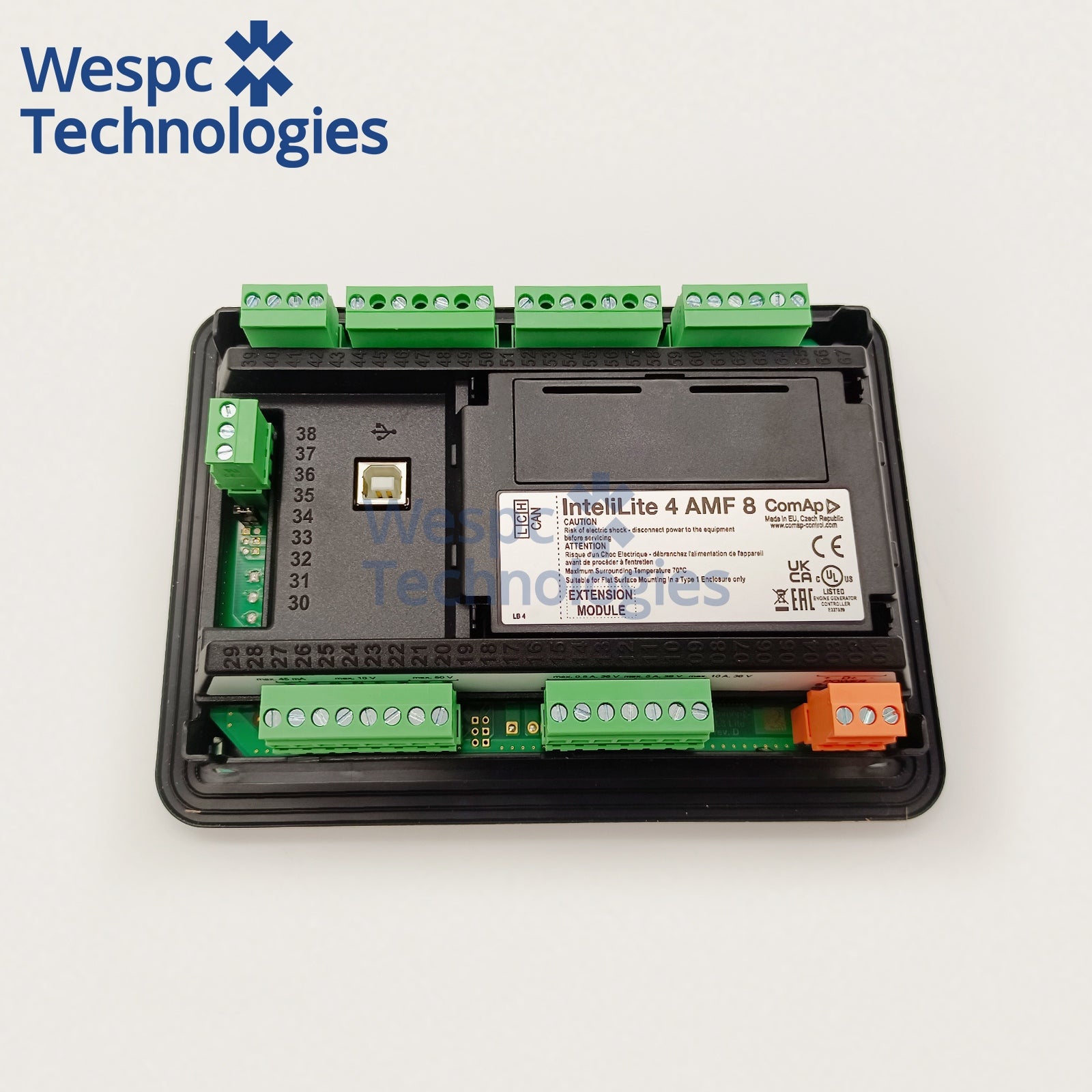

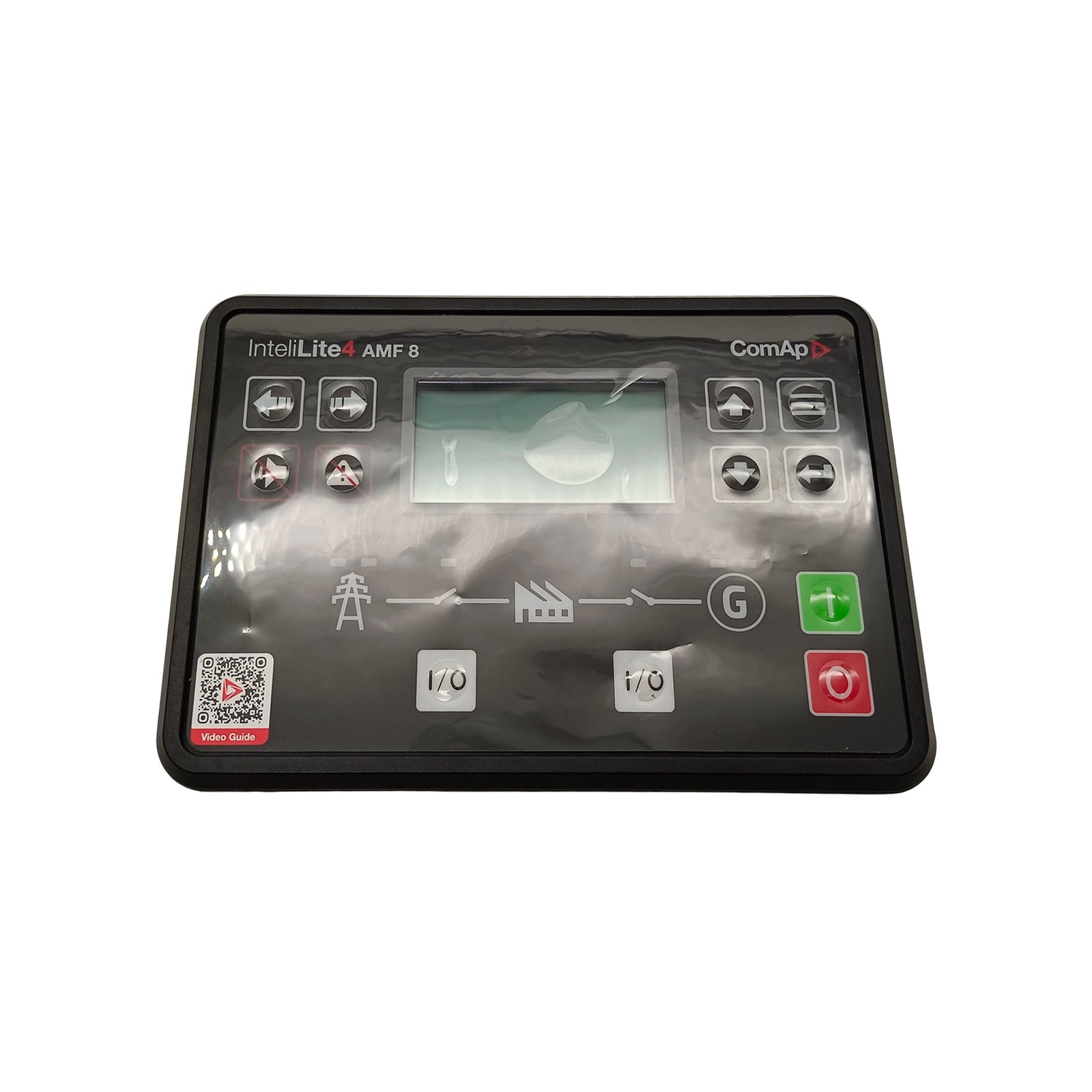

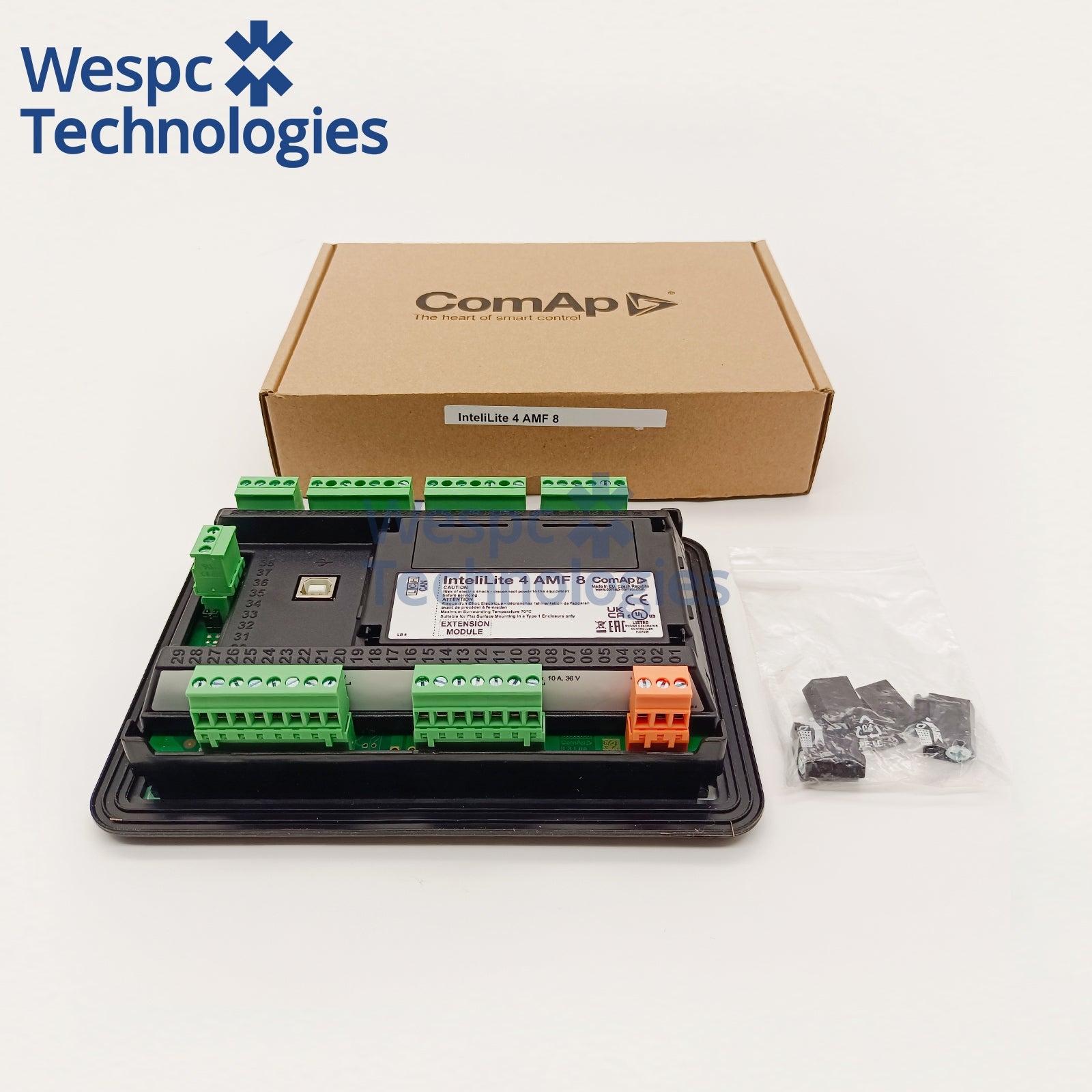

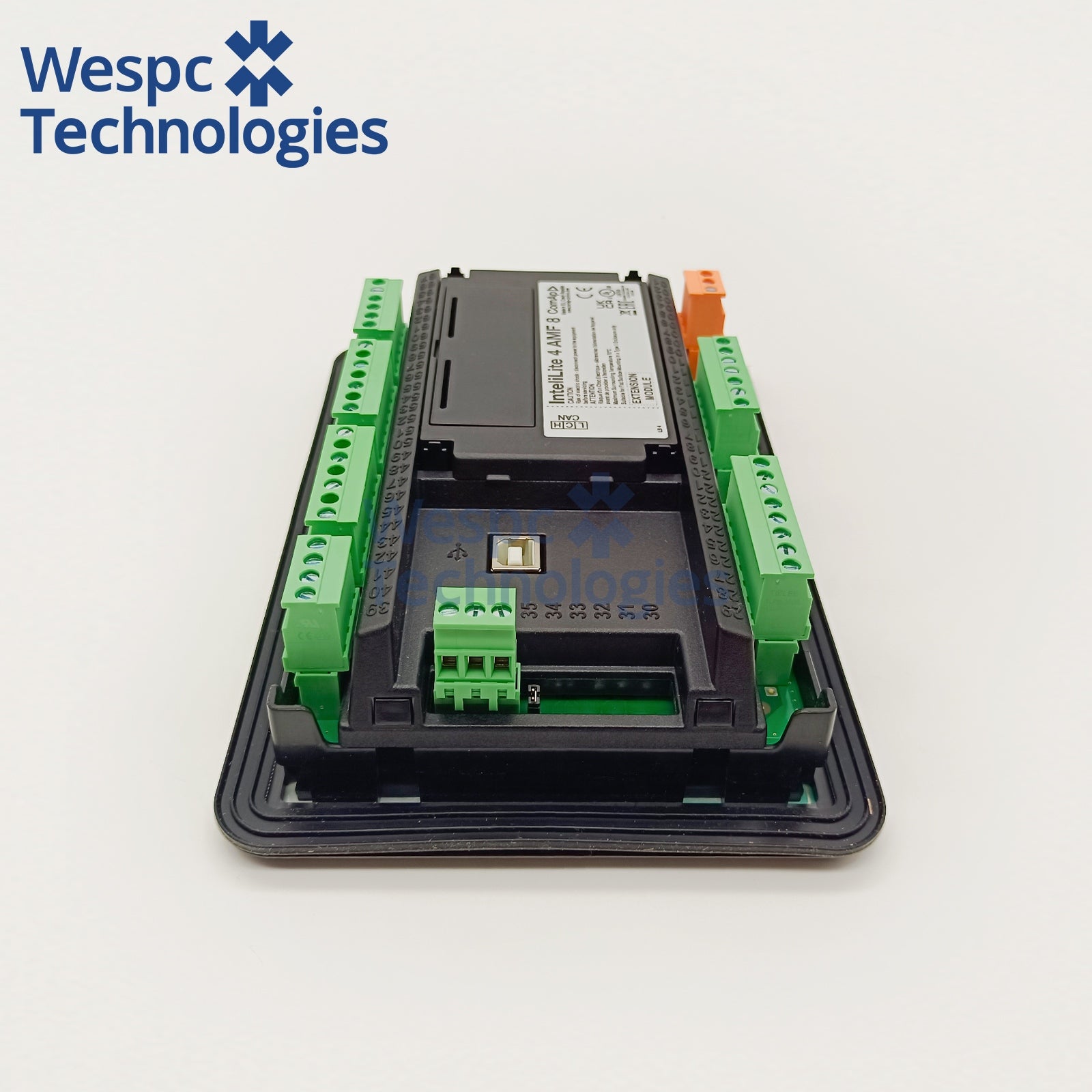

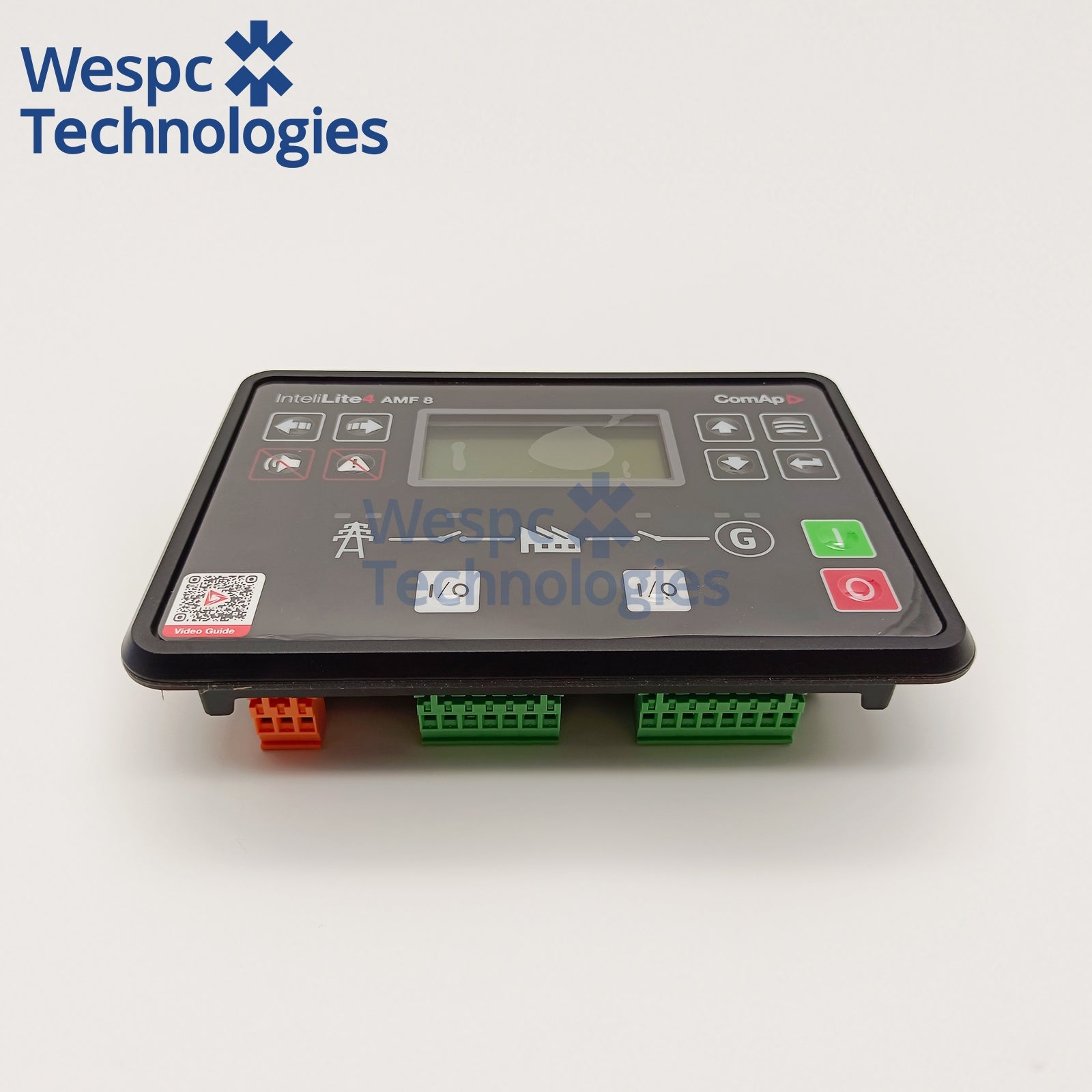

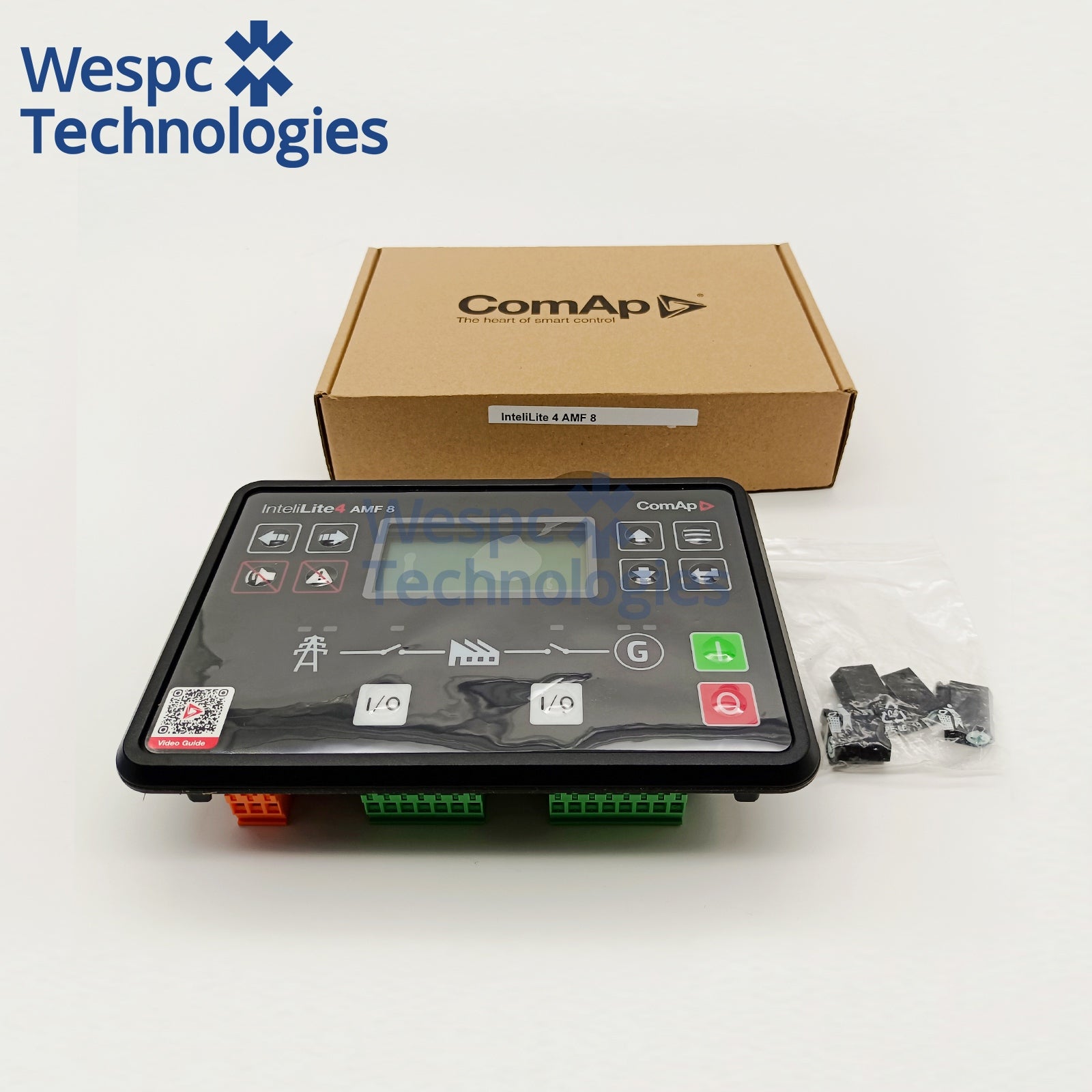

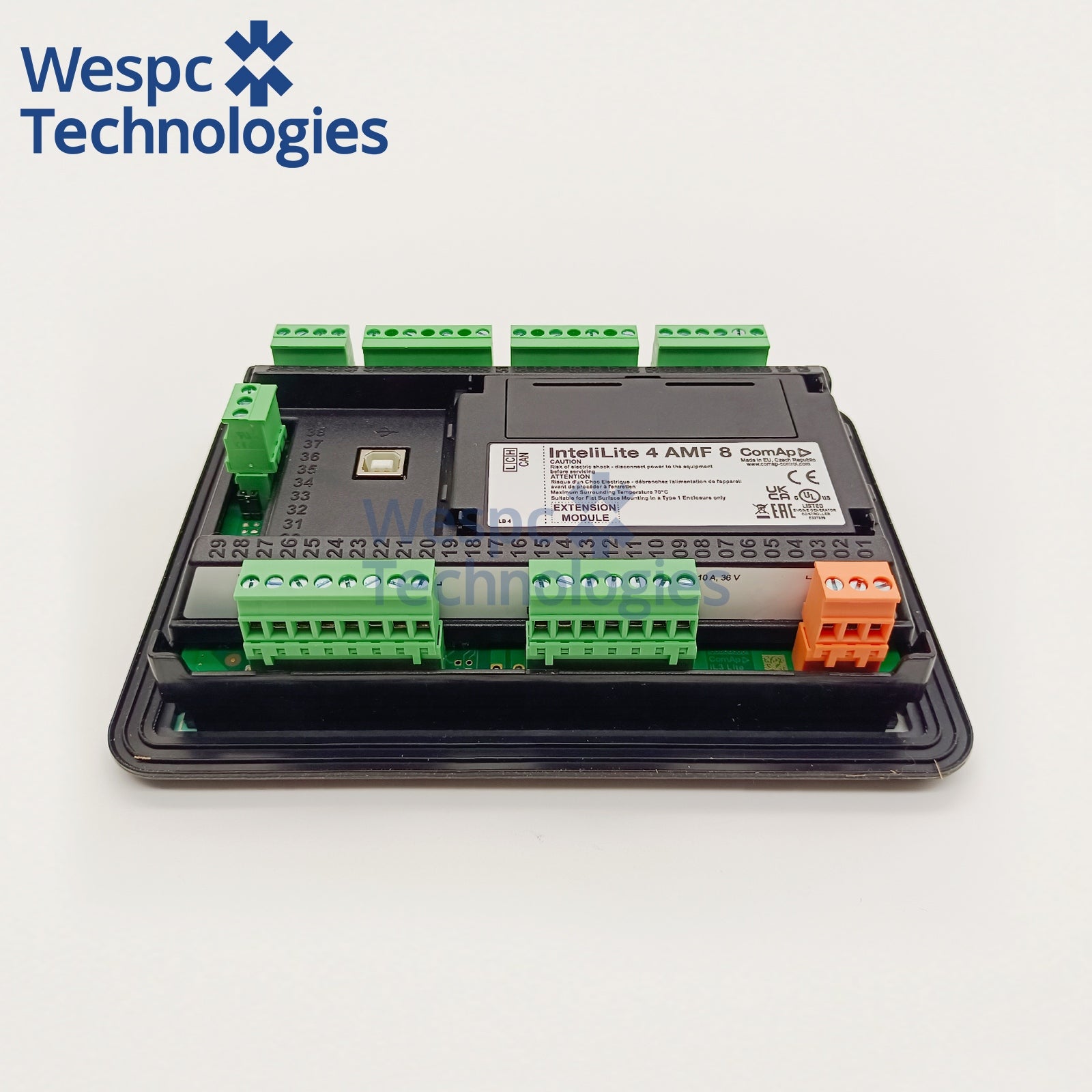

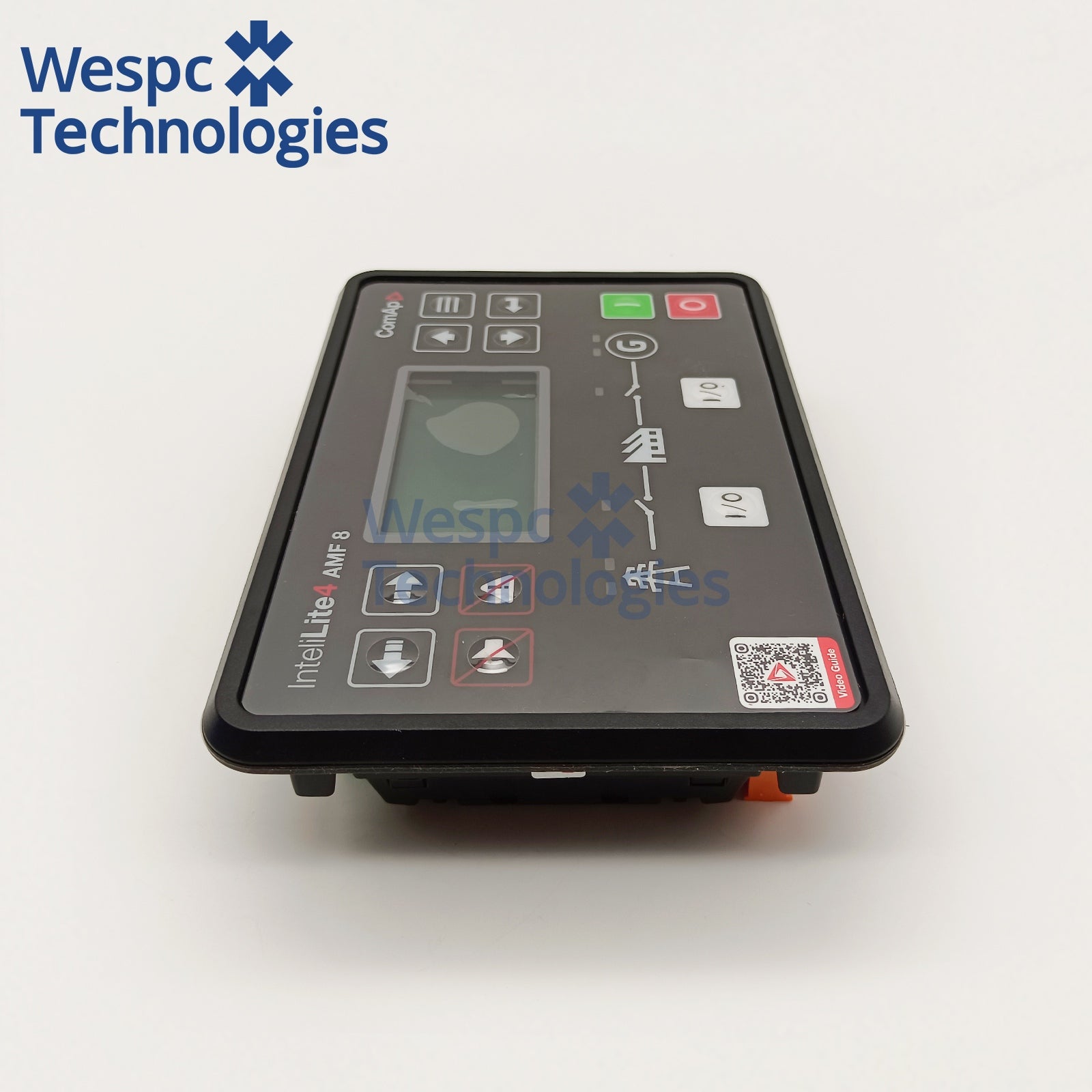

Original ComAp InteliLite 4 AMF8 Automatic Mains Failure Generator Controller IL4AMF8XBAA Single Genset Control Module

Compatible Application Scenarios

• Commercial, industrial, data center, hospital standby diesel generator sets
• Construction site, mining, farm, remote area off-grid prime power units
• Marine vessel, mobile emergency power vehicle generator control system
• Rental genset, logistics warehouse, shopping mall automatic backup power equipment

Key Product Features

1. Original Official ComAp Hardware, Standard AMF+MRS Dual Mode
   Supports both automatic mains failure standby mode and manual prime power continuous operation mode, plug-and-play panel installation, unified industry standard cutout size 172mm×112mm, direct replacement for old ComAp or third-party genset controllers without cabinet modification.

2. Rich I/O & Flexible Analog Signal Collection
   7 digital inputs + 6 relay outputs, 3 multi-type analog inputs (support voltage/current/resistance sensors), reserved +5V reference power for sensor calibration; 2 high-current emergency stop outputs, 1 expansion slot for Modbus, Ethernet, SMS or extended I/O modules, compatible with CAN bus expansion accessories.

3. Built-in PLC Drag-and-Drop Programming Function
   Users can customize control logic via official InteliConfig PC software to realize fuel pump automatic control, regular maintenance reminder, timing start-stop, multi-condition interlock protection and other personalized functions, greatly reducing additional relay wiring cost.

4. Comprehensive Remote Communication & Cloud Monitoring
   Supports Modbus RTU/TCP, SNMP, J1939 ECU communication protocols; realizes remote parameter modification, real-time data viewing, fault SMS/email push through WebSupervisor cloud platform, supports GPS geofencing positioning after installing 4G expansion module.

5. Complete Safety Protection & Detailed Historical Data Log
   Built-in multi-dimensional unit protection functions, stores up to 150 pieces of fault, operation, user login and configuration change historical records; with battery-backed RTC clock, 3 sets of maintenance timing reminders, zero-power standby mode to extend service life.

6. Wide Compatibility for All Types of Diesel Engines
   Native support for Stage V / Tier 4 Final electronically controlled engines via J1939 protocol, compatible with Perkins, Volvo, Cummins, Deutz and other mainstream mechanical & EFI diesel gensets, compatible with various voltage regulators, speed governors and external monitoring sensors.


Common Equipment Failures Solved

• Original controller aging leading to genset failure to auto start/stop when mains power cuts off or recovers
• No real-time voltage, current, frequency, engine temperature, oil pressure data display, unable to judge unit operating status
• Lack of overspeed, low oil pressure, high temperature protection causing engine cylinder pulling, bearing burnout and scrapping
• No fault record function, difficult to locate intermittent shutdown, abnormal alarm hidden troubles
• Cannot realize remote centralized management for multiple gensets, requiring on-site manual inspection regularly
• Traditional controller without programmable function, unable to realize automatic maintenance reminder and complex interlock control
