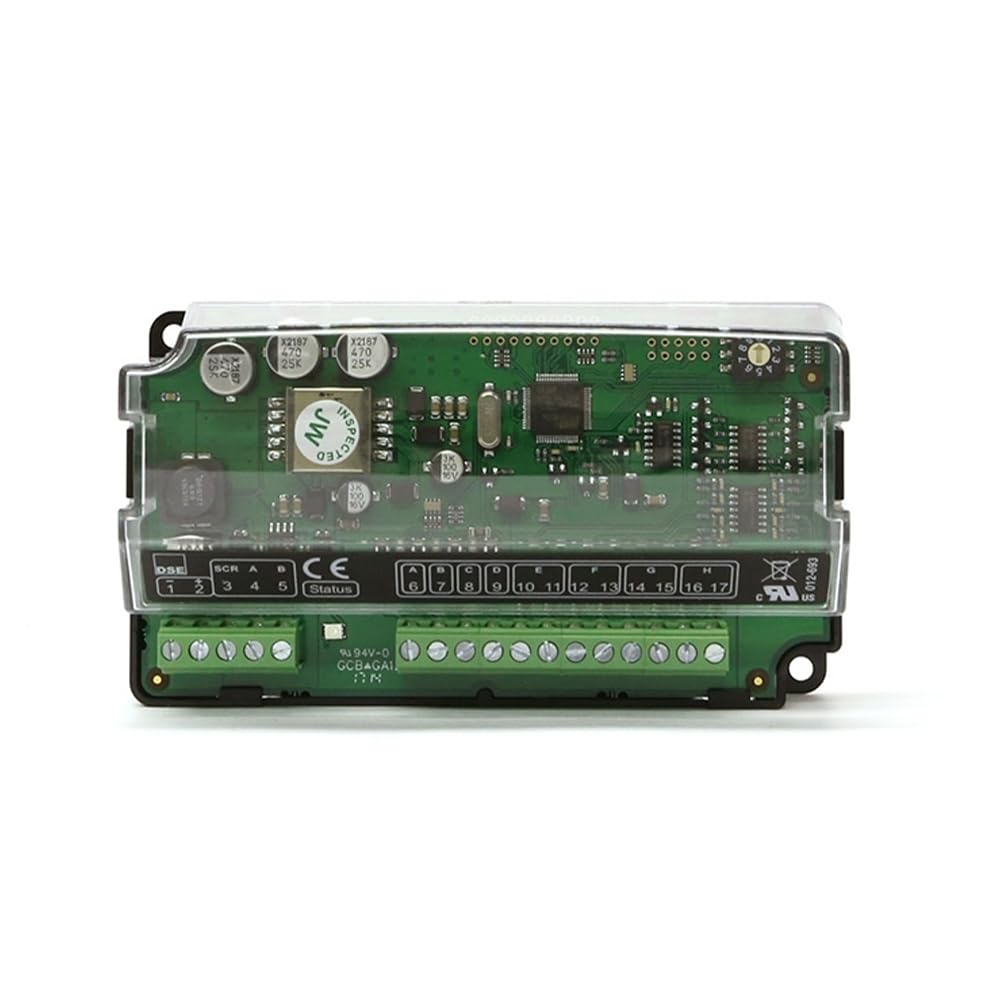

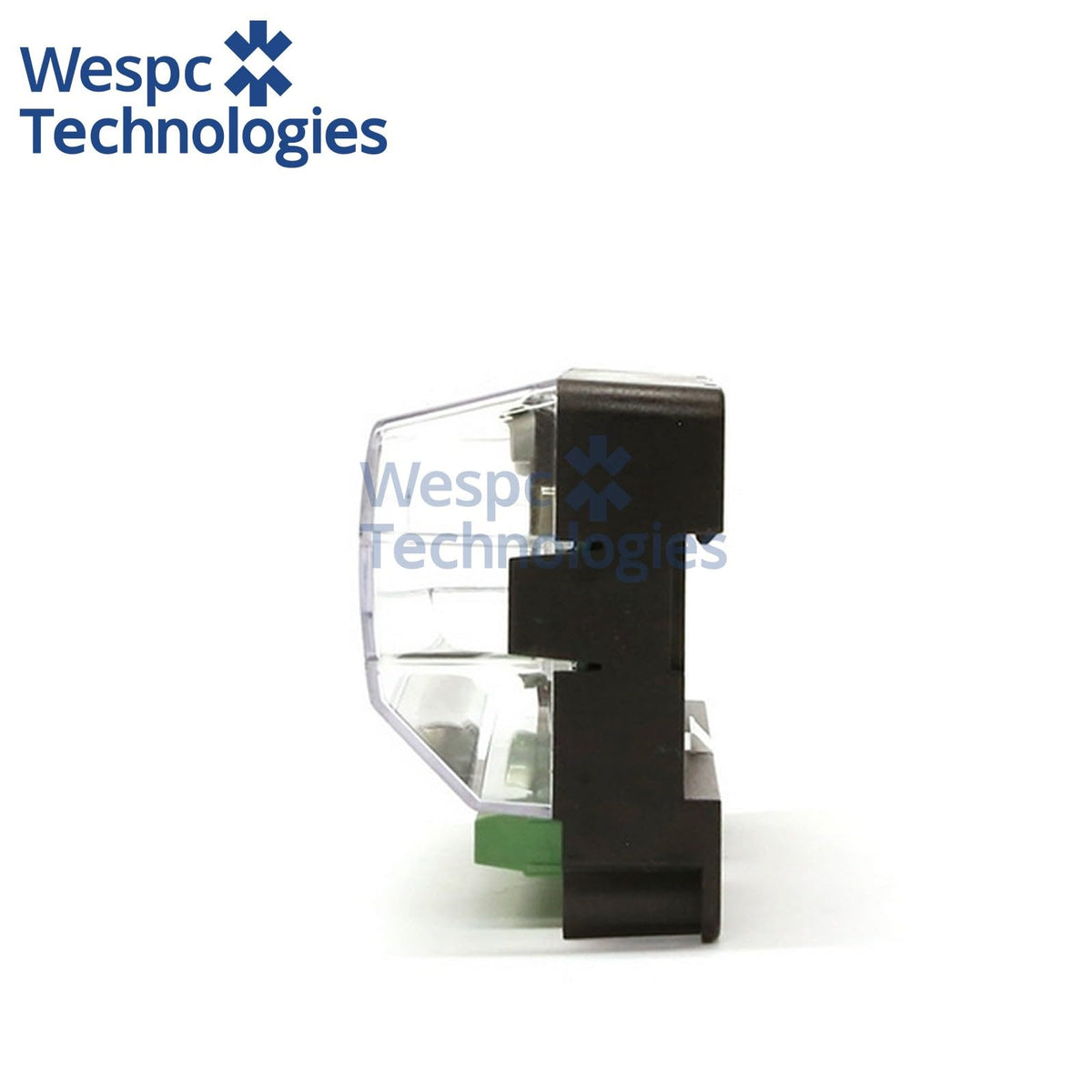

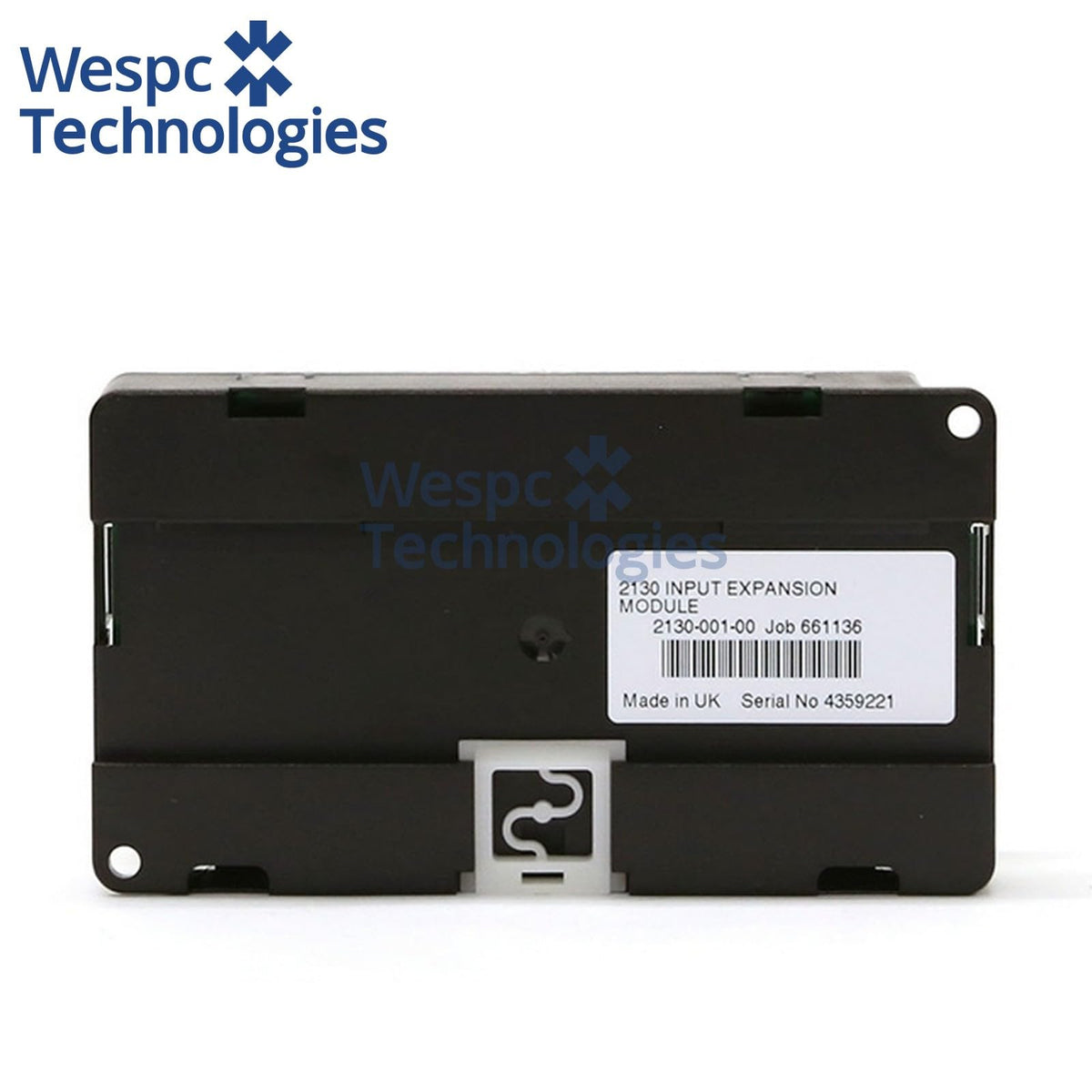

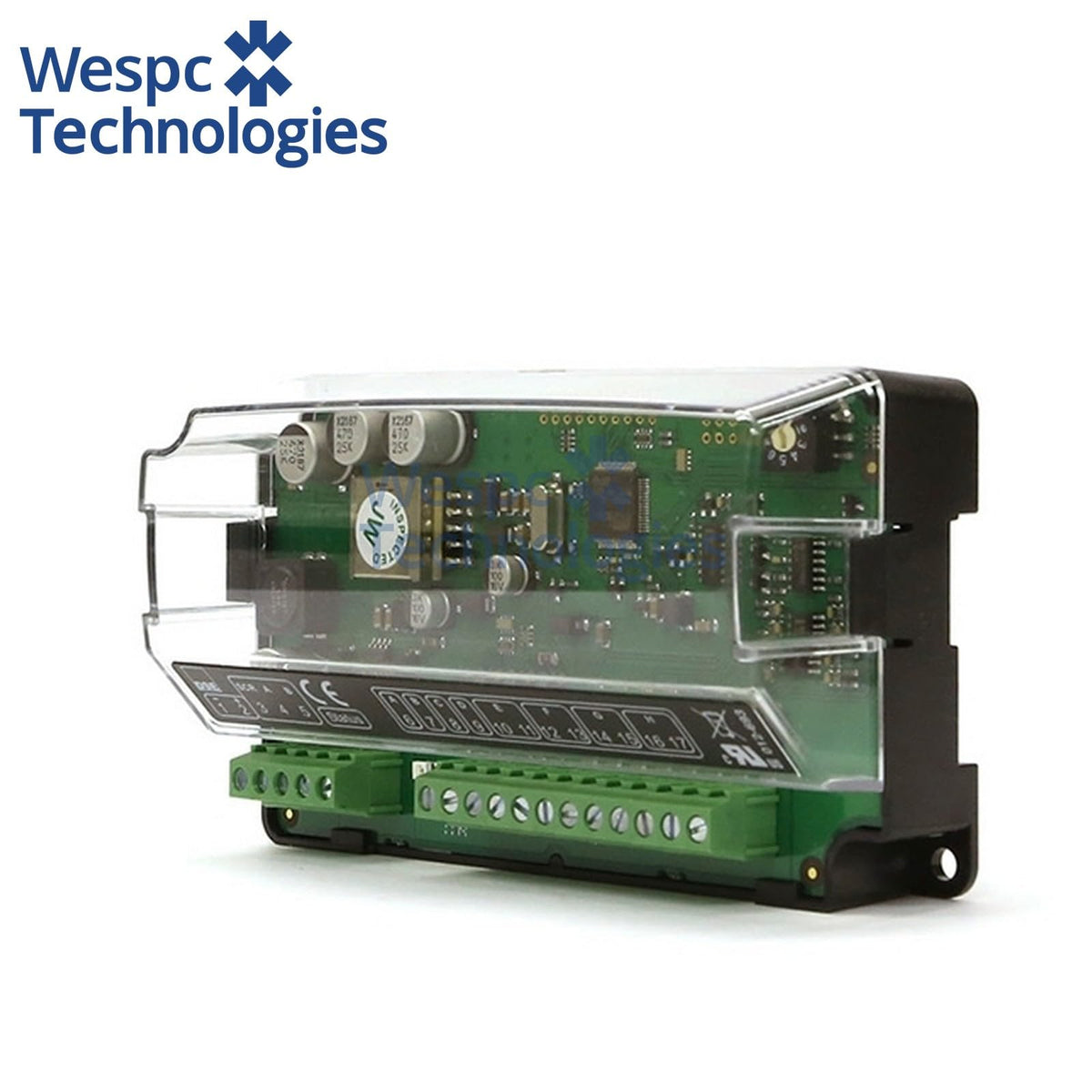

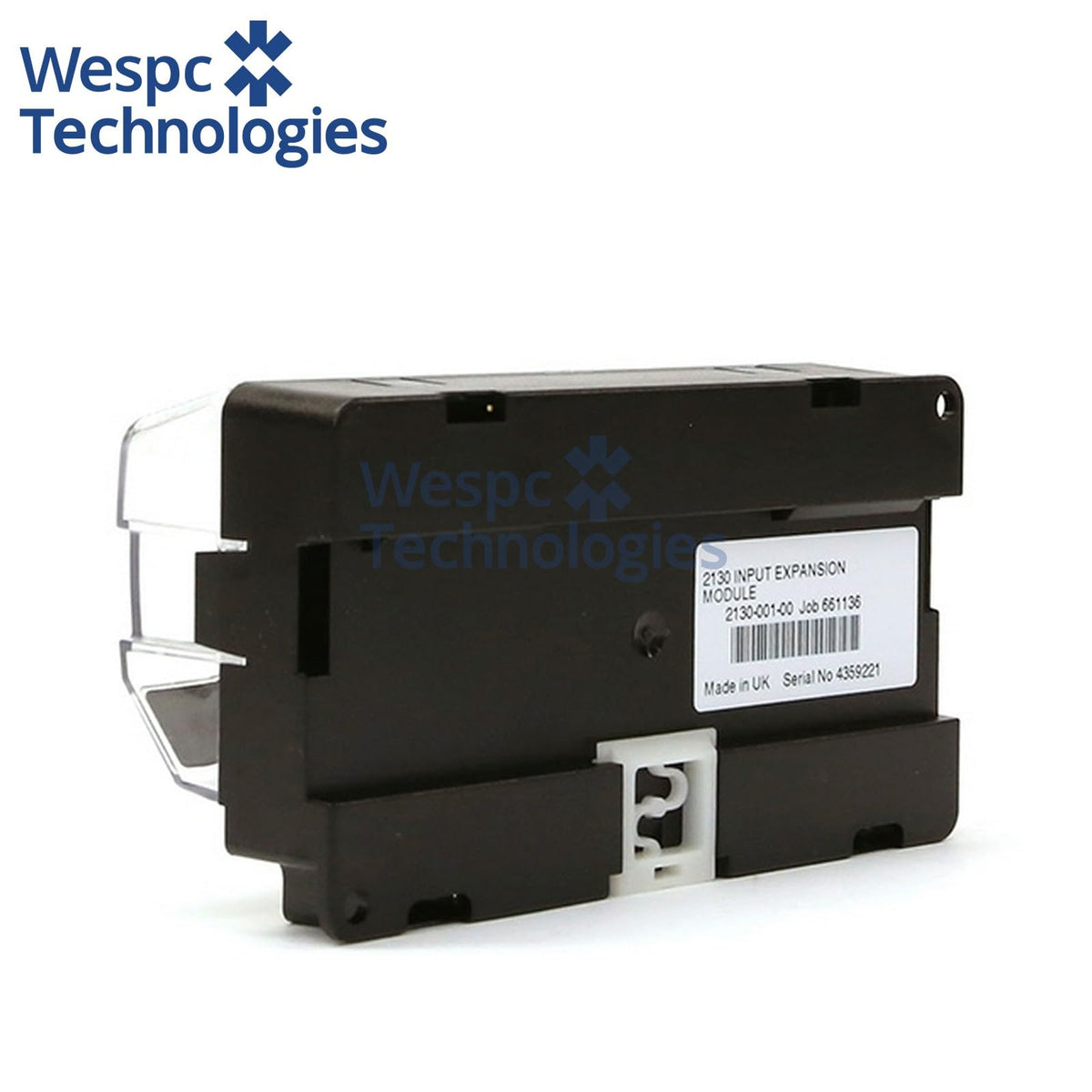

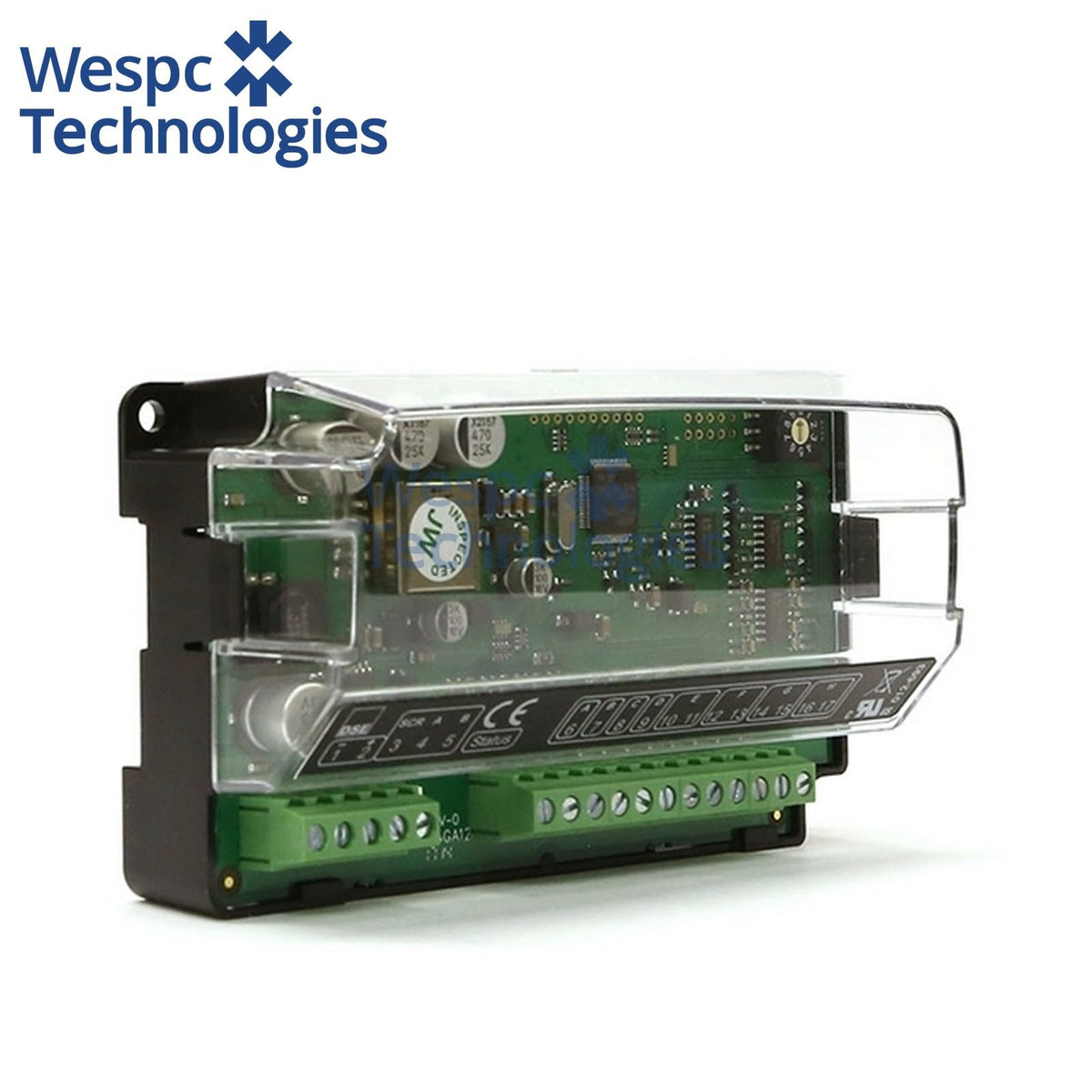

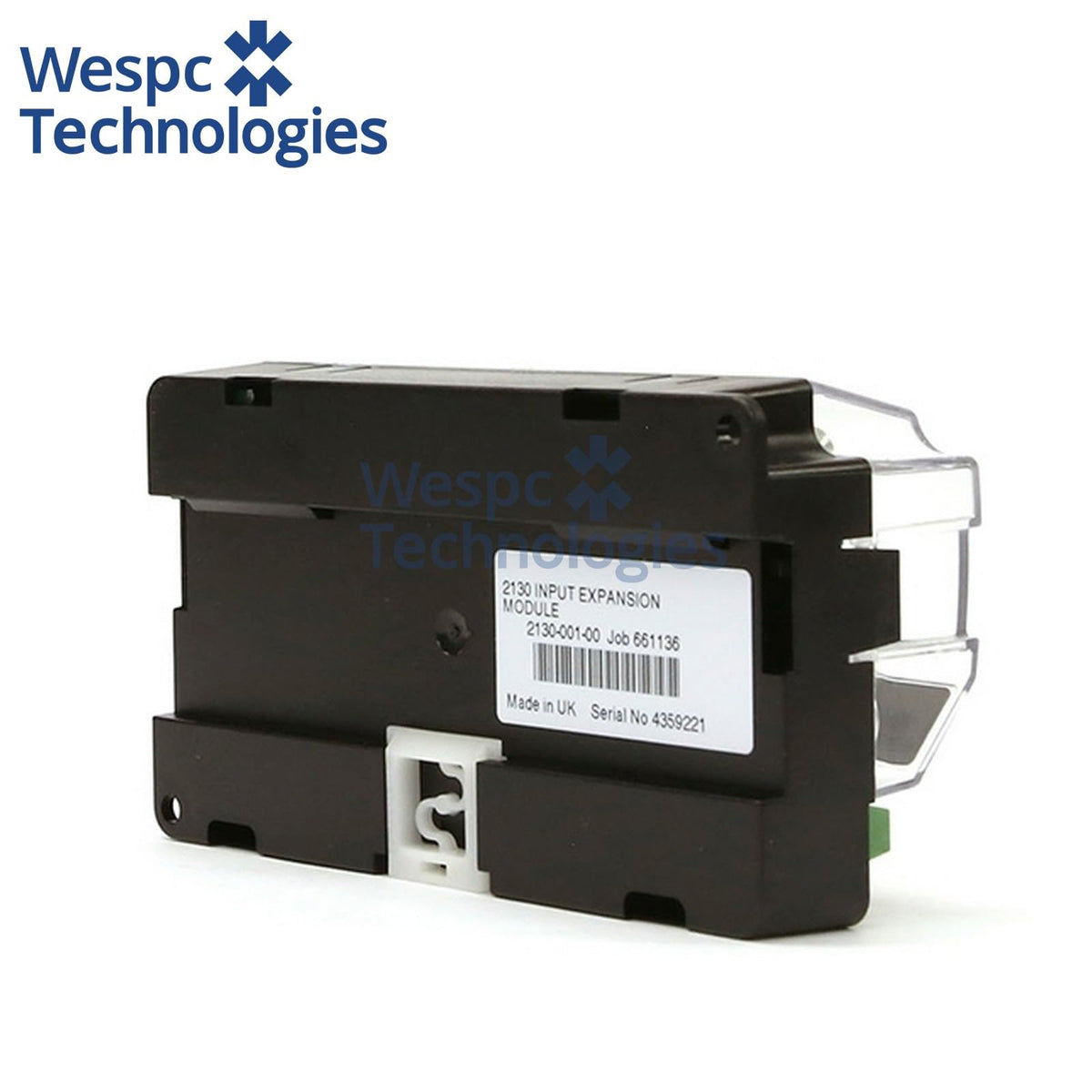

Original Deep Sea DSE2130 DSENet Input Expansion Module for Genset Controller

Overview
The DSE2130 is an input expansion module providing 8 additional inputs to the control module.  Four of these can be configured for use as analogue inputs.  Up to 4 x DSE2130 modules can be linked together to provide up to 32 additional inputs.

Specification

• Model: DSE2130, Part No: 2130-00
• Brand: Deep Sea Electronics (DSE), Original
• Type: DSENet Input Expansion Module
• Input: 4 configurable ratiometric analogue inputs + 4 dedicated digital inputs
• Communication: DSENet®
• Power Supply: 8V – 35V DC continuous, reverse polarity protected
• Dimension: 134 mm × 76 mm × 49 mm (5.3” x 3.0” x 1.9”)
• Weight: 0.18 kg
• Compatible Controllers: DSENet enabled DSE6110, DSE6120, DSE7310, DSE7320, DSE8610 MKII, DSE8620 MKII etc.
• Application: Genset resistive sensor monitoring, engine parameter collection, fire pump control cabinet, marine engine monitoring, OEM genset integration
• Warranty: 12 months genuine factory warranty

PRODUCT VARIANTS: 2130-00 - 2130 Input Expansion Modul
