Original Deep Sea DSE8004 Automation Controller Diesel Generator 10" Graphical Colour Multi-Set Remote Overview Display

Original Deep Sea DSE8004 Automation Controller Diesel Generator 10" Graphical Colour Multi-Set Remote Overview Display

$3,120.00 USD
$0.00 USD $3,120.00 USD
أُوكَازيُون نفذ
يتم احتساب الشحن عند الخروج.
Genuine Deep Sea DSE8004 10 Inch Colour Overview Display Module Multi-Genset Remote Touch Display for DSEGenset Controllers

Overview:

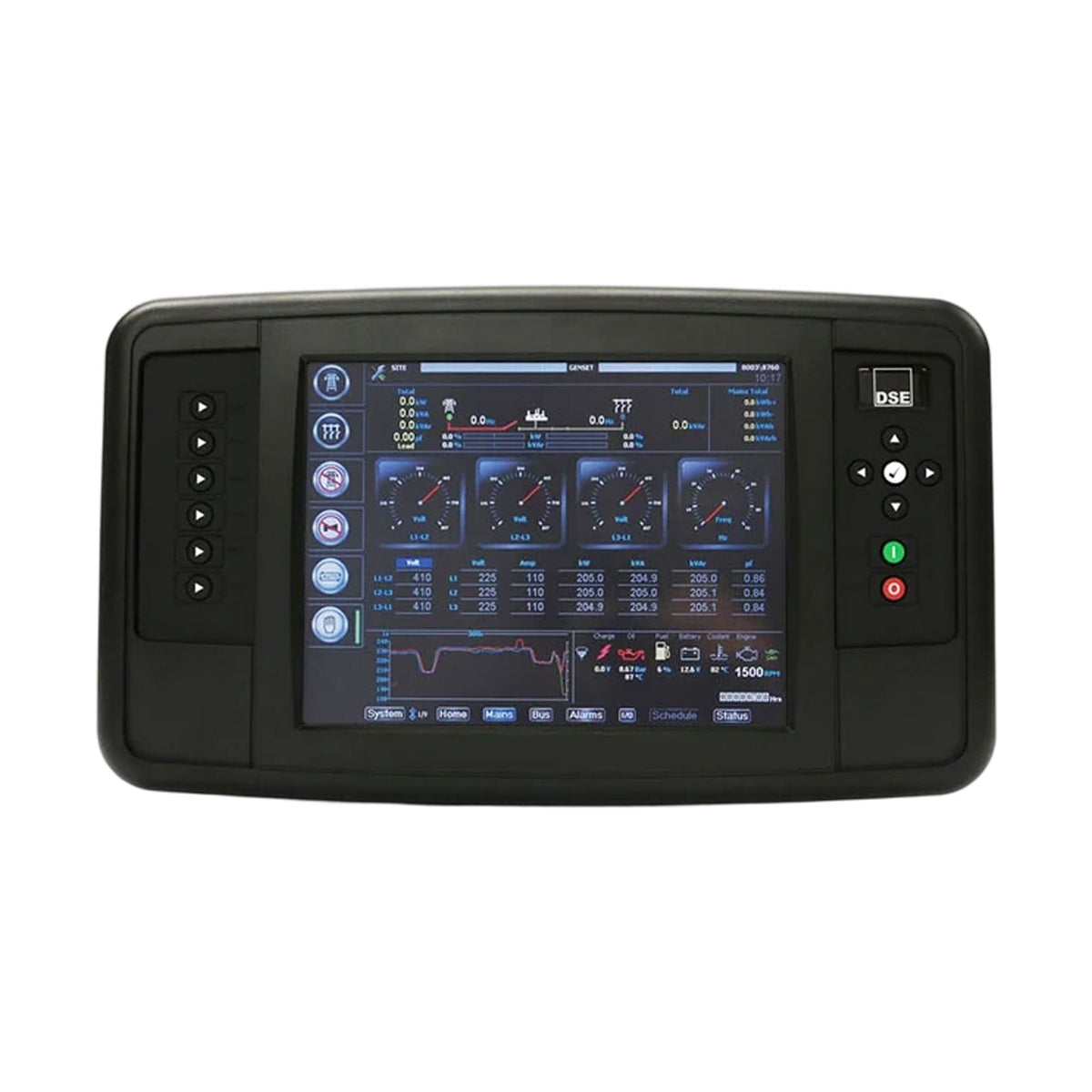

The DSE8004 is a full colour 10” graphical remote overview display. It has been designed to seamlessly integrate with DSE86xx and DSE87xx load share control modules. Using an RS485 link a single overview display can be connected to multiple control modules over a maximum distance of 1.2km.


Specification

  • Model: DSE8004
  • Brand: Deep Sea Electronics (DSE), Series: DSEGenset
  • Type: 10.4" Colour TFT Central Overview Display / HMI Panel
  • Display: 10.4" TFT colour screen, resolution 800 × 600
  • Power Supply: 8V – 35V DC continuous, reverse polarity protected
  • Communication: DSENet®, RS232, RS485 Modbus RTU, USB host, USB slave
  • Core Function: Multi-genset central graphical monitoring, remote start/stop, breaker operation, alarm acknowledge, custom single-line diagram, controller parameter access
  • Panel Cut-out: 359 mm x 204 mm
  • Overall Dimension: 397 mm x 232 mm x 42 mm
  • Compatible Controllers: DSE8610 MKII, DSE8620 MKII, DSE8660 MKII, DSE8680
  • Application: Multi genset parallel power station, central control cabinet, critical backup power monitoring system
  • Warranty: 12 months genuine factory warranty
