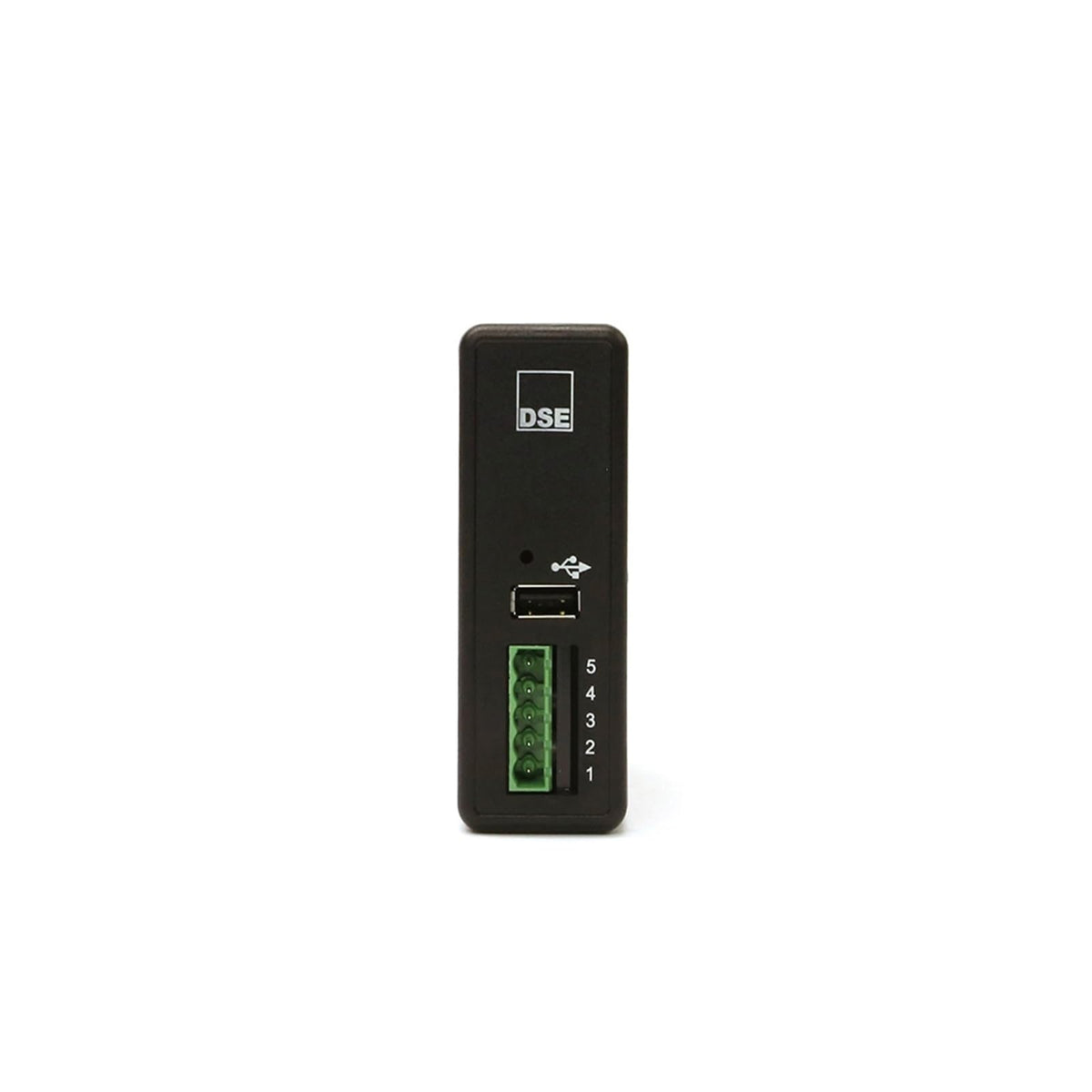

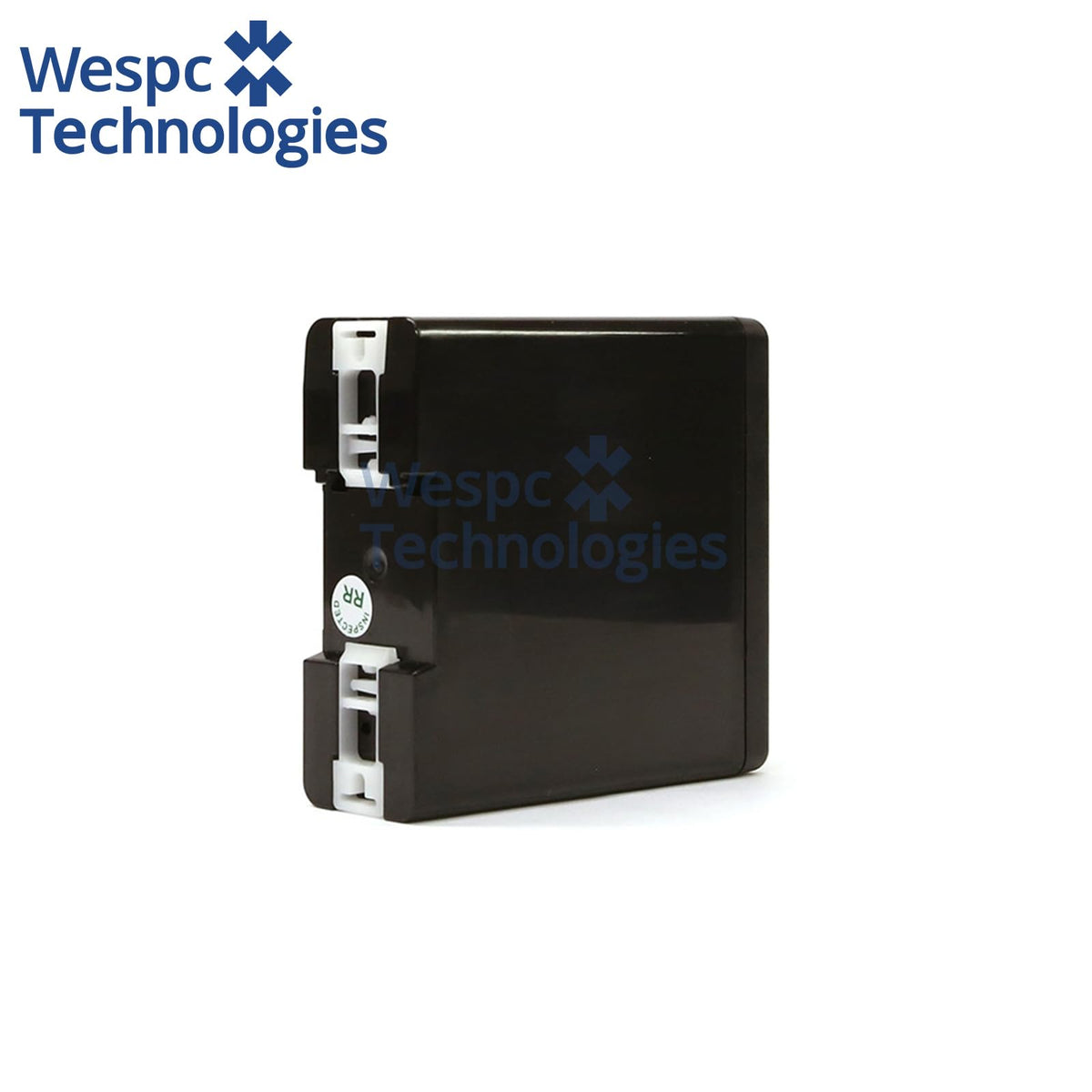

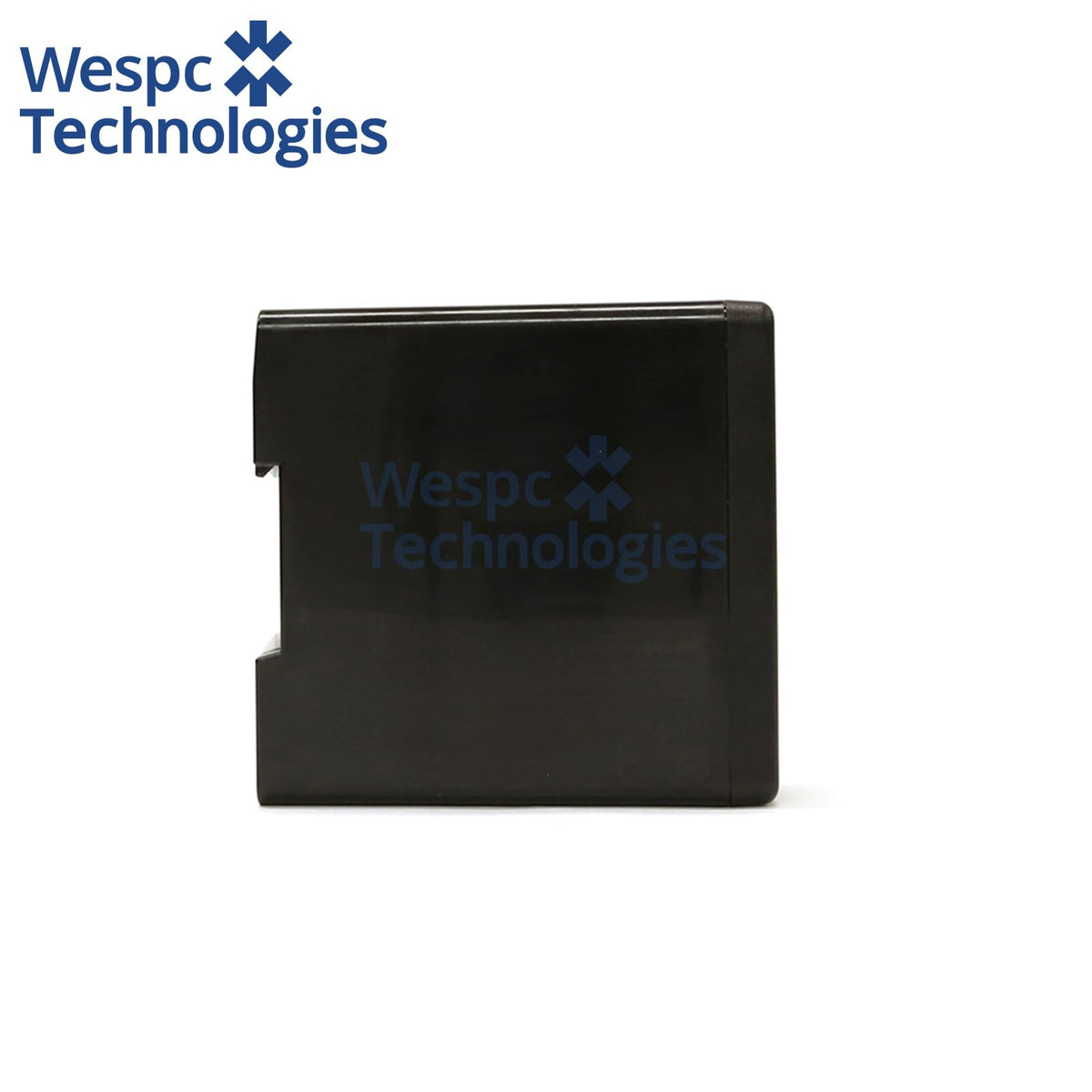

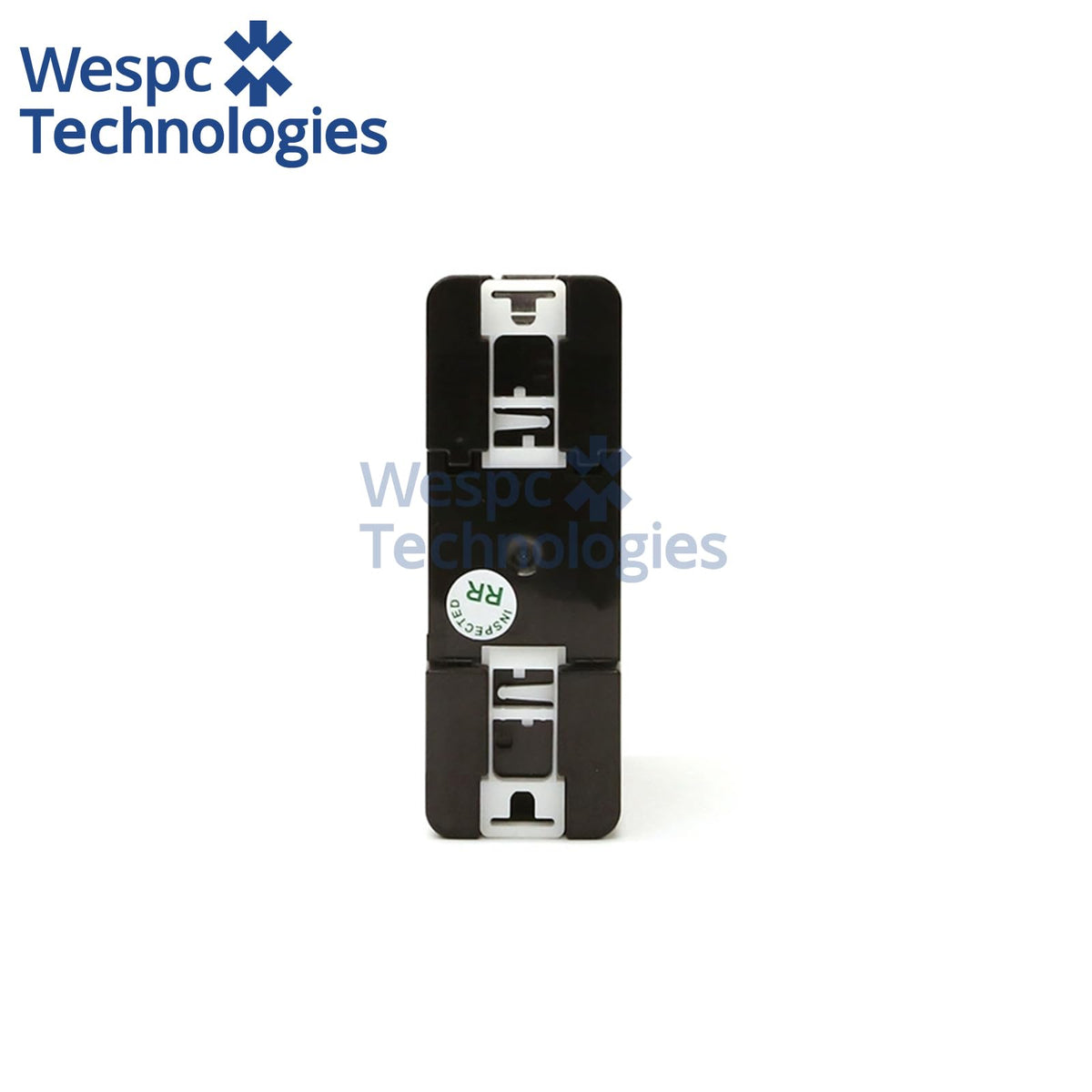

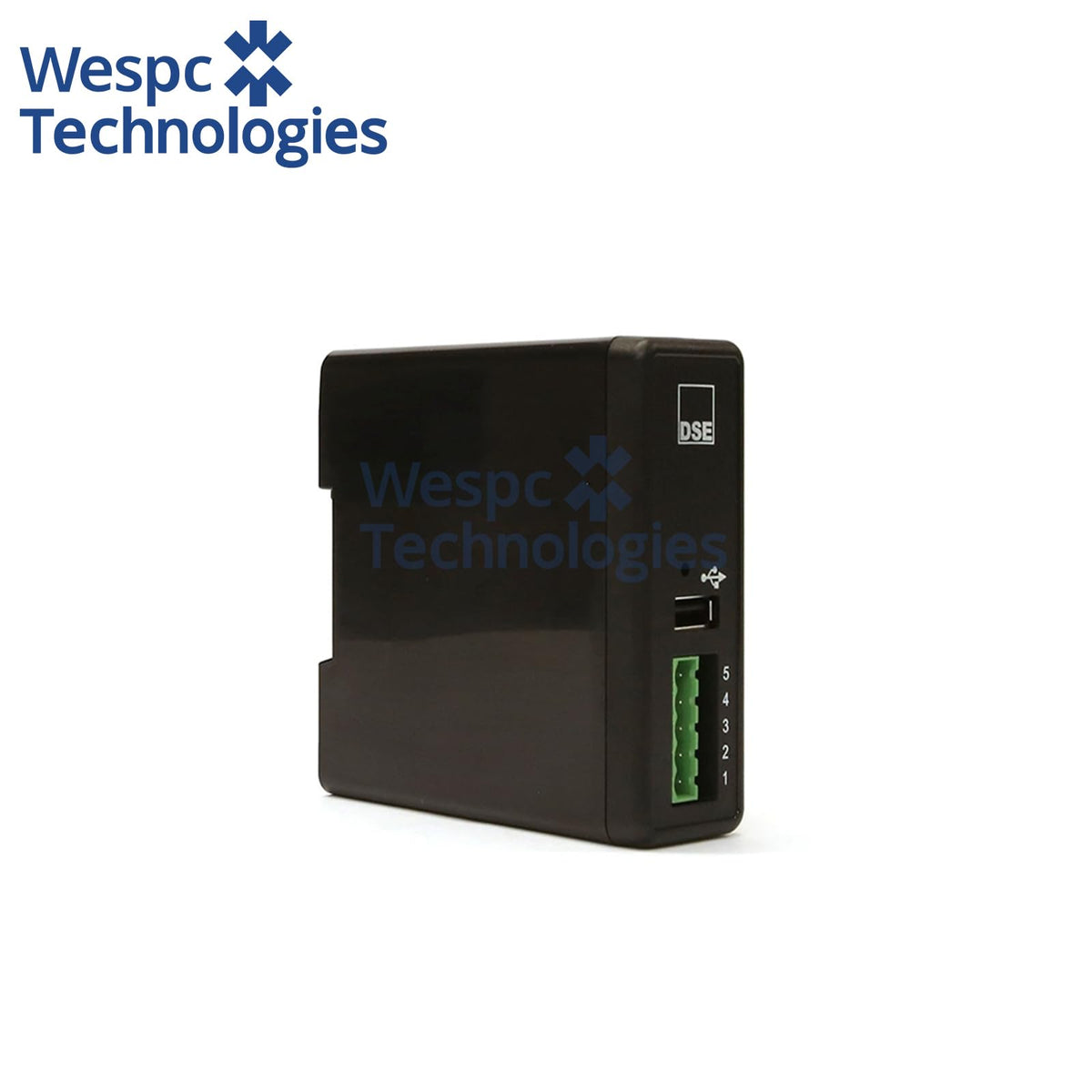

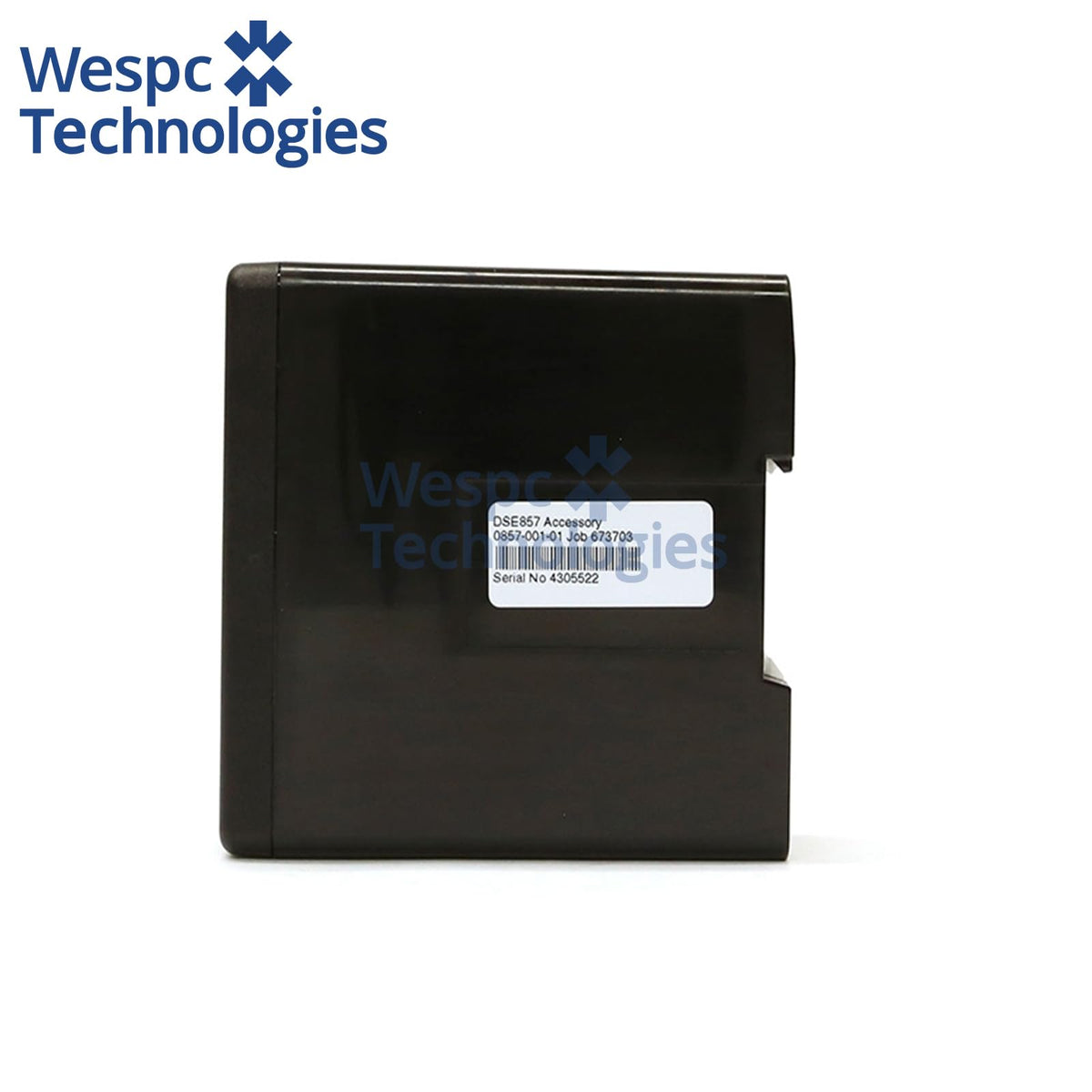

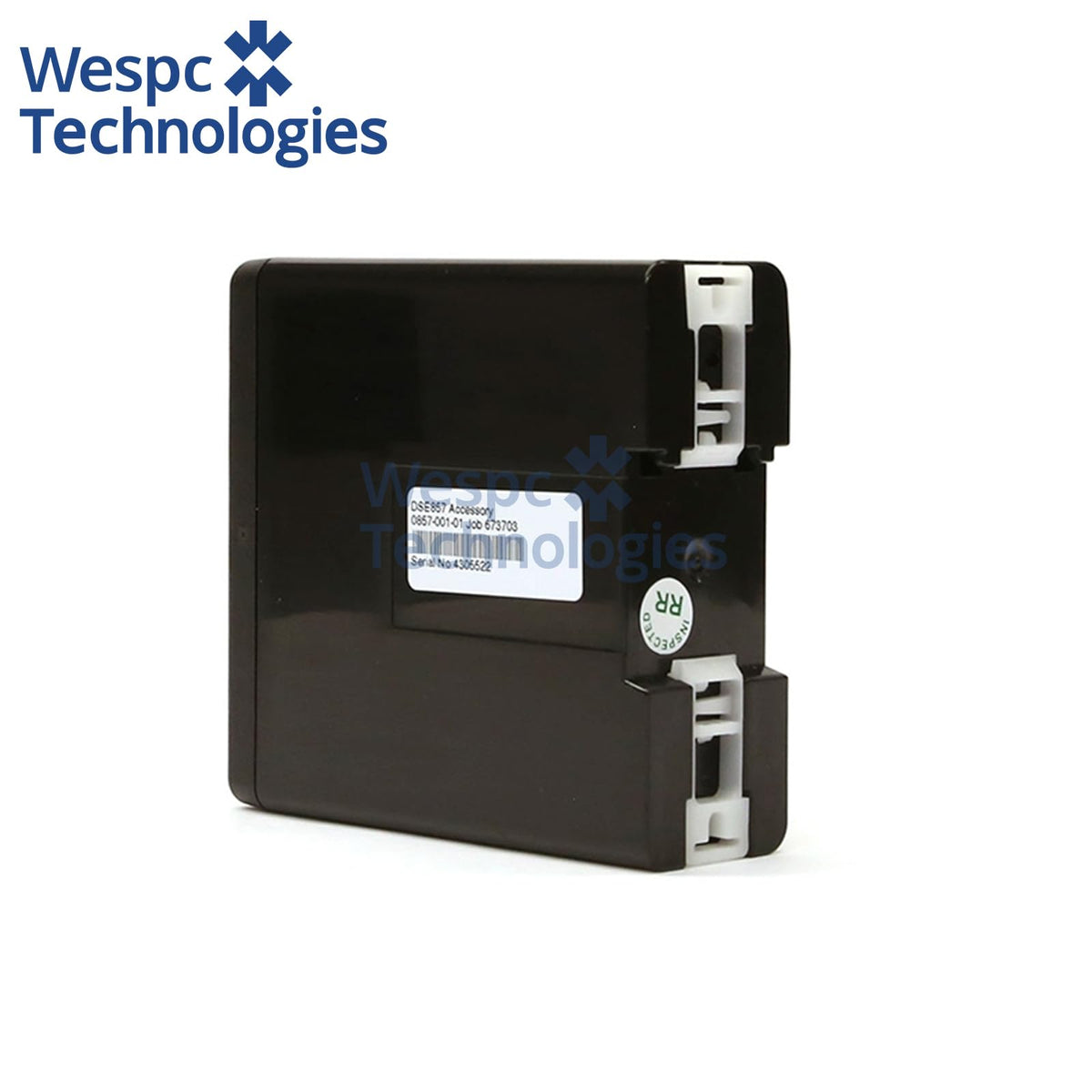

Original Deep Sea DSE857 USB to RS485 Modbus RTU Communications Converter Module

Original Deep Sea DSE857 USB to RS485 Modbus RTU Communications Converter Module

$310.00 USD
$510.00 USD $310.00 USD
أُوكَازيُون نفذ
يتم احتساب الشحن عند الخروج.
Genuine Deep Sea DSE857 USB to RS485 Modbus RTU Communication Gateway 0857-01 Converter Module for DSE Genset Controllers

Overview:
The DSE857 communications device allows monitoring of a single DSE controller with USB connectivity by converting it to an RS485 connection. To achieve this the DSE857 connects to an RS485 MODBUS RTU master over 1.2km away. The MODBUS RTU master can be an external PLC, Building Management System (BMS) or a Windows PC running the DSE Configuration Suite Software.


Specification

  • Model: DSE857 (0857-01)
  • Brand: Deep Sea Electronics (DSE)
  • Type: USB to RS485 Modbus RTU Communications Converter
  • Interface: USB B for controller, RS485 terminal block
  • Power Supply: 8V – 35V DC continuous, reverse polarity protected
  • Dimension: 35 mm × 97 mm × 102 mm (1.4” x 3.8” x 4.0”)
  • Weight: 0.16 kg
  • Operating Temp: -30°C ~ +70°C
  • Compatible Controllers: DSEL401 MKII, DSE4310, DSE4410, DSE4510, DSE6110, DSE6120, DSE7310, DSE7320, DSE8610 MKII, DSE8620 MKII etc.
  • Application: Genset BMS integration, PLC Modbus connection, remote generator monitoring, standby power SCADA
  • Warranty: 12 months genuine factory warranty
PRODUCT VARIANTS: 0857-01 - 857 USB to RS485 Communications Device
