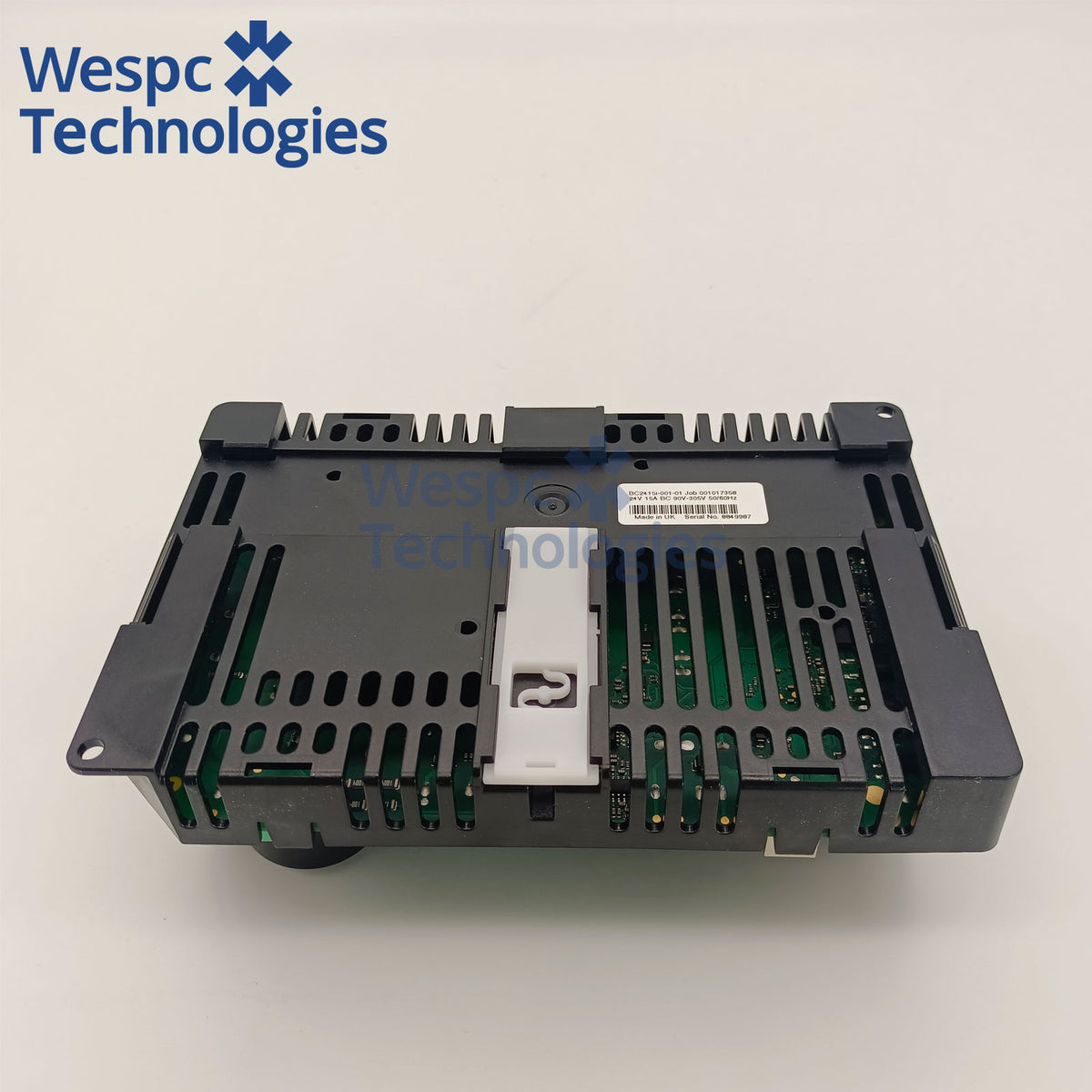

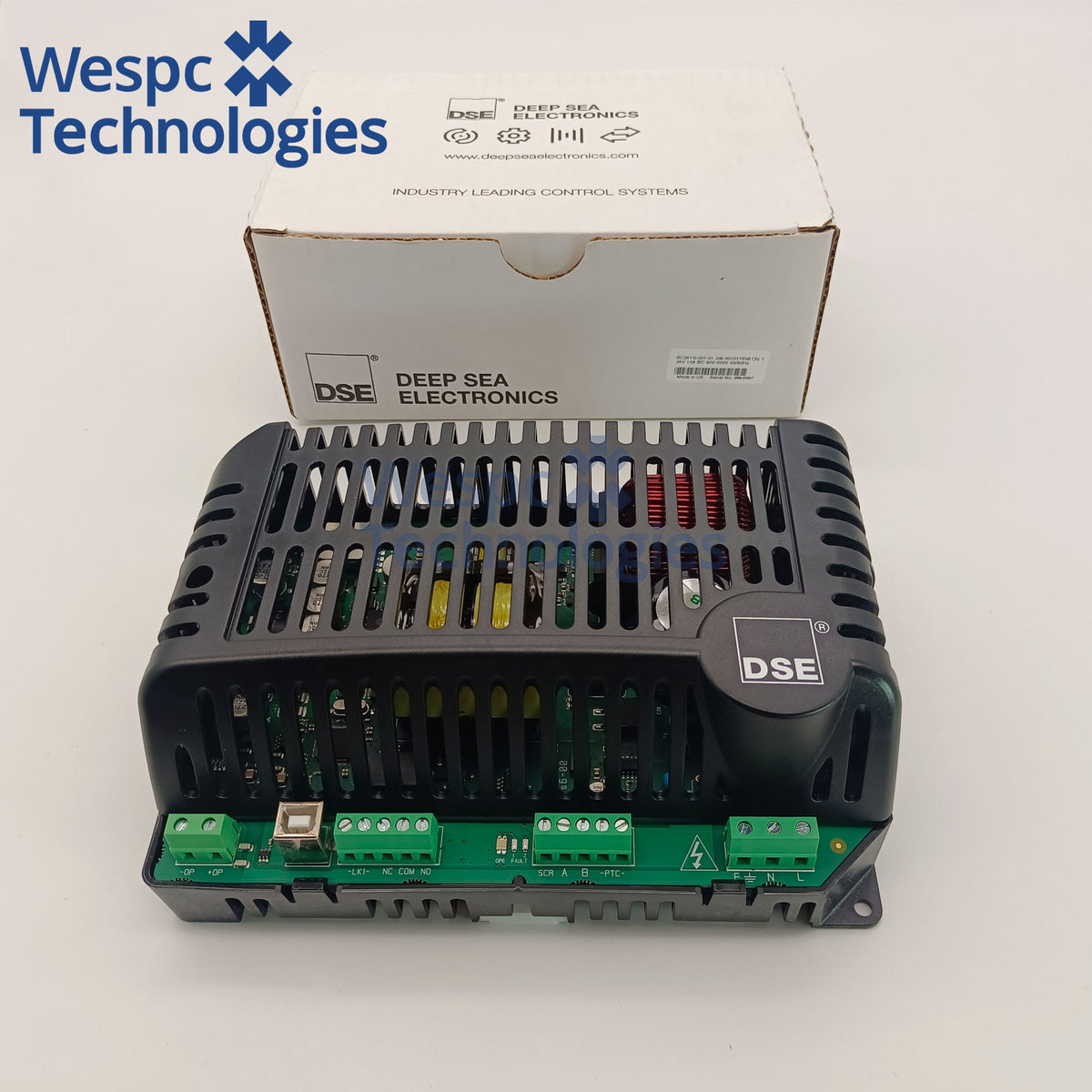

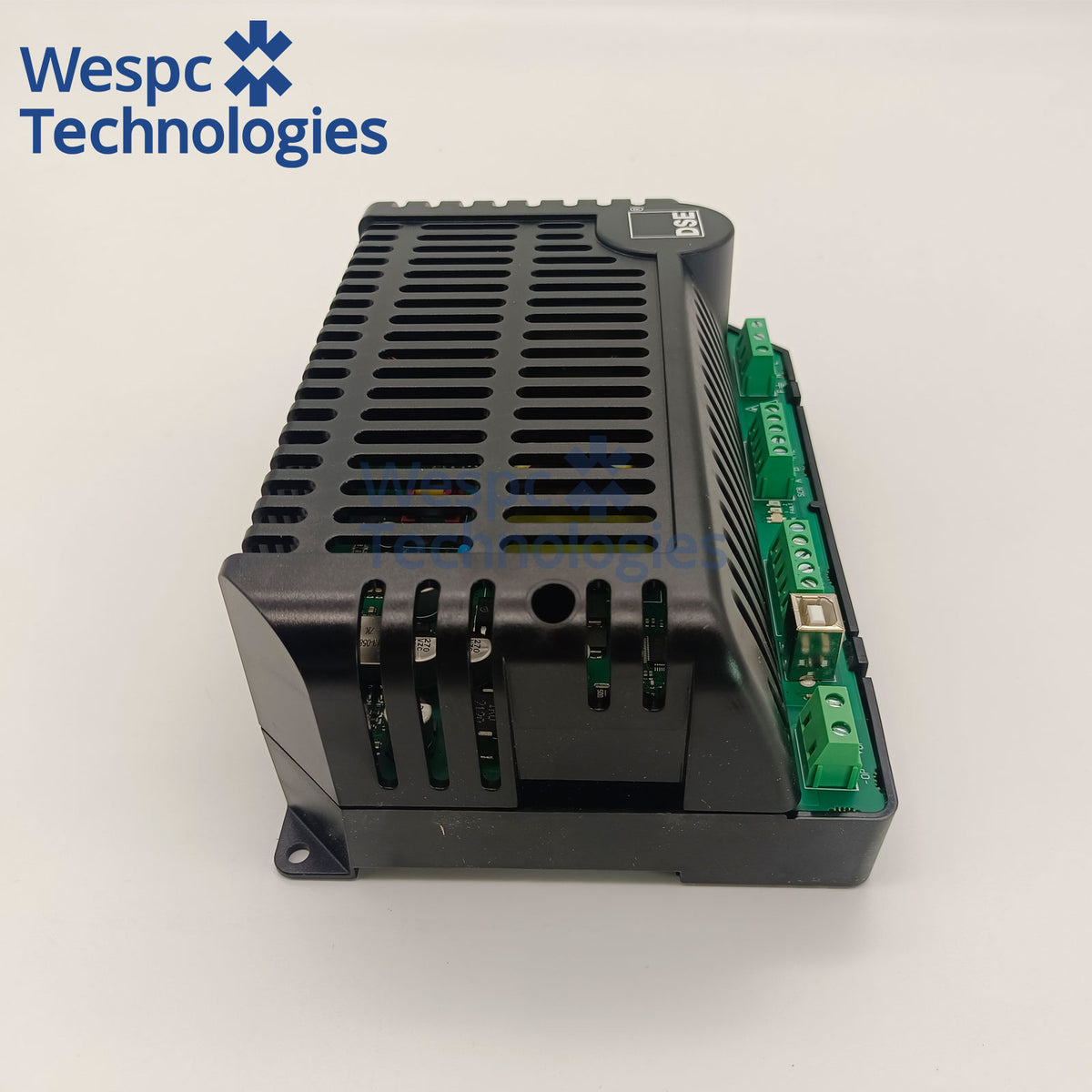

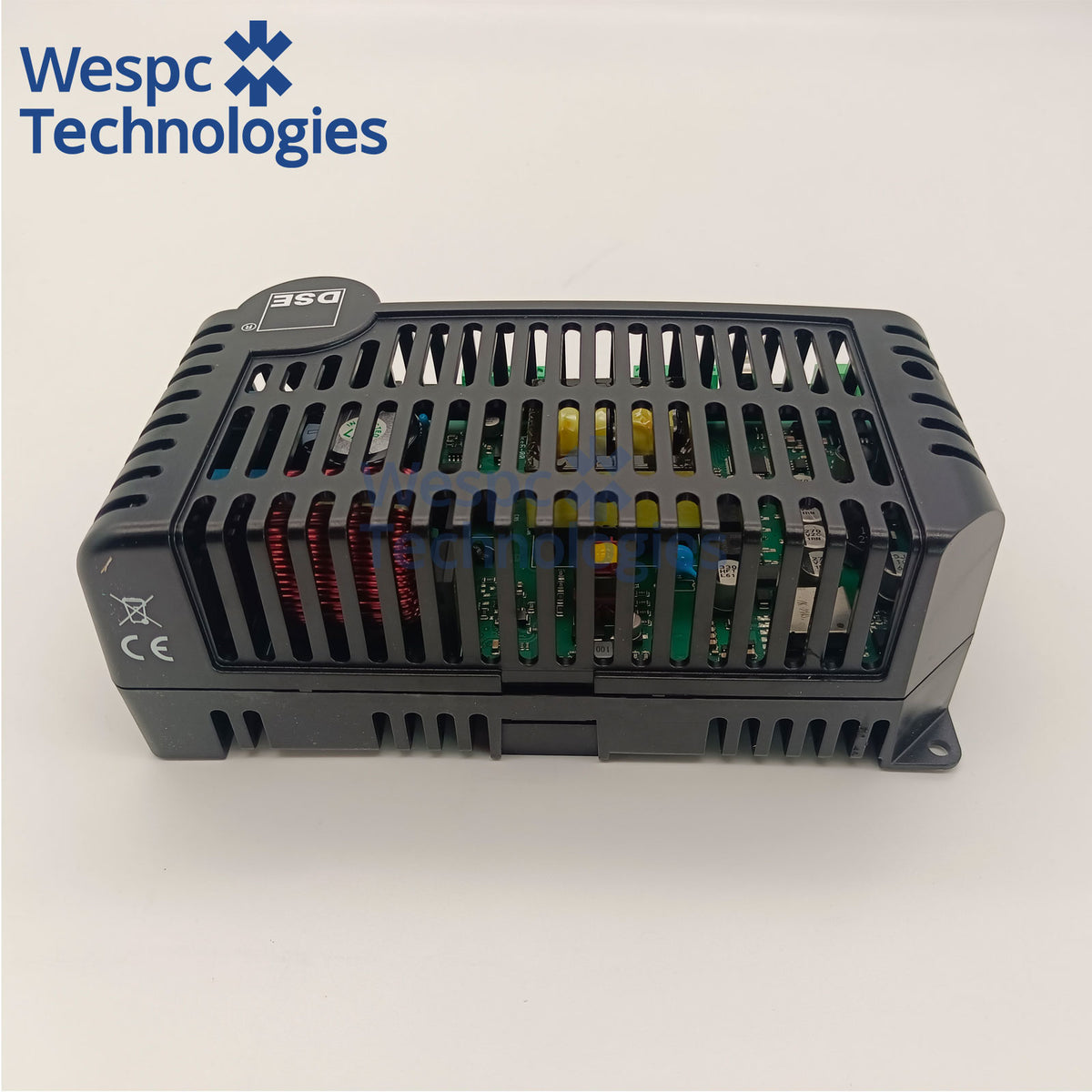

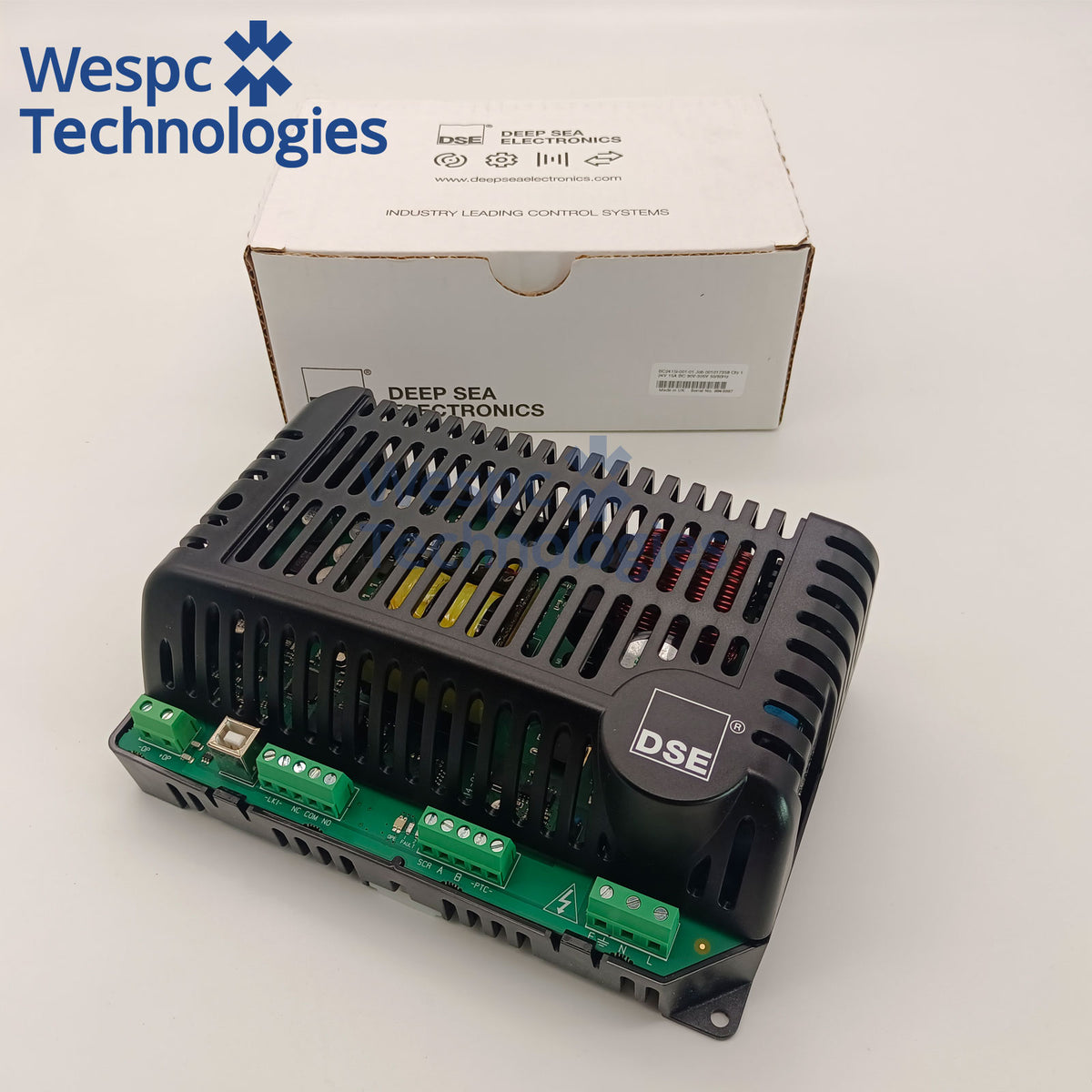

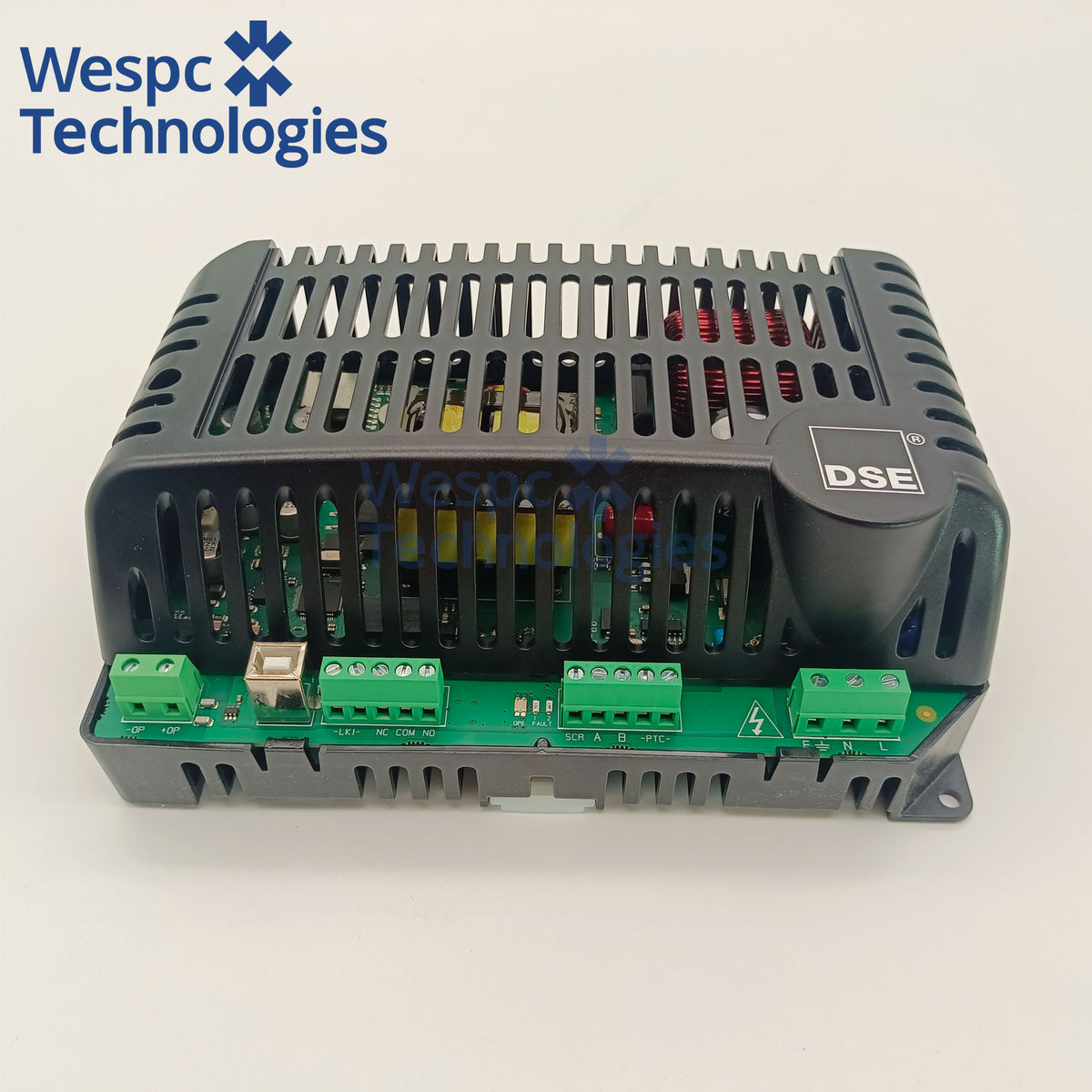

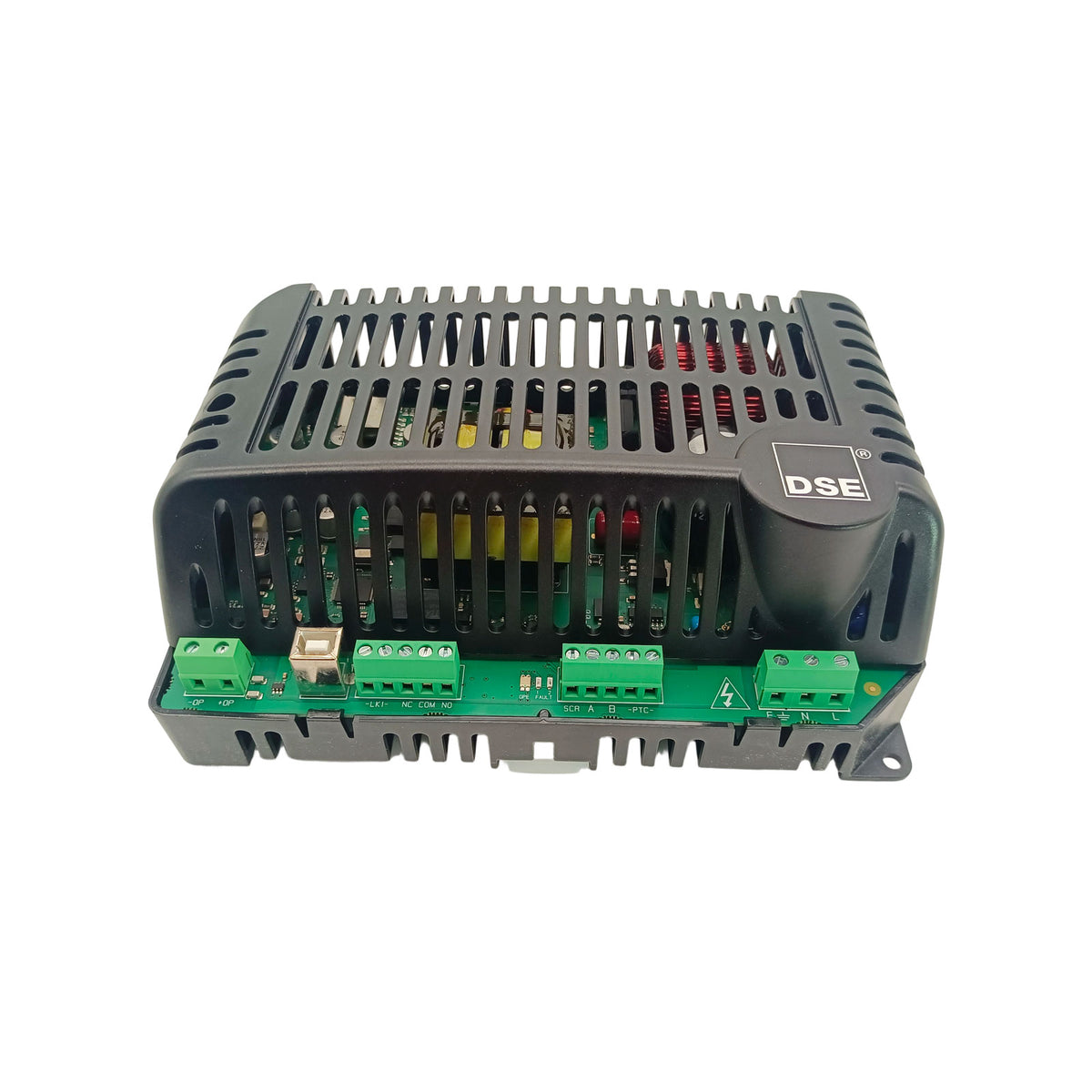

Genuine Deep Sea DSEBC2415i (BC2415i-01) 24V 15A Intelligent Programmable Battery Charger for Genset
Overview
The DSEBC2415i is an intelligent 24 volt, 15 amp switch-mode battery charger that can be programmed for different charging curves, making the product suitable for multiple battery types. The charger is programmed using the DSE Configuration Suite software, can be chassis or DIN rail mounted and has three integrated LEDs to indicate current charging status and fault conditions.
Specification
Model: DSEBC2415i (BC2415i-01)
Brand: Deep Sea Electronics (DSE)
Type: Digital Programmable Intelligent Switch-Mode Battery Charger
DC Output: 24V DC, 15A continuous
Charging Mode: 3-stage / 4-stage charging curve, adjustable current limit
Temp Compensation: PT1000 temperature sensor input
Indicator: 3 LED for power / charging / fault status
Protection: Short circuit, over current, over voltage, reverse polarity, over temperature, AC under/over voltage
Dimension: 204 mm × 134 mm × 80 mm
Weight: 0.78 kg
Operating Temp: -30°C ~ +70°C (output derate at high temperature)
Note: Replacement for DSE9473; runs stably during engine cranking
Application: 24V diesel generator, fire pump system, marine engine, standby power cabinet, rental genset fleet battery maintenance
