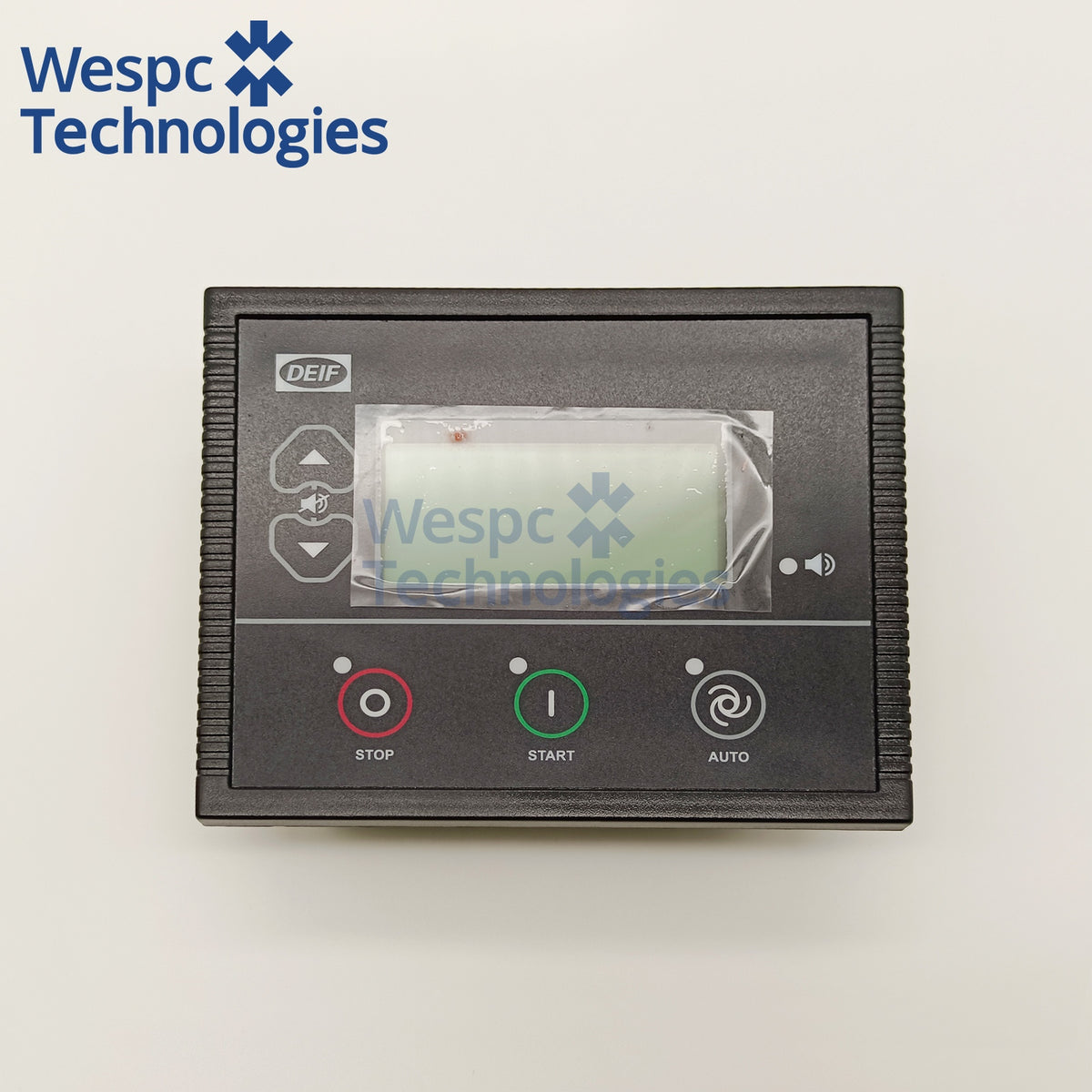

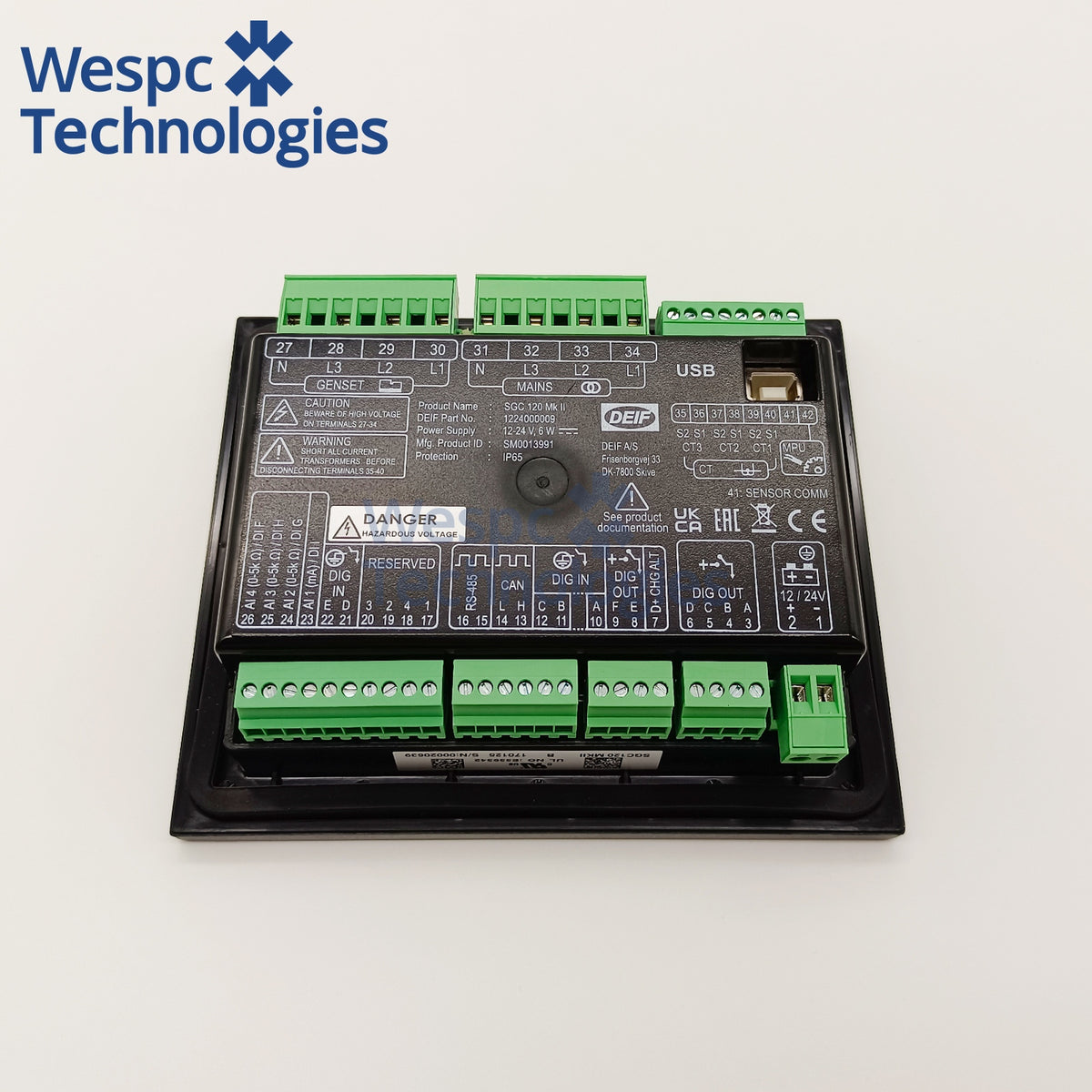

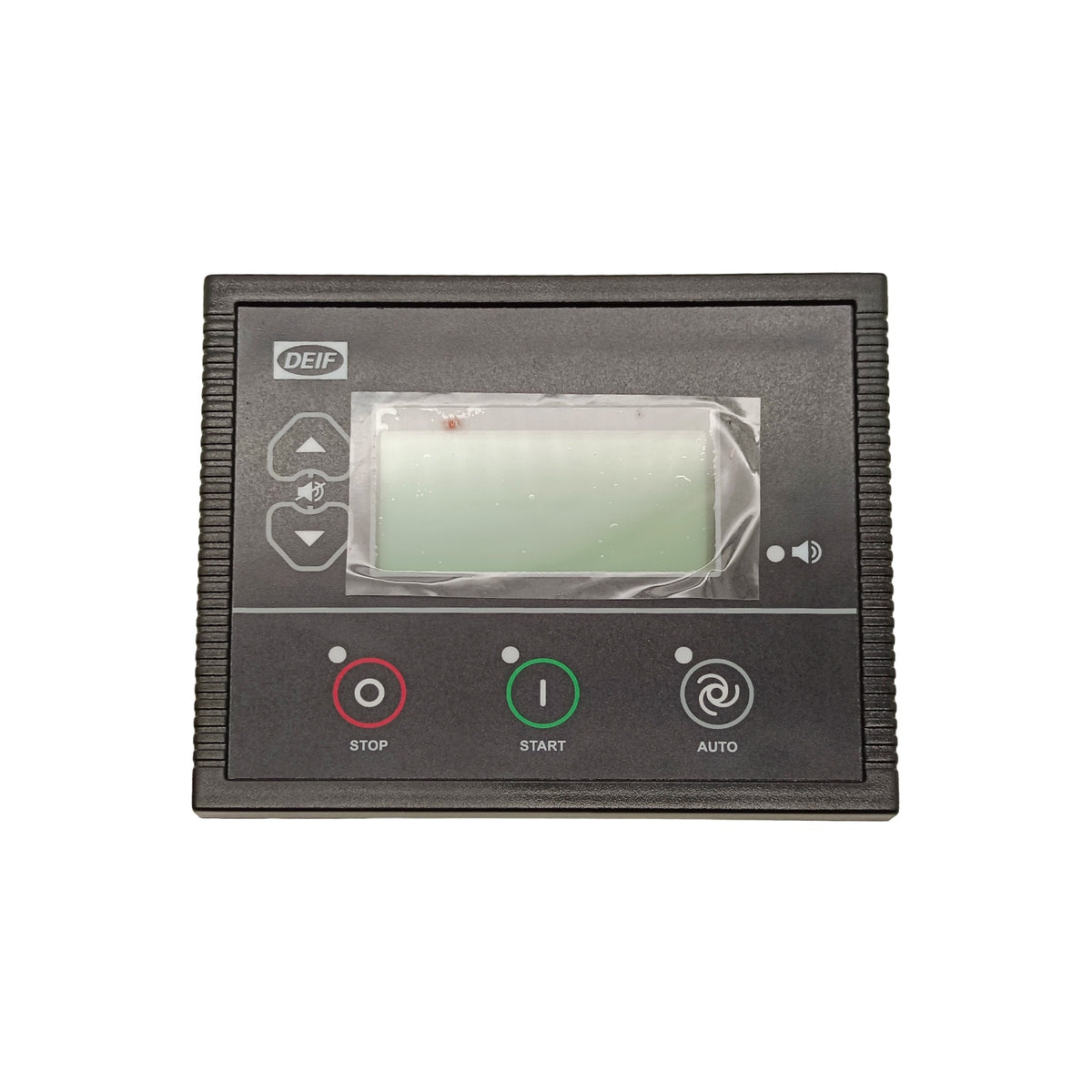

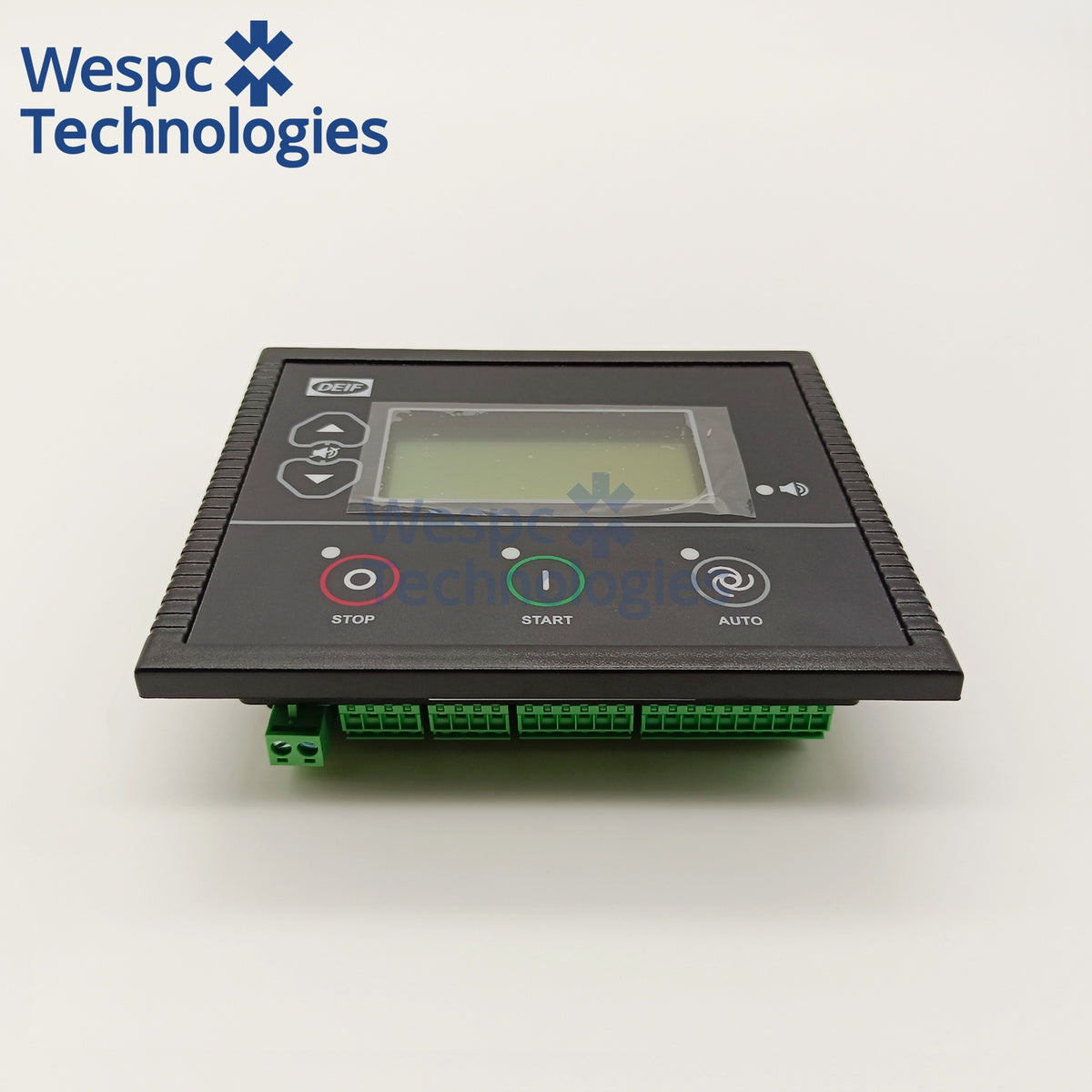

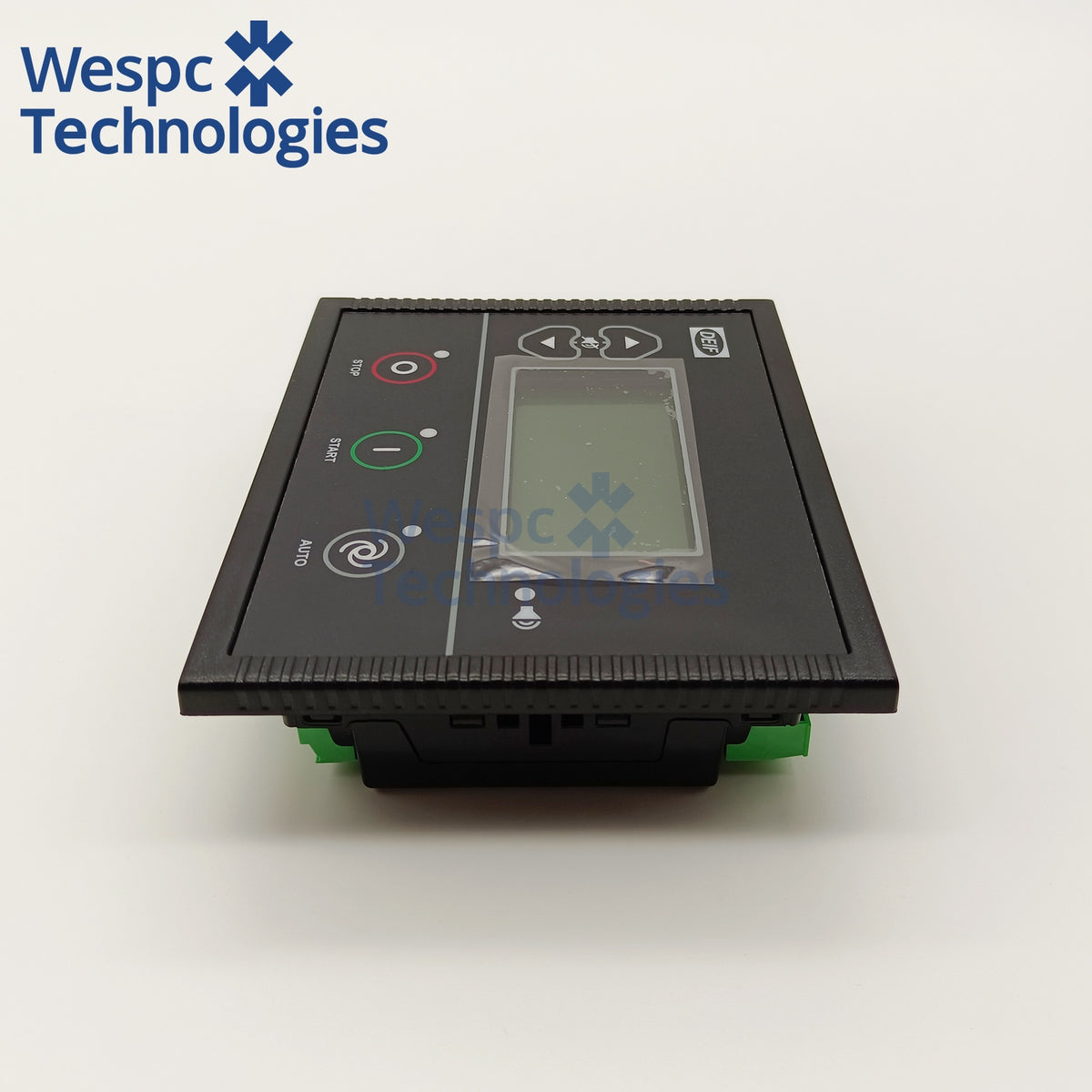

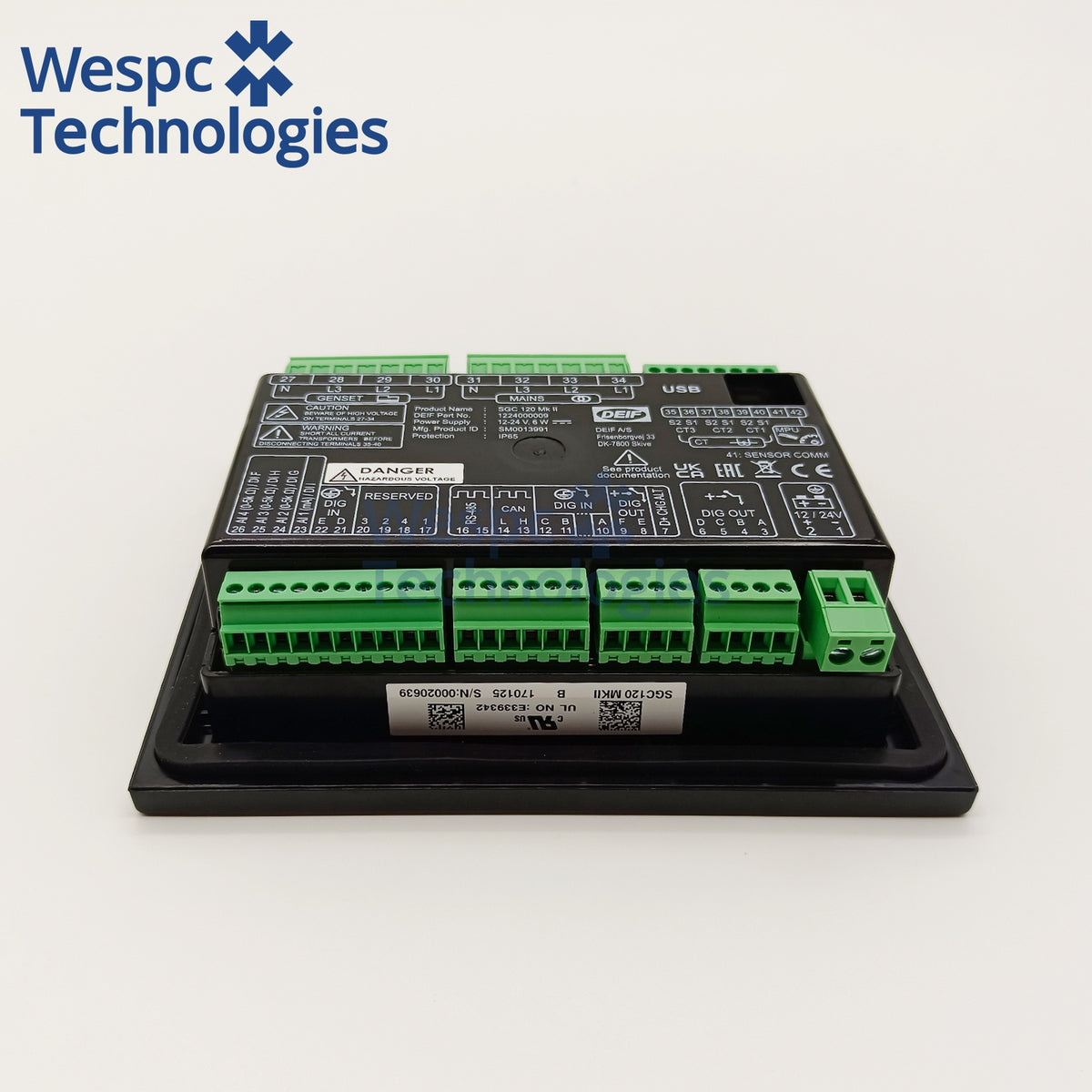

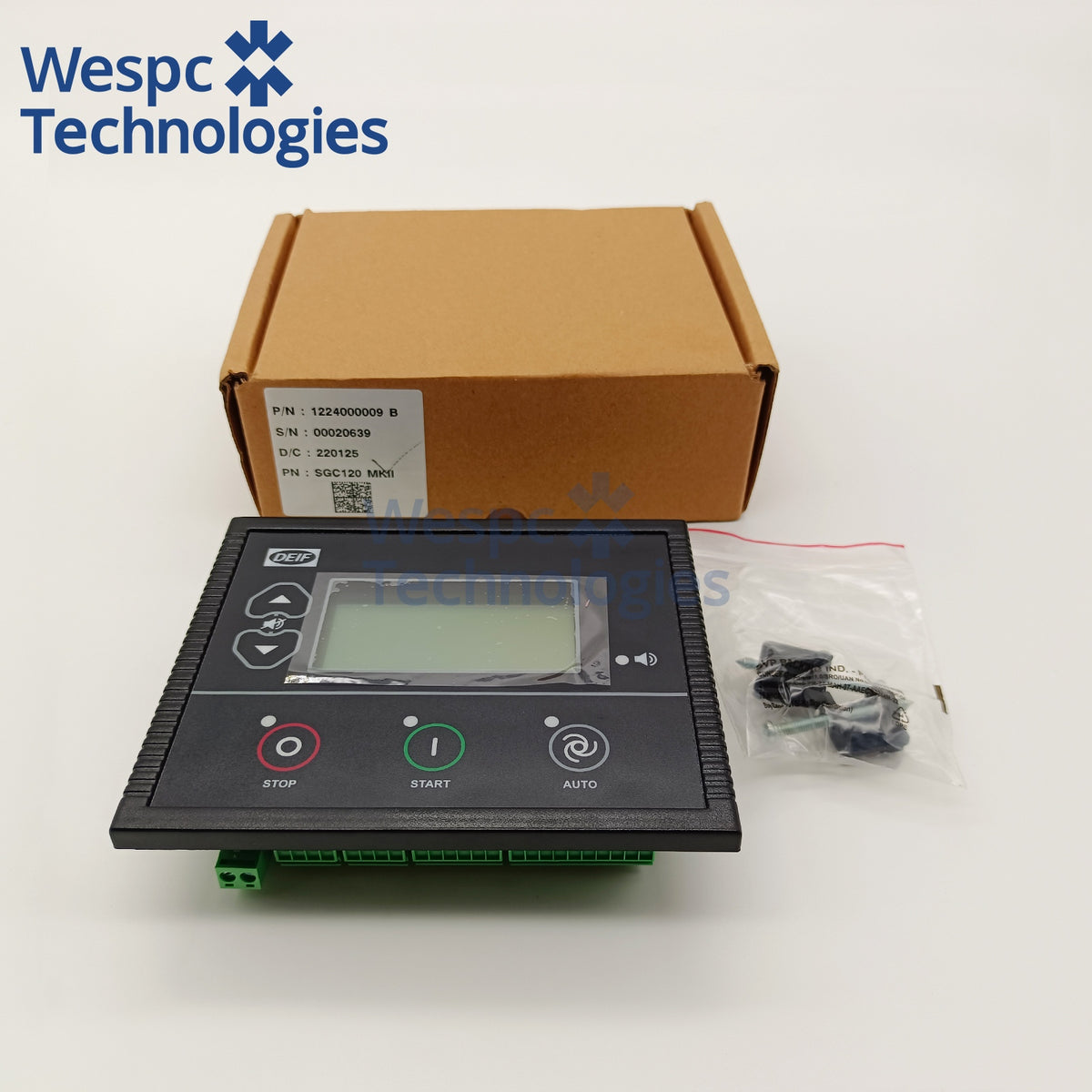

Original DEIF SGC120 MKII Single Genset Controller AMF Generator Control Unit

Specification

• Model: SGC120 MKII
• Type: Single Genset Controller / AMF Control Unit
• Condition: Original Genuine DEIF
• Operation Mode: Manual, Auto, Remote Start, AMF (Auto Mains Failure)
• Power Supply: 8–32V DC (nominal 12/24V DC)
• Display: Graphic LCD with front keypad
• Digital Inputs: 5 configurable DI
• Digital Outputs: 6 configurable DO (0.5A each)
• Analogue Inputs: 4 (support resistive, 4-20mA, 0-5V)
• Communication: CAN bus, RS485 Modbus RTU, USB for configuration
• CT Support: 1A / 5A current transformer
• Software: DEIF Smart Connect Mk II, M-Logic programmable function
• Protection: Over/under voltage, over/under frequency, overcurrent, oil pressure, coolant temp, overspeed
• Operating Temp: -20°C ~ +65°C
• Front Panel Protection: IP65
• Mounting: Panel cutout mounting
• Application: Standalone, AMF backup diesel / gas genset
• Compatible: DEIF SGC120 MKII
• Dimension: 18*14*6cm
• Net Weight: 0.4kg
• Warranty: 12 months genuine factory warranty
