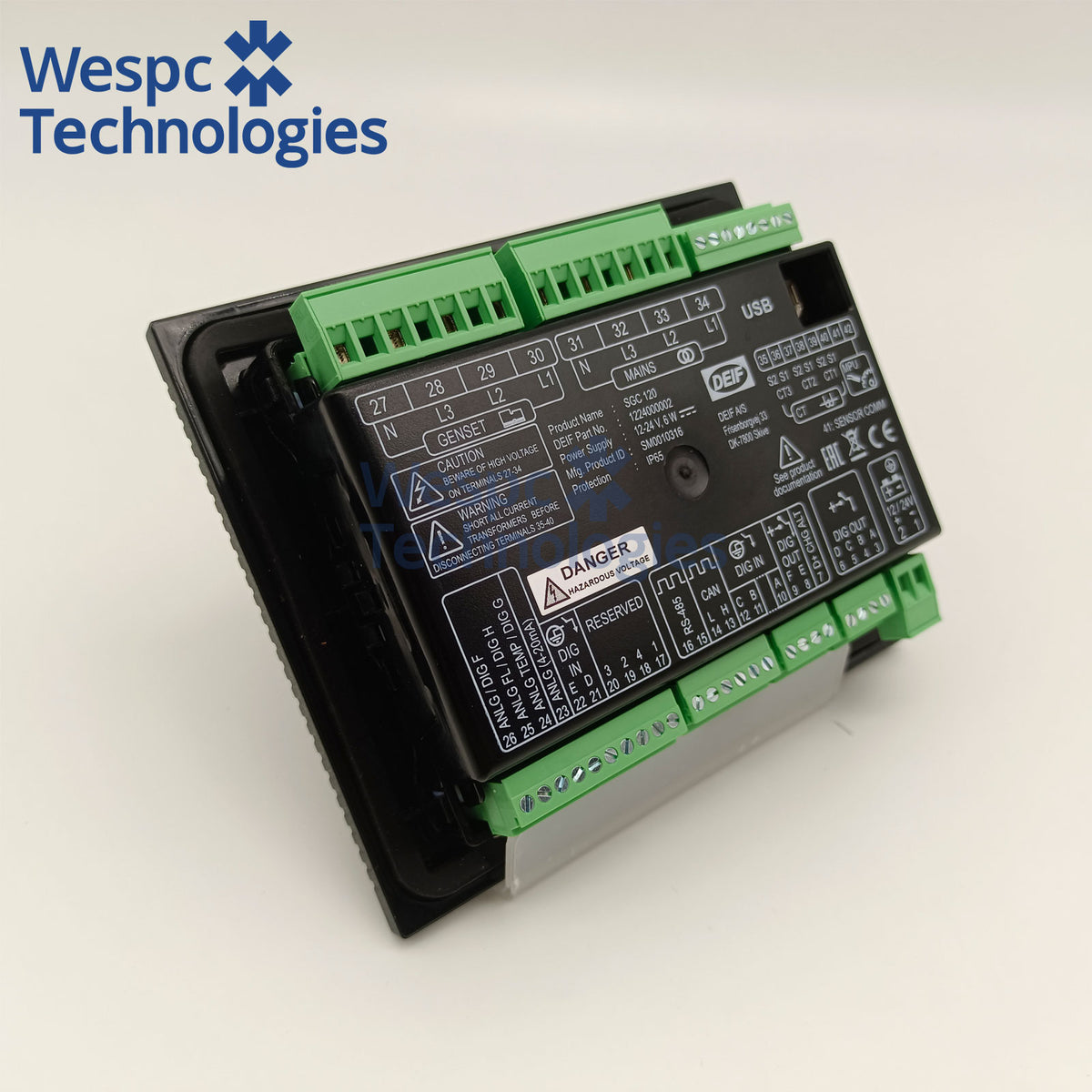

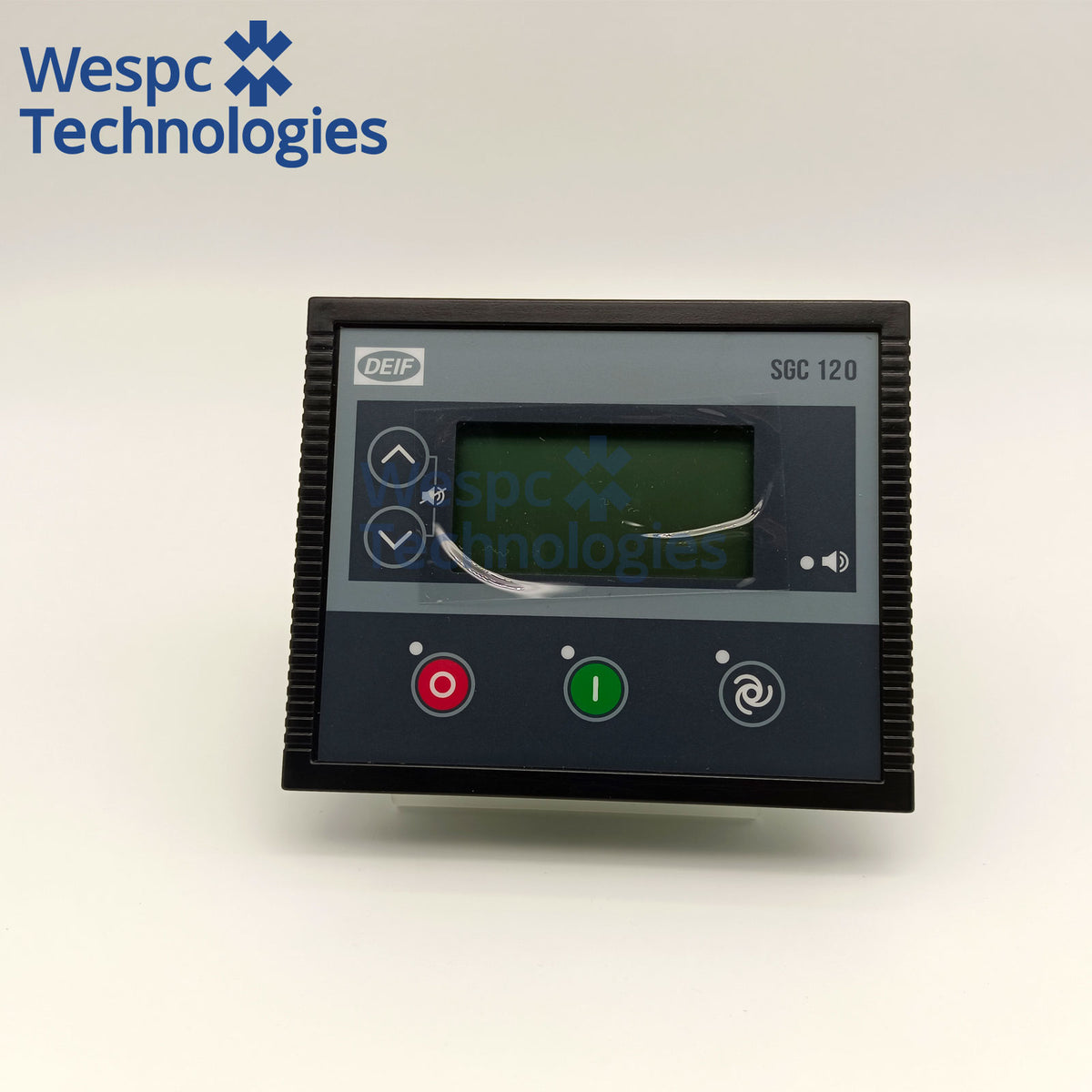

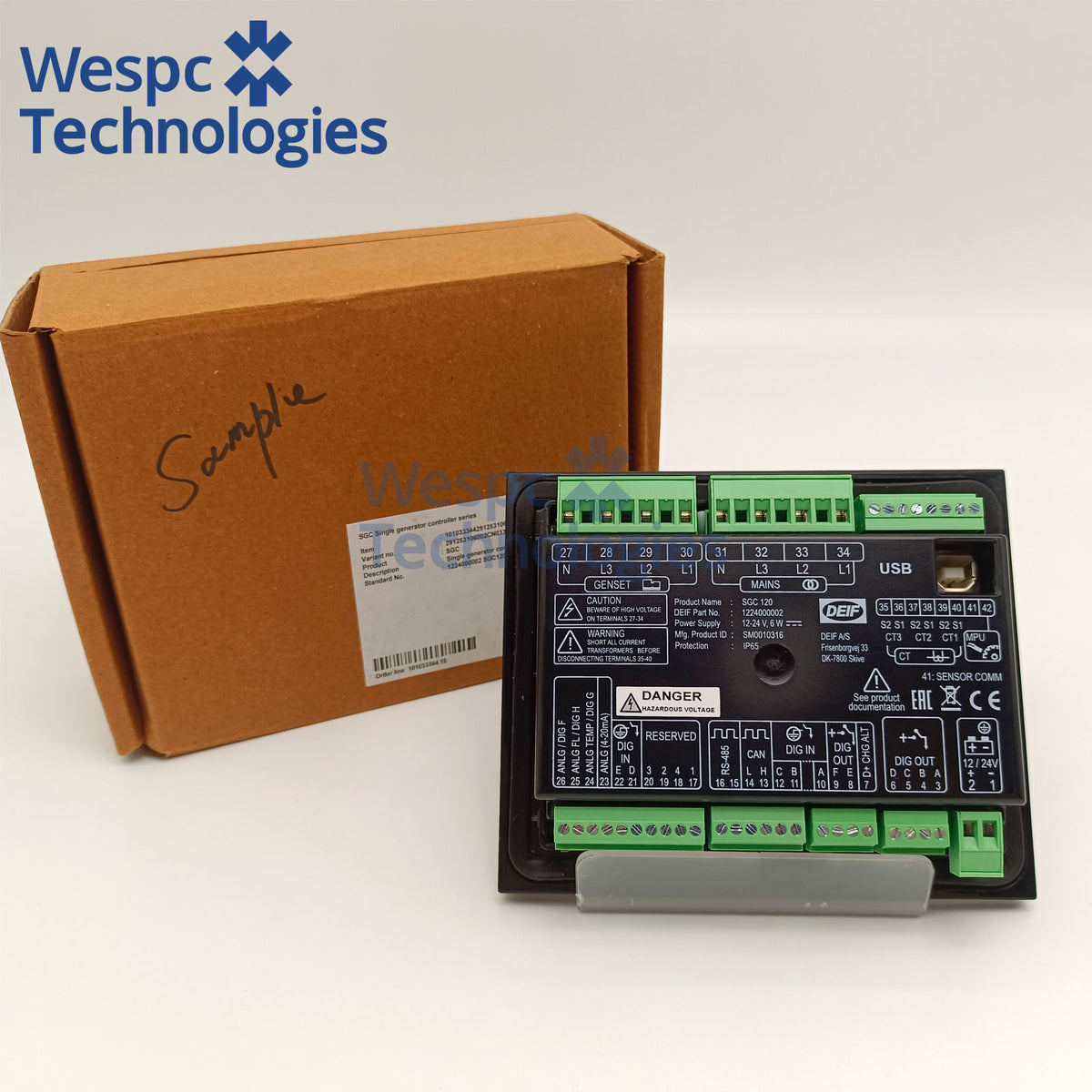

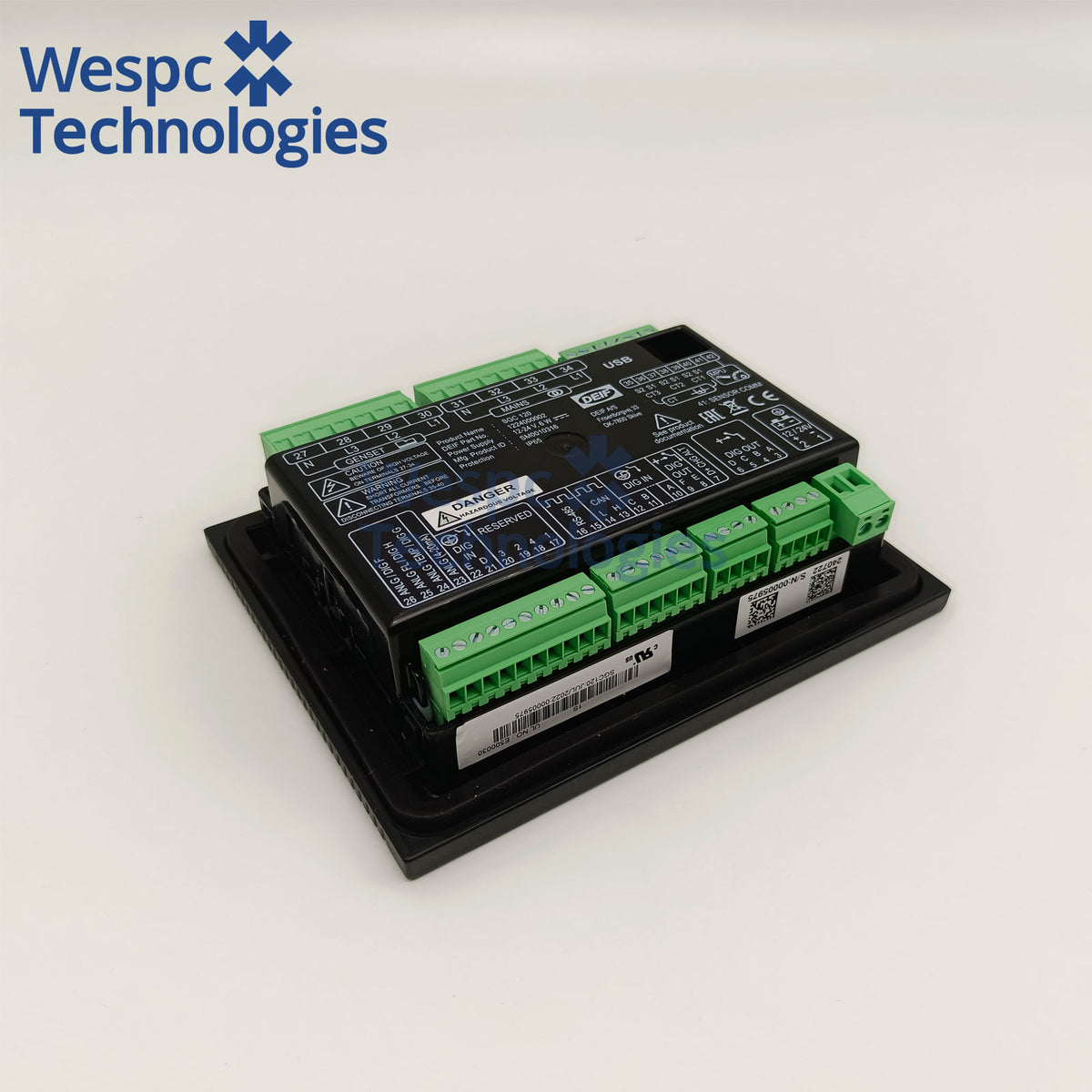

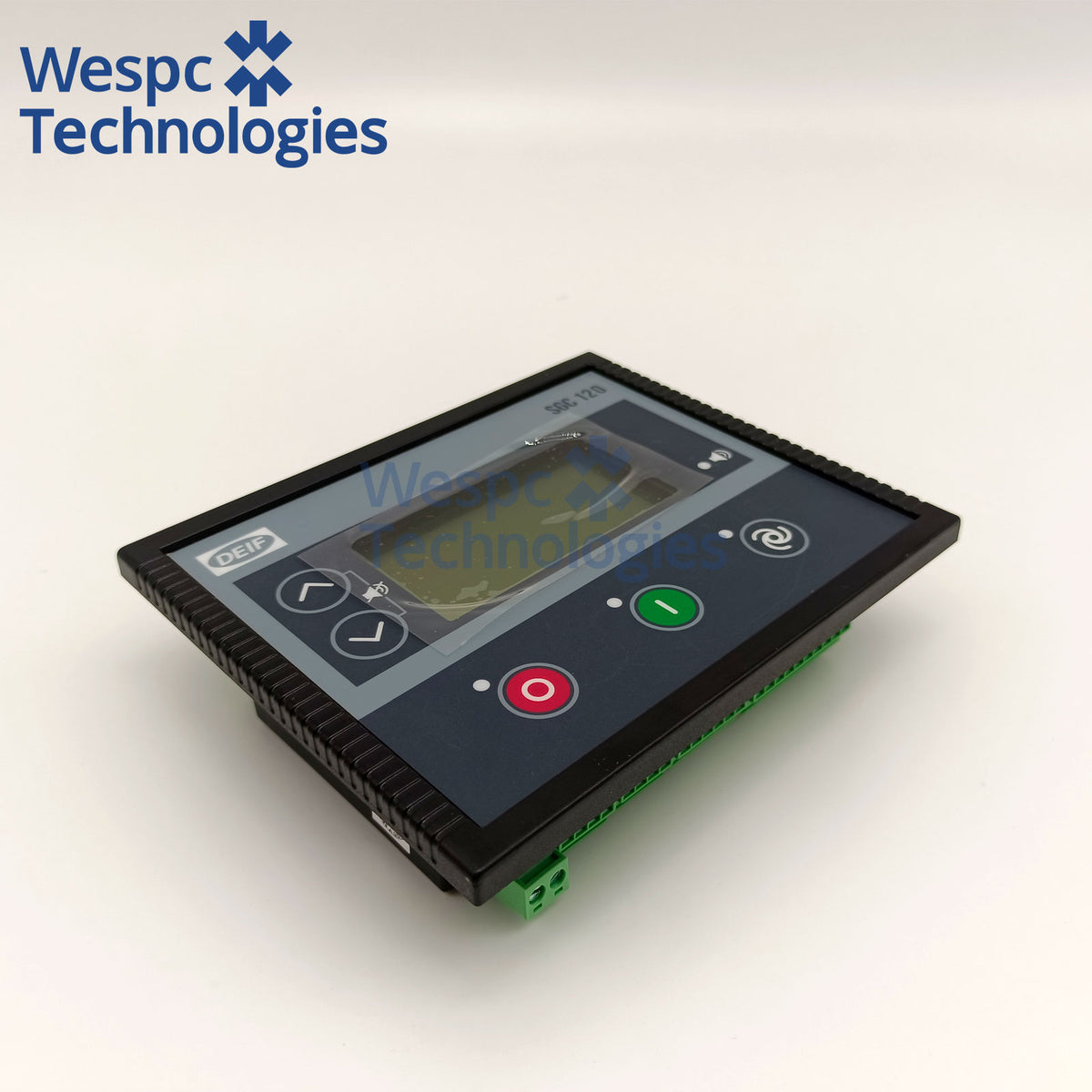

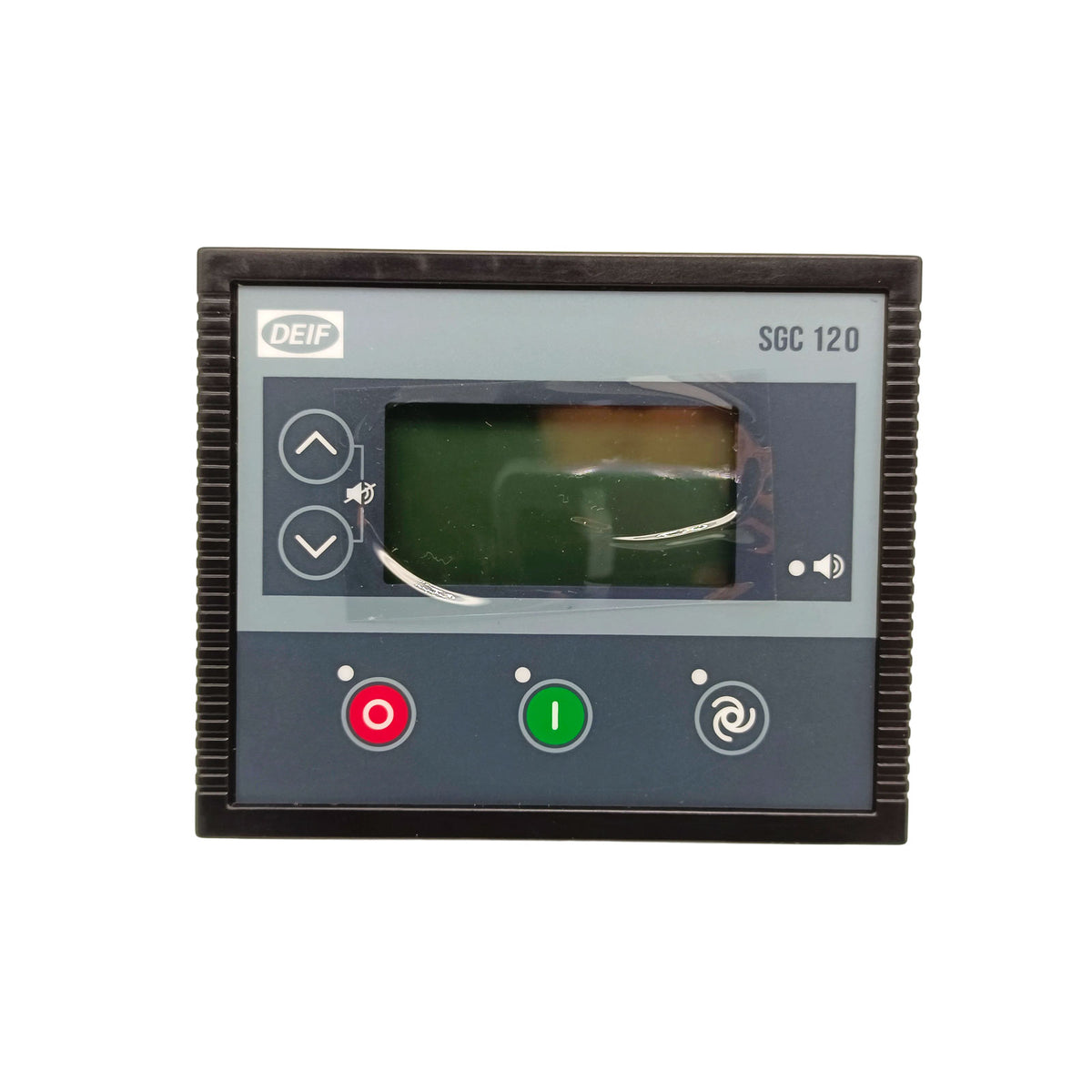

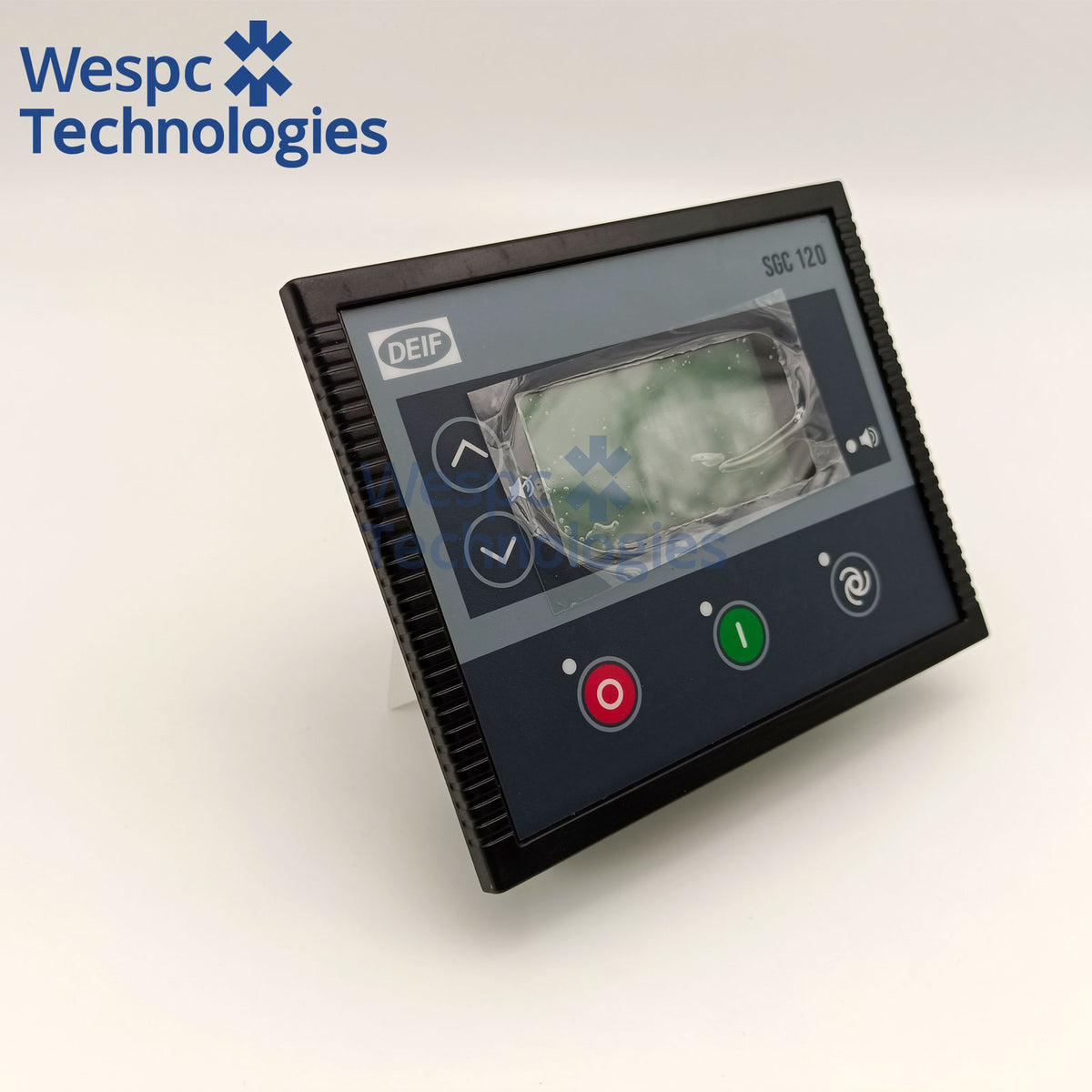

Original DEIF SGC120 Single Genset Controller AMF Generator Control Unit

Specification

• Model: SGC120 (Original Non-MKII Version)
• Type: Single Genset Controller / AMF Control Unit
• Condition: Original Genuine
• Operation Mode: Manual, Auto, Remote Start, AMF, Auto Exercise
• Power Supply: 8–28V DC (12/24V DC nominal, reverse voltage protection -32V)
• Display: Graphic LCD with keypad
• Digital Inputs: 5 configurable DI
• Digital Outputs: 6 configurable DO
• Analogue Inputs: 4 (3 resistive + 1 current/voltage input)
• Communication: CAN bus engine interface, RS485 Modbus RTU, USB for configuration
• CT Ratio: 1A / 5A selectable
• Software: DEIF Smart Connect
• Protection: Over/under voltage, over/under frequency, overcurrent, overspeed, low oil pressure, high coolant temperature
• Event Log: 100 stamped events
• Operating Temp: -20°C ~ +65°C
• Front Protection: IP65 (with gasket)
• Mounting: Panel cutout mounting
• Application: Standalone, AMF backup diesel / gas genset
• Compatible: DEIF SGC120
• Dimension: 18*13.5*6cm
• Net Weight: 0.4kg
• Warranty: 12 months genuine factory warranty
