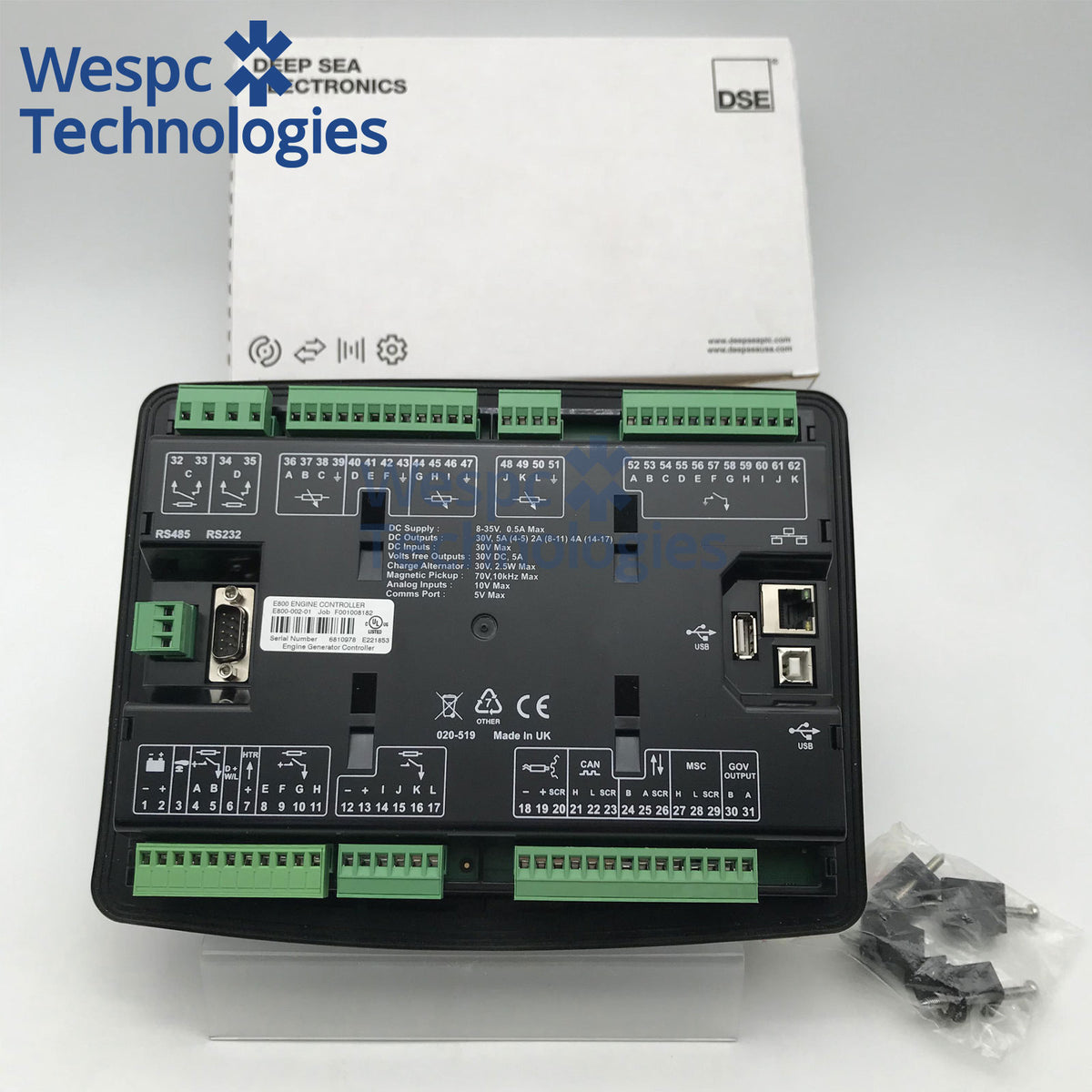

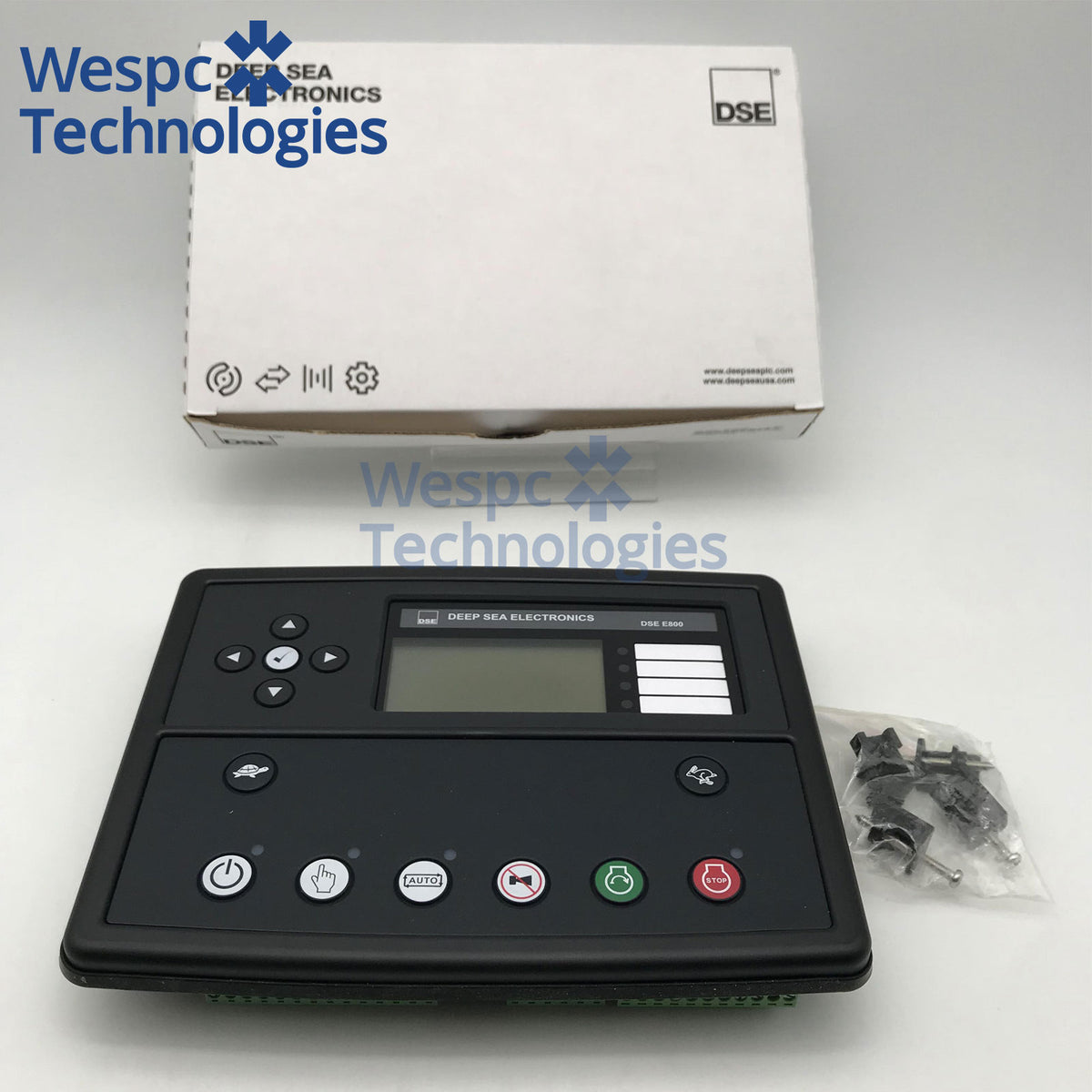

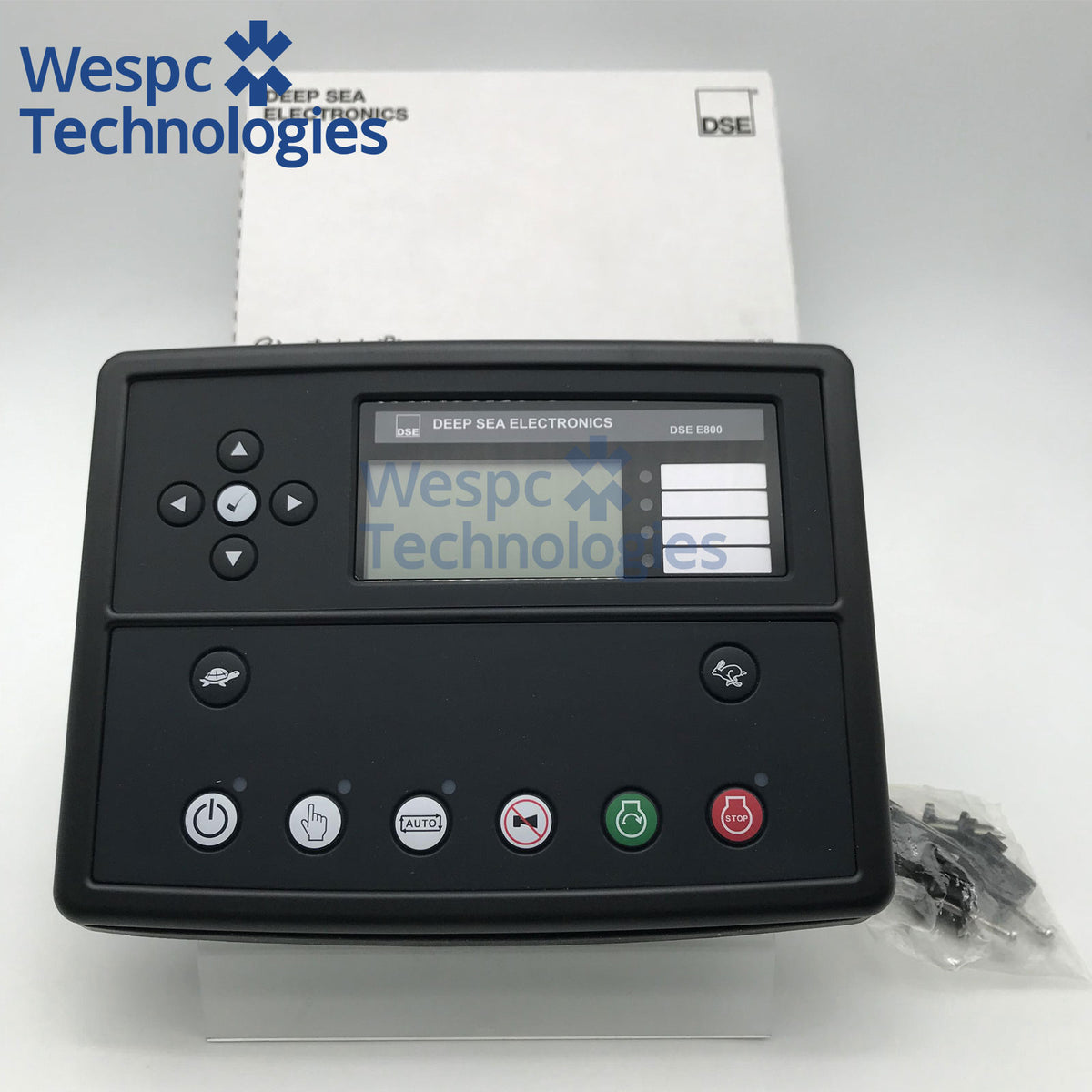

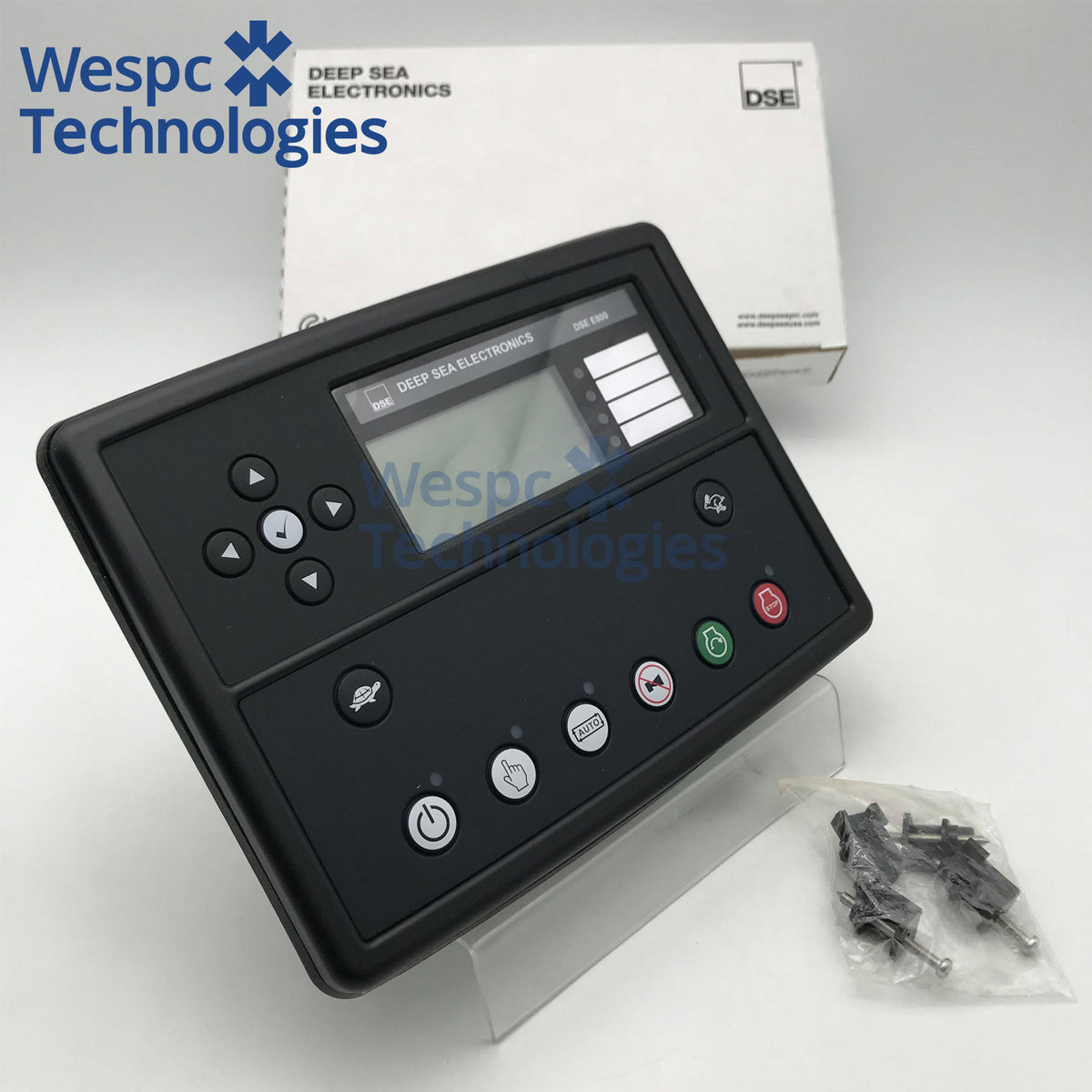

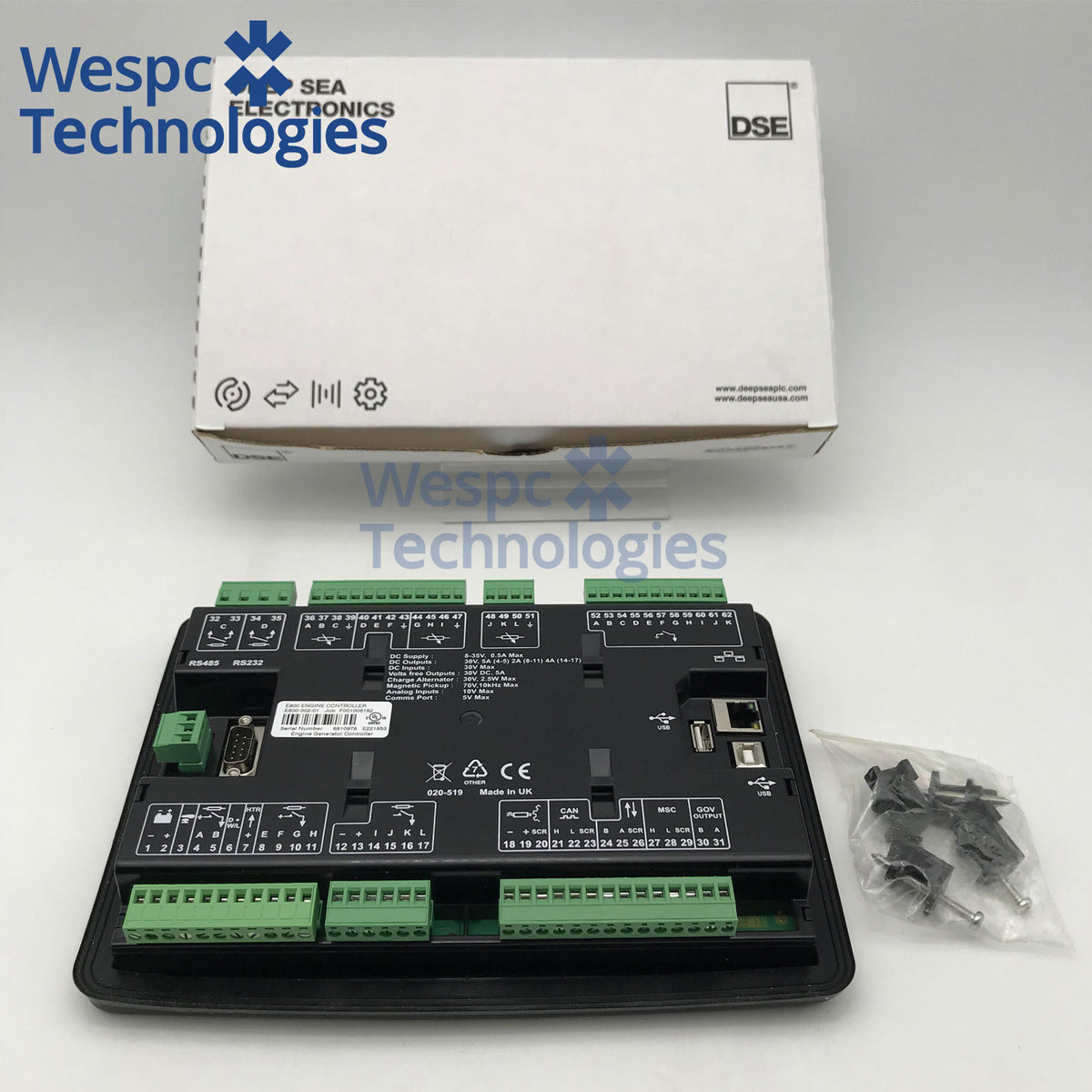

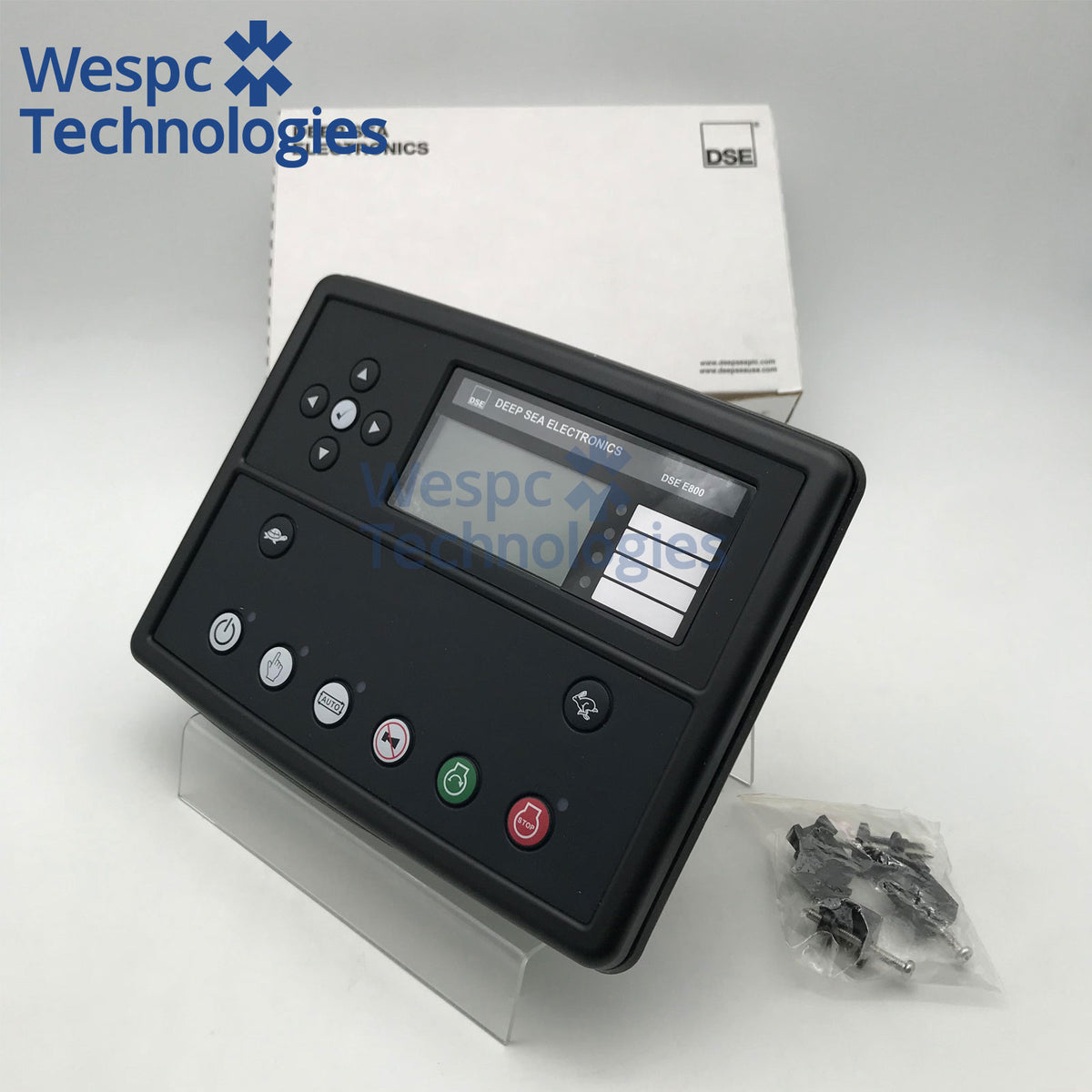

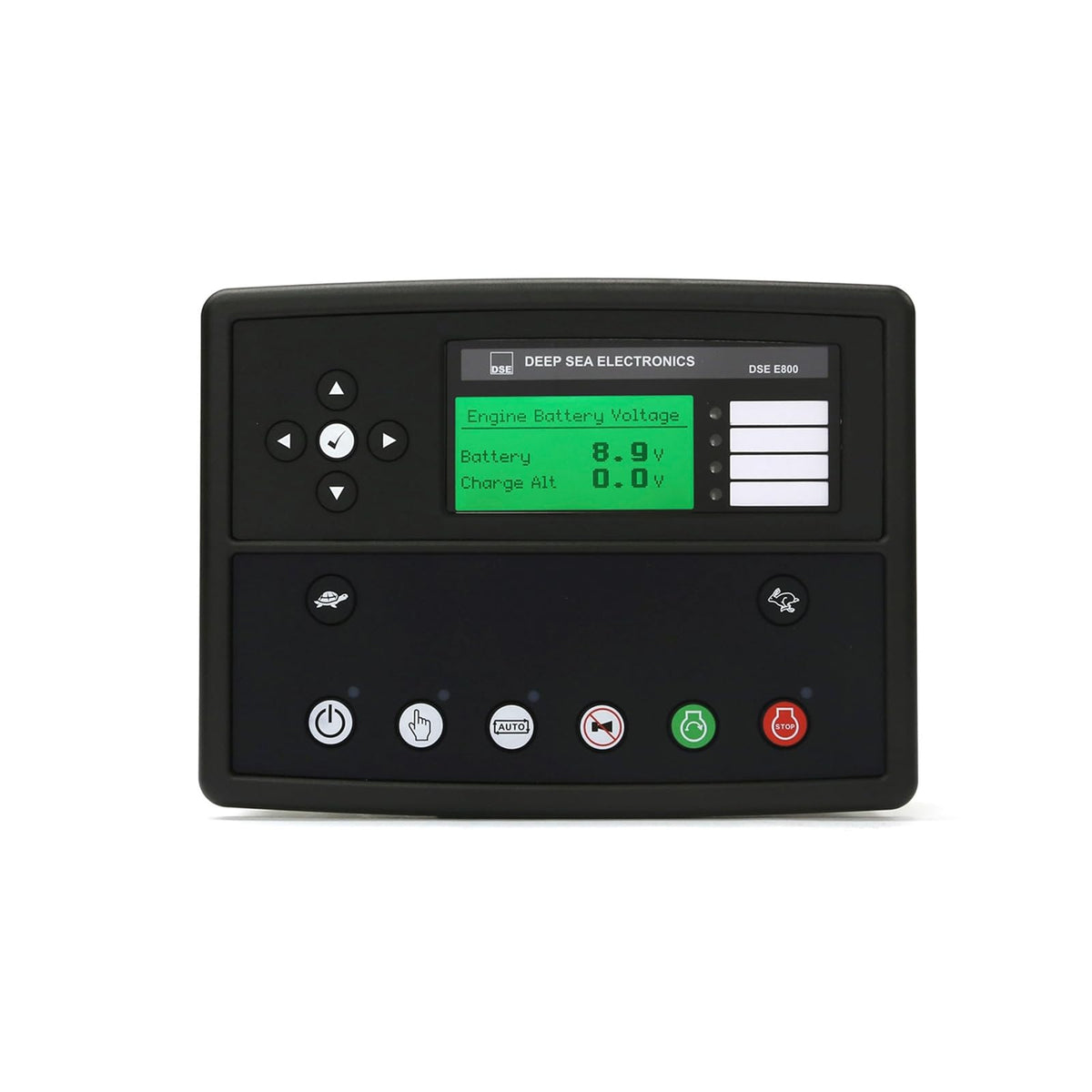

Original Deep Sea DSEE800 Generator Control Module Diesel Engine Automatic Start Stop Controller
Original Deep Sea DSEE800 Generator Control Module Diesel Engine Automatic Start Stop Controller
السعر العادي
$968.00 USD
السعر العادي
$2,080.00 USD
سعر البيع
$968.00 USD
سعر الوحدة
/
لكل
يتم احتساب الشحن عند الخروج.
لم نتمكن من تحميل توفر الاستلام
Original DSEE800 Generator Control Module Diesel Engine Automatic Start Stop Controller
Overview
The DSEE800 engine control module has been designed to provide flexible control and monitoring for engine driven pumps, compressors, hydraulic power packs and off-highway machinery. The control module can be used with electronic and mechanical diesel engines and offers outstanding flexibility via its integrated PLC editor. This flexibility enables users to match required operating modes unique to their applications.
Overview
The DSEE800 engine control module has been designed to provide flexible control and monitoring for engine driven pumps, compressors, hydraulic power packs and off-highway machinery. The control module can be used with electronic and mechanical diesel engines and offers outstanding flexibility via its integrated PLC editor. This flexibility enables users to match required operating modes unique to their applications.
Specification
- Model: DSEE800 (E800-01)
- Brand: Deep Sea Electronics (DSE), Series: DSEControl E-Series
- Type: Engine Only Control Module
- Display: 4-line backlit LCD, multi-language, PIN lock
- Power Supply: 8V – 35V DC continuous, reverse polarity protected
- Core Function: Auto/manual start-stop, governor speed control, speed ramp, clutch control, pump fill/empty logic, built-in PLC, 250 event log, scheduler, maintenance alarm
- Communication: USB, CAN, RS485 Modbus RTU, Ethernet Modbus TCP, DSENet®
- Panel Cut-out: 220mm × 160mm(8.7 " x 6.3")
- Overall Dimension: 240mm × 172mm × 57mm(9.4” x 6.8” x 2.2”)
- Max Panel Thickness: 8mm(0.3”)
- Net Weight: 0.88kg
- Compatible Engine: Mechanical diesel engine, CAN J1939 electronic engine
- Application: Fire pump, irrigation & sewage pump, air compressor, hydraulic power pack, off-highway machinery
- Warranty: 12 months genuine factory warranty
