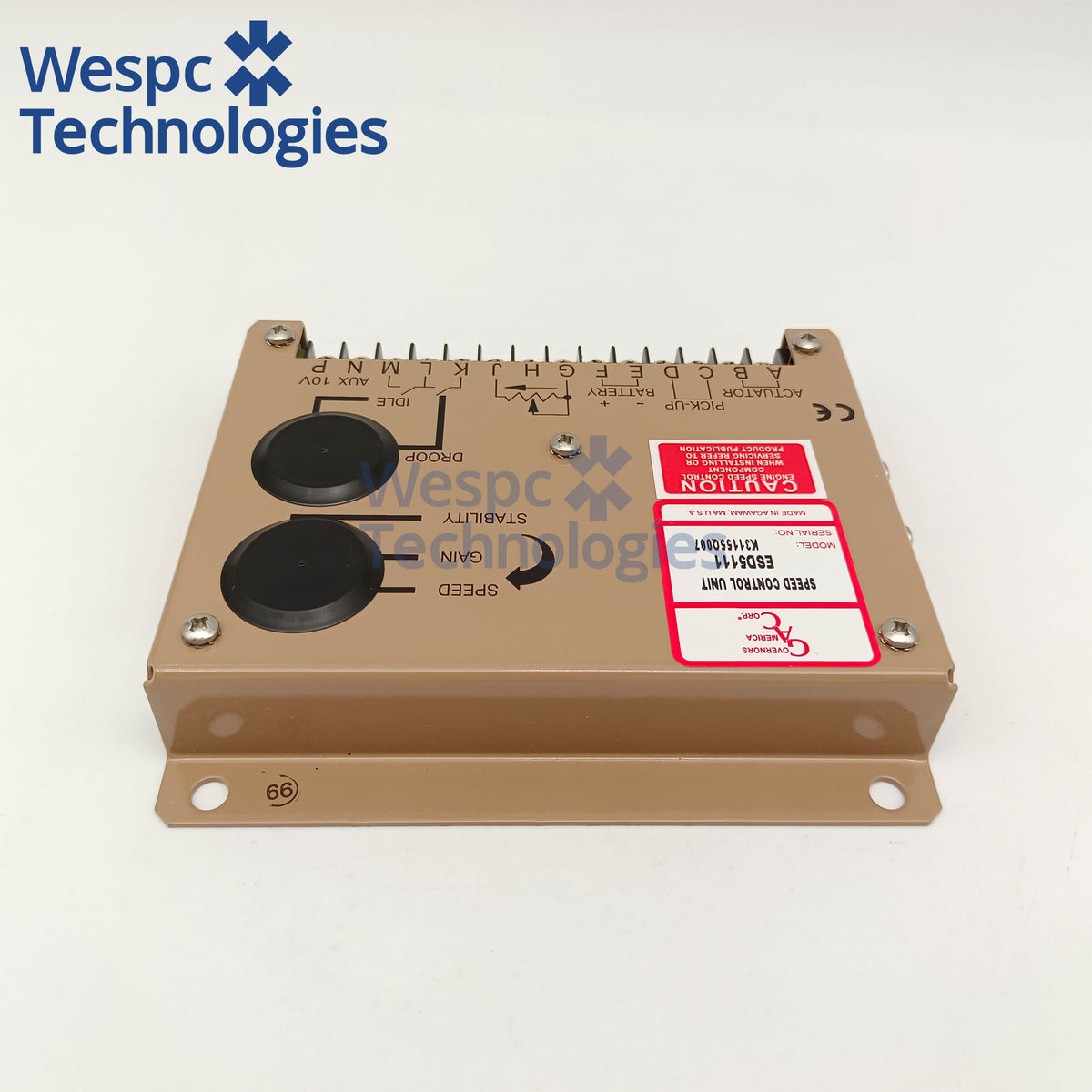

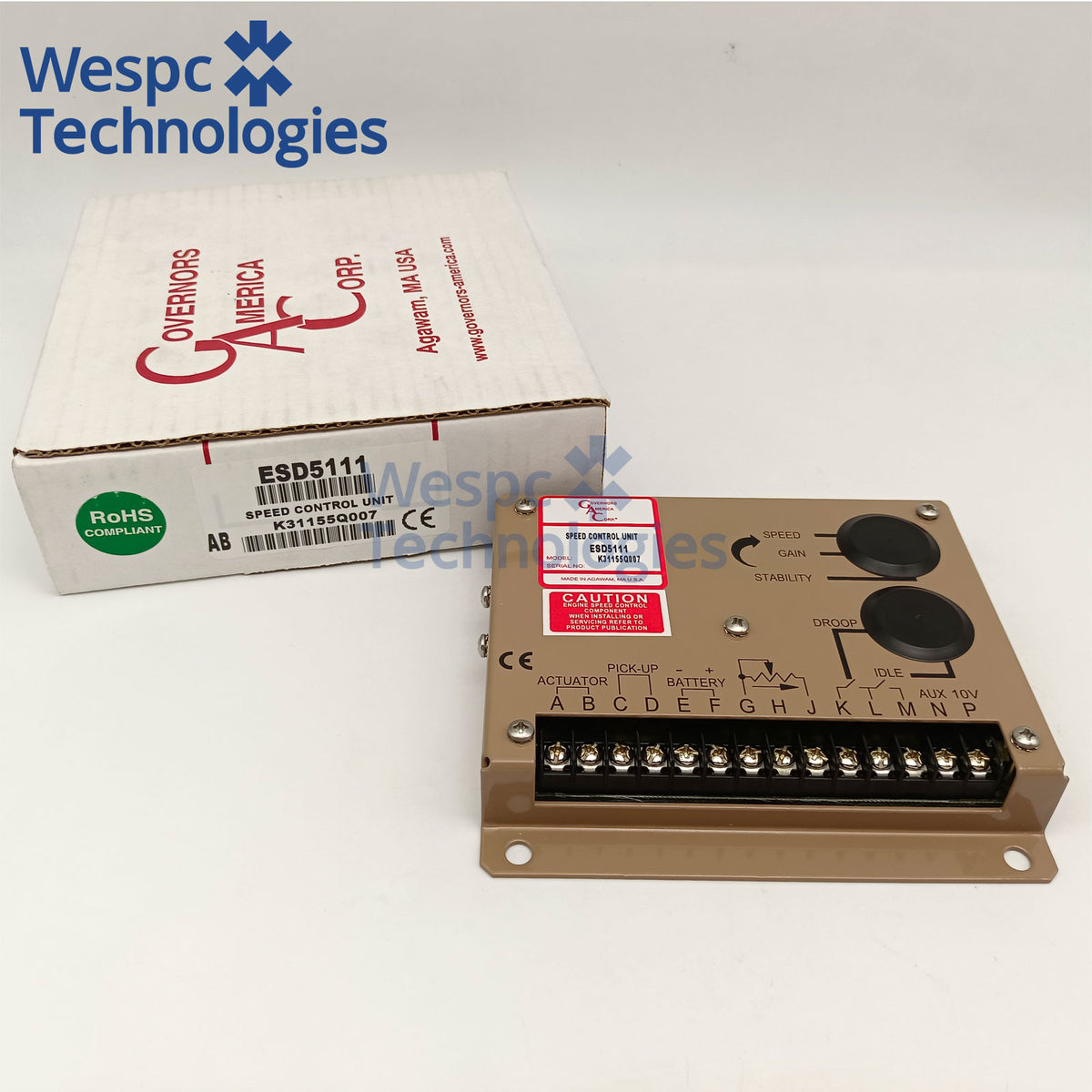

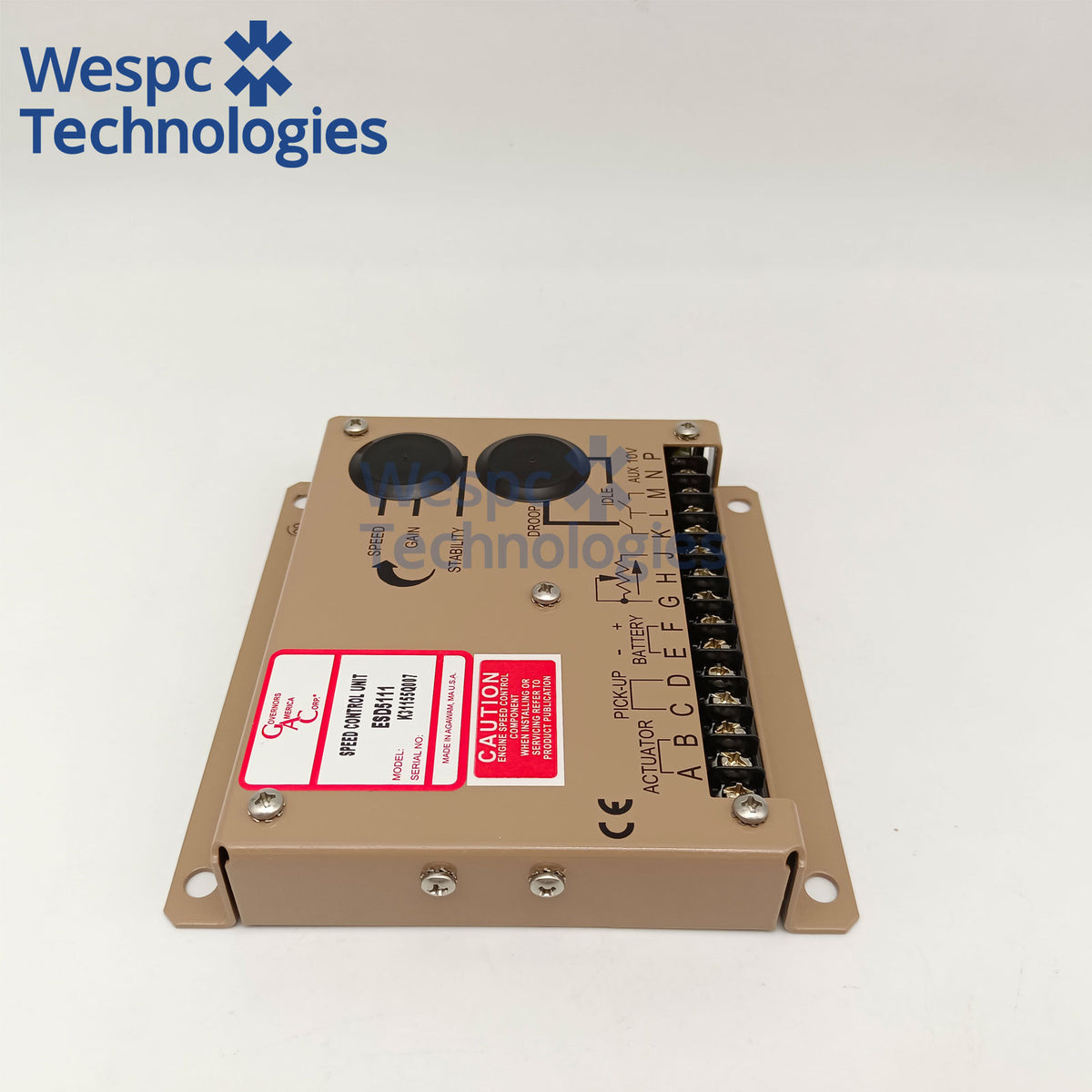

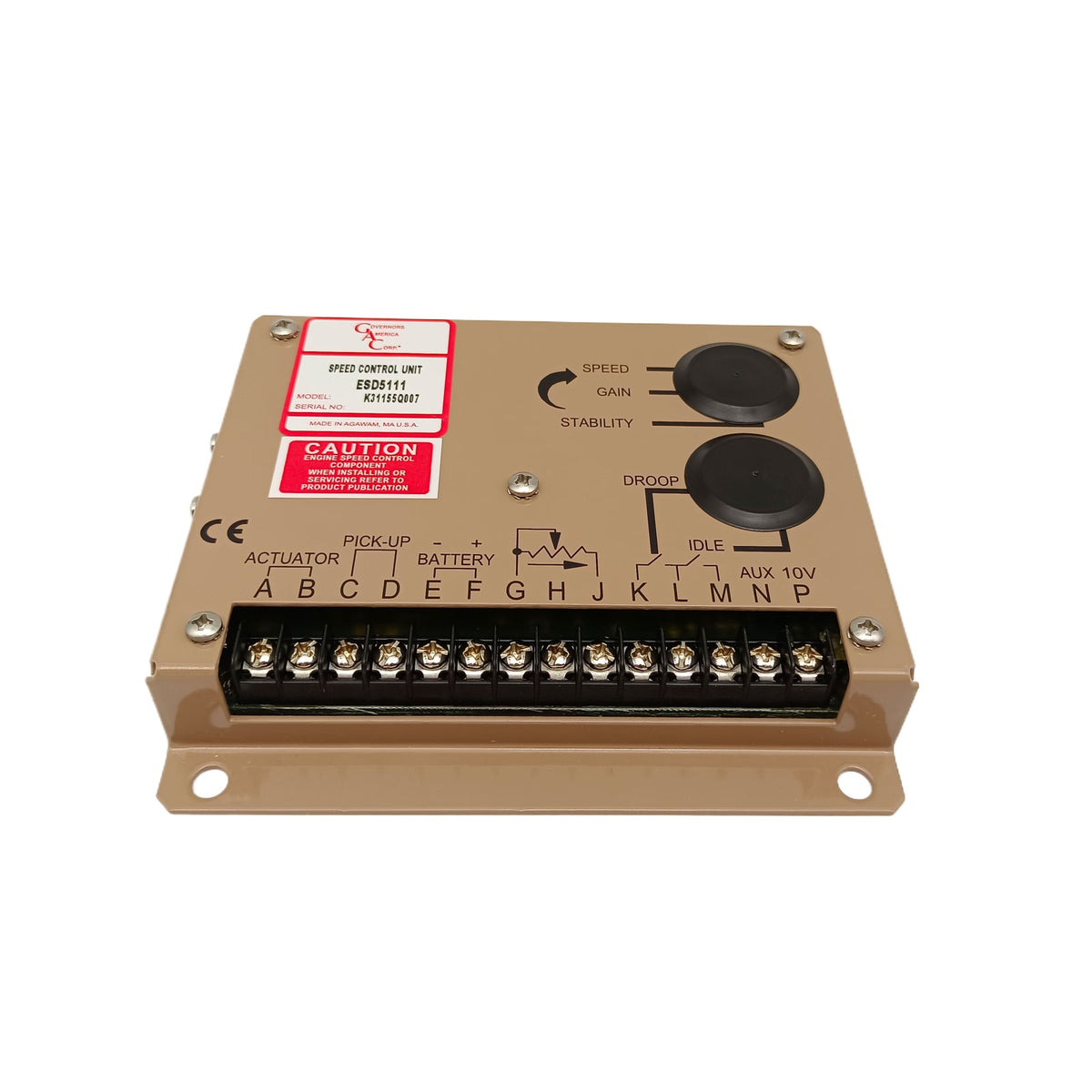

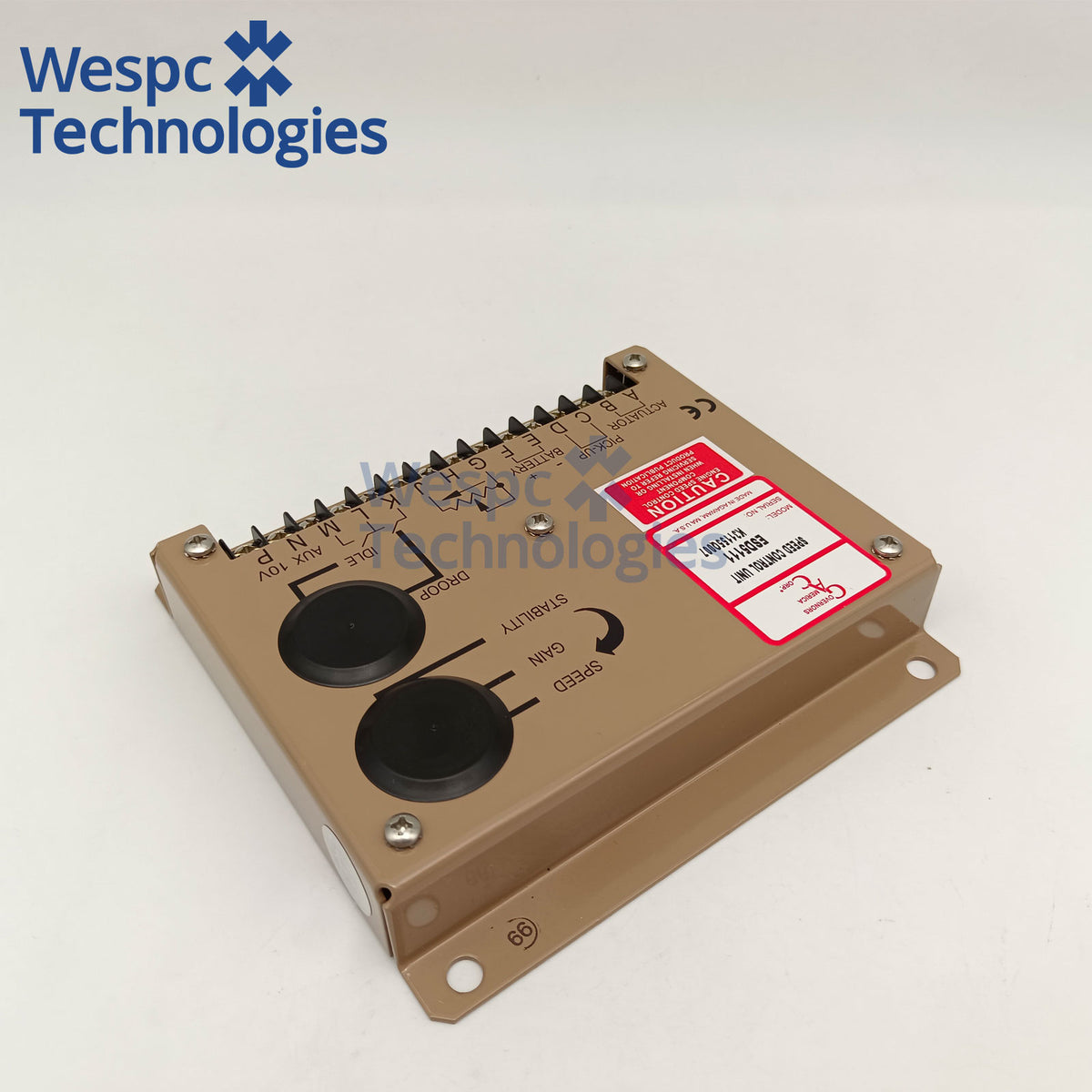

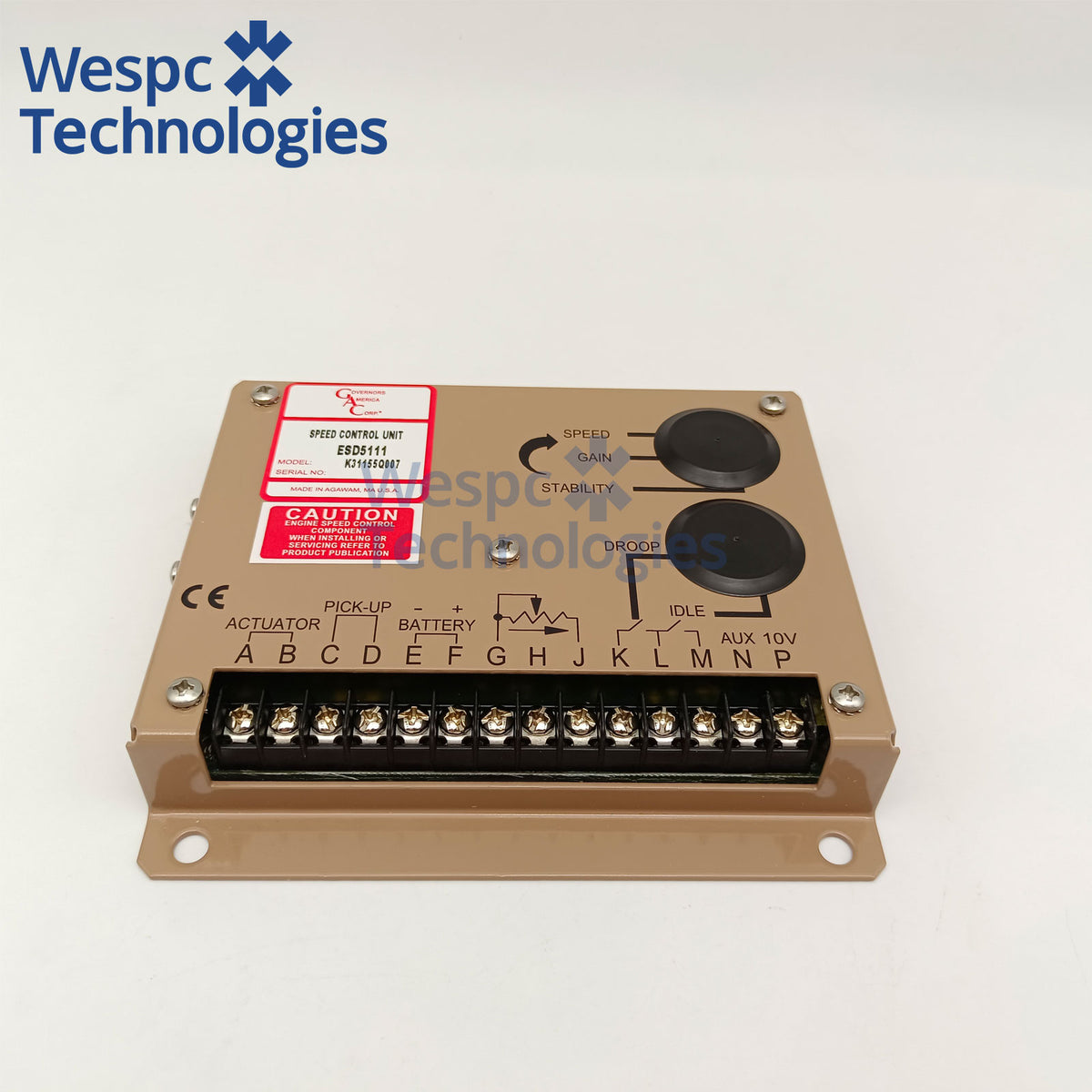

Part Number: ESD5111
-
Brand: Original GAC
-
Product Type: Electronic Governor / Speed Control Unit
-

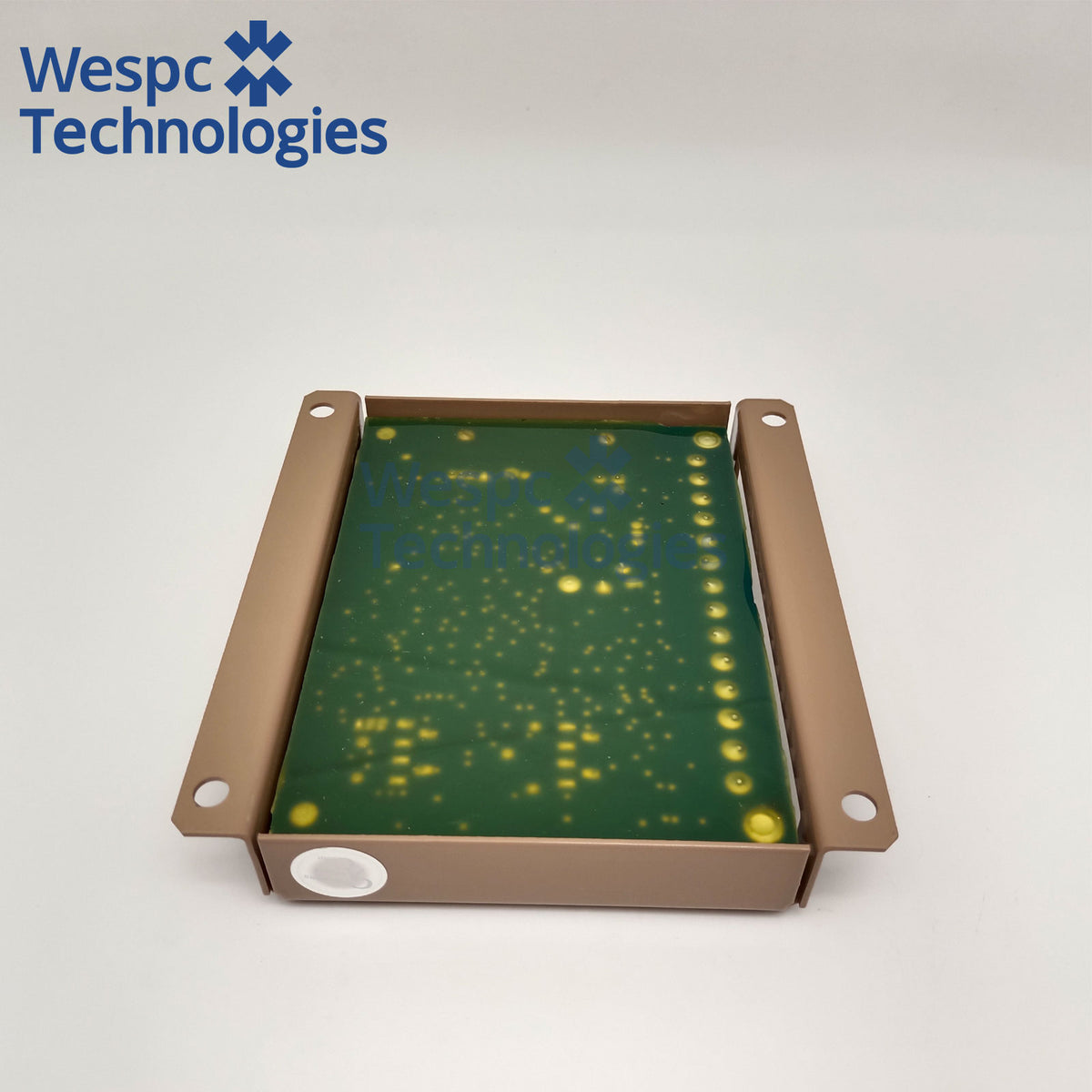

Material: Metal casing, industrial grade PCB with precise soldering, multi-turn calibrated potentiometers
-
Power Supply: 12VDC / 24VDC negative ground, transient & reverse voltage protection
-
Speed Input Signal: 0.5 ~ 50 Volts RMS from magnetic pickup sensor
-
Speed Frequency Range: 1000Hz ~ 7500Hz continuous, steady state stability ±0.25% or better
-
Max Actuator Current: 10A continuous output at 25℃
-
Operating Temperature: -40℃ ~ +85℃
-
Application: Industrial diesel genset, standby power, stationary diesel engine, commercial power unit
-
OE Reference: ESD5111, ESD5100 series
