Original Genuine Mebay BX50W Plus Water Pump Engine Control Box Multi Functional Digital Meter

Genuine Mebay BX50W Water Pump Engine Control Box Multi Functional Digital Meter

Summary

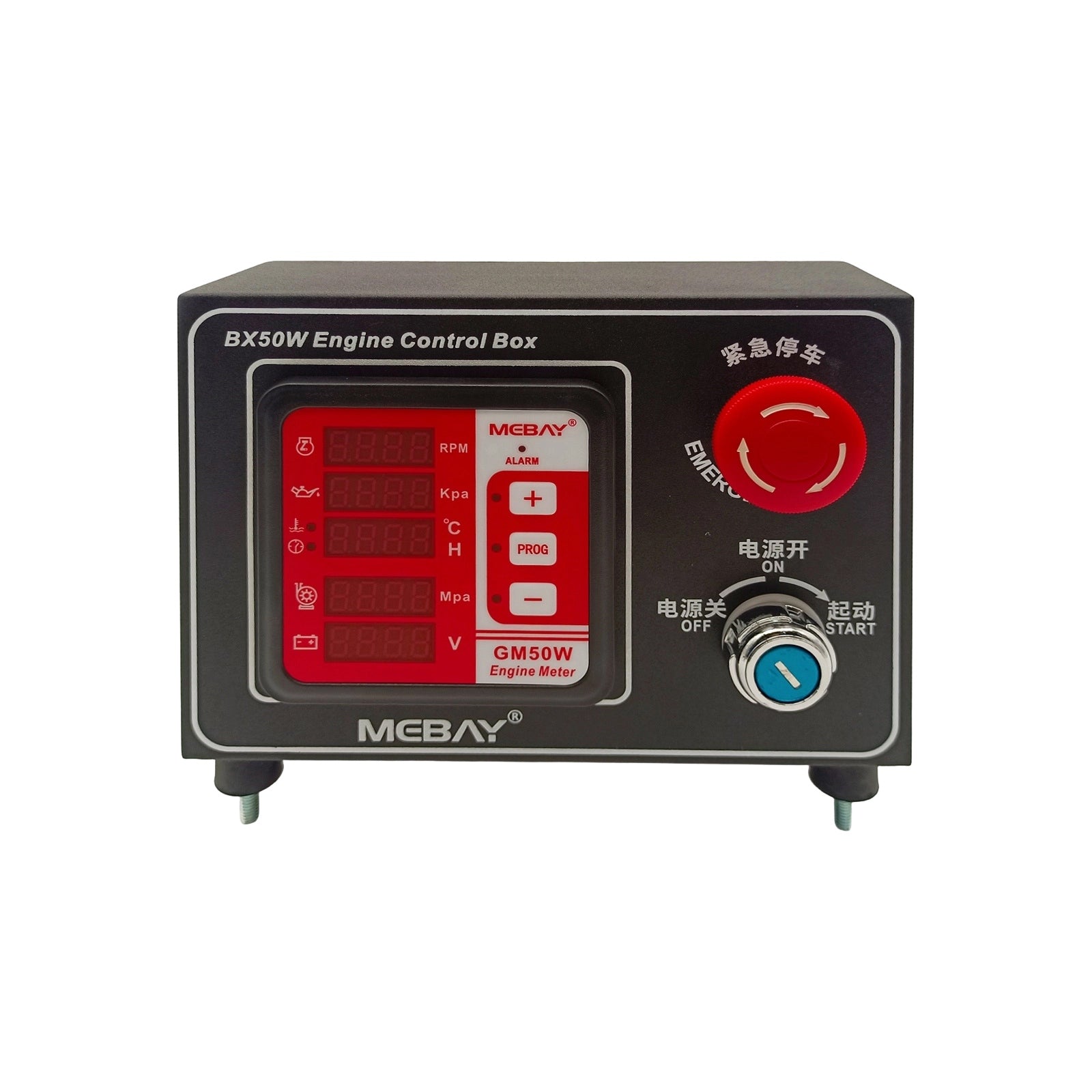

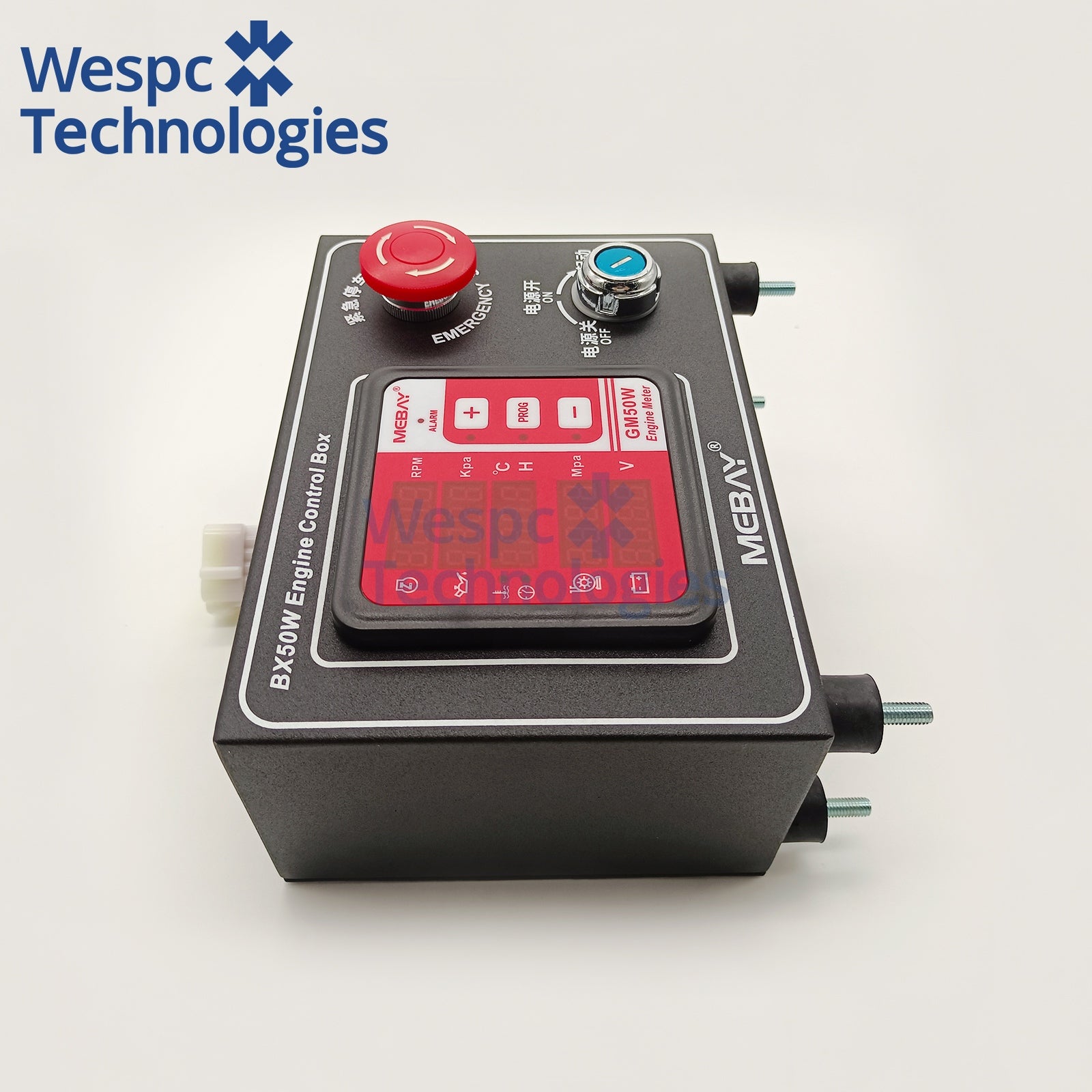

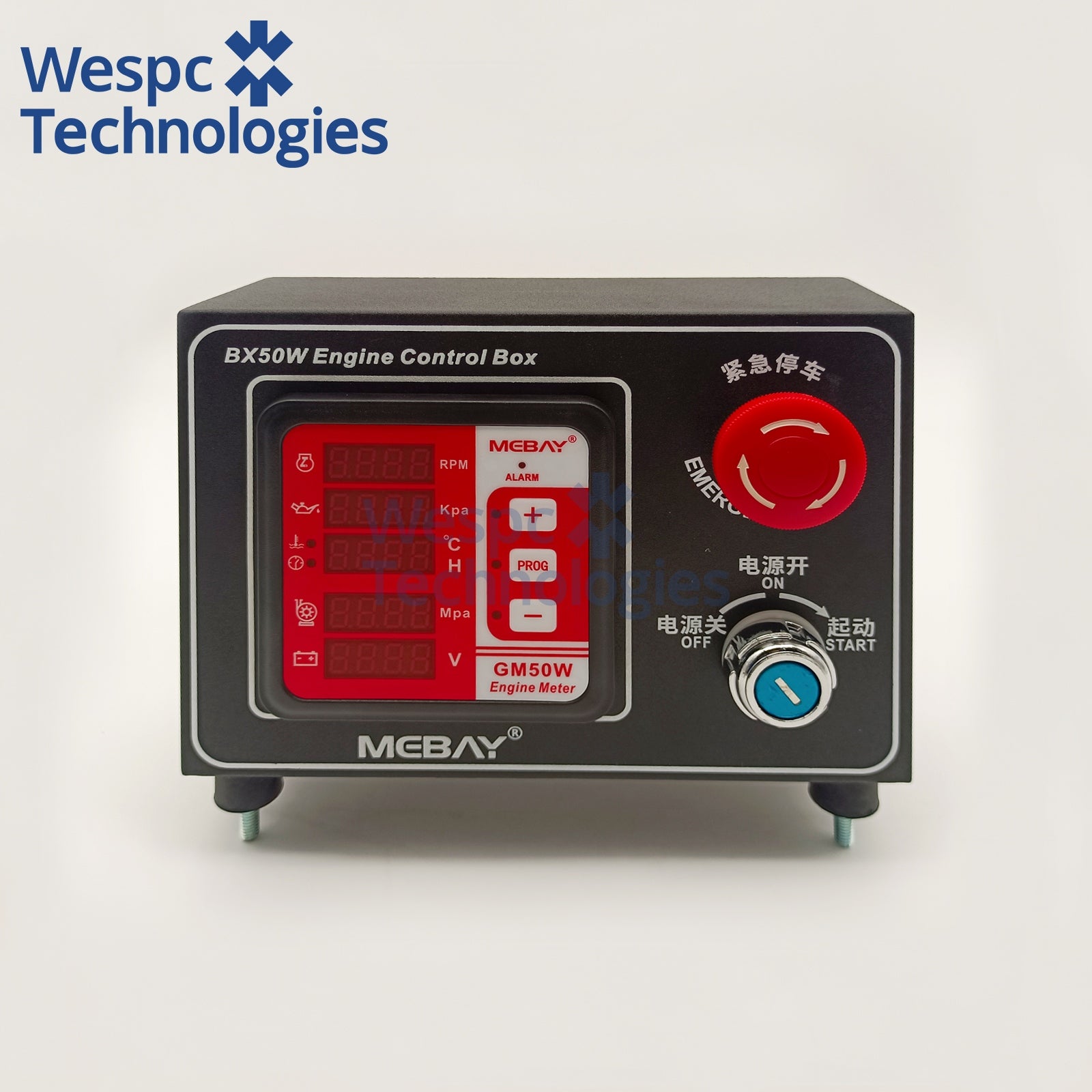

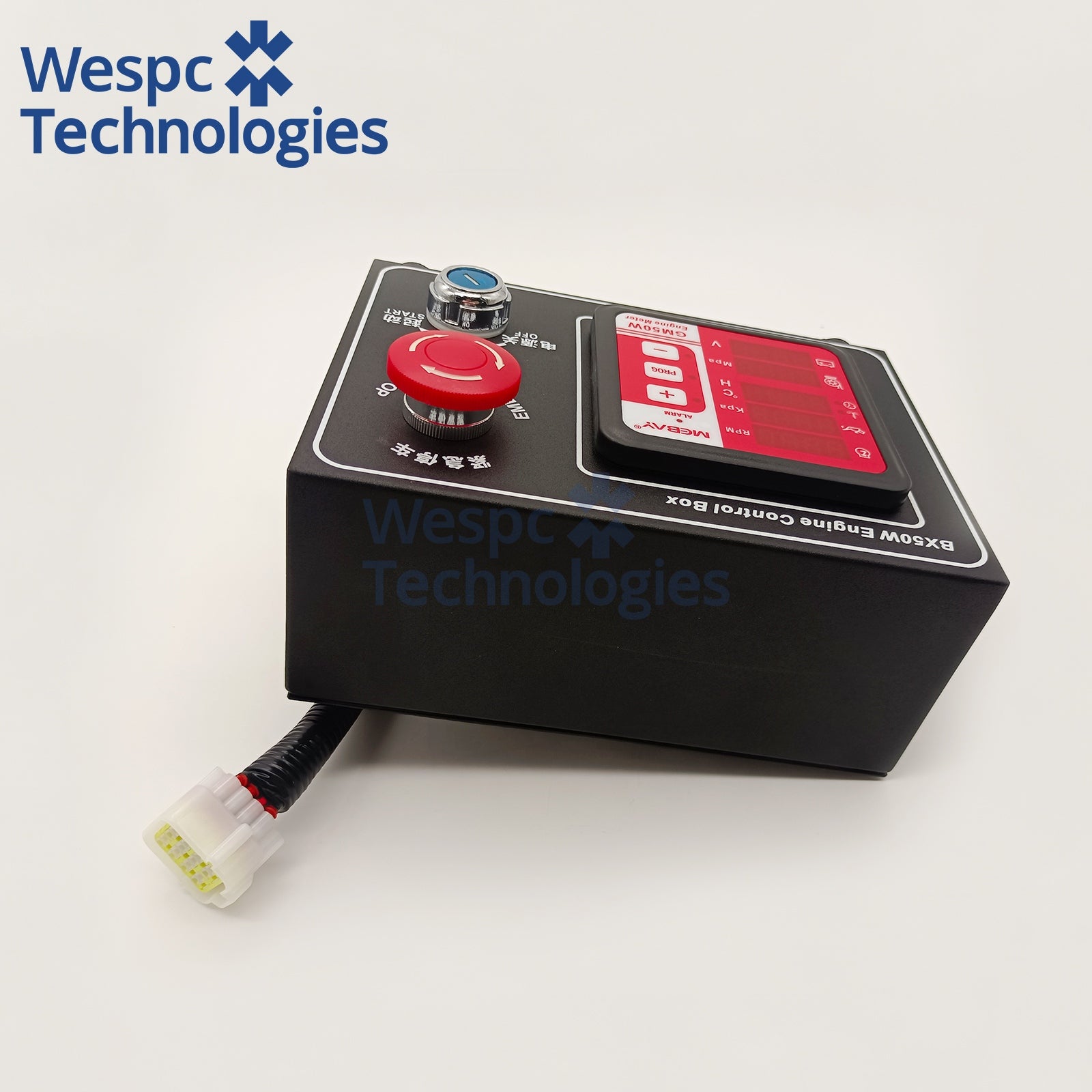

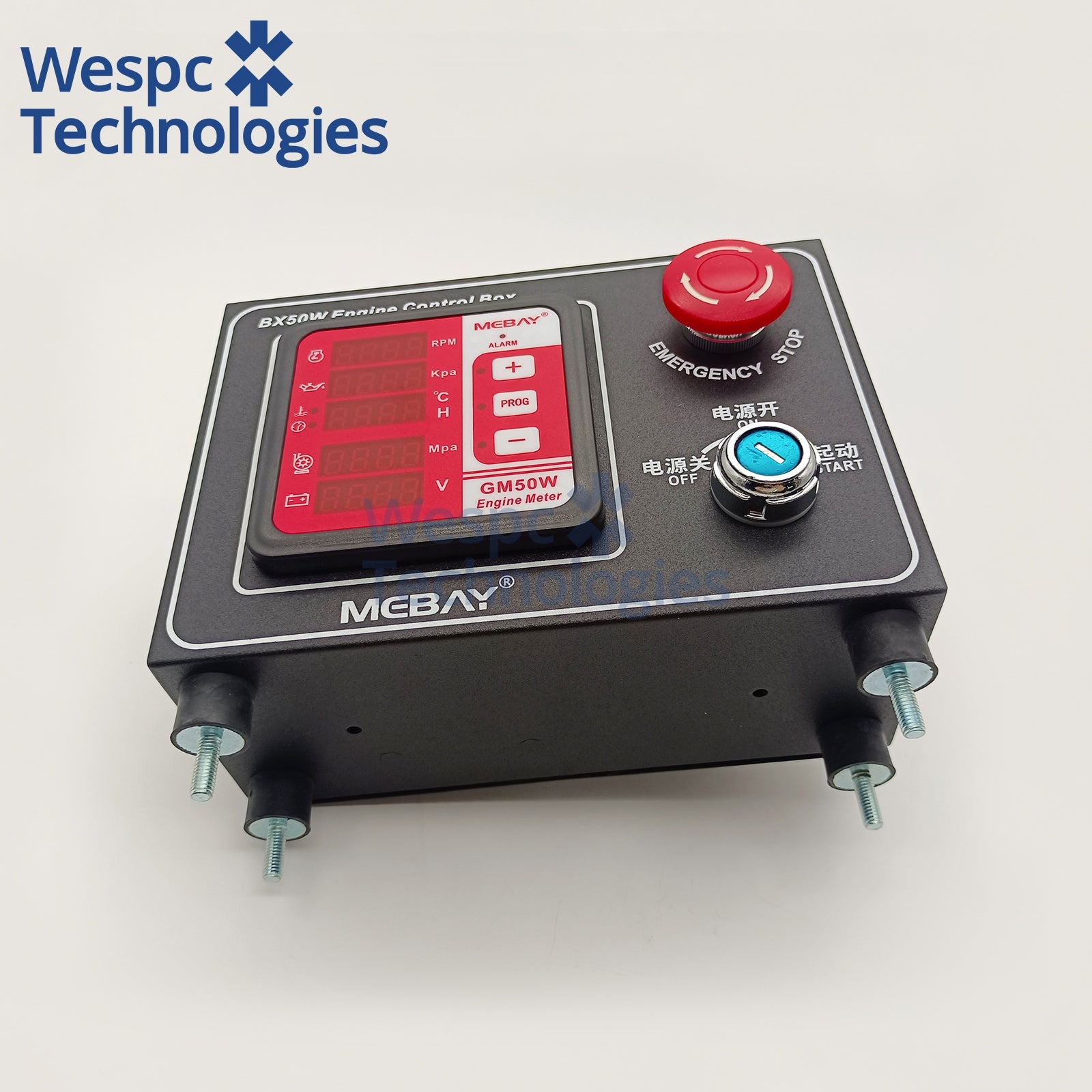

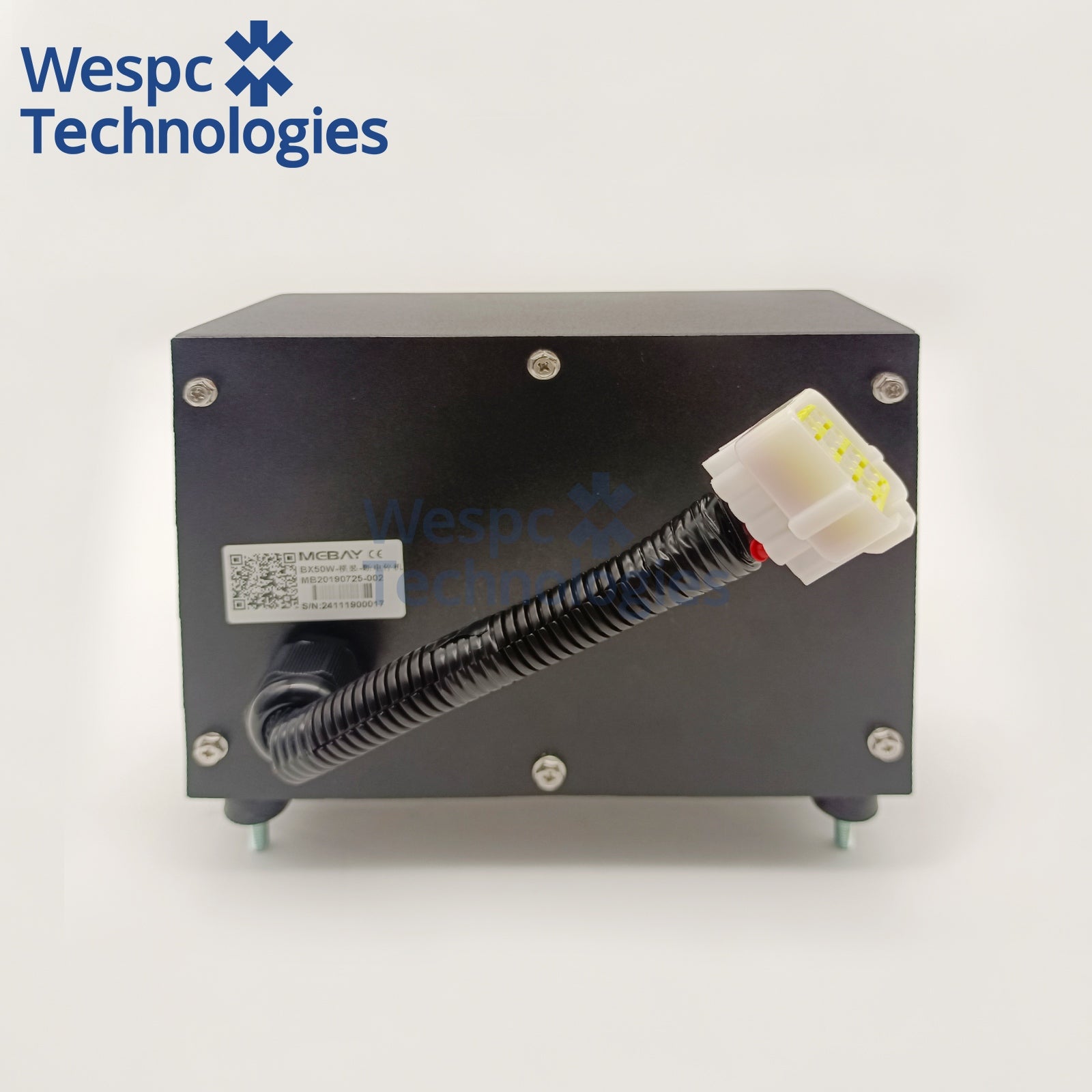

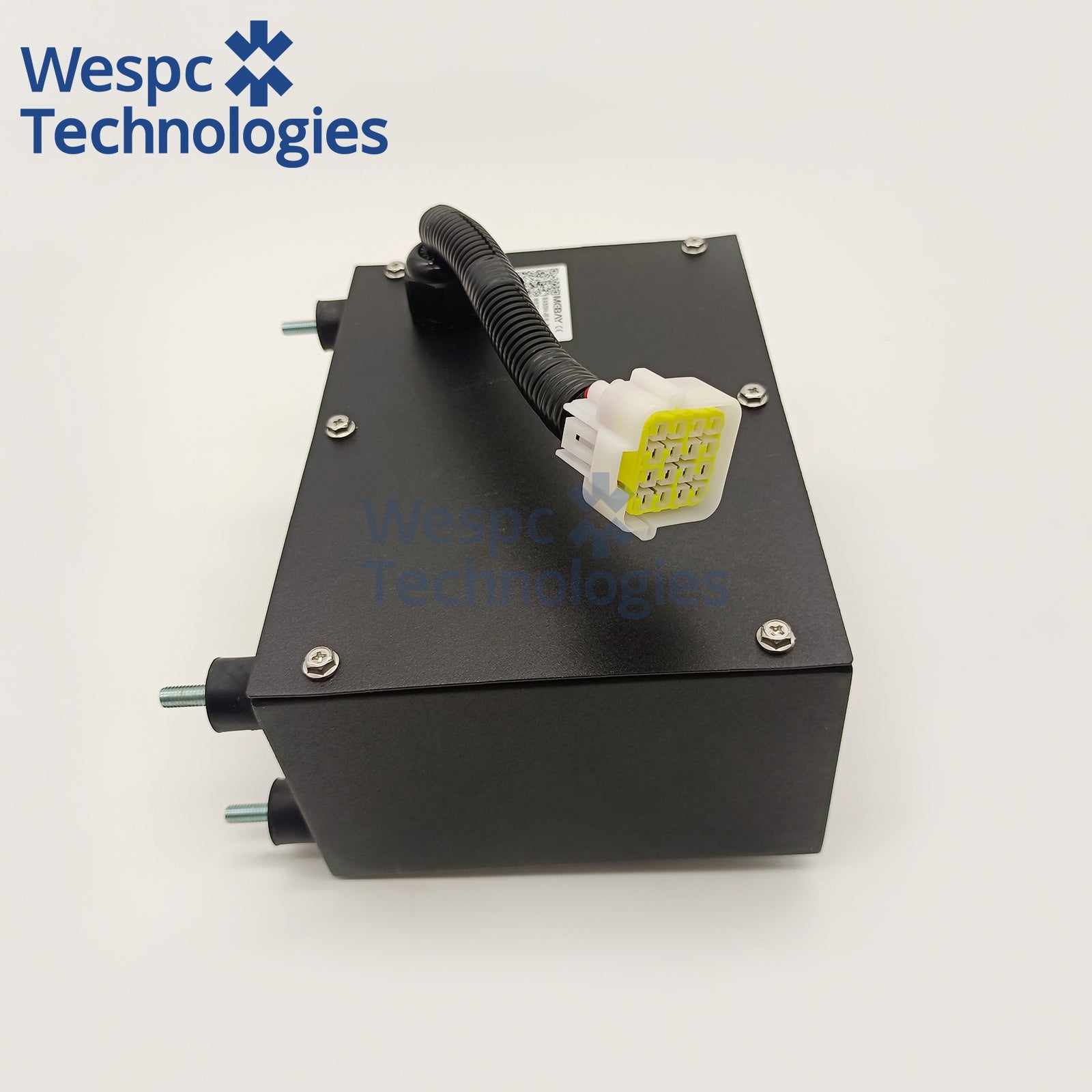

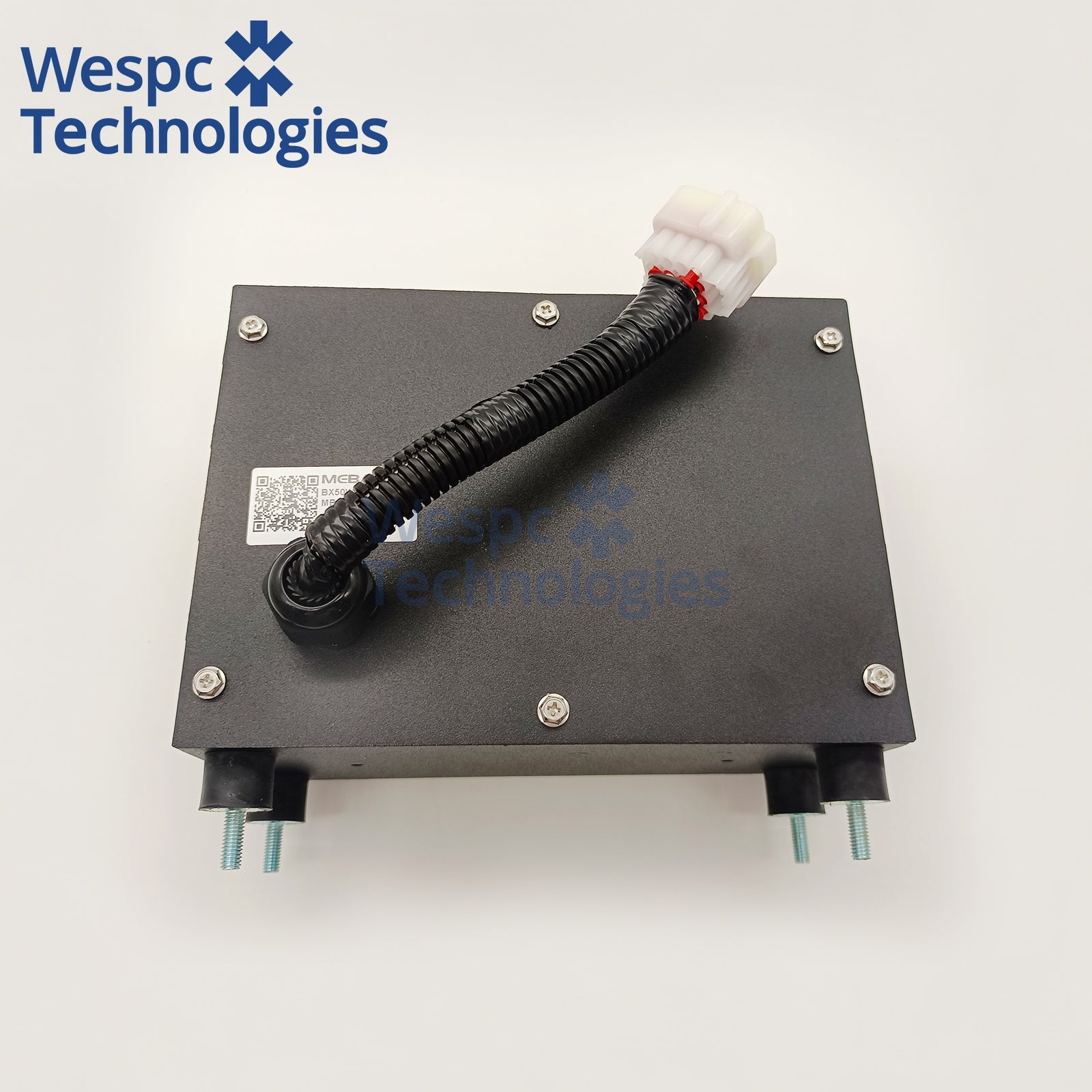

  Genuine Mebay BX50W PLUS integrated pre‑wired enlarged metal engine control box, tailor‑made for land‑based traditional mechanical diesel engines fitted with electronic speed‑governor actuator, without electronic ECU. Built‑in GM50W multi‑window LED digital engine monitor core unit. Complete factory pre‑wired cabinet with key‑lock rotary start‑stop switch, red mushroom emergency‑stop pushbutton and front‑panel manual speed‑adjust potentiometer.

Features

  5 Screen LED Digital Display

  Self-defined Curve of Sensor

  System data reset by front face buttons

  The protection value to be set by users

Display

  Engine RPM

  Engine Oil Pressure

  Water Pump Pressure

  Engine Cooling Water Temperature

  Battery Voltage

  Accumulation Time.

Protection

  Over speed

  Low Oil Pressure

  High Oil Temperature

  Low Water Pump Pressure

  High Water Temperature

  Low Battery Voltage

  Emergency stop

Range and Accuracy

  RPM Accuracy：deviation≦±1%（during preset Range）；

  Oil Pressure Accuracy：0-1000Kpa, deviation≦±2.5%；

  Water Temperature Accuracy：20-120℃, deviation≦±2.5%；

  Water Pump Pressure Accuracy：0-10Mpa, deviation≦±2.5%；

  Battery voltage Accuracy：deviation≦±1%（during preset Range）；

  Accumulation Time ：0-999999Hours(min record time: 0.1H)；

Specification

  · Power：DC 8～36 V

  · Consumption power：MAX：1.5 W

  · Sensor Resistance：0～1000 Ohm

  · Water Pump Pressure Sensor Resistance:4-20mA

  · Frequency range of RPM input signal：Freq 50Hz～10kHz

  · Amplitude range of RPM input signal：AC 3～65 V

  · Alarm output: Neg- output, Max DC1A；

  · Operation Temperature：-25～65℃；

  Storage Temperature：-40～85℃；

 · Ingress protection：IP54（the front face after installation）；

  · SIZE(W * H * D)：

  · Erect installation:150mm * 210mm * 90mm

  · Horizontal installatio:210mm * 180mm * 90mm

  · Weight: 1.6Kg
