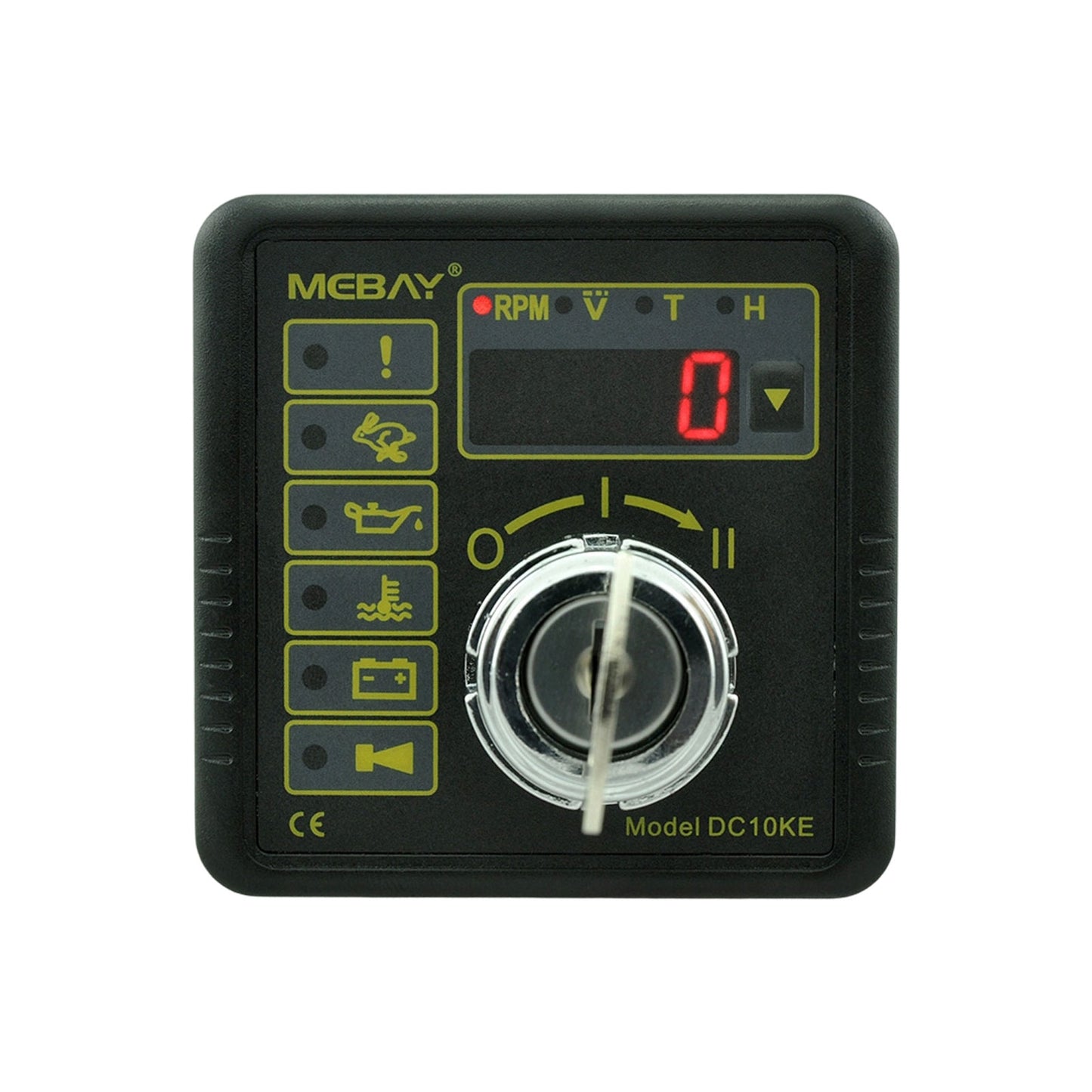

Original Genuine Mebay DC10KE Manual Start Generator Controller Key Switch Genset Control Module RPM Battery

Original Mebay Manual Generator Controller DC10KE Genset Key Start Controller

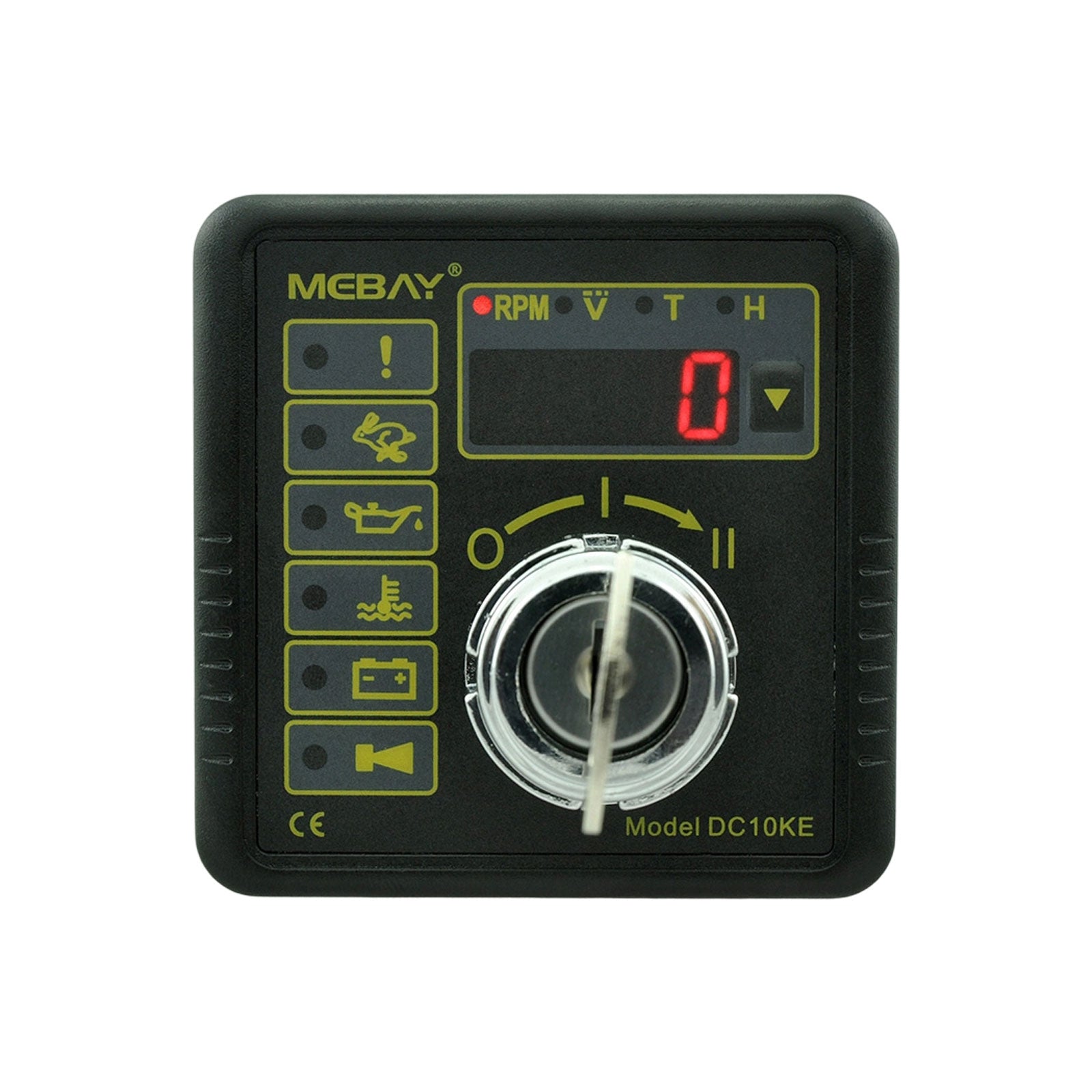

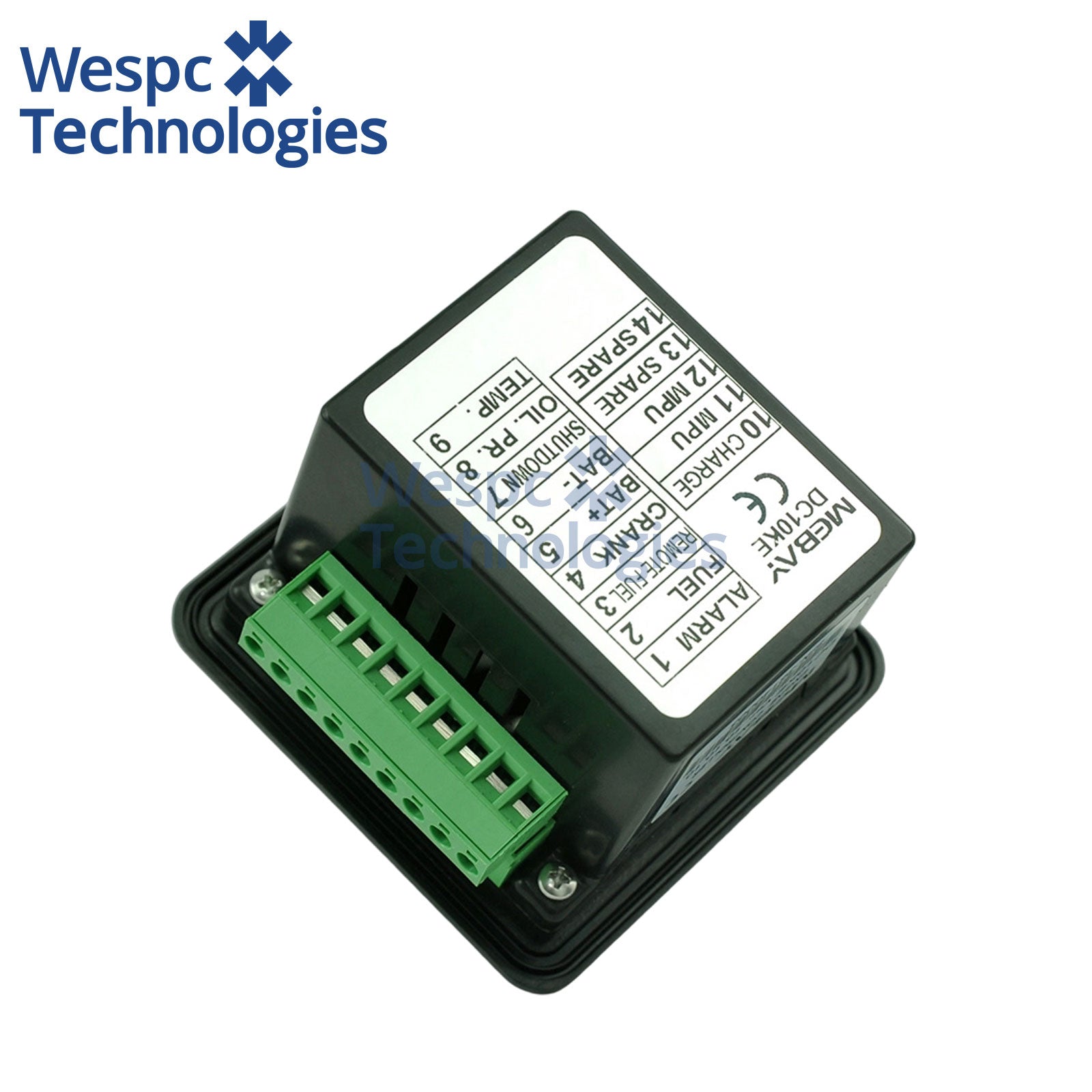

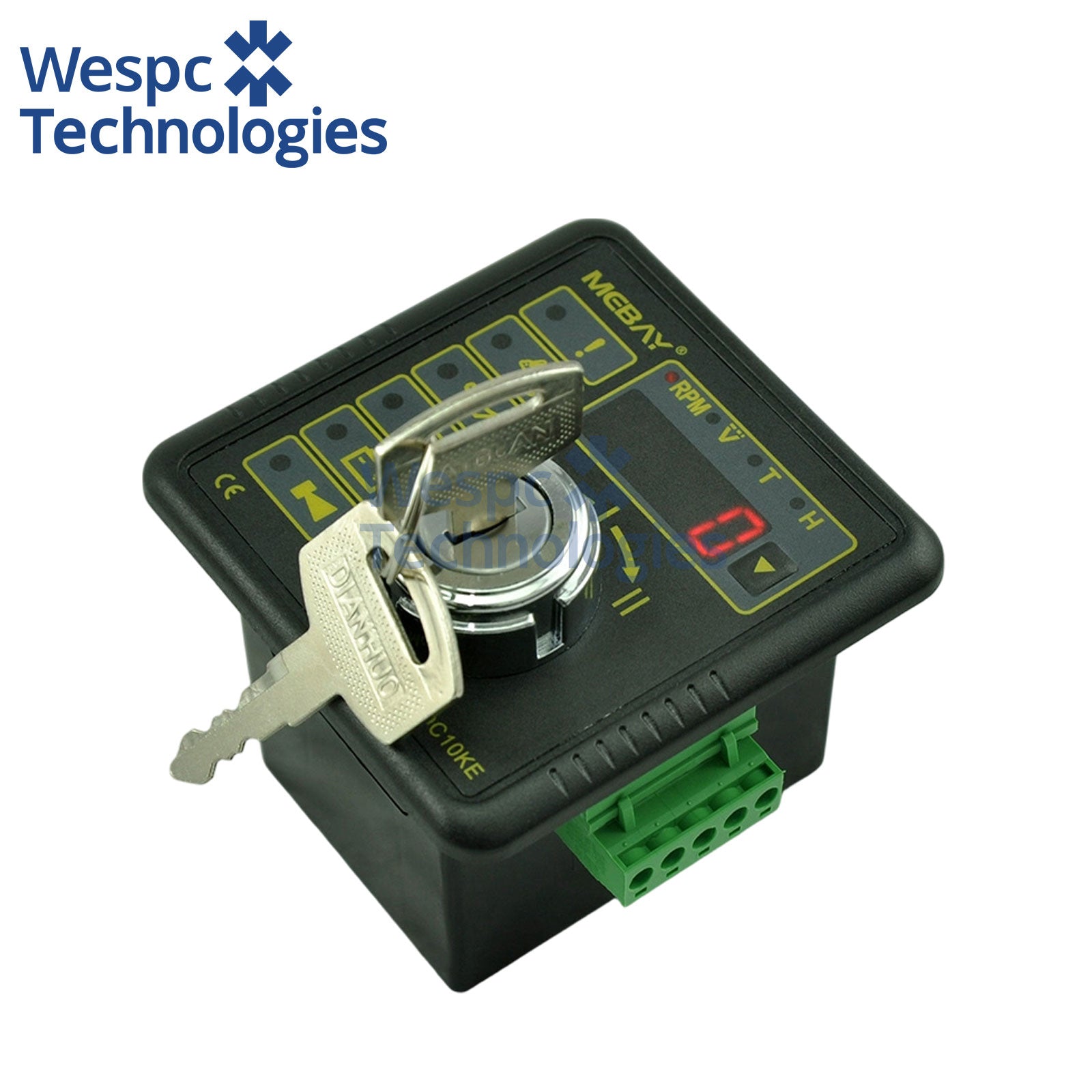

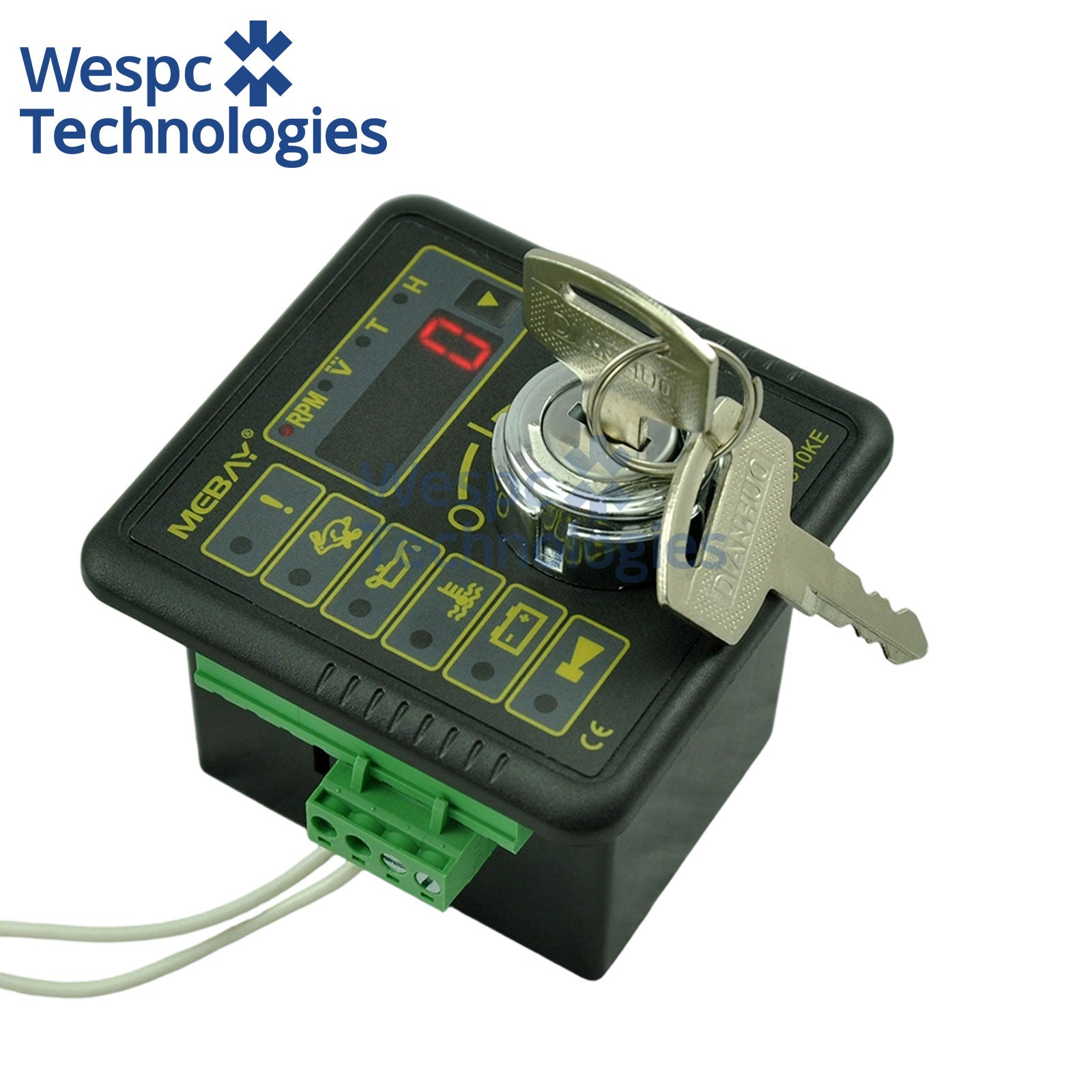

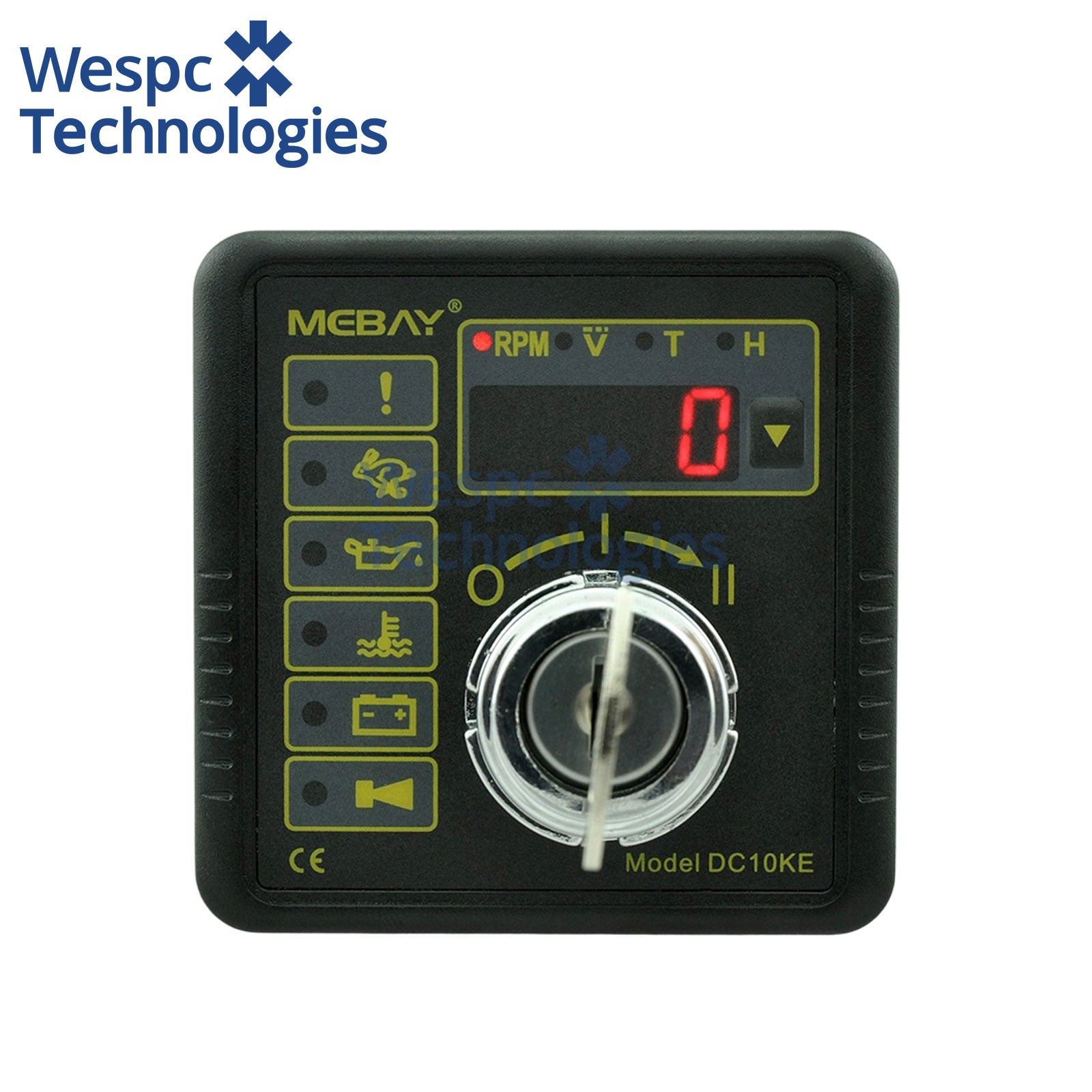

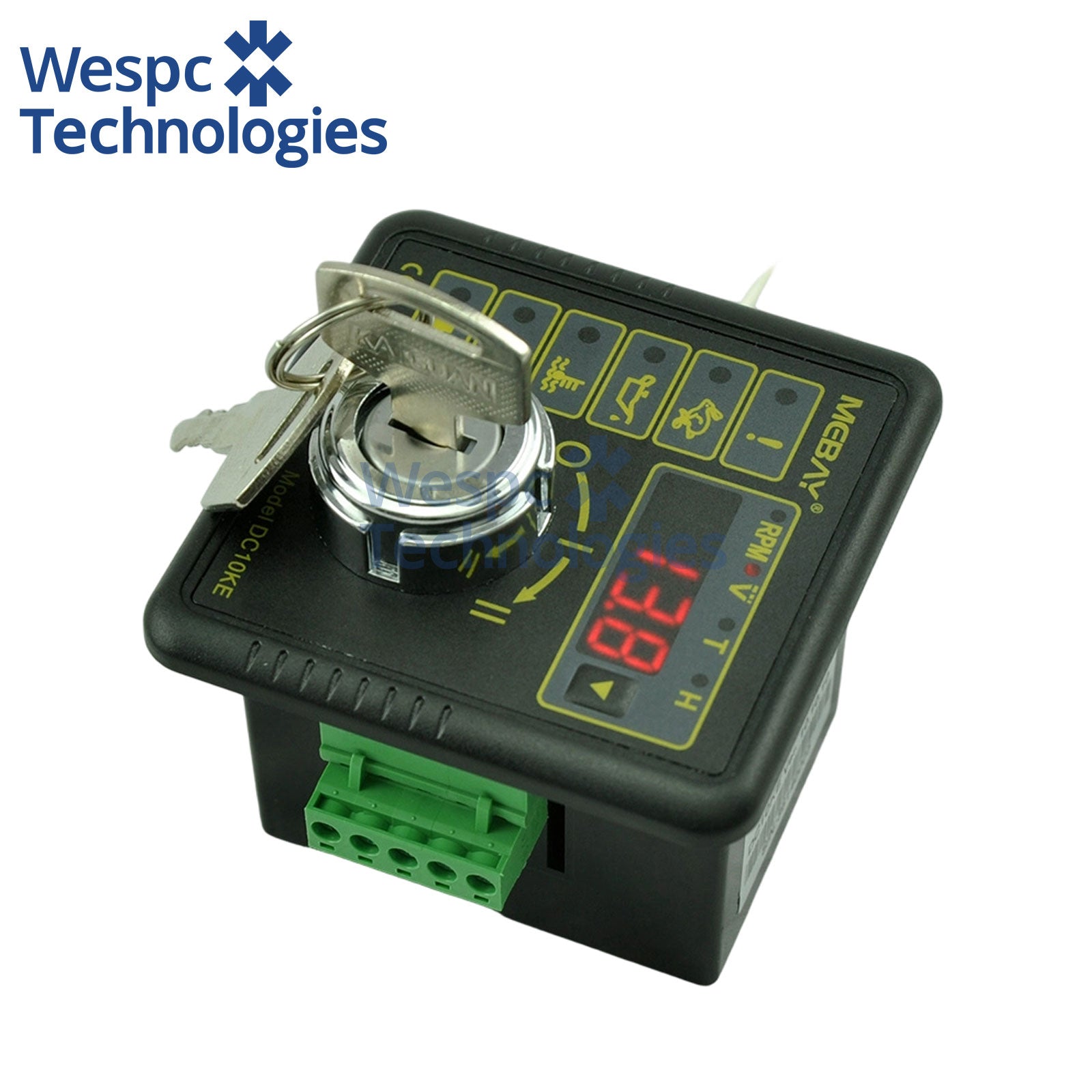

Controller DC10KE is designed as one of the engine manual start controller.

The engine speed, battery voltage, current running time and accumulation time can be displayed through the front face LED screen. This controller is also with various kinds of stop and alarm indications to monitor the engine status. Besides, it can also connect with PC so that parameters can be set through Computer to equip for more different engines.



1.Main Features

  32 units Micro-procession technology is used.

  4 Units LED tube Display

  LED and Fault Alarm Code Indication

  The parameters can be set through Computer

  Application for various kinds of Engine by self-setting

  With RS485 communication port



2.Parameters Display

  Engine speed RPM

  Engine battery voltage V

  Running time H

  Accumulation time H



3.Protection

  Emergency Stop

  Over speed stop

  Low Oil Pressure Stop

  High water temperature stop

  High Oil temperature stop

  Aux input shutdown alarm

  Low Battery voltage warning



4.Specification

  Power supply：8-33VDC

  Power consumption：MAX 2W(Working)

  Speed input：Freq 300Hz～10kHz

  Fuel output：MAX 16A

  Start output：MAX 10A

  Excitation Output：MAX 80mA

  Alarm output：MAX 16A

  Operating temperature：-30-75℃

  Storage temperature：-40-85℃

  Dimensions：78×78×72mm

  Pannel cutout：67×67mm

  Weight：280g
