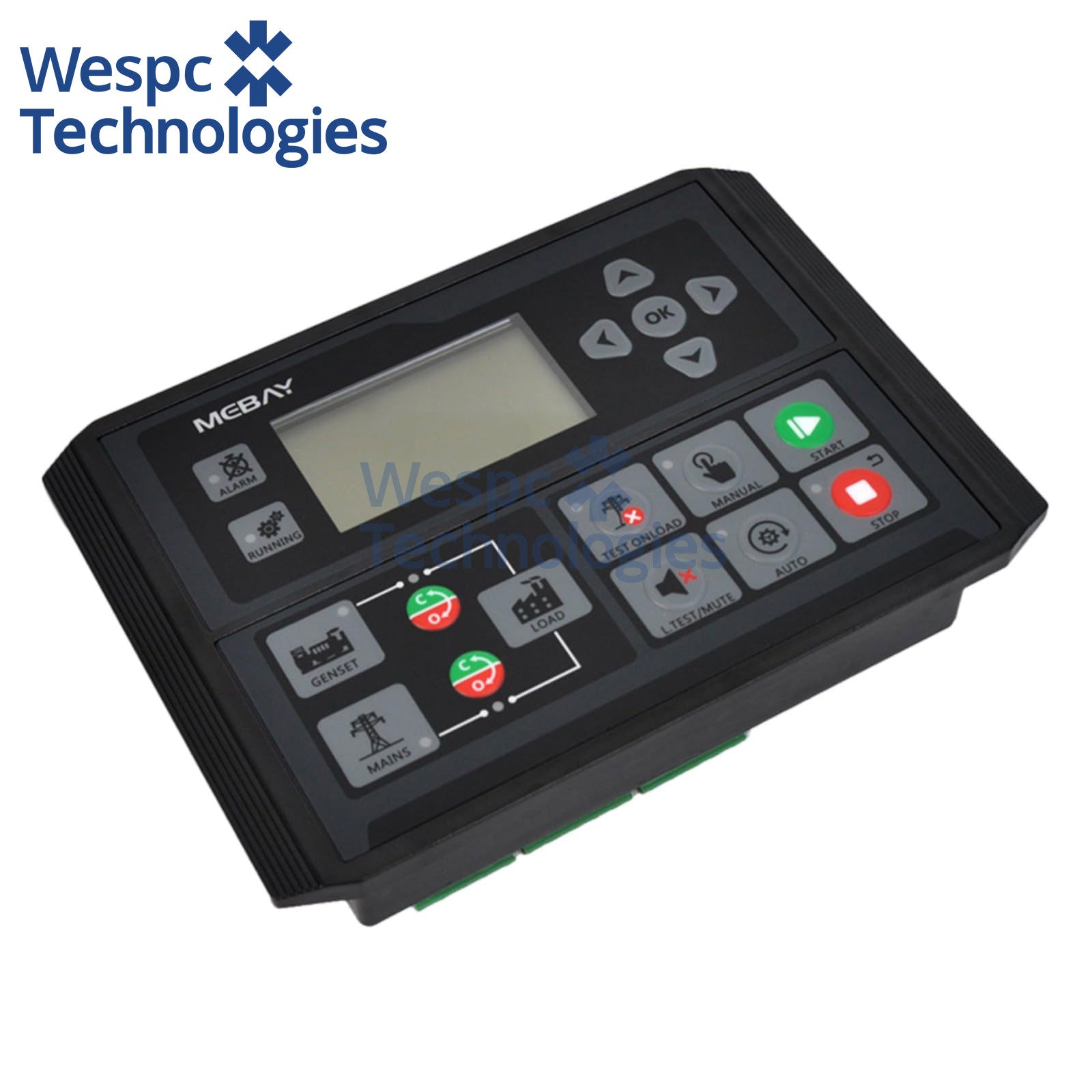

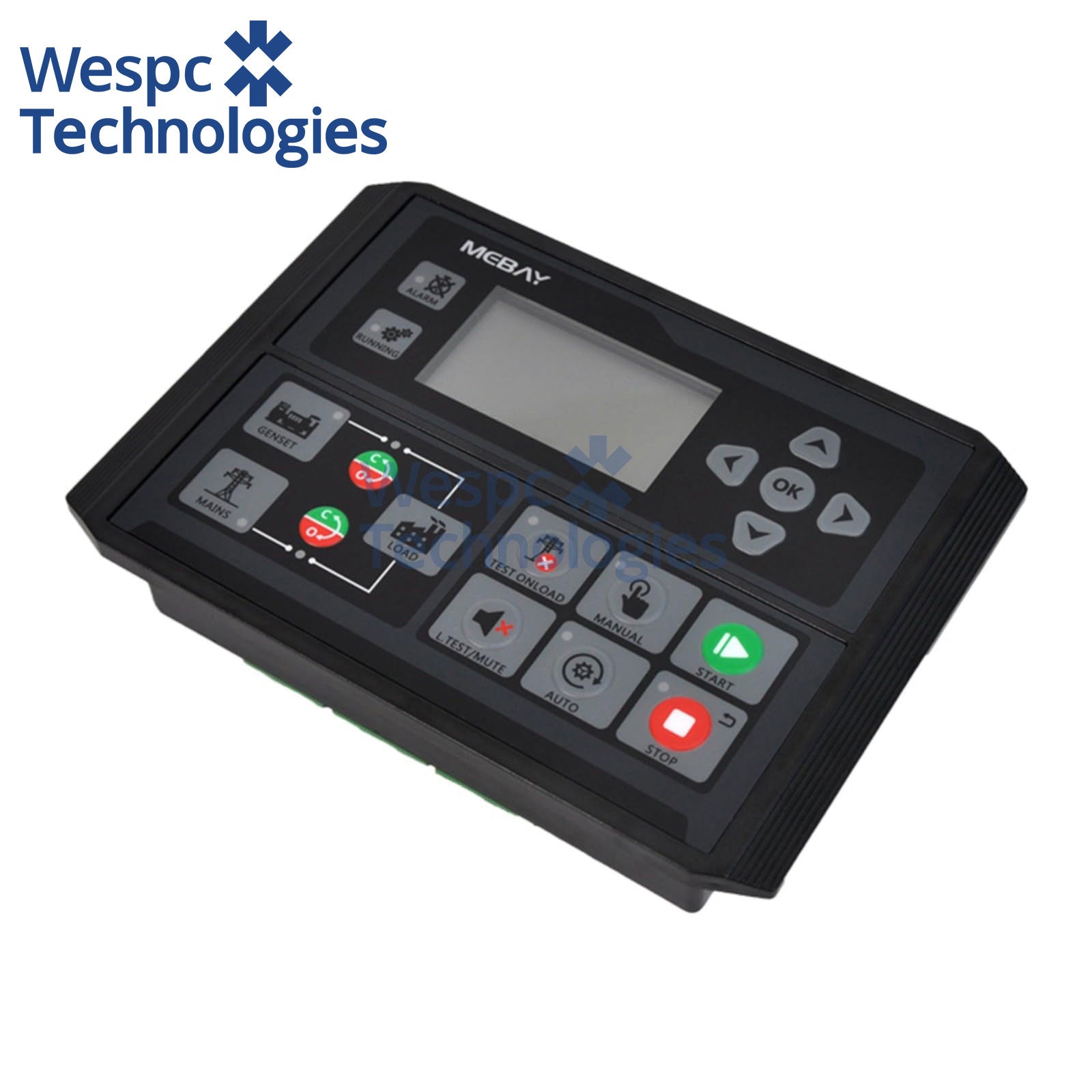

Original Genuine Mebay DC42D MK4 AMF ATS Genset Controller USB Debug IP65 LCD For Mechanical Diesel Generator

Wide Application Range

Commercial building basic backup power genset cabinet, small factory standby power distribution box, residential silent diesel generator control panel, construction machinery temporary power unit, off-grid industrial independent power station, retail shop emergency power supply, generator factory standard cabinet assembly, direct replacement for imported DSE4520 HGM420 ATS control panels, projects without remote monitoring requirement.

Product Specifications

• Brand: Mebay (Yokden)
• Model: DC42D MK4
• Core Function: MK4 32-bit dual-core AMF ATS genset controller, full mains automatic transfer control, onboard USB offline debugging, IP65 waterproof panel (No RS485 remote port, No ABF anti-backfeed, No CAN J1939 ECU bus, mechanical pump engine only)
• Working Power Supply: DC8V ~ 36V universal 12V/24V genset battery wide voltage
• Sampling Standard: 1P2W/2P3W/3P4W auto-adaptive mains & generator AC sampling, 5A CT current transformer matching
• Communication Interfaces: Only onboard USB debug port (No RS485 Modbus, No CAN J1939 ECU Bus)

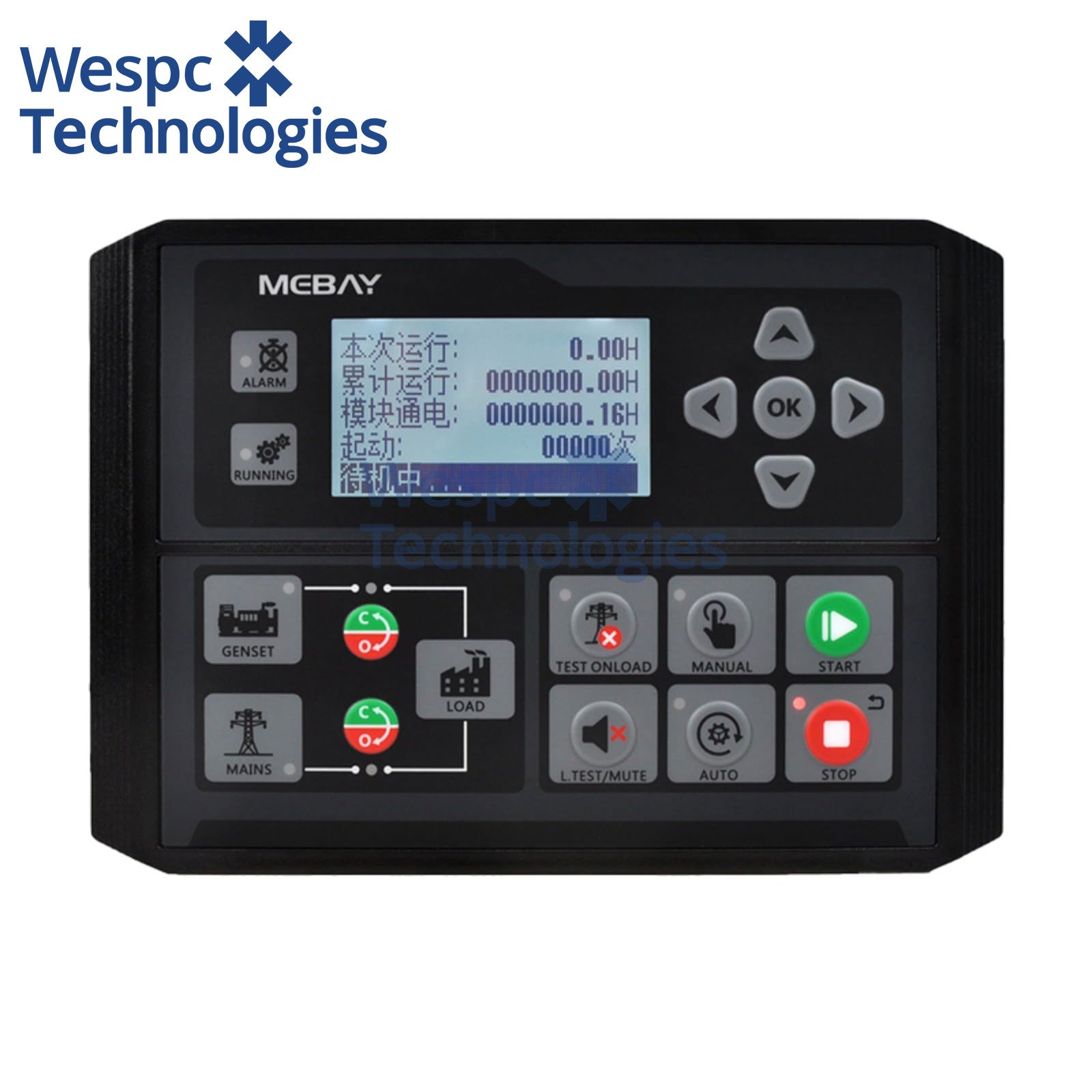

• Display: 3.0-inch 128×64 multi-language high-resolution LCD screen
• Panel Cutout Size: 160 × 120 mm, overall dimension 189 × 134 × 50 mm
• Front Panel Protection Grade: IP65 industrial dustproof & waterproof with thickened silicone sealing gasket
• Operating Temperature: -25℃ ~ +65℃
• Warranty: 12 months genuine factory warranty
• Certifications: CE, ISO9001, EMC EN55032, RoHS

Common Equipment Failures Solved

• LCD no screen after power on: Check DC battery positive/negative wiring looseness, confirm DC8-36V normal voltage range
• ATS fails auto start when mains lost: Verify AUTO mode activated, re-calibrate mains voltage detection threshold via USB software
• PC cannot connect via USB cable: Confirm USB driver installation, check cable wiring integrity
• Need remote APP/web monitoring: Replace with DC42DR MK4 model with RS485 Modbus port
• Grid-connected genset reverse power fault alarm: DC42D MK4 has no ABF anti-backfeed function, upgrade to DC42DR-ABF MK4
• Cannot read EFI engine ECU fault codes: No CAN bus, select DC42CR MK4 for electronic injection engines
• Need independent power kWh display: Match GV59R 3-phase multi-function power meter for separate energy statistics
• Marine cabinet long-term high humidity environment: IP65 waterproof design meets standard marine land cabinet use requirements
