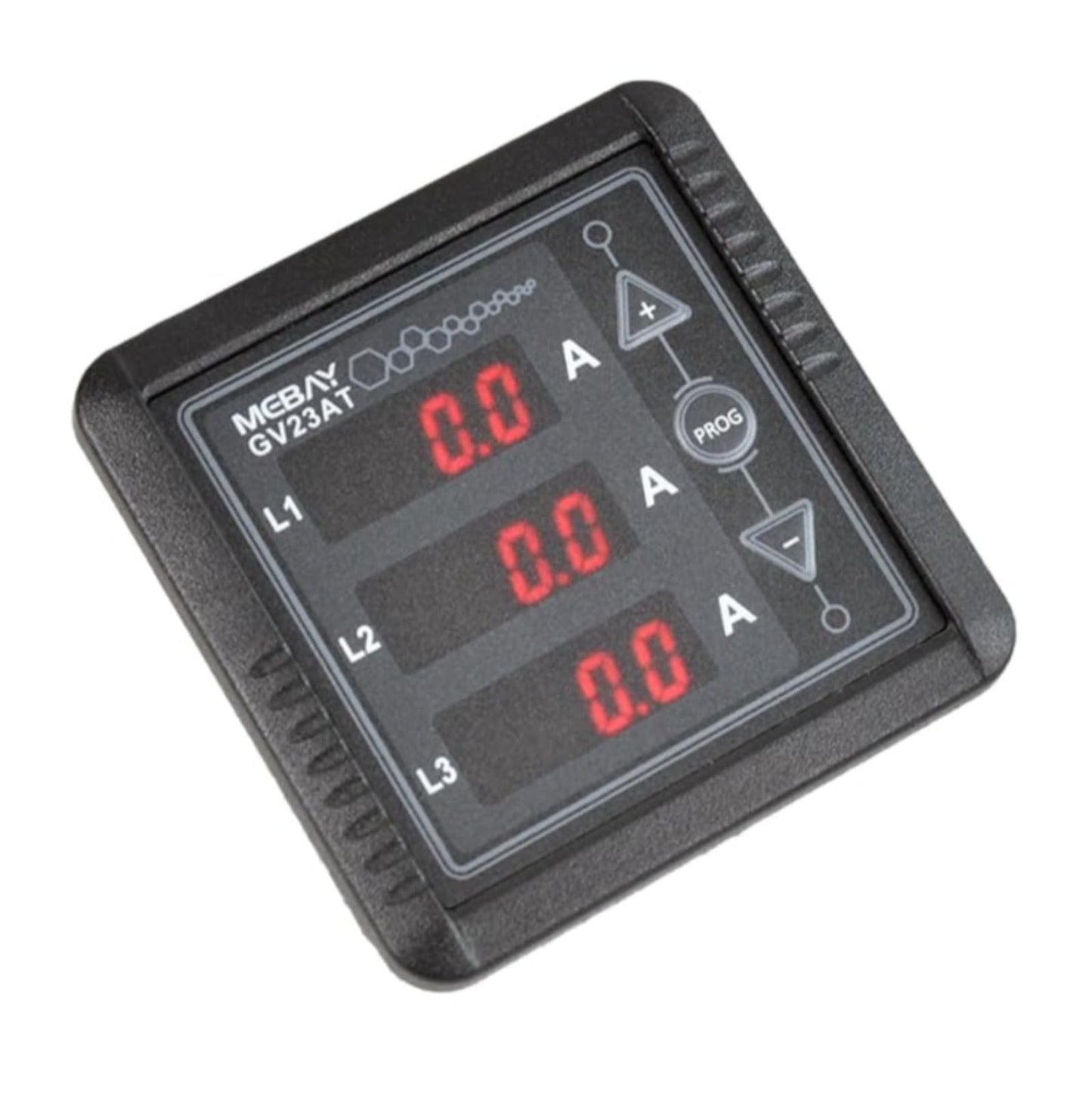

Original GV23AT MKII MEBAY Generator Digital Meter AC Ammeter Tester Meter

Original GV23AT MKII MEBAY Generator Digital Meter AC Ammeter Tester Meter



1. Module Overview



GV23AT MK2 is a lightweight, low-cost meter for measuring and displaying three-phase AC current. It can replace the traditional pointer meter. It has digital display and convenient and intuitive reading. It can be configured to adapt to a variety of current transformers.



2. Functional features



4-digit high-brightness LED digital tube displays the measured value;



3-phase current independent display;



AC power supply;



AC transformer ratio can be set;



Wide voltage operating range.



3. Parameter display



L1 AC current;



L2 AC current;



L3 AC current;



4. Measuring range and accuracy



Current: 0-9999A, error ≤±2.5%



5. Specifications



Working power supply: AC 165～275 V, 40-70HZ



Power consumption: MAX: 1 W



Operating temperature range: -30℃ ~ 65℃



Volume size (W * H * D): 78mm * 75mm * 76mm



Protection level: IP65 (front panel after installing waterproof ring)



Installation opening (W * H): 67mm * 67mm



Weight: 110g
