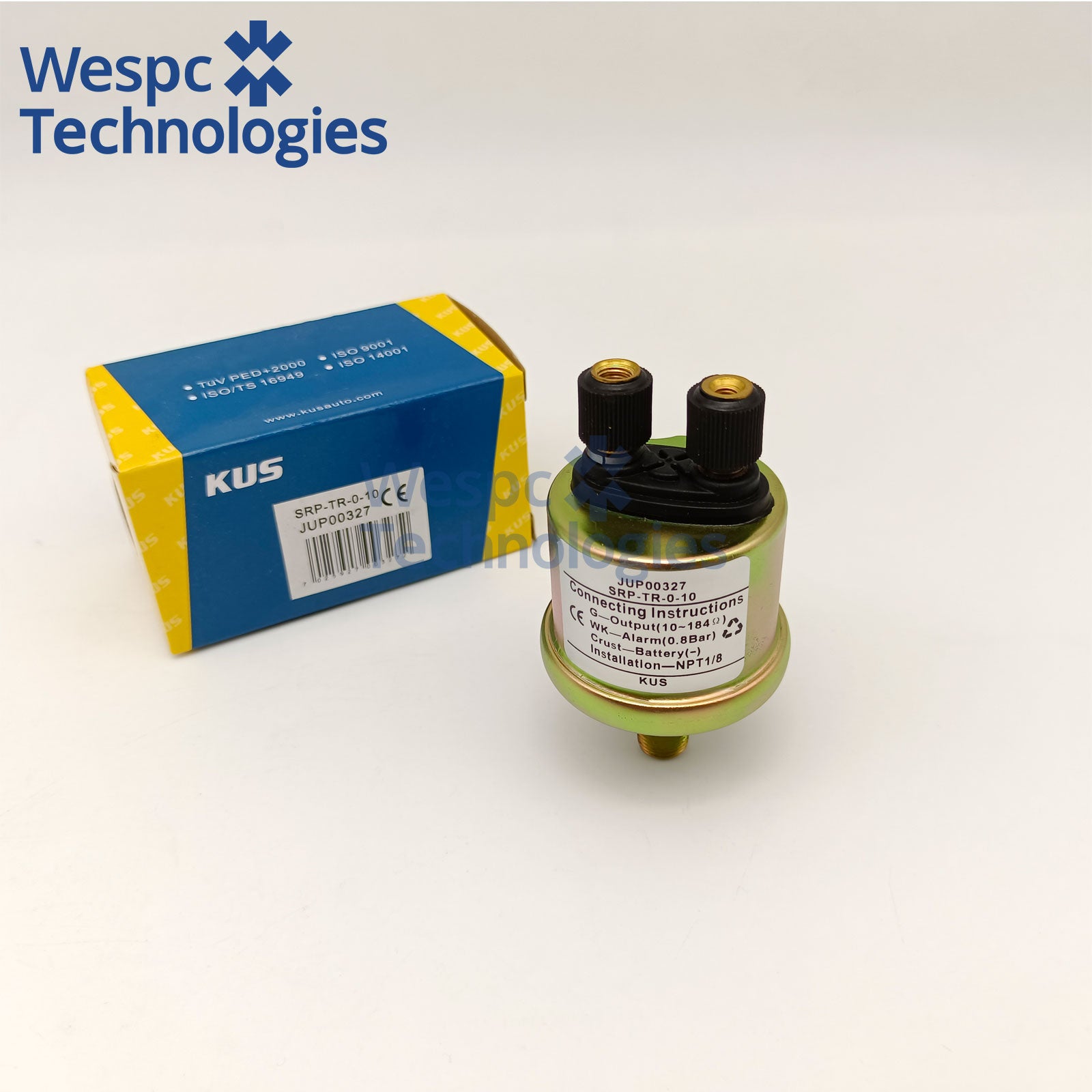

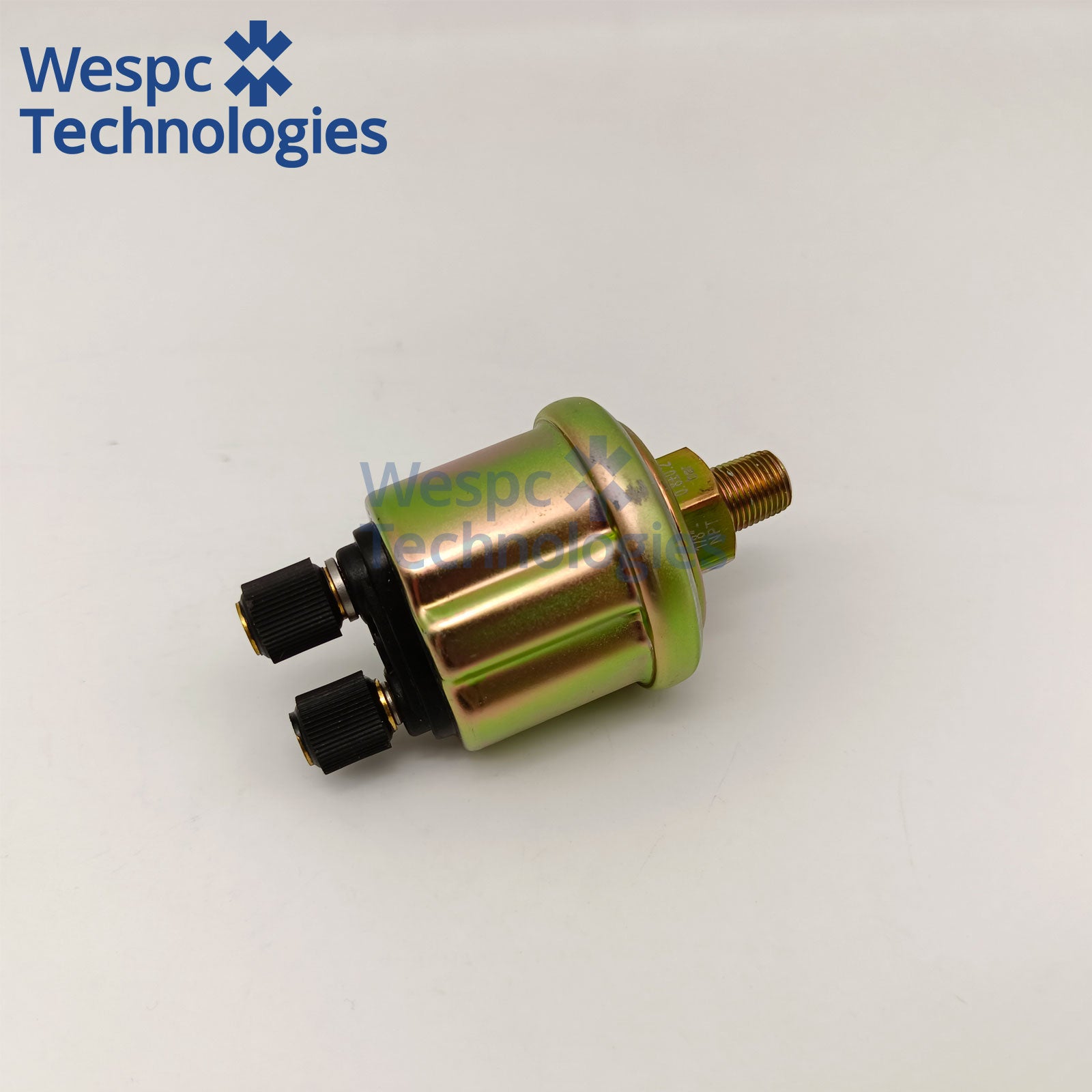

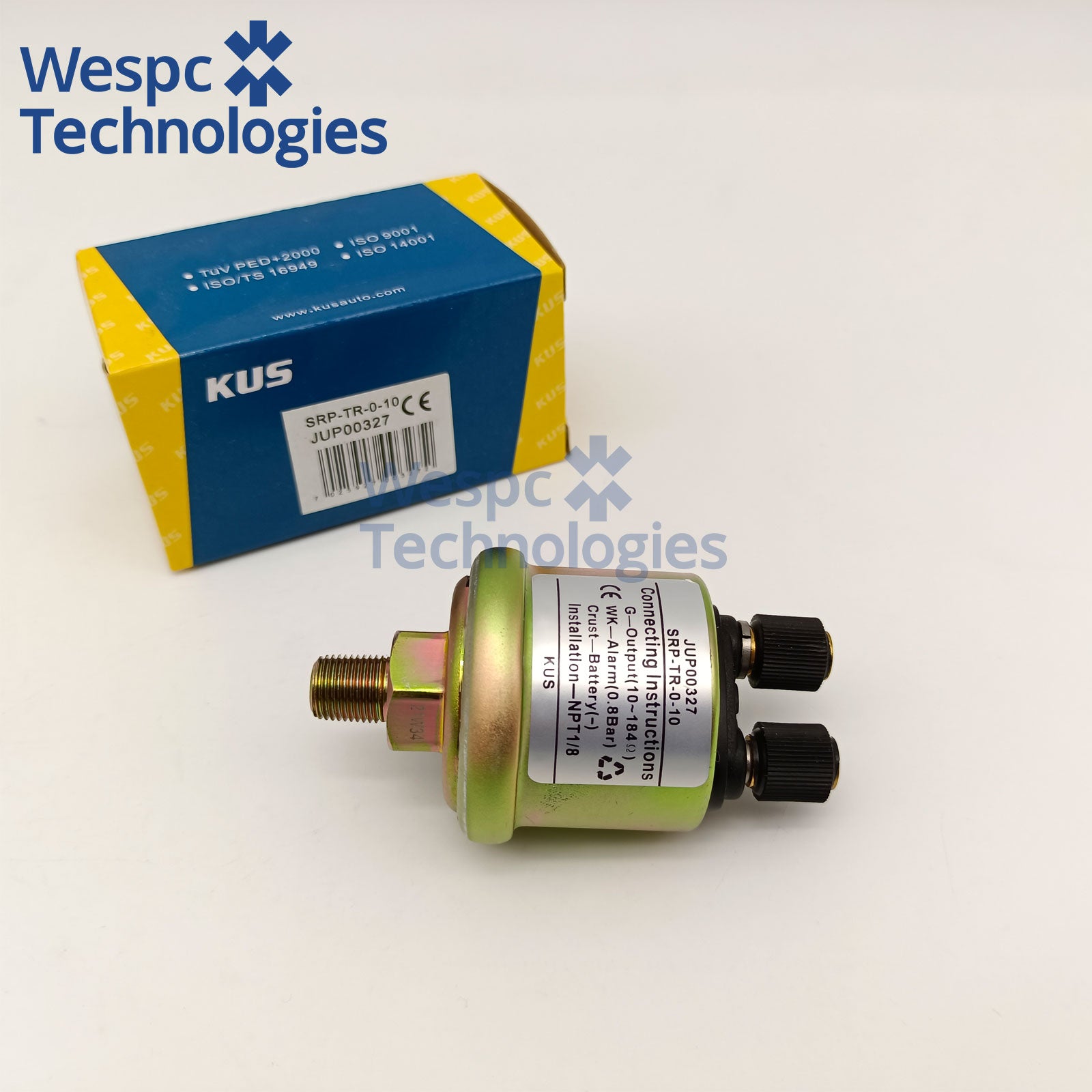

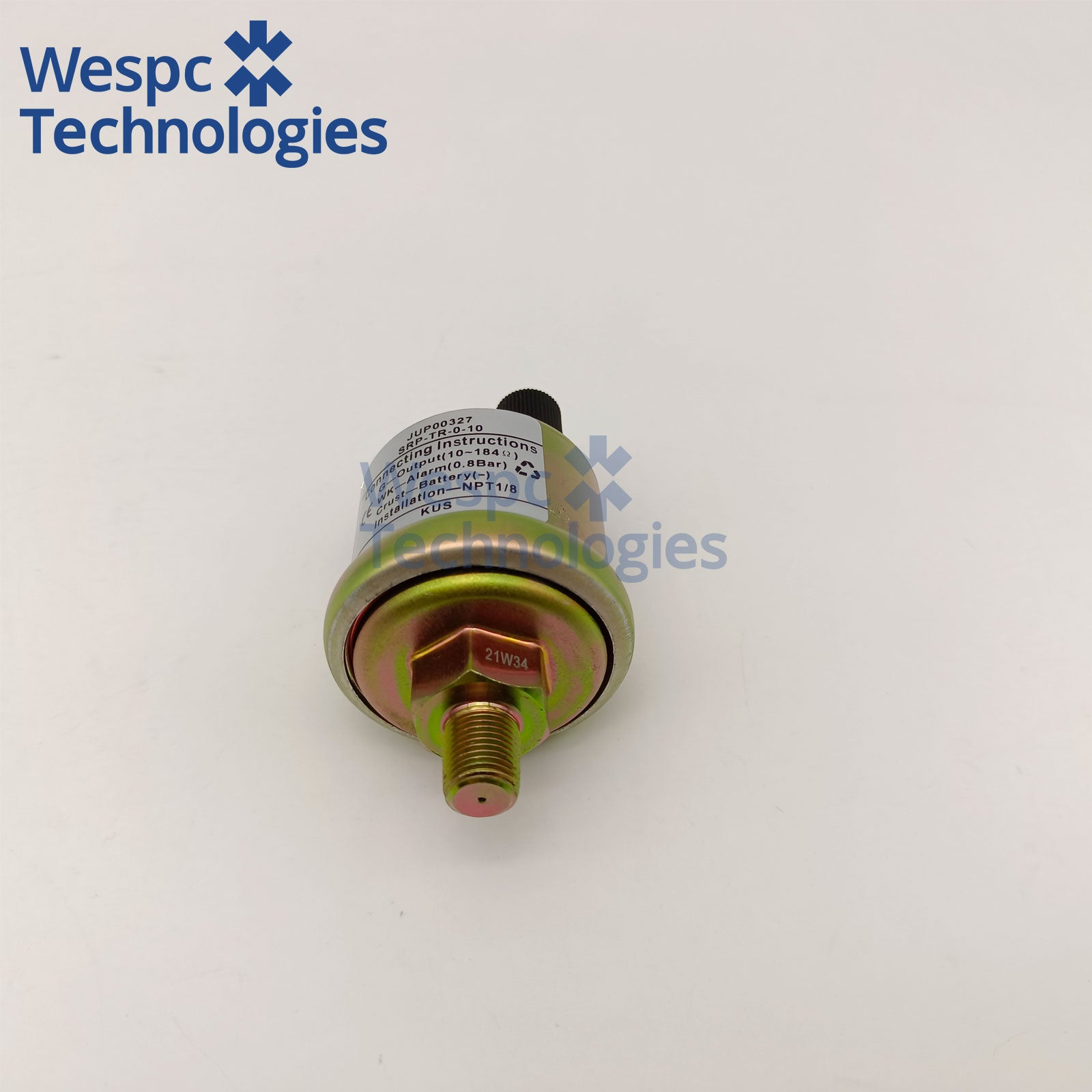

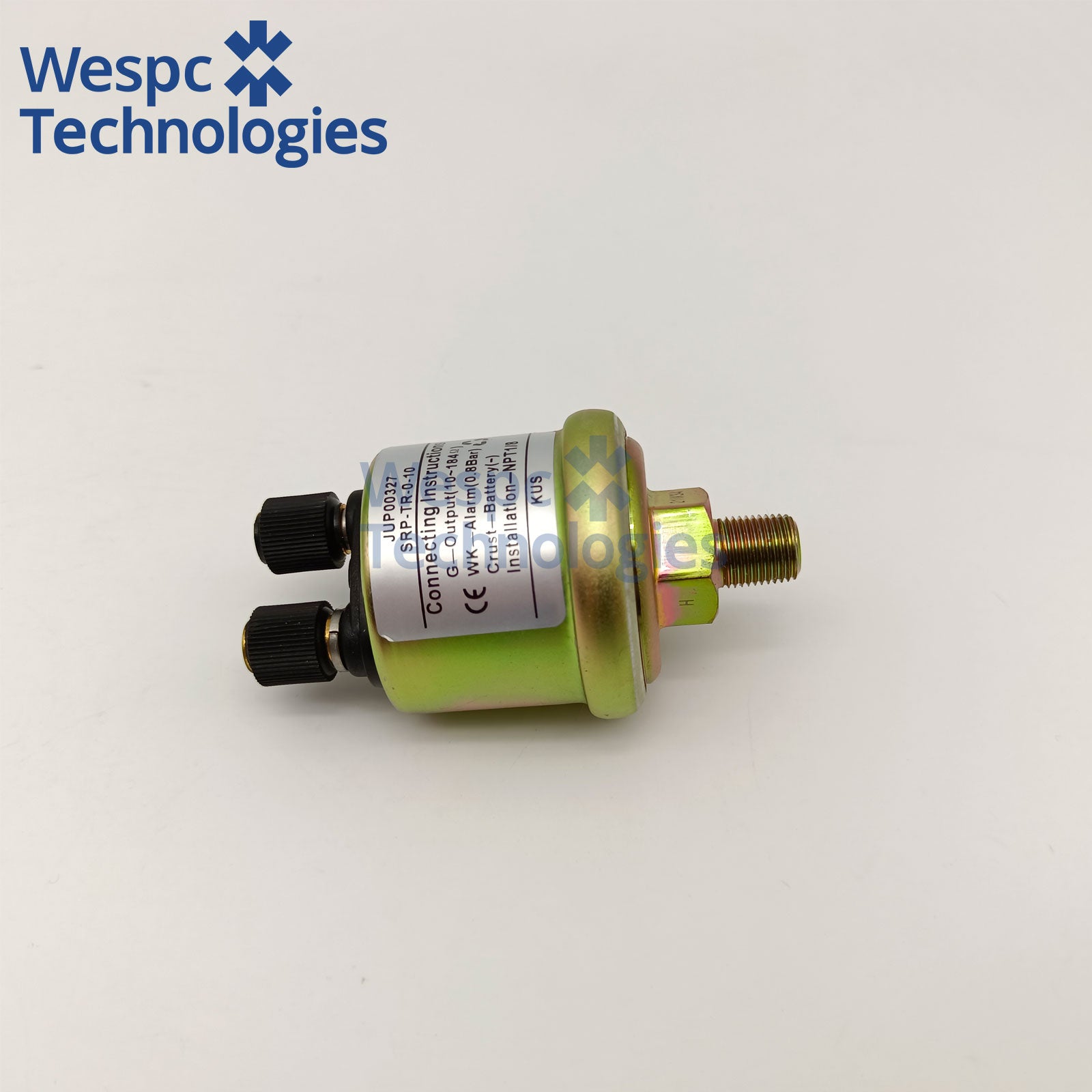

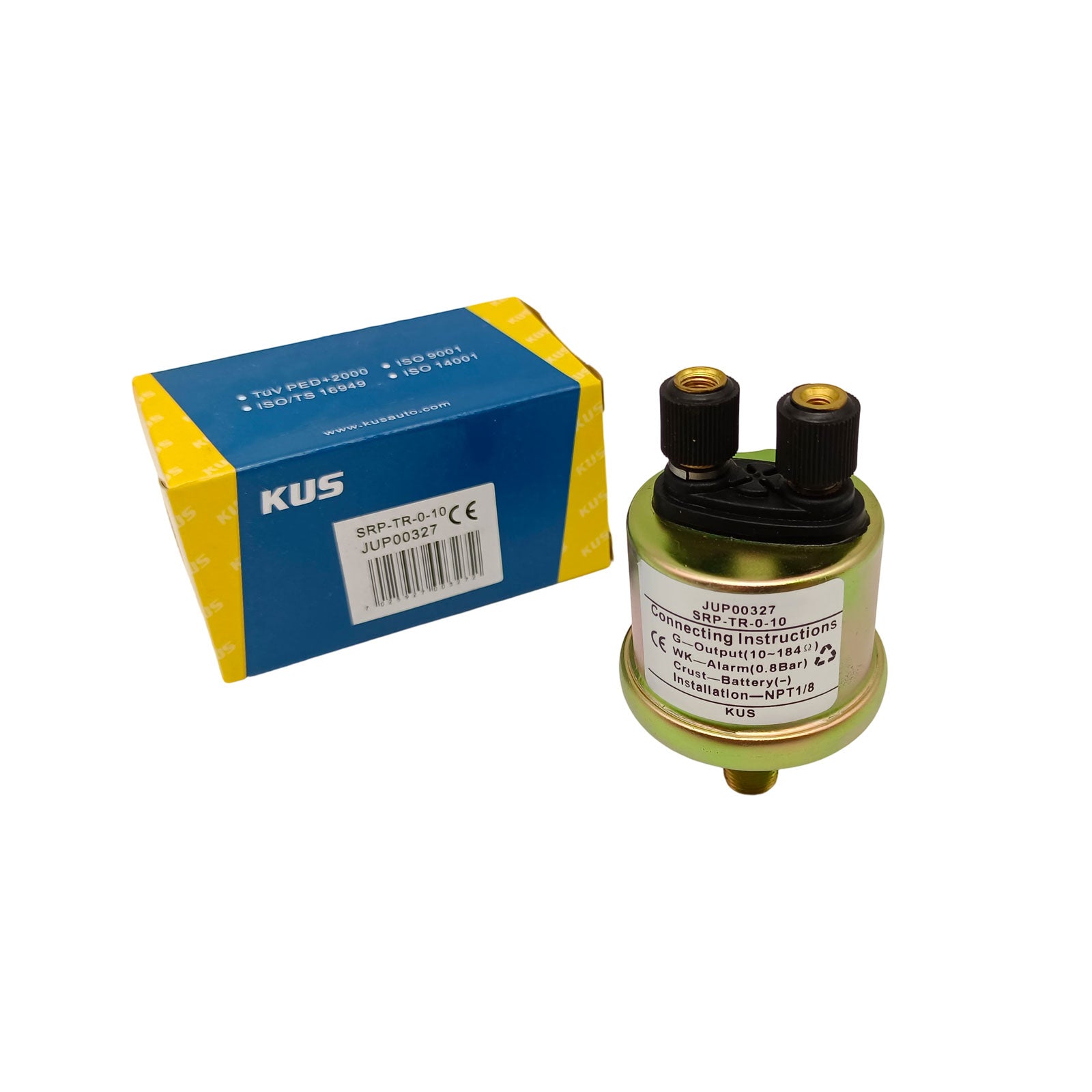

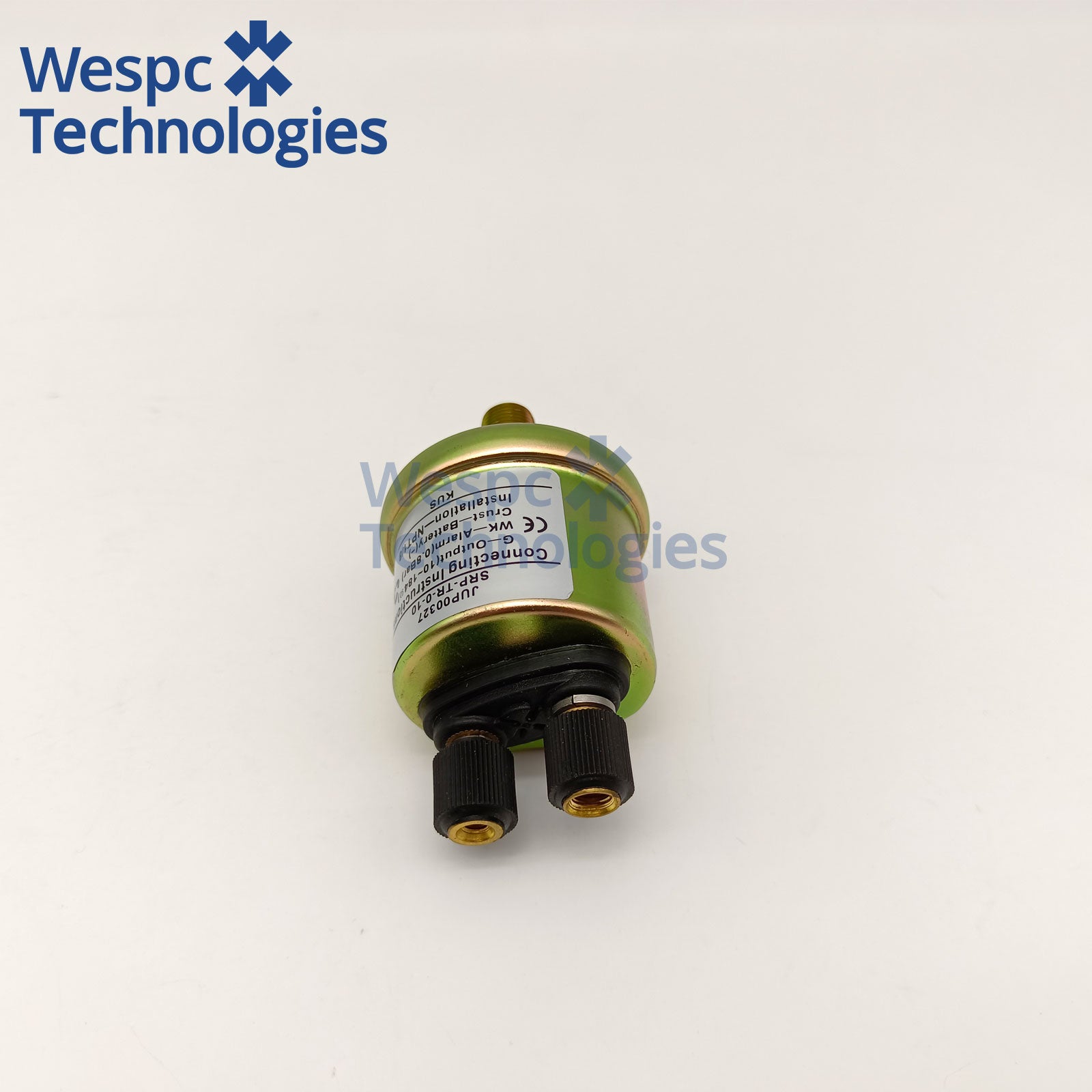

Original KUS JUP00327 Oil Pressure Sender SRP-TR-0-10 0-10Bar 0.8Bar Low Pressure Alarm 1/8NPT Dual Terminal Resistance Oil Pressure Sensor

Original KUS JUP00327 Oil Pressure Sender SRP-TR-0-10 0-10Bar 0.8Bar Low Pressure Alarm 1/8NPT Dual Terminal Resistance Oil Pressure Sensor

$34.00 USD
$0.00 USD $34.00 USD
أُوكَازيُون نفذ
يتم احتساب الشحن عند الخروج.

Original JUP00327 Oil Pressure Sensor Generator Parts NPT1/8 0.8bar Jup00327



Product Specifications

  • · Model: Genuine KUS JUP00327 Dual Terminal Oil Pressure Sender (SRP-TR-0-10)
  • · Pressure Range: 0 ~ 10 Bar
  • · Resistance Output: 10Ω ~ 184Ω Linear Resistance Signal
  • · Low Pressure Alarm: 0.8 Bar Cut-off Switch
  • · Power Supply: DC6 ~ 24V 12V/24V Universal Generator Battery
  • · Mount Thread: 1/8 NPT Male Thread
  • · Terminals: Dual Screw Terminals (Signal Output + Alarm Switch)
  • · Housing: Zinc-Plated Metal IP66 Fully Sealed Anti-Oil & Waterproof
  • · Protection Grade: IP66 sealed anti-oil, dust & splash water
· Working Temperature: -25℃ ~ +120℃ (max 120℃ continuous 1 hour)
· Vibration Grade: Industrial genset anti-shock standard
· Measurement Accuracy: ±3% full scale
· Net Weight：016KG
· Package: Carton Packaging
· Warranty: 12 Months Factory Warranty


Compatible Equipment & Controllers

Applicable Engines
Perkins, Cummins, Weichai, Yuchai, SDEC, Deutz, Volvo, marine auxiliary diesel engines
Compatible Gauges & Controllers
  • Analog gauges: All KUS & VDO standard resistance oil pressure meters
  • Genset Controllers: DeepSea DSE402/DSE704/DSE8660, Smartgen HGM series, ComAp IC-NT MINT, DEIF AGC-4
  •

Wide Application Range

  1. Diesel generator OEM factory matching lubrication system oil pressure monitoring sender
  2. Old pressure sensor failure replacement: no pressure reading, unstable gauge display, no low oil pressure alarm, oil leakage
  3. Power rental & maintenance shop universal 0–10bar KUS dual-alarm pressure sender stock for genset & marine equipment
  4. Retrofit oil pressure monitoring system for silent/open-frame generators, mobile light towers, ship engines


Genuine KUS Original Core Advantages

  1. Authentic KUS internal resistance core, linear resistance output stable without long-term zero drift, accurate gauge reading
  2. Integrated independent 0.8bar low-pressure alarm switch, dual signal in one unit, save wiring & installation space
  3. Zinc-plated one-piece metal housing, resistant to high-temperature engine oil corrosion, no oil leakage after years of operation
  4. Standard 1/8NPT universal thread, fits most engine oil block mounting holes without conversion joint
  5. Dual screw terminals separate signal and alarm circuits, convenient on-site wiring fault inspection
  6. Strict high-low temperature & vibration aging test, long service life under harsh cabin environment
  7. Perfect matching with KUS/VDO analog gauges and mainstream genset controllers, no abnormal low oil pressure false shutdown
  8. 12-month official KUS factory warranty, complete wiring diagram & installation guide provided


Common Equipment Failures Solved

  • · Cheap aftermarket pressure sender resistance drift, controller frequent false low oil pressure protection · shutdown
  • · Single-terminal sensor without alarm switch, engine low lubrication pressure cannot trigger protection, risk of cylinder scratch & engine damage
  • · Sensor housing corrosion & oil leakage, engine lubrication oil loss leads to serious mechanical failure
  • · Incompatible third-party sender, oil pressure gauge display blank or inaccurate value
  • · Original KUS JUP00327 damaged, need genuine direct replacement without wiring modification
