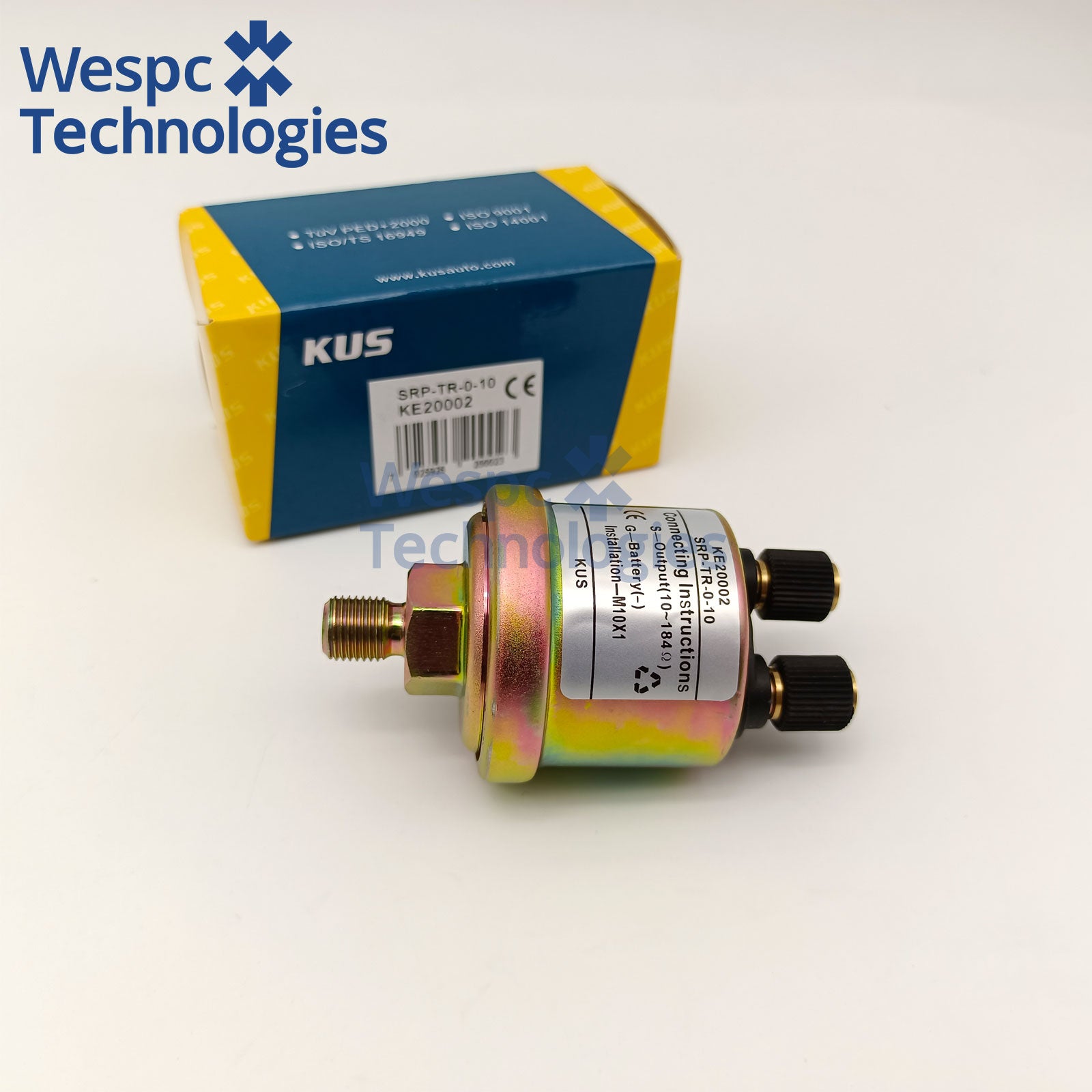

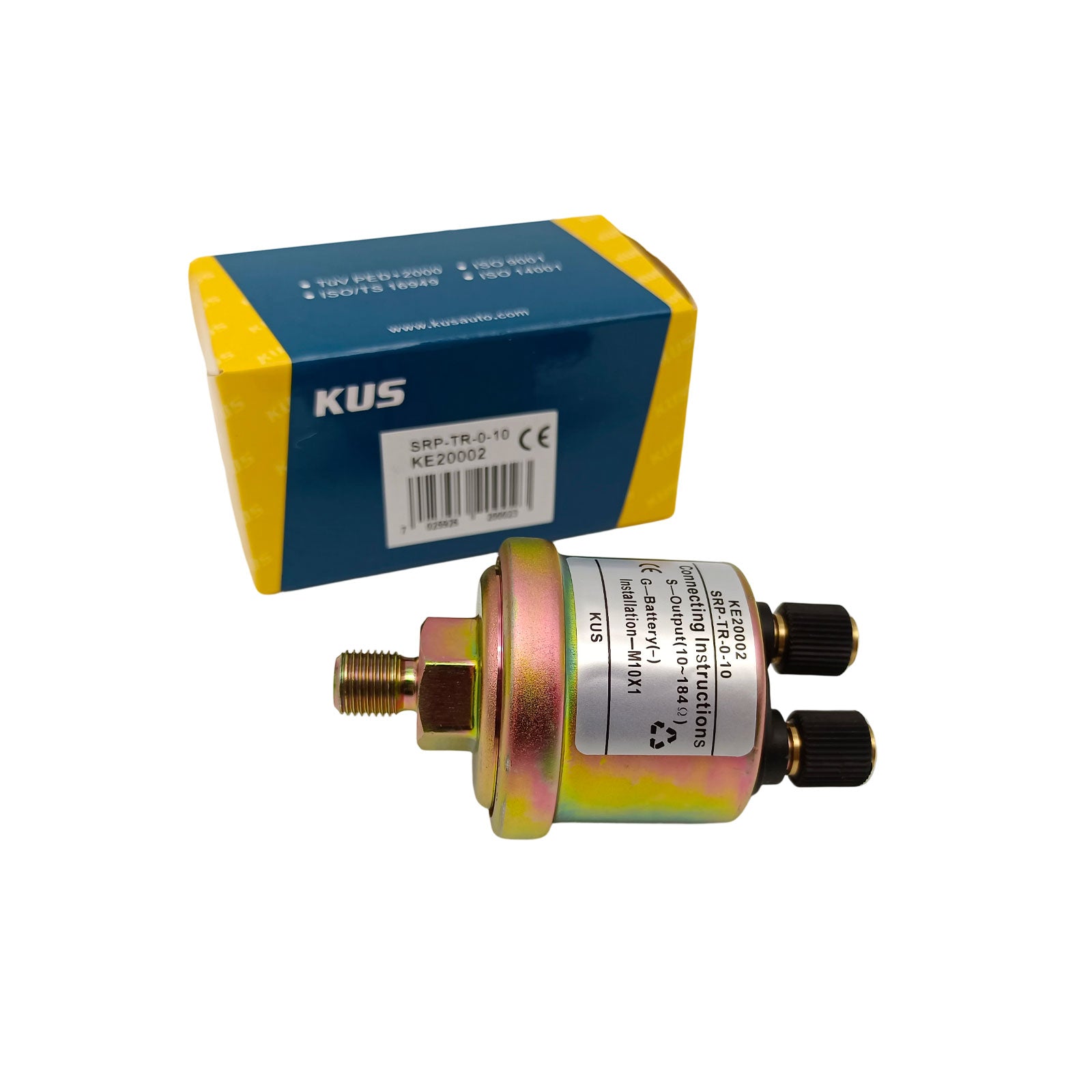

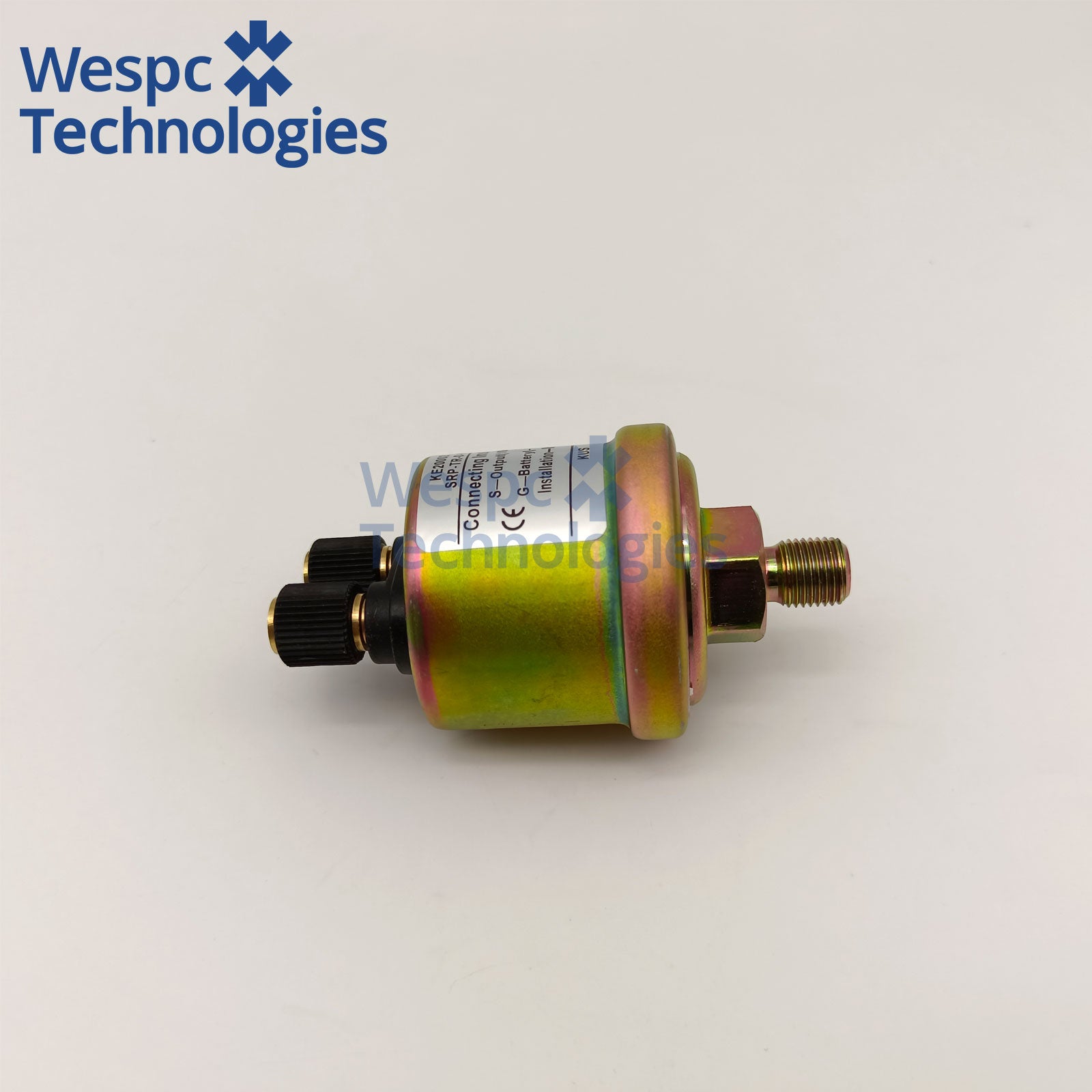

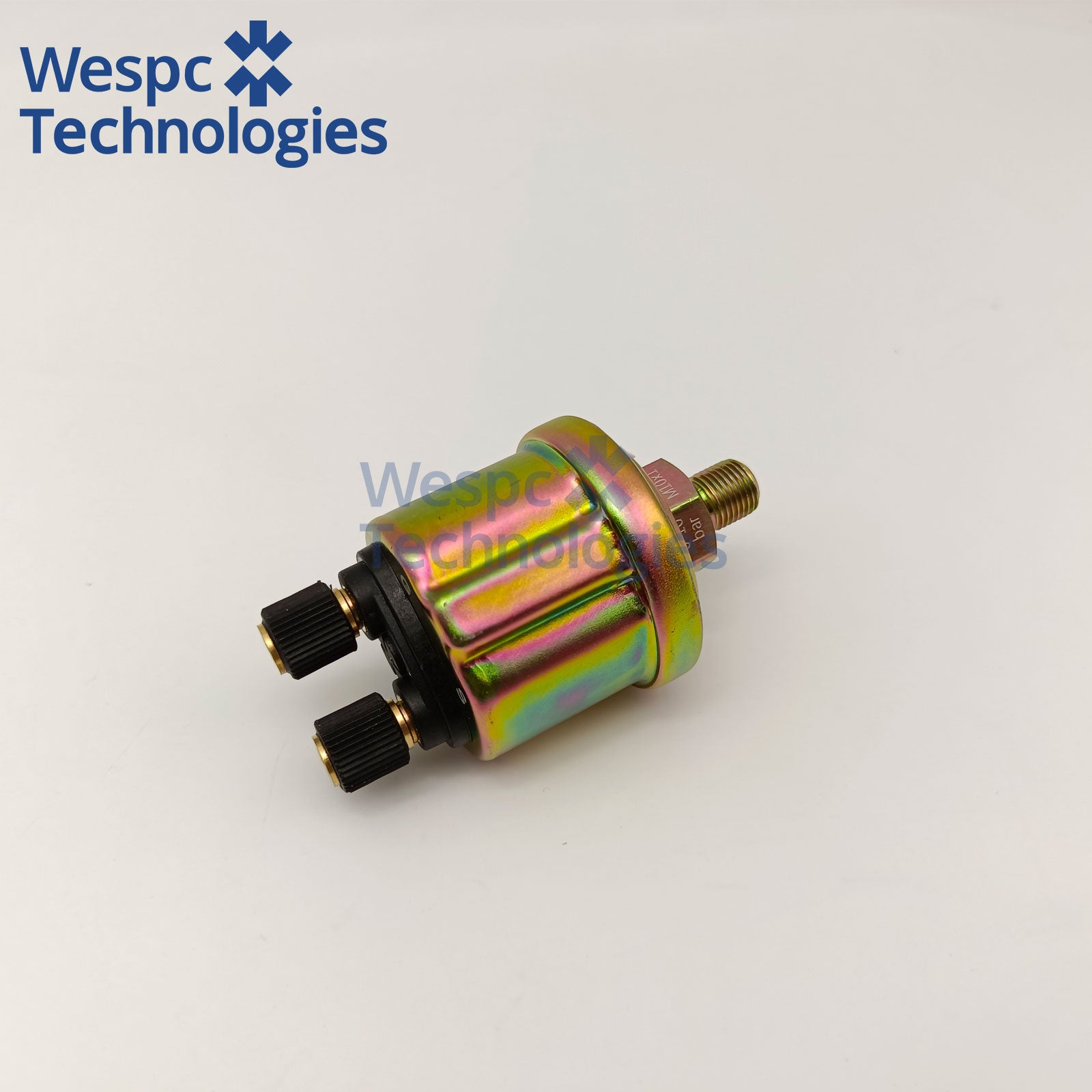

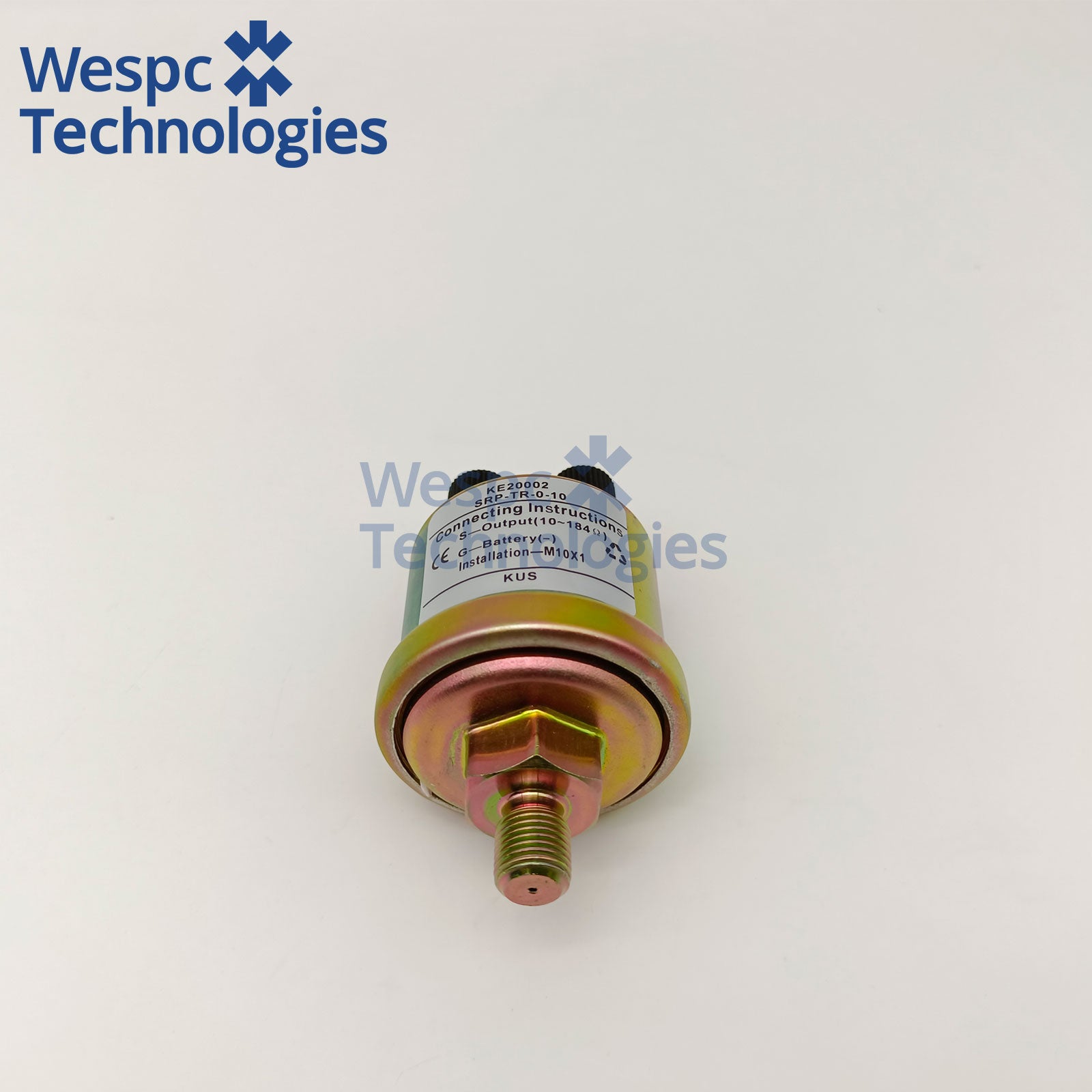

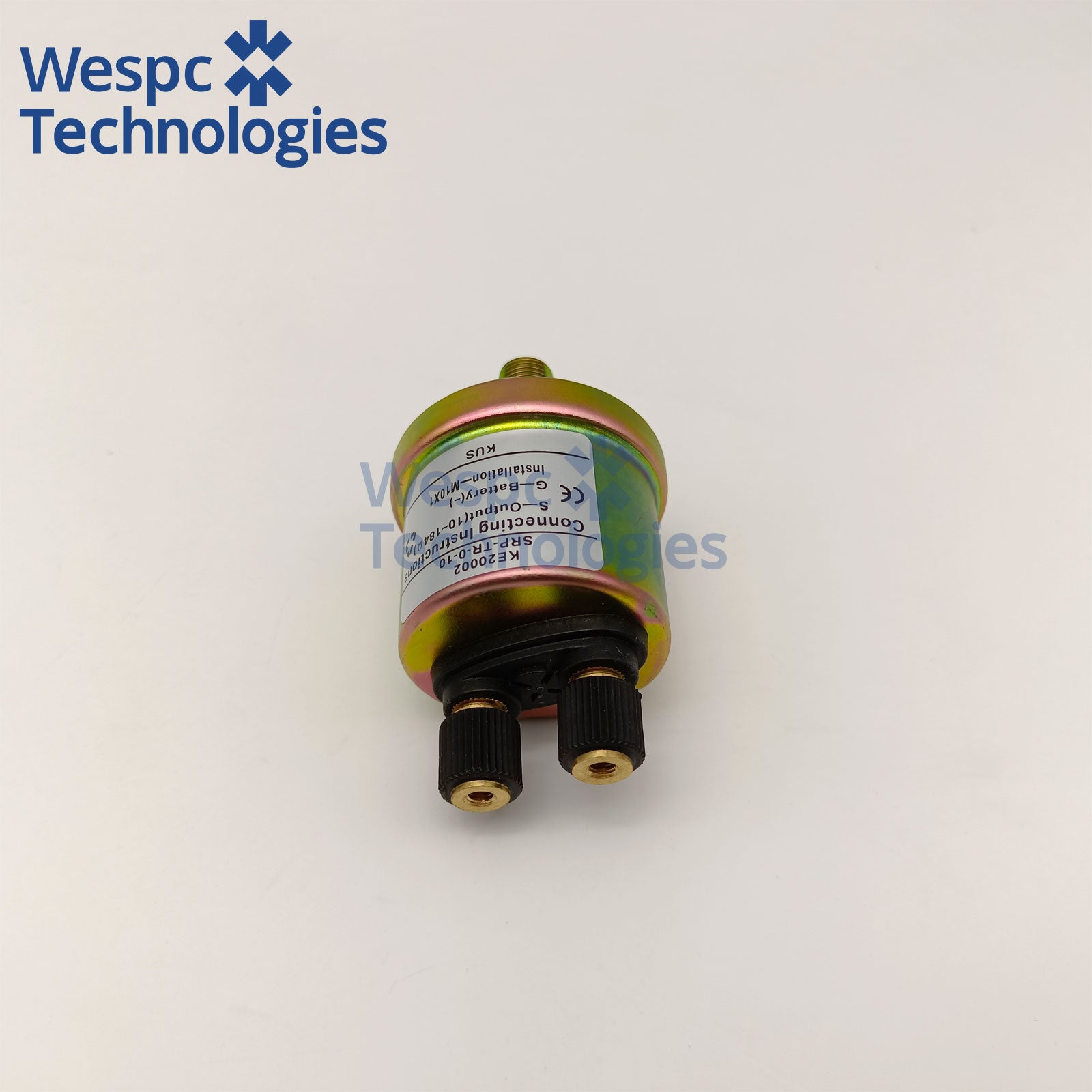

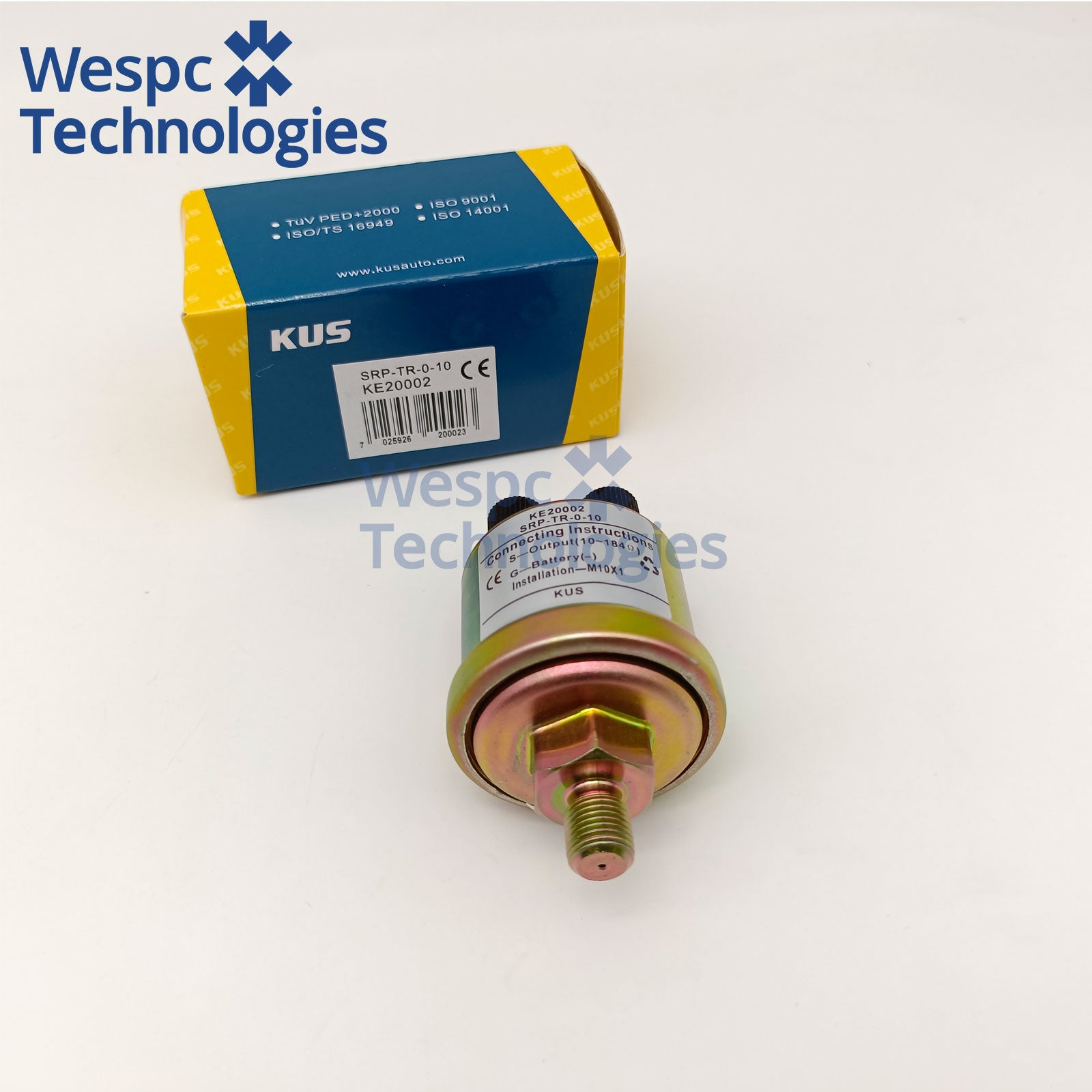

Original KUS KE2002 Oil Pressure Sensor VDO 360-081-032-003C 0-5Bar 0-10V Linear Signal 1/8NPT Thread 3-Wire Oil Pressure Transducer

Product Specifications

• · Model: Genuine KUS KE20002 Oil Pressure Transducer Sensor
• · Pressure Measuring Range: 0 ~ 5 Bar
• · Output Signal: 0–10V Linear Analog Voltage
• · Power Supply: DC9 ~ 32V 12V/24V Universal
• · Mount Thread: 1/8 NPT Male Thread
• · Wiring: 3-Pin Standard Plug (Power / Signal / GND)
• · Housing: All Metal Fully Sealed Anti-Oil & Waterproof
• · Working Temperature: -40℃ ~ +125℃
• · Vibration Grade: Industrial genset anti-shock standard
• · Measurement Accuracy: ±2.5% full scale
• · Service Life: ≥5 million pressure cycle tests
• · Net Weight: 0.16KG
• · Package:  Carton Packaging
• · Warranty: 6 Months Factory Warranty

Compatible Equipment & Controllers

· Applicable Engines：Perkins, Cummins, Weichai, Yuchai, SDEC, Deutz, Volvo, marine auxiliary diesel engines

· Compatible Genset Controllers

• DeepSea: DSE402, DSE704, DSE8660, DSE8003 MKII, DSE8004
• Smartgen: HGM6120, HGM7220, LPG2002
• ComAp: IC-NT MINT
• DEIF: AGC-4
• · Other multi-brand generator monitoring meters

Wide Application Range

1. Diesel generator OEM supporting, factory standard engine oil pressure monitoring matching sensor
2. Old pressure transducer failure replacement: no pressure reading, signal drift, oil leakage, false low oil pressure alarm
3. Power rental & maintenance shop universal 0–5bar KUS pressure sensor stock for all genset brands
4. Retrofit oil pressure monitoring system for silent & open-frame generator units, mobile light towers

Genuine KUS Original Core Advantages

1. Authentic KUS original pressure sensitive diaphragm & chip, linear signal stable, no long-term zero drift
2. Integrated metal fully sealed structure, resistant to high-temperature engine oil corrosion, no oil leakage after years of operation
3. Standard 1/8NPT universal thread, fits most engine oil block mounting holes without conversion joint
4. DC9–32V wide voltage input, compatible both 12V and 24V generator battery systems, reduce inventory SKU
5. Perfect signal matching with all mainstream genset controllers, no abnormal alarm or blank data display
6. Strict high-low temperature & vibration aging test, long service life under harsh cabin environment
7. 12-month official factory warranty, complete wiring diagram & installation guide provided

Common Equipment Failures Solved

• · Cheap aftermarket pressure sensor signal drift, controller frequent false low oil pressure protection shutdown
• · Sensor shell crack & oil leakage, risk of engine lubrication shortage & cylinder scratch
• · Incompatible third-party sender, LCD screen no oil pressure value display, cannot monitor engine health status
• · Original KUS KE20002 damaged, need genuine direct replacement without wiring modification
