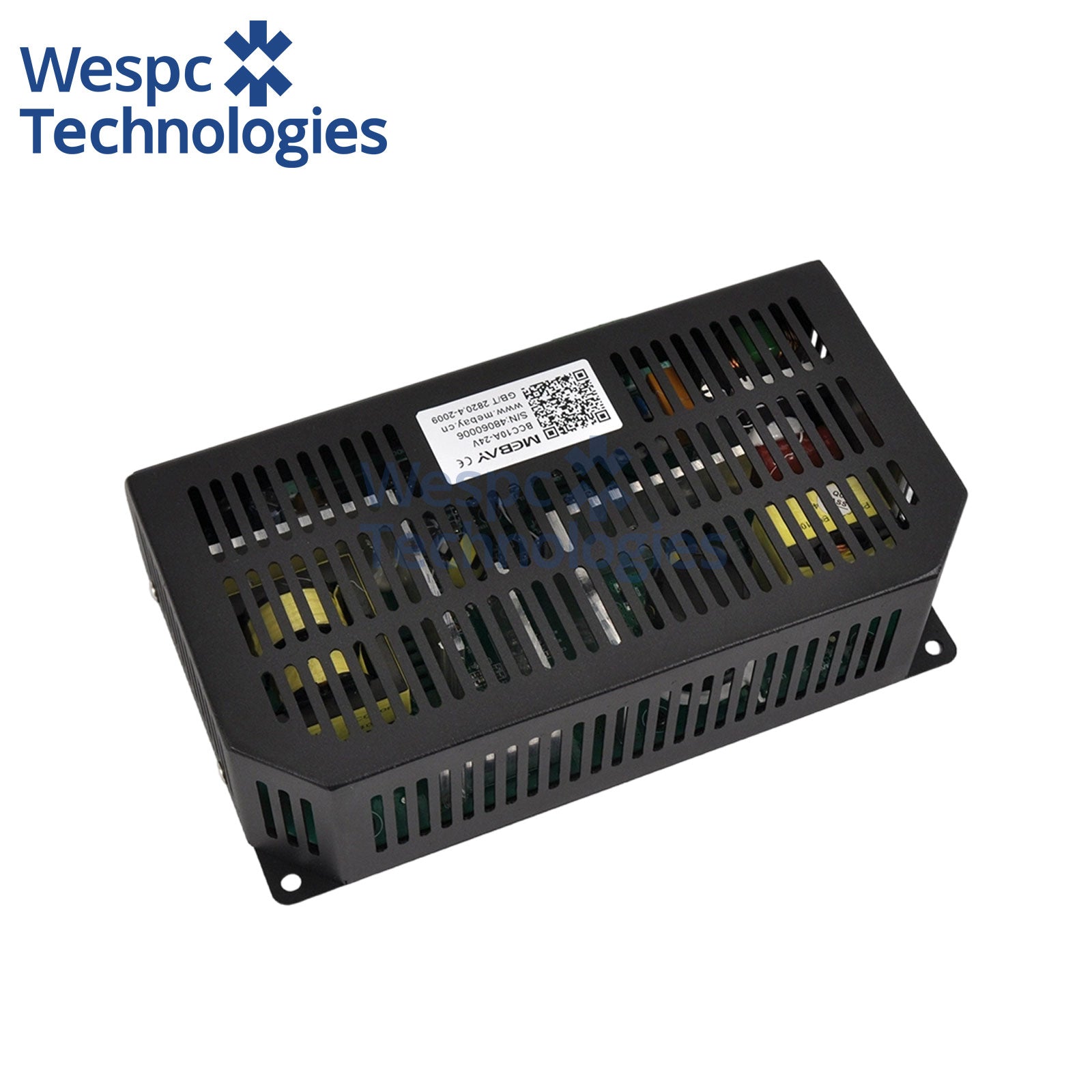

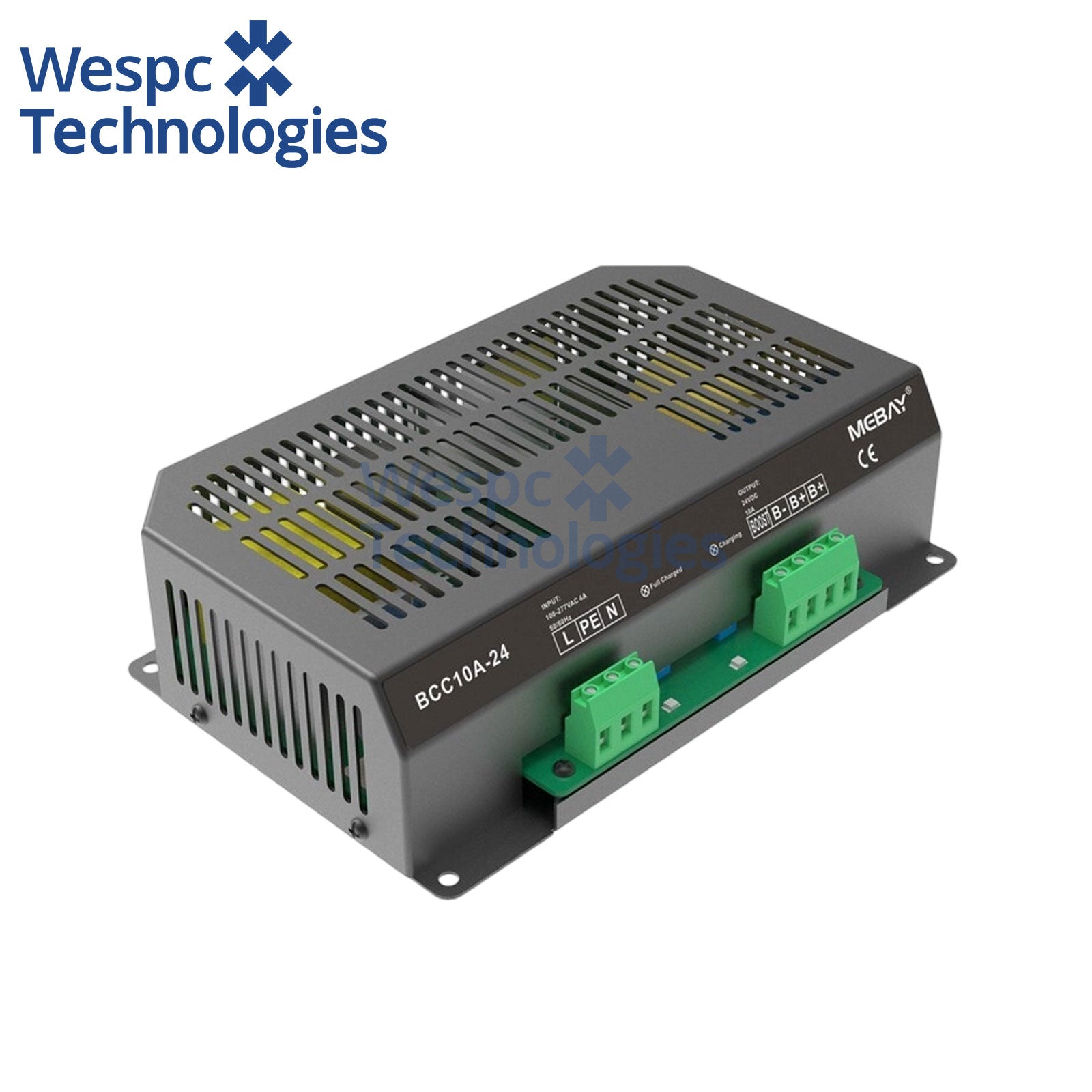

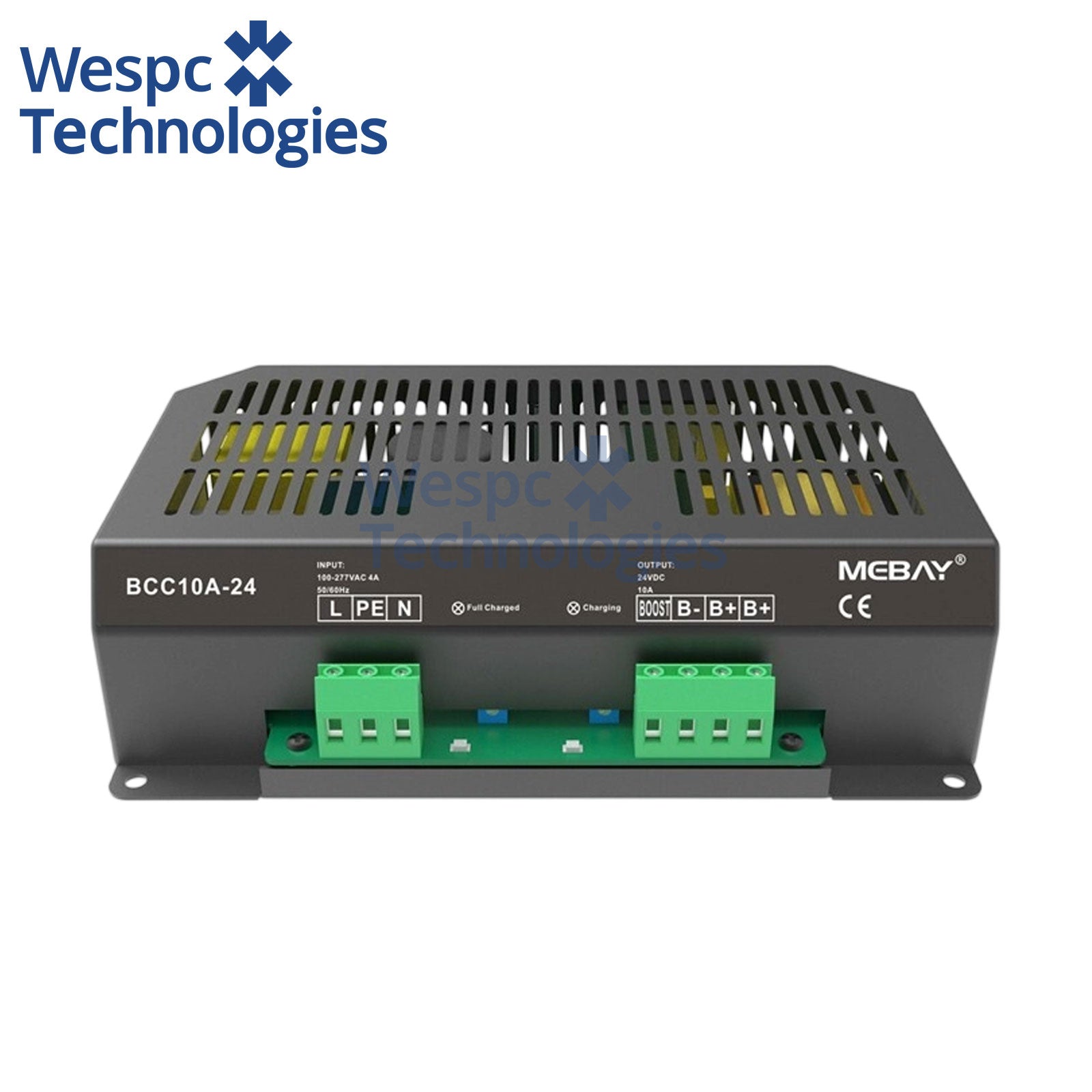

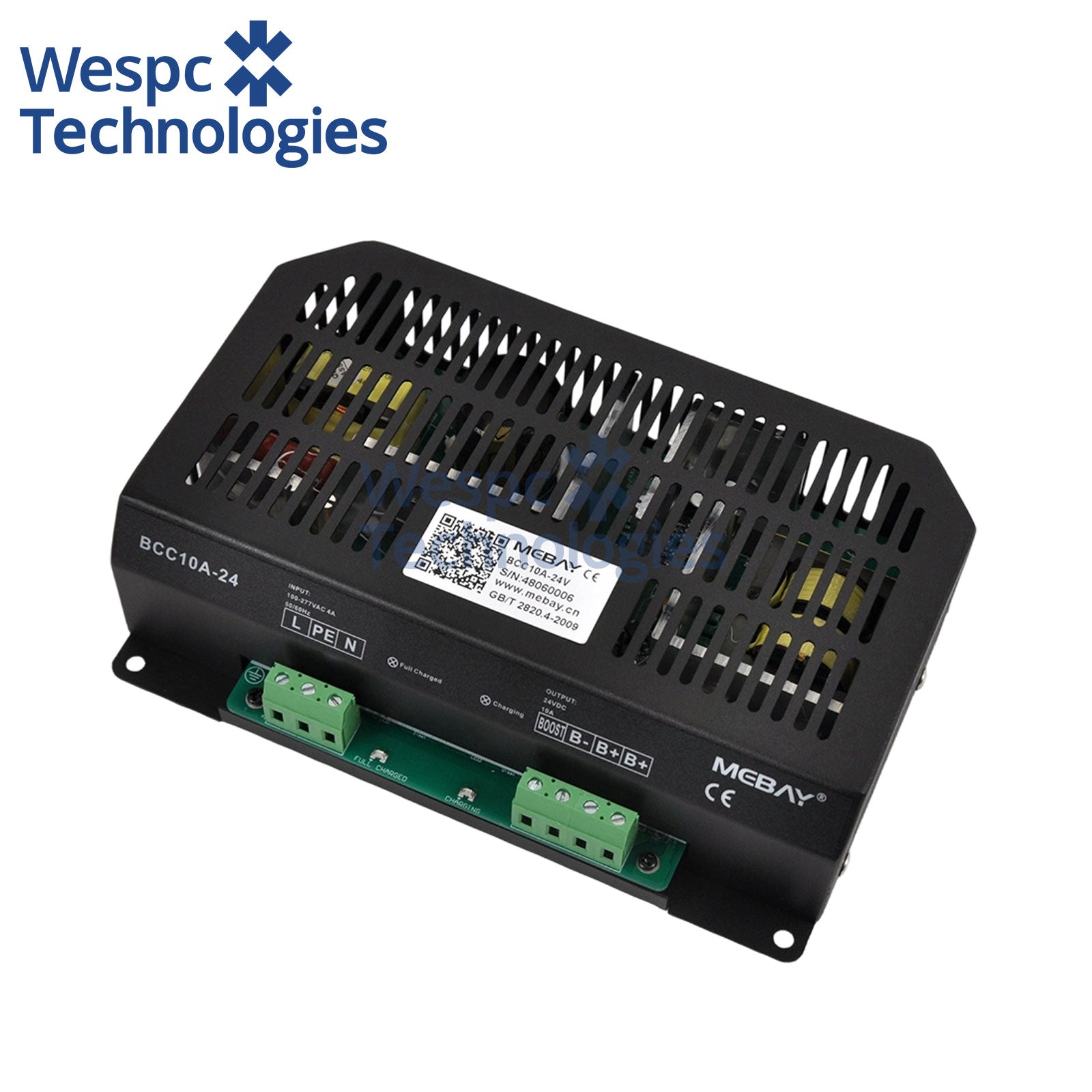

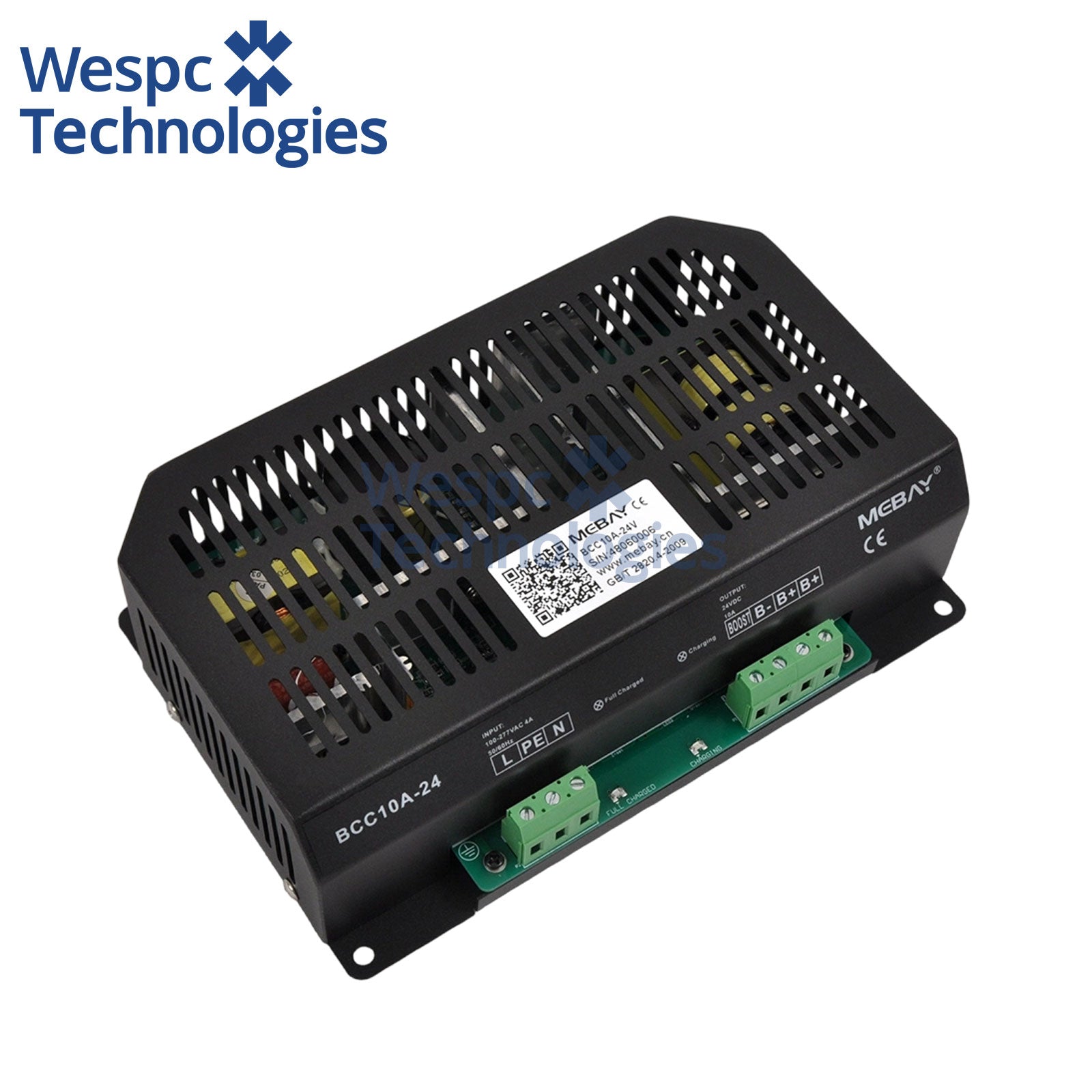

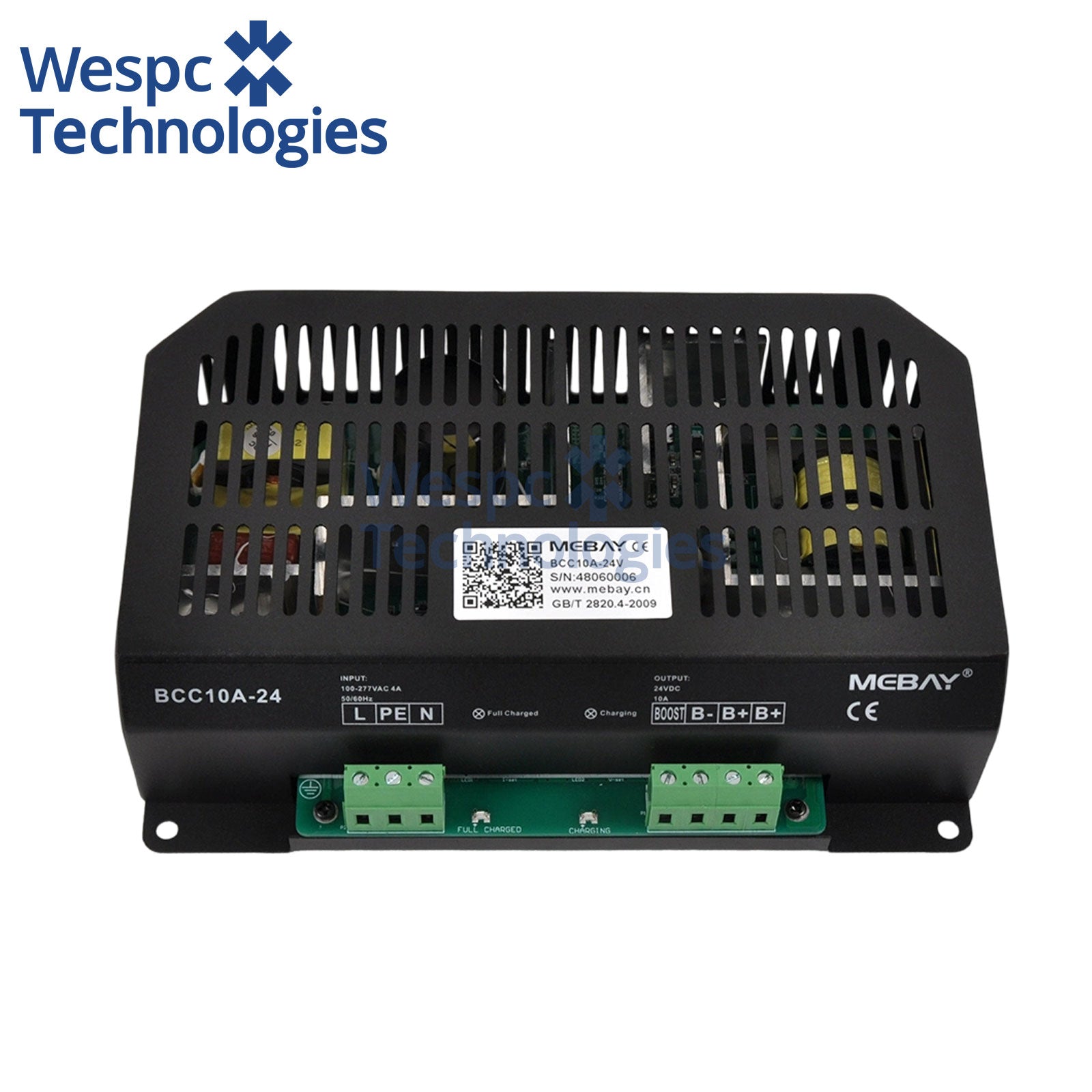

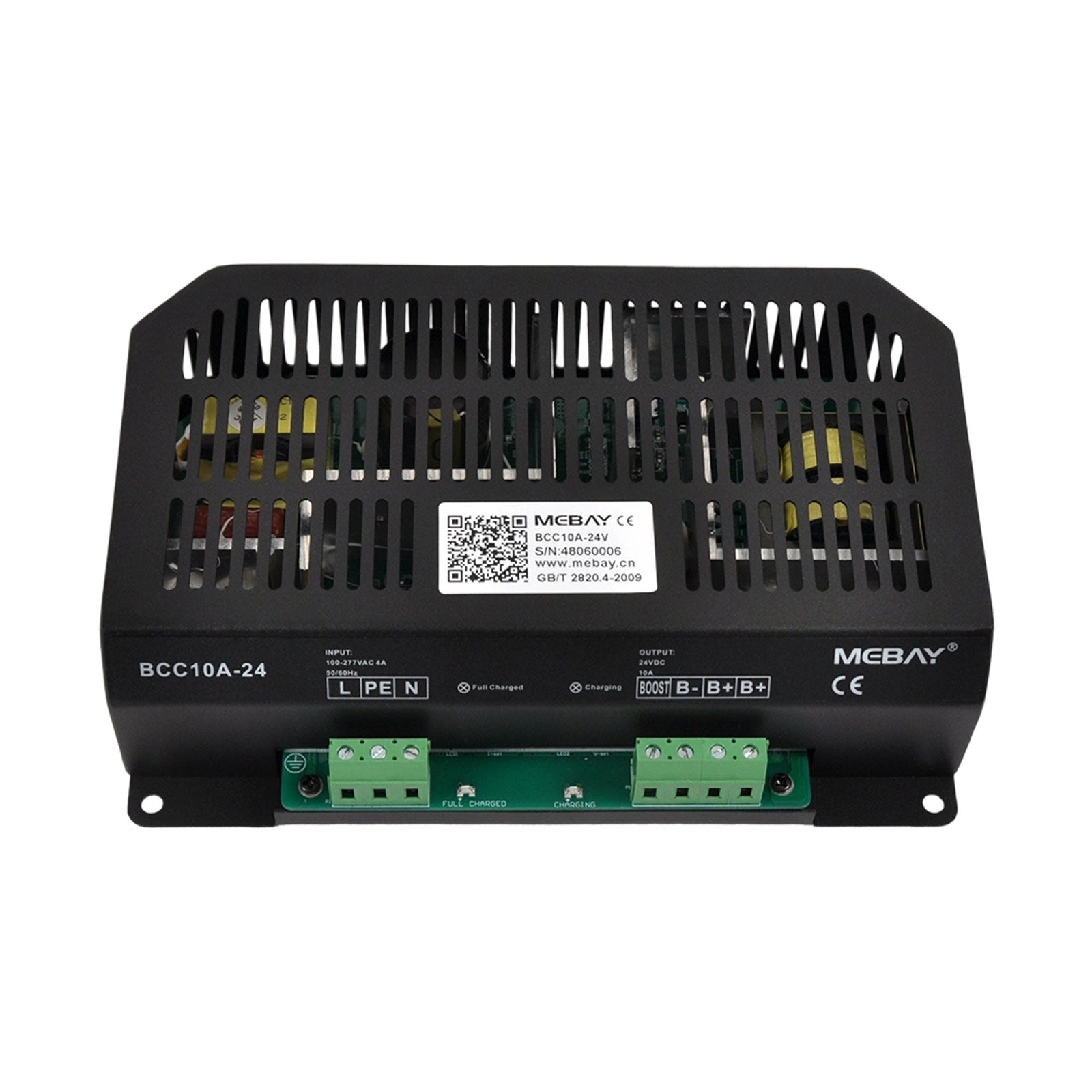

Original Mebay BCC10A-12 BCC10A-24 Intelligent Battery Charger 12V 24V 10A Three-Stage Float Charger
Original Mebay BCC10A-12 BCC10A-24 Intelligent Battery Charger 12V 24V 10A Three-Stage Float Charger
لم نتمكن من تحميل توفر الاستلام
MEBAY 24V Battery Charger 10A Original BCC10A-24 BCC10A-12 Three-Stage Float Charger Generator Spare Parts
1. Summary
The charger is specially designed for the lead-acid battery used in the engine. It adopts the three-stage intelligent control mode of constant current fast charging, constant voltage evenly and trickle floating charging. It can be charged for a long time without damage to the battery. It can maintain the full state of the battery and ensure the service life of the battery. The charger can be used in parallel with the engine charging generator without disconnecting the charger during the operation of the engine.
2. Main Features
The use of aluminium for heat dissipation, good heat dissipation and high interference resistance.
Using advanced switching power supply mode, wide AC input voltage range.
Two-stage charging method or three-stage charging method can be used automatically according to needs to maintain battery power automatically.
Three-stage: BOOST and B- are short circuited; Two-stage: BOOST is hung up.
Build-in PFC circuit, automatic adjustment of calibrated power factor.
Build-in current protective circuit, which can give effective protection when overcurrent output, short circuit, or reverse connection occurs, and can recover output when above circumstances are eliminated.
Applicable for 24V/12V battery pack charging, rated charging current 10A/12A.
It has LED led, Green means full power indication; Red means charging indication.
3. Charging Principle
4. Specification
|
Category |
Items |
12V Parameters |
24V Parameters |
||
|
Input |
Nominal AC Voltage |
AC 95~280V |
|||
|
Max. AC Voltage |
AC 90~305V |
||||
|
AC Frequency |
50Hz/60Hz |
||||
|
Max. Input Current |
2A |
4A |
|||
|
Max. Efficiency |
AC 110V |
AC 220V |
AC 110V |
AC 220V |
|
|
>81% |
>86% |
>82% |
>90% |
||
|
Power Factor Calibration |
>0.99 |
>0.95 |
>0.99 |
>0.95 |
|
|
Output |
Charging Current |
12.0A,(Error±2%) |
10.0A,(Error±2%) |
||
|
No-load Output Voltage |
13.8V(Error ±1%) |
27.6V(Error ±1%) |
|||
|
Max. Output Power |
170W |
310W |
|||
|
No-load power consumption |
<3W(Error ±1%) |
||||
|
Insulation |
Insulation Resistance |
Between input and output, input and BOOST and B- short circuited, input and shell, output and shell are: RL≥500MΩ |
|||
|
Insulation Voltage |
Between input and output, input and shell both are: DC 1500V 1min Leakage current: I<3.5mA. |
||||
|
Working Condition |
Working Temperature |
-30-55°C |
|||
|
Storage Temperature |
-40-85°C |
||||
|
Working Humidity |
20%RH-93% RH(No condensation) |
||||
|
Profile |
Dimension |
205mmx130mmx56mm(Length*Width*Height) |
|||
|
Mounting hole distance |
191mm×118mm(Length*Width) |
||||
|
Weight |
1.2kg |
||||
