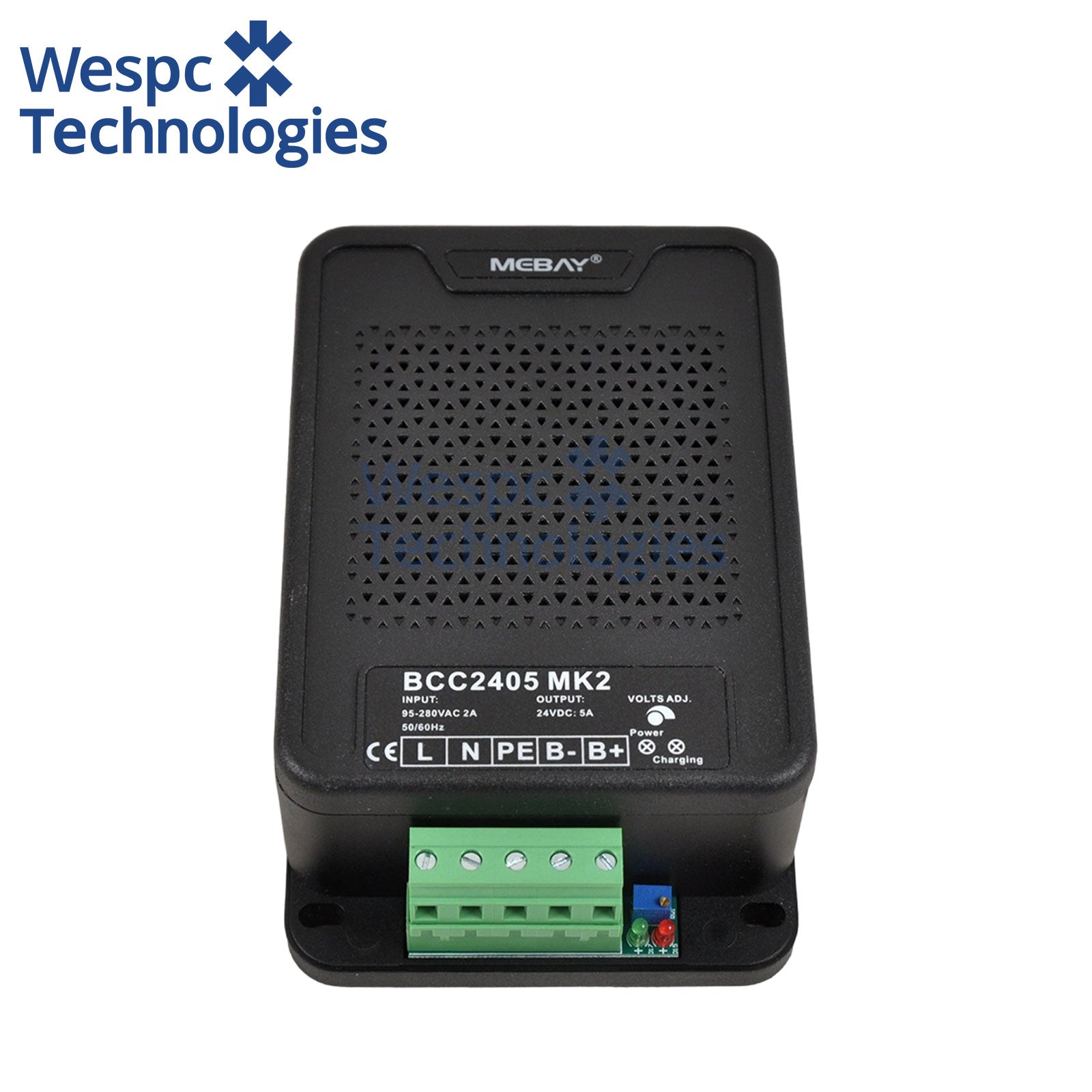

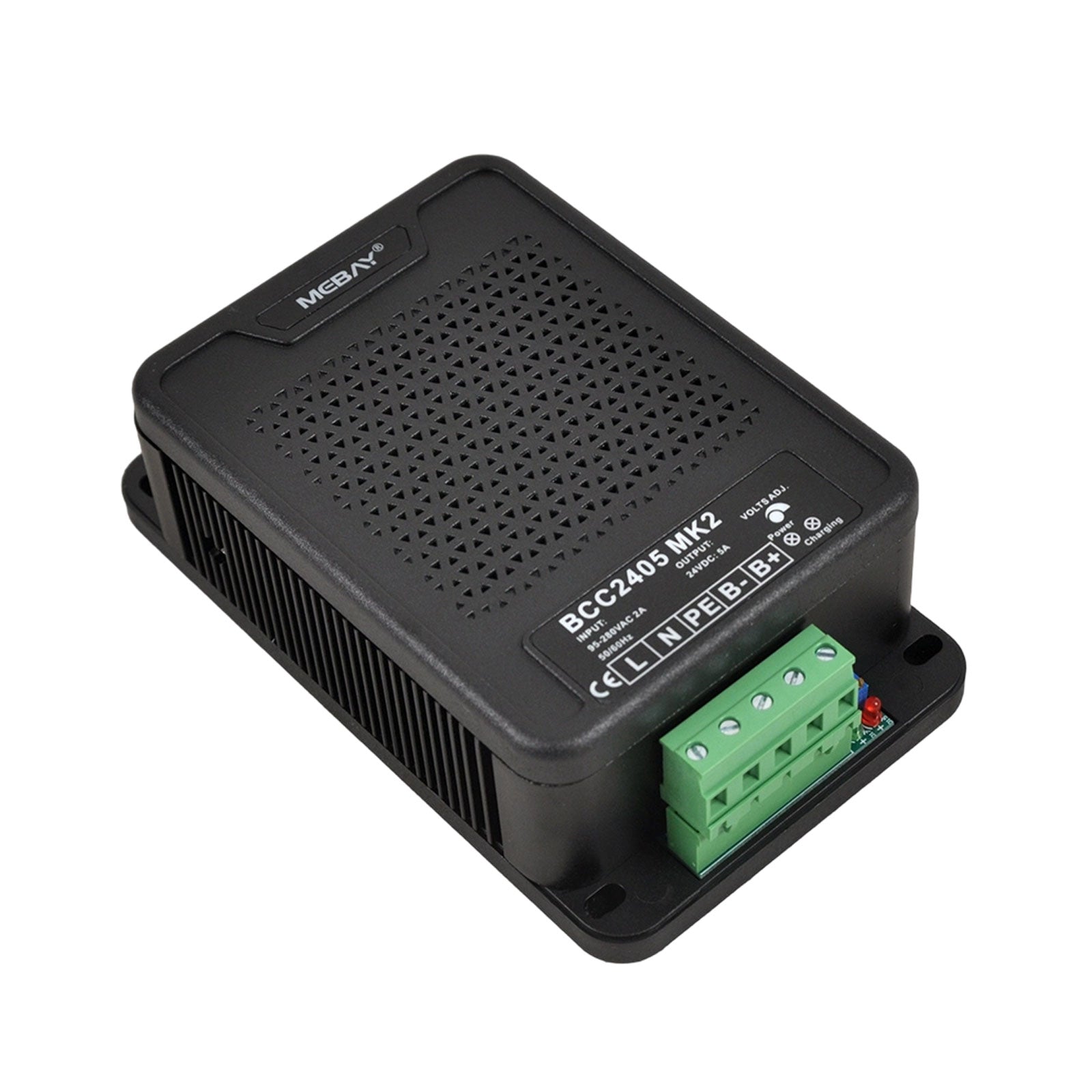

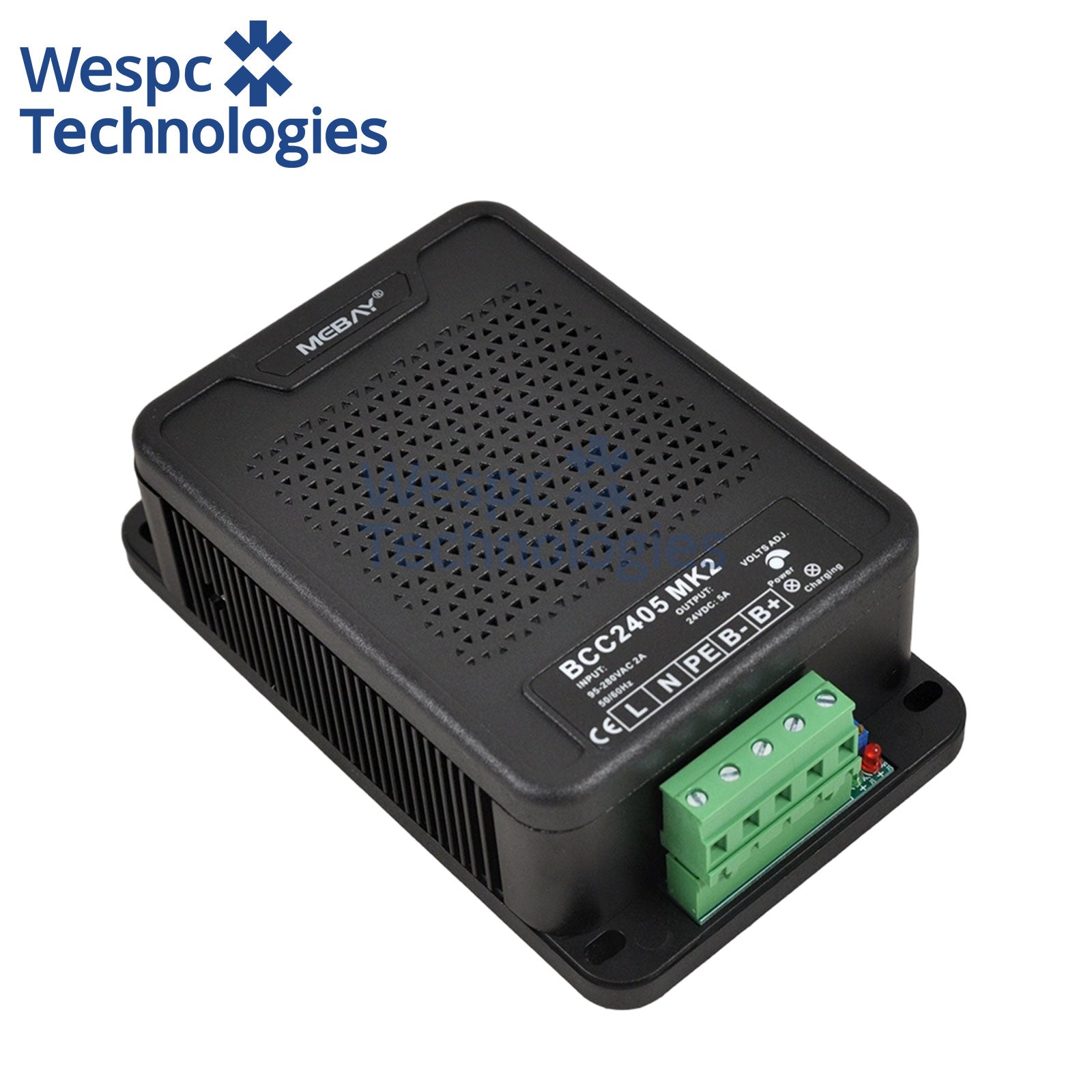

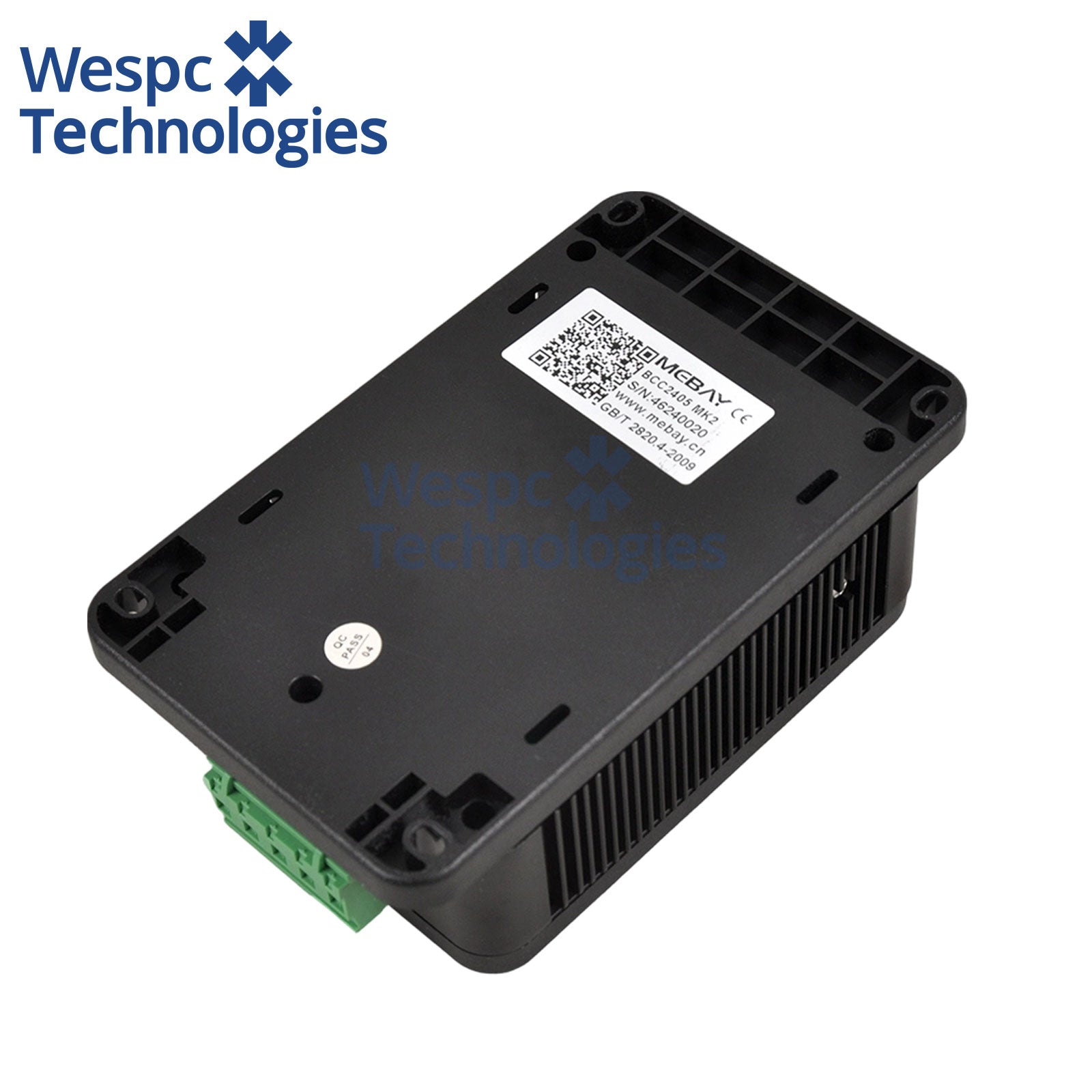

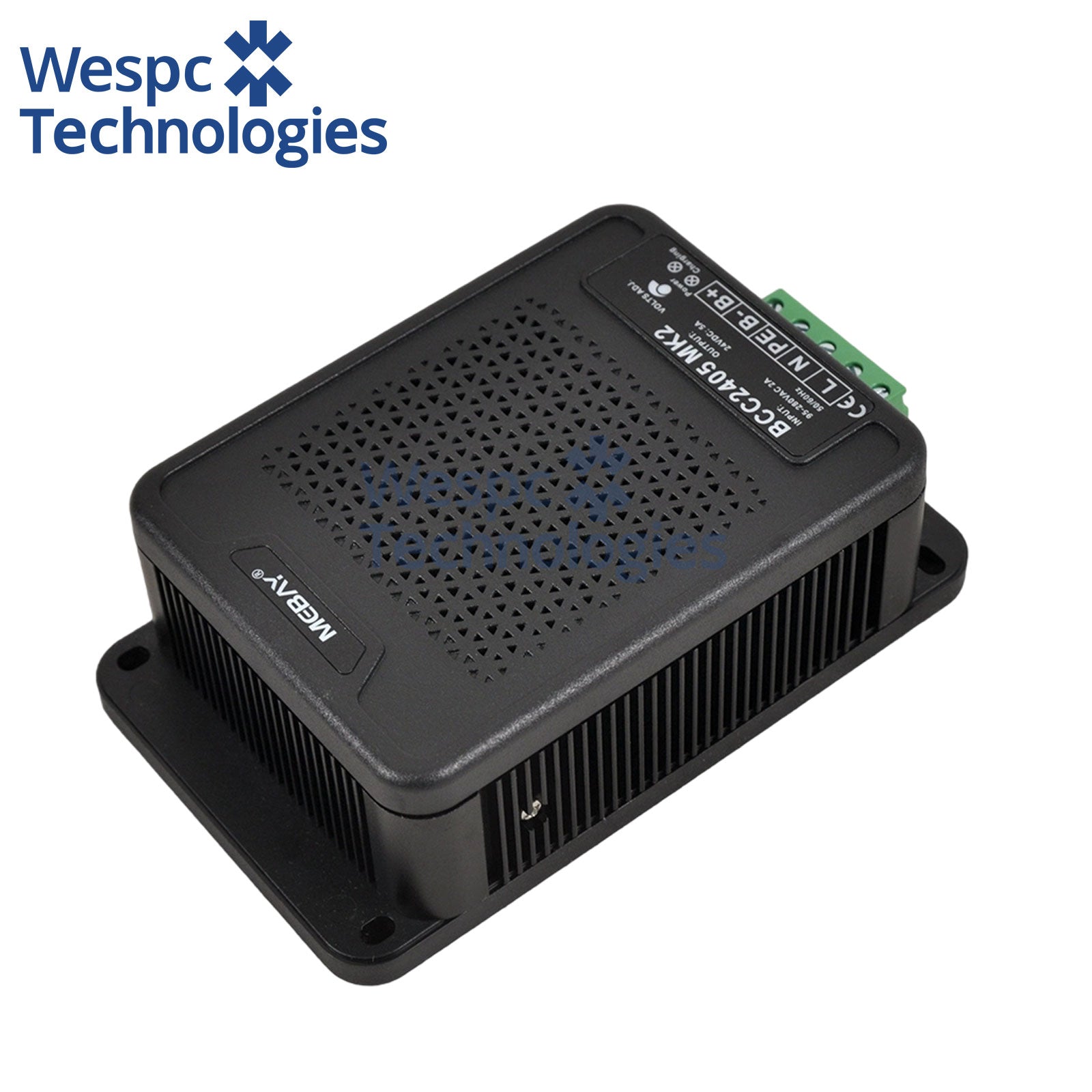

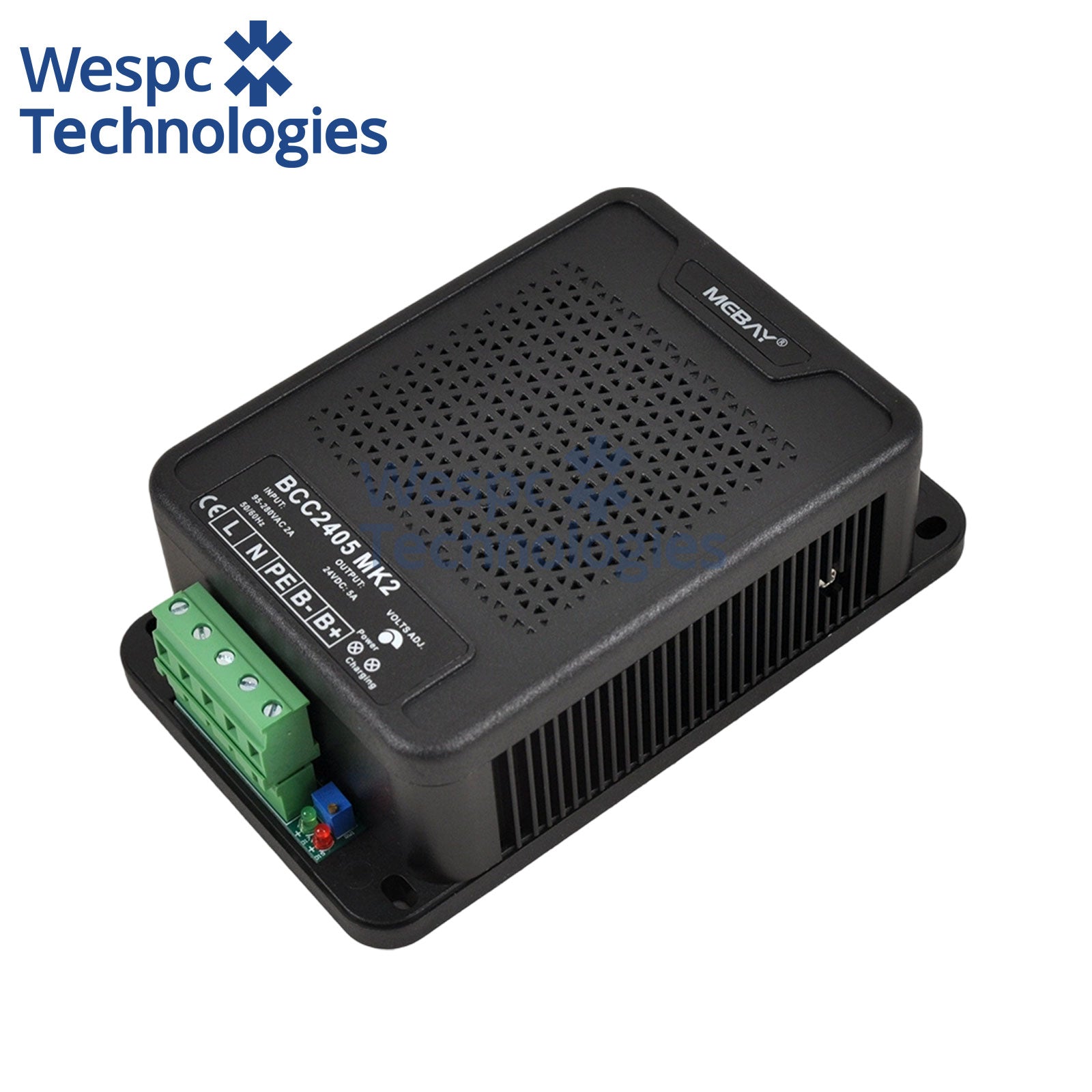

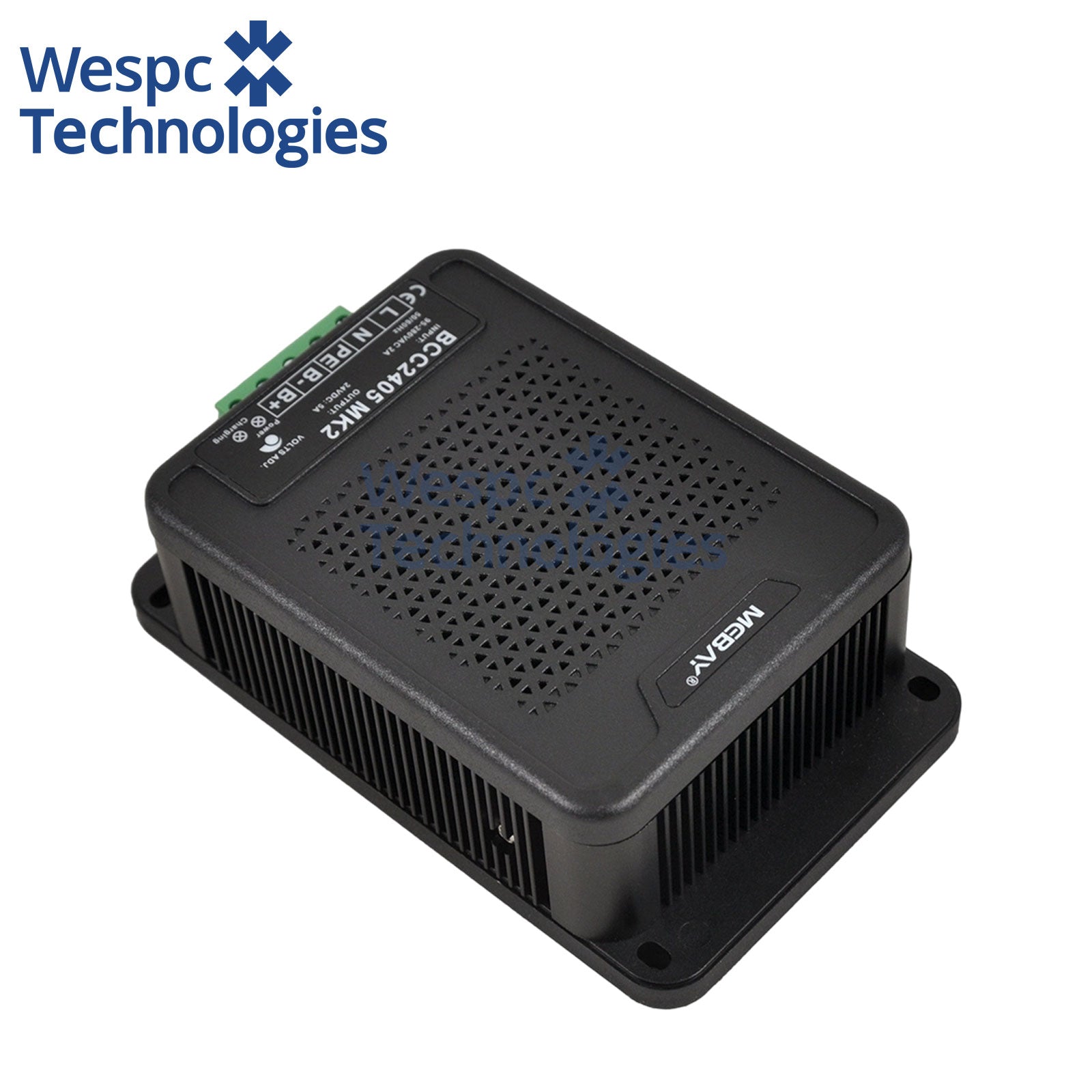

Battery Charger Module Original BCC2405 MK2 Diesel Generator Battery Charger
1.Summary
The charger is specially designed for the lead-acid battery used in the engine. It adopts the three-stage intelligent control mode of constant current fast charging, constant voltage evenly and trickle floating charging. It can be charged for a long time without damage to the battery. It can maintain the full state of the battery and ensure the service life of the battery. The charger can be used in parallel with the engine charging generator without disconnecting the charger during the operation of the engine.
2.Main Features
Large area for heat dissipation, good effect and strong anti-interference ability.
The use of aluminium for heat dissipation, good heat dissipation and high interference resistance;
Using advanced switching power supply mode, wide AC input voltage range.
Three stage intelligent charging to maintain battery power automatically.
With short circuit and reverse connection protection.
It has charging voltage fine tuning function.
It has LED led, which can indicate the working state of the charger.
3.Charging Principle
4.Specification
|
Category |
Items |
BCC2405 |
|
Input |
Nominal AC Voltage |
AC 95~280V |
|
Max. AC Voltage |
AC 90~305V |
|
|
AC Frequency |
50Hz/60Hz |
|
|
Max. Input Current |
2A |
|
|
Max. Efficiency |
>85% |
|
|
Output |
Charging Current |
5A,(Error±2%) |
|
Float Voltage |
27V |
|
|
Evenly Voltage |
28.8V |
|
|
Max. Output Power |
144W |
|
|
No-load power consumption |
<3W(Error ±1%) |
|
|
Insulation |
Insulation Resistance |
Between input and output, input and shell both are: DC500V 1min R>500MQ |
|
Insulation Voltage |
Between input and output, input and shell both are: DC 1500V 1min Leakage current: I<3.5mA. |
|
|
Working Condition |
Working Temperature |
-30-55°C |
|
Storage Temperature |
-40-85°C |
|
|
Working Humidity |
20%RH-93% RH(No condensation) |
|
|
EMC |
EN：55032； IEC/EN61000-4； GB/T17626； |
|
|
Profile |
Dimension |
155mmx95mmx51mm(Length*Width*Height) |
|
Mounting hole distance |
132mm×80mm(Length*Width) |
|
|
Weight |
0.5kg |
|
