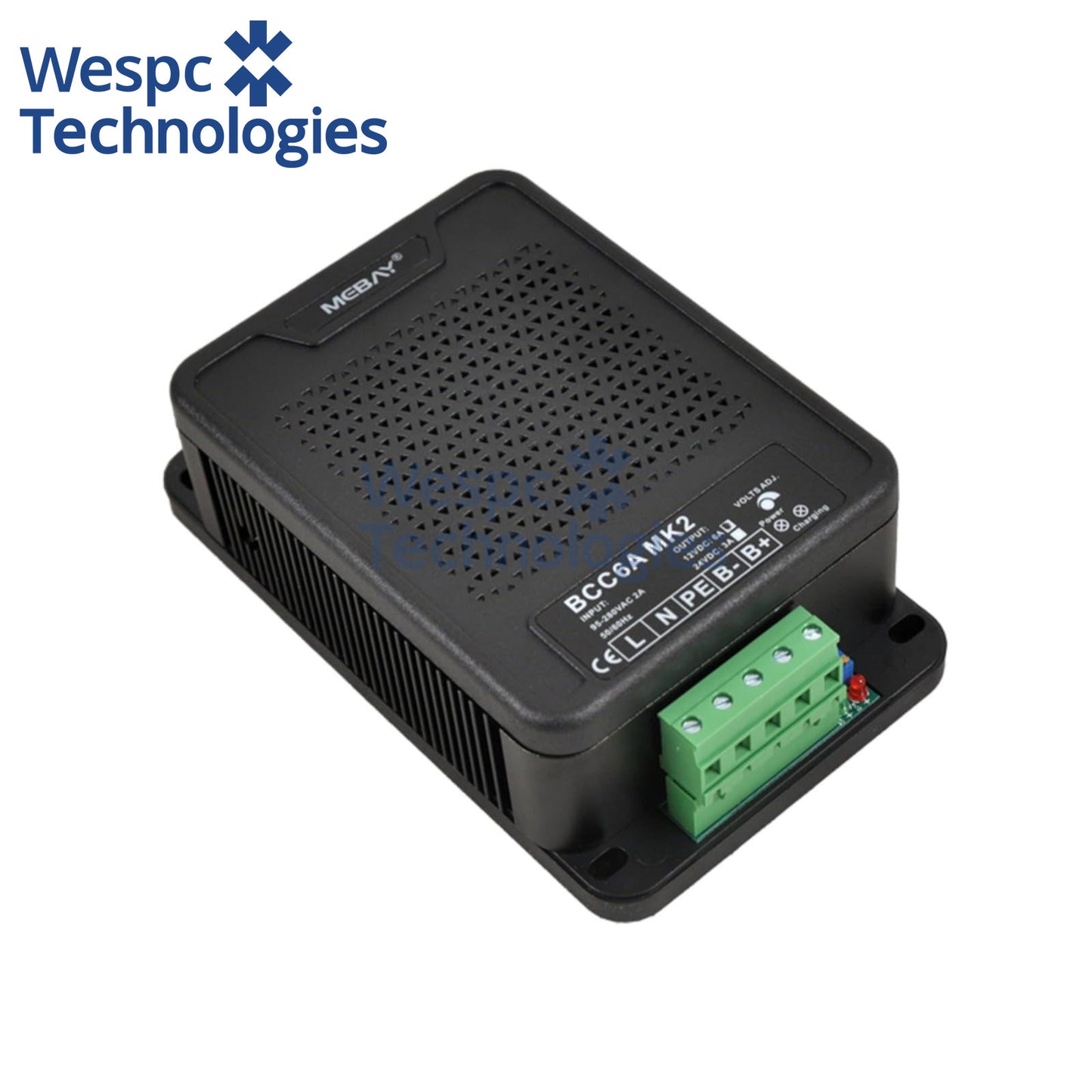

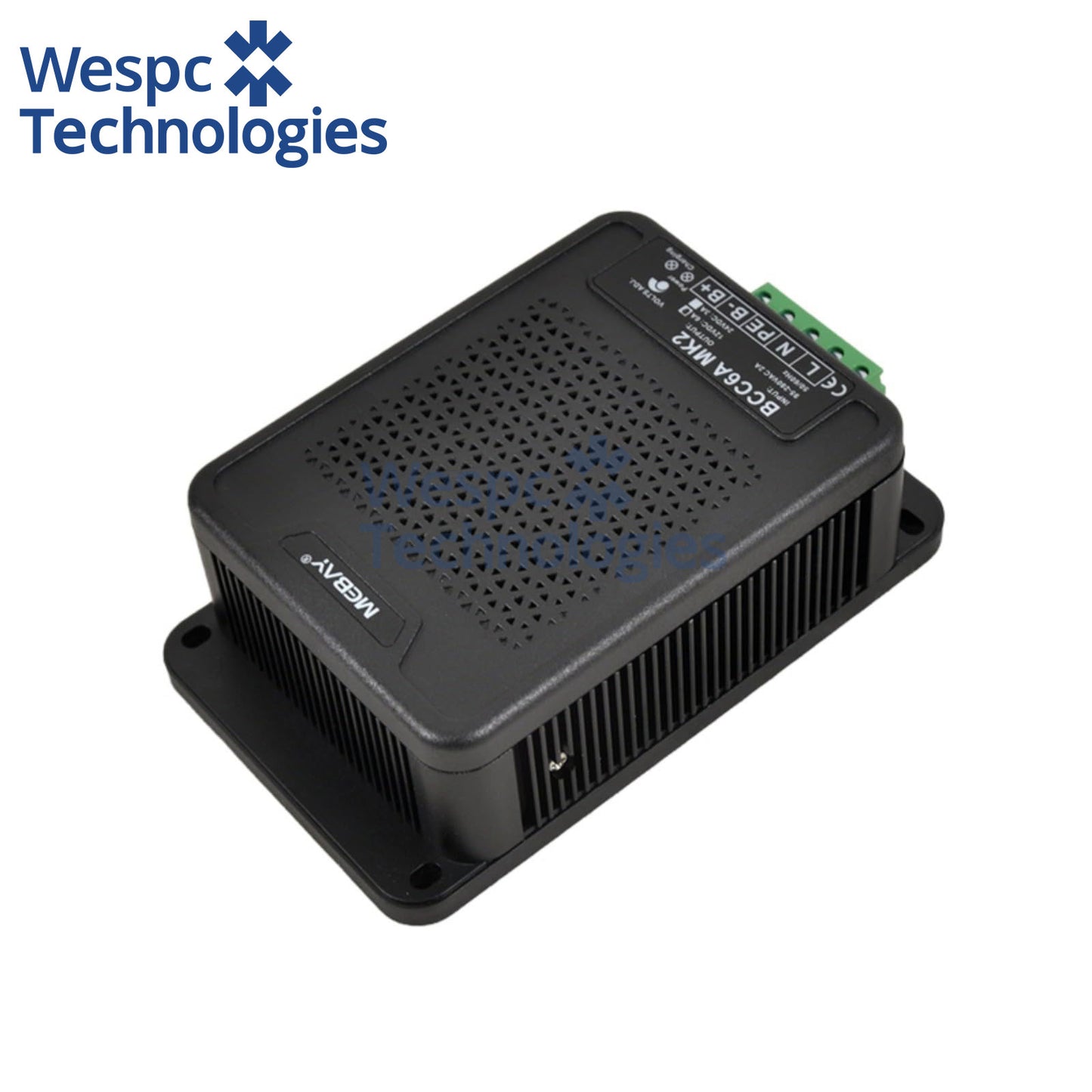

Original Mebay BCC6A MK2 Intelligent 3-Stage Float Battery Charger Auto 12V 24V Lead Acid Charge Module
Original Mebay BCC6A MK2 Intelligent 3-Stage Float Battery Charger Auto 12V 24V Lead Acid Charge Module
السعر العادي
$65.00 USD
السعر العادي
$0.00 USD
سعر البيع
$65.00 USD
سعر الوحدة
/
لكل
يتم احتساب الشحن عند الخروج.
لم نتمكن من تحميل توفر الاستلام
Original Genuine Mebay BCC6A MK2 Intelligent 3-Stage Float Battery Charger Auto 12V 24V Lead Acid Charger
Overview:
This charger is designed for lead-acid batteries used in engines. It adopts a three-stage intelligent control method of constant current fast charging, constant voltage equalization charging, and trickle floating charging. It can charge for a long time without damaging the battery, and can maintain the full charge of the battery while ensuring the service life of the battery. This charger can be used in parallel with the engine charging generator, and the charger does not need to be disconnected during engine operation.
Overview:
This charger is designed for lead-acid batteries used in engines. It adopts a three-stage intelligent control method of constant current fast charging, constant voltage equalization charging, and trickle floating charging. It can charge for a long time without damaging the battery, and can maintain the full charge of the battery while ensuring the service life of the battery. This charger can be used in parallel with the engine charging generator, and the charger does not need to be disconnected during engine operation.
Product Specifications
- Brand: Mebay
- Model: BCC6A MK2
- Rated Charging Current: 6A max (12V battery), 3A max (24V battery)
- Auto Battery Identification: Auto detect 12VDC / 24VDC lead-acid battery
- AC Input Range: AC 95V ~ 280V 50/60Hz, max withstand AC90~305V
- Charging Mode: 3-stage Bulk-Absorption-Float intelligent charging
- Adjustable Function: External VOLT ADJ voltage fine-tuning potentiometer
- Protection Functions: Reverse polarity, short circuit, overheat, overload, overcharge multi-layer safety protection
- Housing Material: Aluminum alloy honeycomb heat dissipation shell
- Cooling Mode: Built-in silent cooling fan
- Protection Class: IP30 dustproof
- Operating Temperature: -30℃ ~ +55℃
- Storage Temperature: -40℃ ~ +85℃
- Overall Dimension: 155 × 95 × 51 mm
- Mounting Method: Wall mounting with reserved fixed holes
- Warranty: 12 months genuine factory warranty
Wide Application Range
Silent diesel generator control cabinet, industrial multi-unit fixed power station, data center backup parallel genset, communication base station standby power, marine auxiliary generator set, mine off-grid power supply, commercial building ATS power distribution cabinet, construction machinery diesel engine unit, all 12V/24V lead-acid battery generator equipment.
Common Equipment Failures Solved
- Generator cannot auto start after mains loss: Battery insufficient power, install BCC6A MK2 to maintain long-term full floating charge
- Charger no output after wiring reverse: Built-in reverse polarity protection, correct positive and negative wiring to recover automatically
- Charger overheat and stop working: Fan air duct blocked by dust, clean and reserve enough heat dissipation space
- Battery aging fast, frequent replacement: Ordinary single-stage charger or fixed-voltage BCC6A overcharge battery, MK2 three-stage adjustable charging effectively extend battery life
- Cloud DT1000 module frequent offline: Battery voltage unstable, BCC6A MK2 stable floating output provides constant DC power
- Need to match special gel battery: Adjust VOLT ADJ potentiometer to lower absorption/float voltage to adapt gel lead-acid battery
