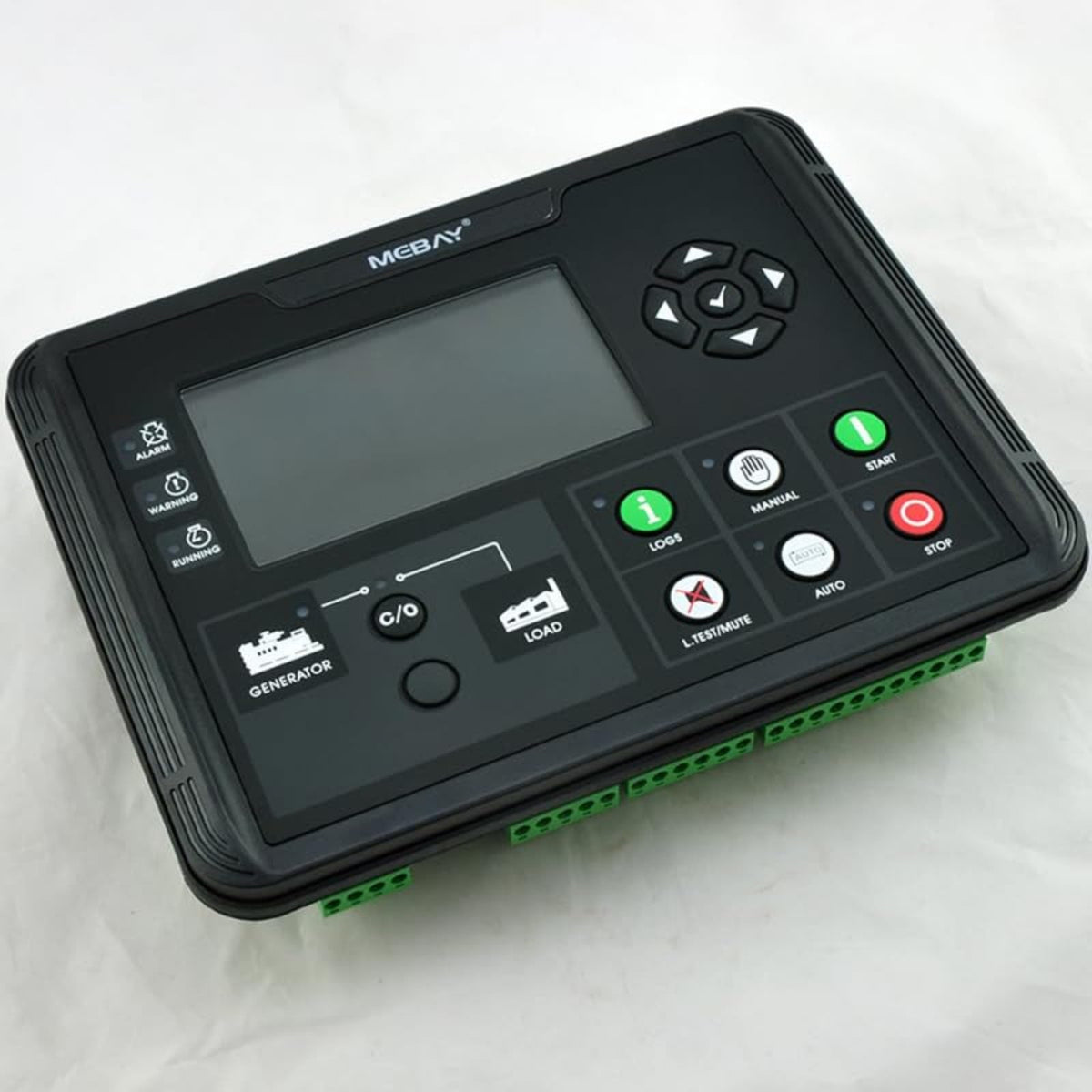

Original Mebay DC60DR Replaced by DC60DR MK3 Generator Control Module Board DC60DR Generator Spare Parts RS485

Original Mebay DC60DR Replaced by DC60DR MK3  Generator Control Module Board DC60DR Generator Spare Parts RS485

Overview：
    This series controller is specialized for Diesel / Gasoline / Gas Genset Start, Stop, Parameters monitoring, faults-checking as well as data setting.

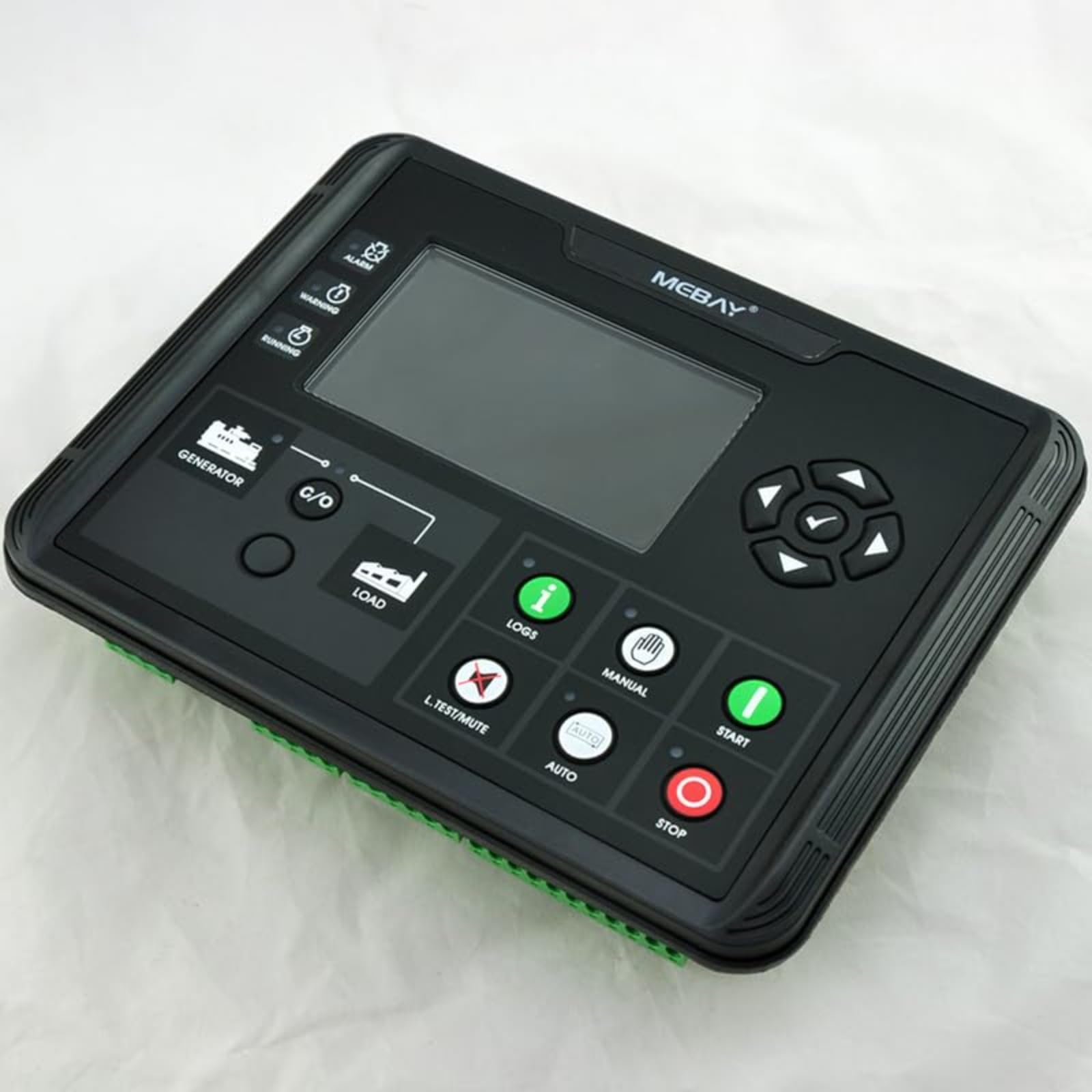

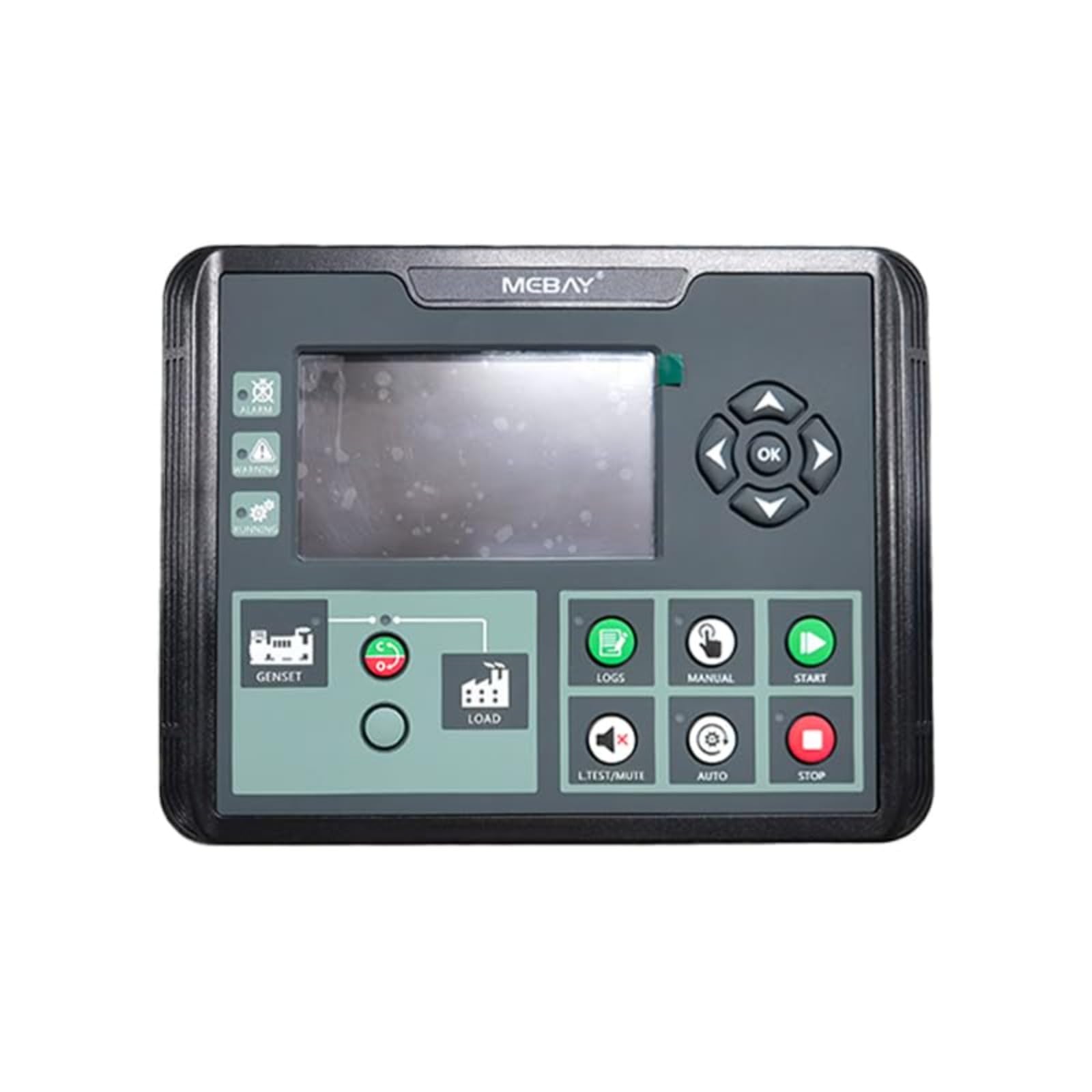

    4.3inch colorful LCD screen display with brand new UI design is adapted in this controller that the relative failures can be displayed directly. All the parameters can be displayed by simulated indicators and words. Besides, LCD screen can display various faults in the same time that the genset will be stopped once it can’t work smoothly.
    There are Chinese/English interface options, more language can be set according to user’s request. All the parameters can be configured through the front face buttons or use programmable interface by RS485 or USB to adjust via PC. It can be widely applied for all kinds of auto control system of gensets.

Wide Application Range

Medium silent single diesel generator control cabinet, construction machinery single engine unit, light marine auxiliary genset, off-grid medium independent power supply equipment, generator repair shops and medium power distribution engineering projects that only need standalone genset automatic start-stop + remote centralized cloud monitoring without electronic injection ECU data reading and ATS automatic mains transfer requirements.

Product Specifications

• Brand: Mebay (Yokden)
• Model: DC60DR MKII
• Core Function: Upgraded standalone genset auto start-stop controller with isolated RS485 remote communication, substitute DeepSea DSE6110 base model, support local USB debug + remote cloud monitoring (No CAN J1939 ECU bus, No mains AMF sampling)
• DC Power Supply: DC8V~36V universal wide voltage for 12V/24V generator batteries
• AC Sampling: Single generator three-phase voltage and current monitoring, auto 50/60Hz frequency identification
• Communication Interfaces: Front USB Type-B local debug port + Rear isolated RS485 Modbus remote port (No CAN J1939 ECU bus)
• Display: 4.3-inch colorful TFT multi-language LCD dashboard
• Panel Cutout Size: 186 × 142 mm, overall dimension 210 × 160 × 50 mm
• Weight: 0.9kg
• Front Panel Protection Grade: IP54 dustproof & waterproof with silicone sealing gasket
• Operating Temperature: -20℃ ~ +65℃
• Warranty: 12 months genuine factory warranty
• Certifications: CE, ISO9001, EMC EN55032 IEC61000-4

Common Equipment Failures Solved

• Generator cannot auto start after receiving remote signal: Remote dry contact wiring loose, auto start delay parameter misconfigured
• Laptop cannot connect controller for parameter modification: Use SG72A USB communication adapter, install official Mebay configuration software
• Onboard relay burned when driving glow plug: Onboard contact capacity limited to 5A, install external Hongfa HAT700BI 70A heavy relay for current amplification
• No remote monitoring function reminder: DC60DR built-in RS485 port, compatible with DT1000 DTU to realize full cloud remote management
• No engine ECU data display reminder: DC60DR MKII model has no CAN J1939 bus, select DC72DR MK2 if electronic injection ECU reading function is required
• Frequent low oil pressure / high water temperature alarm: SGPT110 pressure/temperature sensor damaged or threshold parameter misadjusted
• Old DSE6110 or DC60D MKII panel upgrade replacement: DC60DR MKII fully compatible with original installation and wiring, direct upgrade and replacement
