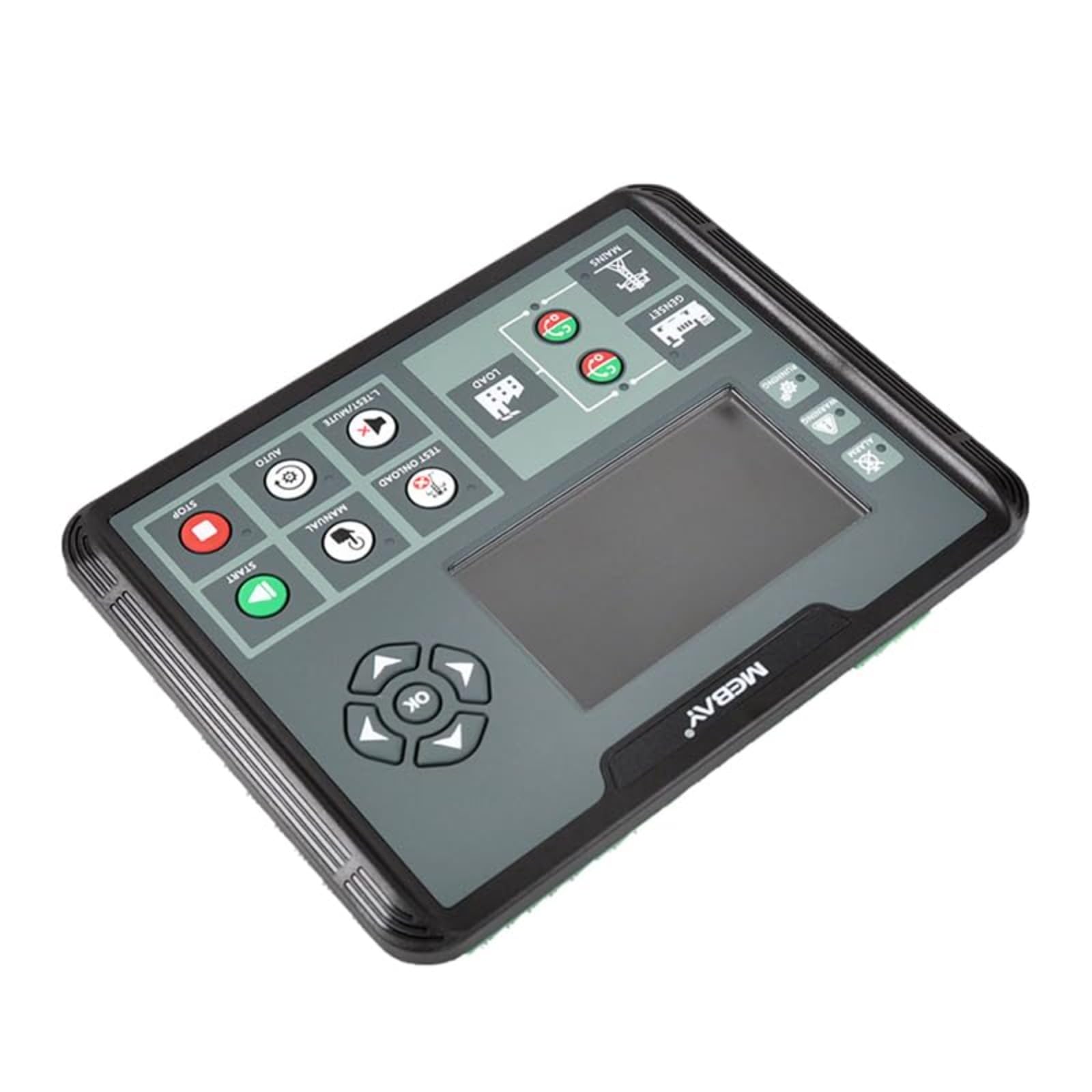

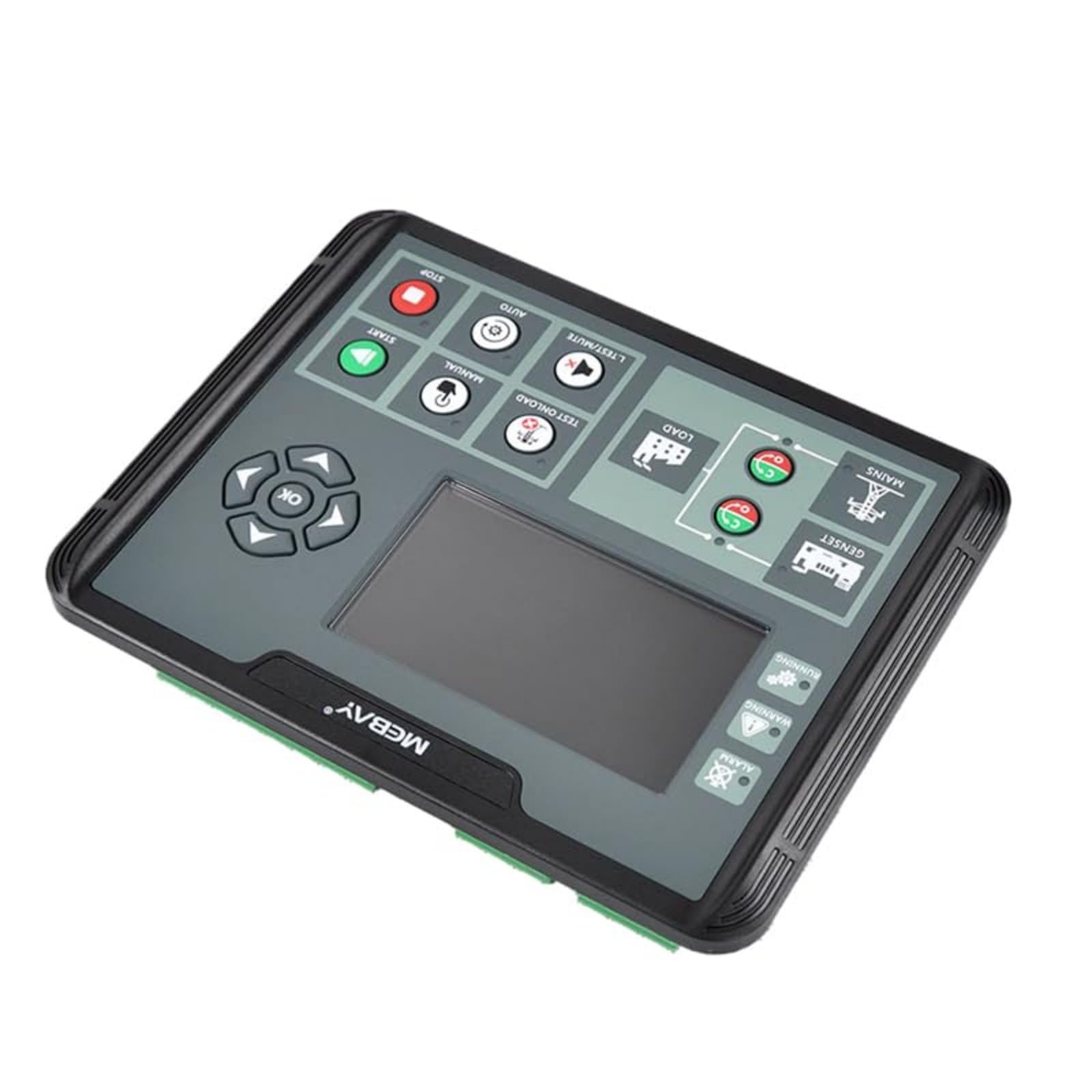

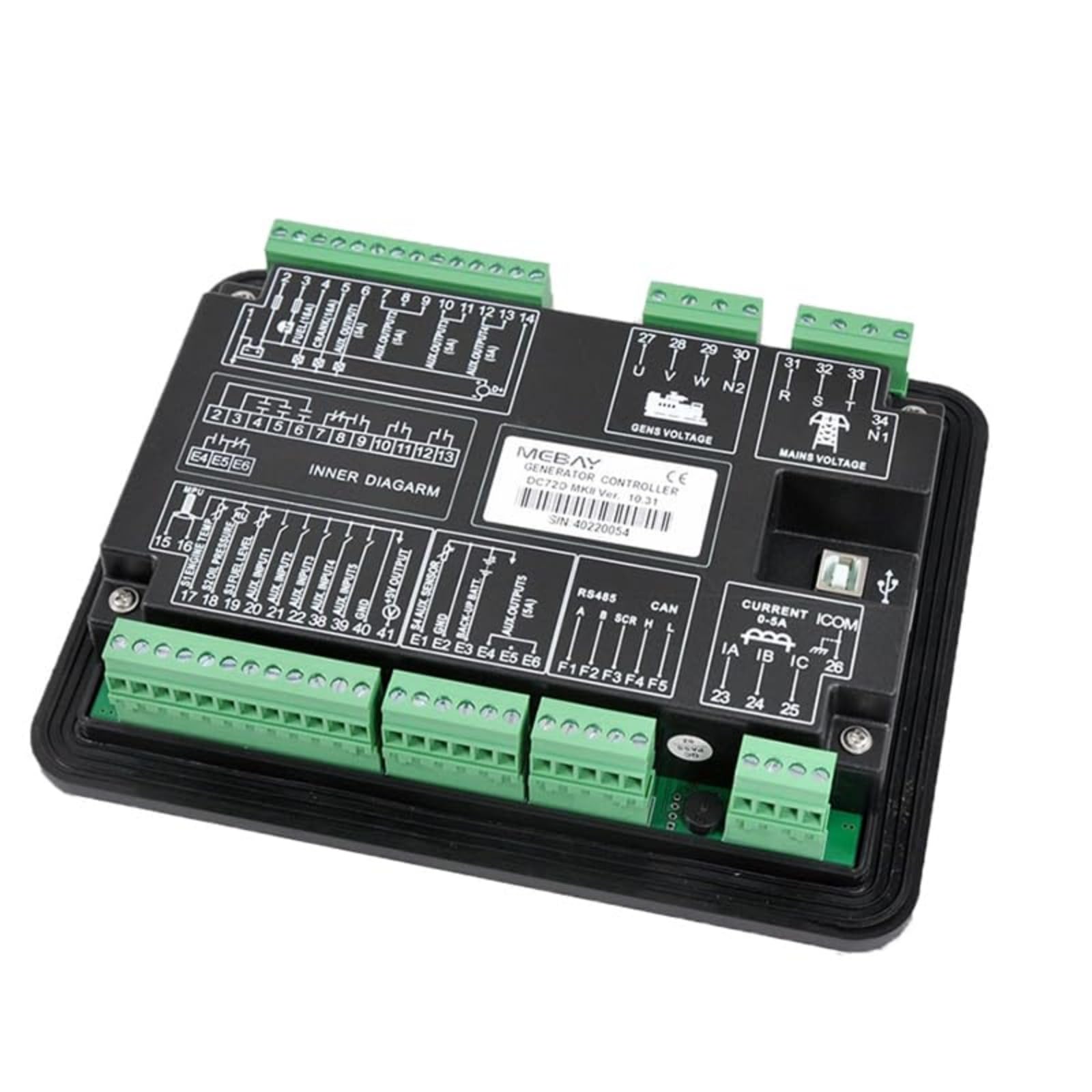

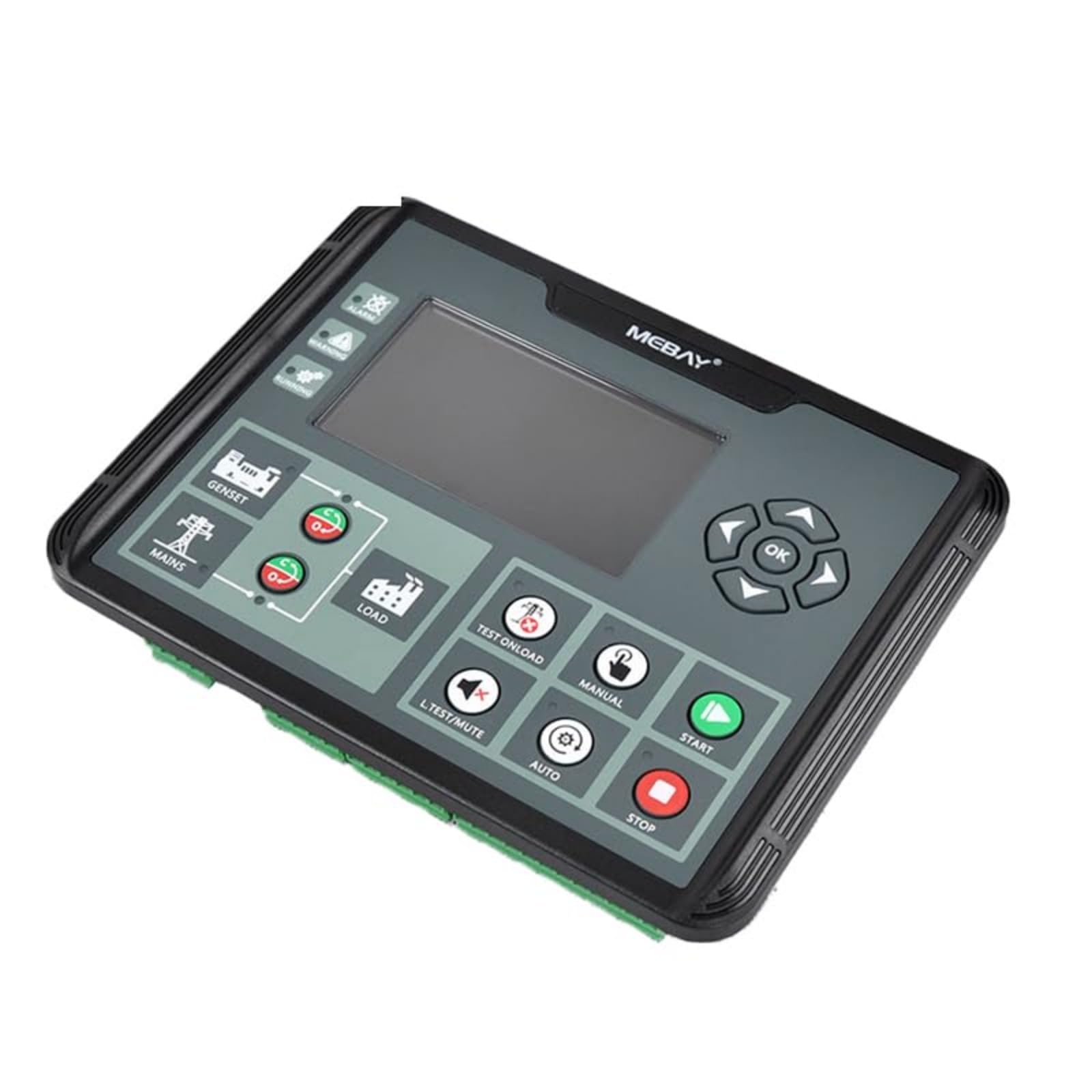

Original Mebay DC72DR MK2 Replaced by DC72DR MK3 Generator Controller LCD Display Self-Starting Control Board

Original Mebay DC72DR MK2 Replaced by DC72DR MK3 Generator Controller LCD Display Self-Starting Control Board

Overview:

This series of controllers is designed for the start, stop, parameter monitoring and fault monitoring of diesel, gasoline and gas generator sets and has parameter setting functions.

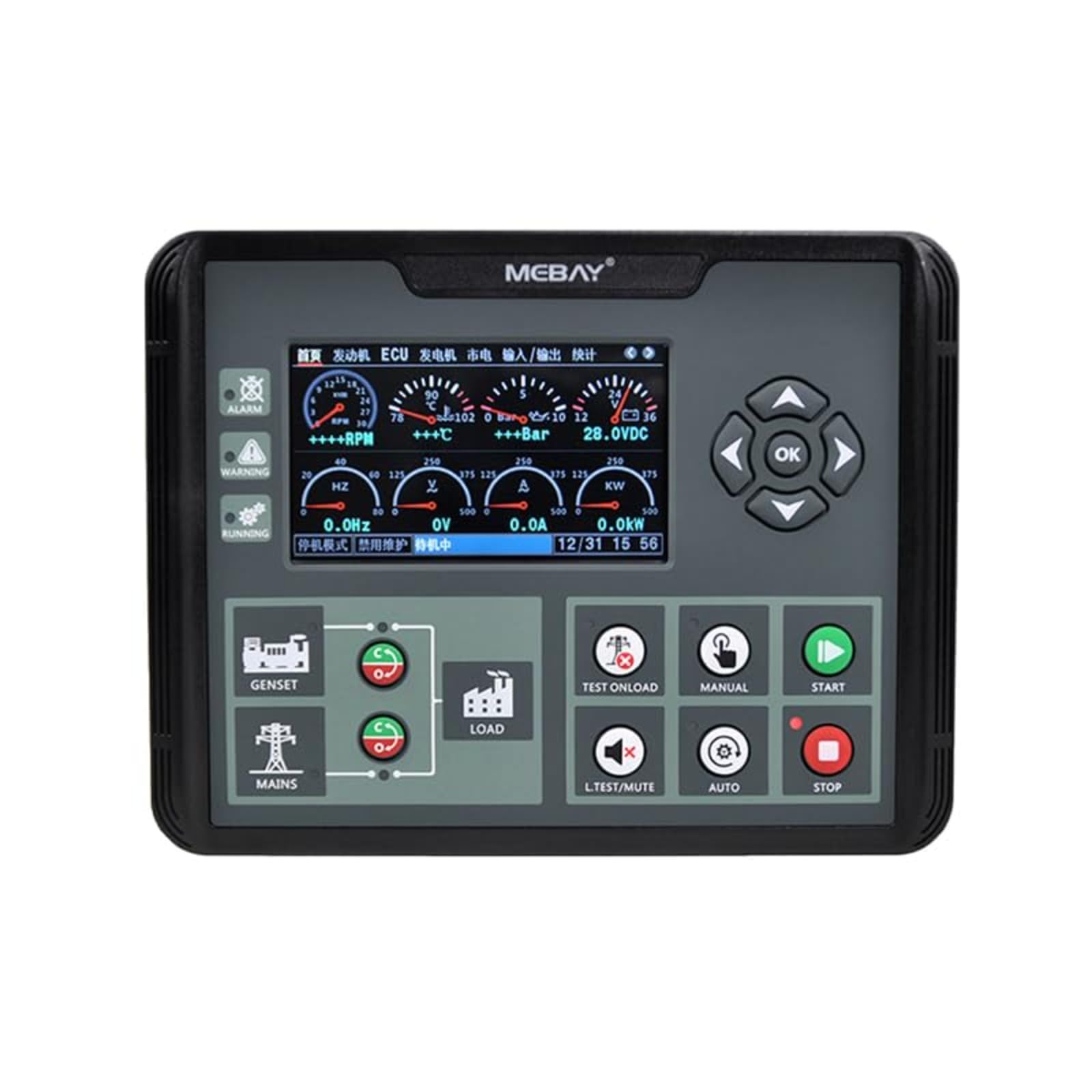

This controller uses a 4.3-inch TFT color large-screen LCD to display the relevant parameters of the generator set, a new and original UI design, and the parameters are displayed through analog pointers and digital displays. The LCD screen can display multiple current fault states at the same time, and can effectively implement protective parking when the generator set is not working properly.

The controller has built-in display interfaces such as simplified Chinese and English, and the language interface can be customized according to customer requirements. All parameters of the controller can be adjusted through the controller panel buttons, or adjusted and monitored by a PC through the USB port or RS485 interface, and can be widely used in various types of generator set automation systems.

Performance

The DC7xD series has four models:

DC70D: used for single-machine automation, controlling the automatic start and stop of the generator set through a remote start signal;

DC72D: based on DC70D, it adds the control function of mains monitoring and automatic switching of mains/generation (AMF), which is suitable for a single-machine automation system consisting of one mains and one generator set.

DC70DR: Add RS485 interface based on DC70D;

DC72DR: Add RS485 interface based on DC72D;
