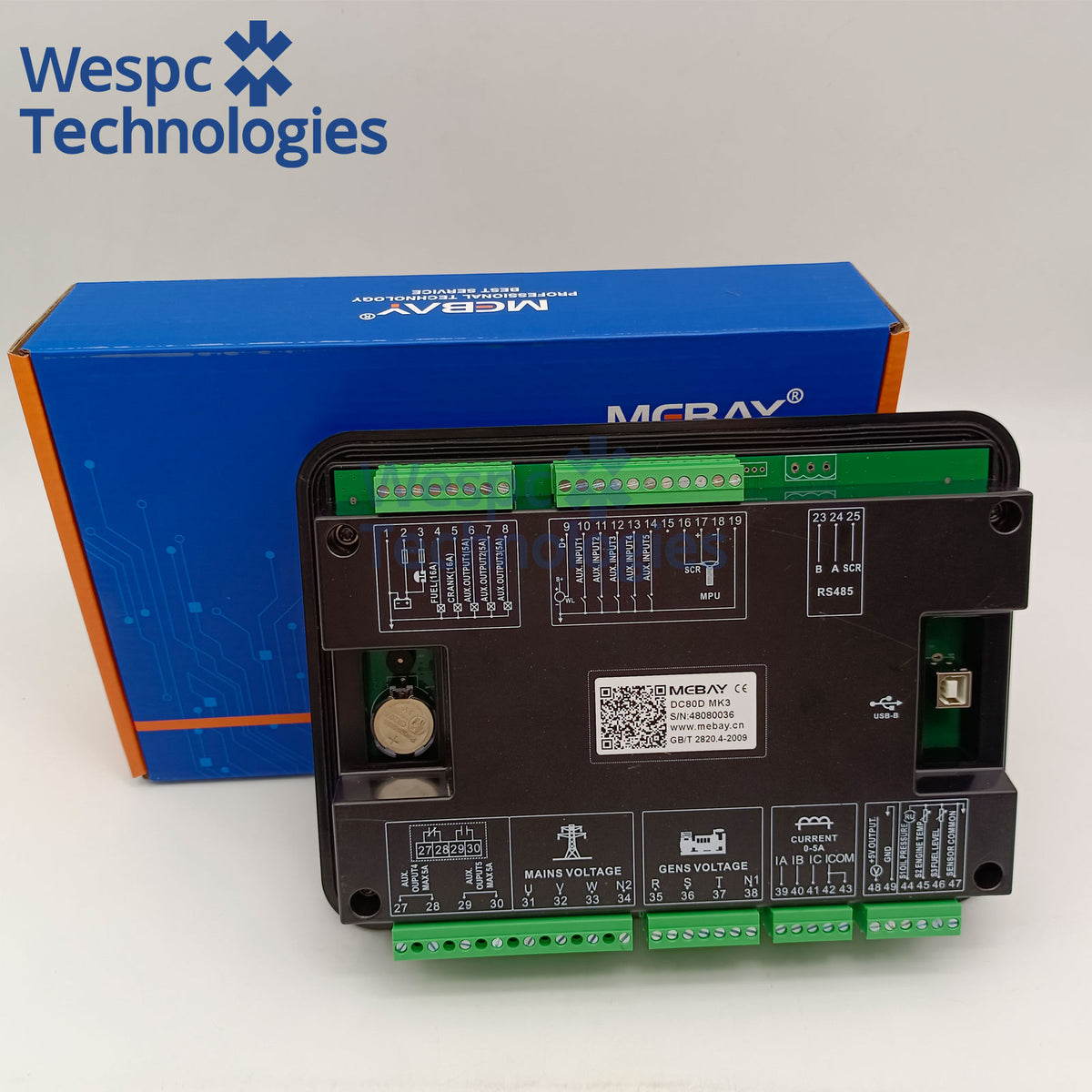

Original Mebay DC80D MK3 Generator Start Stop Controller AMF Control Unit RS485
Overview:
This series of controllers are designed for the start, stop, parameter monitoring and fault monitoring of generator sets and have parameter setting functions.
This controller uses a dot matrix LCD screen to display the relevant parameters of the generator set, and displays the relevant fault status through the LCD screen. It can effectively implement protective parking when the generator set is not working properly.
The controller uses LCD display, built-in simplified Chinese, English and other display interfaces are optional, and the language interface can be customized according to customer requirements. All parameters of the controller can be adjusted through the controller panel buttons or adjusted and monitored using a PC, and can be widely used in various types of generator set automation systems.
Overview:
This series of controllers are designed for the start, stop, parameter monitoring and fault monitoring of generator sets and have parameter setting functions.
This controller uses a dot matrix LCD screen to display the relevant parameters of the generator set, and displays the relevant fault status through the LCD screen. It can effectively implement protective parking when the generator set is not working properly.
The controller uses LCD display, built-in simplified Chinese, English and other display interfaces are optional, and the language interface can be customized according to customer requirements. All parameters of the controller can be adjusted through the controller panel buttons or adjusted and monitored using a PC, and can be widely used in various types of generator set automation systems.
roduct Specifications
- Brand: Mebay
- Model: DC80D MK3
- Display: 4.3 inch TFT color LCD, IP54 waterproof panel
- Power Supply: DC 8V ~ 36V wide voltage (12/24V genset battery)
- Communication: CAN J1939, RS485 Modbus RTU (DR version only), USB debug
- AC Measurement: 1P2W/2P3W/3P4W, 30~280VAC, 50/60Hz
- Relay Output: 7 groups relay, 5 programmable multi-function relays
- Installation: Embedded panel mounting
- Operating Temp: -20℃ ~ +65℃
- Certifications: CE, EMC, RoHS
- Warranty: 12 months original factory warranty
