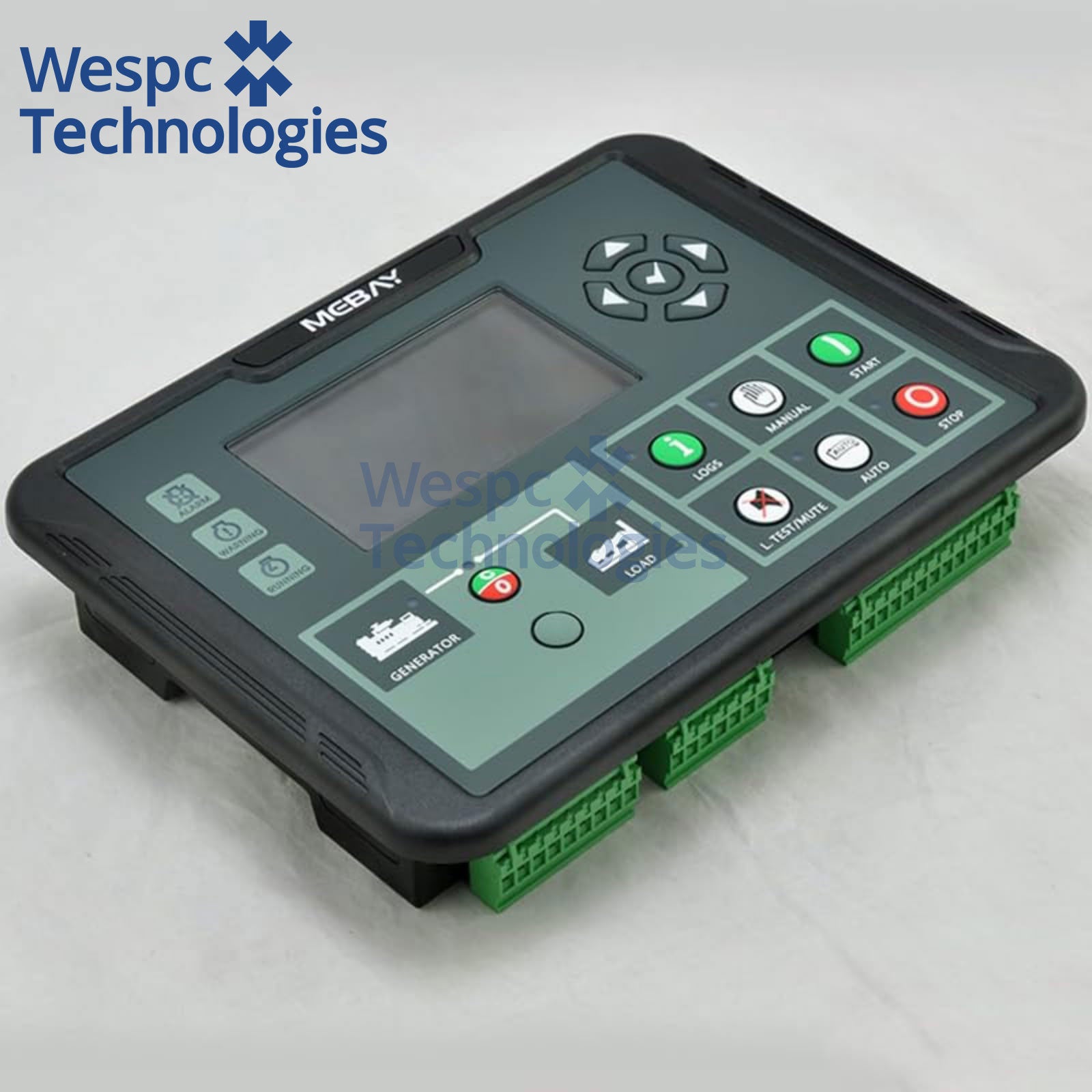

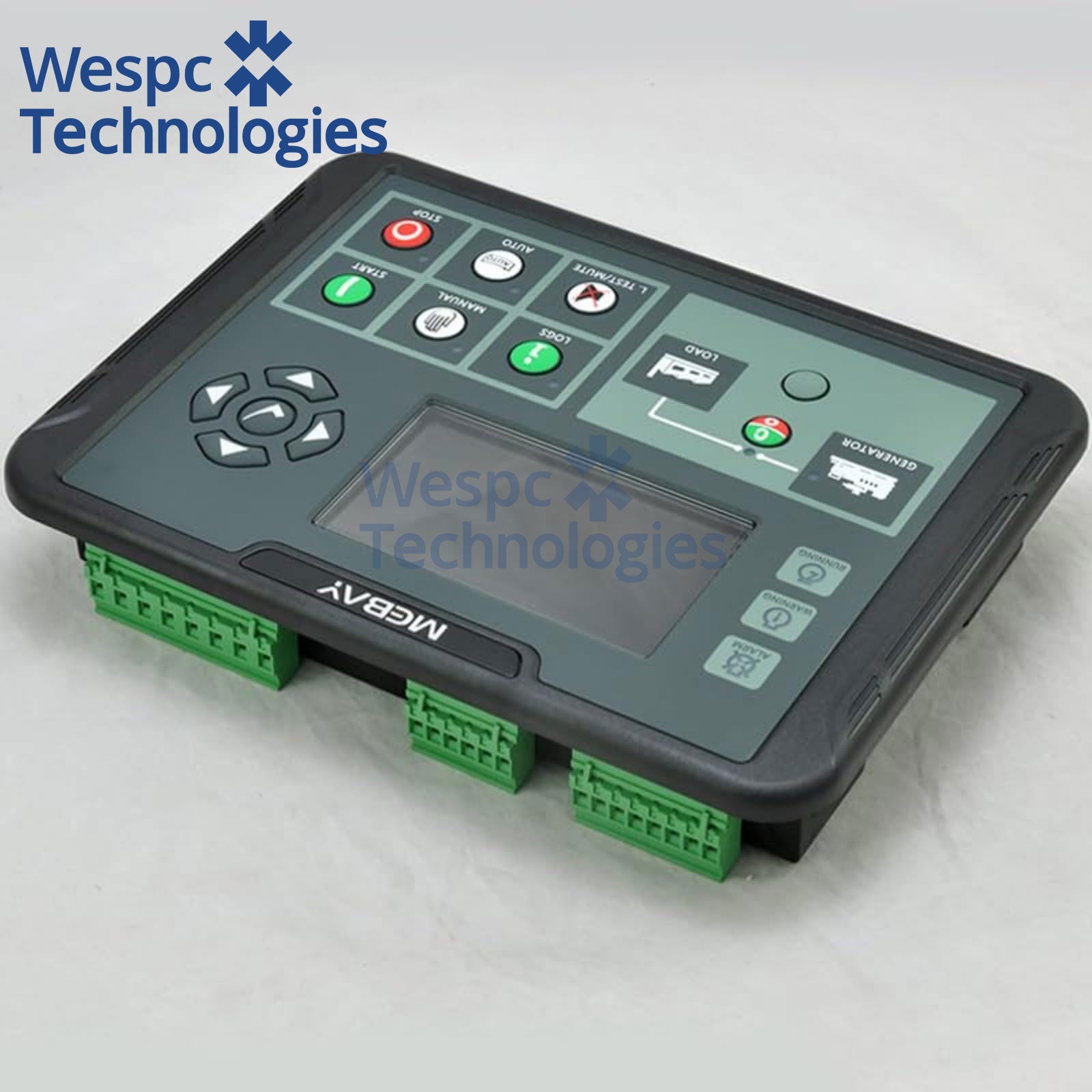

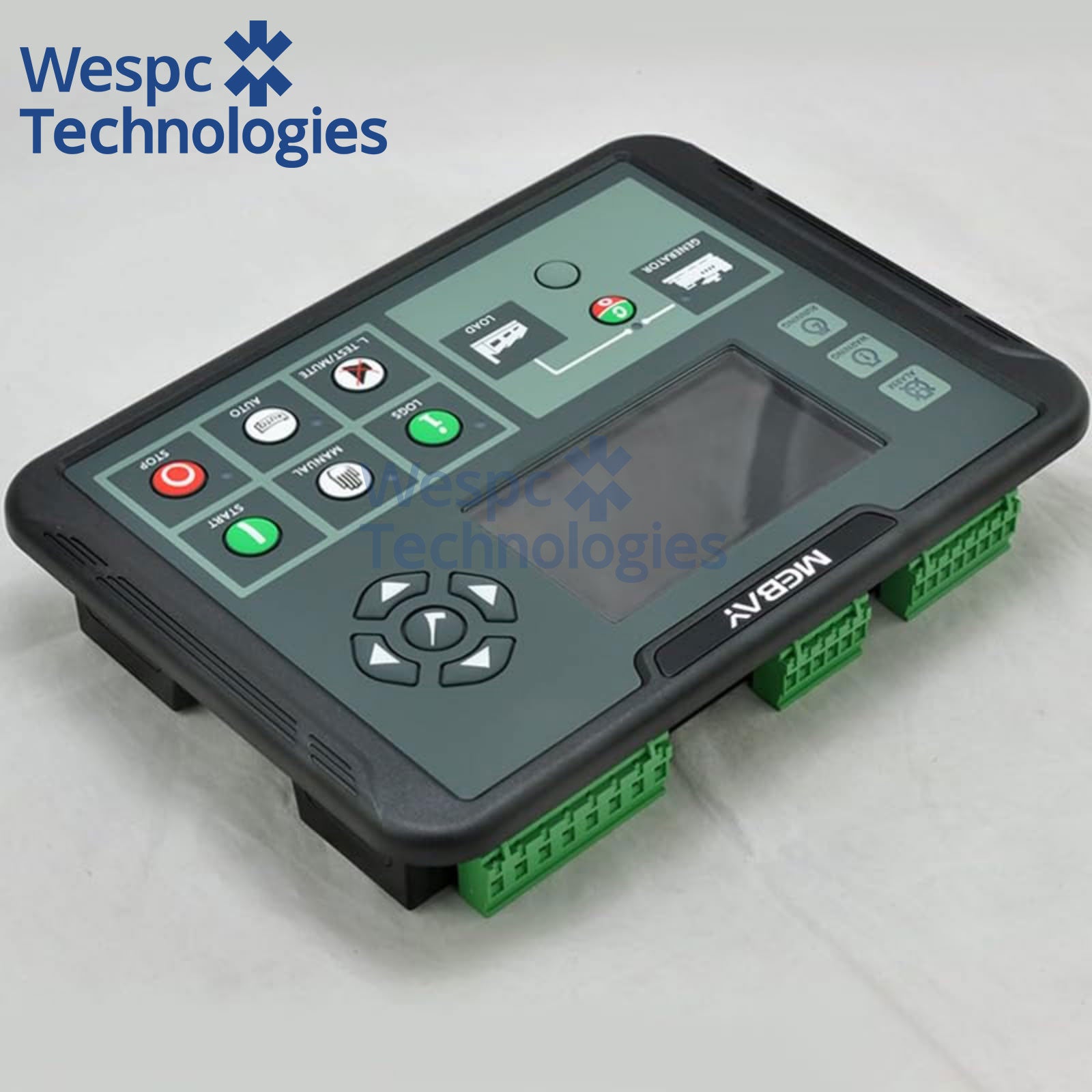

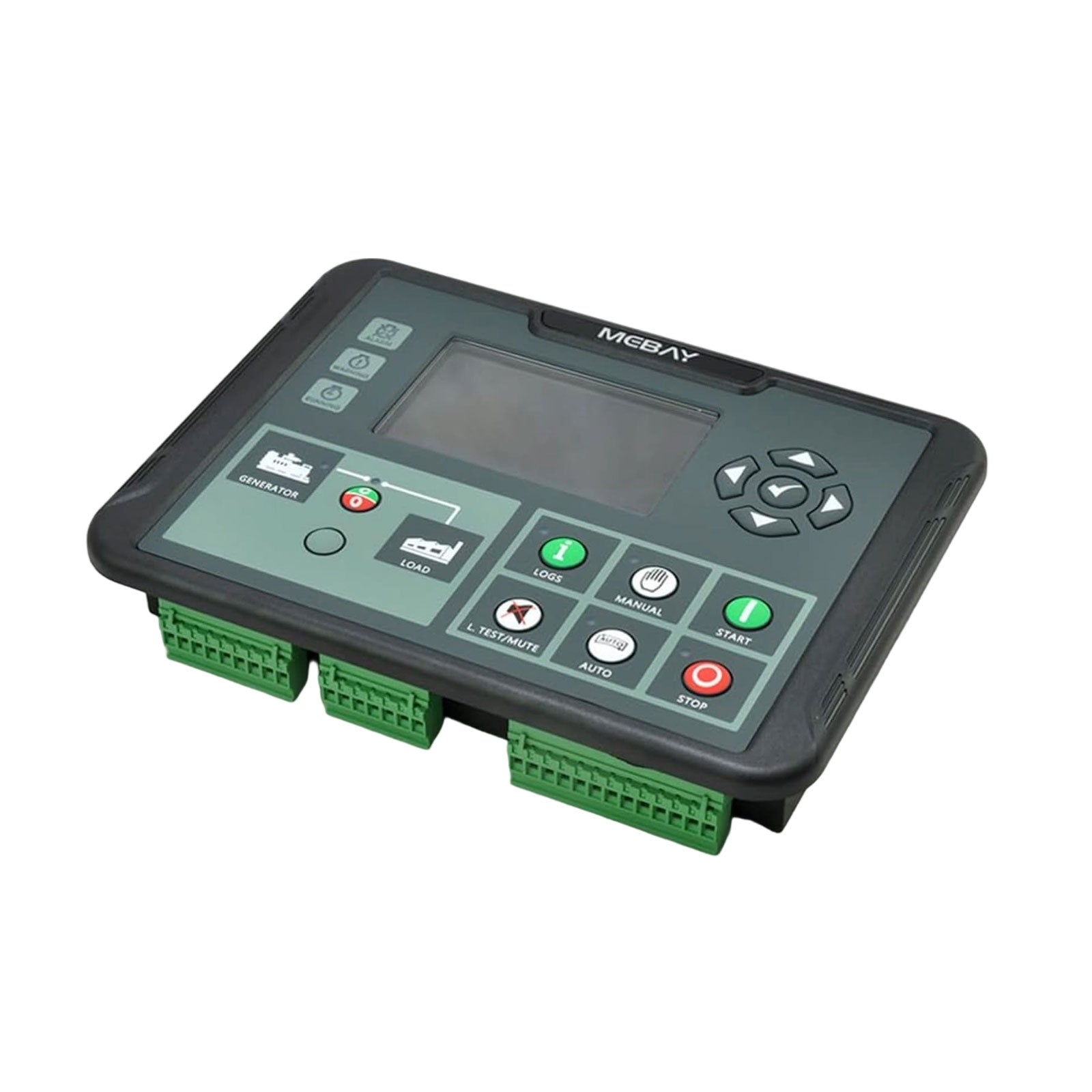

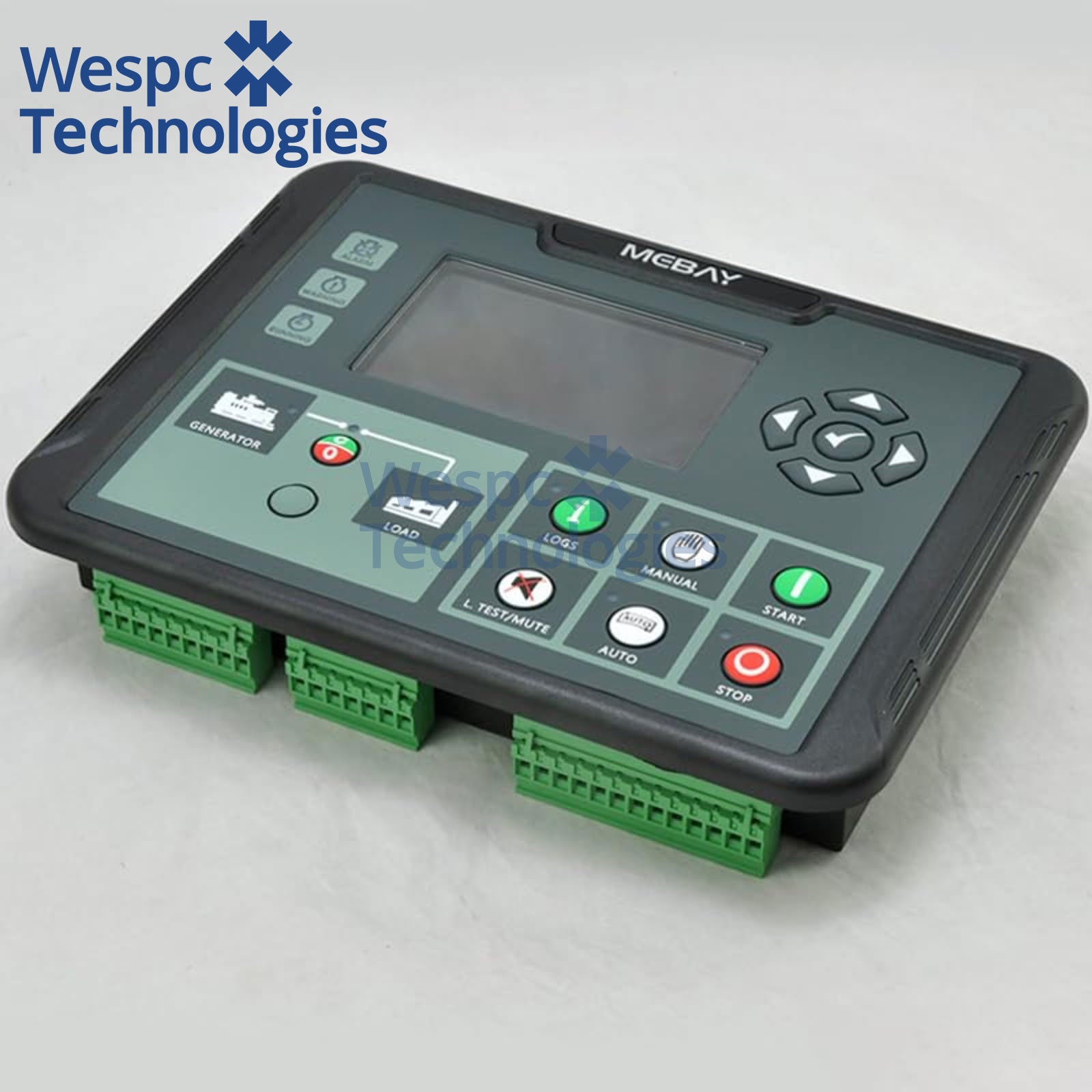

Genuine Mebay DC90D replaced by DC92D MK3 Diesel Generator Controller Auto Start Stop Genset Control Module Genset Part
Overview:
This series controller is specialized for Diesel / Gasoline / Gas Genset Start, Stop, Parameters monitoring, faults-checking as well as data setting.
4.3inch colorful LCD screen display with brand new UI design is adapted in this controller that the relative failures can be displayed directly. All the parameters can be displayed by simulated indicators and words. Besides, LCD screen can display various faults in the same time that the genset will be stopped once it can"t work smoothly.
There are Chinese/English interface options, more language can be set according to user"s request. All the parameters can be configured through the front face buttons or use programmable interface by USB\RS485\ETHERNET to adjust via PC. It can be widely applied for all kinds of auto control system of gensets.
Overview:
This series controller is specialized for Diesel / Gasoline / Gas Genset Start, Stop, Parameters monitoring, faults-checking as well as data setting.
4.3inch colorful LCD screen display with brand new UI design is adapted in this controller that the relative failures can be displayed directly. All the parameters can be displayed by simulated indicators and words. Besides, LCD screen can display various faults in the same time that the genset will be stopped once it can"t work smoothly.
There are Chinese/English interface options, more language can be set according to user"s request. All the parameters can be configured through the front face buttons or use programmable interface by USB\RS485\ETHERNET to adjust via PC. It can be widely applied for all kinds of auto control system of gensets.
Core Standard Electrical Specifications
- DC Operating Voltage: DC9V ~ 36V continuous wide range, auto adapt 12V/24V generator starting batteries; standby ≤2W, max running power 7W
- AC Sampling: 1P2W / 2P3W / 3P4W, AC30~276V phase-neutral, only generator voltage/current sampling (zero mains grid input terminals), auto identify 50/60Hz frequency
- CT Current Input: 5A secondary transformer, full 3-phase power calculation (kW, kVar, kVA, PF, cumulative kWh energy record)
- Speed Detection: Magnetic pickup RPM sensor, 200~10000Hz high-precision detection
- Communication Interfaces:
- Front USB Type-B: Local PC parameter programming & fault log export (only local wired setting)
- CANbus J1939: Direct reading of electronic injection engine ECU real-time data + fault codes No rear isolated RS485 Modbus terminal (DC90DR MK3 is the RS485 upgraded version)

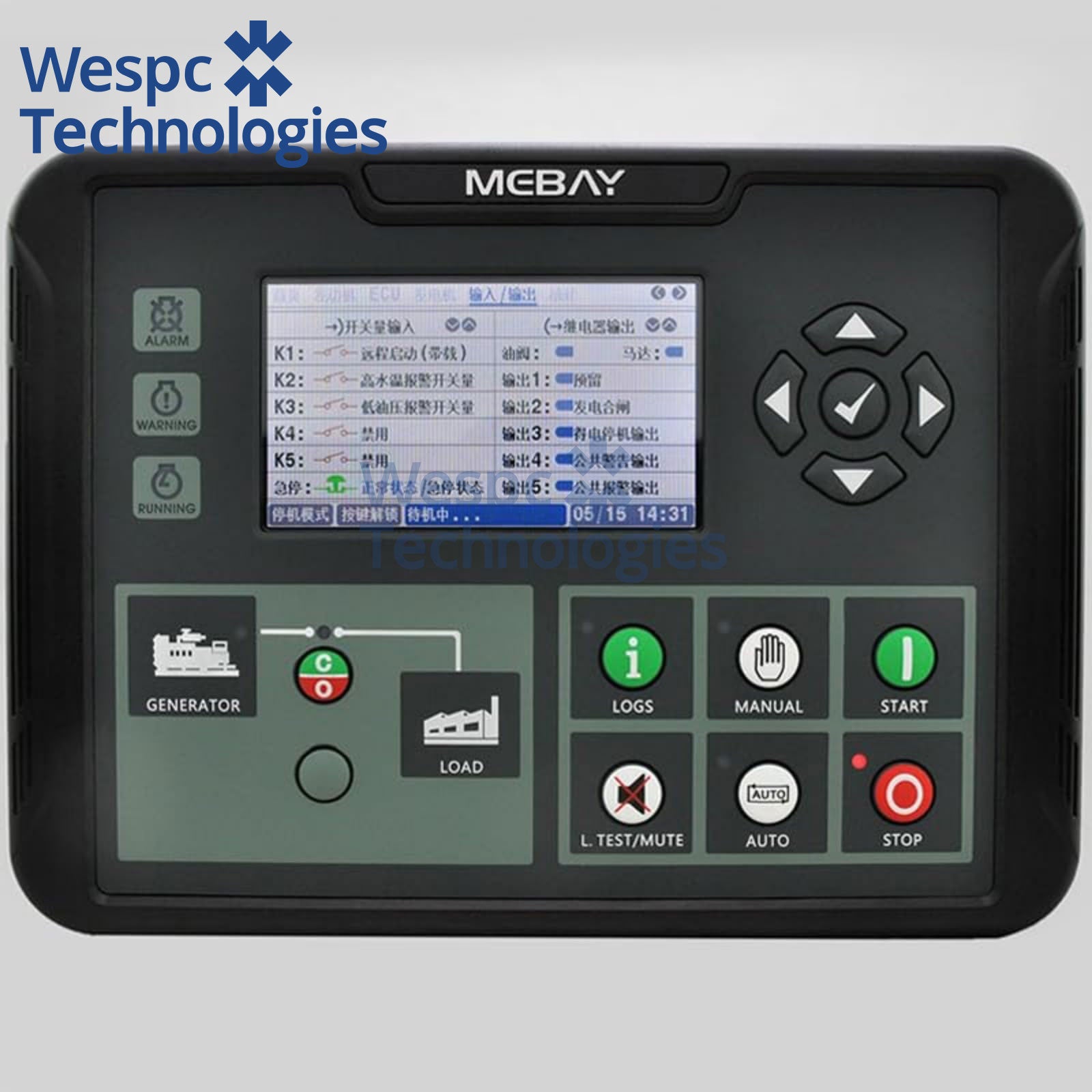

- Display: 4.3-inch colorful TFT multi-language LCD, analog dashboard real-time load curve, black-box storage of 999 groups fault history + RTC real-time clock
- Relay Output Ratings: Fixed fuel pump & starter crank outputs: 16A DC28V 6 programmable volt-free auxiliary relays: Max 16A AC250V
- Mechanical Size: Panel cutout 220×160mm; Overall dimension 241×177×45mm; Weight 1kg
- Front Panel Protection: IP54 waterproof silicone sealing gasket, anti-oil acrylic screen cover
- Operating Temp: -25℃ ~ +65℃; Storage -40℃ ~ +85℃; Humidity 20%~93% RH non-condensing
