Original Mebay GV16VS Digital Generator Meter Genset Multi Function Monitor Panel
Original Mebay GV16VS Digital Generator Meter Genset Multi Function Monitor Panel
السعر العادي
$68.00 USD
السعر العادي
$160.00 USD
سعر البيع
$68.00 USD
سعر الوحدة
/
لكل
يتم احتساب الشحن عند الخروج.
لم نتمكن من تحميل توفر الاستلام

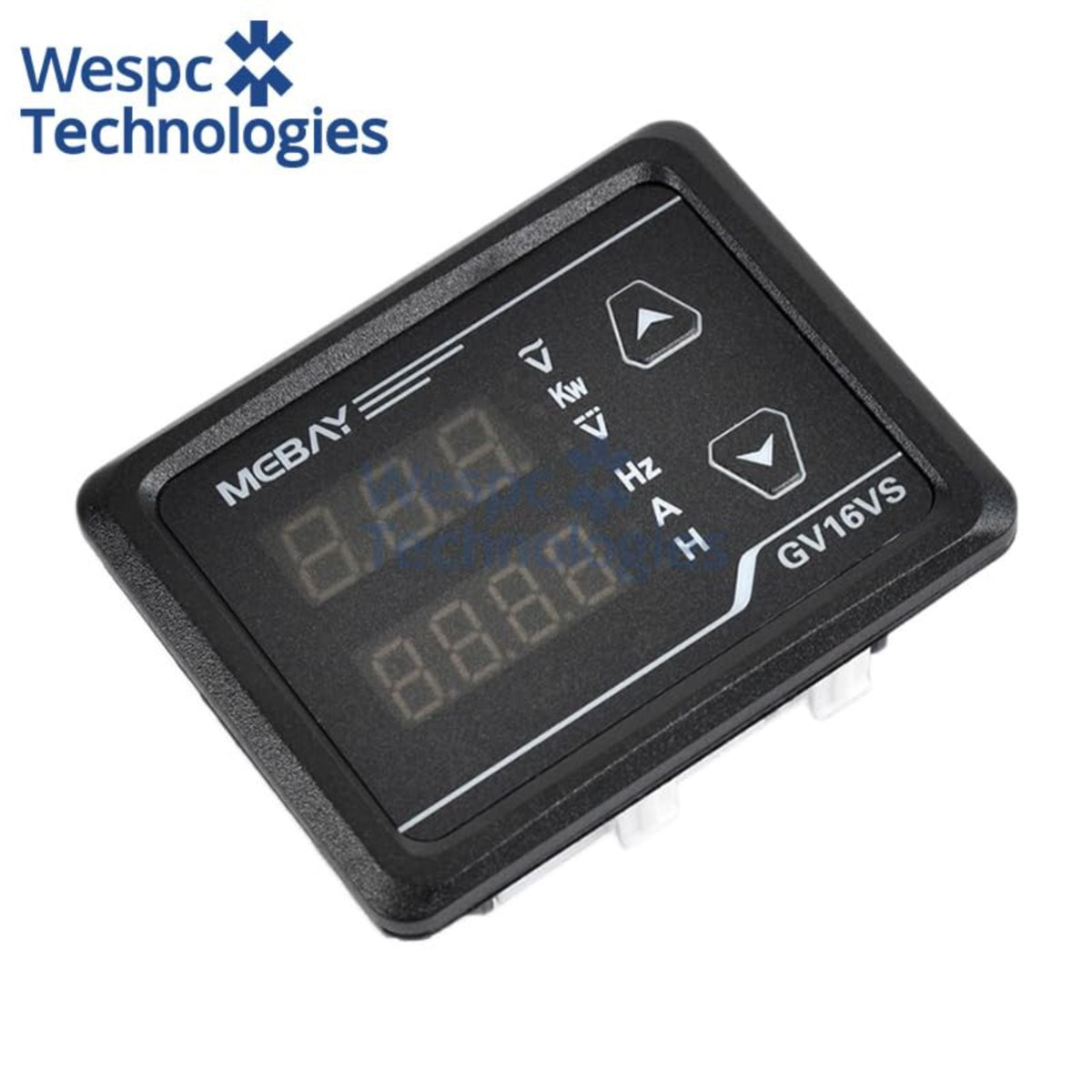

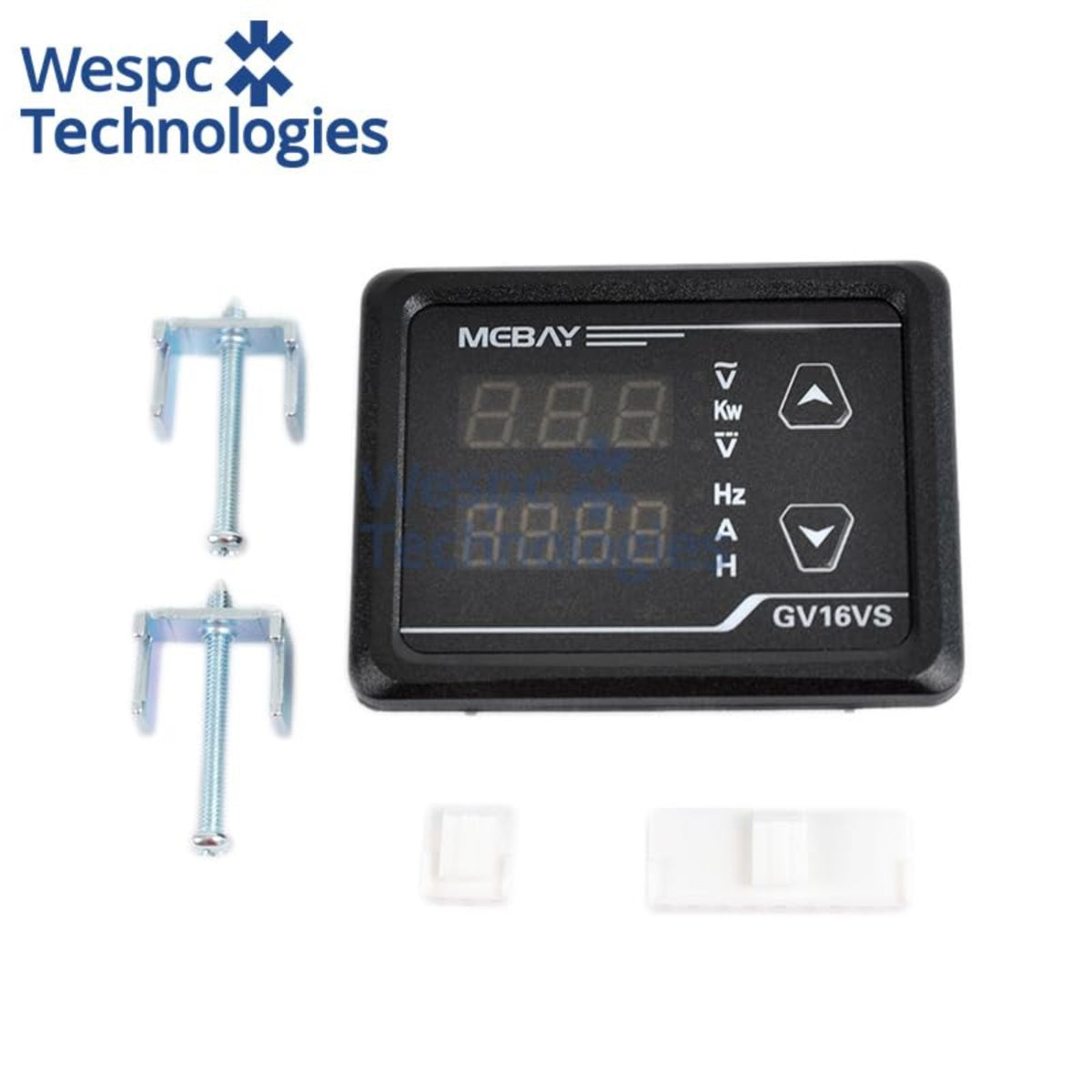

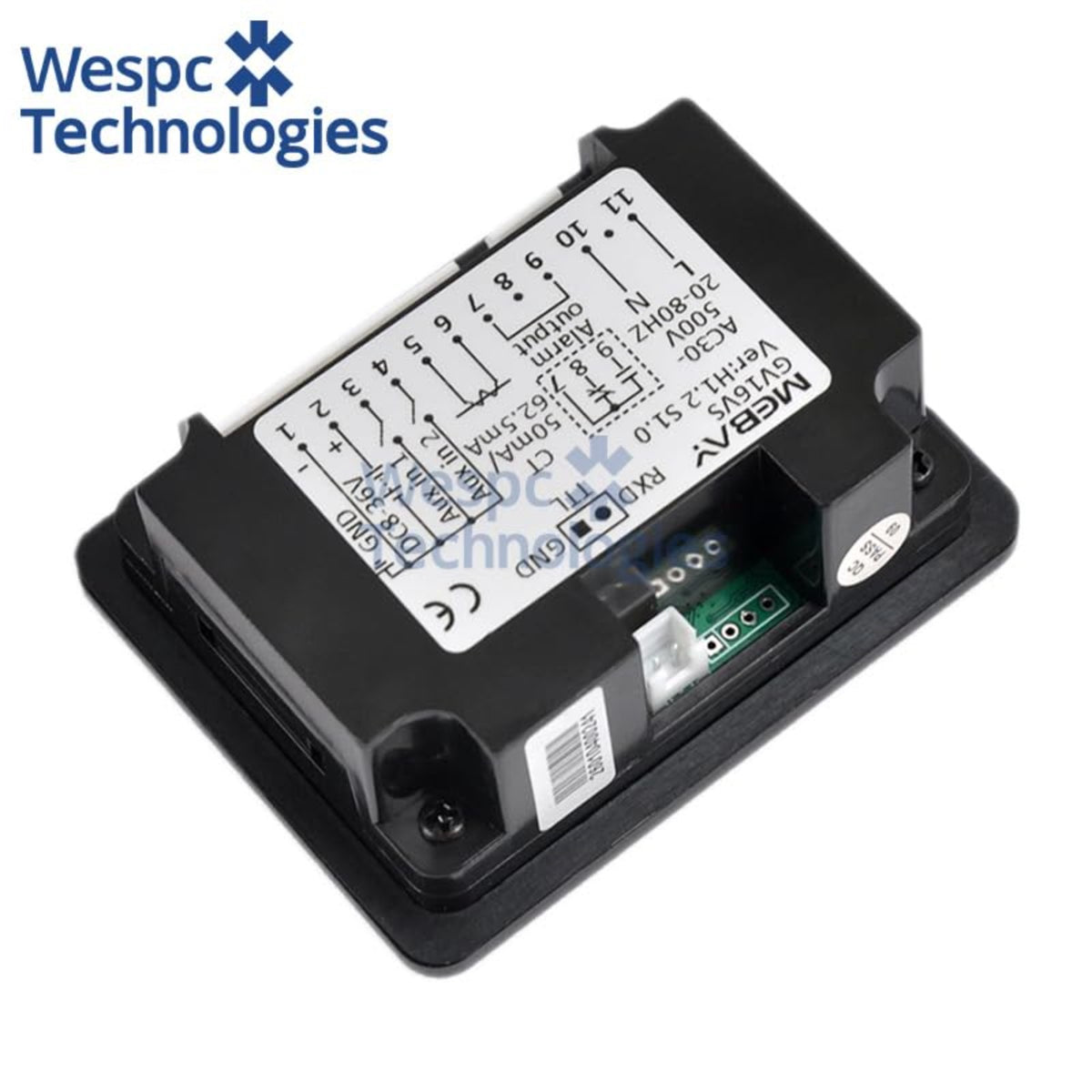

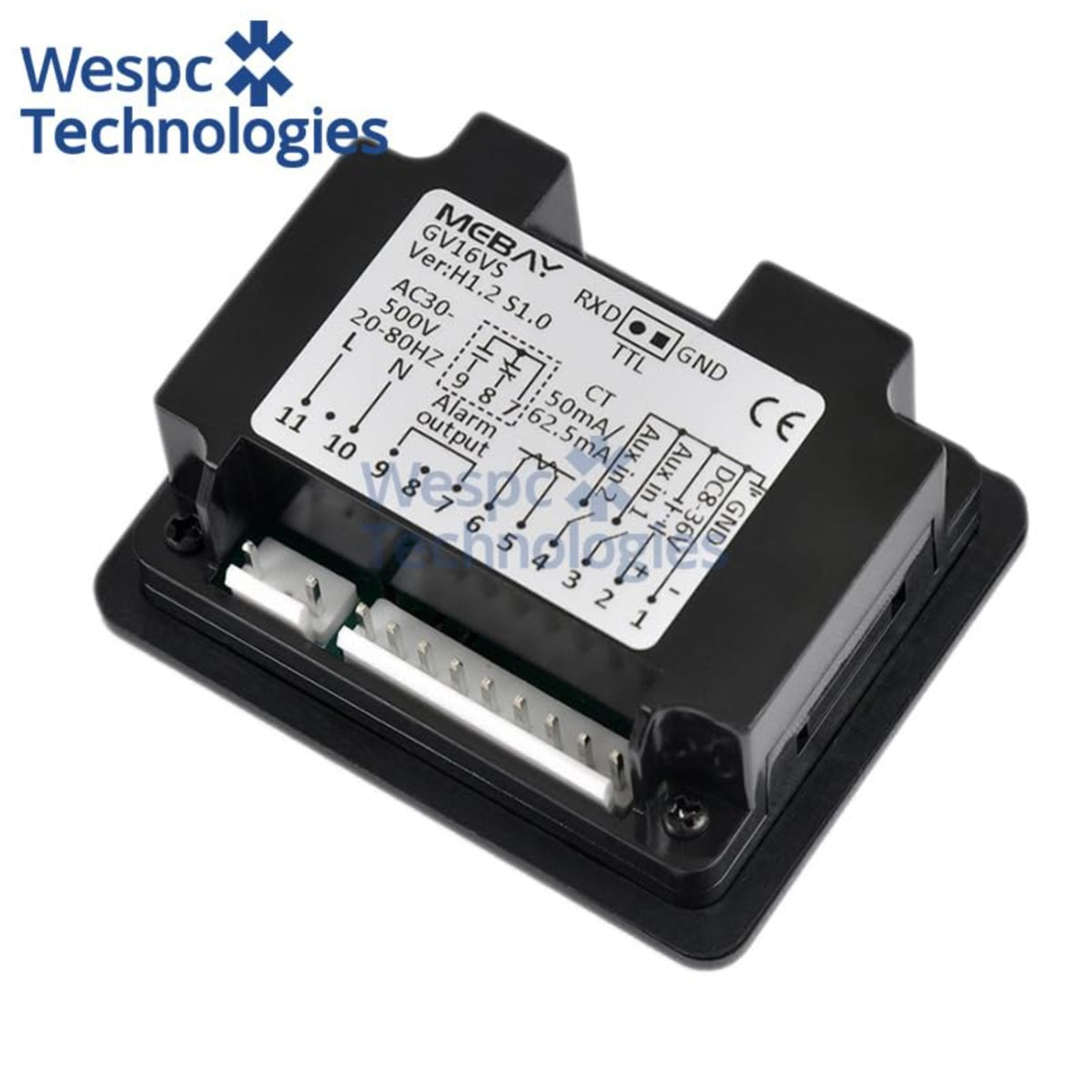

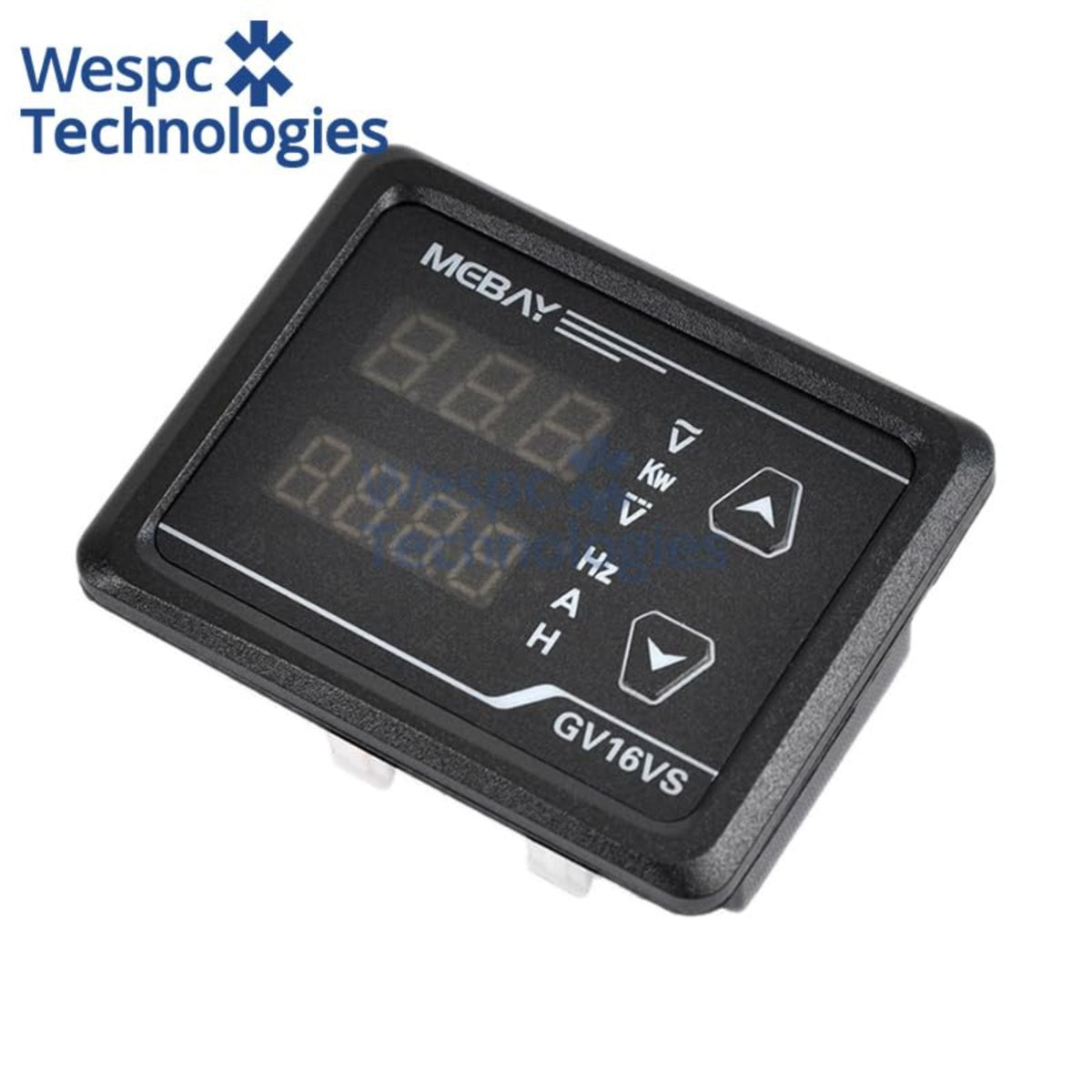

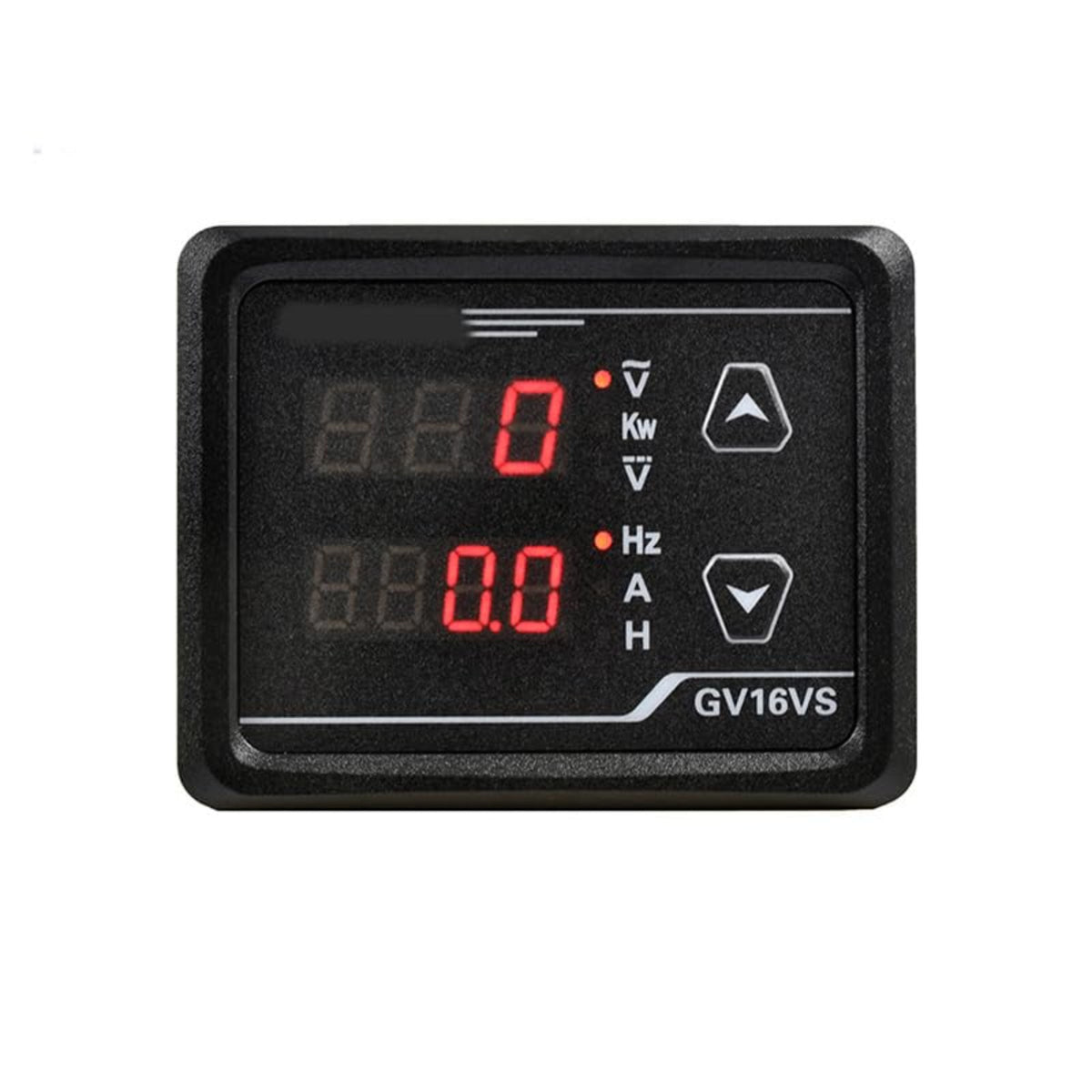

Original Mebay GV16VS Digital Generator Panel Meter AC Voltage Frequency Current kW Running Hours Battery Voltage DC 8-36V Multifunction Meter
Overview
GV16VS is a lightweight and low-cost module used for measuring and displaying AC voltage, frequency, current, power, battery voltage, and cumulative operating time. It can replace traditional pointer instruments and achieve multi-purpose use of one meter.
It has alarm protection functions for over frequency, under frequency, over voltage, under voltage, over current, and over power, which can stop the unit in a timely manner when a fault occurs, effectively protecting the safety of the unit. The alarm output adopts relays, which can withstand large output currents.
The instrument can set parameters through buttons or quickly write parameters through the upper computer and TTL interface to meet different applications. It comes with a waterproof ring as standard, and the installed panel can achieve IP65 level protection.
Specification
·Part Number: GV16VS
·Product Type: Multifunction measurement & display meter
·Brand: Original MEBAY
·Operation Voltage: DC 8V to 36V Continuous
·Power Consumption: Standby 24V Max 1W, Working 24V Max 1.5W
·AC Voltage Input: 30VAC-500VAC
·Working Temperature: -30℃ to 70℃
·Storage Temperature: -40℃ to 85℃
·Protection Level: IP65
·Overall Dimension: 83mm×66mm×35mm
·Panel Cutout: 75mm×59mm
·Net Weight: 0.11Kg
·Display: Dual high brightness LED digital tube
·Interface: TTL communication
·Output: 1 relay output
·Switch Input: 2-channel switch input
Overview
GV16VS is a lightweight and low-cost module used for measuring and displaying AC voltage, frequency, current, power, battery voltage, and cumulative operating time. It can replace traditional pointer instruments and achieve multi-purpose use of one meter.
It has alarm protection functions for over frequency, under frequency, over voltage, under voltage, over current, and over power, which can stop the unit in a timely manner when a fault occurs, effectively protecting the safety of the unit. The alarm output adopts relays, which can withstand large output currents.
The instrument can set parameters through buttons or quickly write parameters through the upper computer and TTL interface to meet different applications. It comes with a waterproof ring as standard, and the installed panel can achieve IP65 level protection.
Specification
·Part Number: GV16VS
·Product Type: Multifunction measurement & display meter
·Brand: Original MEBAY
·Operation Voltage: DC 8V to 36V Continuous
·Power Consumption: Standby 24V Max 1W, Working 24V Max 1.5W
·AC Voltage Input: 30VAC-500VAC
·Working Temperature: -30℃ to 70℃
·Storage Temperature: -40℃ to 85℃
·Protection Level: IP65
·Overall Dimension: 83mm×66mm×35mm
·Panel Cutout: 75mm×59mm
·Net Weight: 0.11Kg
·Display: Dual high brightness LED digital tube
·Interface: TTL communication
·Output: 1 relay output
·Switch Input: 2-channel switch input
