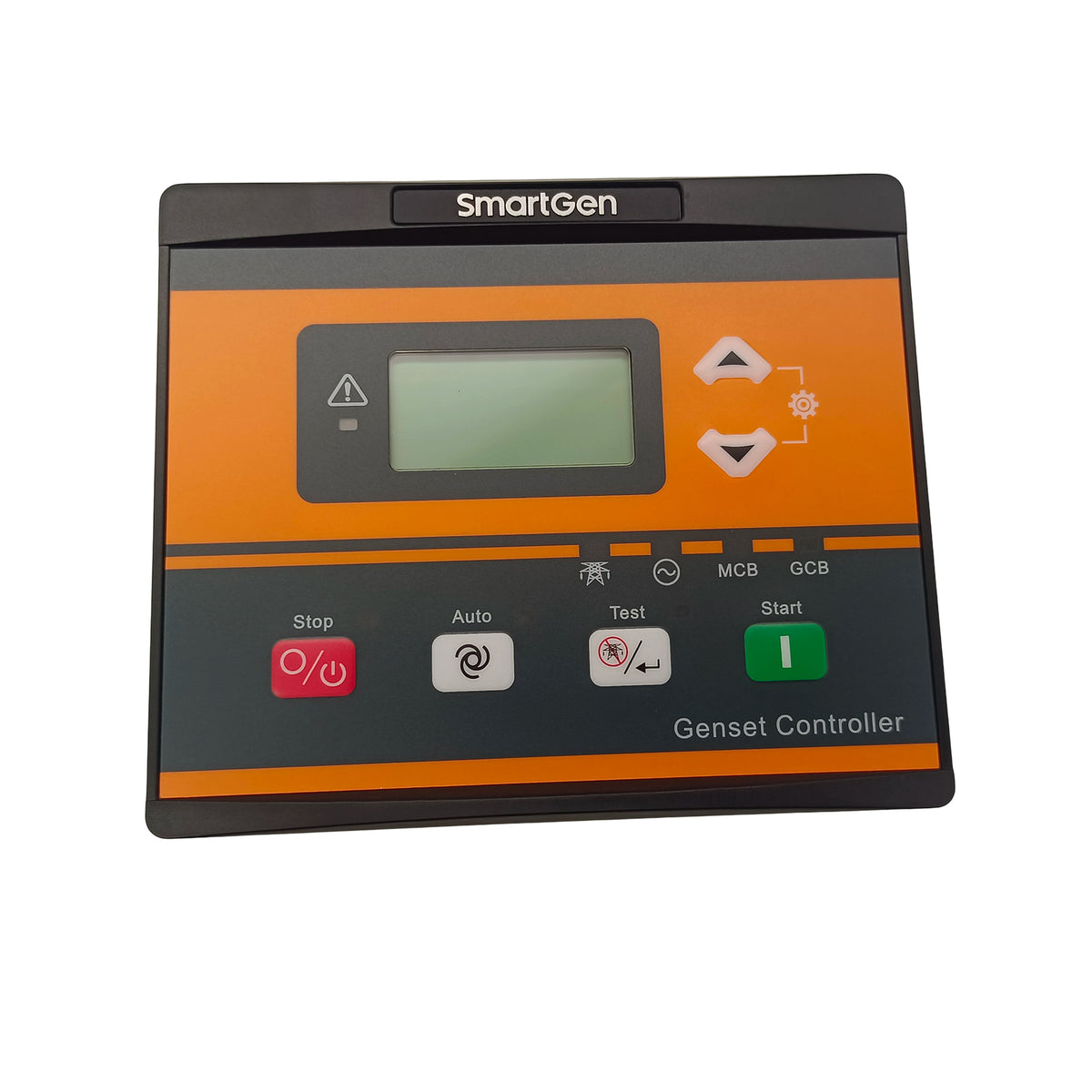

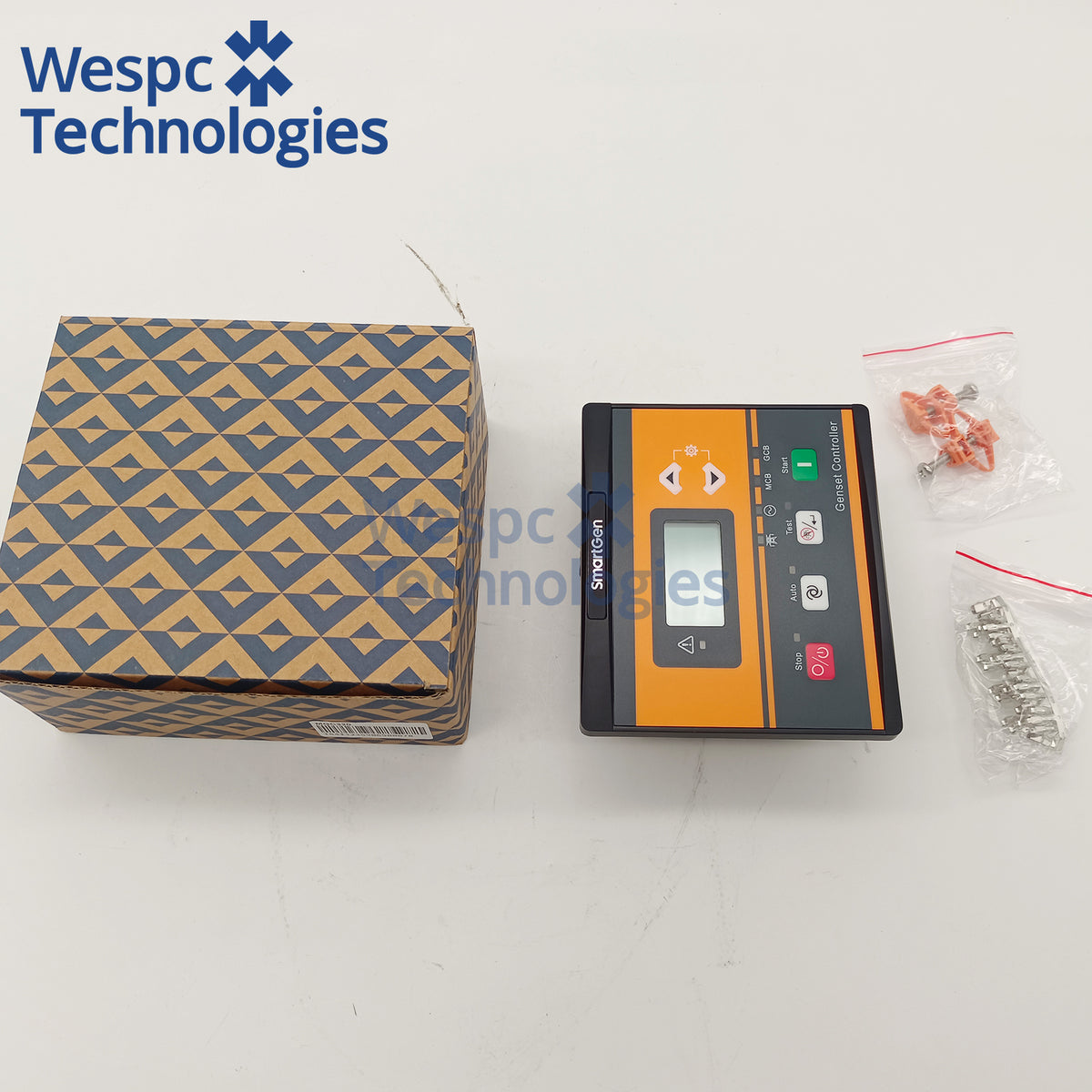

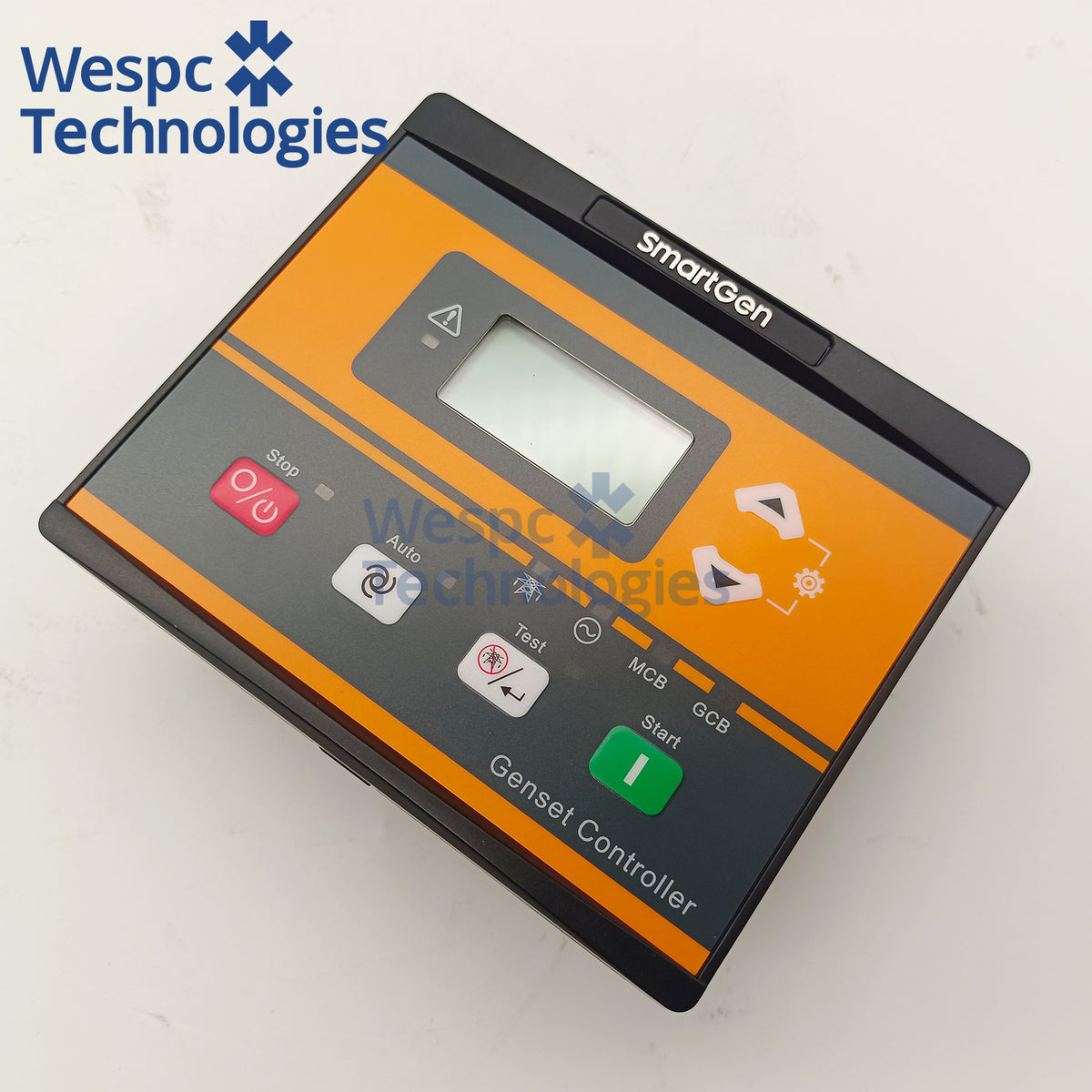

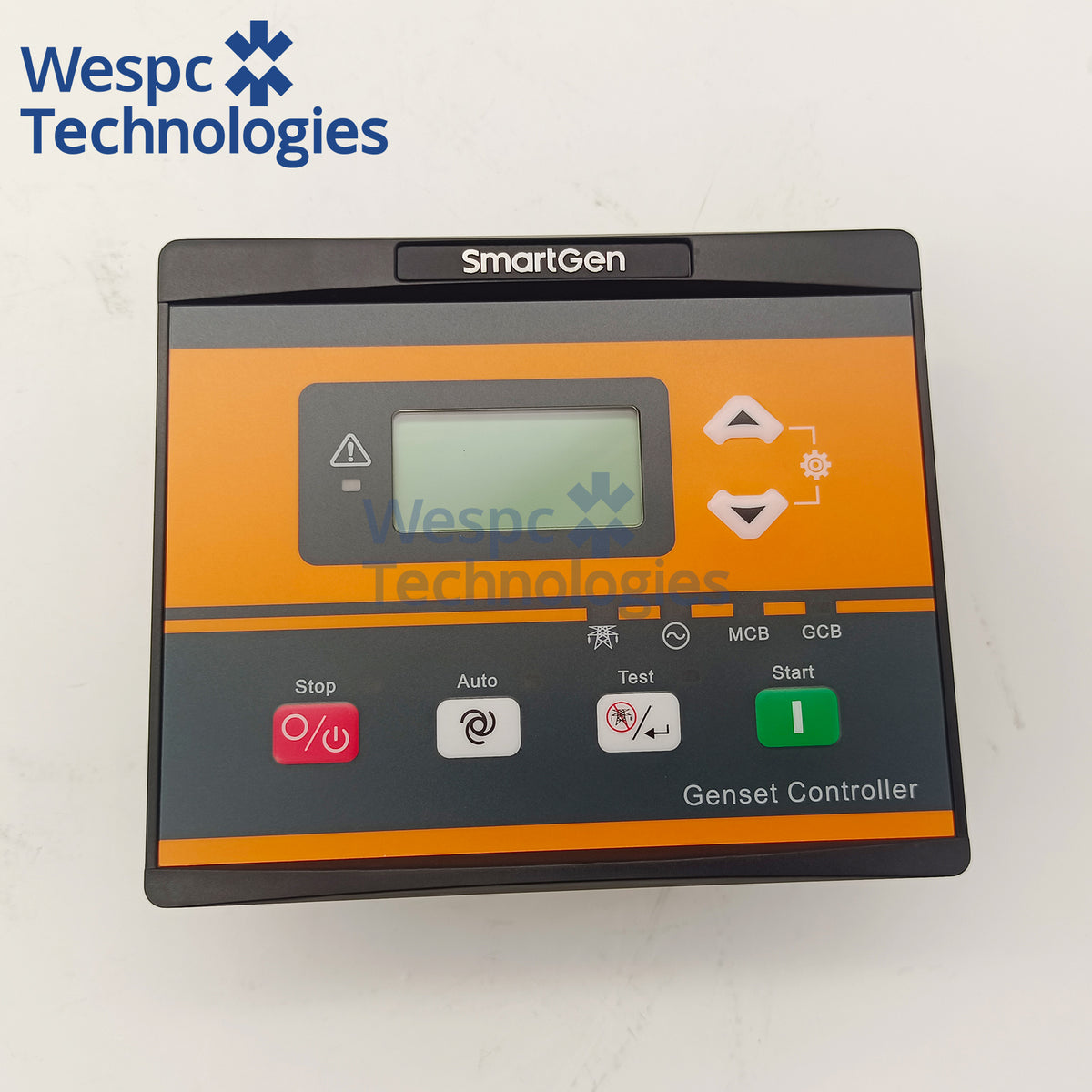

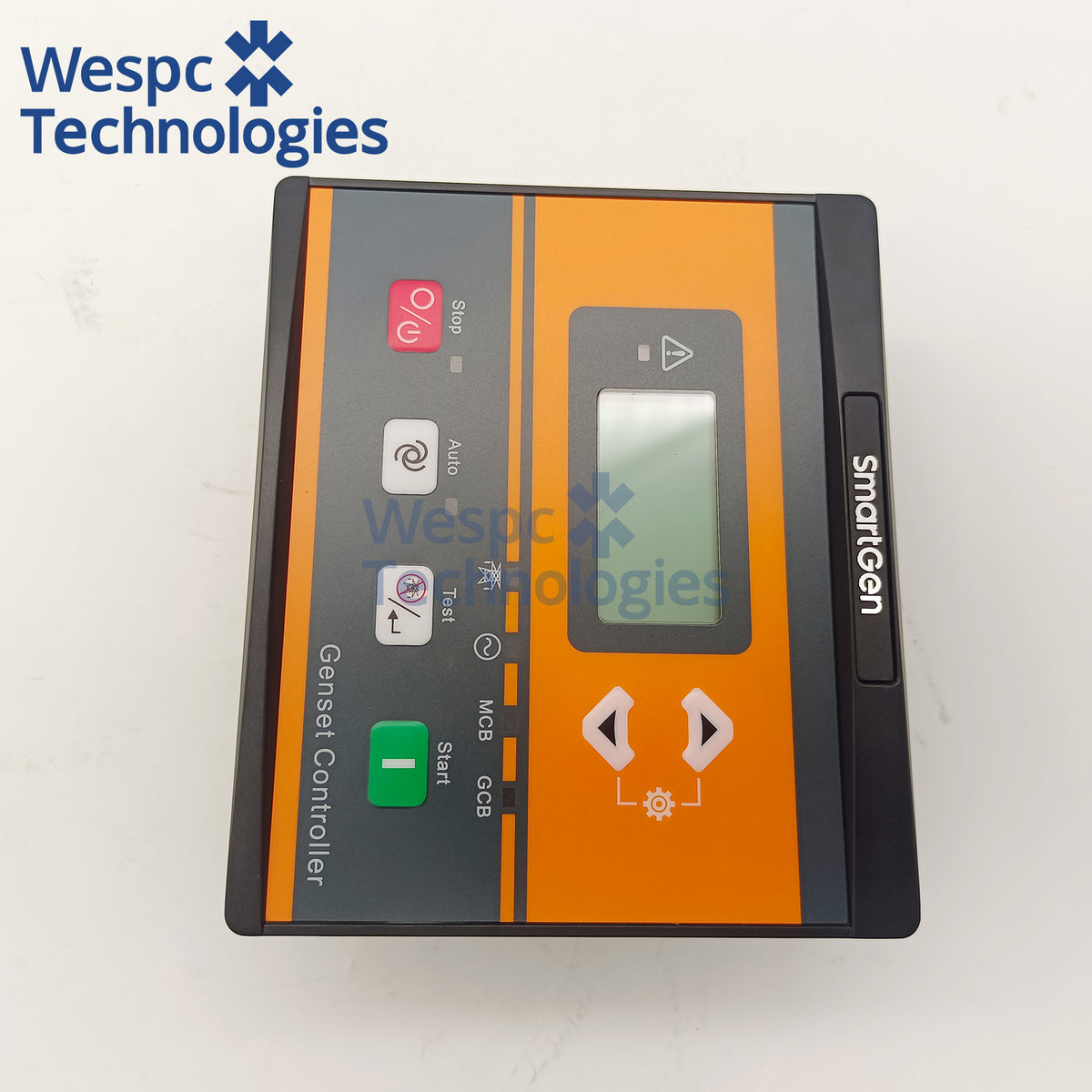

Original SmartGen MGC320 Genuine Generator AMF Automatic Mains Failure Controller
Original SmartGen MGC320 Genuine Generator AMF Automatic Mains Failure Controller
السعر العادي
$108.00 USD
السعر العادي
$168.00 USD
سعر البيع
$108.00 USD
سعر الوحدة
/
لكل
يتم احتساب الشحن عند الخروج.
لم نتمكن من تحميل توفر الاستلام
SmartGen MGC320 Genuine Generator AMF Automatic Mains Failure Controller
Overview：
MGC300 Series Genset Controller is applicable for single unit automation control to realize auto start of single unit and AMF. The controller integrates digitalization with intelligence and applies LCD graphic display, which is simple for operation and reliable for running.
MGC300 Series Genset Controller applies 32-bit micro-processor technology, realizing precise measuring for various parameters, set-value adjusting, and timing, and limit value setting functions etc. A majority of parameters can be adjusted from the front panel, and all parameters can be configured by RS485 on PC. It has compact structure, simple wiring, high reliability, which can be used for all types of genset automation system.
MGC300 Series Genset Controller includes true low power consumption (power off) and feign low power consumption (awakening, but screen light not on, stop indicator flashing, not do any action).
Overview：
MGC300 Series Genset Controller is applicable for single unit automation control to realize auto start of single unit and AMF. The controller integrates digitalization with intelligence and applies LCD graphic display, which is simple for operation and reliable for running.
MGC300 Series Genset Controller applies 32-bit micro-processor technology, realizing precise measuring for various parameters, set-value adjusting, and timing, and limit value setting functions etc. A majority of parameters can be adjusted from the front panel, and all parameters can be configured by RS485 on PC. It has compact structure, simple wiring, high reliability, which can be used for all types of genset automation system.
MGC300 Series Genset Controller includes true low power consumption (power off) and feign low power consumption (awakening, but screen light not on, stop indicator flashing, not do any action).

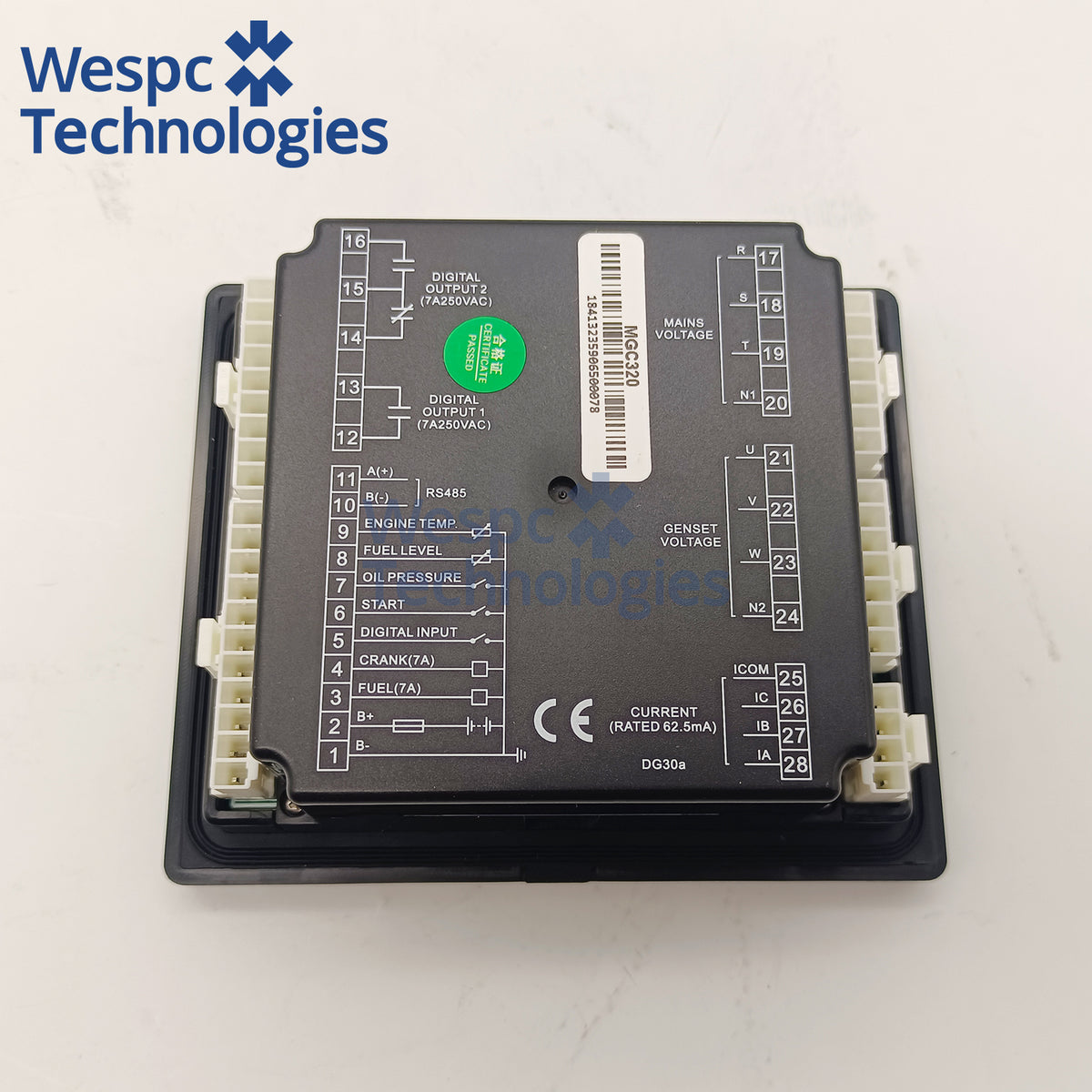

Product Specifications
- Brand: Smartgen (Zhengzhou Smartgen Technology Co., Ltd.)
- Part No.: MGC320
- Series: MGC300 AMF Generator Controller
- DC Supply: DC 8V ~ 35V, standby ≤0.35W
- AC Sampling: 1P2W / 3P4W, 15~620VAC, auto 50/60Hz
- Current Detection: CT secondary 62.5mA, 3-phase full current monitoring
- Working Modes: Stop / Manual / Auto / Test
- Relay Output Capacity: Fuel/Crank 7A DC28V; Aux output 7A AC250V volt-free
- Communication: Isolated RS485 Modbus RTU
- Panel Cutout: 111mm × 91mm
- Overall Dimension: 126 × 106 × 46.5 mm
- Weight: 0.27kg
- Front Panel Protection: IP65 waterproof & dustproof
- Operating Temperature: -25℃ ~ +70℃
- Warranty: 12 months genuine factory warranty
- Certifications: CE, ISO9001
Wide Application Range
Medium silent diesel generator distribution cabinet, commercial building backup power, communication base station standby genset, agricultural irrigation pump diesel unit, marine single generator, municipal emergency power equipment, compatible with full set Smartgen peripheral sensors, relays and ATS control panels.
Genuine Smartgen Original Core Advantages
- Exclusive Test running mode for regular genset maintenance, no need to connect load for inspection, unique upgrade over MGC310 basic model
- Full three-phase CT current detection, complete power parameter measurement, suitable for medium gensets with load monitoring requirements
- Ultra-wide DC 8~35V power supply, stable operation under battery voltage drop during cranking startup
- IP65 front panel waterproof silicone buttons, adapt rainy, dusty generator cabinet outdoor environment
- Isolated RS485 communication, anti-interference long-distance remote monitoring, perfectly match SG72A official debugging adapter
- Multiple programmable auxiliary outputs, freely expand preheat, alarm and load control functions with Hongfa HAT700BI heavy relay
- Complete matching system with HAT700BI ATS dual power controller, realize full automatic mains-generator transfer control
- 12-month official factory warranty, provide wiring diagram and parameter setting technical guidance
Common Equipment Failures Solved
- Cannot auto start after mains loss: Check mains voltage sampling wiring, AMF delay parameter setting, remote start input signal
- Test mode function unavailable: MGC310 model without Test function, replace with MGC320
- Controller relay burned when driving glow plug: Onboard output only 7A, install external Hongfa HAT700BI 70A relay for current amplification
- PC cannot connect controller: Use SG72A communication adapter, check RS485 A/B wiring reversal and baud rate matching
- Current display zero/abnormal: CT current transformer wiring error, CT secondary open circuit
- High water pressure / low oil pressure alarm frequently triggered: SGPT110 pressure sensor damaged or parameter threshold misconfigured
