P2020-5003 8M6000623 Pressure Sensor Fits For Ford
P2020-5003 8M6000623 Pressure Sensor Fits For Ford
السعر العادي
$45.80 USD
السعر العادي
$0.00 USD
سعر البيع
$45.80 USD
سعر الوحدة
/
لكل
يتم احتساب الشحن عند الخروج.
لم نتمكن من تحميل توفر الاستلام
P2020-5003 8M6000623 Pressure Sensor Fits For Ford
Application:
The P2020-5003 / 8M6000623 pressure sensor is engineered for Ford Mercury 75–115 hp four-stroke outboard marine engines and is directly retro-fittable to Perkins 4.236, T4.236 and AT4.236 turbocharged diesels (4.0 L) used in agricultural tractors, combine harvesters, 40–100 kVA generator sets, tele-handlers and light construction machinery. In these applications it threads into the main oil gallery and continuously monitors lubricating-oil pressure, sending a 0–5 V analogue signal to the engine or vessel control unit; if pressure drops below the calibrated threshold the controller triggers an audible/visual alarm and can shut down the engine to protect crankshaft bearings, turbochargers and high-pressure fuel pumps.
The P2020-5003 / 8M6000623 pressure sensor is engineered for Ford Mercury 75–115 hp four-stroke outboard marine engines and is directly retro-fittable to Perkins 4.236, T4.236 and AT4.236 turbocharged diesels (4.0 L) used in agricultural tractors, combine harvesters, 40–100 kVA generator sets, tele-handlers and light construction machinery. In these applications it threads into the main oil gallery and continuously monitors lubricating-oil pressure, sending a 0–5 V analogue signal to the engine or vessel control unit; if pressure drops below the calibrated threshold the controller triggers an audible/visual alarm and can shut down the engine to protect crankshaft bearings, turbochargers and high-pressure fuel pumps.
Technical specifications:

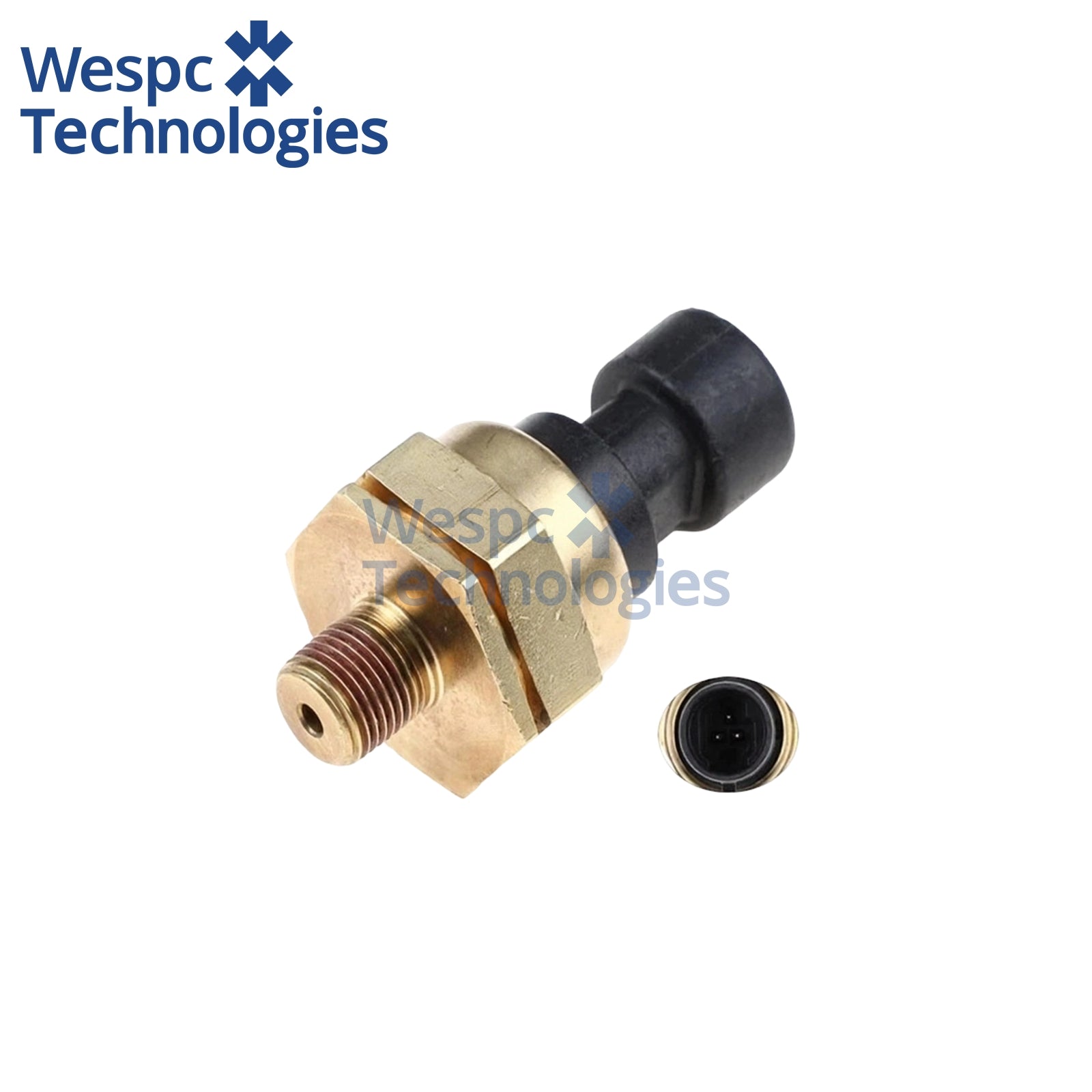

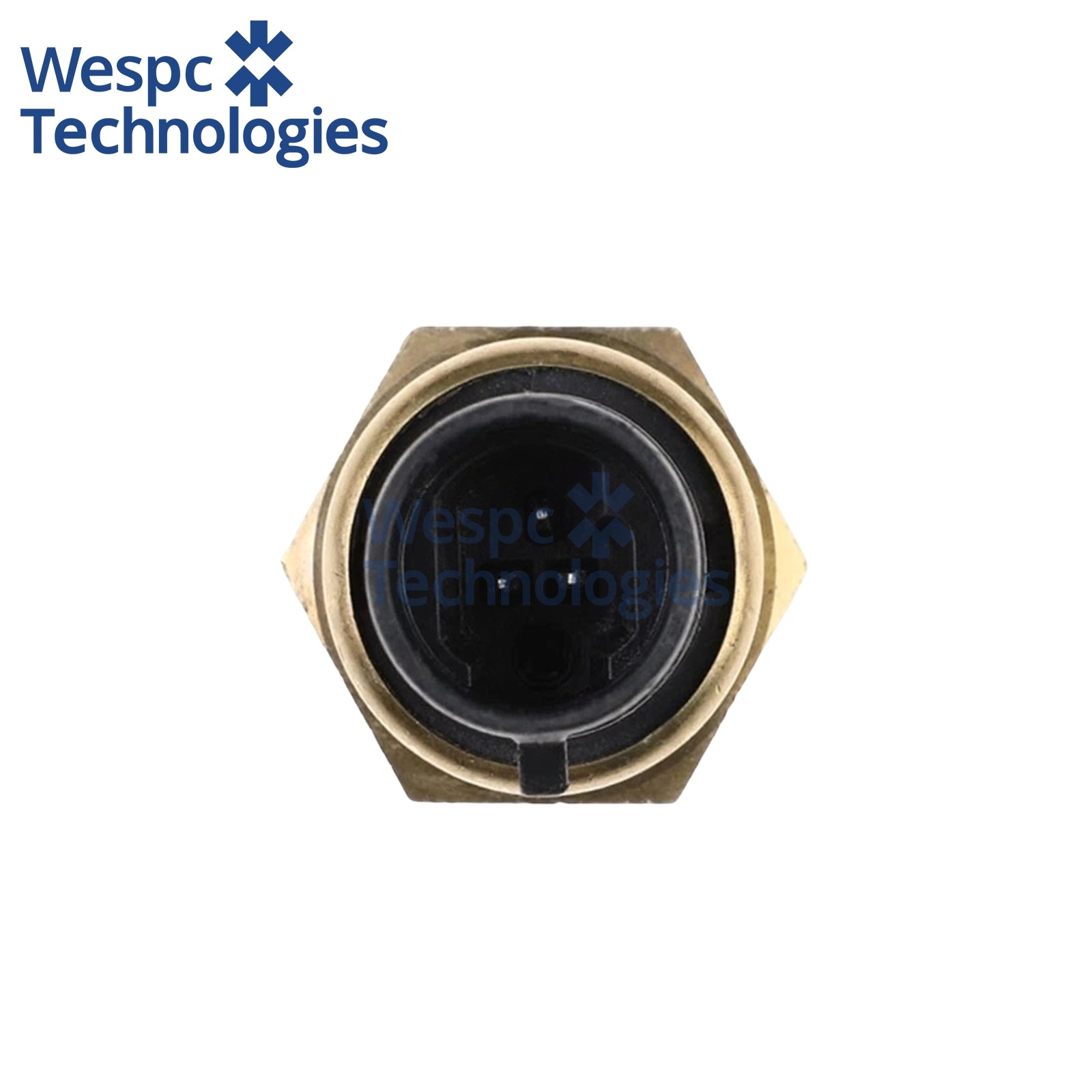

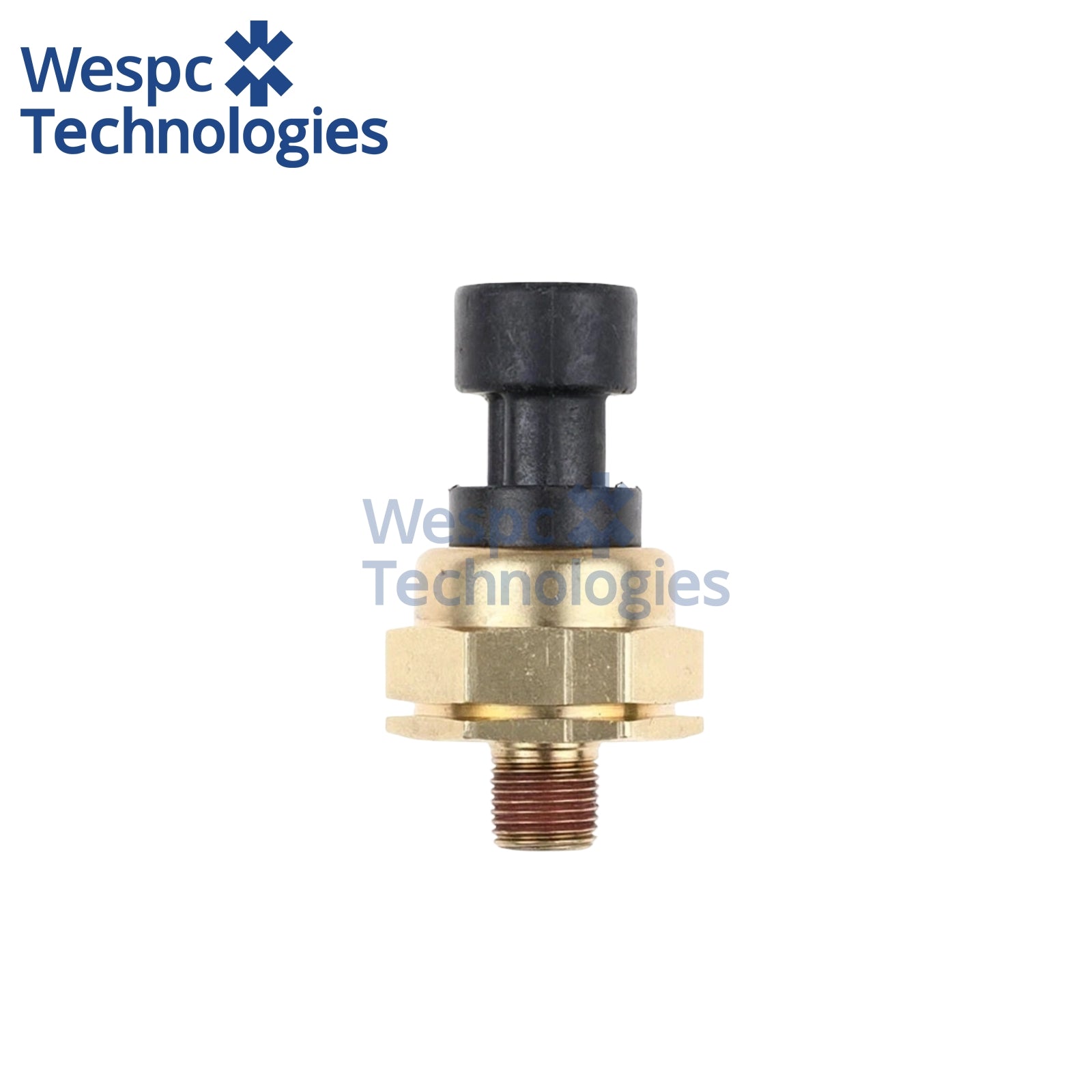

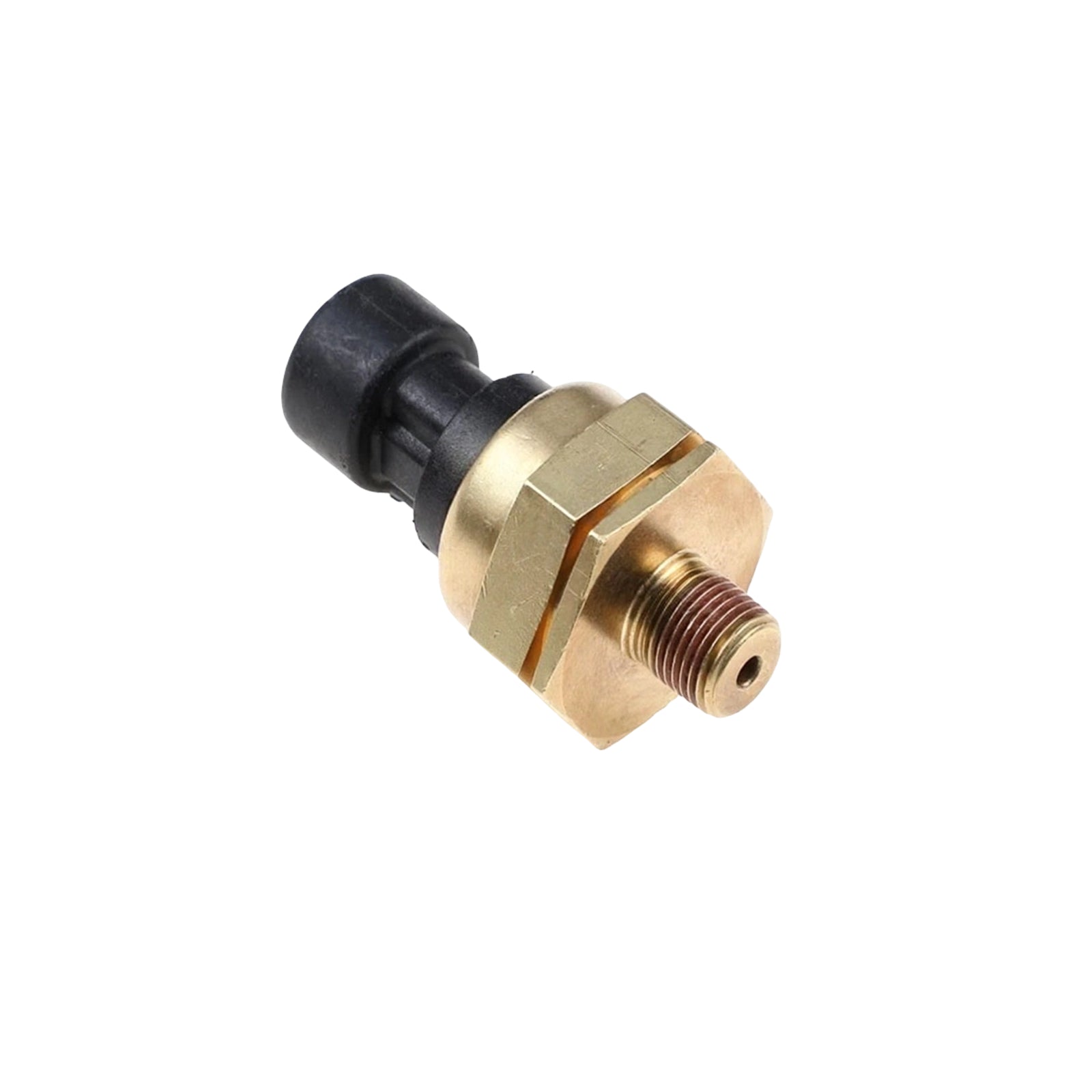

The sensor is a three-wire piezo-resistive pressure transducer housed in a corrosion-resistant brass body with 1/8" NPTF male thread and 19 mm hex, 58 mm overall length and 70 g net weight. It measures 0–10 bar (0–145 psi) with ±2 % full-scale accuracy, outputs a linear 0.5–4.5 V signal referenced to a 5 V supply and draws <10 mA at 12 V.
The sensor is a three-wire piezo-resistive pressure transducer housed in a corrosion-resistant brass body with 1/8" NPTF male thread and 19 mm hex, 58 mm overall length and 70 g net weight. It measures 0–10 bar (0–145 psi) with ±2 % full-scale accuracy, outputs a linear 0.5–4.5 V signal referenced to a 5 V supply and draws <10 mA at 12 V.
Material & performance features:
The sensing diaphragm is 17-4 PH stainless steel, laser-welded to the brass body for absolute hermetic sealing and protected by a sintered brass snubber that damps pressure pulsations and prevents oil-borne debris from reaching the element. Internal circuitry is over-moulded in high-temperature PPS resin, achieving IP67 ingress protection and surviving 500 thermal-shock cycles from –40 °C to +125 °C without calibration drift.
The sensing diaphragm is 17-4 PH stainless steel, laser-welded to the brass body for absolute hermetic sealing and protected by a sintered brass snubber that damps pressure pulsations and prevents oil-borne debris from reaching the element. Internal circuitry is over-moulded in high-temperature PPS resin, achieving IP67 ingress protection and surviving 500 thermal-shock cycles from –40 °C to +125 °C without calibration drift.
Interchange part number:
P2020-5003, 8M6000623, 8M6000626, 8M6000629, 6697920, 8M6000634, 8M6000635, 8M6000636, 8M6000637, 8M6000638, 8M6000639, 8M6000640, 8M6000641, 8M6000642, 8M6000643, 8M6000644, 8M6000645, 8M6000646, 8M6000647, 8M6000648, 8M6000649, 8M6000650.
P2020-5003, 8M6000623, 8M6000626, 8M6000629, 6697920, 8M6000634, 8M6000635, 8M6000636, 8M6000637, 8M6000638, 8M6000639, 8M6000640, 8M6000641, 8M6000642, 8M6000643, 8M6000644, 8M6000645, 8M6000646, 8M6000647, 8M6000648, 8M6000649, 8M6000650.
