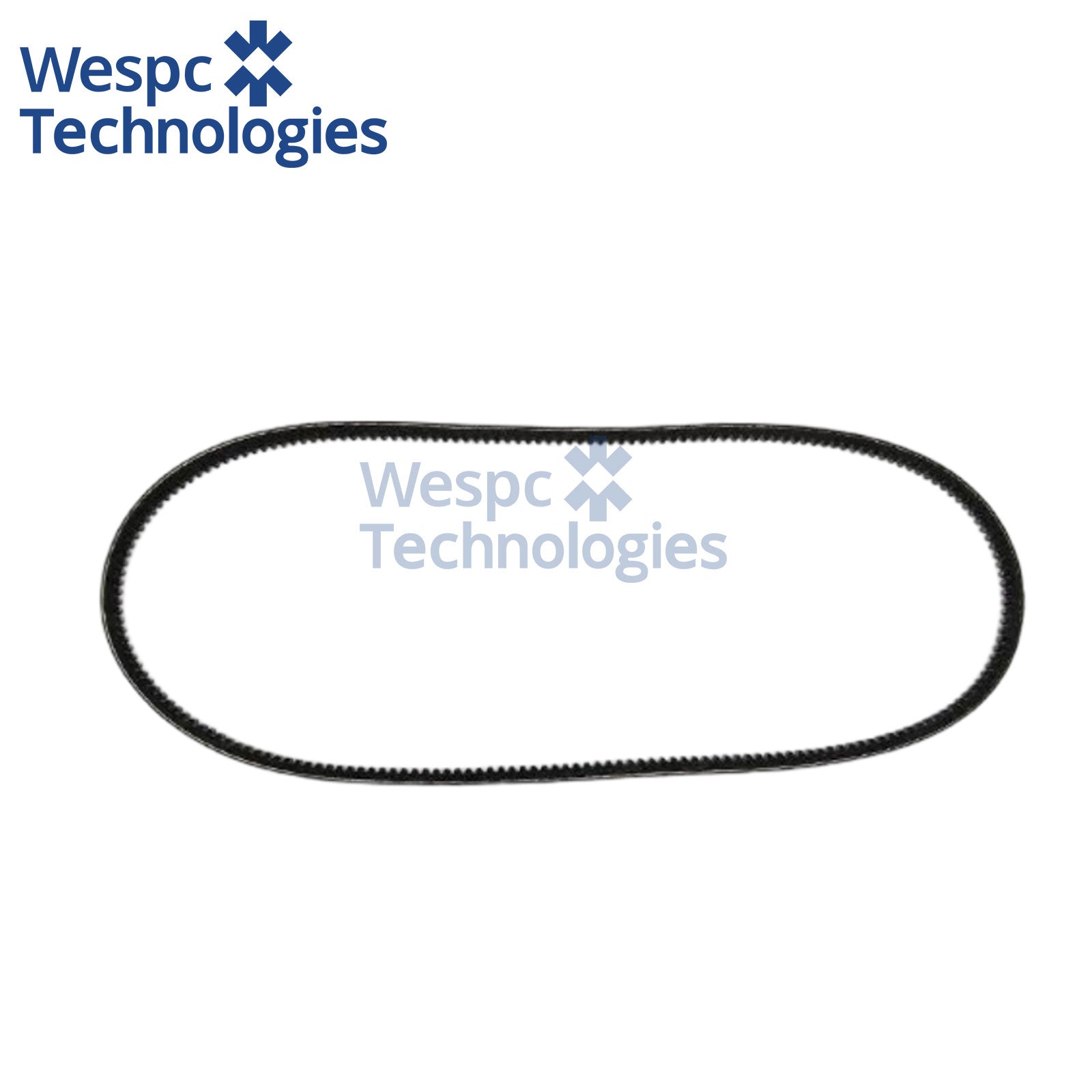

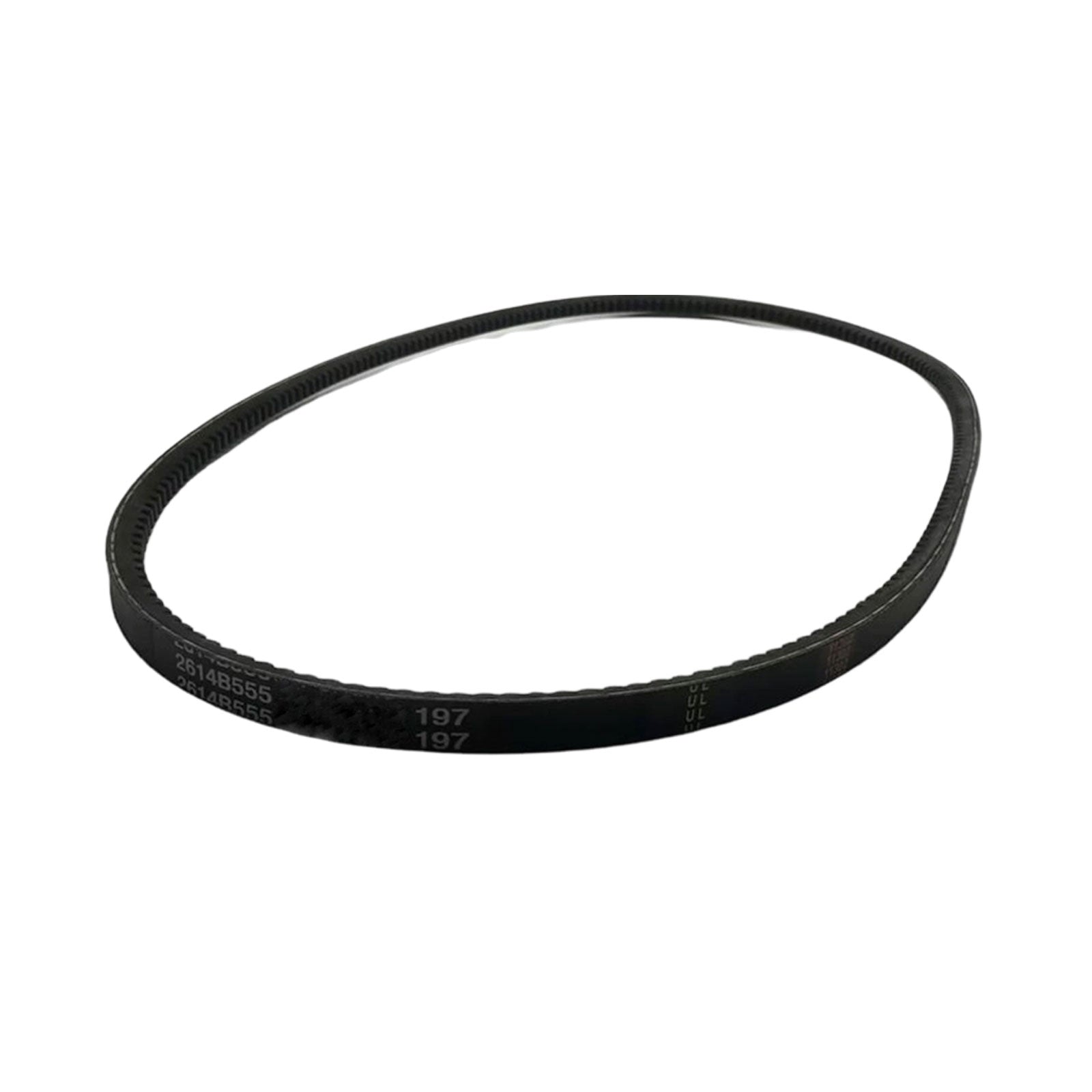

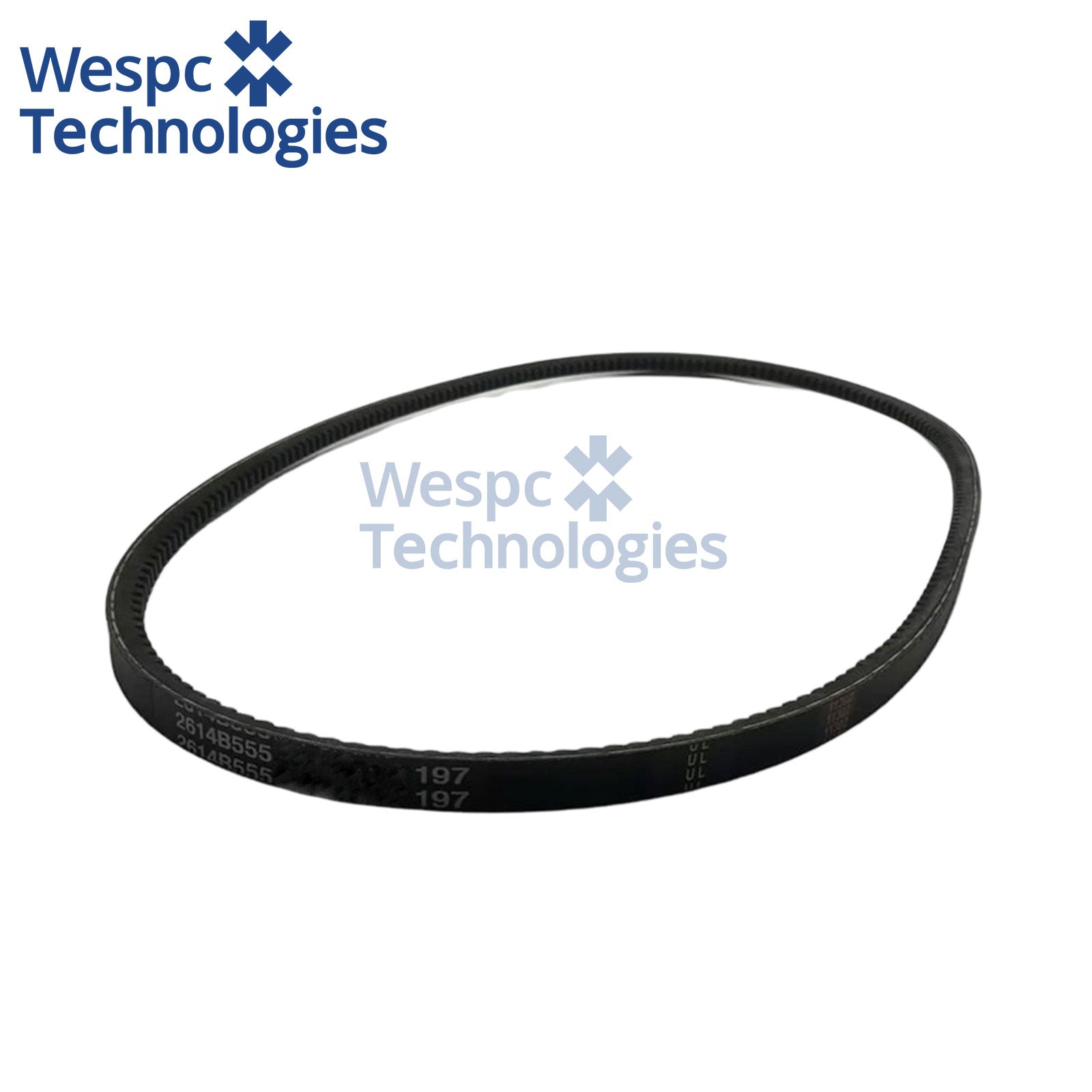

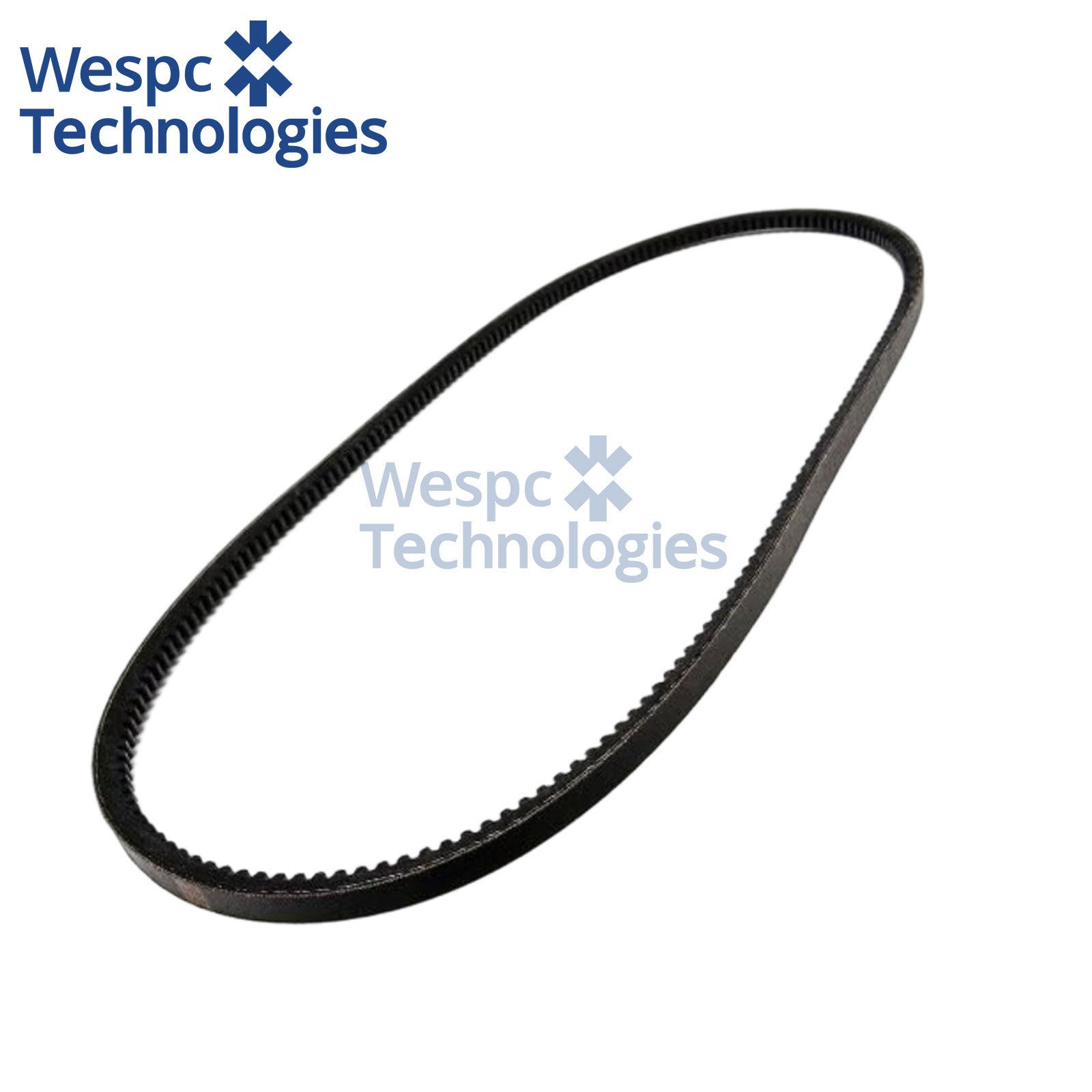

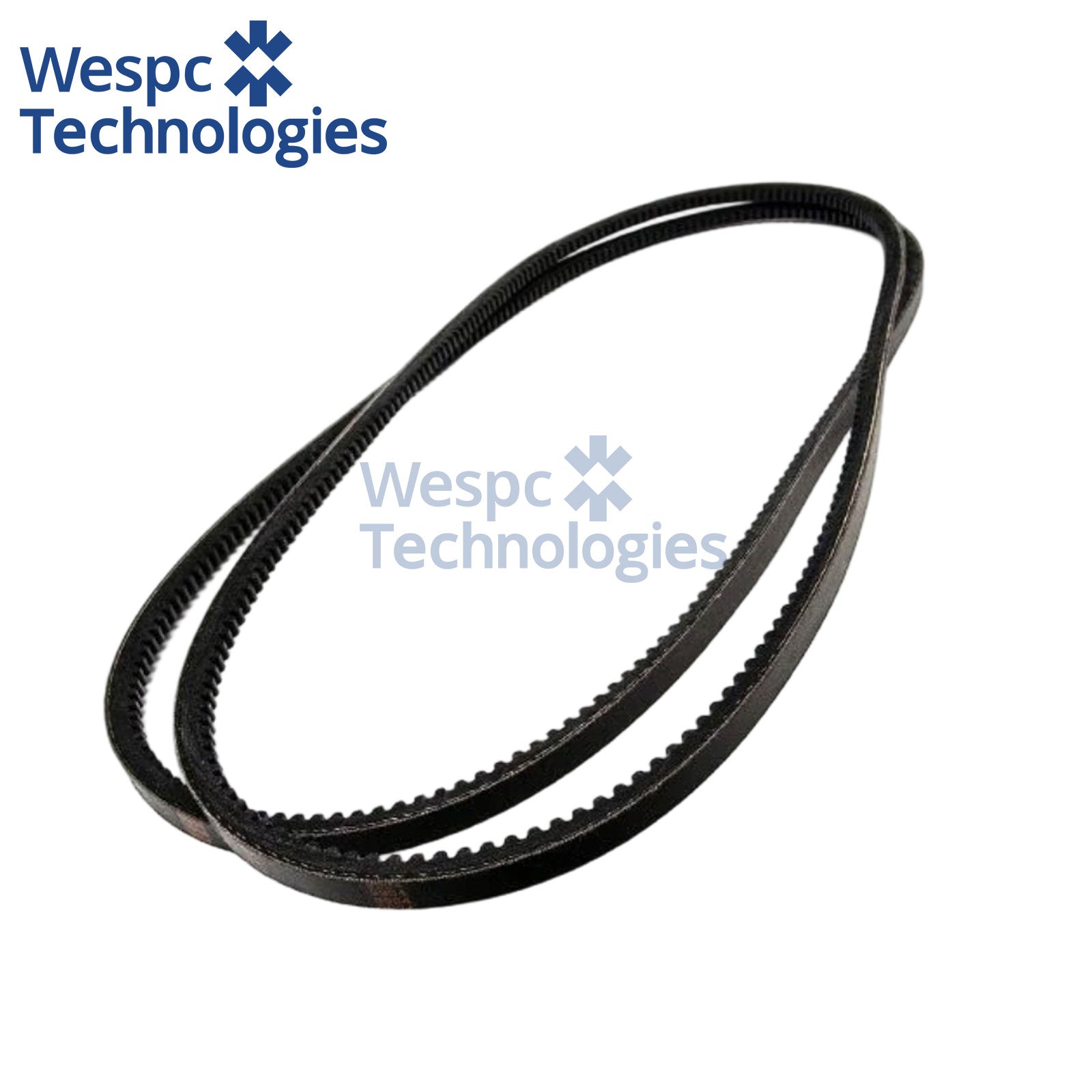

Perkins 2614B655 /2614B555 Cogged Fan V‑Belt For Perkins 1004‑4 1004‑4T 1006‑6 1006‑6T Diesel Engine

Detailed Description / Use: Fan Drive.

Perkins v-belts, also known as vee belts or wedge belts, are designed to prevent slippage and alignment problems. With greater load, the belt will tend to wedge into the groove, providing better performance. Widely used due to the reliability and strength from fibre reinforcement. When replacing fan belts check the belt tension is correct, together with the battery and all the electrical connectors. Where engines have twin belts, check to ensure the belts are of a matched length..

Compatible Engines: This part has been assembled and fitted on the following Engine Prefixes: AA, AB, AK, AR, DC, DD, DF, DG, DJ, DK, LE, LJ, LN, LQ, NH, NJ, NK, NL, NM, PP, PR, PT, PU, PW, RE, RG, RH, RJ, RR, RS, XK, XM, XN, YA, YB, YD. Please Refer to your exact Engine Serial Number or Engine Build List for exact Part Number compatibility as multiple types of this Part may be used across each Engine Type.

Engine Series:This part has been assembled and fitted on the following Engine Series: 1000 SERIES, 1100 SERIES, 4.236 SERIES . Please Refer to your exact Engine Serial Number or Engine Build List for exact Part Number compatibility.

Engine Model Part Usage:1004-4, 1004-40T, 1004-42, 1004-4T, 1006-6, 1006-6T, 1006e-6T, 1103A-33, 1103A-33G1, 1103A-33T, 1103AA-33TG2, 1103B-33, 1103B-33T, 1103C-33, 1103C-33T, 1103D-33, 1103D-33TA, 1104A-44, 1104A-44T, 1104C-44, 1104C-44T, 1104C-44TA, 1104C-E44T, 1104D-44, 1104D-44T, 1104D-44TA, 1104D-E44T, 1104D-E44TA, 1106A-70T, 1106A-70TA, 1106C-70TA, 1106D-70TA, 1106D-E70TA, G4.236, T4.236

Product Specifications

Brand: Perkins
Part Number: 2614B655, 2614B555
Quantity: 1 Piece Belt Type: Cogged V‑Belt
Pack size:1.0
Engine family:1000 Series;1100 Series;3.152 Series;4.236 Series;6.354 Series
Packaged height (mm):20.000
Packaged width (mm):40.000
Material: Neoprene rubber + high‑tensile fibre cord
Kit Include: 1pc belt
Applicable Engine: Perkins 1004‑4,1004‑4T,1006‑6,1006‑6T diesel engine
Operating Temp:‑30℃ ~ +110℃
Warranty: 12 Months Factory Warranty
Standard: Perkins Powerpart OEM original standard
