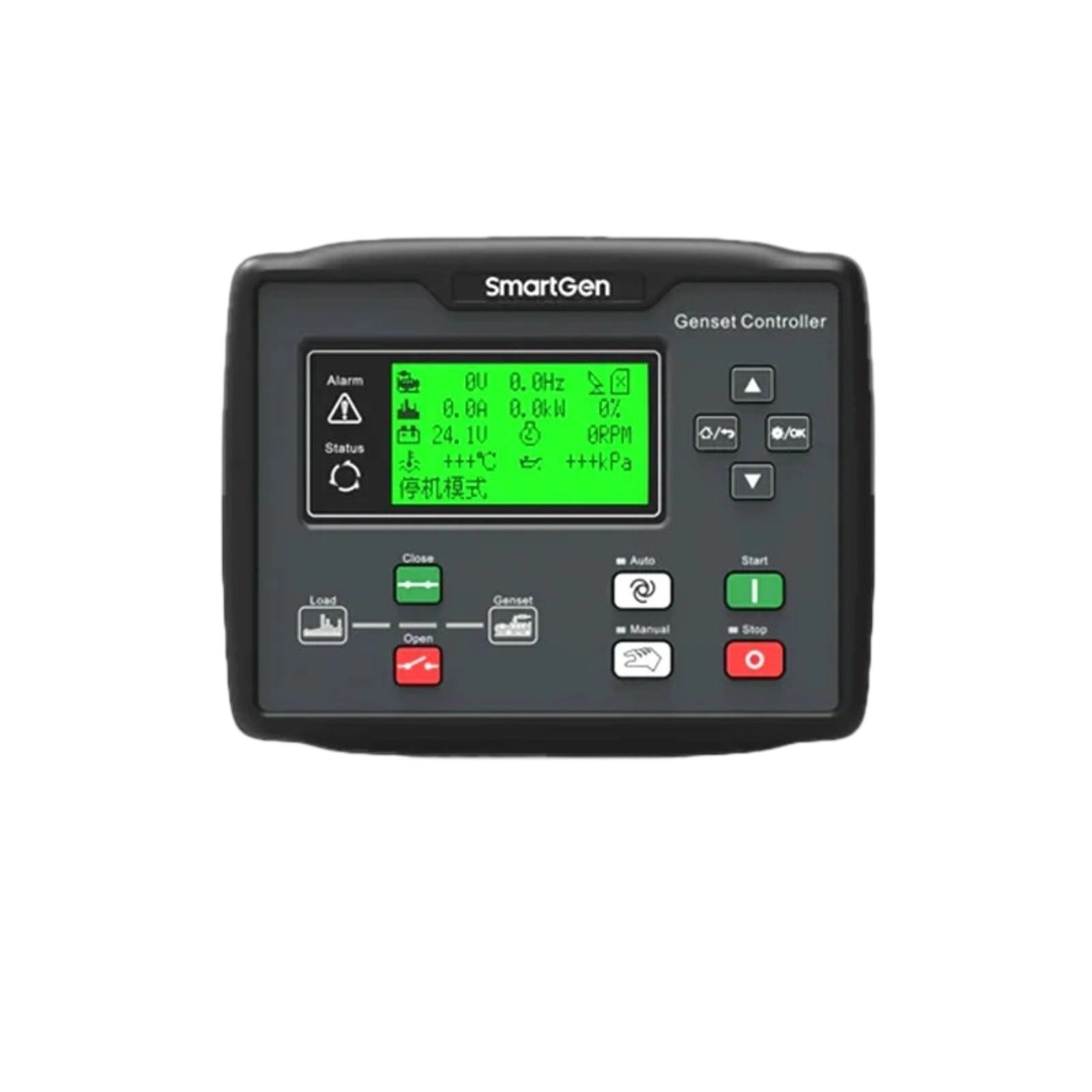

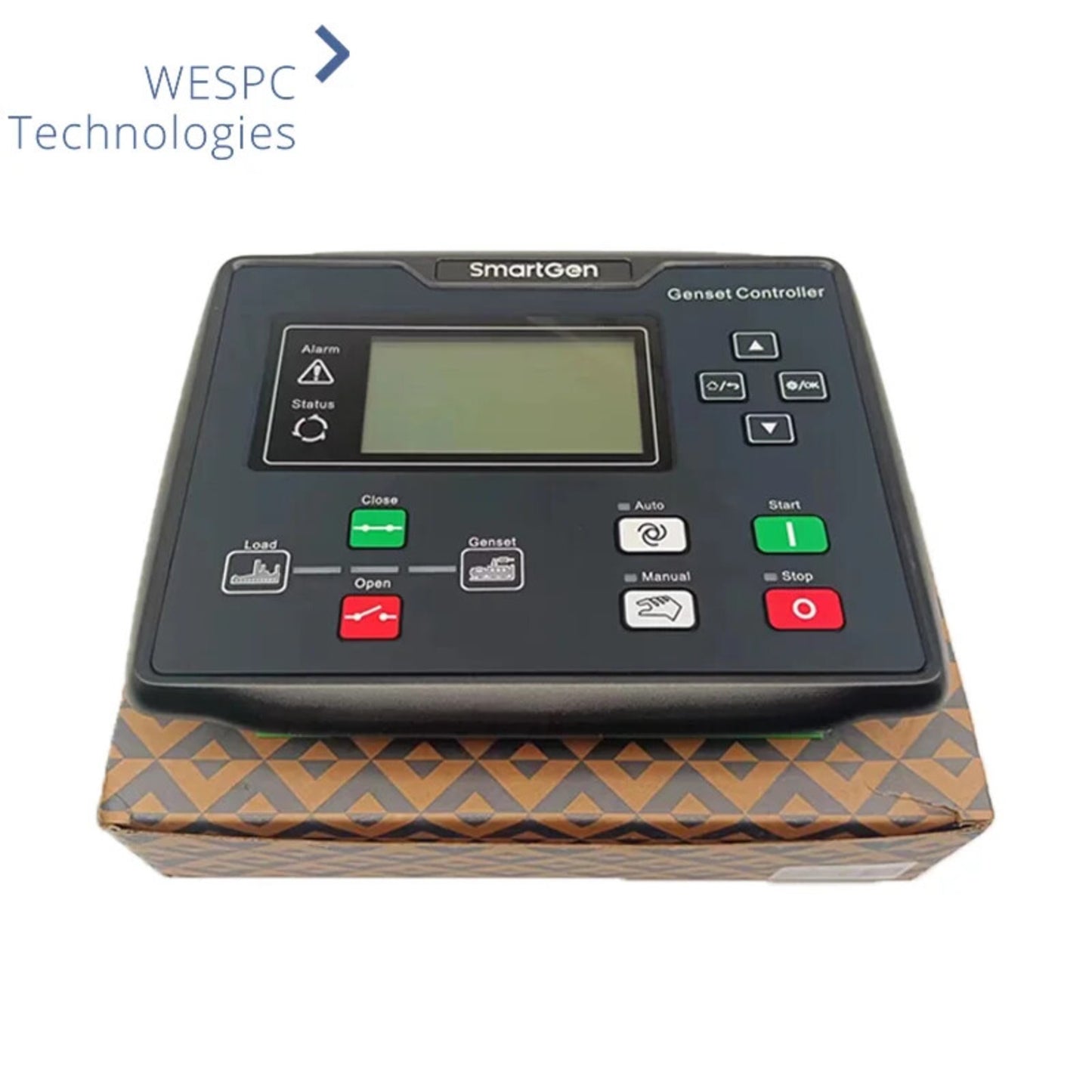

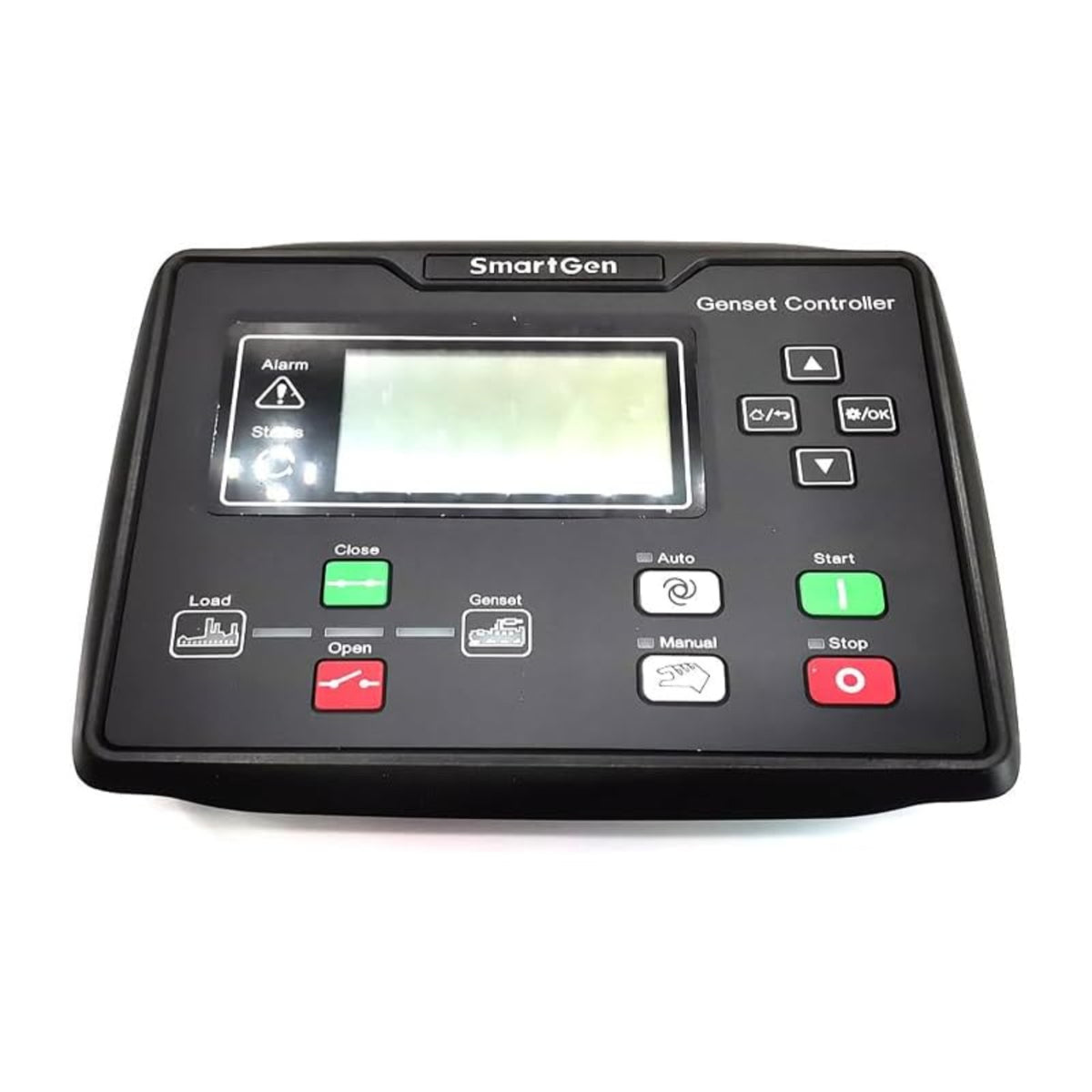

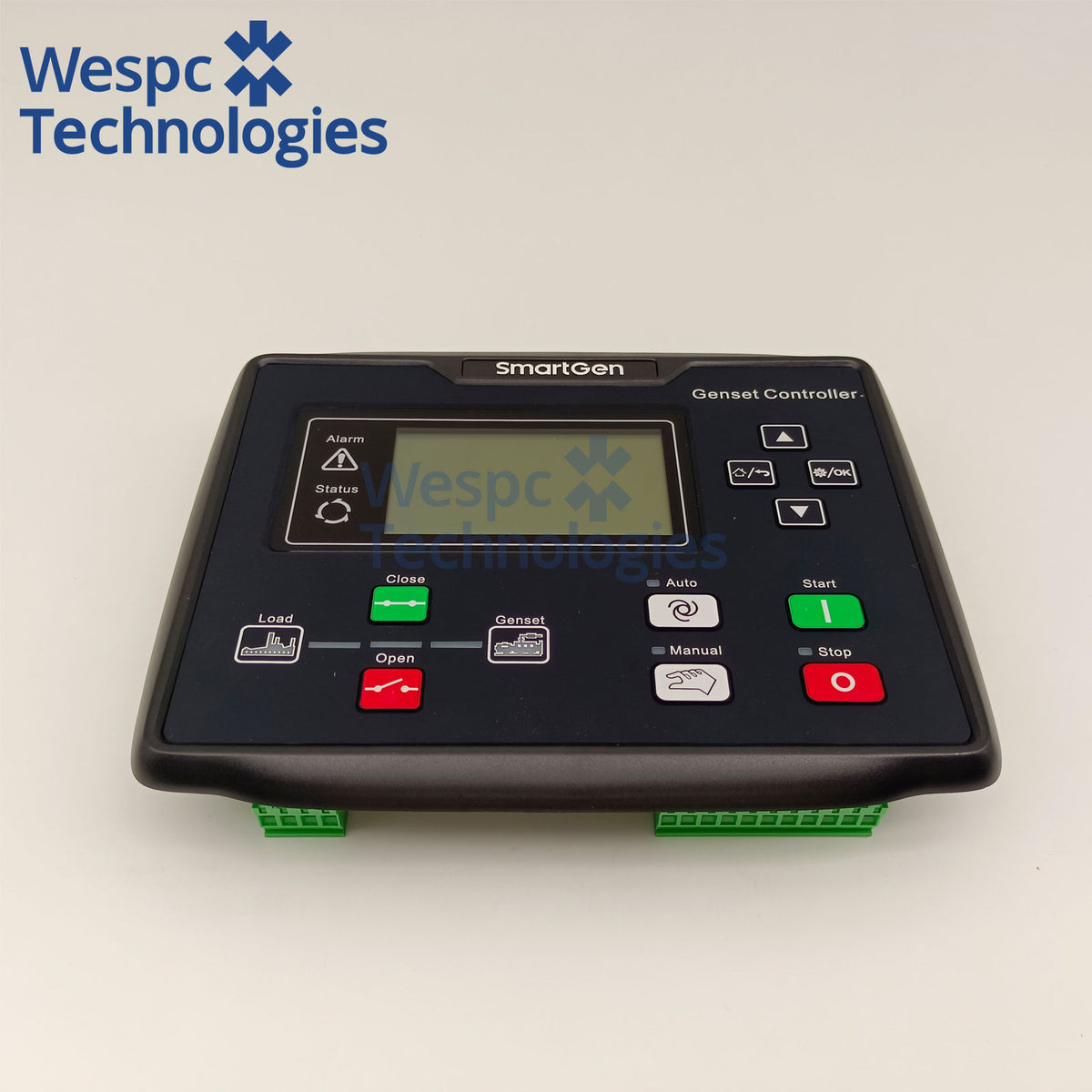

Original Smartgen HGM6110N Genset Automatic Controller Diesel Generator Control Panel

Original Smartgen HGM6110N Genset Automatic Controller Diesel Generator Control Panel

$280.00 USD
$0.00 USD $280.00 USD
أُوكَازيُون نفذ
يتم احتساب الشحن عند الخروج.
Original Smartgen HGM6110N Module Genset Automatic Controller for Diesel Generator Control Panel

HGM6110N

Single unit automation + remote signal start/stop
Working PowerRange : DC(8-35)V
Overall Dimension : 209*166*45
Installation Dimension : 186*141
Working Temperature : (-25~70)℃
weight : 0.56kg


Standard Wiring Terminals

  1. DC Power Terminals: B+/B-, DC8~35V battery positive & negative input
  2. Generator AC Sampling: Genset U/V/W/N + CT secondary current input (NO Mains voltage terminals)
  3. Analog Sensors: Coolant temp, oil pressure, fuel level sensors
  4. Relay Outputs: Start motor, Fuel cut, Preheat, Idle speed + programmable auxiliary signals
  5. Digital Inputs: Emergency stop, remote start, fault feedback dry contacts
  6. Debug Port: Front USB programming port (NO RS485, NO CAN bus)

Matching Accessories & Cross Replacement Guide

  1. Debugging Kit: SG72 USB programming cable + official SmartGen PC configuration software
  2. Cross Model Selection Tips
  • Single genset local control, no remote monitor, no ATS → HGM6110N (best cost)
  • Single genset + remote cloud DTU monitoring → Upgrade to HGM6110NC
  • Electronic injection diesel single unit → Choose HGM6110CAN with J1939 CAN bus
  • Need mains loss auto ATS transfer function → Upgrade to HGM6120N / HGM6120NC

Wide Application Scenarios

Construction site portable diesel generator, mining field standalone genset, generator rental equipment, farm irrigation emergency power unit, factory independent backup genset without mains grid connection, low-cost single-unit automatic control projects, genset factory OEM replacement panels.

Technical Specifications

  • Model: HGM6110N
  • Brand: Genuine SmartGen
  • Core Function: Single Diesel Genset Auto Start-Stop Controller (NO Mains AMF, NO RS485)
  • Power Supply: DC8V ~ DC35V (12V/24V dual universal)
  • Display: 132×64 Backlight LCD, 8 Optional Languages
  • Communication: Front USB debug port only (No RS485 Modbus, No CAN J1939)
  • I/O Ports: 5 Digital Inputs, 4 Relay Outputs, 3 Standard Analog Sensor Inputs
  • Front Panel Protection: IP55 Waterproof & Dustproof with rubber seal
  • Overall Dimension: 209×166×45mm; Cutout Size: 186×141mm
  • Operating Temperature: -25℃ ~ +70℃
  • Warranty: 12 Months Original Factory Warranty
  • Certifications: CE, ISO9001, EMC
