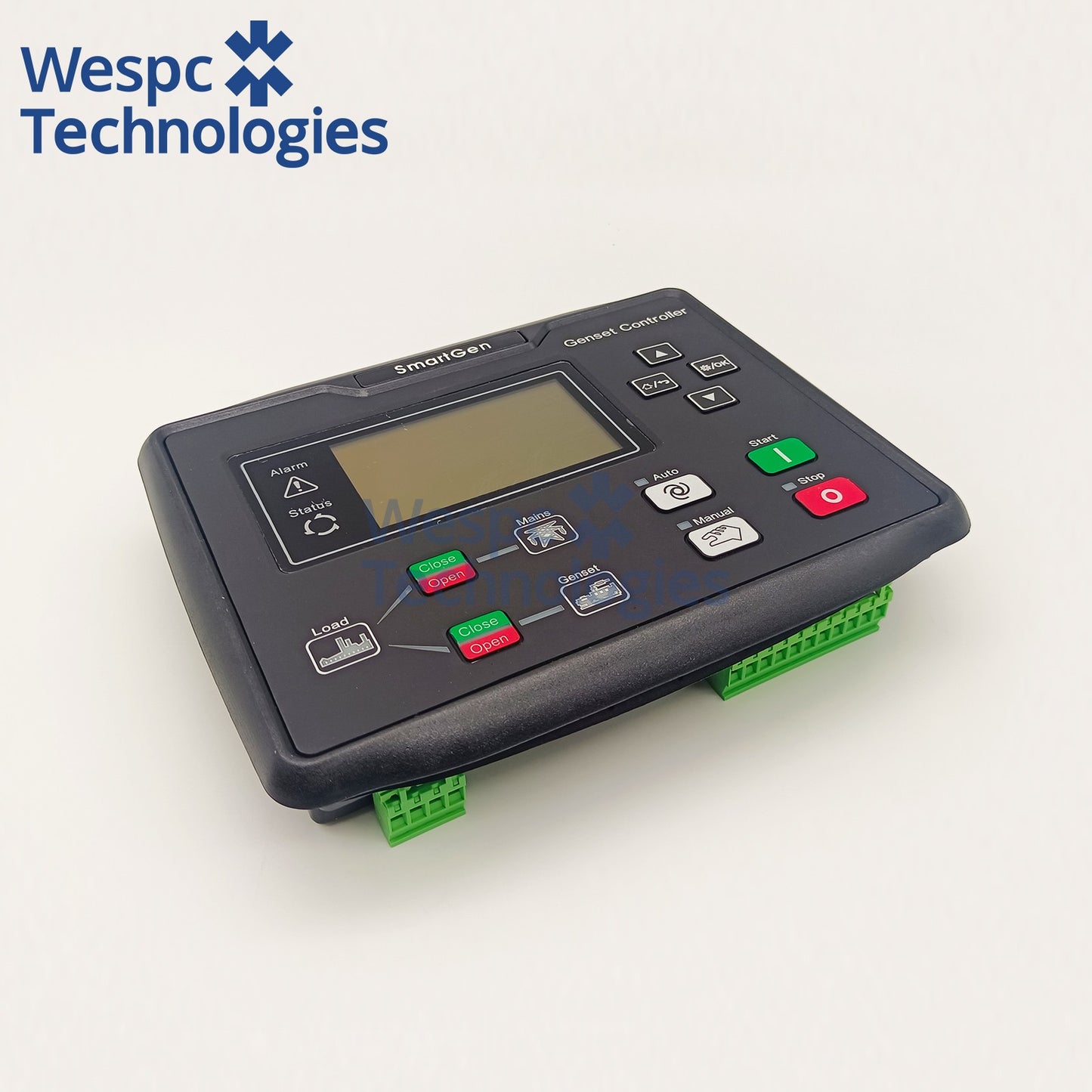

6120N Diesel Generator Controller Auto Start Stop Control Panel Module

Pink HGM6120N intelligent AMF generator controller, DC8-35V power supply, auto start/stop & mains transfer function, multi-language LCD display, direct replacement for Smartgen 6120N for diesel genset overhaul repair 。

Specifications
Model：HGM6120N（Pink Housing Version）

1. Working Power：DC 8V～35V，standby power ≤3W，working＜5W
2. Display：132×64 backlight LCD screen，8 languages（EN/CN/ES/RU/FR etc.）
3. I/O Port：5 Digital Inputs，6 Relay Outputs，3 Analog Inputs（oil temp/oil pressure/fuel level）
4. AC Detection：1P2W/3P3W/3P4W，AC15~360V phase-neutral，50/60Hz auto identify
5. Core Function：AMF mains auto transfer, auto start/stop, over-speed/overload protection, event log, RTC timing start
6. Dimension：209×166×44mm；Panel cutout：186×141mm；Net weight：0.55kg
7. Working Temp：-25℃~+70℃，IP65 waterproof front panel with silicone gasket
8. Interface：USB programmable（PC parameter modification）
9. Shell：Pink flame-retardant ABS plastic casing, embedded installation design
