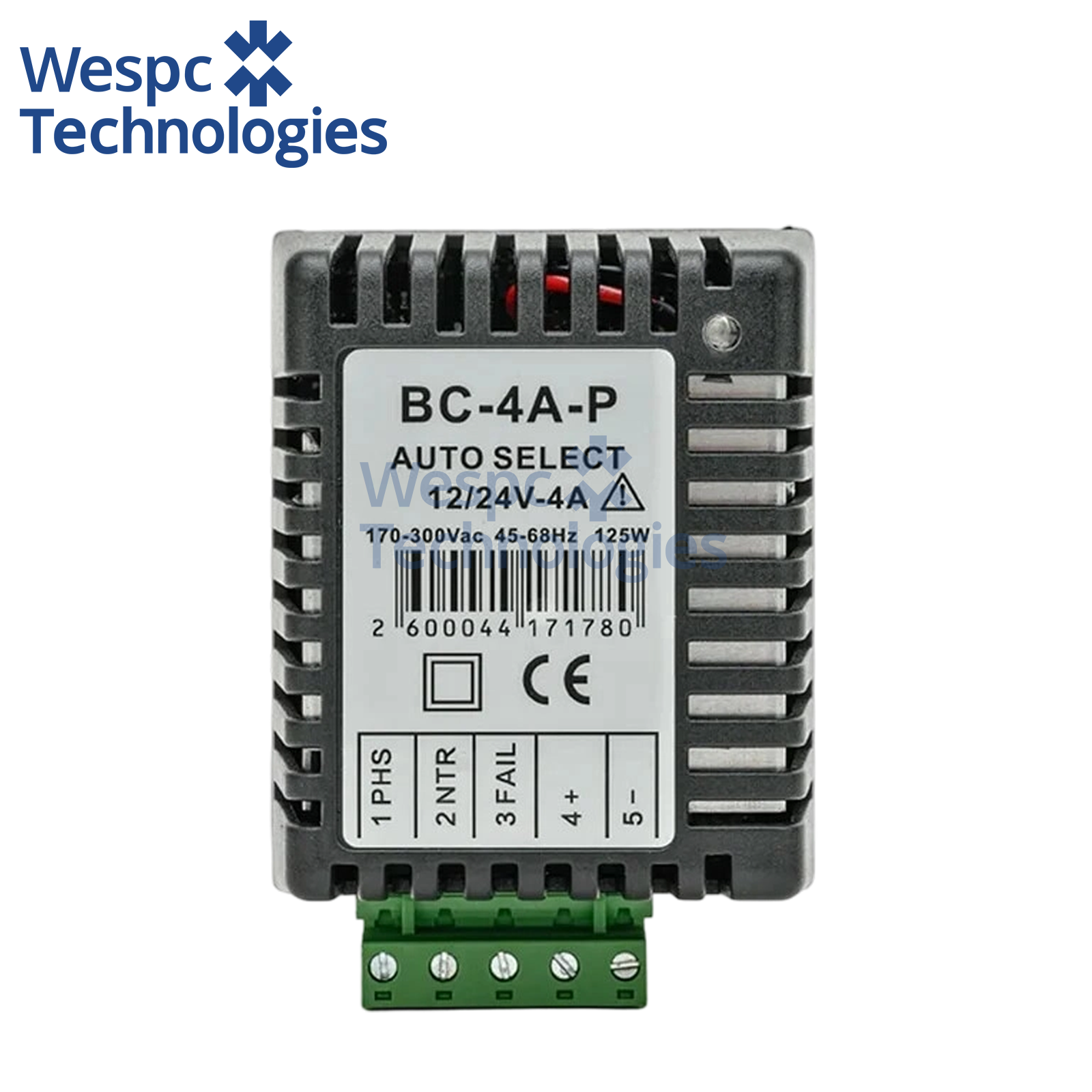

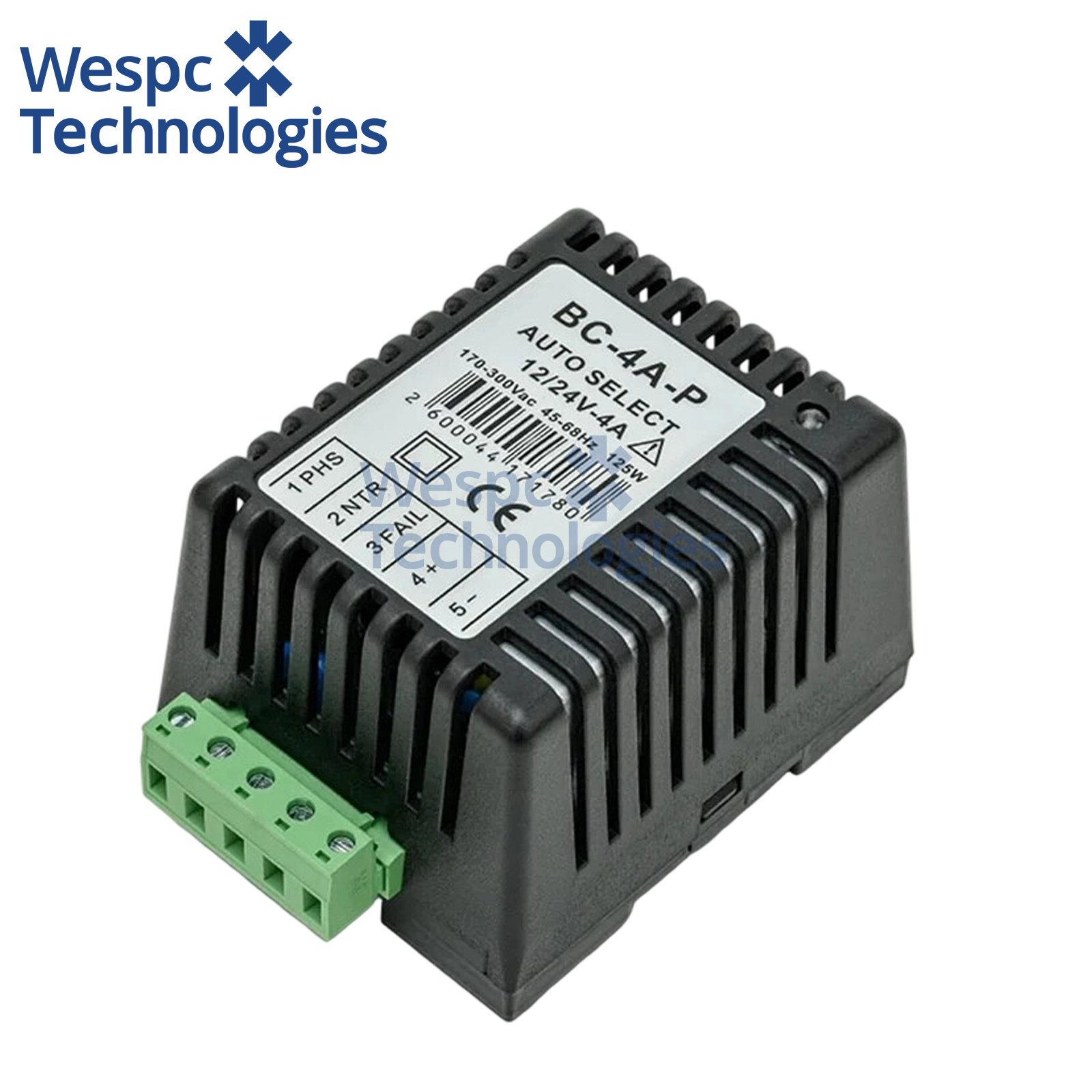

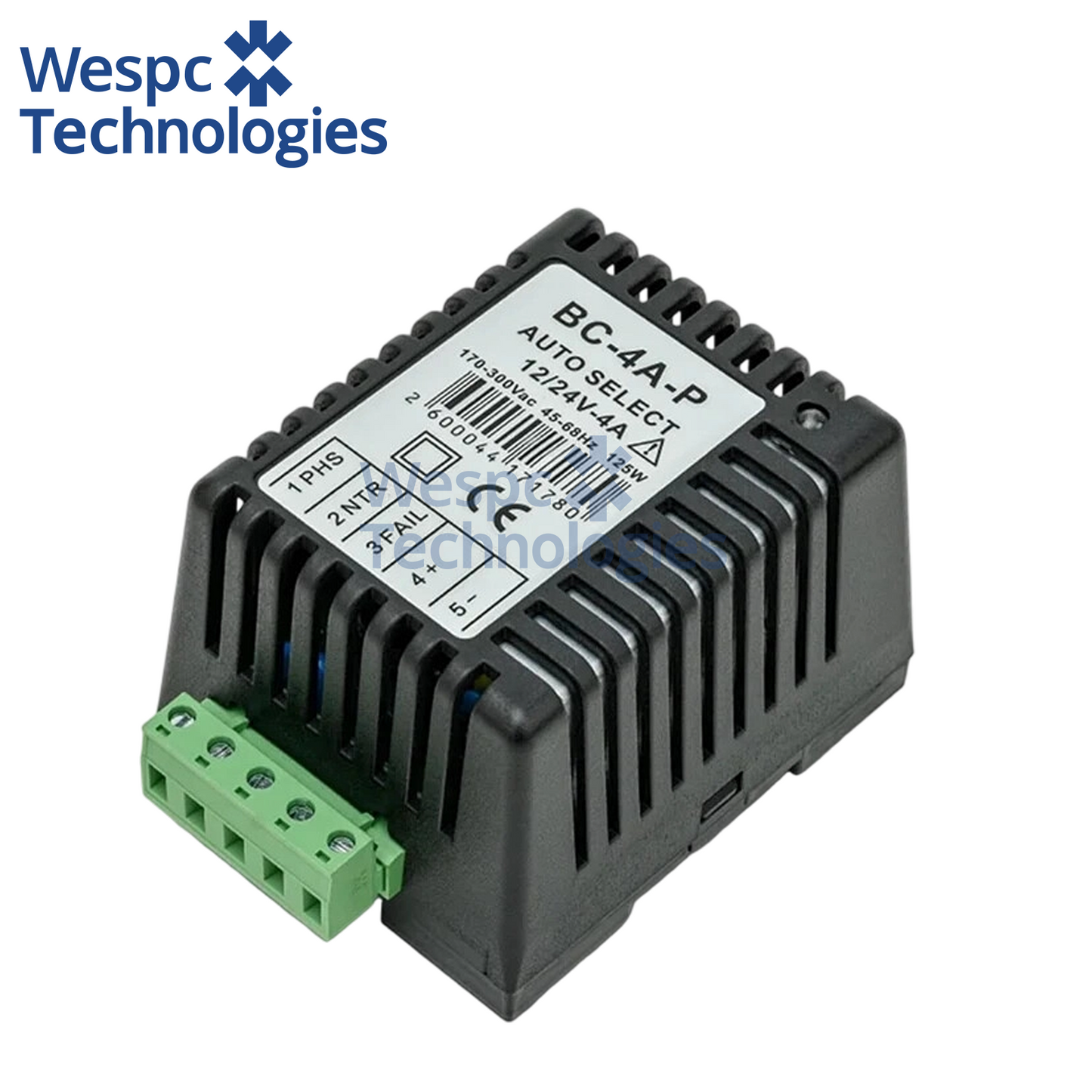

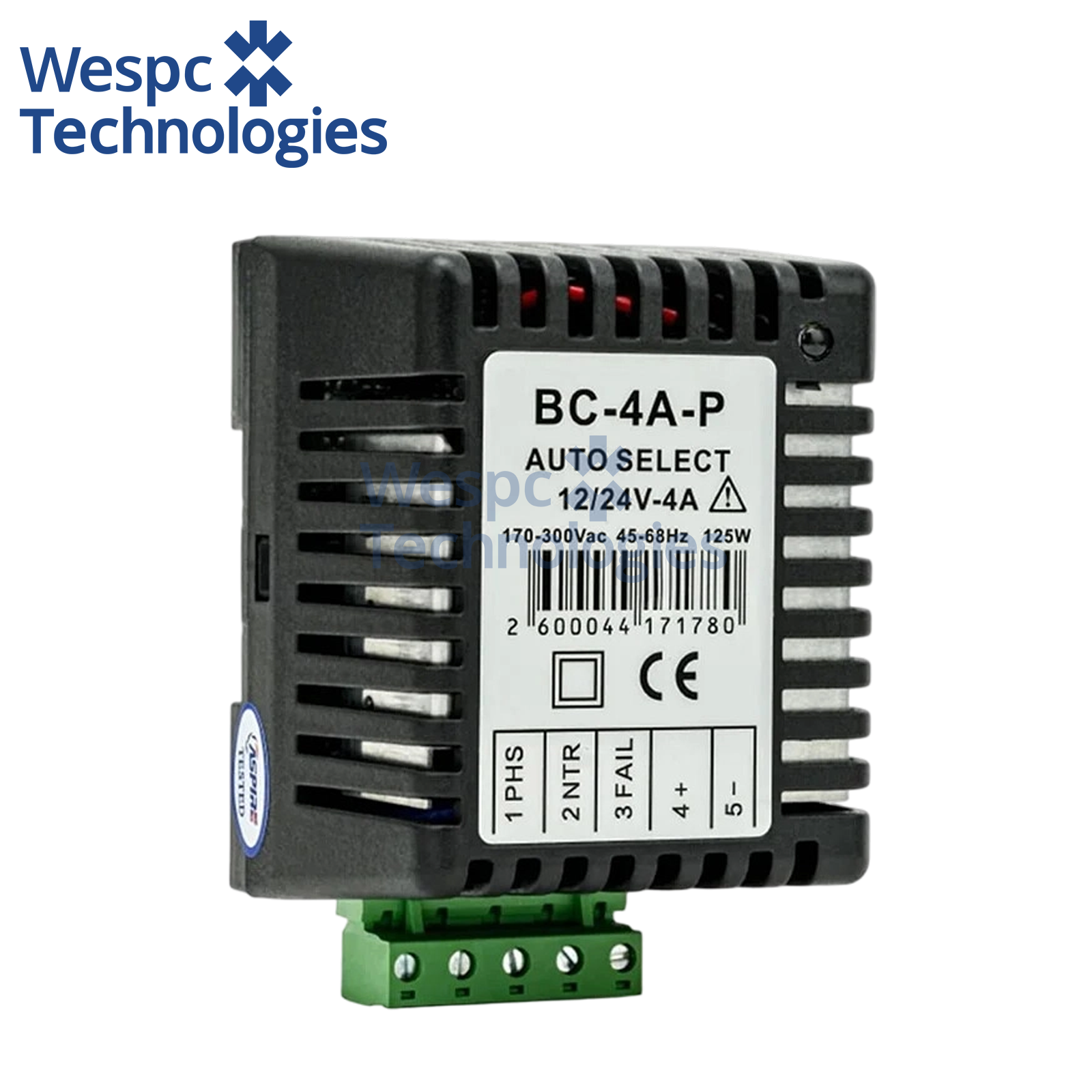

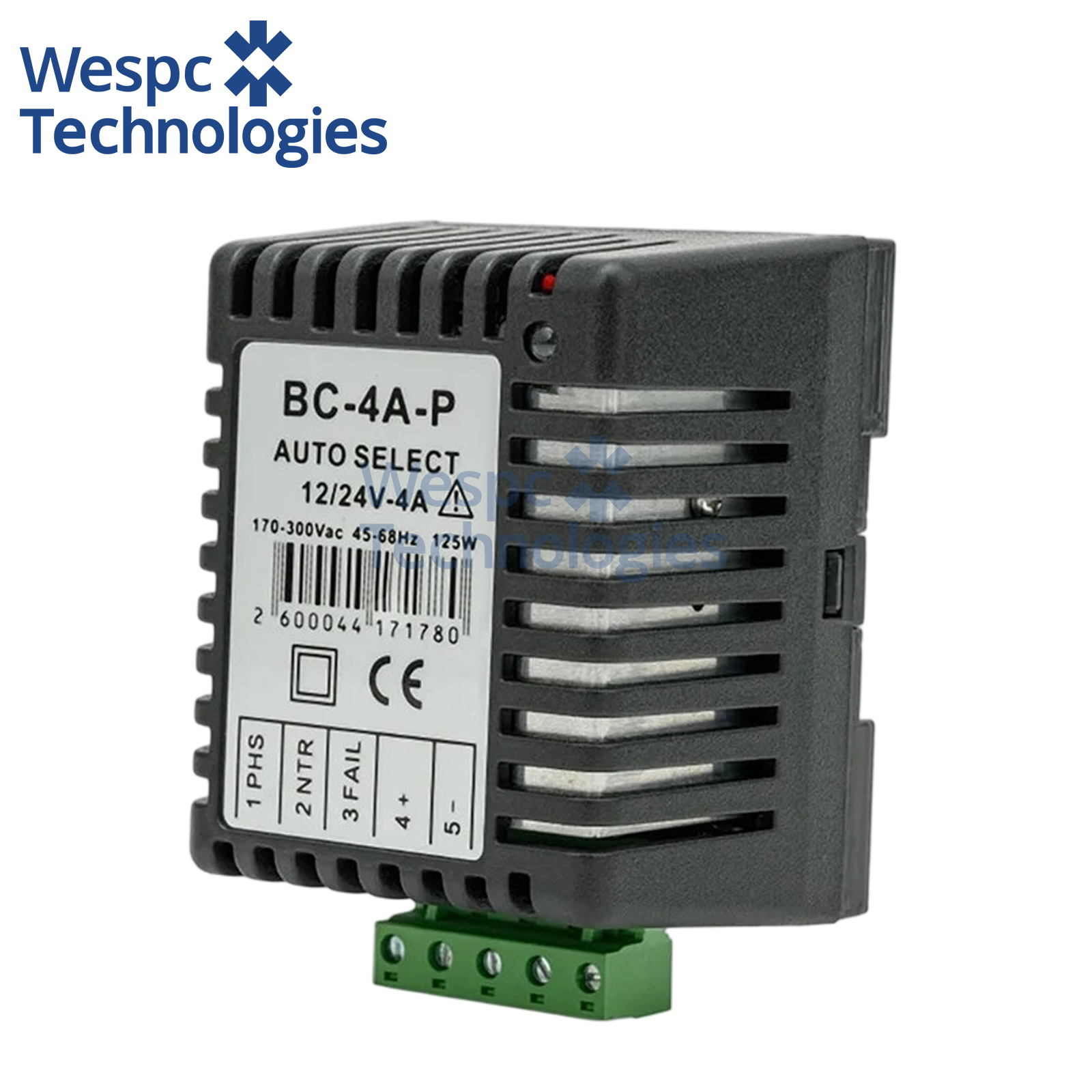

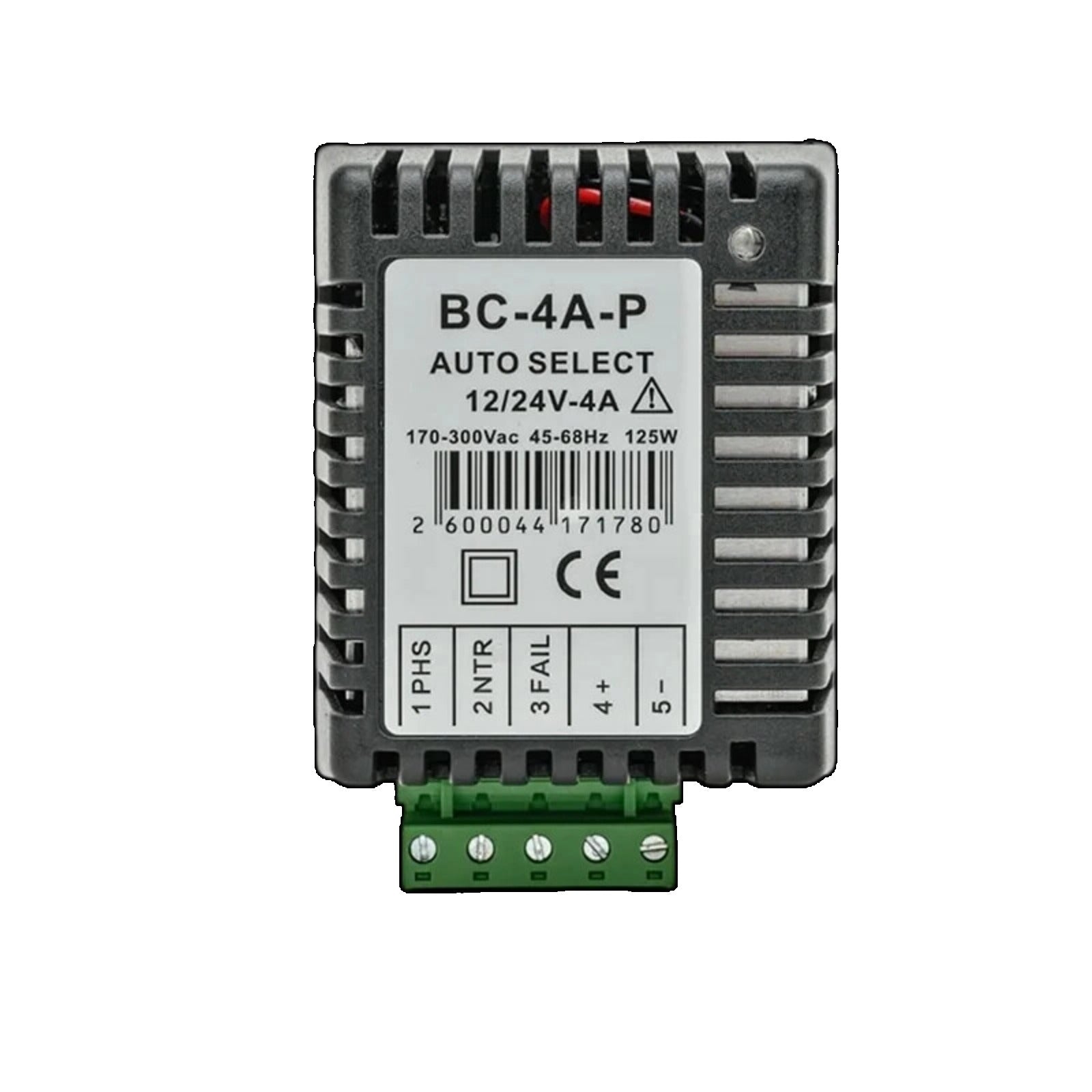

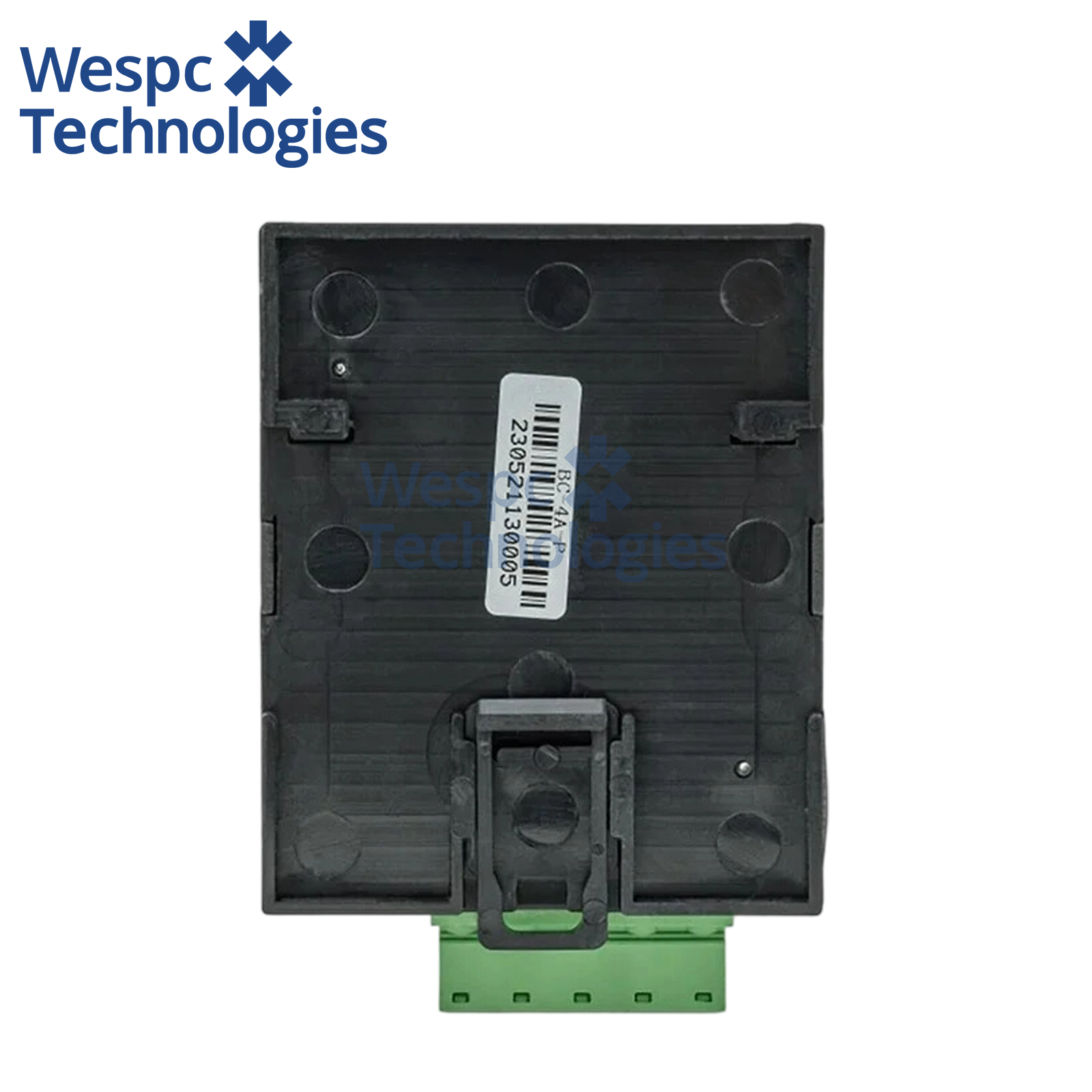

New BC4A BC-4A-P 4A 12V 24V Float Charger High Efficiency Battery Charger Auto Select 4 Amp 45-68HZ Genset Parts
Chargers having overload, shortcircuit and high temperature protections. The overload protection is current limiting type, not hiccup. Hiccup protected chargers will turn-off in case of overload and will be incapable of charging an empty battery with their rated current. In case of a short circuit or overload condition, the BC-4A-P charger does not shut-off, and delivers simply the rated current, allowing a full-speed charge of an empty battery.
•Wide operating voltage range (170-305VAC) •LED status indicator •Low power consumption at no-load mode •Green mode operation •Output short circuit and overload protection •High temperature protection •2 stage charging for continuous connection •Rectifier fail output •Wide operating temperature range •Low output ripple & noise •Low line and load regulations •DIN rail mounted, small dimensions •Low weight
