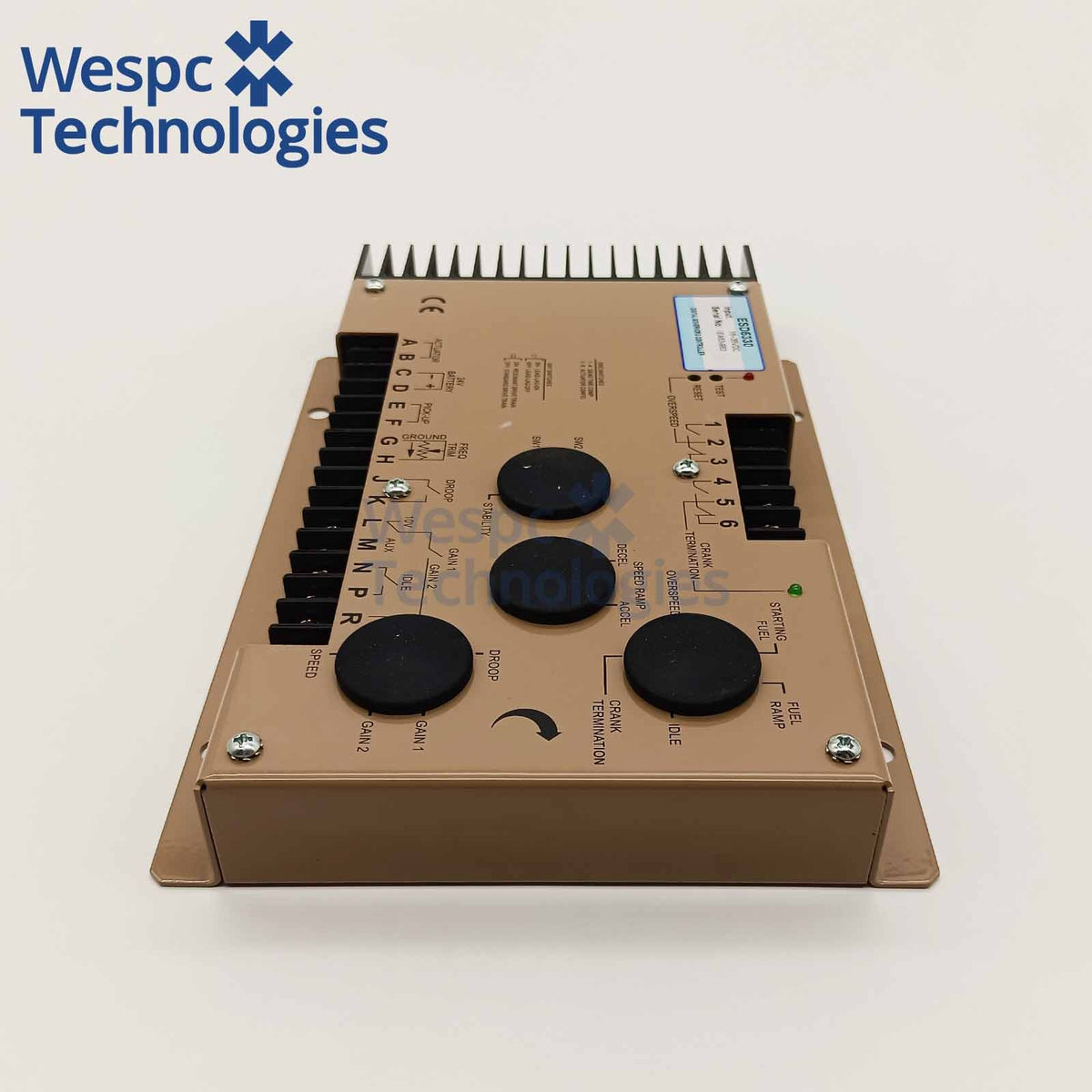

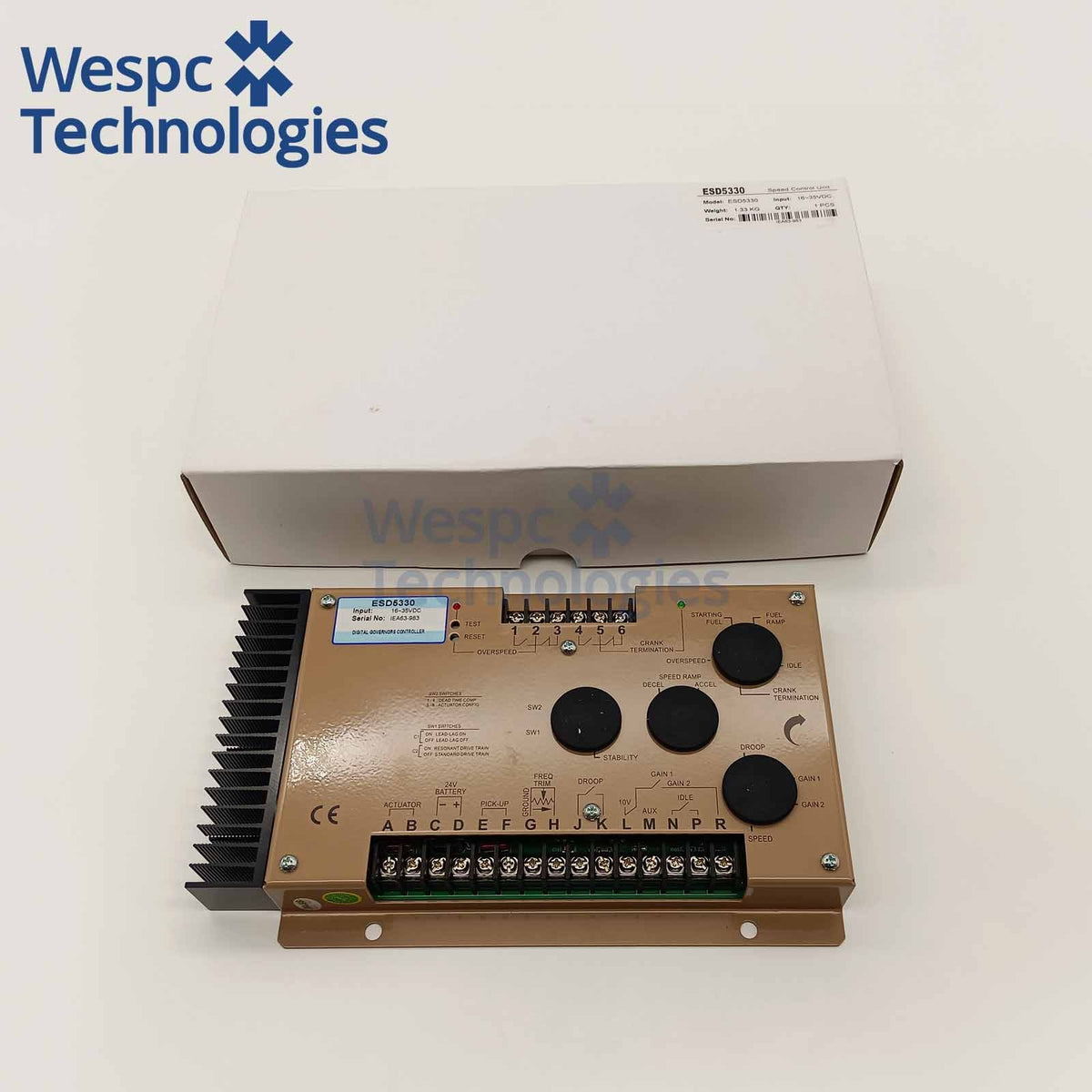

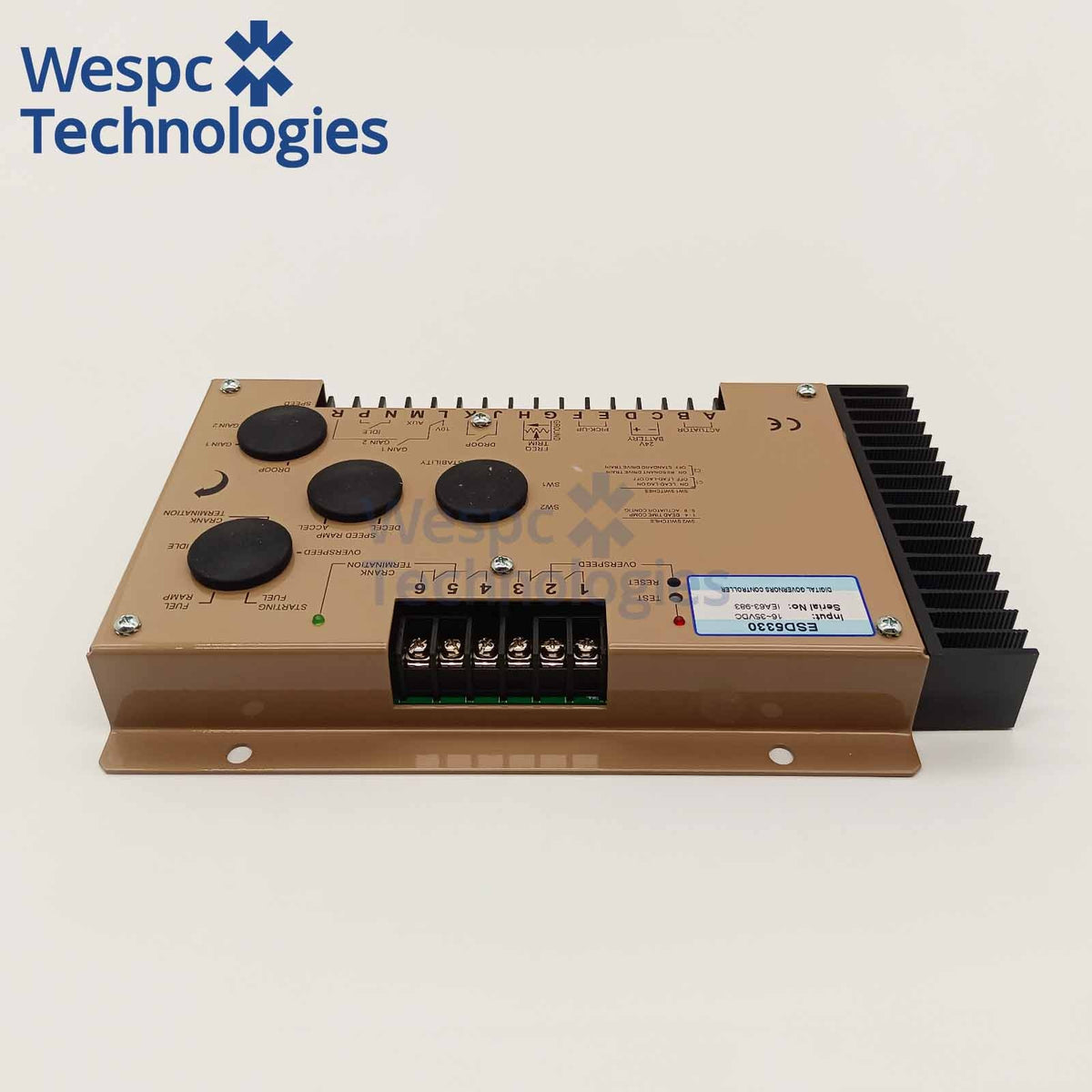

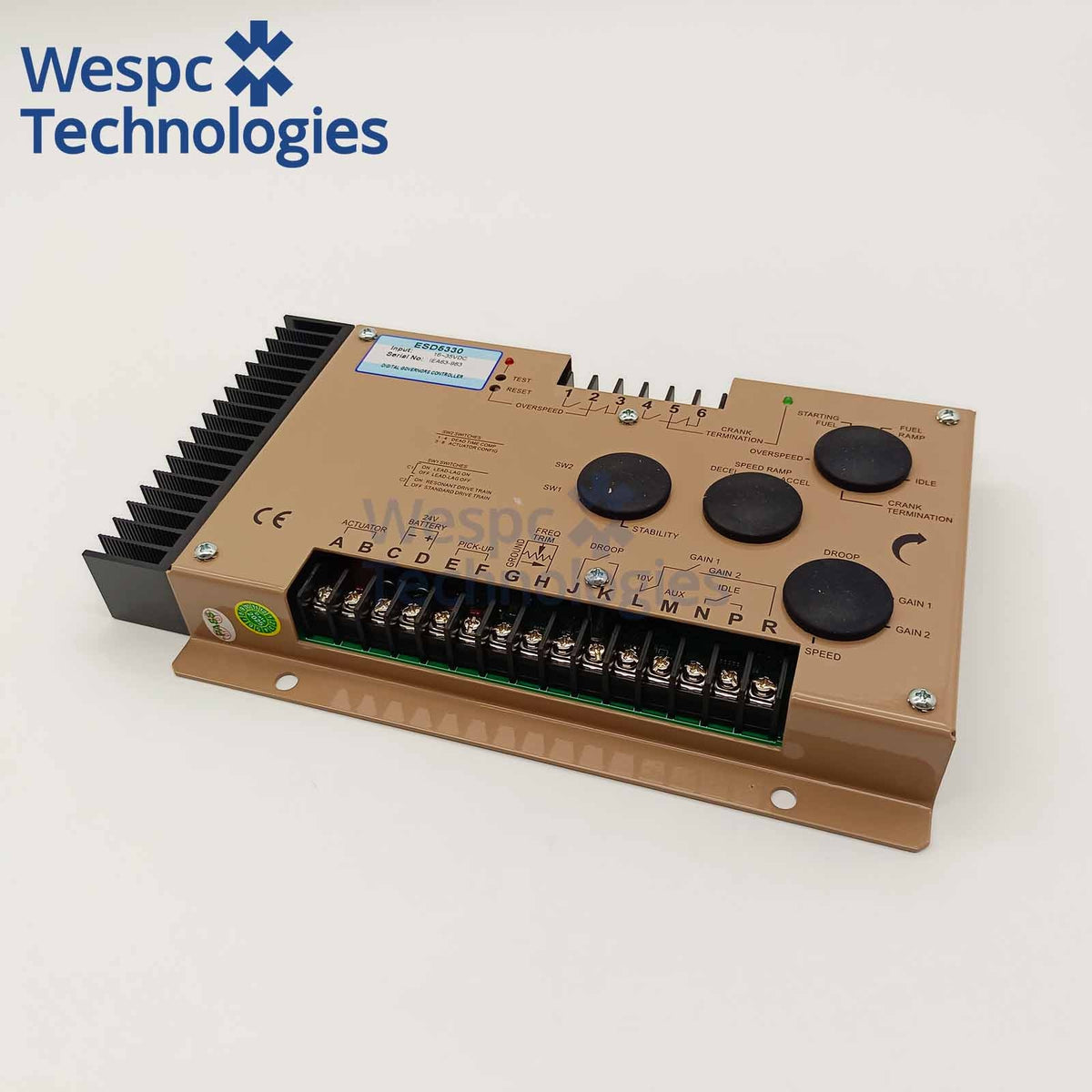

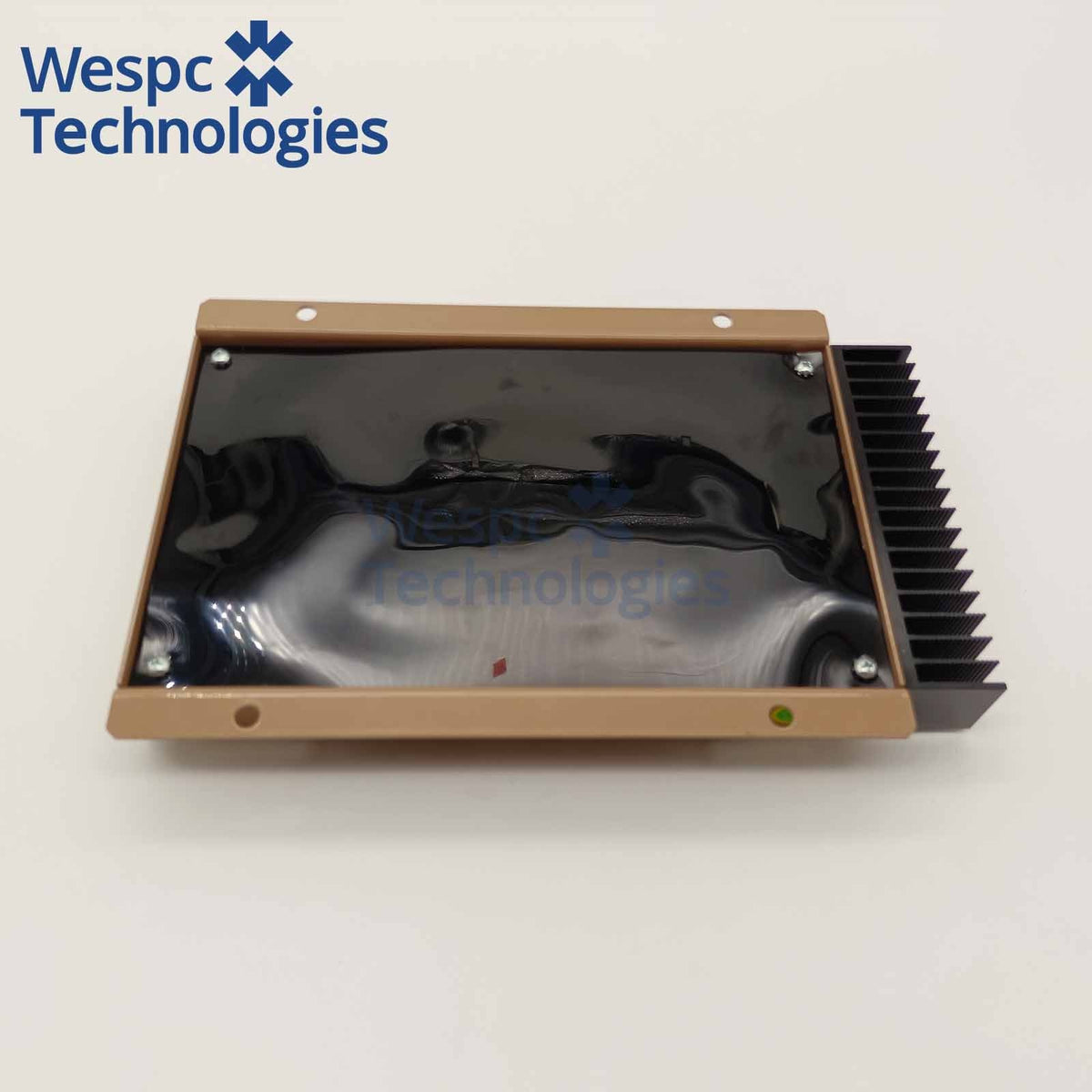

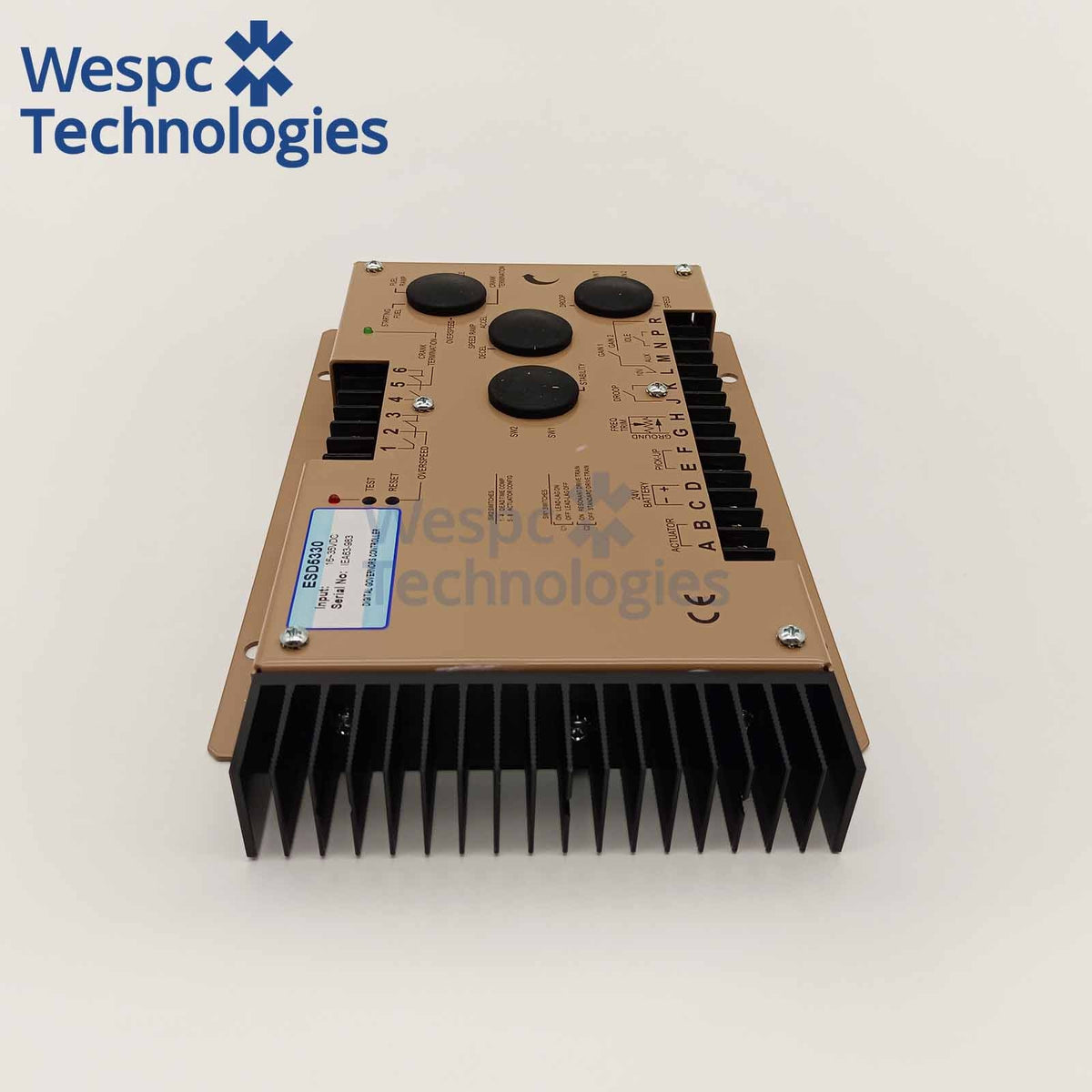

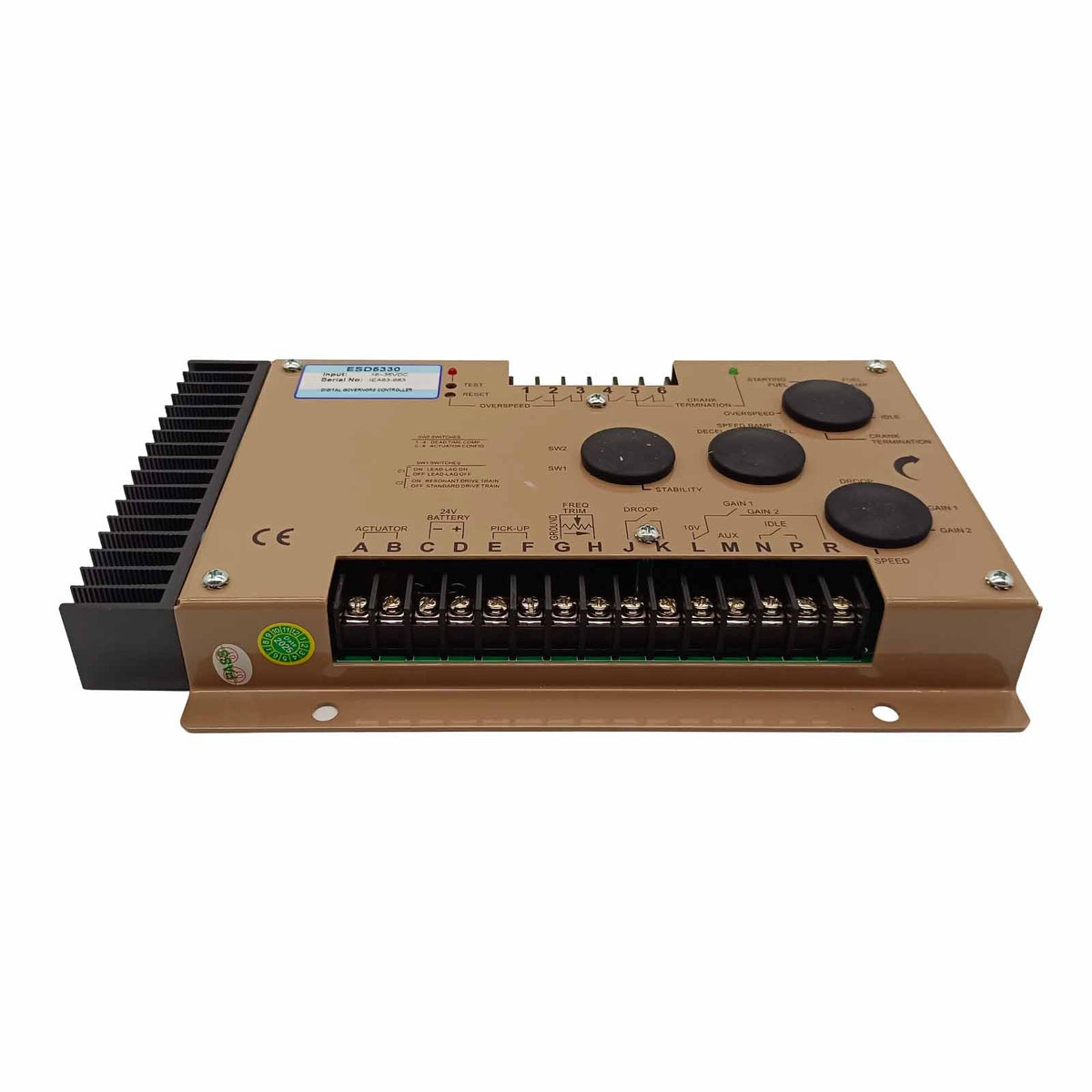

ESD5330E Speed Controller Generator Engine Electronic Governor Control Board

Product Specifications

• Part Number: ESD5330E
• Supplier: Wespc
• Product Type: Heavy Duty Electronic Governor / Speed Control Unit
• Material: Metal heat sink casing + conformal coated PCB, multi-turn adjustable potentiometers
• Power Supply: 24VDC negative ground, reverse voltage & transient voltage protection
• Speed Input Signal: 0.5 ~ 50 Volts RMS from magnetic pickup sensor
• Speed Frequency Range: 200Hz ~ 8500Hz, steady state stability ±0.25% or better
• Actuator Drive: High-current drive circuit, compatible with high torque GAC actuators ACB2001, ADB335-24
• Application: Large industrial diesel genset, marine generator, heavy-duty diesel engine, continuous standby power system
• OE Reference: ESD5330E, ESD5330, ESD5340

• Dimension: 32*19.5*7cm
• Net Weight: 1.33kg
• Packaging: Carton Package
• Warranty:12 months factorywarranty
