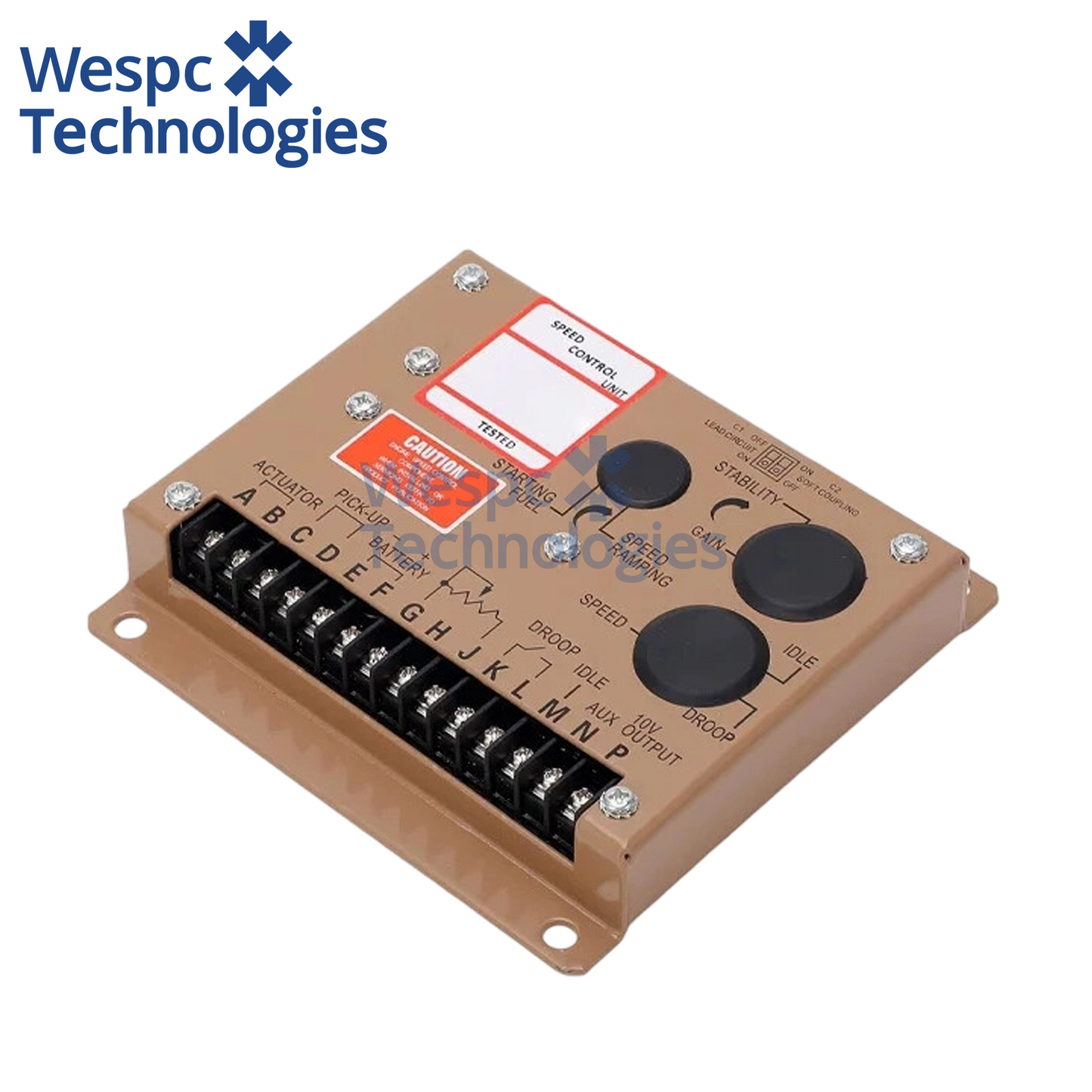

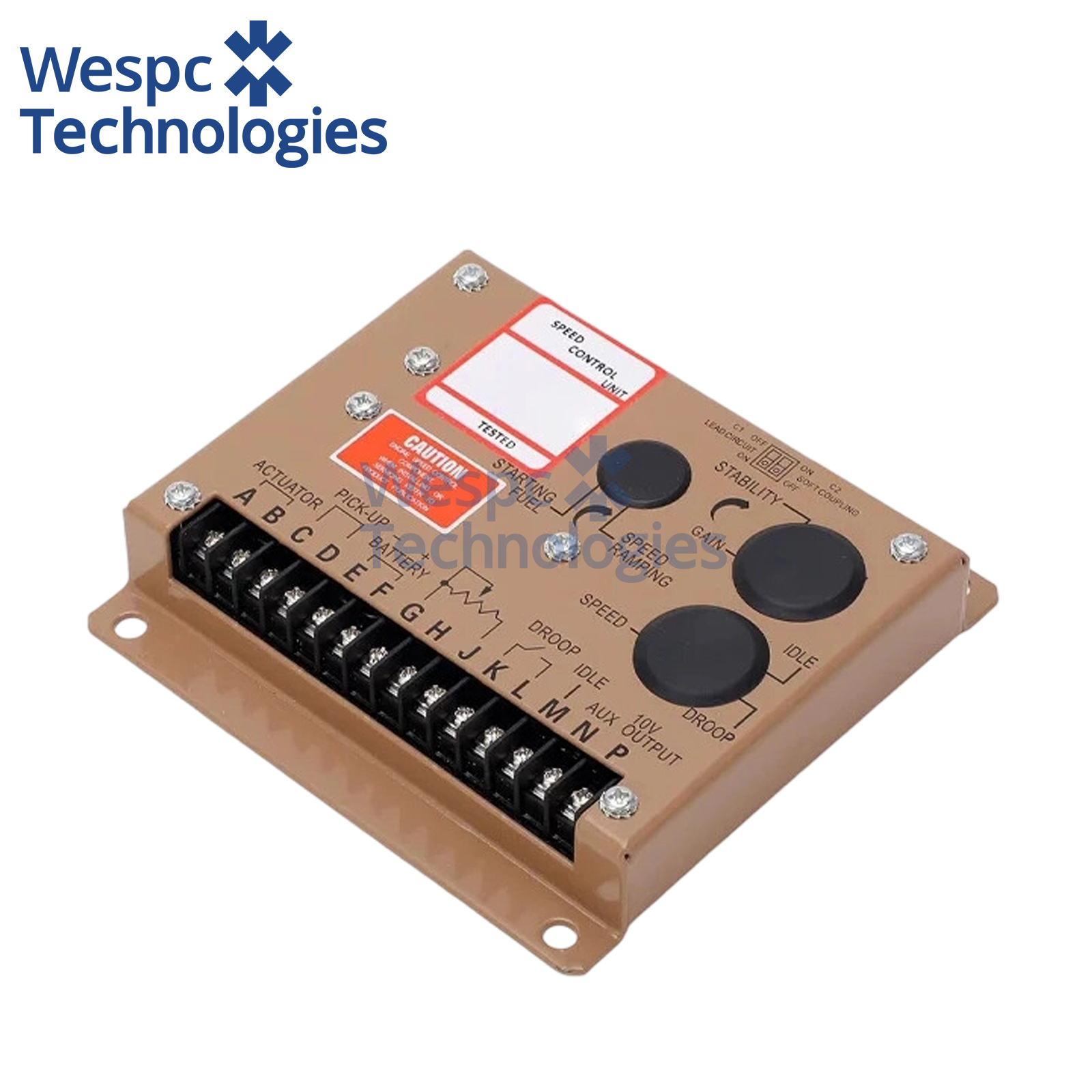

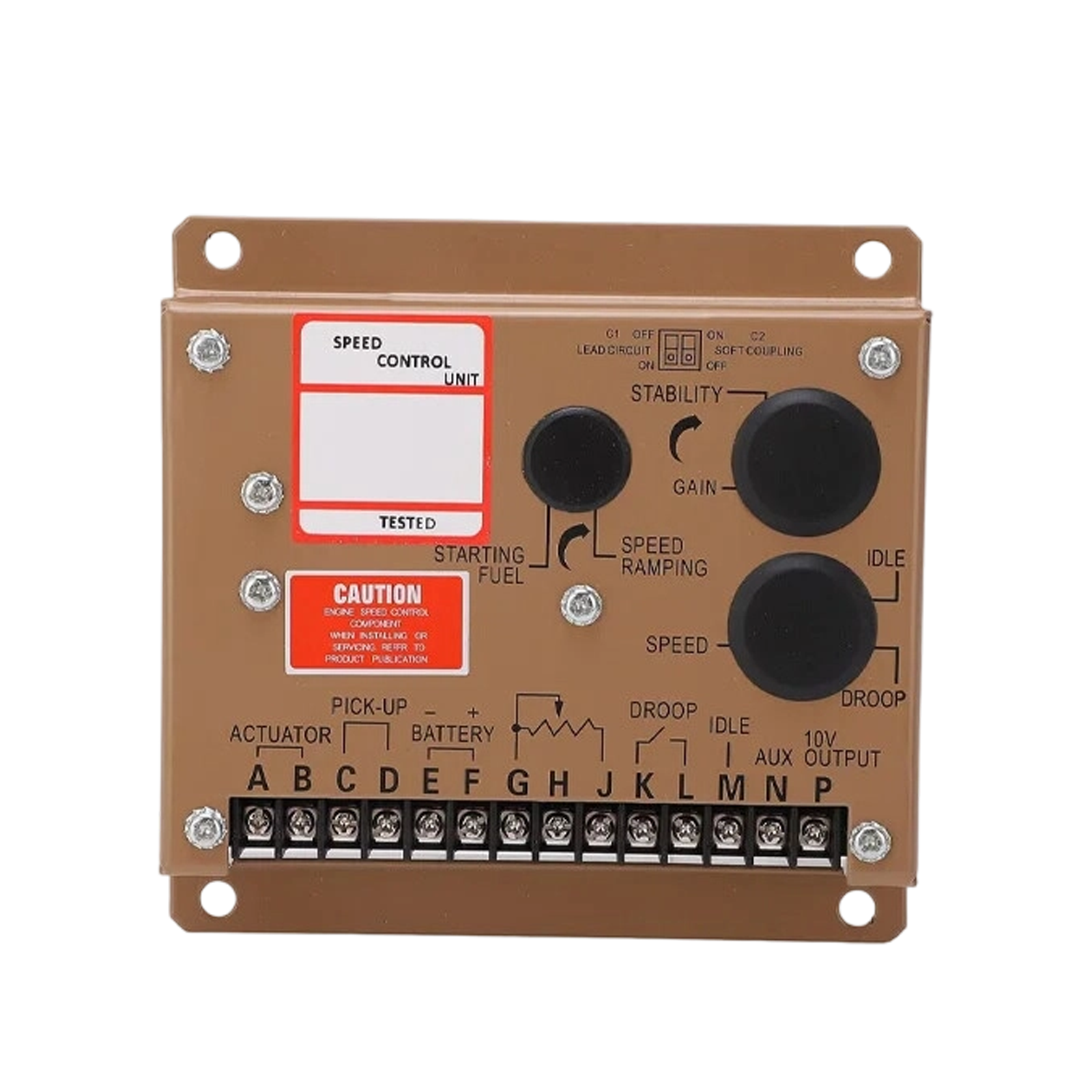

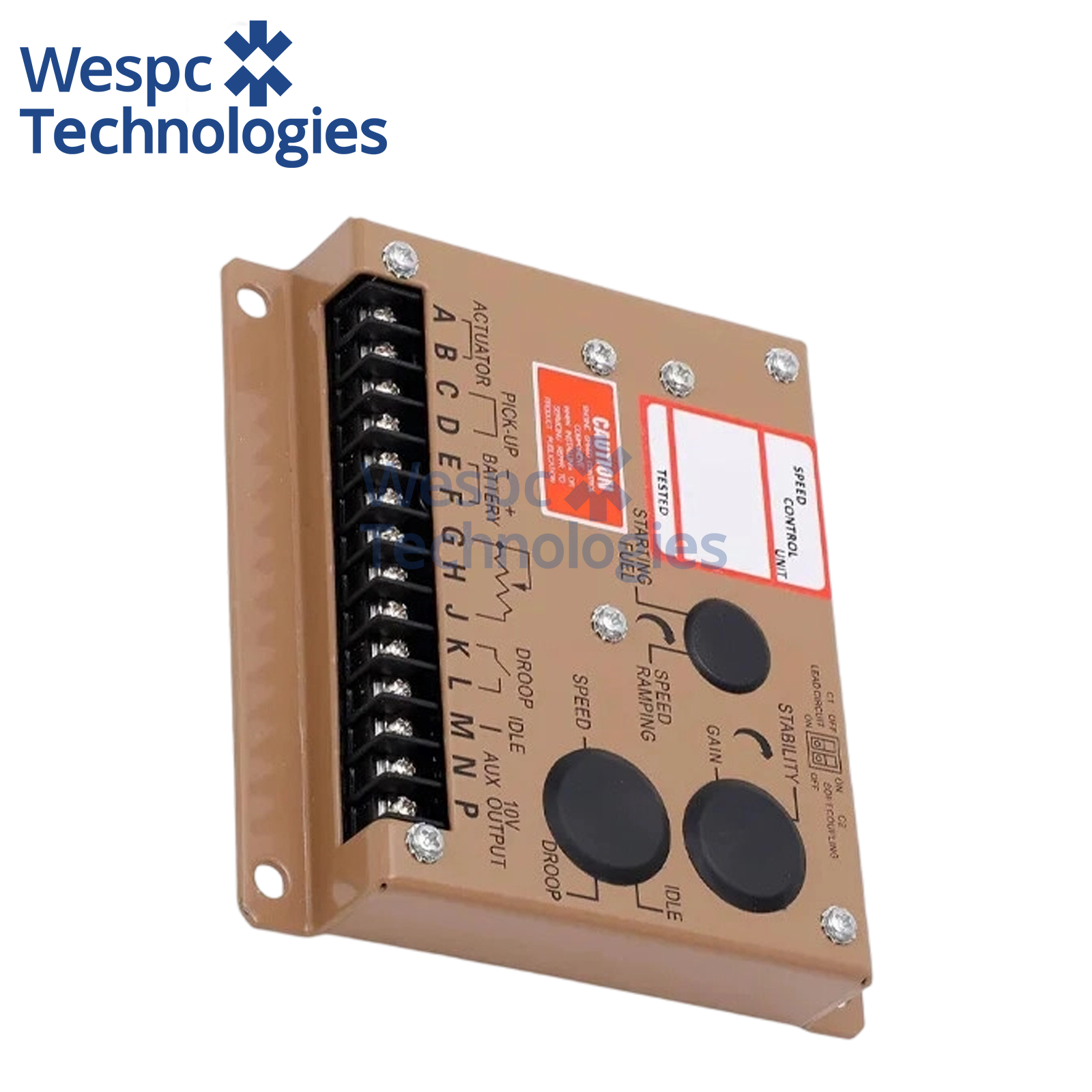

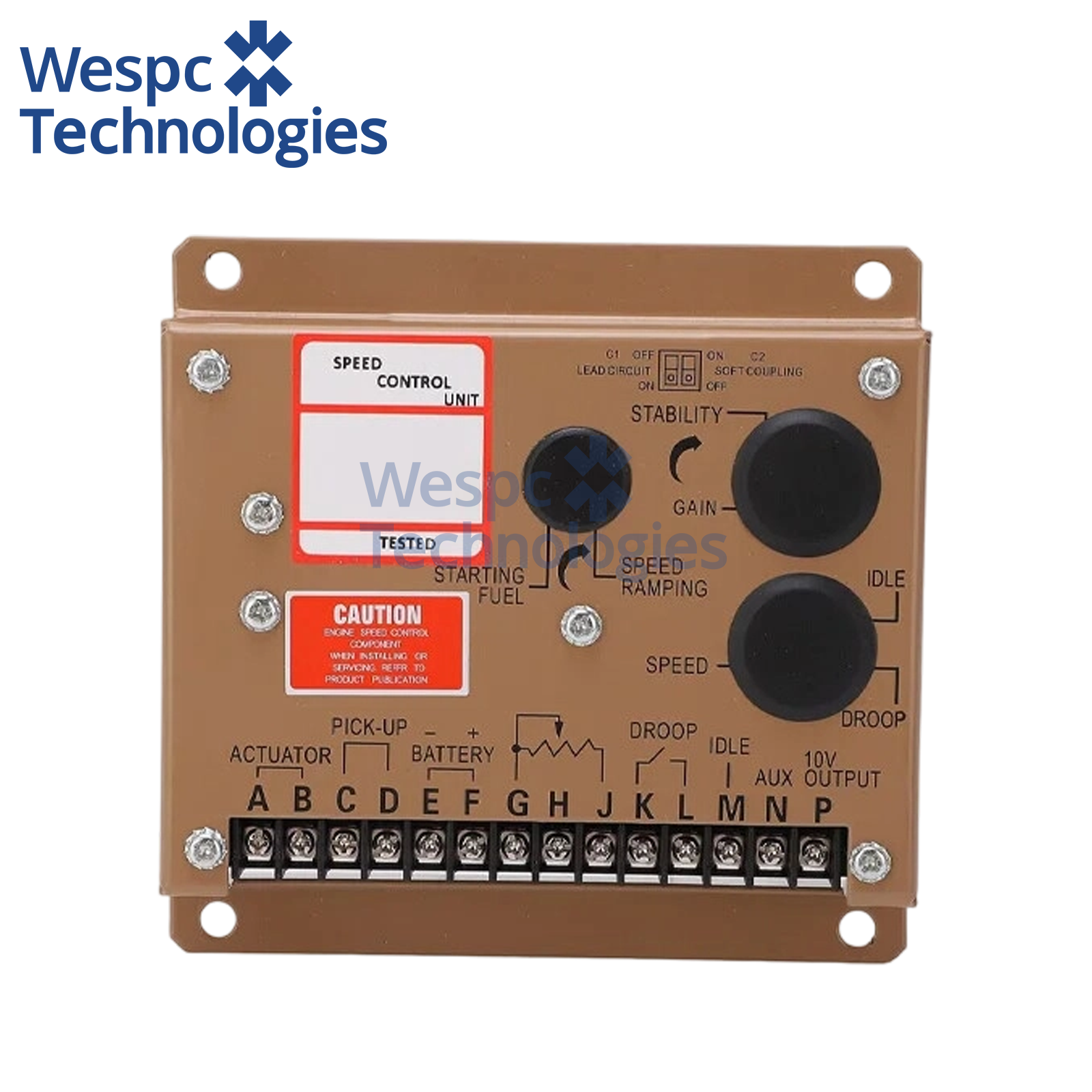

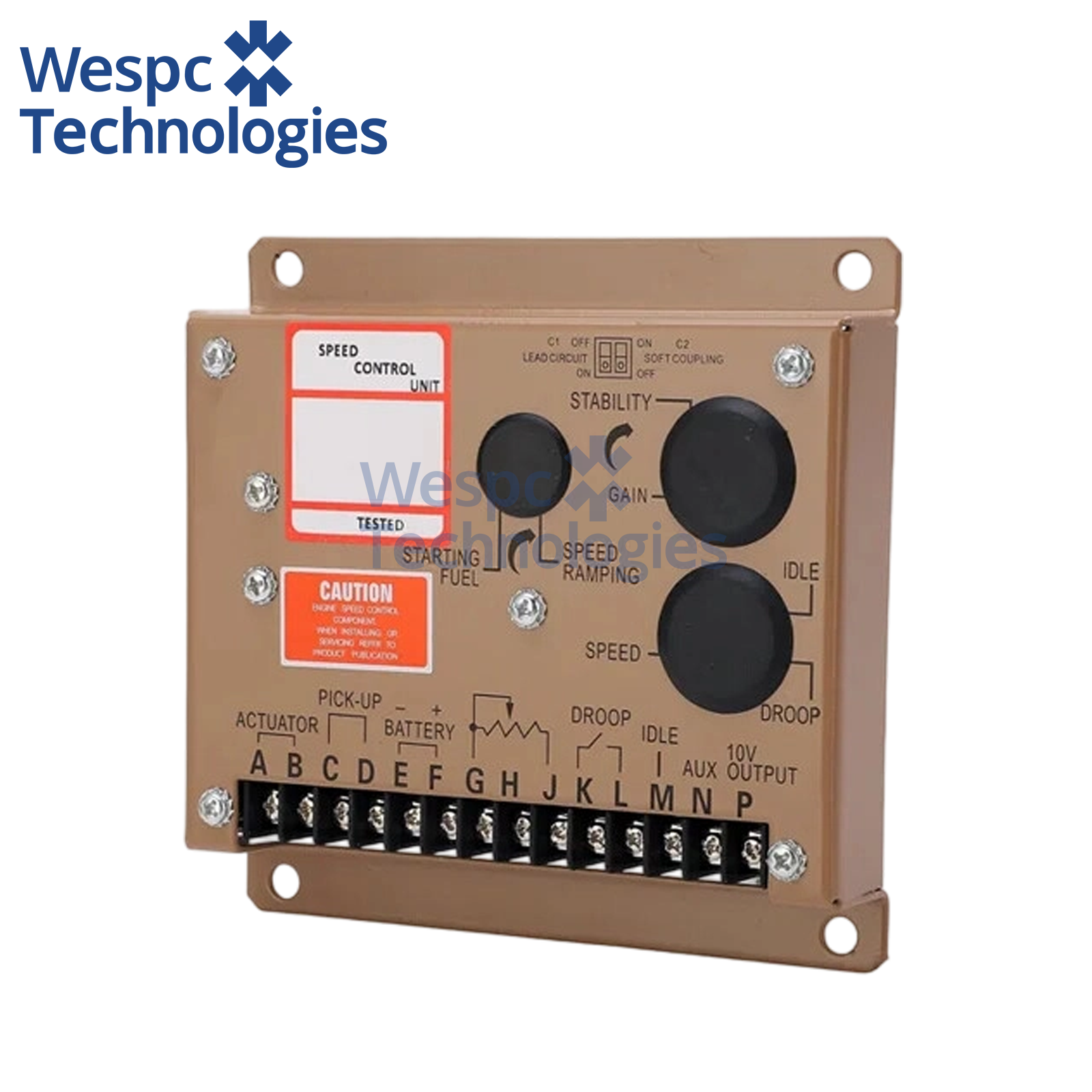

Generator Speed Controller ESD5522 Electronic Governor Speed Control Board Module Generator Set Accessories
Feature:
1. Base Values: The speed stability of our generator controller is ±0.25%, speed range is 1KHz to 7.5KHz, and thermal stability is ±1% maximum.
2. Operating Temperature Range: The impedance of the generator controller is 1MΩ, the operating temperature range is -40°C to 85°C, the operating humidity range is 95% maximum, and the storage temperature is -55°C to 90°C.
3. Parallel and Standby: This generator controller also has the functions of parallel, standby, speed ramp and start fuel control.
4. Power Consumption: The ground polarity of the generator controller is negative, the power consumption is 50mA, and the actuator continuous current is minimum 2.5A and maximum 10A.
5. Stable and Reliable: Our generator controller is easy to install, stable and reliable, with smoothing and slow start process control.
