ESG2002A08A-W C2002 A08A Diesel Generator Tachometer Speed Controller Electromagnetic Actuator kit

ESG2002A08A-W C2002 A08A Diesel Generator Tachometer Speed Controller Electromagnetic Actuator kit

$429.00 USD
$0.00 USD $429.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
ESG2002A08A-W Speed Controller Matched  C2002 Diesel Engine Speed Controller A08A-W 0.8Nm Actuator 12/24V Closed Loop Diesel Generator Electronic Governor Replacement Spare Part


Product Overview

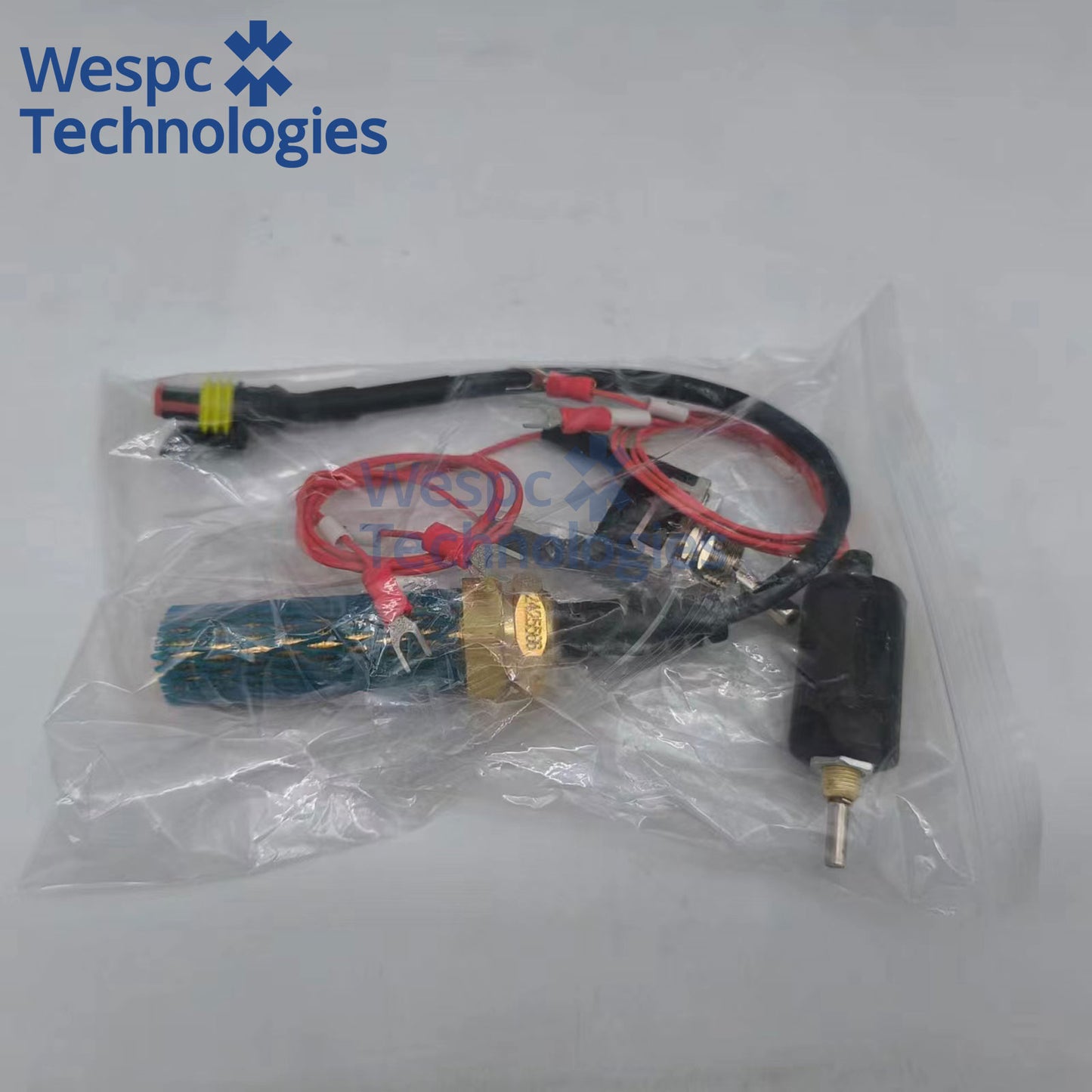

This full diesel engine speed control system includes ESG2002A08A-W speed controller + A08A-W electromagnetic actuator.

  1. ESG2002A08A-W: Dedicated closed-loop governor pre-calibrated for A08A-W actuator, single closed-loop magnetic pickup speed feedback, 3 independent pots (GAIN/IDLE/RAMP), built-in overspeed shutdown protection, wide DC 8–32V power supply for 12/24V diesel gensets.

  1. A08A-W Actuator: 0.8Nm internal pump-mounted fuel actuator, directly linked with fuel rack to adjust fuel supply according to controller output current.

  1. C2002 speed controller: C2002 is universal multi-function governor with extra droop parallel & start fuel adjustment.


Core Specs

  • Controller Model: ESG2002A08A-W
  • Matching Actuator: A08A-W (0.8 N.m internal type)
  • Power Supply: DC 8V–32V (12V / 24V universal)
  • Signal Input: Magnetic pickup 0.5–20V AC speed signal
  • Adjustable Items: Stability Gain / Idle Speed / Acceleration Ramp
  • Protection: Hardware overspeed trip protection
  • Comparable Model: C2002 (general multi-pot governor, not interchangeable)
  •

Key Features

  1. Factory matched set ESG2002A08A-W + A08A-W, plug-and-play without complicated tuning.
  2. Closed-loop real-time speed feedback, eliminate engine hunting & generator frequency fluctuation.
  3. Wide voltage design, directly powered by engine storage battery.
  4. Anti-vibration flame retardant housing, stable running in high-temperature engine compartment.
  5. Clear distinction from C2002: C2002 supports genset parallel droop, while ESG2002A08A-W is simplified dedicated version for A08A-W actuator.


Application

Small & medium silent/open diesel generator sets, diesel water pump units, construction machinery diesel engines; replacement for unstable speed, hunting, overspeed risk faults.
