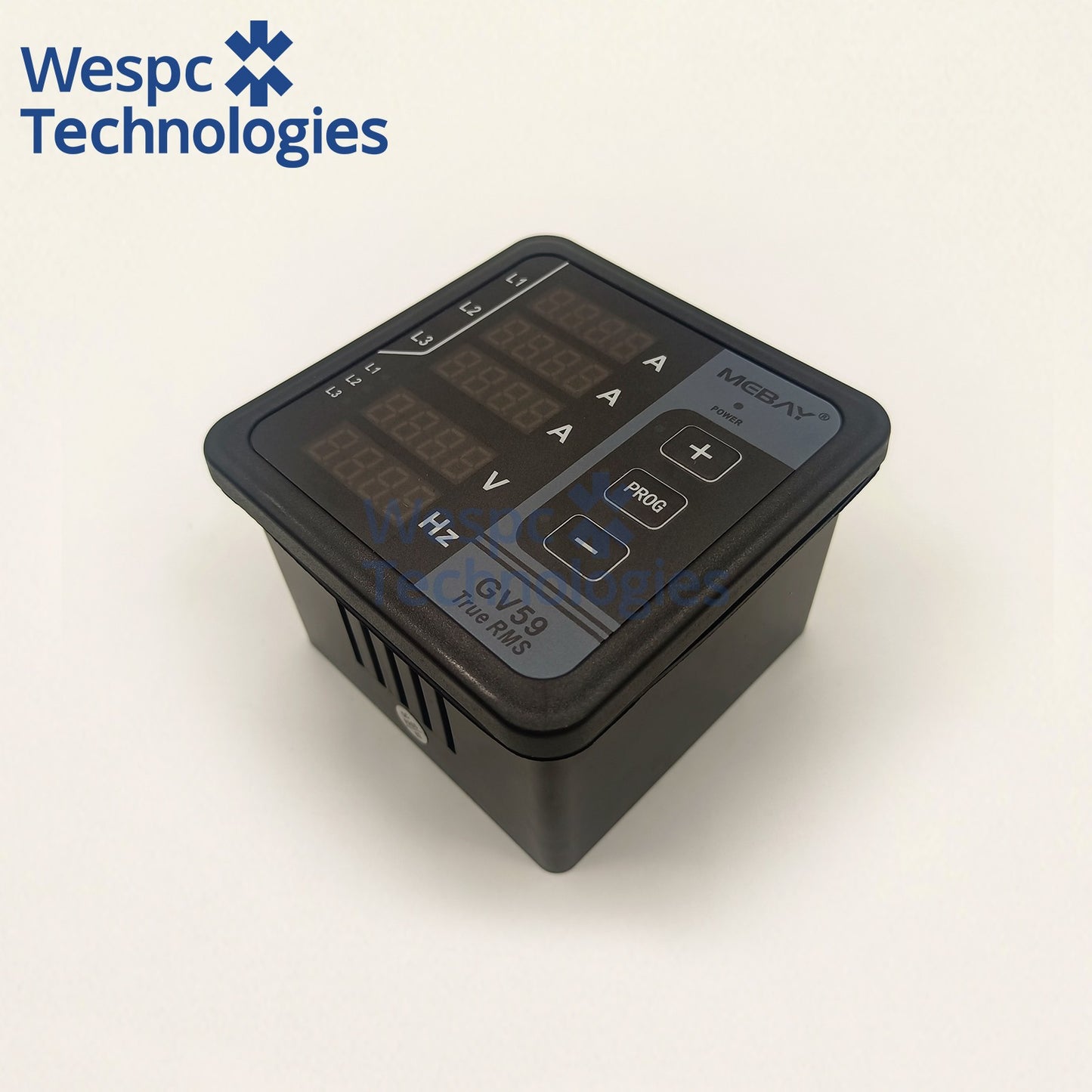

Original GV59R Mebay Generator Set Controller Multifunction Digital Meter With RS485 Port

Original GV59R Mebay Generator Set Controller Multifunction Digital Electric Power Meter With RS485 Port

Overview

  GV59 is a voltage and current detection instrument for three-phase generators. It has 5 high-brightness LED screens to display relevant parameters. It has an optional RS485 communication port to read more parameters. System parameters can be set according to the buttons to suit different applications.

  There are two models of GV59 series instruments:

    GV59: AC power supply, can sample and display three-phase AC voltage, three-phase AC current and other parameters;

    GV59R: Based on GV59, an RS485 interface is added to monitor relevant parameters and setting parameters through PC software.

Wide Application Range

Three-phase silent diesel generator control cabinet, commercial building backup power distribution box, light marine three-phase auxiliary genset, construction machinery power unit, off-grid industrial independent power station, generator maintenance factory, small power distribution engineering projects requiring independent three-phase power parameter display and remote cloud energy statistics, matched with engine controllers to form full genset monitoring system.

Product Specifications

• Brand: Mebay
• Model: GV59R
• Core Function: 3-phase generator true RMS multi-function power meter, RS485 Modbus remote communication upgrade model (No DC engine control, No CAN J1939, No mains ATS sampling)
• Working Power Supply: AC165V~275V self-powered by generator output
• Sampling Standard: 3P3L/3P4W three-phase voltage + 5A CT current transformer sampling

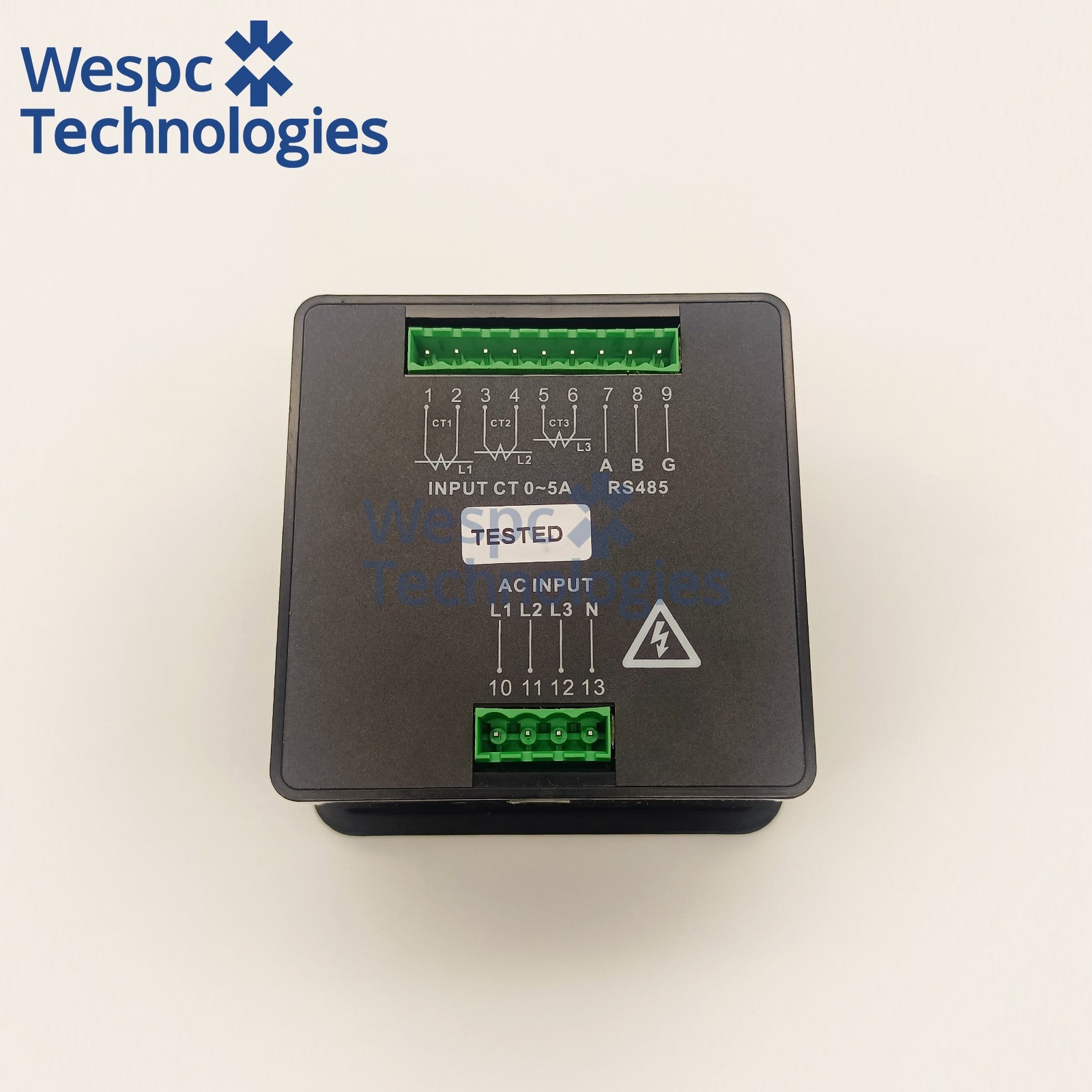

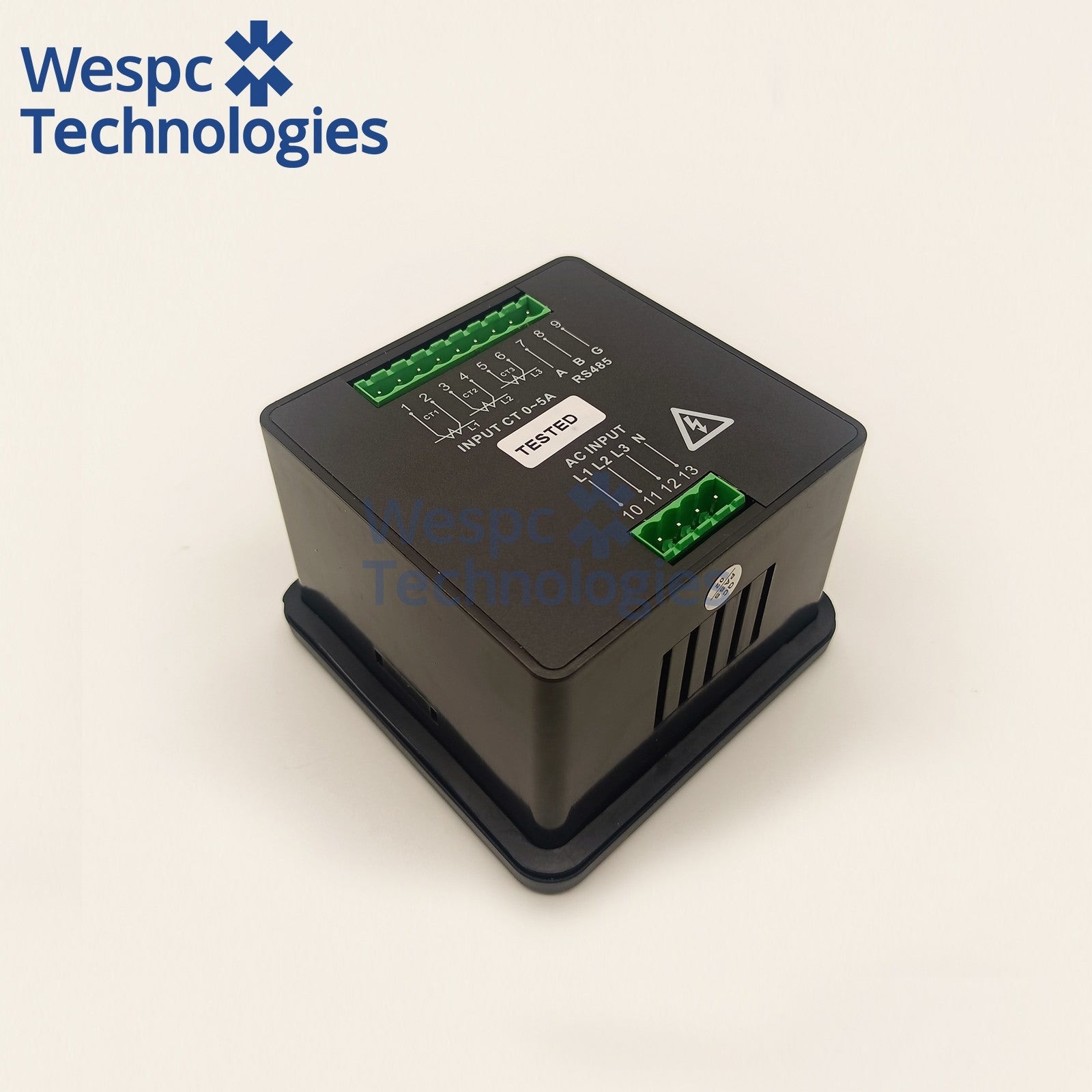

• Communication Interfaces: Rear isolated RS485 A/B Modbus RTU port (No USB, No CAN bus)

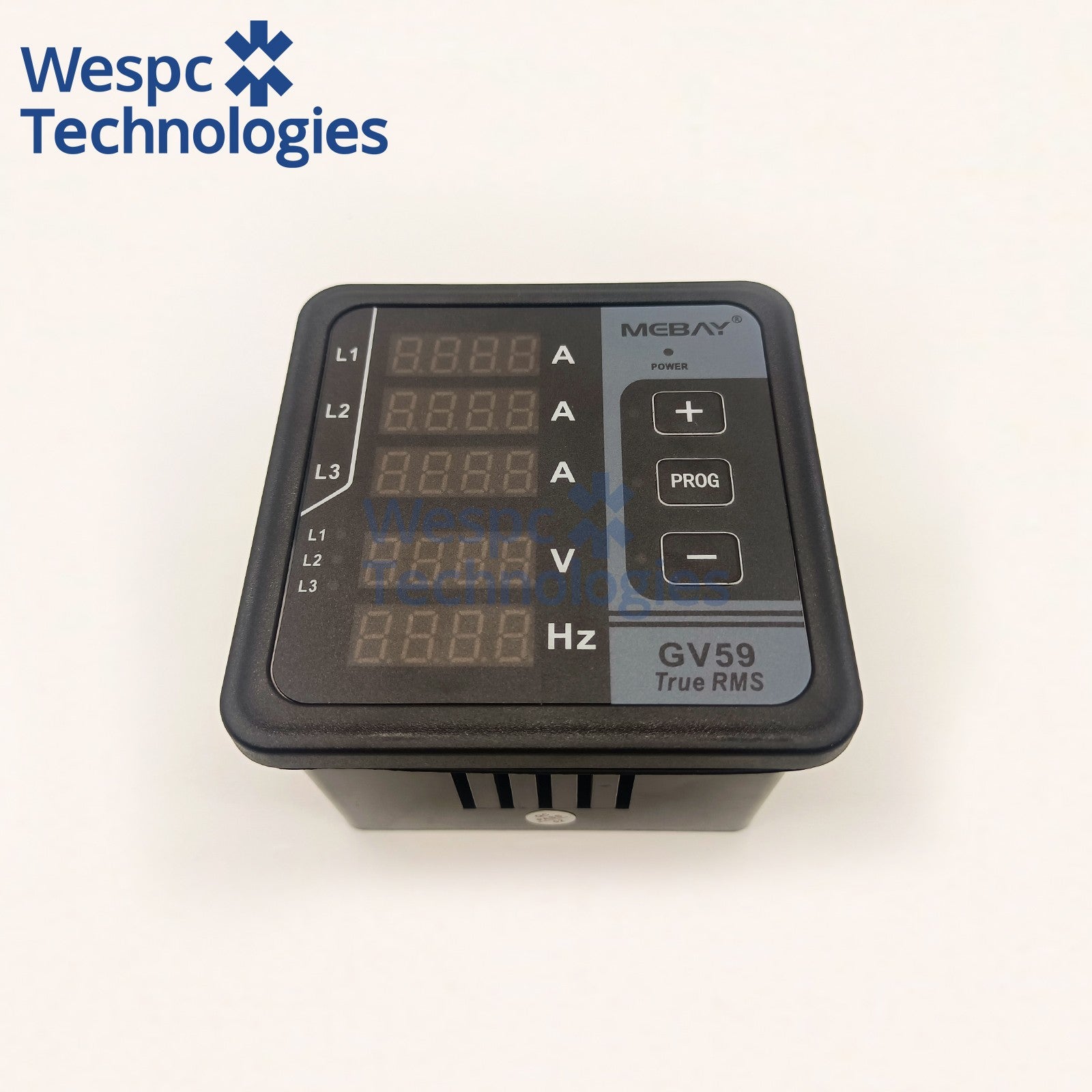

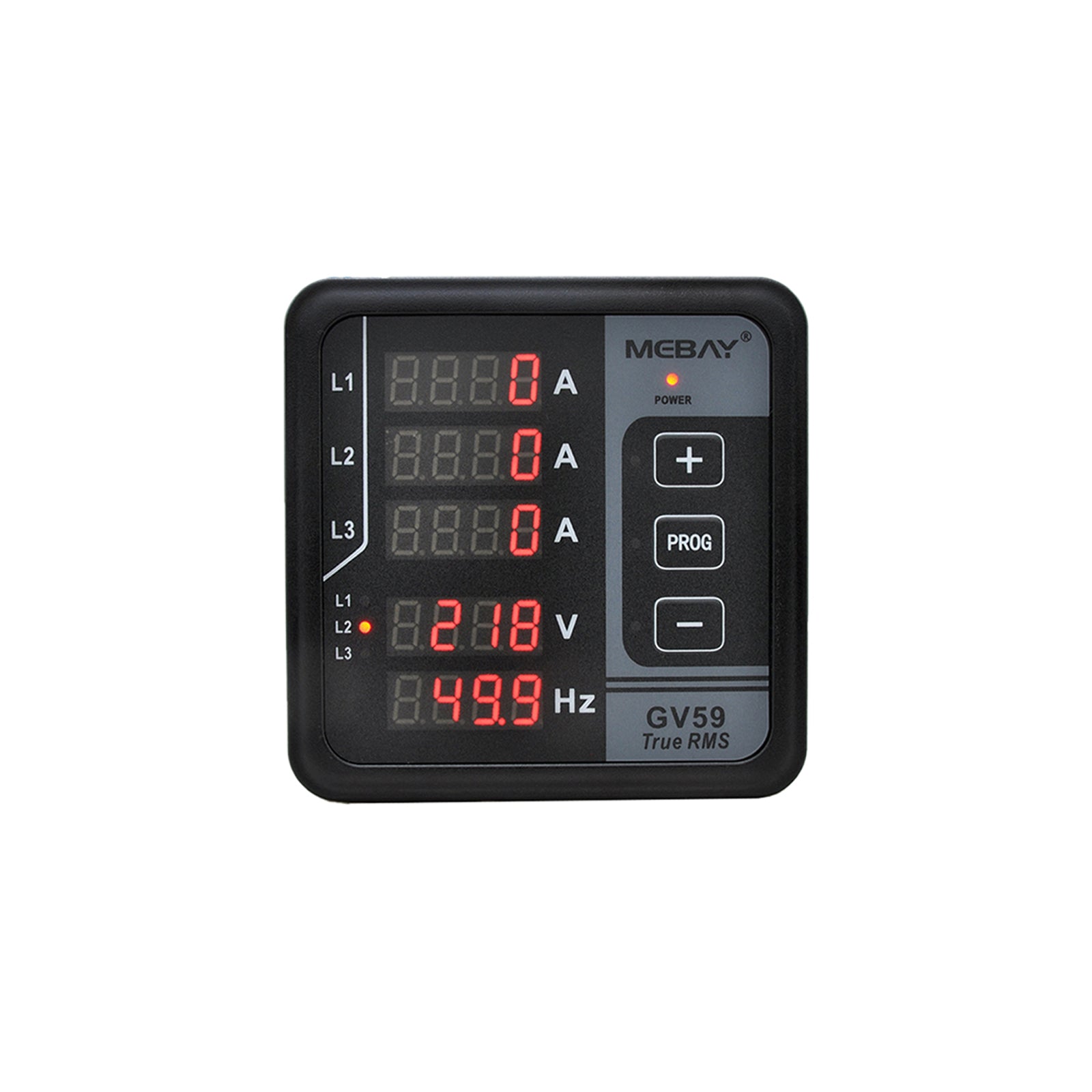

• Display: 5-group high-brightness red 4-digit LED digital tube
• Panel Cutout Size: 91 × 91 mm, overall dimension 100 × 100 × 77 mm
• Front Panel Protection Grade: IP54 dustproof & waterproof with silicone sealing gasket
• Operating Temperature: -25℃ ~ +65℃
• Warranty: 12 months genuine factory warranty
• Certifications: CE, ISO9001, EMC EN55032 IEC61000-4

Common Equipment Failures Solved

• LED screen no light after genset startup: Generator output voltage lower than AC165V working threshold, check AC wiring loose
• PC cannot connect via SG72A adapter: Confirm RS485 A/B wiring sequence, correct Modbus address matching
• No remote data upload to DT1000: Check Modbus communication baud rate consistent with DTU setting
• No alarm output under overvoltage/overcurrent fault: Alarm threshold parameter set out of range, re-calibrate via PROG button
• Need to monitor engine RPM/oil pressure/water temp: Match GM50HR engine multi-meter, GV59R only collects AC power data
• Need ATS automatic mains-generator switching: Select GM50HR/DC42D AMF genset controller, GV59R has no mains sampling function
• Old GV59 panel upgrade for remote monitoring: Direct replacement GV59R same installation size, no wiring modification needed
