LPG168 LPG CNG LNG Gas Genset Auto Start Controller LCD Hour Meter DC8-35V 12/24V Gas Valve Ignition Sequence Control

Name: LPG168 LPG CNG LNG Gas Genset Auto Start Controller LCD Hour Meter DC8-35V 12/24V Gas Valve Ignition Sequence Control
Brand: Wespc Technologies
SKU: LPG168
Price: 32.00 USD
Availability: InStock

$32.00 USD

~~$0.00 USD~~ $32.00 USD

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Cantidad

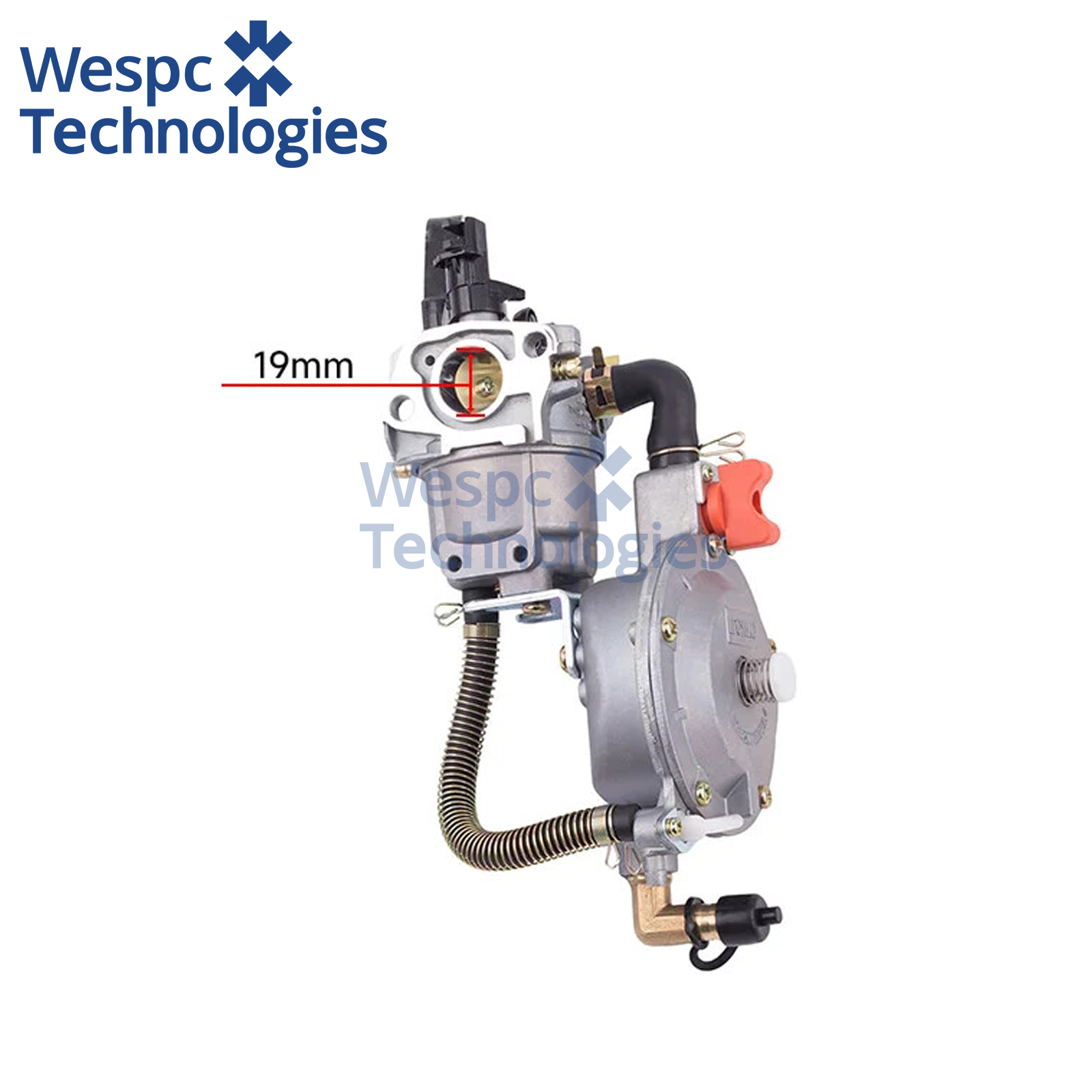

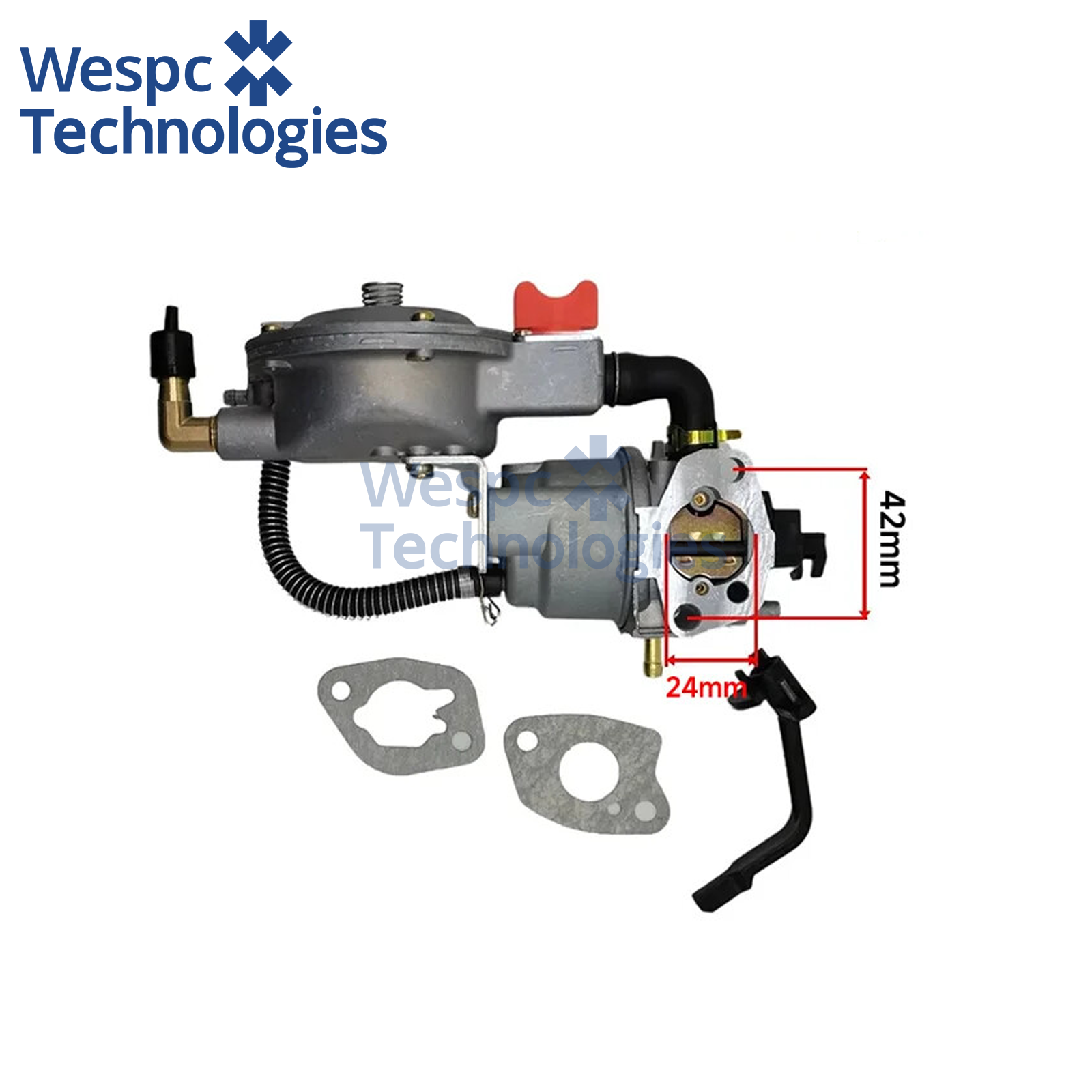

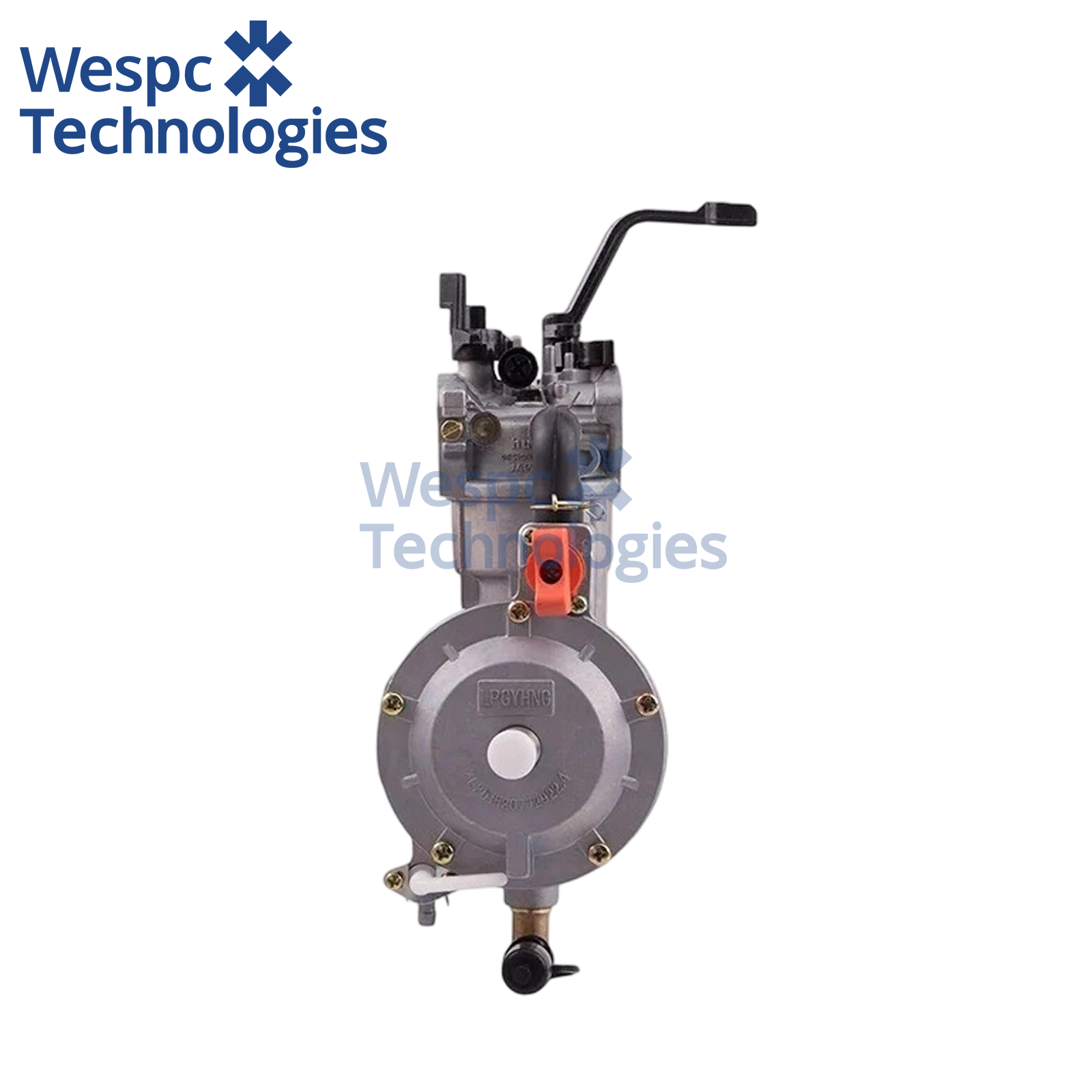

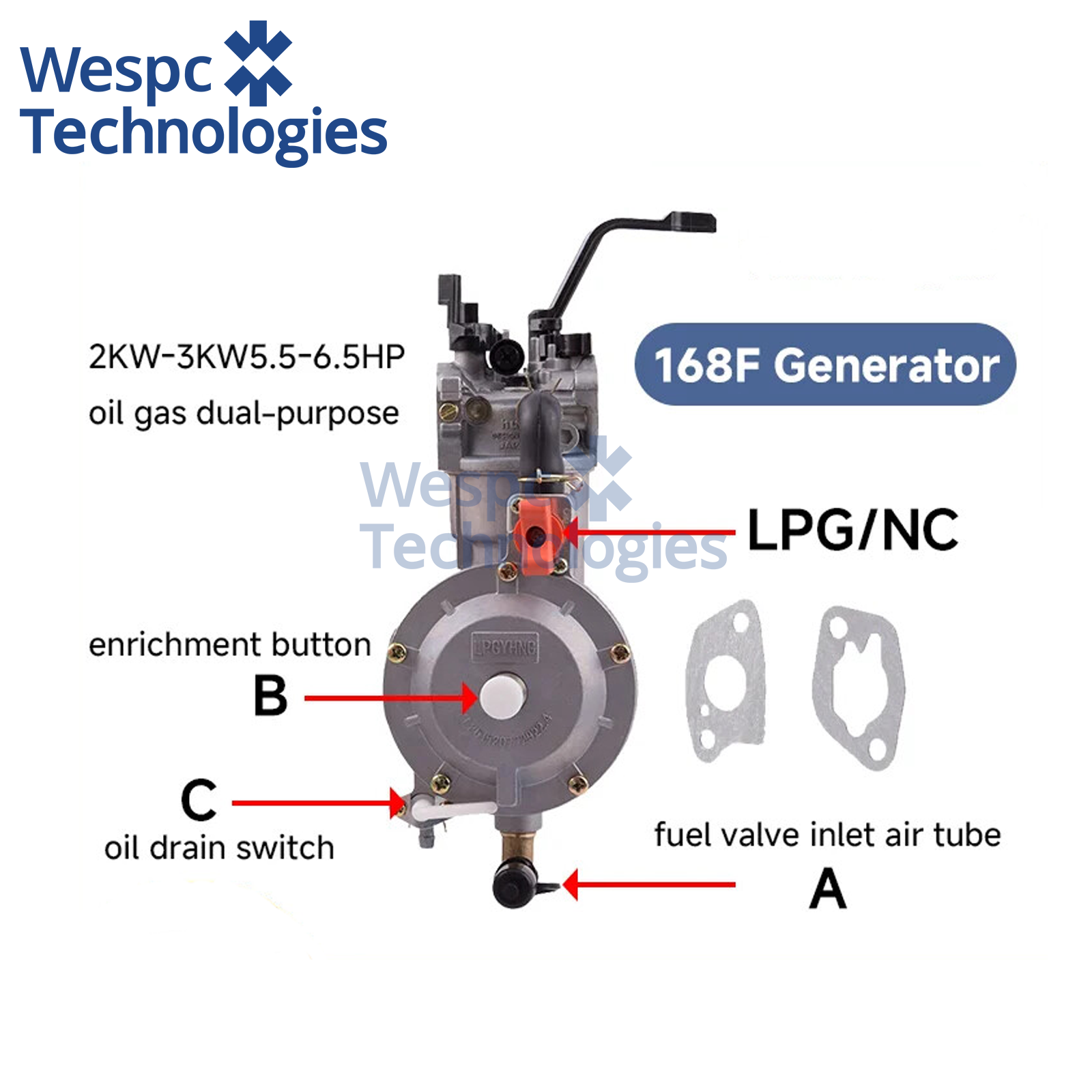

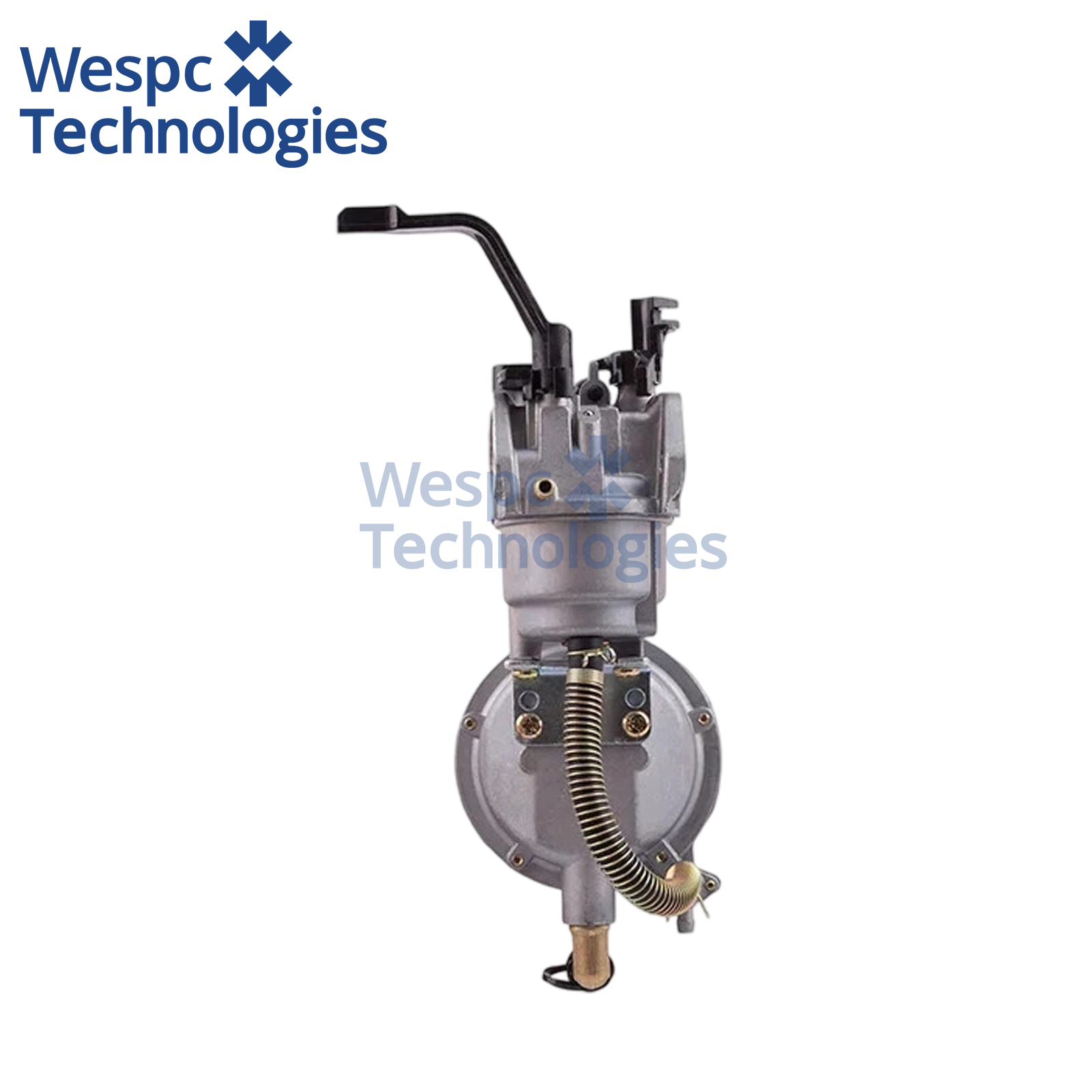

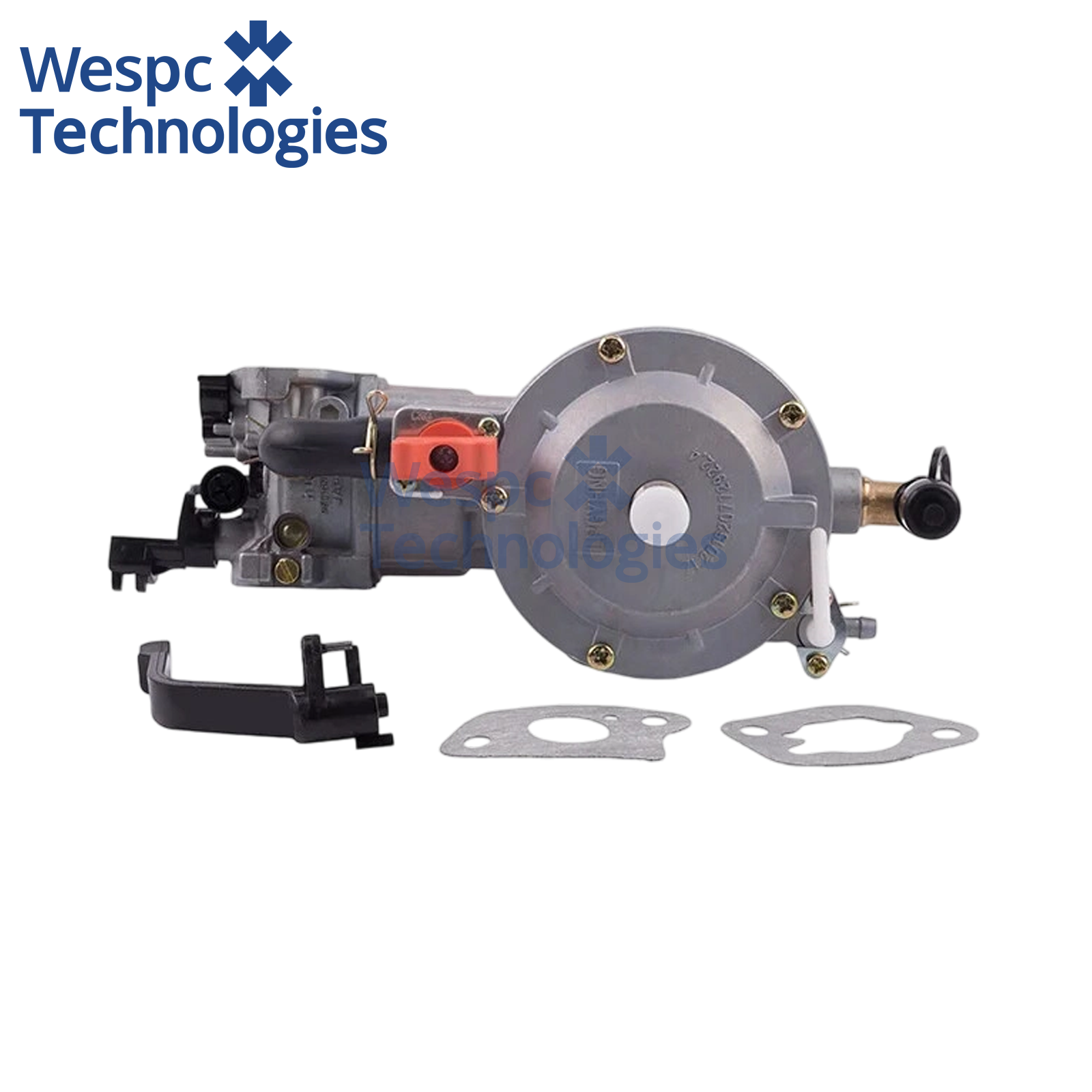

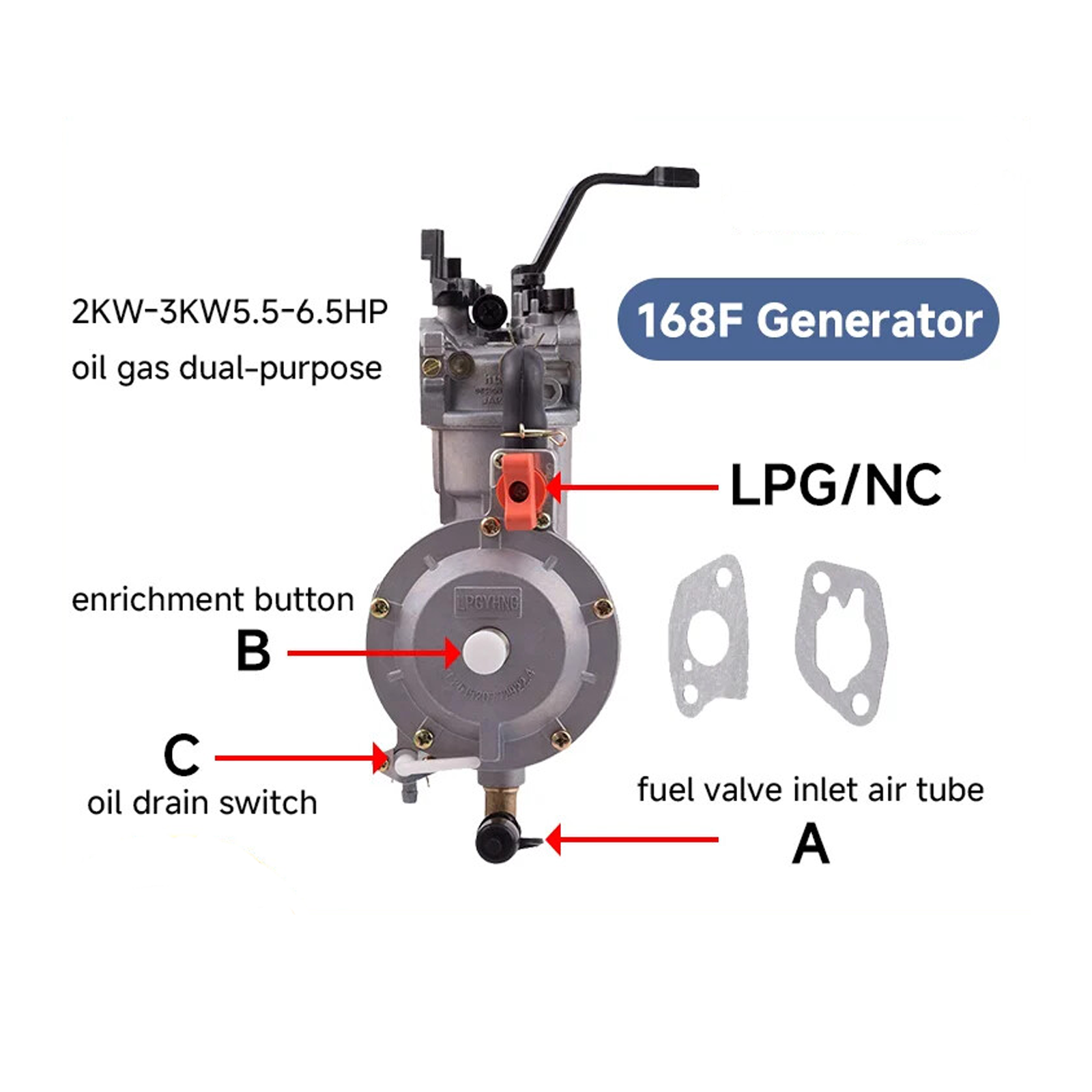

Brand New LPG168 Carburetor Kit Gasoline Generator Dual Fuel Carburetor Kit 3KW 168F 170F 6.5HP

Model Classification & Contrast

· LPG168: Gas exclusive controller (LPG/CNG/LNG/biogas, with gas valve & ignition sequence logic)
· HGM168HC: Diesel only, no gas purge & gas valve control function, cannot replace LPG168
· Upgrade AMF gas model: LPG220 (with mains monitoring & ATS auto transfer)

Product Specifications

· Model: Genuine Smartgen LPG168 Dedicated Gas Genset Auto Start Controller
· Power Supply: DC8~35V Universal 12/24V Gas Engine Battery
· Display: LED Fault Indicator + LCD Running Hour Counter
· Exclusive Gas Functions: Pre-purge Delay, Gas Solenoid Valve Output, Ignition Timing, Low Gas Pressure Protection
· Modes: MANUAL / AUTO / TEST Three Operation Modes
· Protections: Low Oil, High Temp, Overspeed, E-Stop, Loss Speed, Gas Fault, Charging Alarm
· Frequency: Internal Jumper Switchable 50/60Hz
· Mounting: 78×66mm Small Embedded Panel Installation, IP50 Front Panel
· Warranty: 12 Months Genuine Smartgen Factory Warranty

Three Working Modes

MANUAL: Local button manual start/stop, manual gas valve test
AUTO: Auto start by remote signal, auto gas purge & ignition sequence, cool-down stop after load cut off
TEST: No-load crank test for gas engine commissioning, check ignition & gas valve action

Mechanical & Environmental Parameters

· Overall Dimension: 84 × 72 × 35 mm
· Panel Cutout Size: 78 × 66 mm standard small embedded hole
· Front Panel Grade: IP50 dustproof
· Operating Temp: -30℃ ~ +70℃; Storage Temp: -40℃ ~ +85℃
· Humidity: ≤95% non-condensing

Wide Application Range

Small silent / open frame LPG, CNG, LNG, biogas gas generator sets without municipal mains ATS
Biogas farm power stations, natural gas backup power units, portable gas rental gensets
Old gas controller damaged, unable to control gas valve pre-purge, missing gas pressure protection replacement
Gas genset OEM low-cost complete set supporting, repair shop economical gas control spare parts stocking

Common Equipment Failures Solved

· Diesel HGM168 controller cannot control gas valve and pre-purge, serious gas safety hazard
· Old gas controller missing gas pressure protection, low gas supply leads to flameout and damage
· No auto ignition & gas valve sequential control, need manual gas opening before startup
· Narrow voltage controller fails to work on mixed 12/24V gas equipment
· No running hour meter, unable to schedule regular gas engine maintenance
