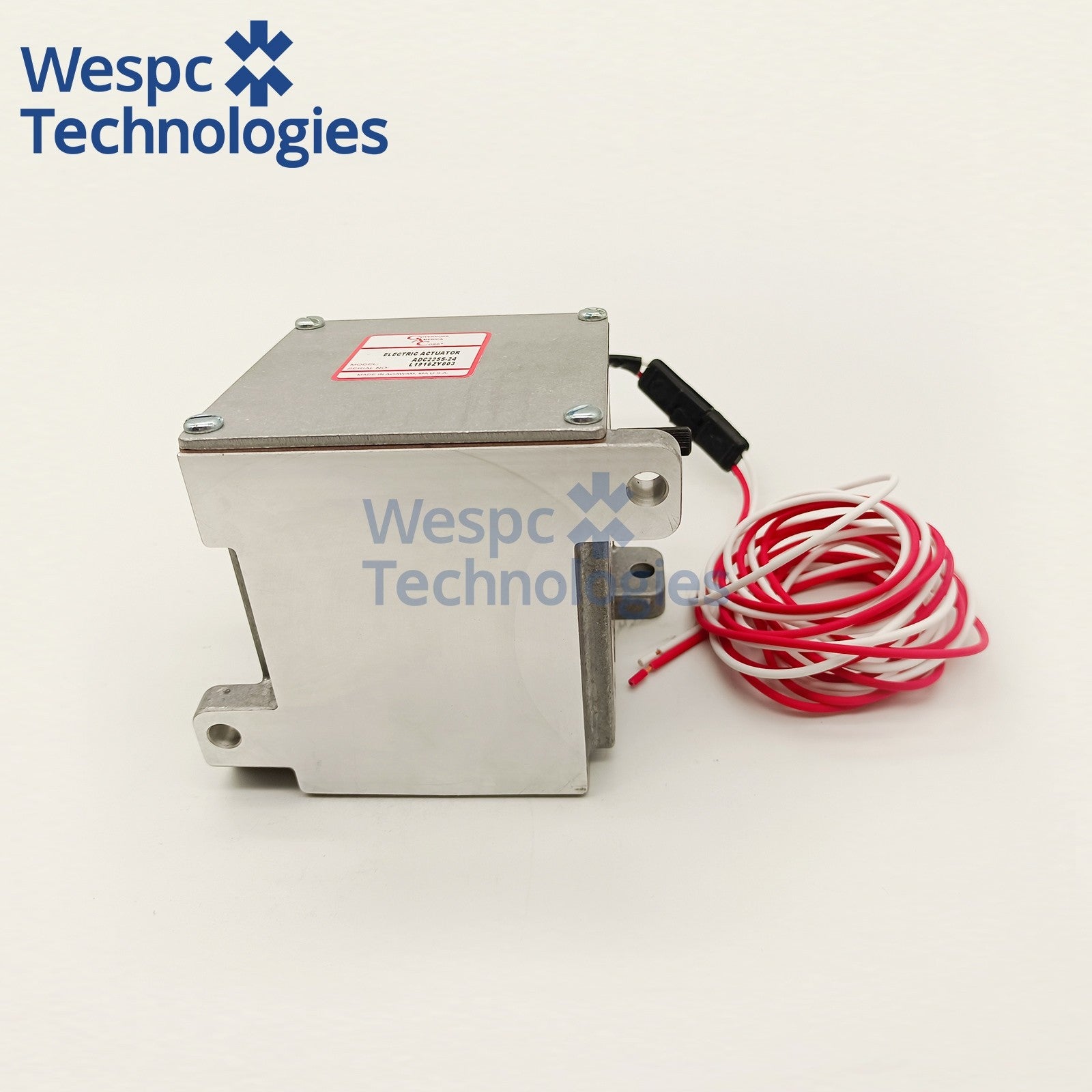

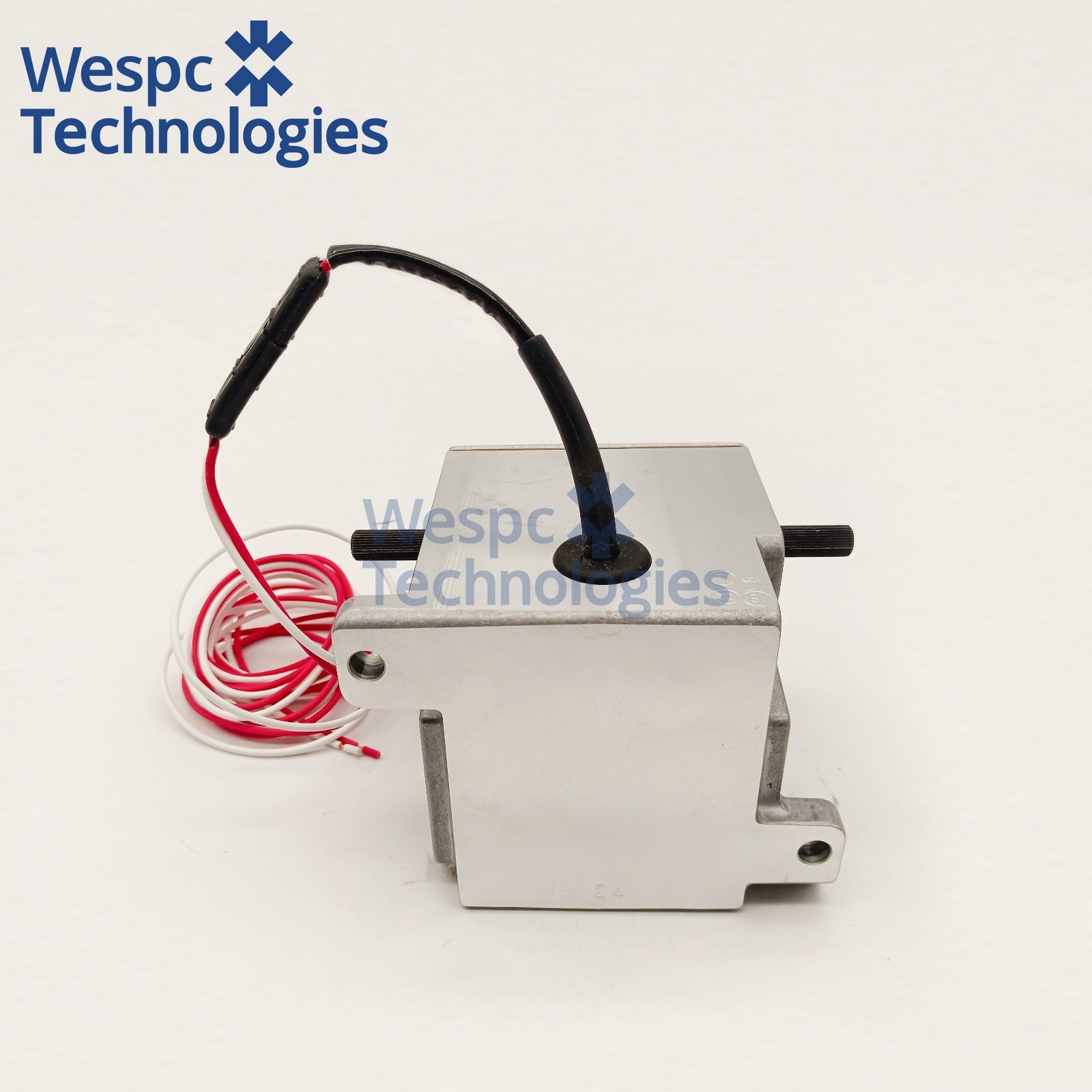

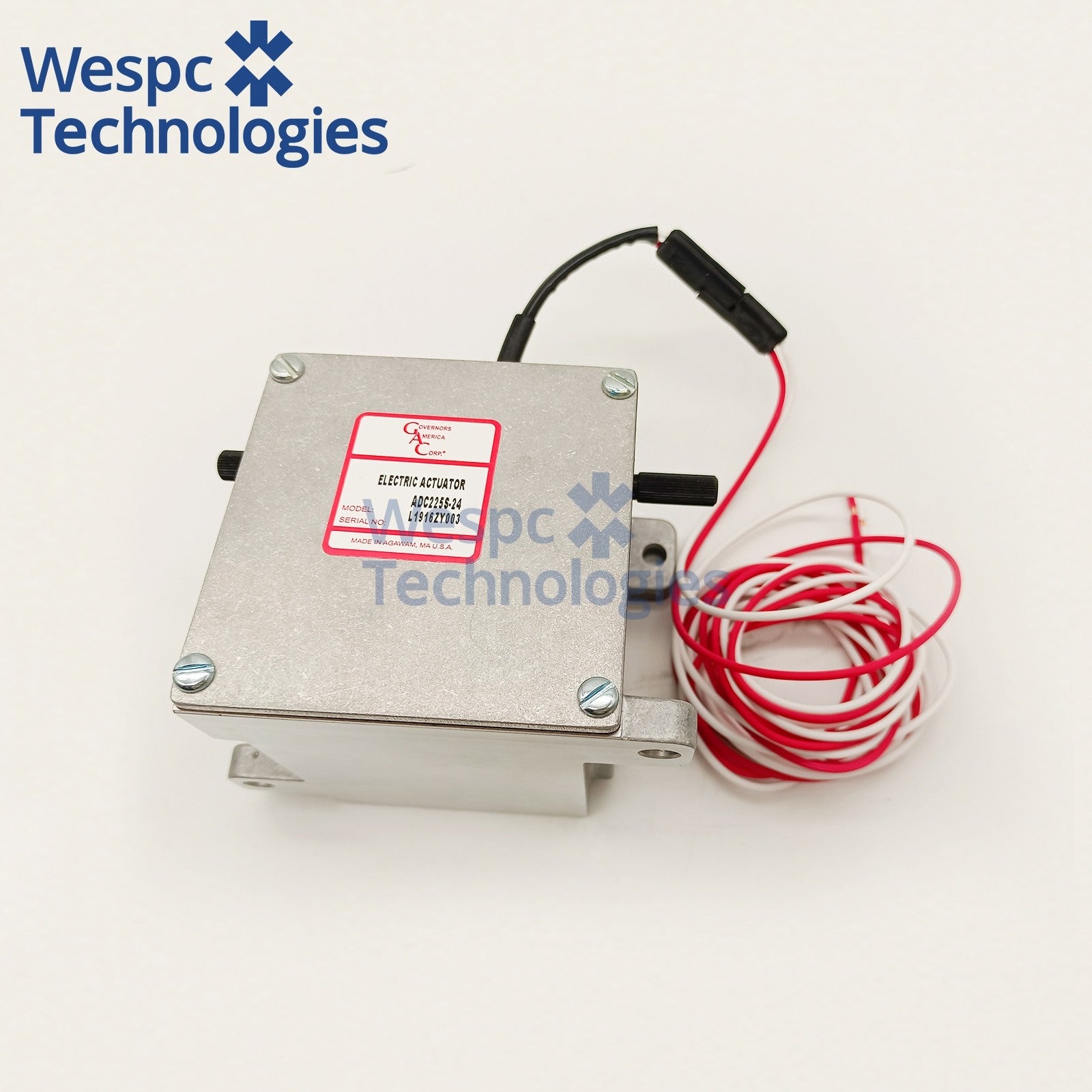

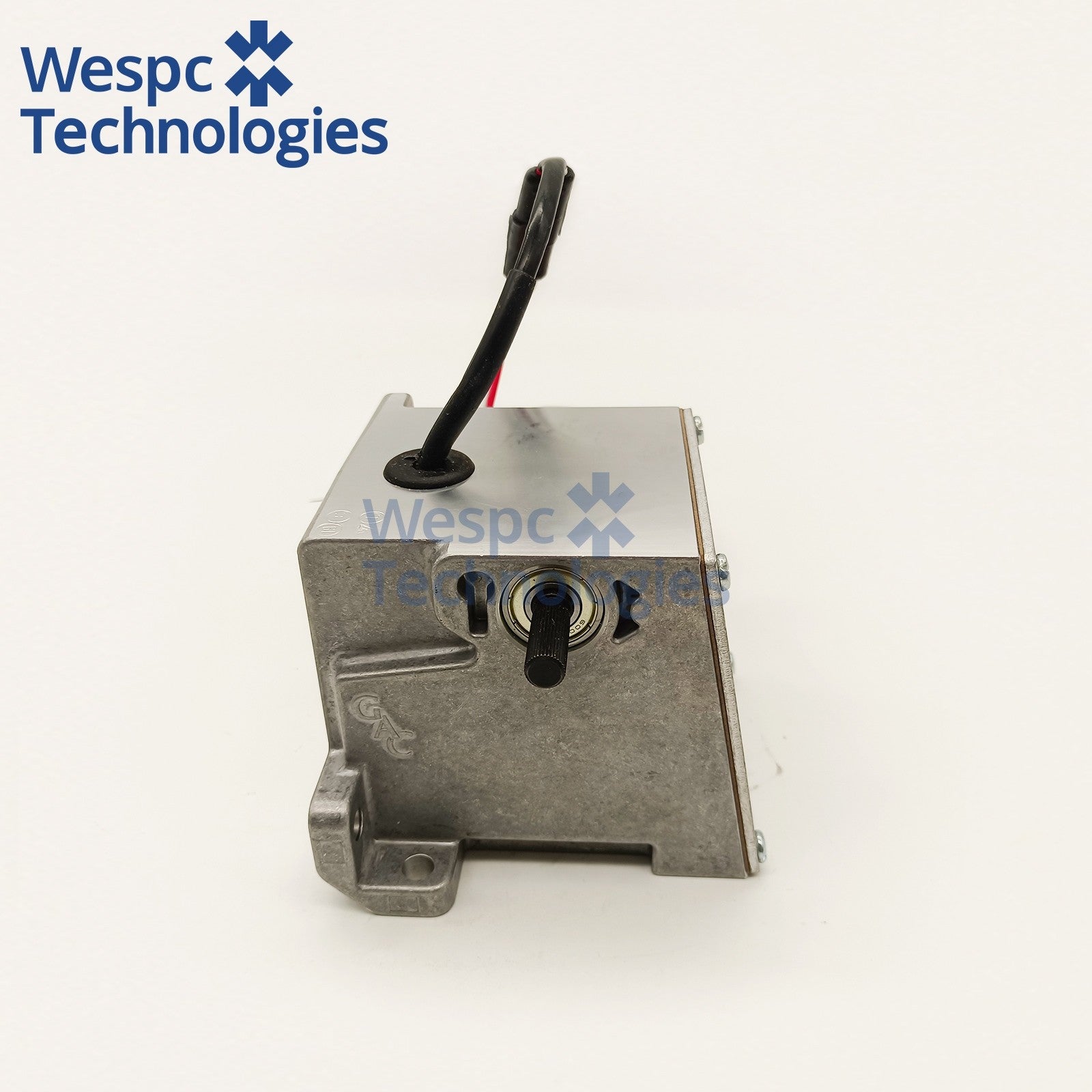

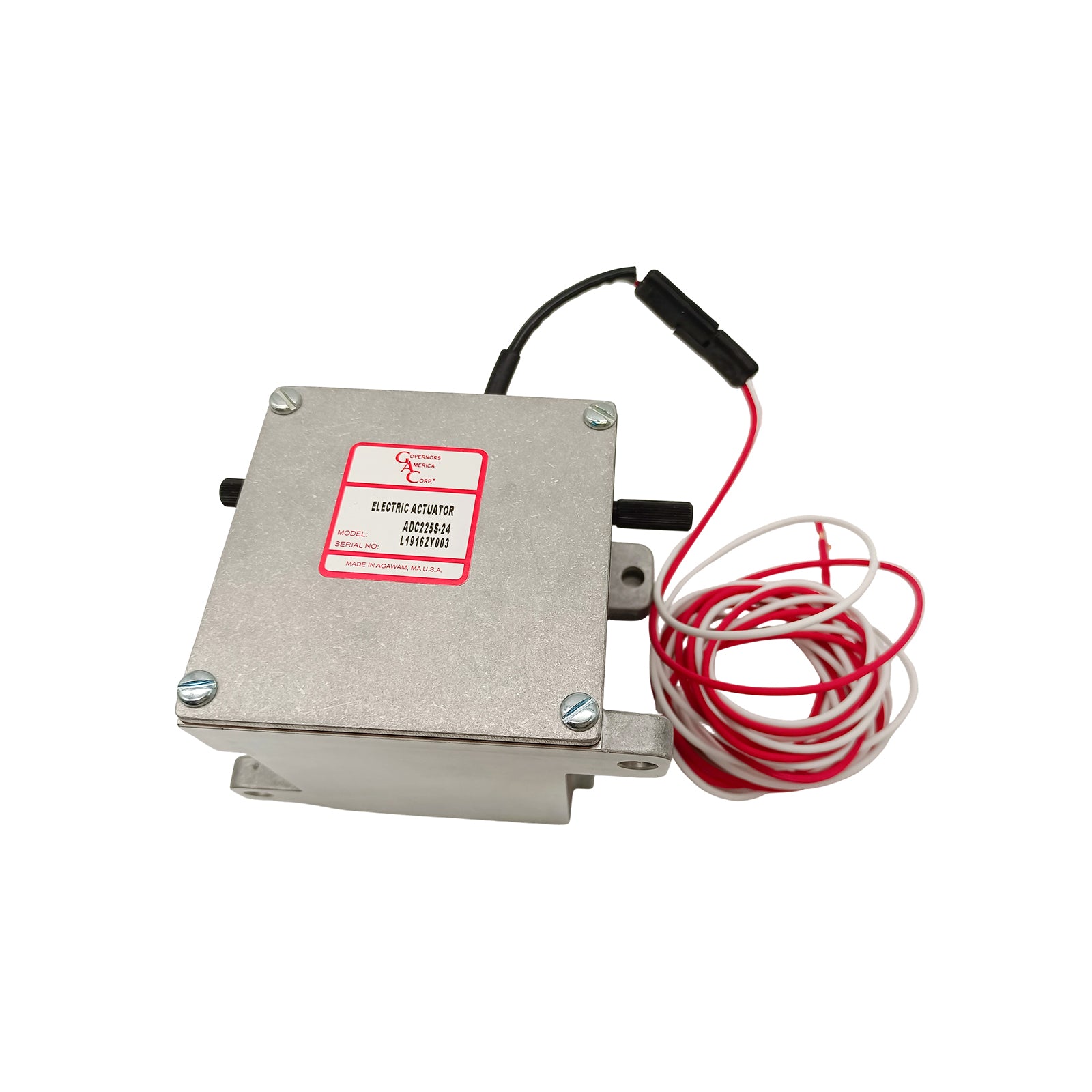

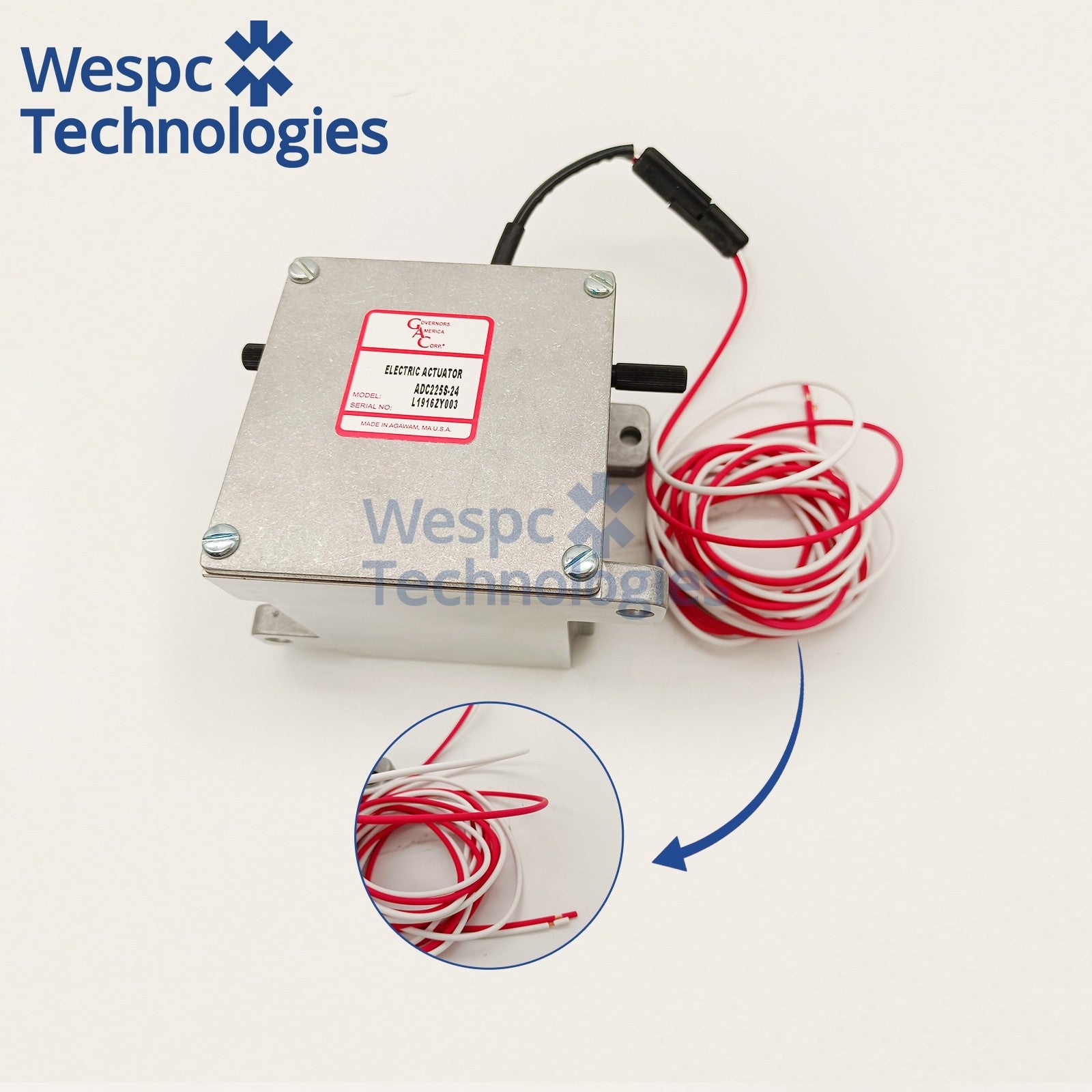

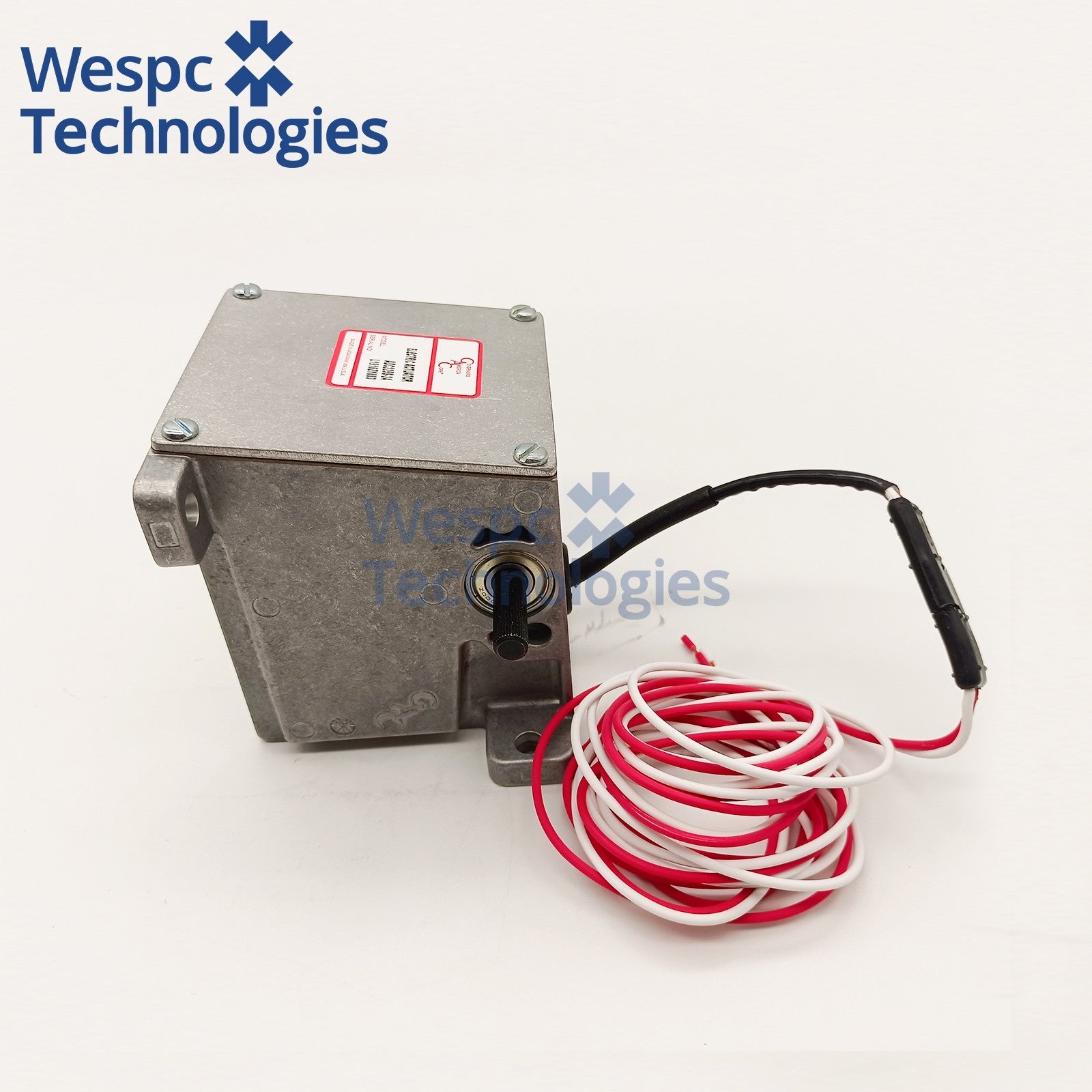

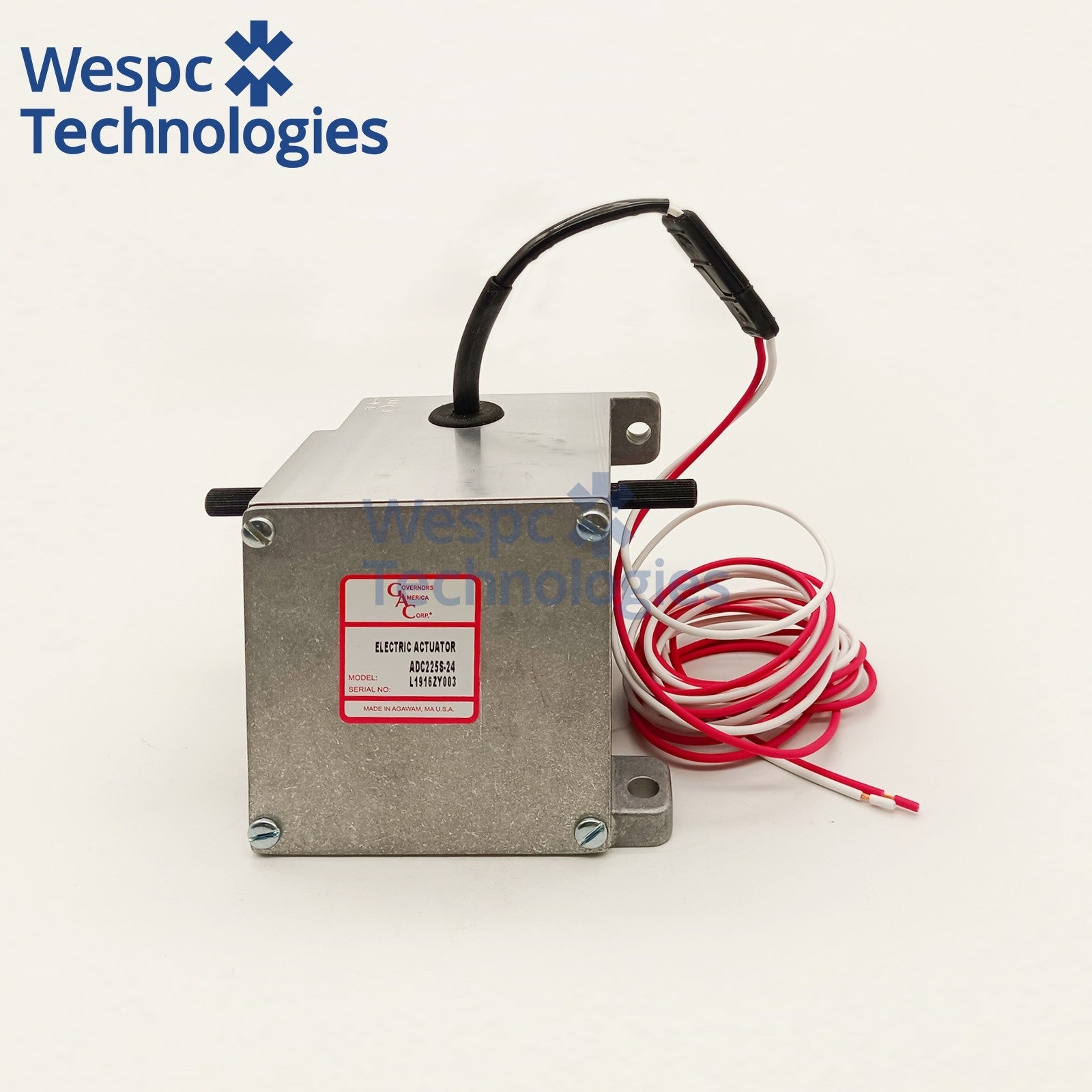

Original ADC225S-24 Electric Actuator 24V DC for Generator Engine Control The 225 Series electric actuator is a rotary output, linear torque, proportional servo that is typically used as an engine fuel control positioning device. The 225 combines fast operation, multi voltage usage, wider rotation angles, and proven reliability. This easy to install and maintain actuator is proven to outlive the life of the engine, and require virtually no maintenance once installed.
Specification
Model: ADC225S-24 Type: Electric Actuator Application: Generator engine speed control
225 Series Electric Universal Actuator
·24 V DC
·Return spring
·Easy installation, universal design
·Rapid response to transient
·Multiple mounting positions
·2.2 lbf·ft [3.0 N·m] torque, 25º rotation

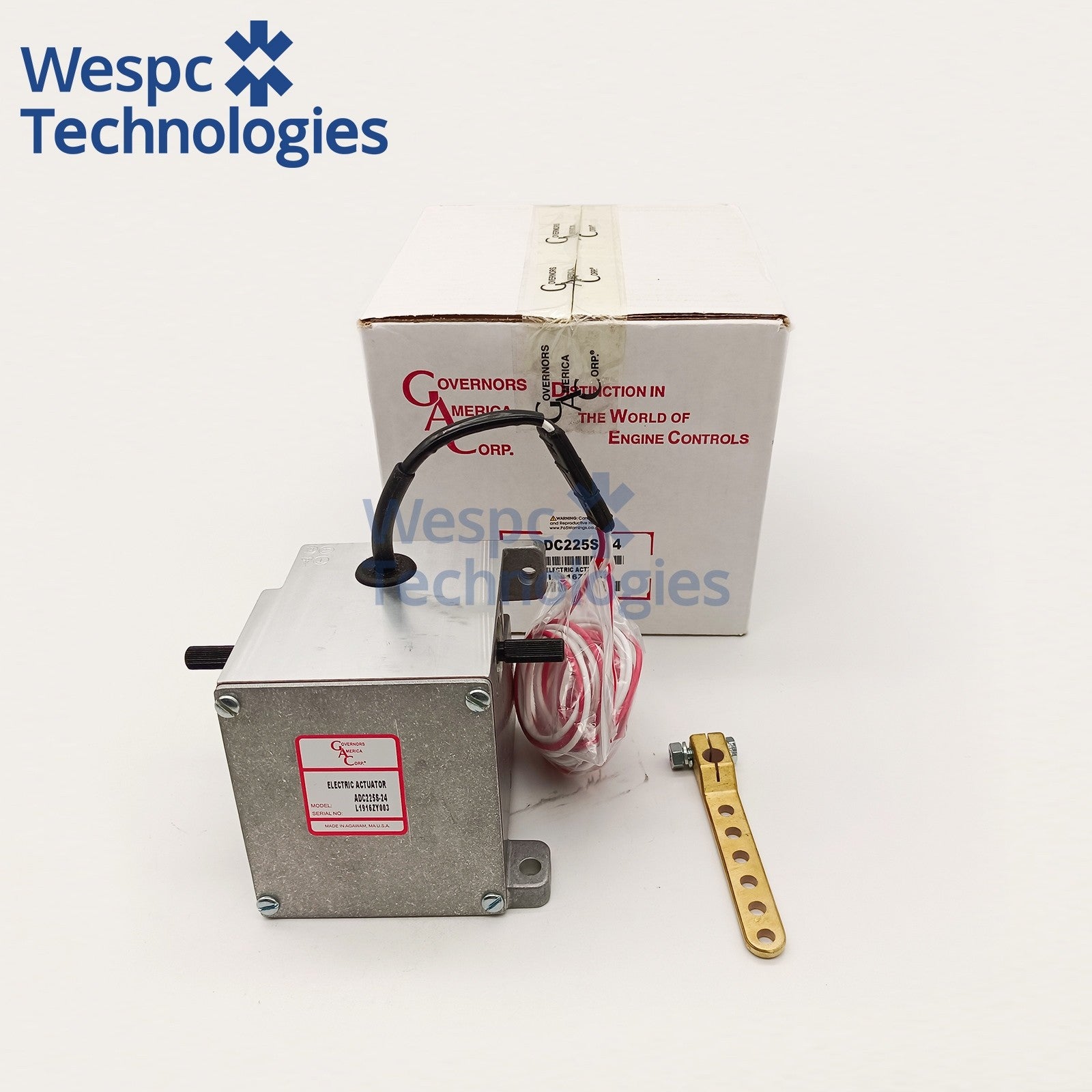

·Includes serrated shaft, lever (LE1400-2), and commercial connector with mating harness (CH251-2134)
• Internal Return Spring with optional rates
• 2.2 lb. ft. Torque
• 25° Rotation with ADC225GAS offering greater travel
• Rapid Response to Transients
• Multiple Mounting Positions
• Universal Design
• High Temperature coil is available (ADC225KS)
A universal solution to fuel injected pumps, with or without mechani cal governors, rotary type pumps, and medium sized gaseous fueled engines. The 225 is a great alternative to the 176 series.
