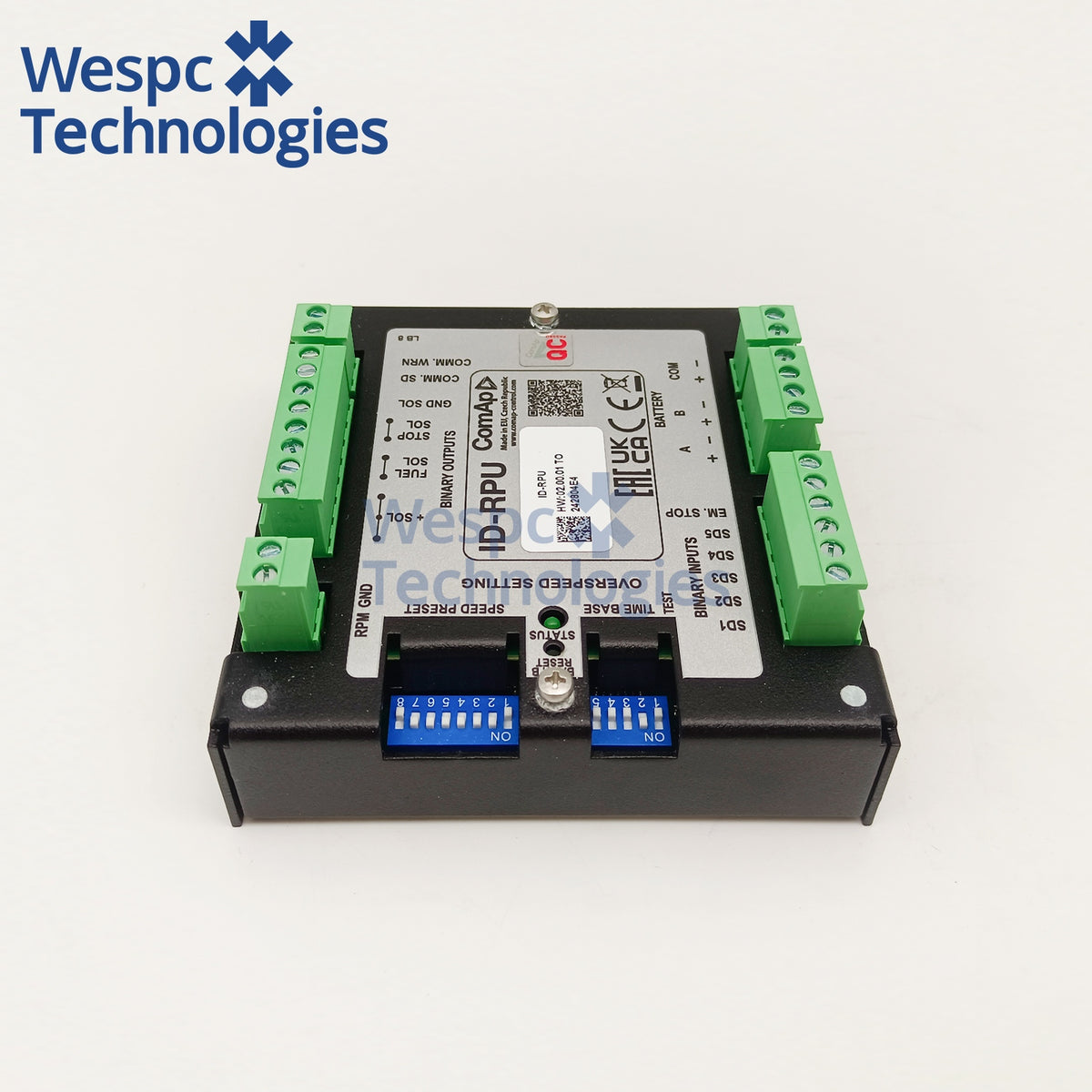

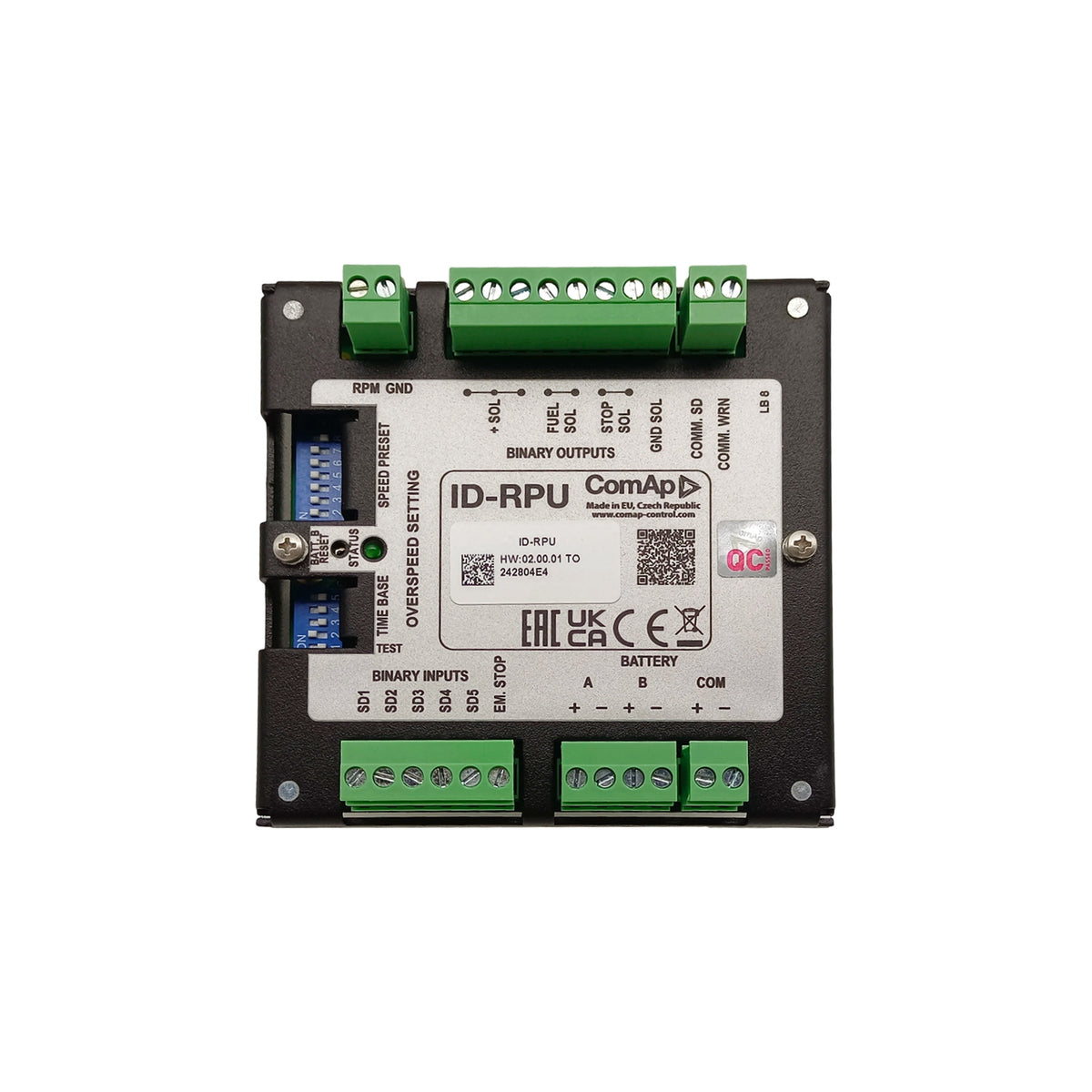

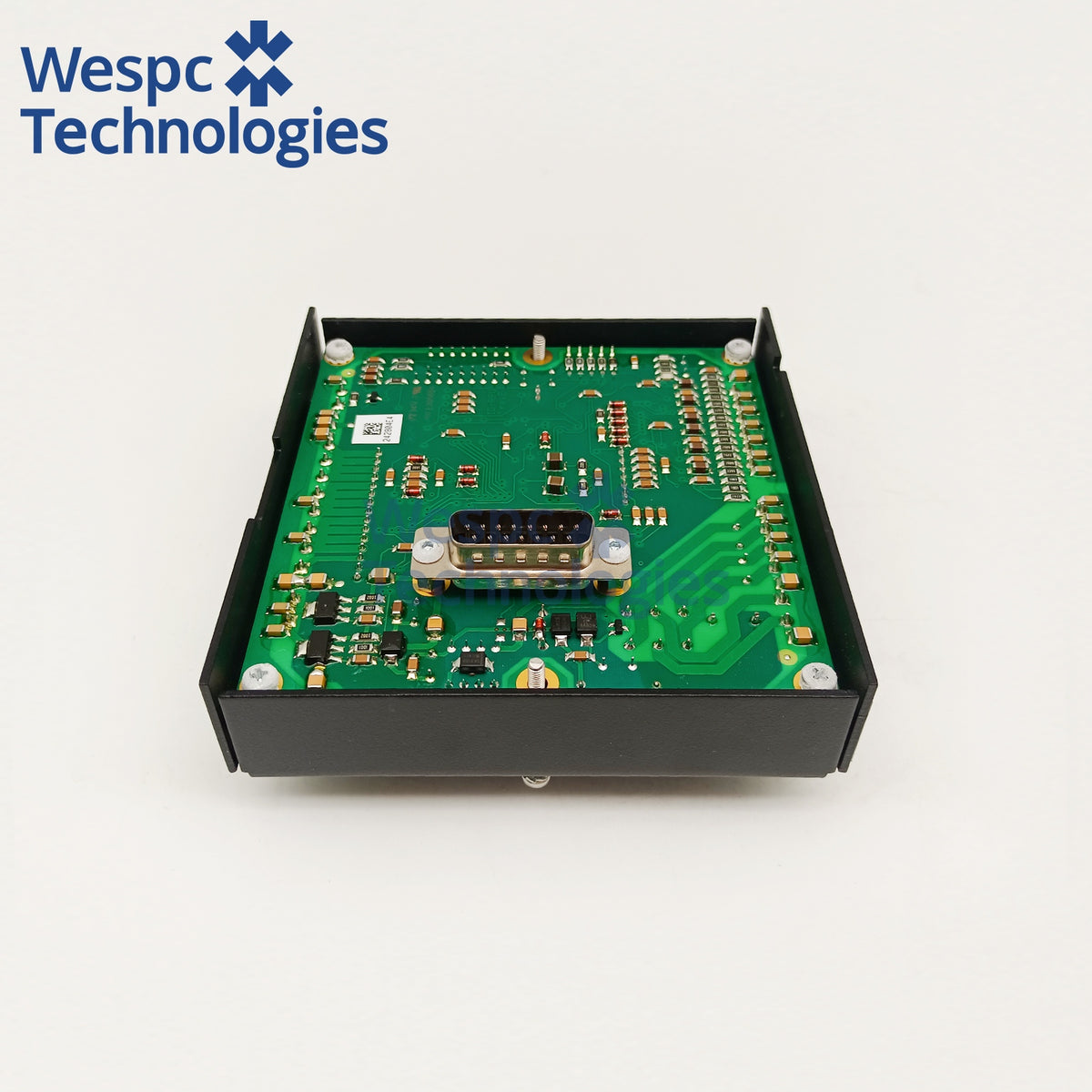

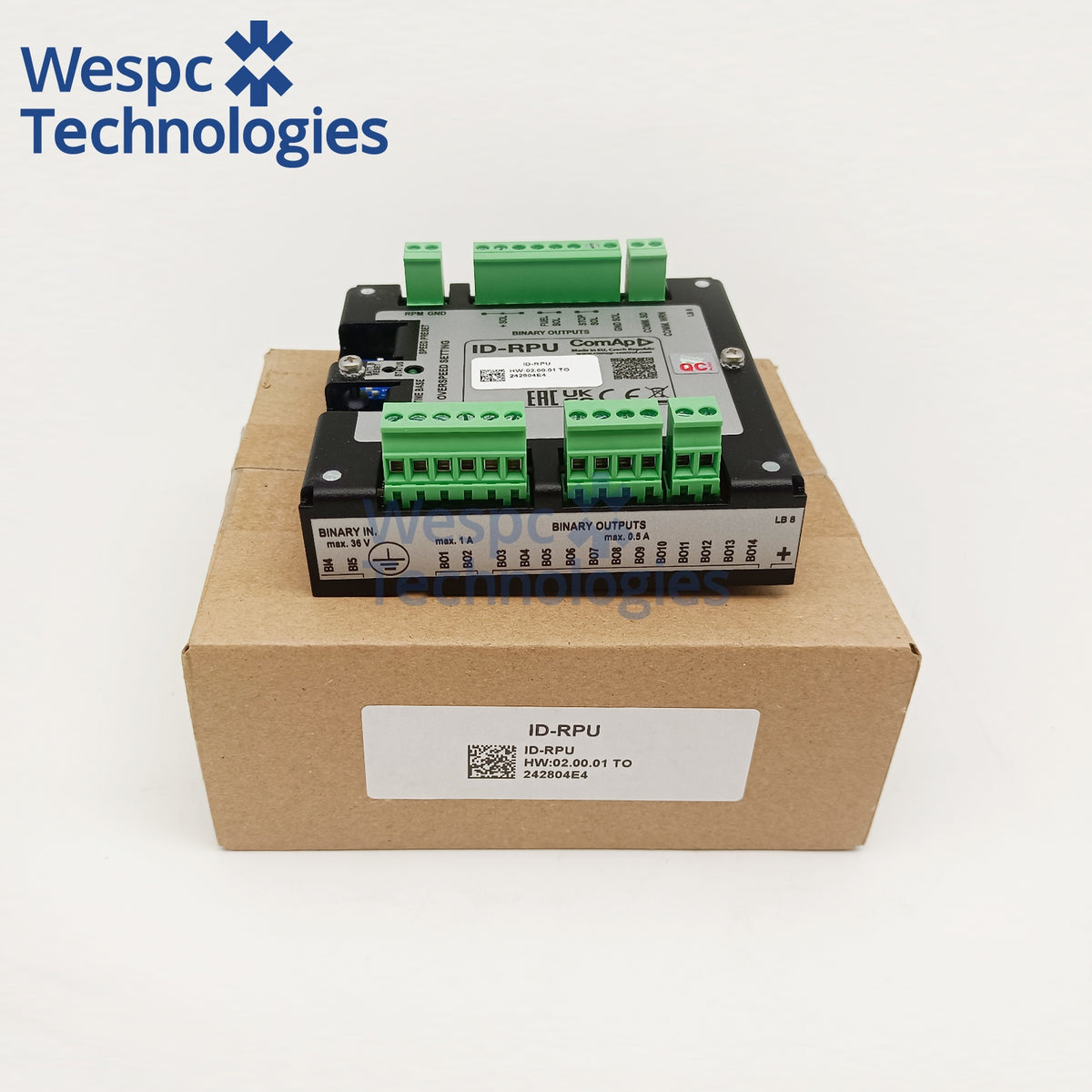

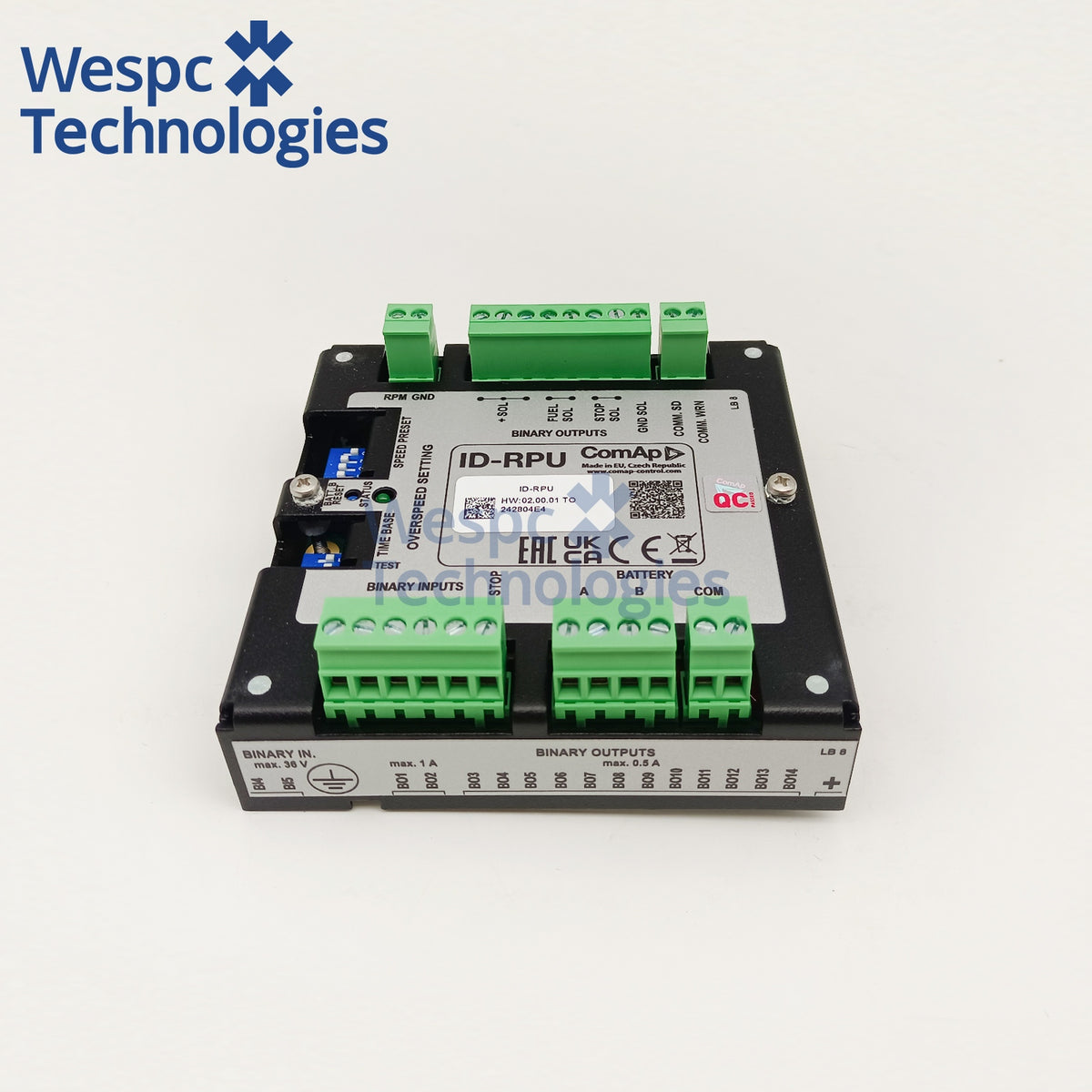

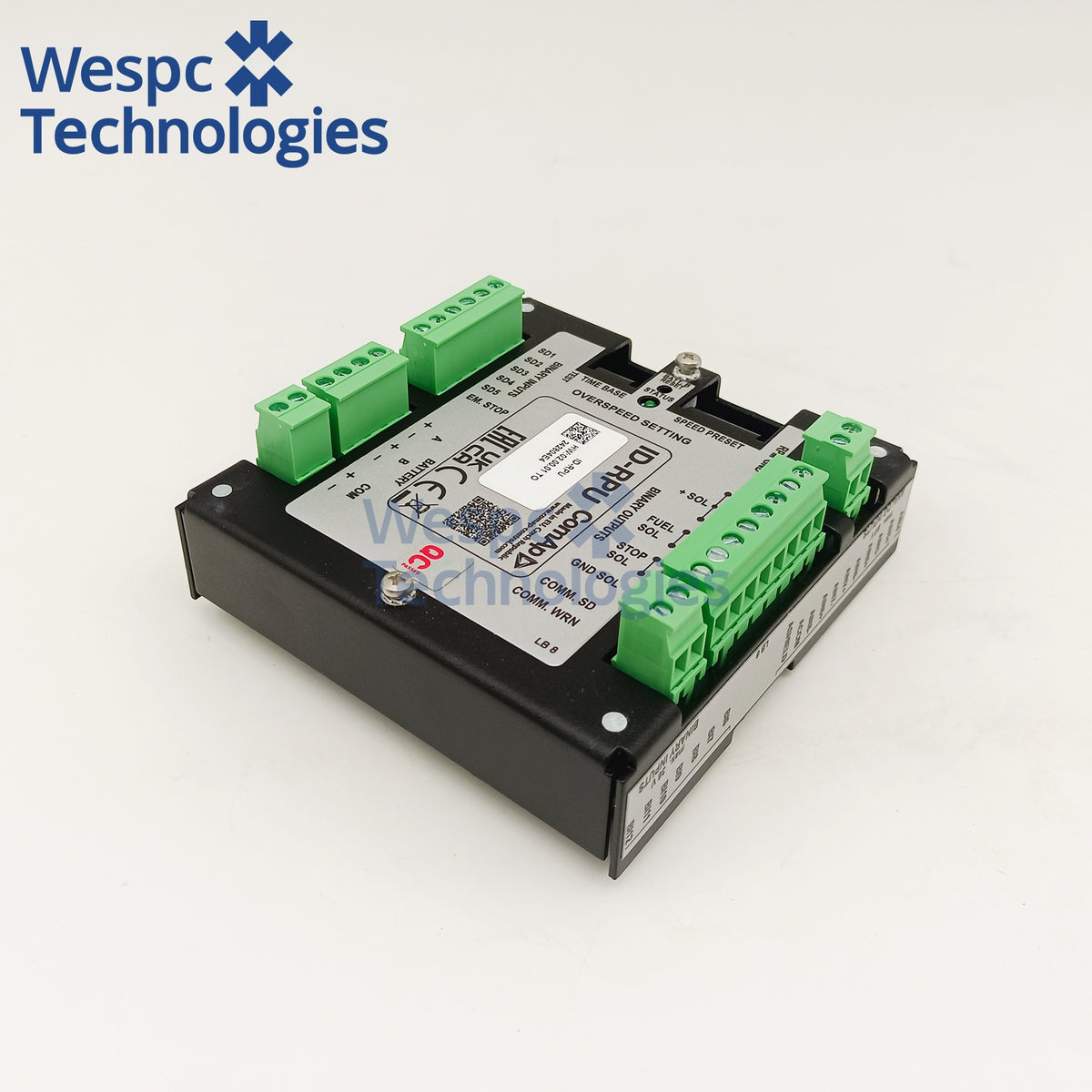

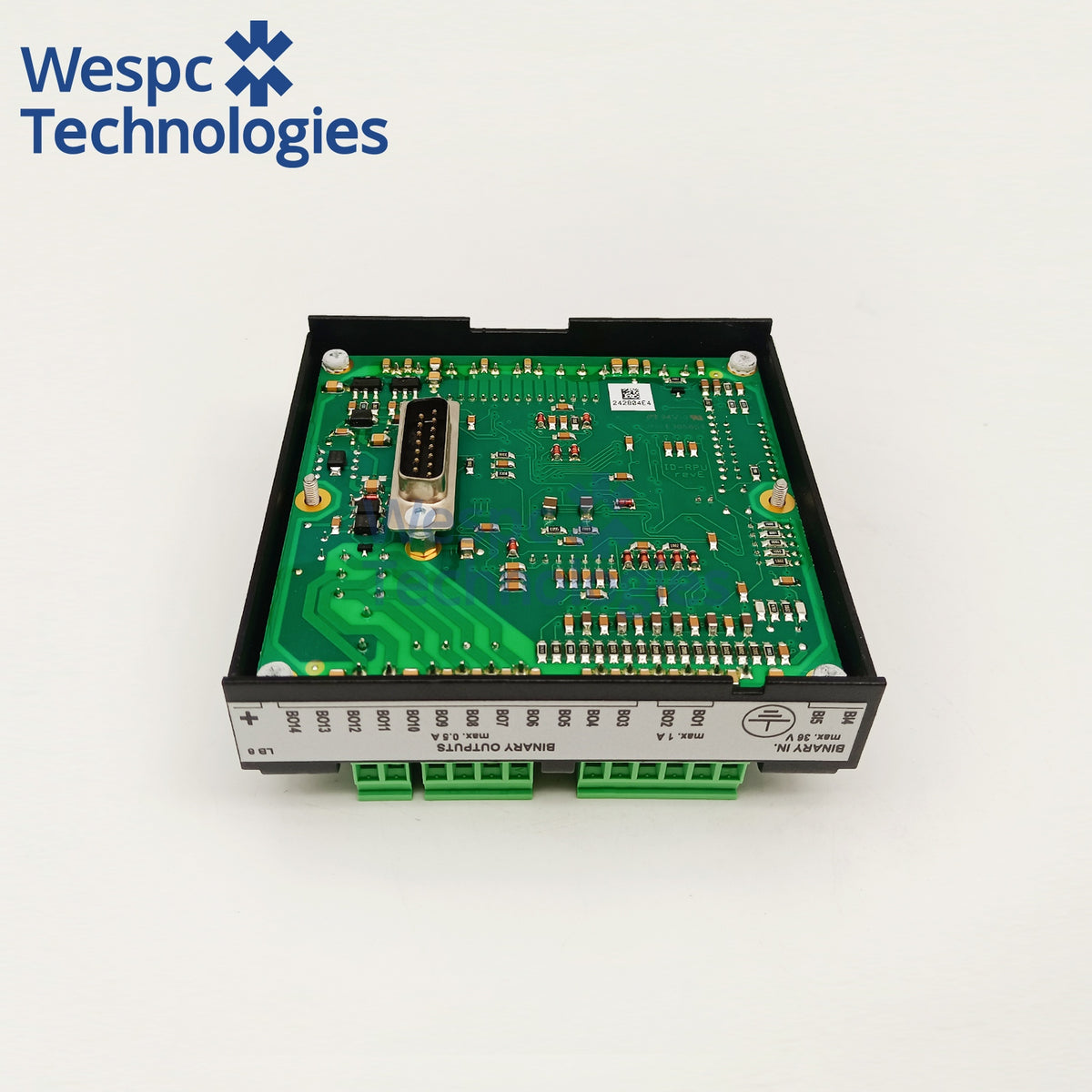

Original ComAp ID-RPU InteliDrive Redundancy Protection Unit For Comap Generator Controller Genset Remote Display & Control Panel
Overview:
Redundant engine protection unit for InteliDrive DCU Marine controller
Backup module for marine engines
Automatic switchover between primary and secondary power supply
Monitors function of main InteliDrive unit
In case of main unit failure switches to the backup mode and protects the engine
RPM input with hardwired overspeed protection
5 shutdown channels with Broken Wire detection
Fuel and Stop solenoids with BW detection
Specifications
‑ Model No.: ID-RPU
‑ Brand: ComAp
‑ Item Type: InteliDrive Redundancy Protection Unit
‑ Function: Remote data display, fault alarm indication, remote start and stop control
‑ Application: Matched with Comap generator controllers for diesel genset cabinet
‑ Power Supply: 24VDC or power via communication cable
‑ Mounting: Panel cutout mounting
‑ Condition: Brand New Original ‑ Dimension: 110*110*46cm
‑ Net weight: 0.3kg
‑ Package: 1 × ID-RPU Remote Power Unit
‑ Warranty: 12-month warranty
