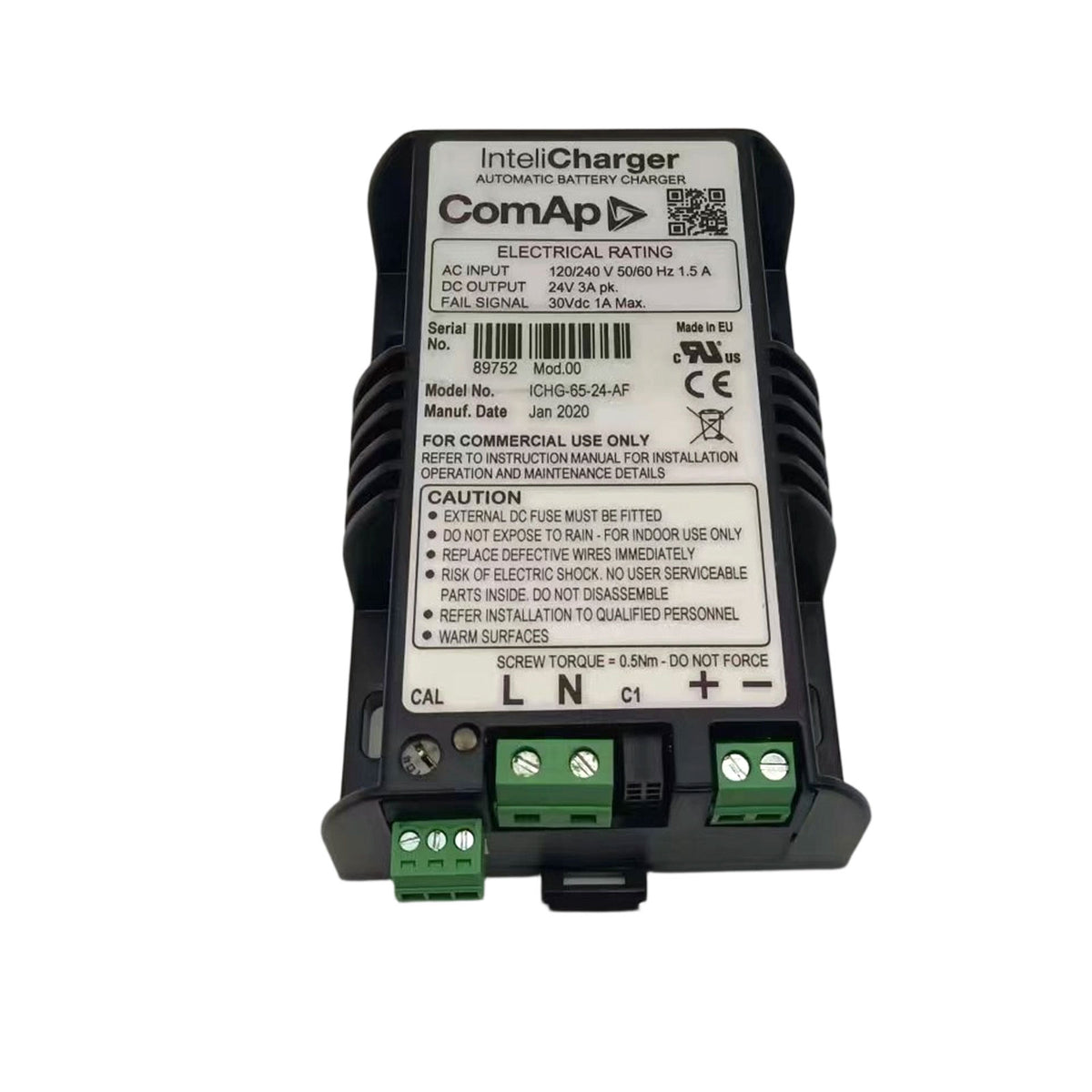

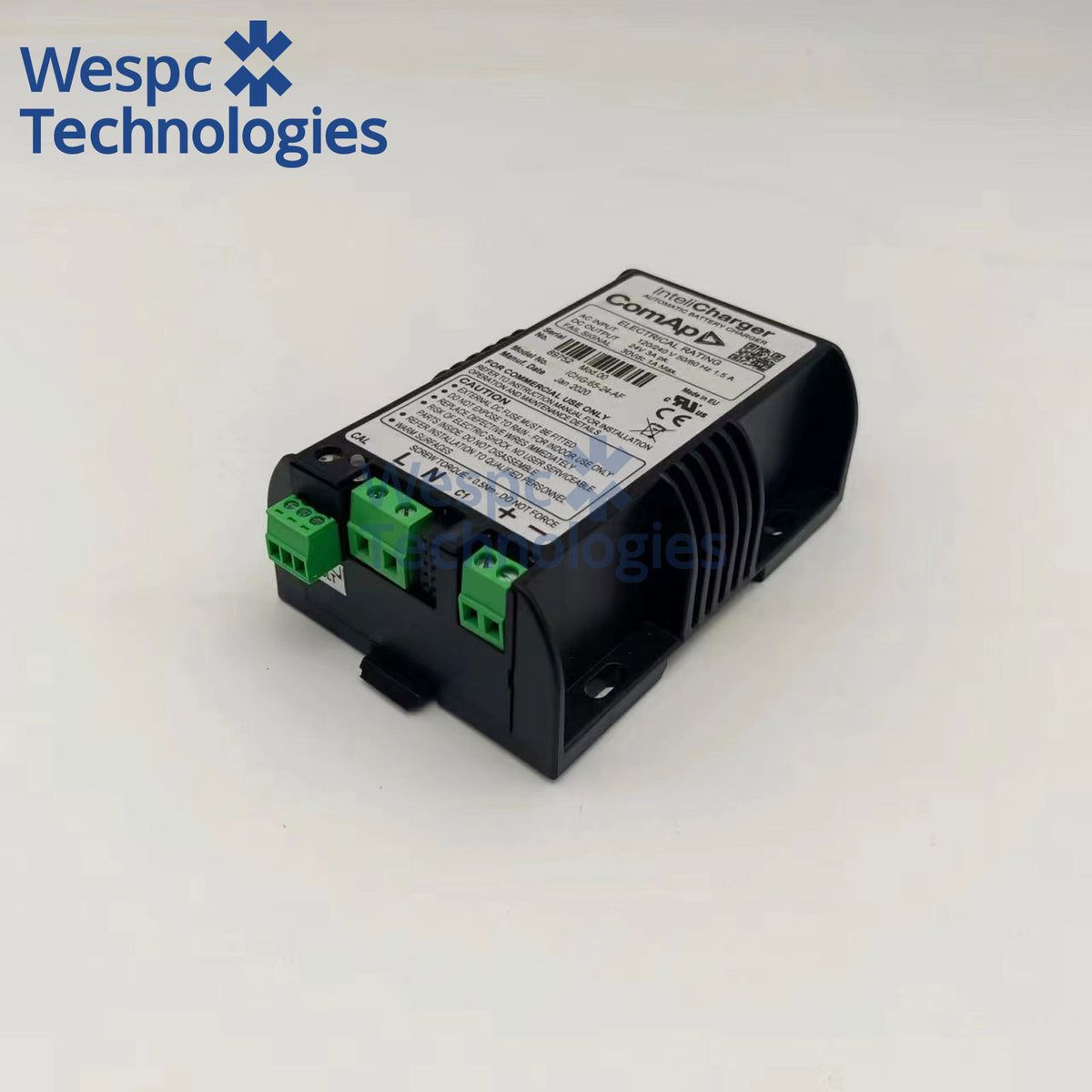

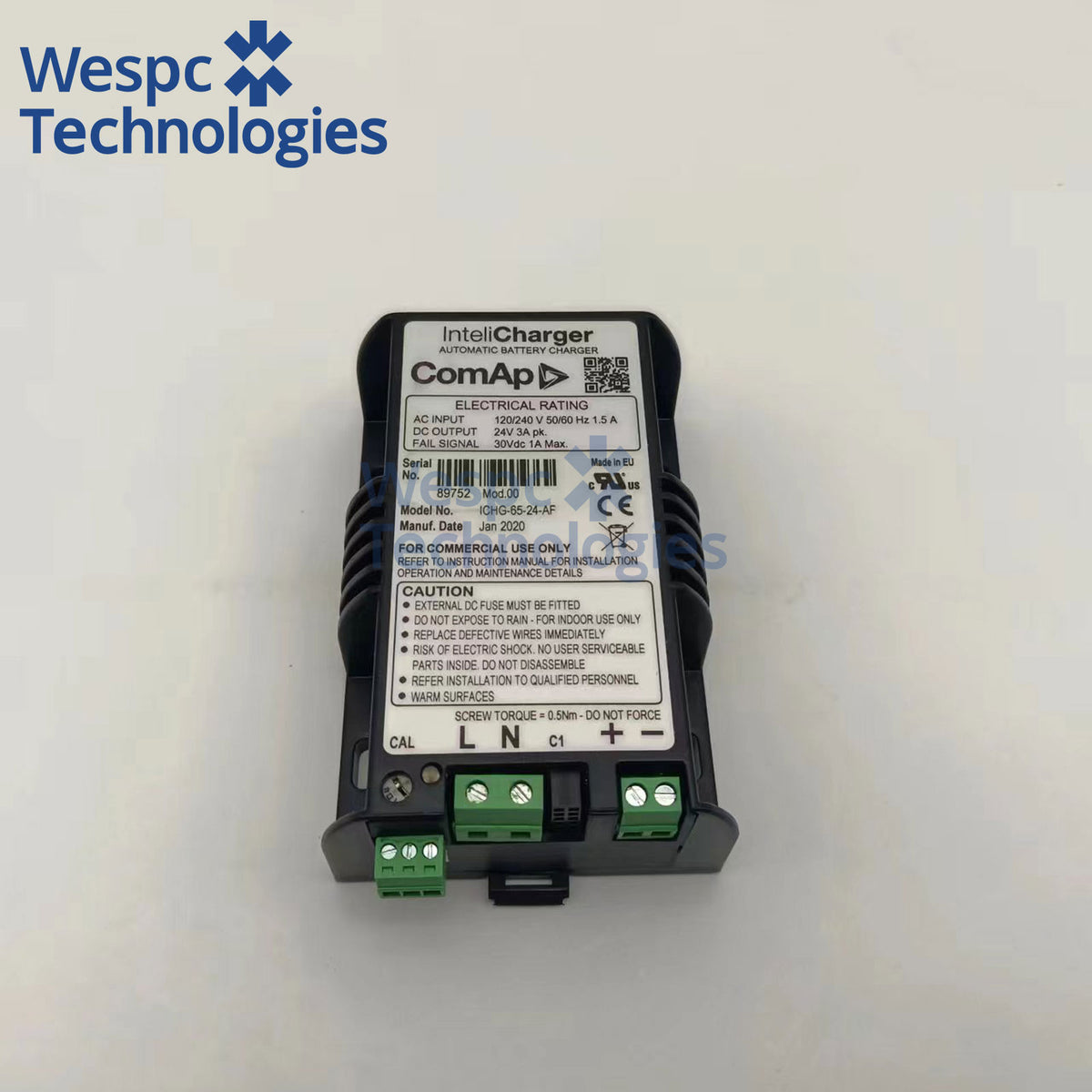

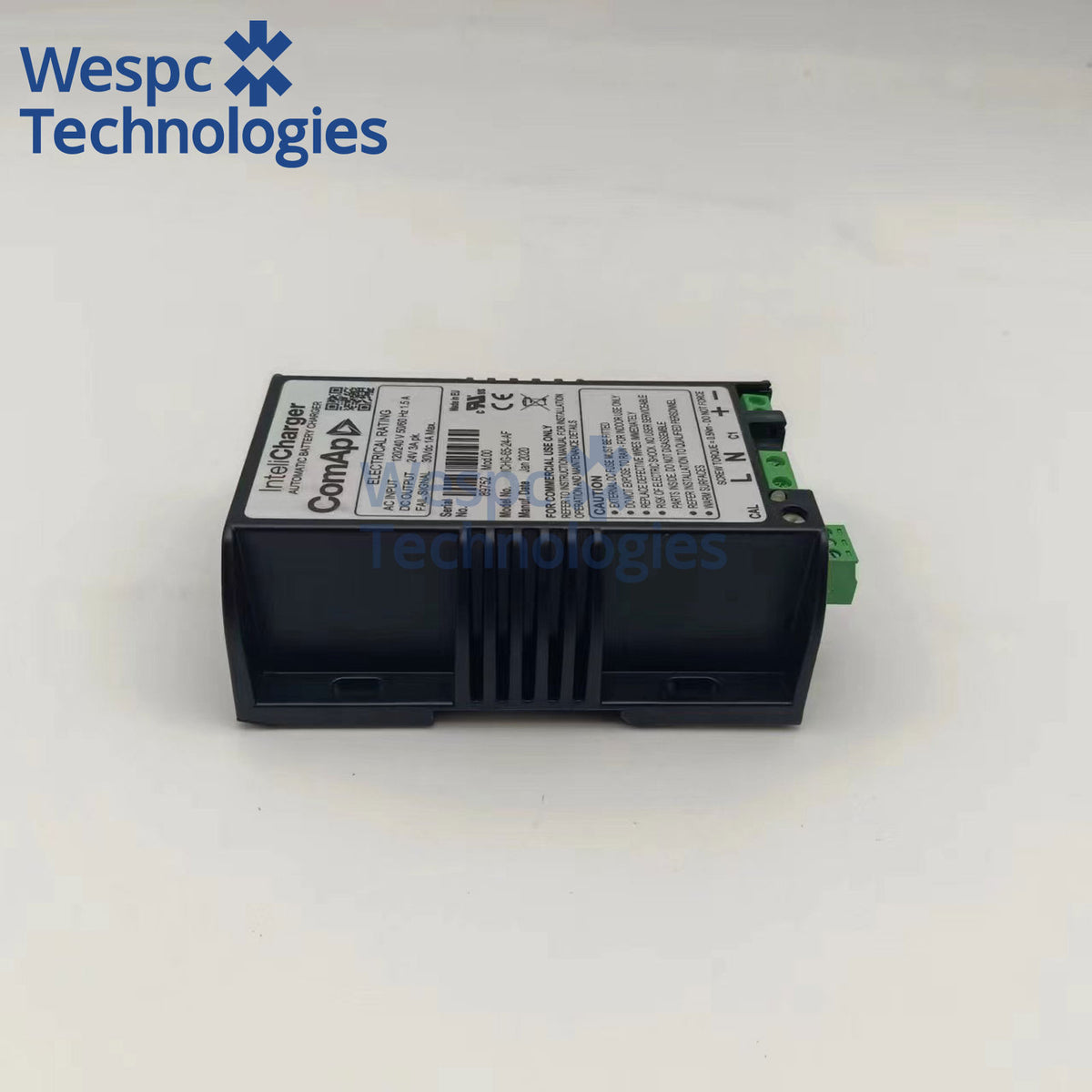

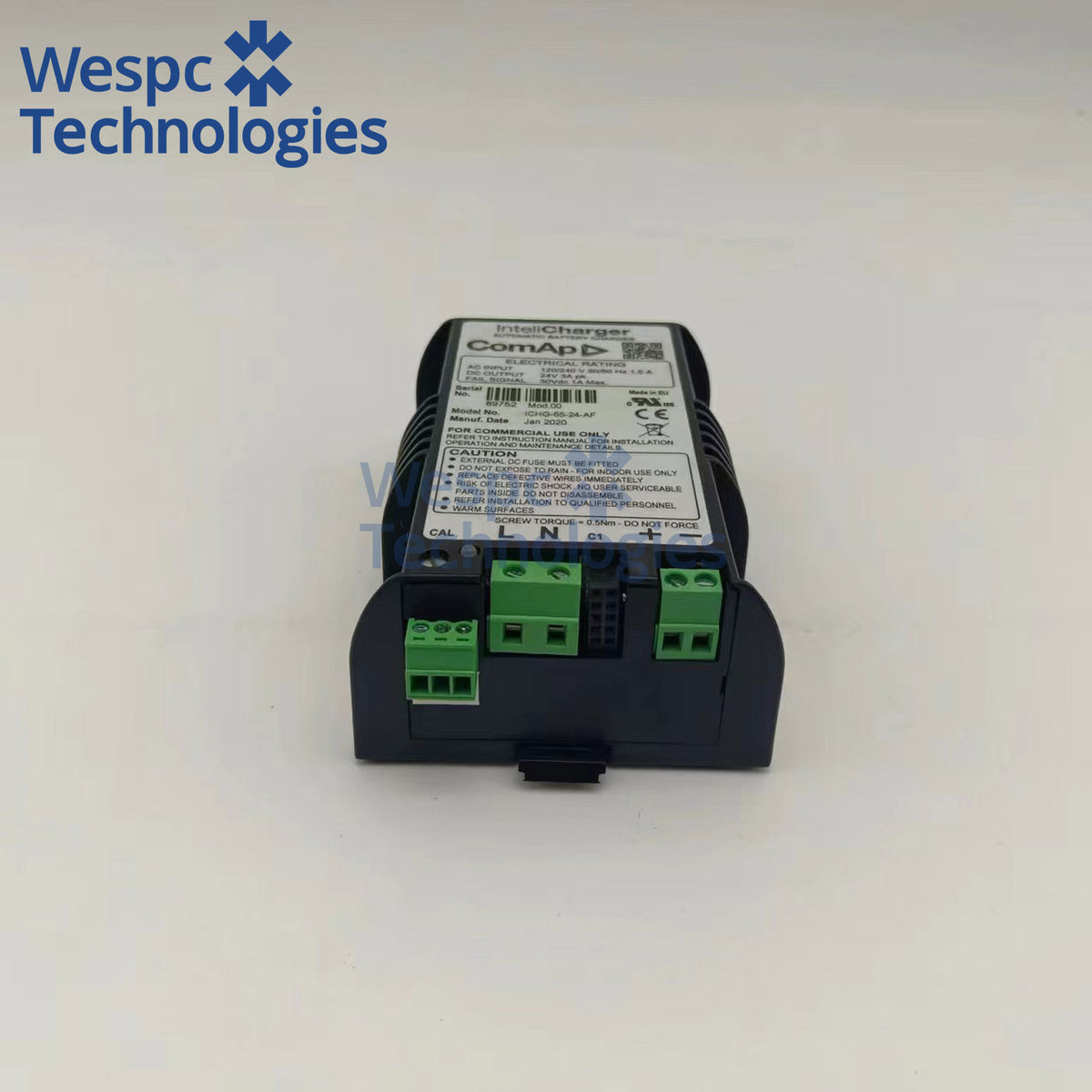

Original ComAp InteliCharger 65 24‑AF 24V 3A Automatic Battery Charger ICHG‑65‑24‑AF DIN Rail Mount Genset Charger With Fail Alarm Relay
Overview:
The InteliCharger 65/24 AF is a compact, fully automatic 24 V / 3 A battery charger with a fail relay contact. It uses a three stage charging process (Bulk, Absorption, Float) to ensure fast, accurate, and safe battery charging. Designed for permanent connection, it maintains batteries at full charge without overcharging. The sealed, robust construction makes it suitable for industrial use, and the device can also operate as a stable DC power supply.
Overview:
The InteliCharger 65/24 AF is a compact, fully automatic 24 V / 3 A battery charger with a fail relay contact. It uses a three stage charging process (Bulk, Absorption, Float) to ensure fast, accurate, and safe battery charging. Designed for permanent connection, it maintains batteries at full charge without overcharging. The sealed, robust construction makes it suitable for industrial use, and the device can also operate as a stable DC power supply.
Specifications：
- Model: InteliCharger 65 24-AF
- Product family: InteliCharger 65
- Brand: Original ComAp
- Order code: ICHG-65-24-AF
- Product type: Three-stage automatic battery charger and DC power supply
- Rated battery system: 24 VDC
- Maximum charging current: 3 A
- Alarm function: Charging-fail / fail relay contact

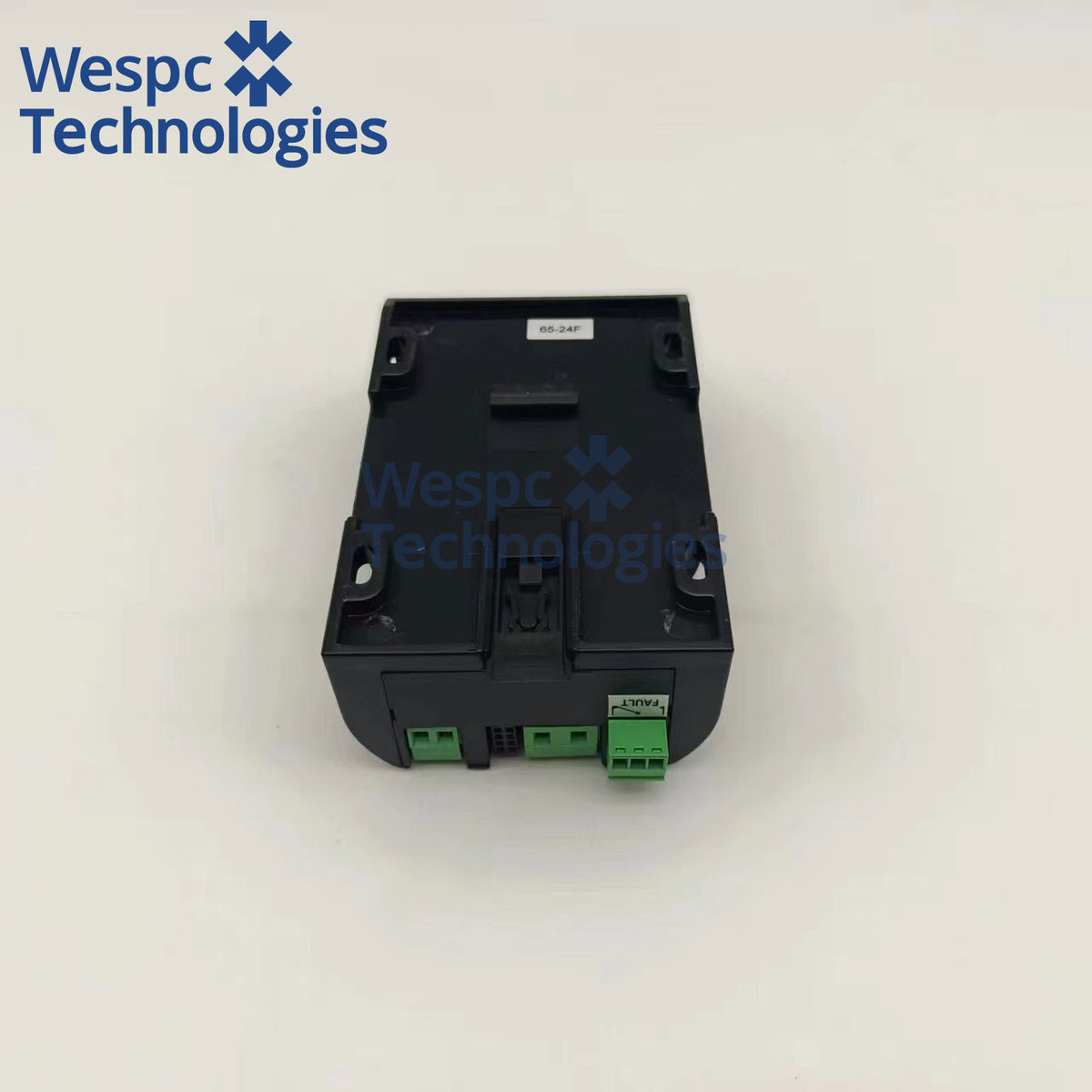

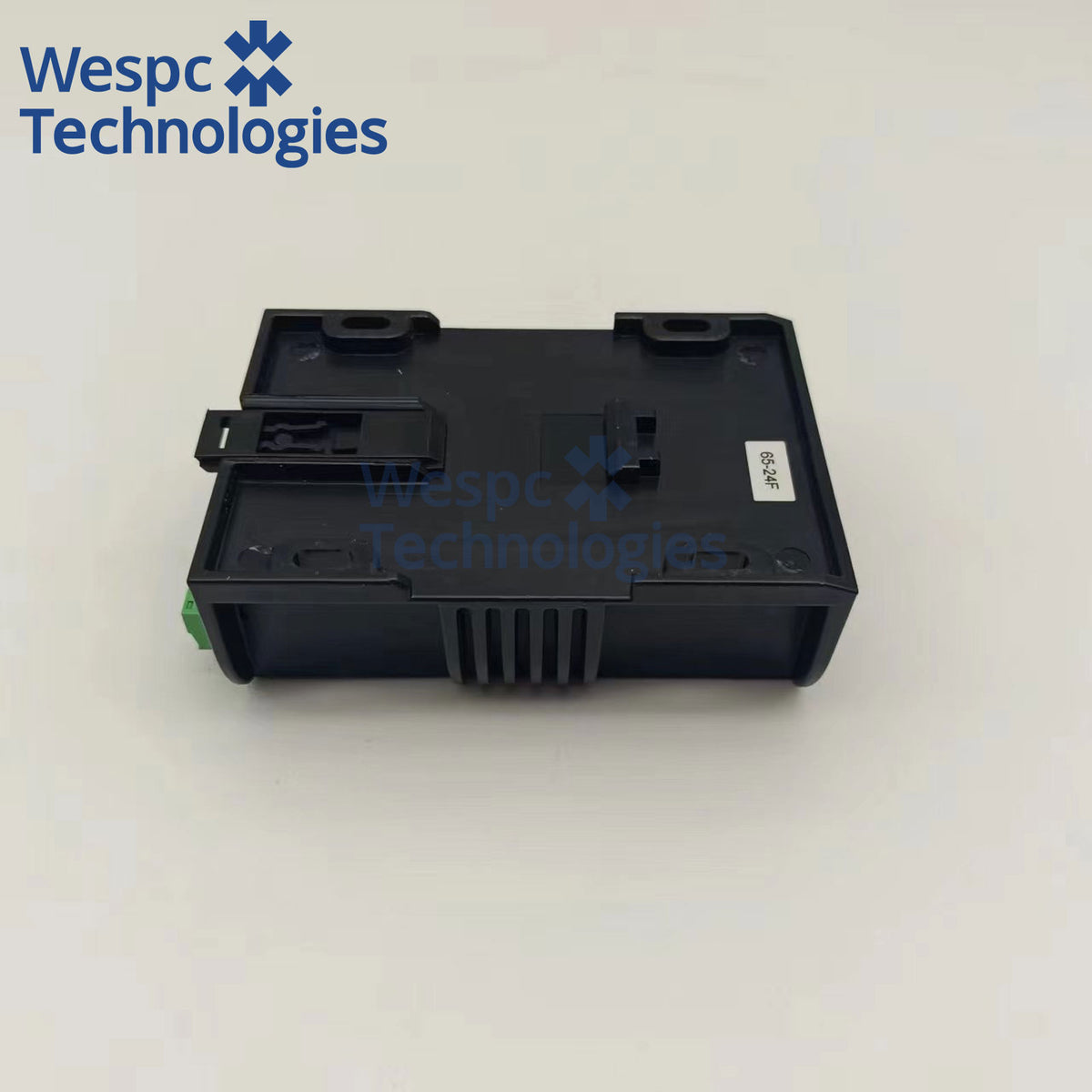

- Mounting: DIN rail mounting, vertical installation required for passive cooling
- Warranty: 12 months genuine factory warranty
Key features:
- Microprocessor-based control for accurate and stable operation
- Fully automatic charging process
- Three charging stages: Bulk, Absorption, Float
- Power Supply Mode - can operate as a standalone DC power source
- Adjustable float voltage (potentiometer)
- Constant Current / Constant Voltage (CC/CV) charging method
- Low ripple output ensuring longer battery life
- Universal AC input range
- Passive cooling for silent and maintenance-free operation
- Protections: Short-circuit, Overload, Over-voltage, Over-temperature, Reverse battery polarity
- Compact design suitable for DIN rail mounting
- Sealed electronic construction
- Highly robust with long-term reliability
- Fail alarm contact output
