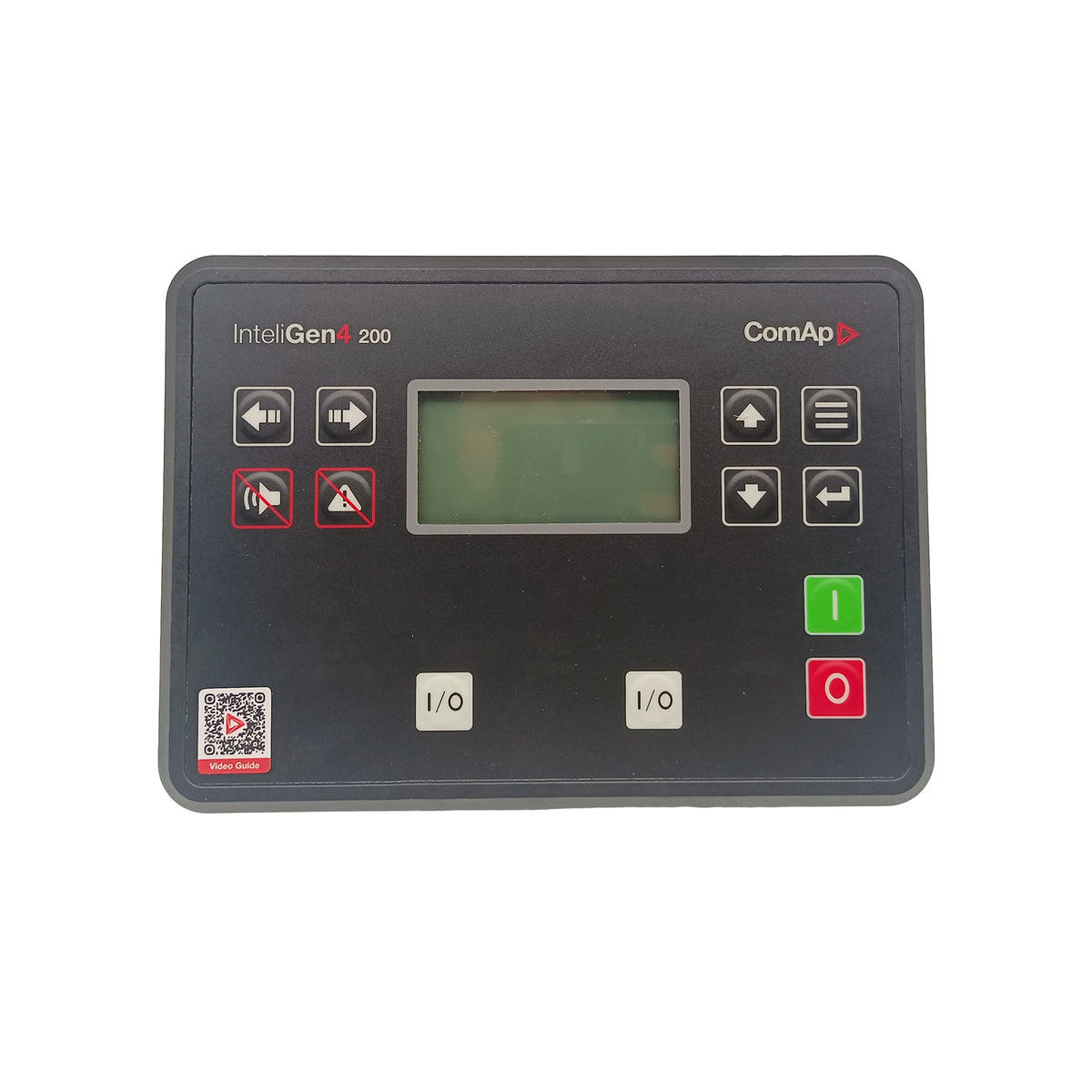

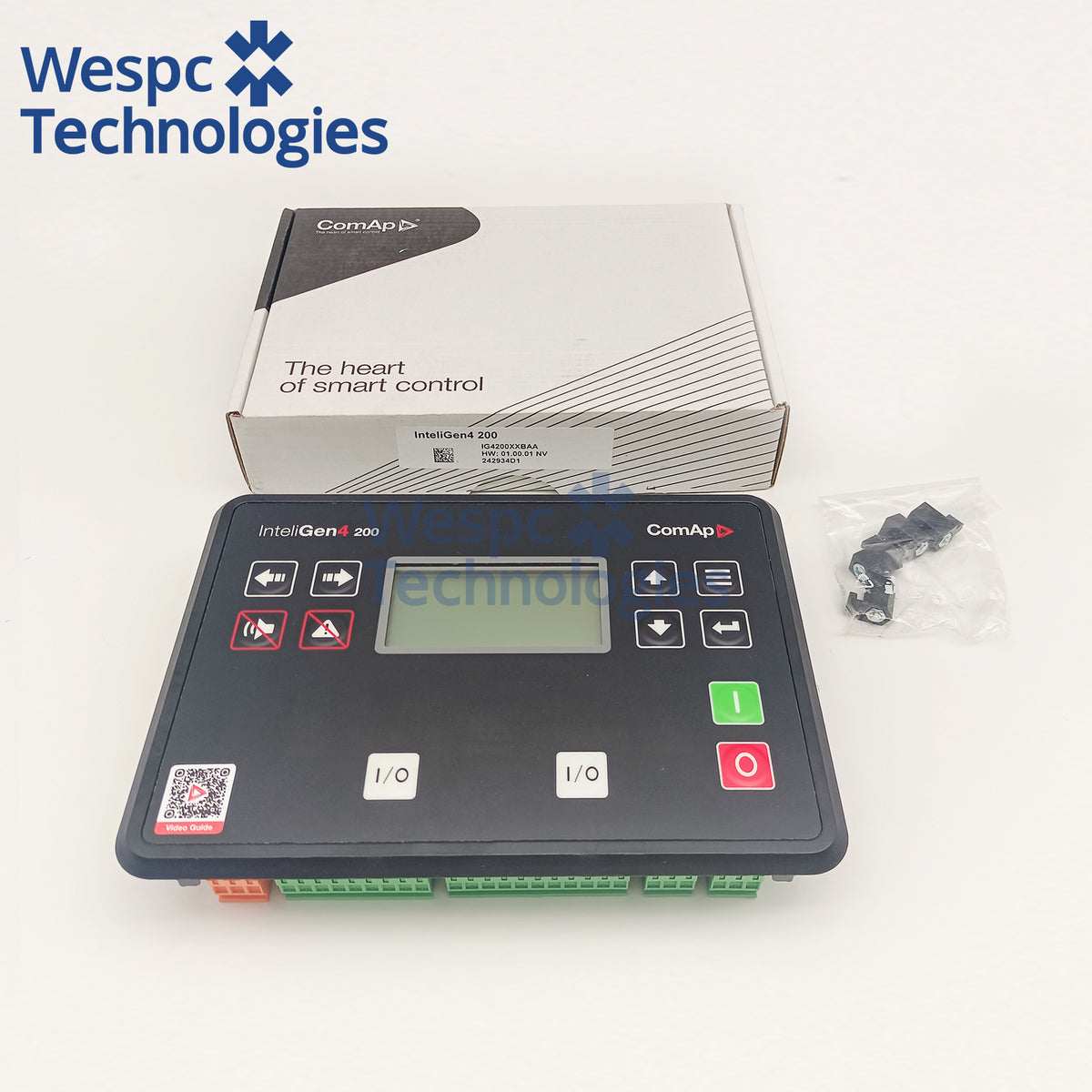

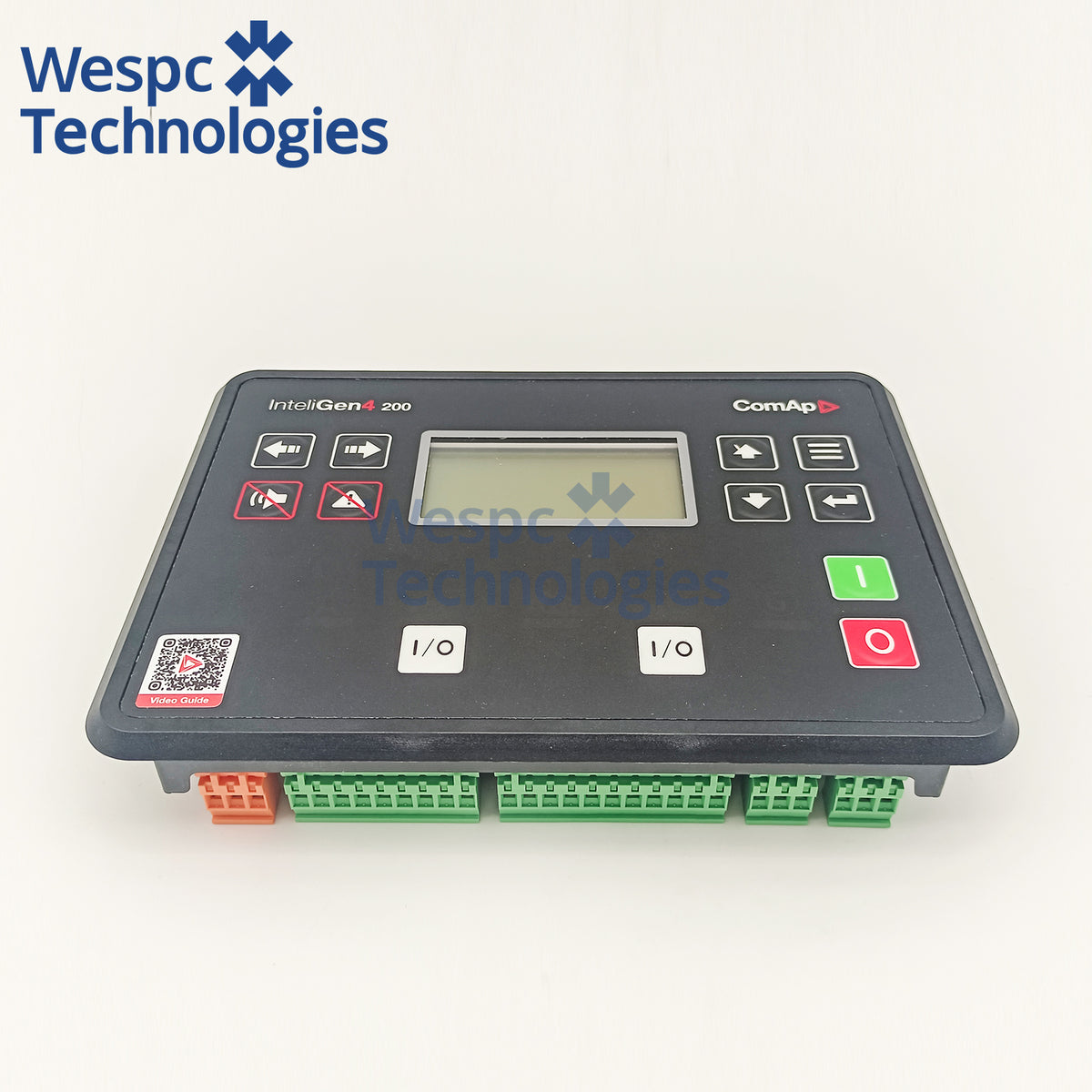

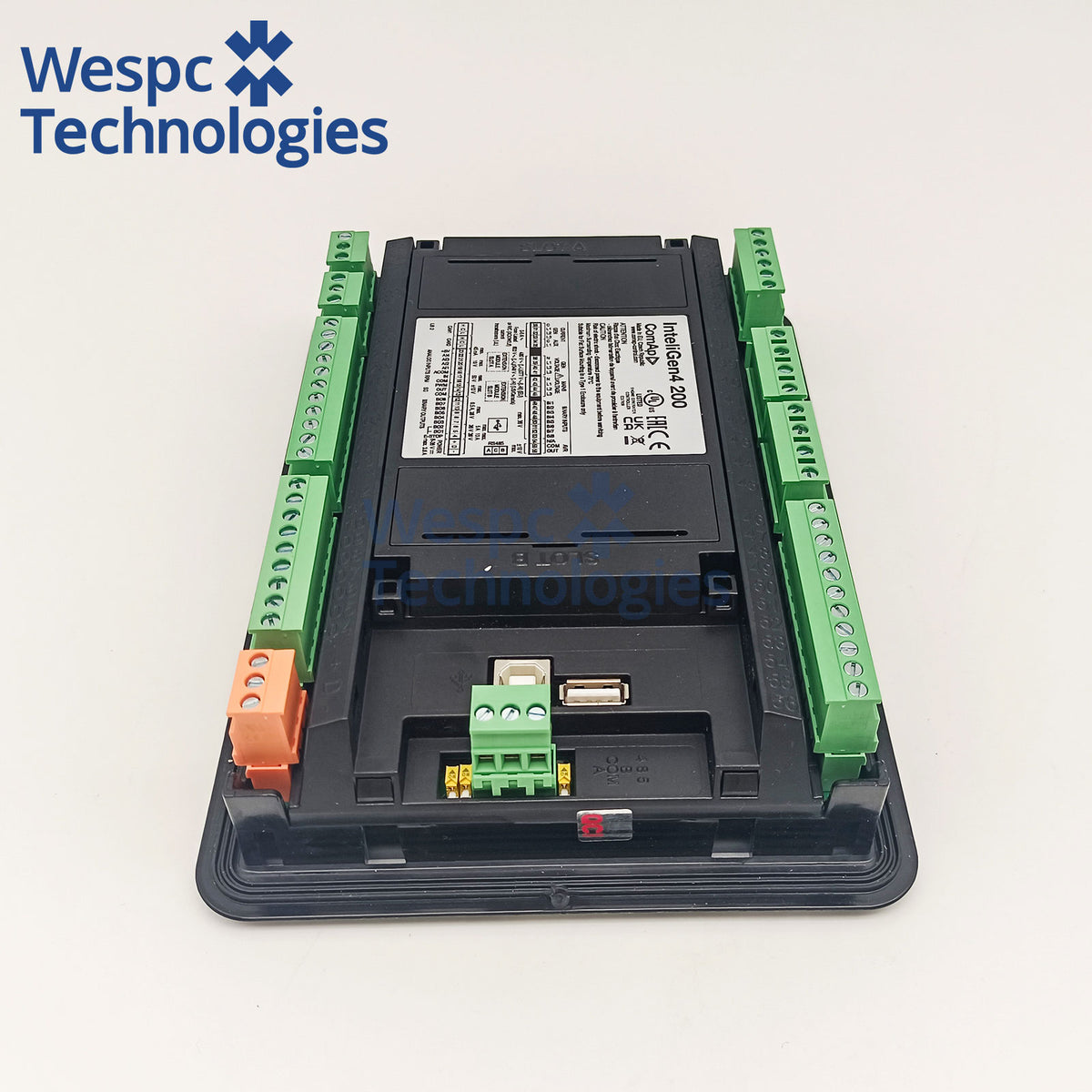

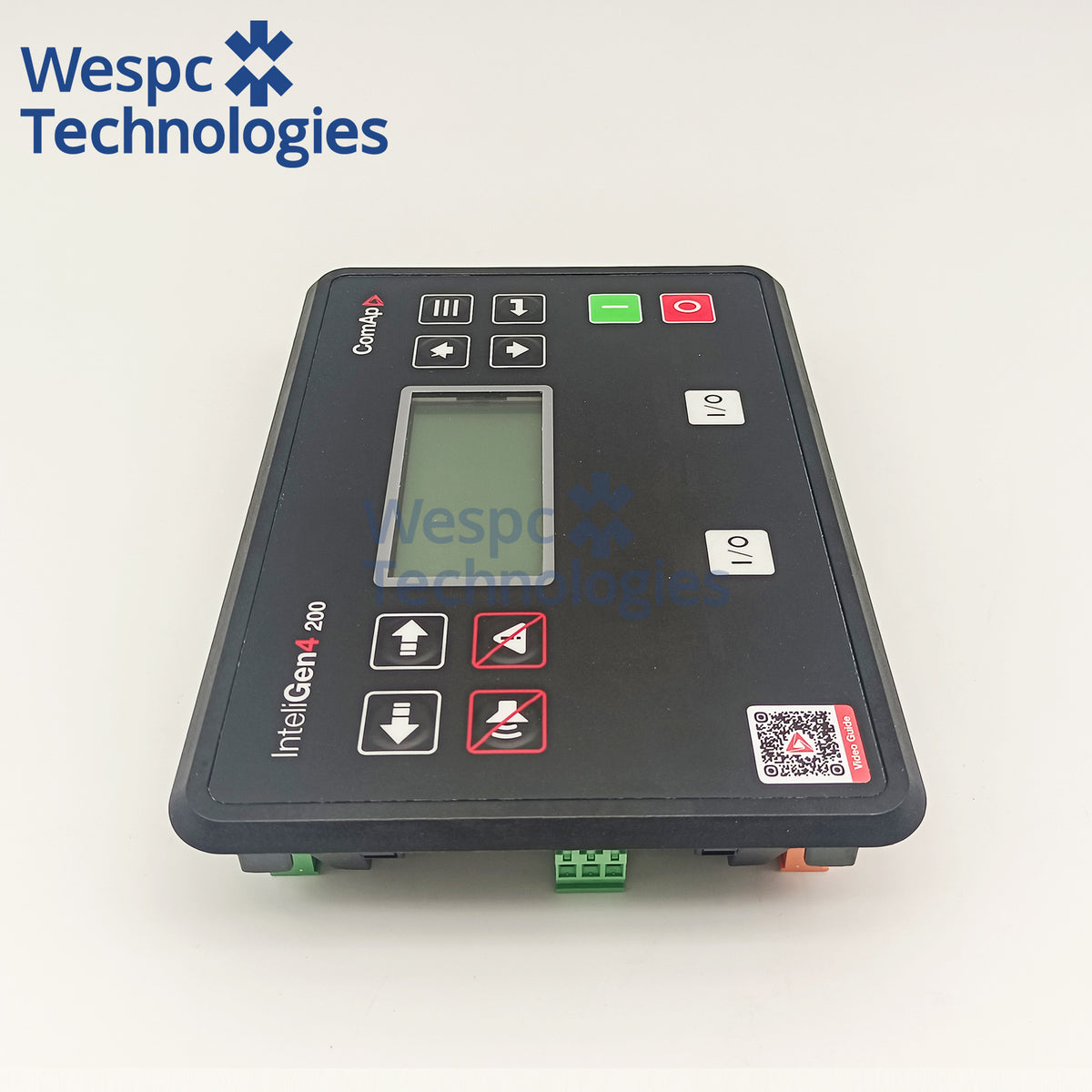

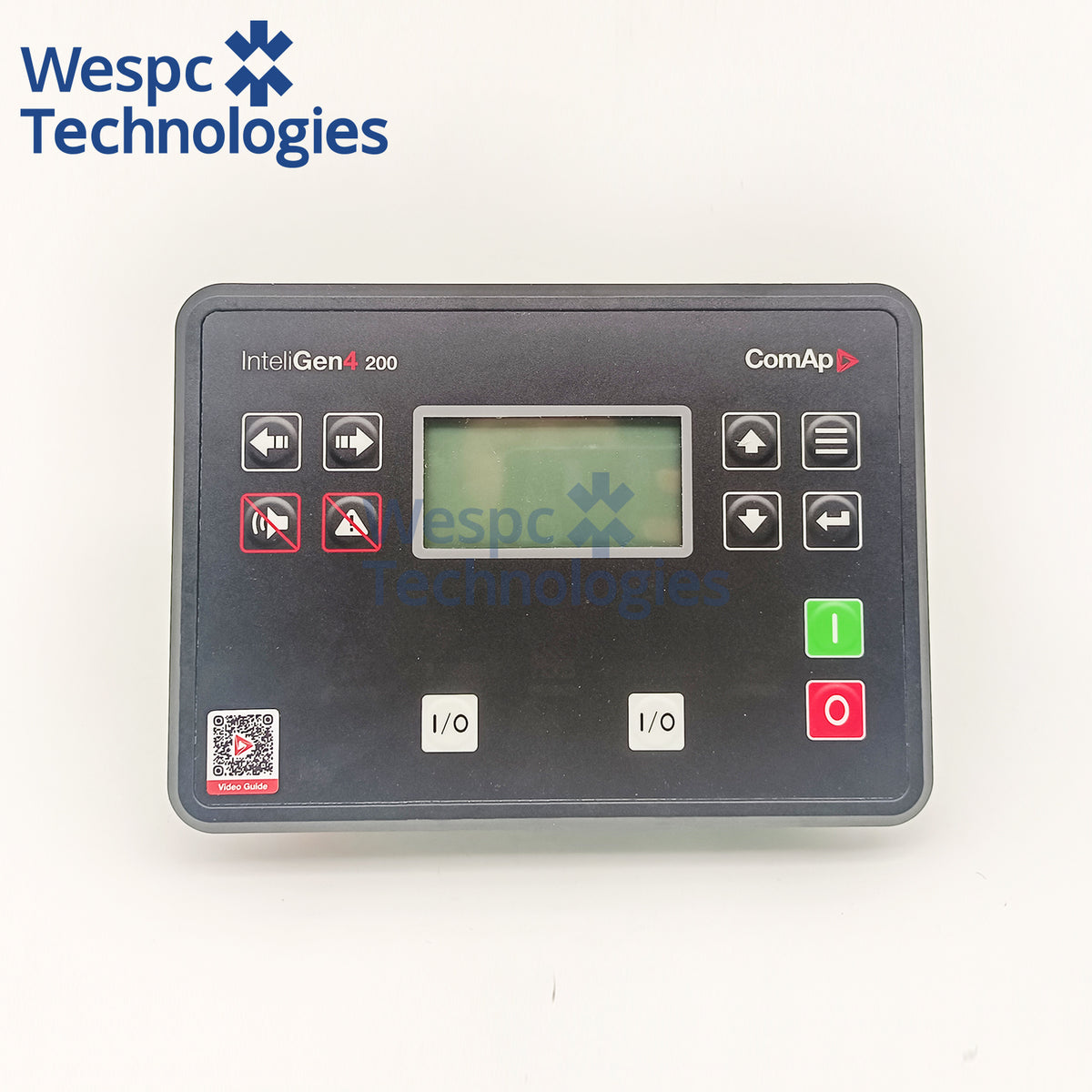

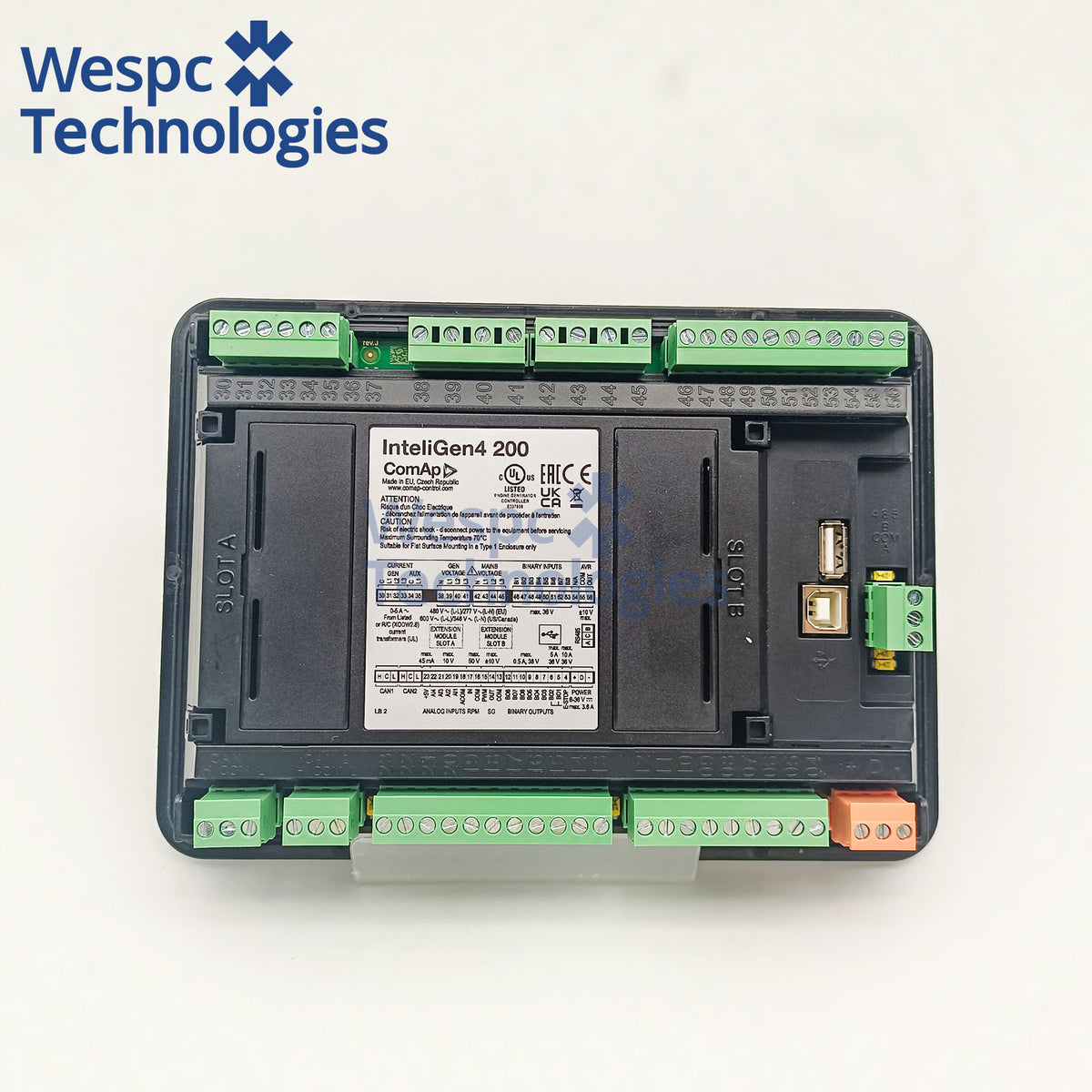

Original ComAp InteliGen4 200 Controller Display Module Genset Control Panel

Original ComAp InteliGen4 200 Controller Display Module Genset Control Panel

$2,100.00 USD
$0.00 USD $2,100.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Original ComAp InteliGen4 200 Paralleling Genset Controller IG4200XXBAA Grid‑Tied Island Operation Generator Control Module

Overview:
InteliGen4 200 is a diesel gen-set control unit for common paralleling applications supporting both single and multiple gen-sets running in grid-tied or island operations.

Specification

  • Product Number: InteliGen4 200
  • Product Type：Paralleling Genset Controller
  • Brand: Original ComAp
  • Order Code: IG4200XXBAA / IG4200XXBLA
  • Core Application: Multi‑genset parallel MINT, Single‑unit parallel‑to‑mains SPtM, Grid‑tied & Island microgrid
  • Software Tool: InteliConfig for configuration, PLC editing, firmware update & troubleshooting
  • Remote Platform: AirGate 2.0 remote access, WebSupervisor cloud fleet monitoring
  • I/O Resources: 8 Binary Outputs (2×5A for cranking/fuel solenoid), 8+1 Binary Inputs, 4 switchable analog inputs (U/I/R)
  • Communication: CAN J1939 Multi‑ECU, USB, RS485; 2 plug‑in expansion slots for Ethernet, RS232, 4G modules; Modbus TCP/RTU, SNMP
  • Engine Compatibility: Stage V, Tier4 Final modern diesel & gas engines
  • Measurement: True‑RMS voltage, current, frequency, power parameters
  • Condition: 100% Original ComAp brand new
  • Dimension: Enclosure: 210 x 150 x 47 mm (8.26 x 5.90 x 1.85 inch.)/Cutout: 185 x 130 x 44 (7.28 x 5.11 x 1.73 inch.)
  • Net Weight: 0.6kg
  • Warranty: 12 months genuine factory warranty
