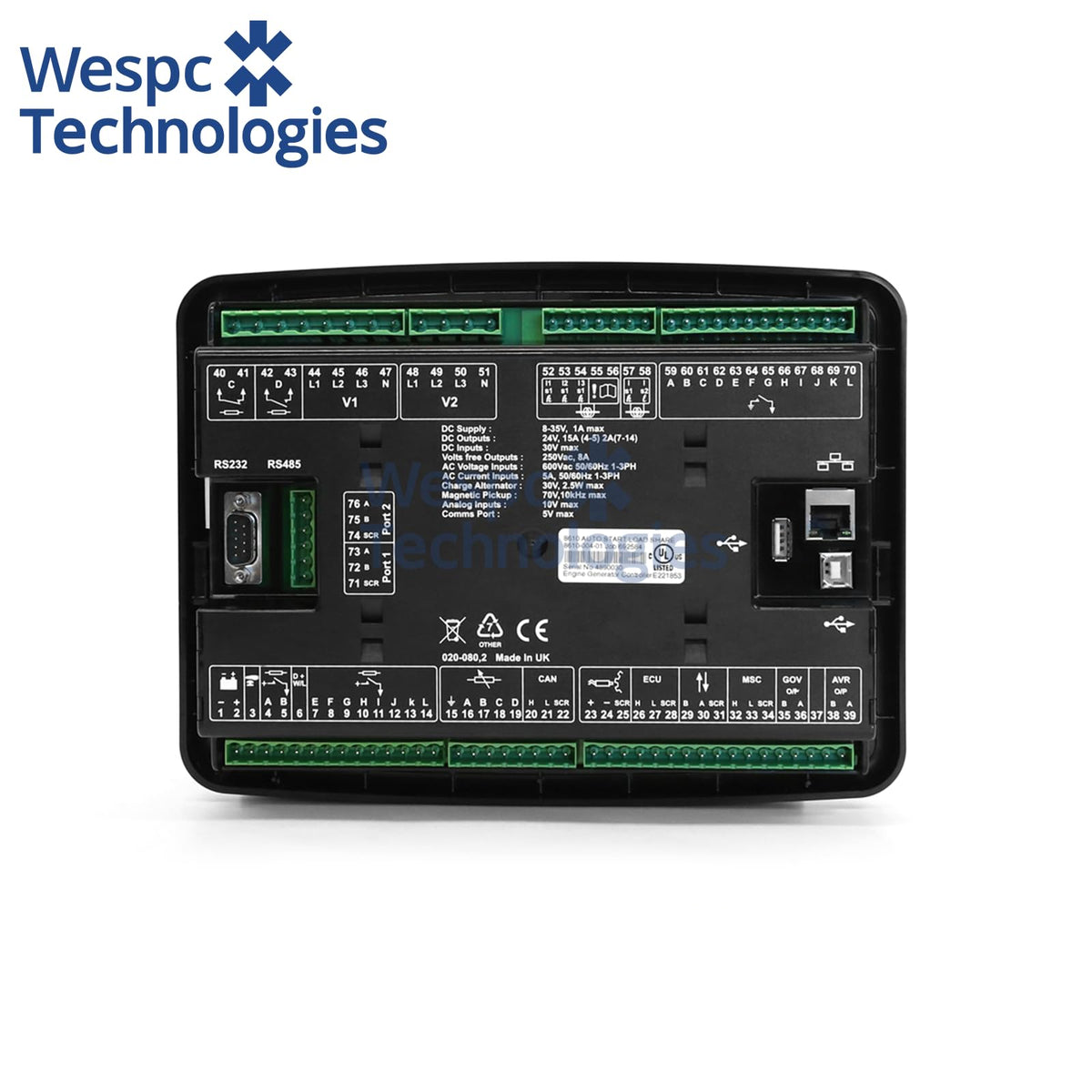

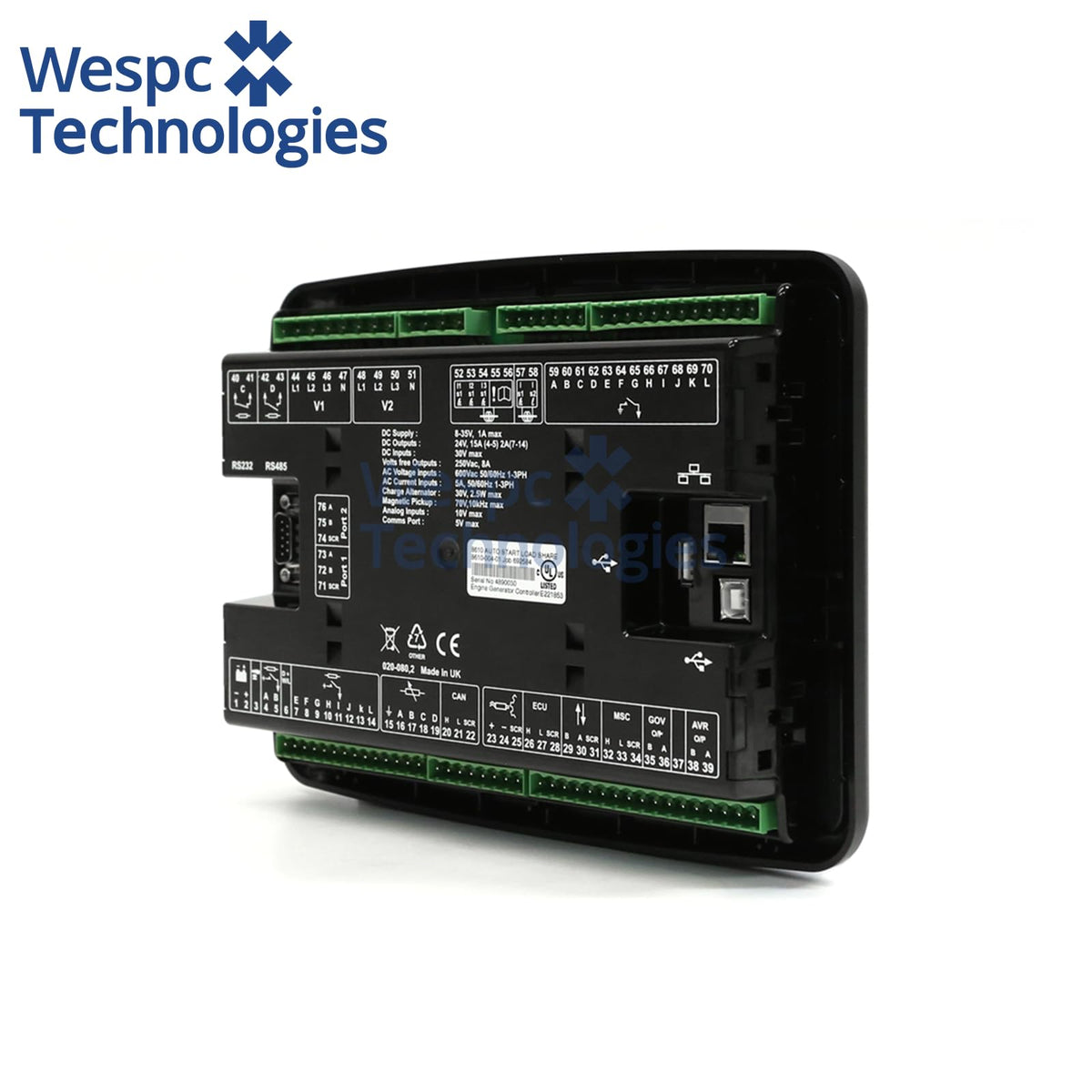

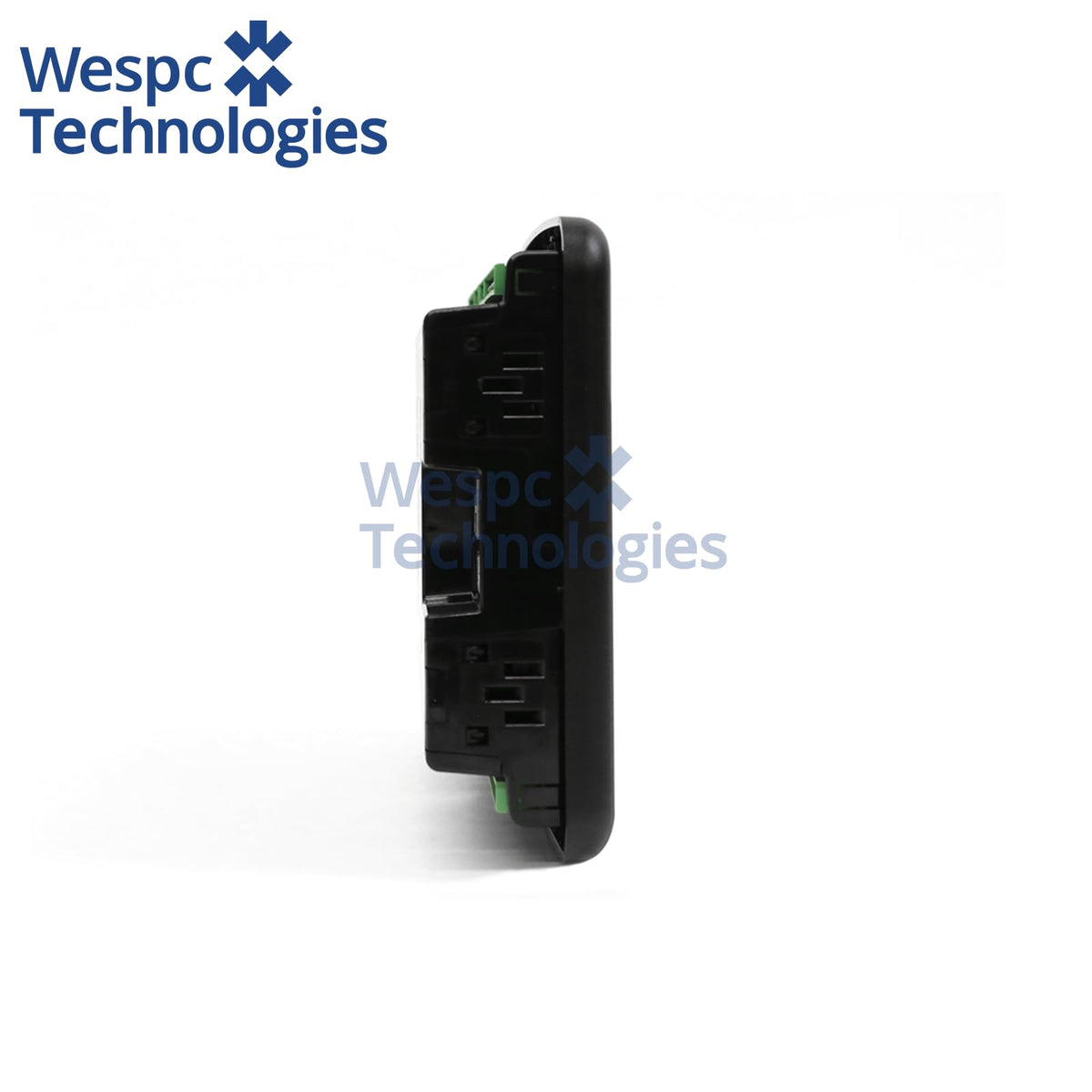

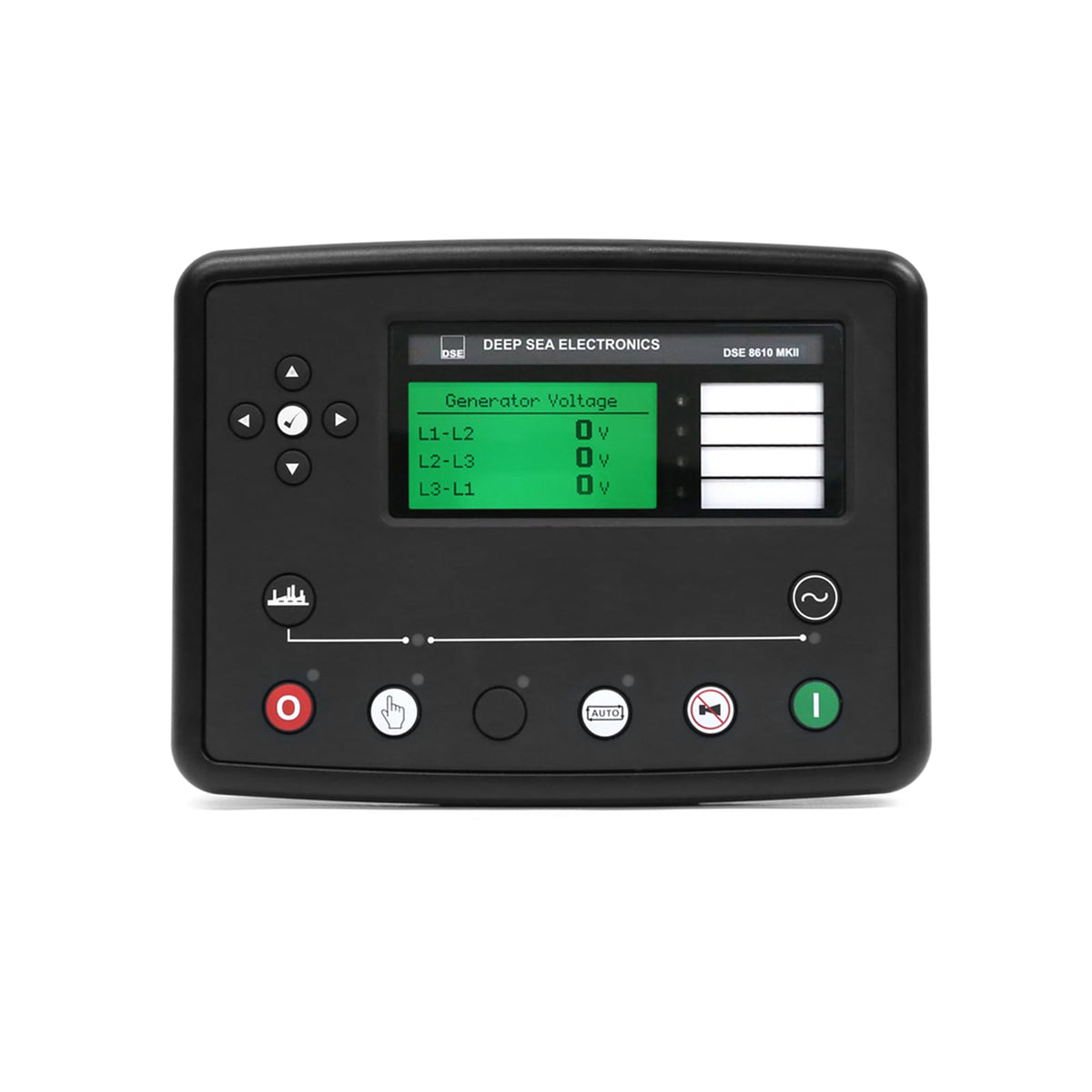

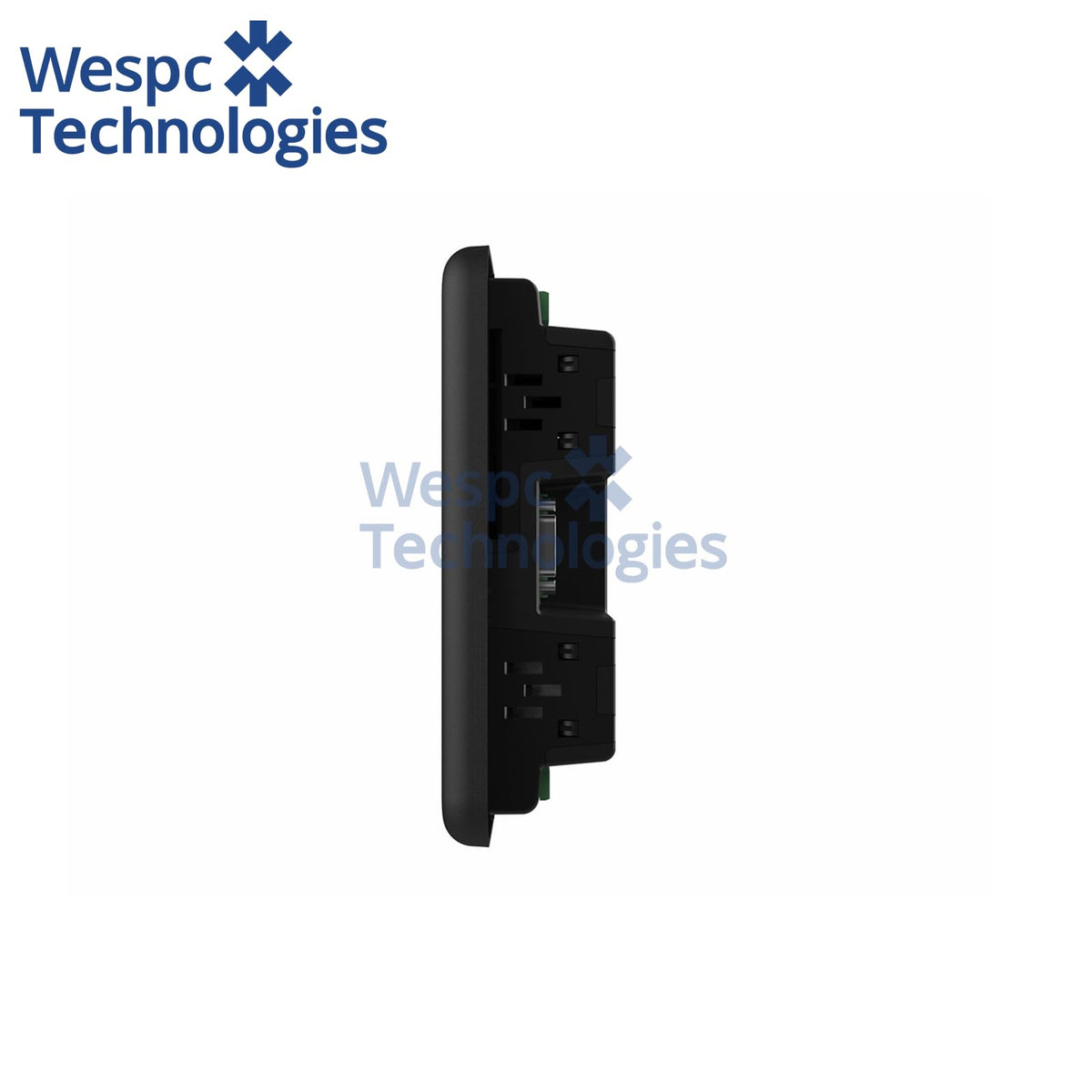

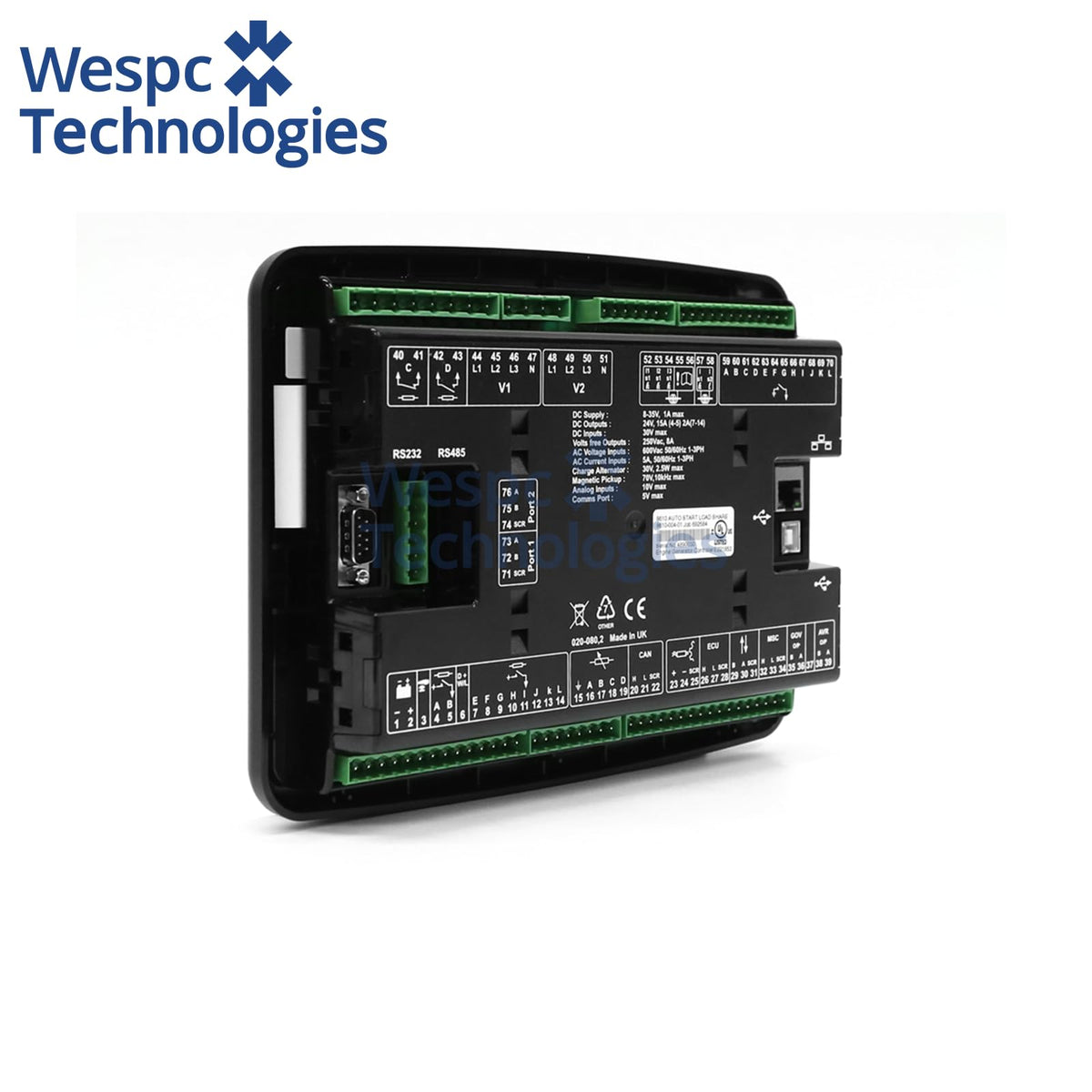

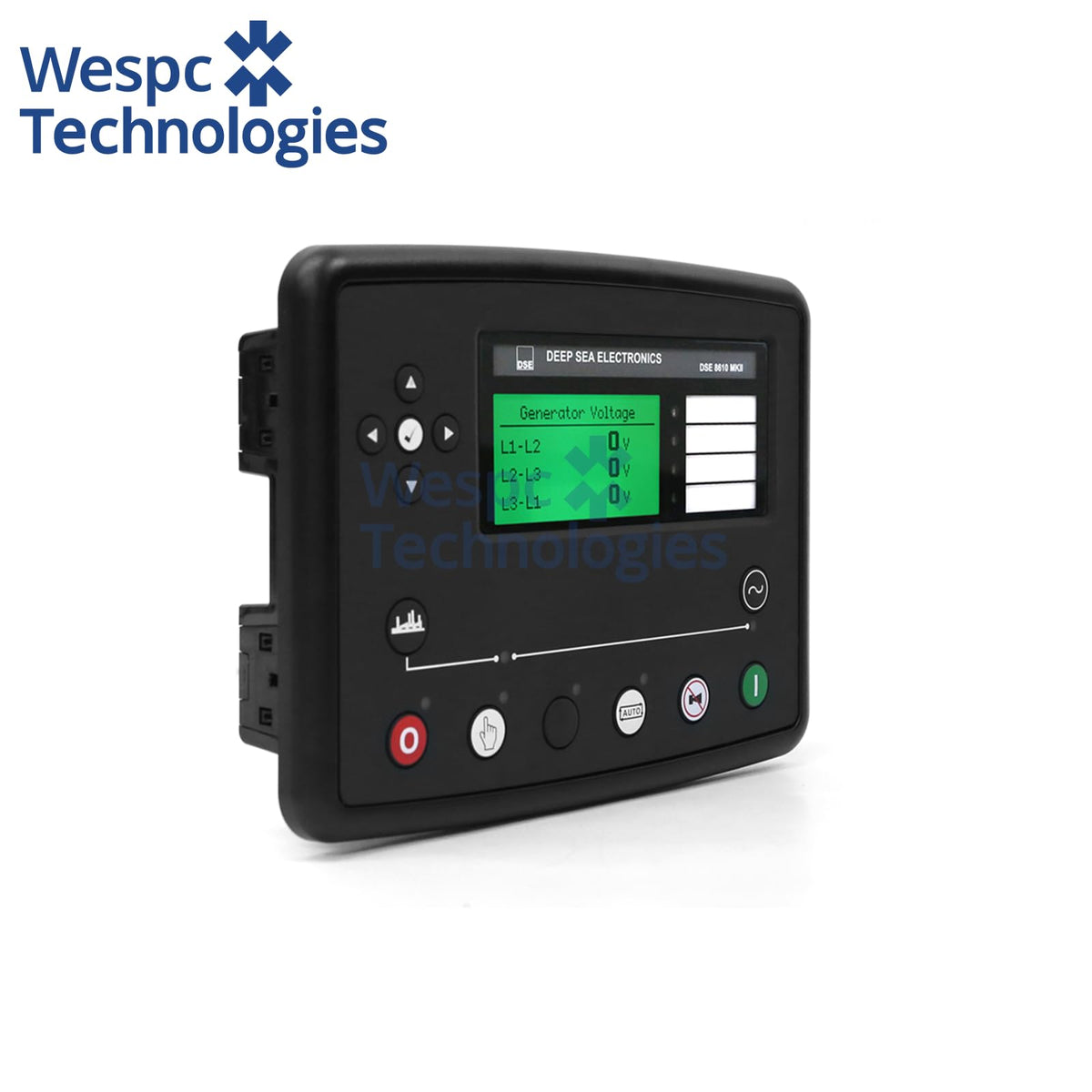

Original Deep Sea DSE8610 MKII Synchronising Load Sharing Controller Multi-Genset Parallel Auto Start Module

Original Deep Sea DSE8610 MKII Synchronising Load Sharing Controller Multi-Genset Parallel Auto Start Module

$1,599.00 USD
$3,200.00 USD $1,599.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Genuine Deep Sea DSE8610 MKII Synchronising & Load Sharing Controller Multi-Genset Parallel Auto Start Module

Overview:
The DSE 8610  MKII represents the latest in complex load sharing & synchronising control technology. Designed to handle the most complex grid type generator applications the DSE 8610  MKII control module is packed with multiple features and benefits that are unrivalled across the generator control industry.


Specification

  • Model: DSE8610 MKII
  • Brand: Deep Sea Electronics (DSE), Original
  • Type: Synchronising & Load Sharing Auto Start Controller (Genset to Genset Parallel)
  • Max parallel quantity: Up to 32 generators
  • Display: 4-line backlit multi-language LCD, optional heated screen
  • Front Panel Rating: IP65
  • Supply Voltage: DC 8V ~ 35V
  • Communication: USB, RS232, RS485 Modbus RTU, Ethernet Modbus TCP & SNMP, CAN J1939, DSENet
  • Built-in control: Governor (0-10V), AVR excitation control
  • Protection: Reverse power, overcurrent, earth fault, unbalanced load, overspeed, vector shift, ROCOF protection
  • Dimension: 245 × 184 × 51 mm
  • Panel Cutout: 220 × 160 mm
  • Maximum Panel Thickness: 8.0 mm (0.3")
  • Weight: 0.88kg
  • Warranty: 12 months genuine factory warranty

PRODUCT VARIANTS
8610-02 - 8610 MKII Synchronising & Load Sharing Control Module (Ct, Rtc)
