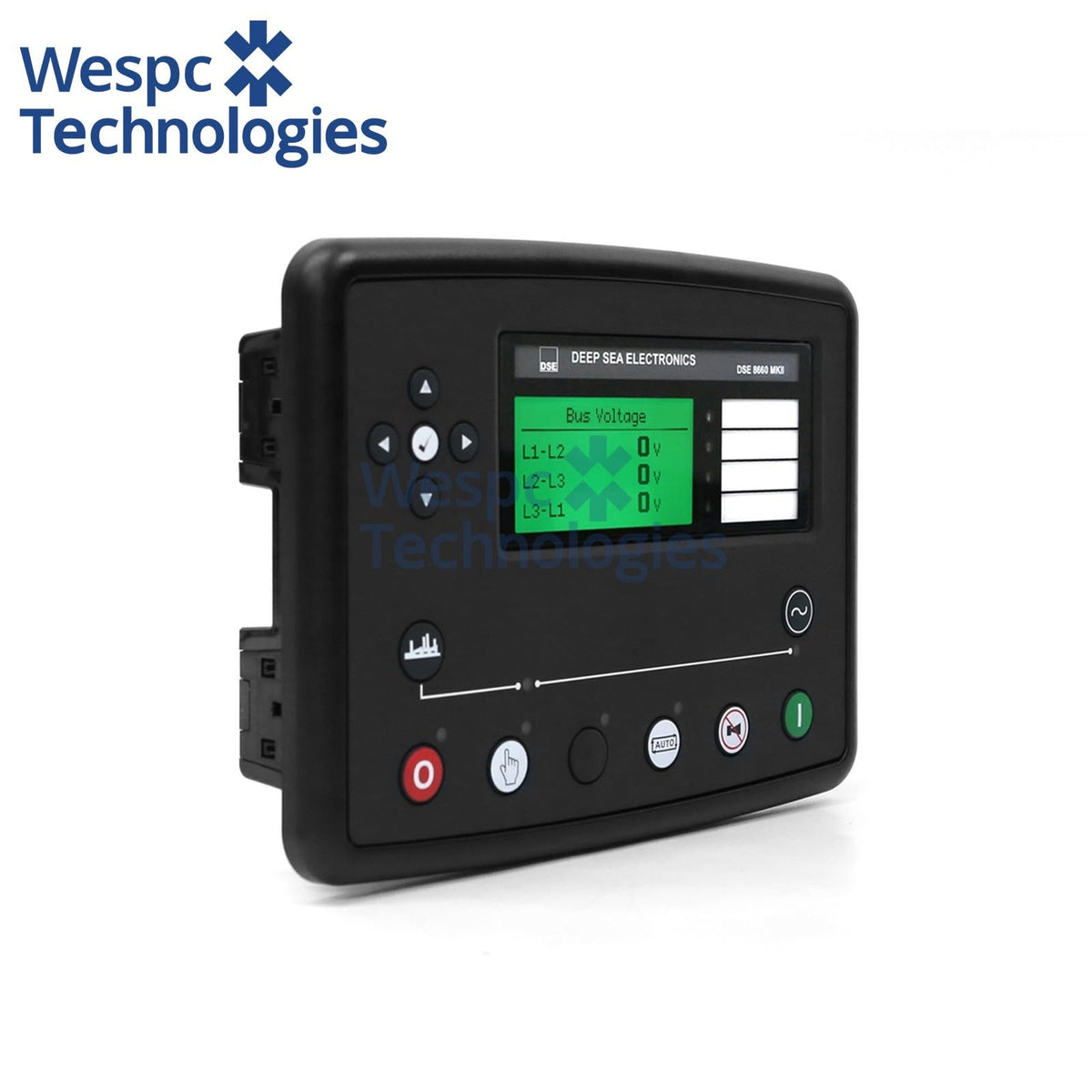

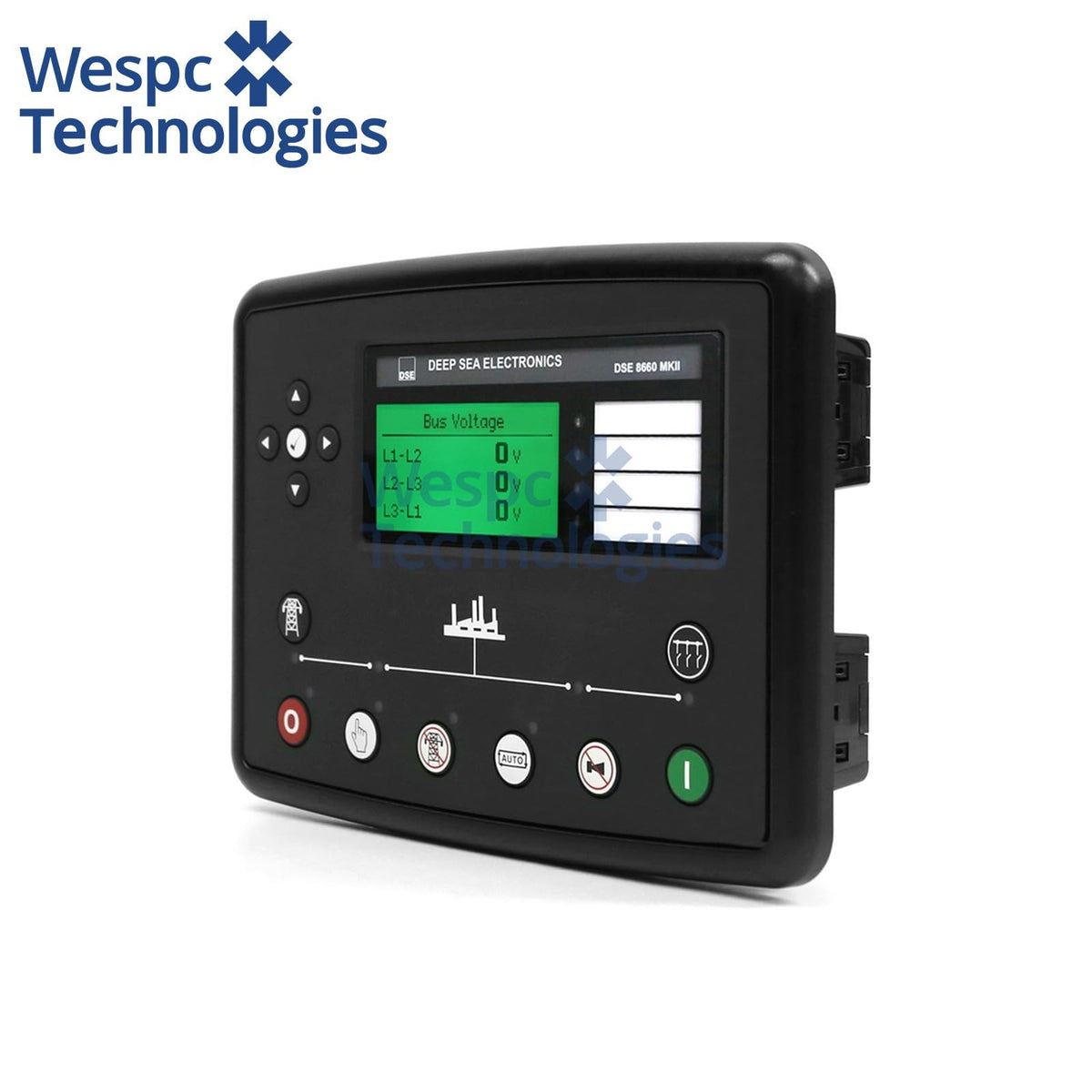

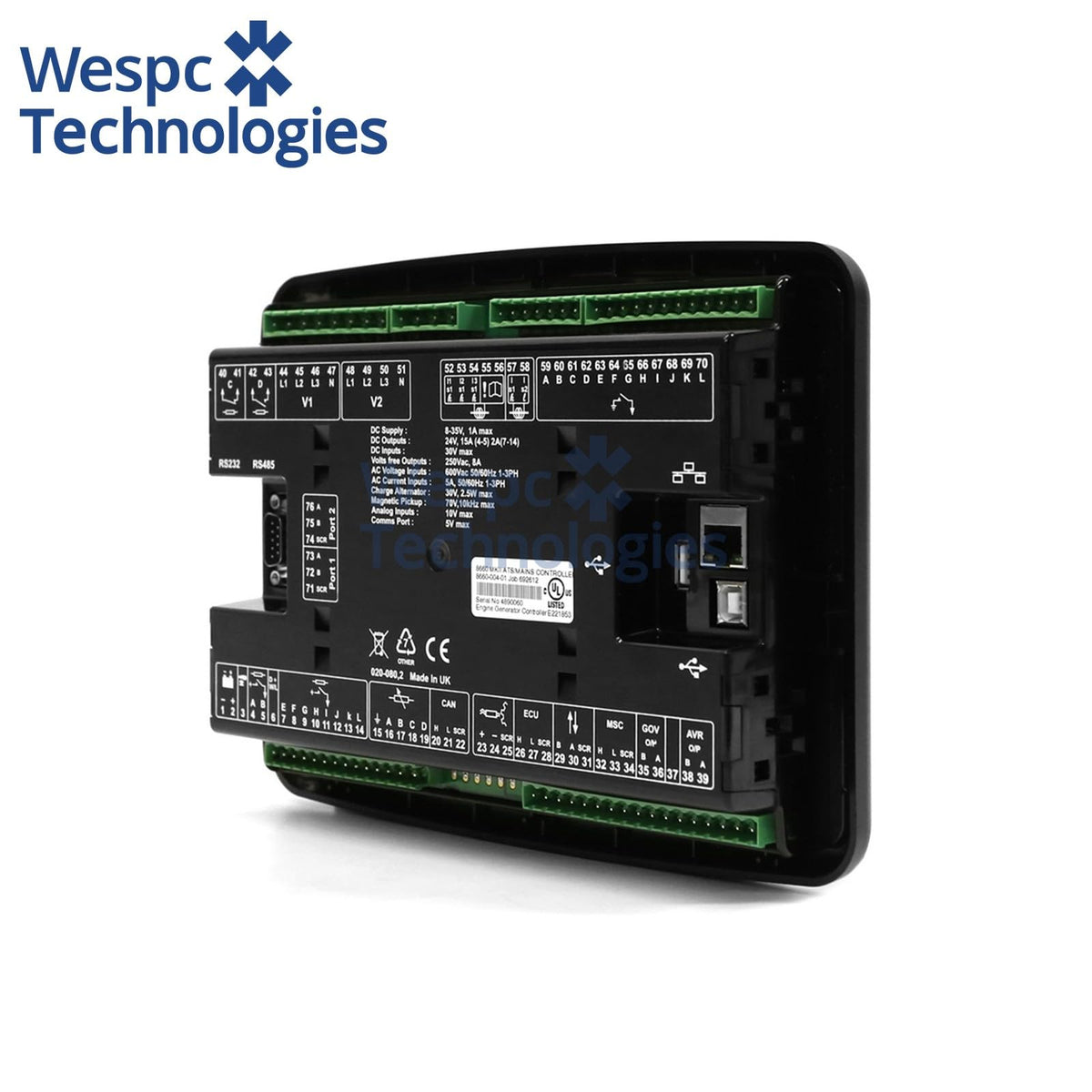

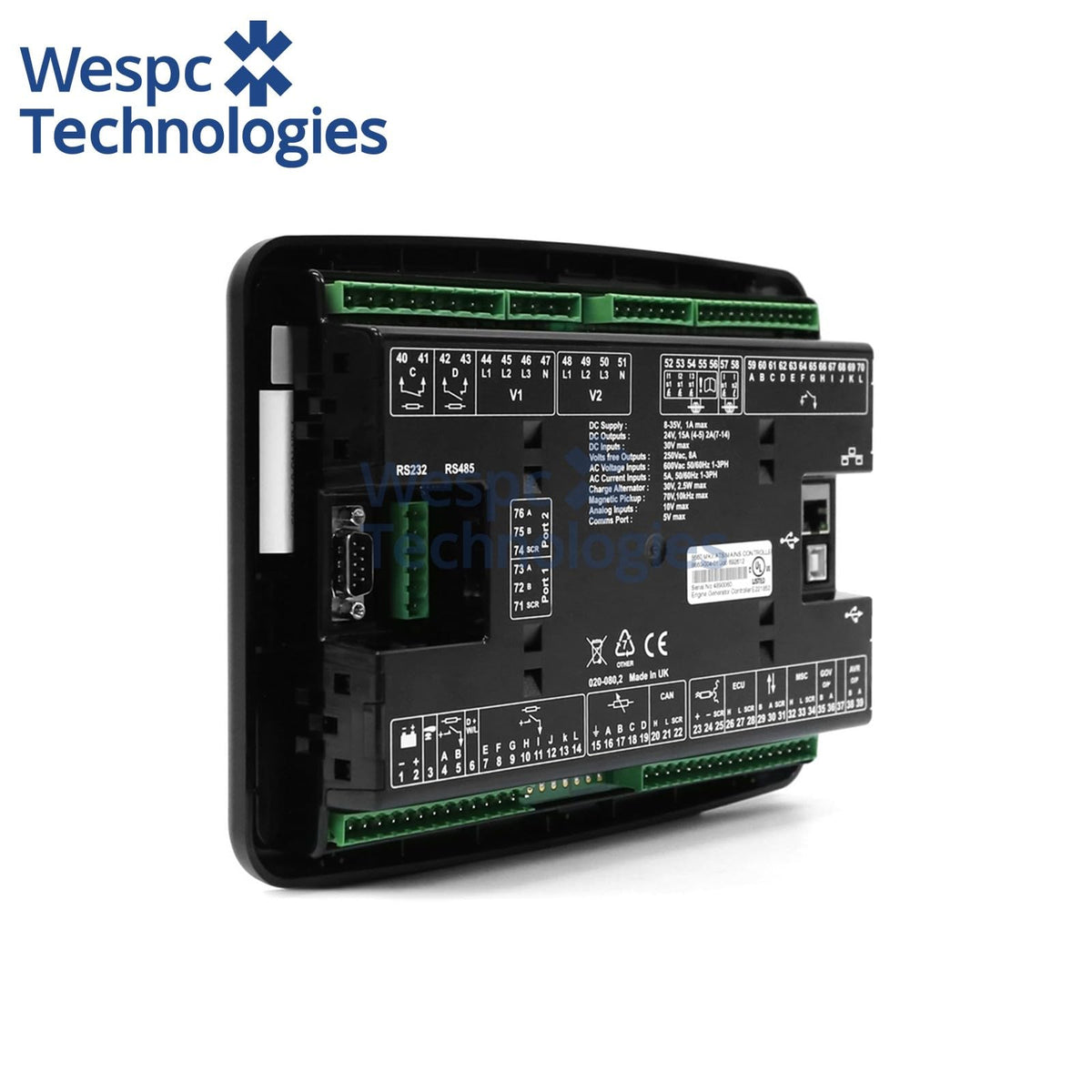

Original Deep Sea DSE8660MKII Generator Controller Auto Transfer Switch Mains Control Module

Overview:
The DSE 8660  MKII is the latest and most advanced Auto Transfer Switch & Mains (Utility) Control Module within the DSE synchronising and load sharing control module range. Developed alongside the DSE 8610  MKII this control module provides industry-leading features and benefits for the most complex grid type generator installations.

Specification

• Model: DSE8660 MKII
• Brand: Deep Sea Electronics (DSE)
• Type: ATS & Mains Parallel / Synchronising Master Controller
• Display: 4-line backlit LCD, multi-language, optional heated display
• Power Supply: 8V – 35V DC, reverse polarity protection
• AC Sensing: 25–719V phase-phase, True RMS mains & bus monitoring
• Core Function: ATS transfer, peak lopping & shaving, base load export, mains decoupling, multi-set sync coordination
• Communication: USB, RS232, RS485 Modbus RTU, Ethernet Modbus TCP / SNMP, DSENet®
• I/O: 11 configurable digital inputs, 8 configurable outputs including volt-free relay contacts
• Protection: Reverse power, overload, unbalanced load, sequence voltage fault, NVD, over/under voltage
• Operating Temp: -30°C ~ +70°C (heated variant: -40°C ~ +70°C)
• Front Panel Rating: IP65
• Cut-out Size: 220mm × 160mm
• Software: DSE Configuration Suite PC software
• Application: Grid parallel genset, peak shaving, CHP, multi-mains ATS, industrial parallel power systems
• Warranty: 12 months genuine factory warranty
