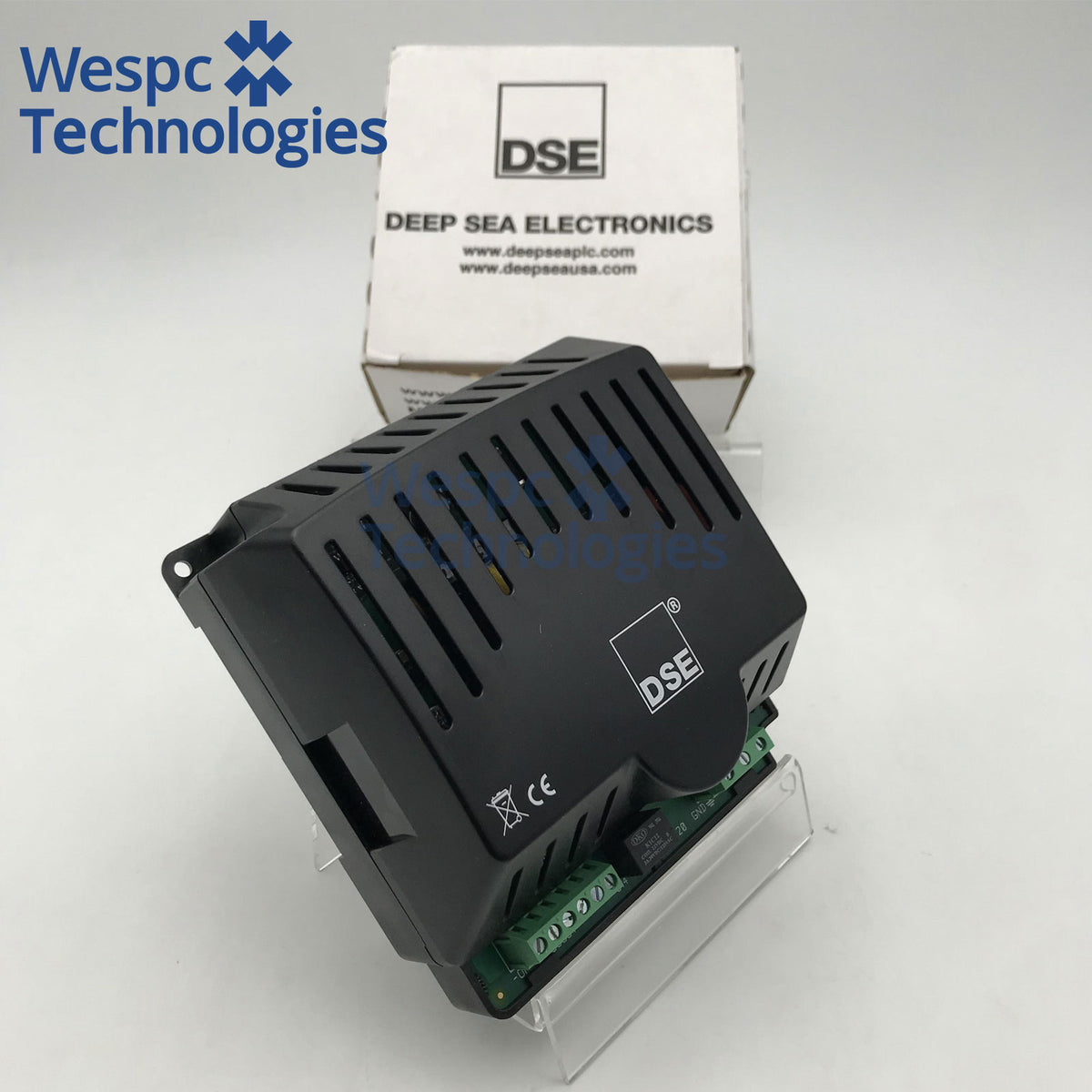

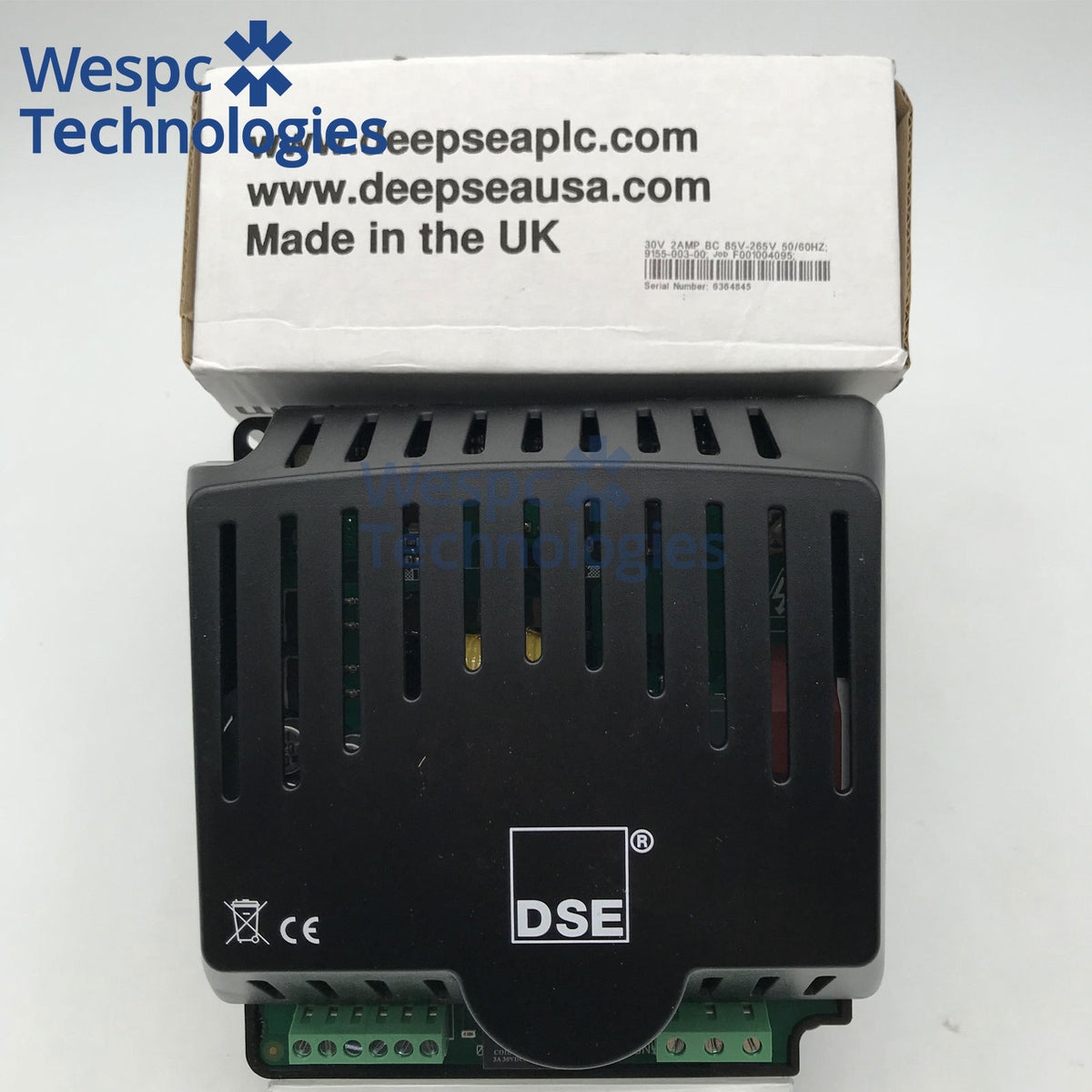

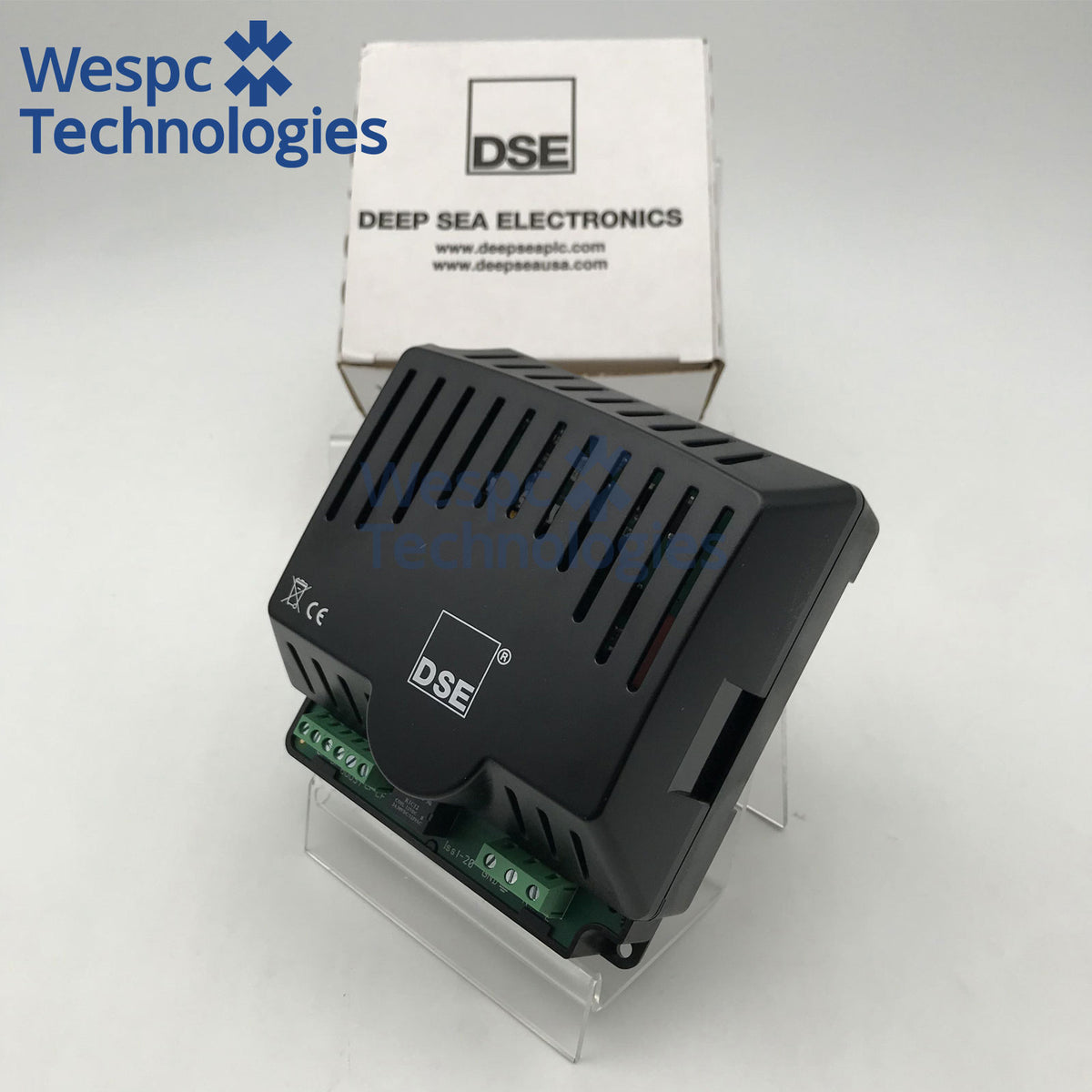

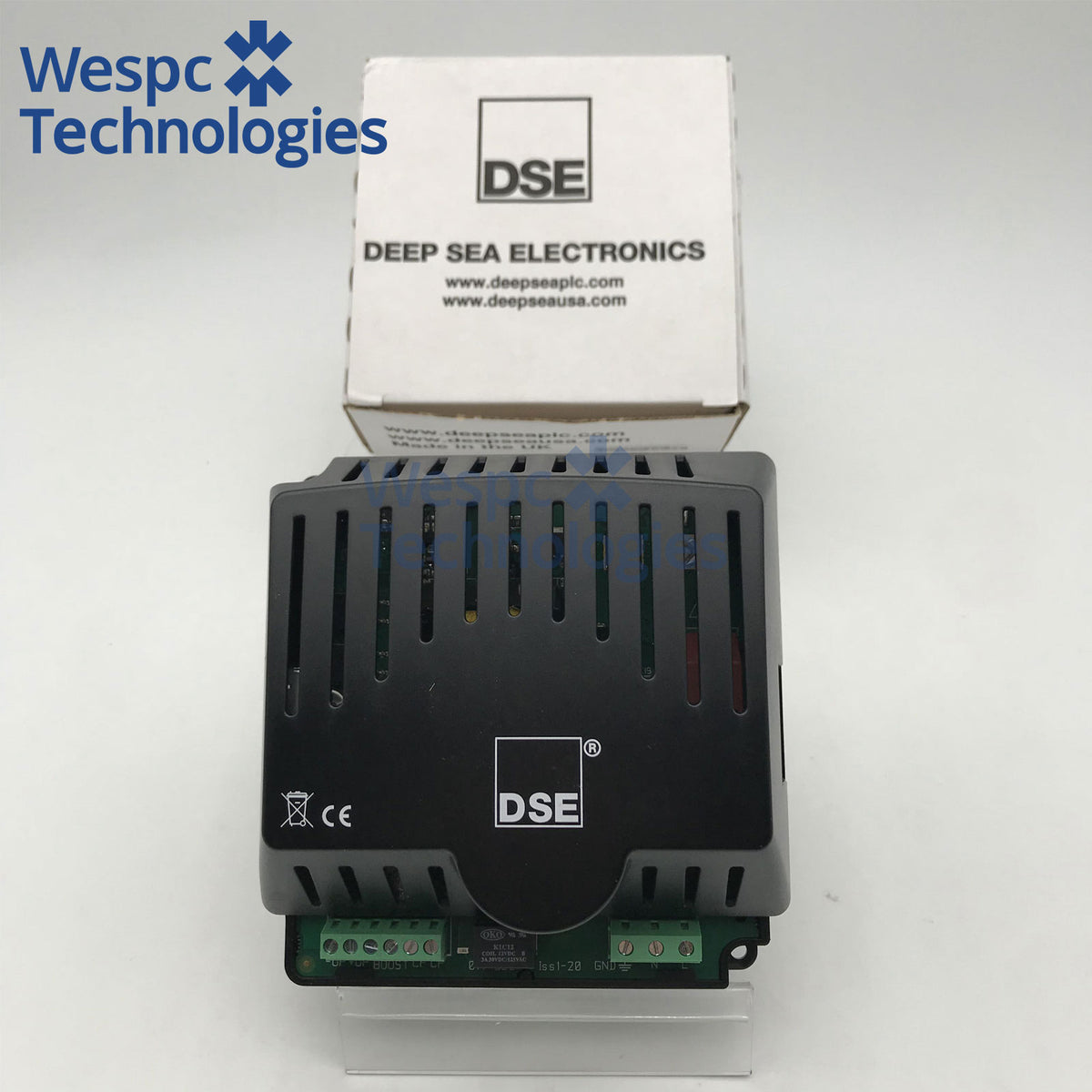

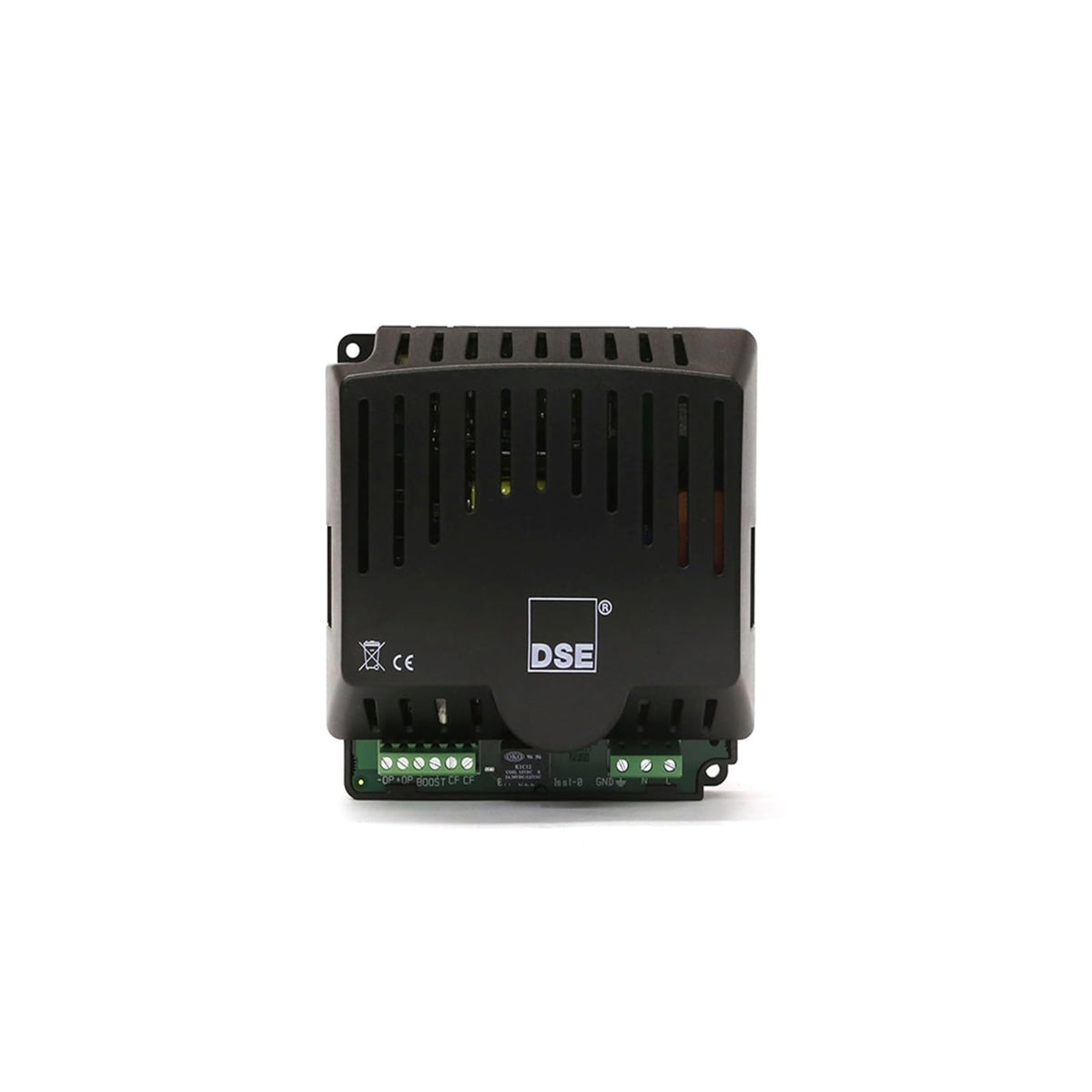

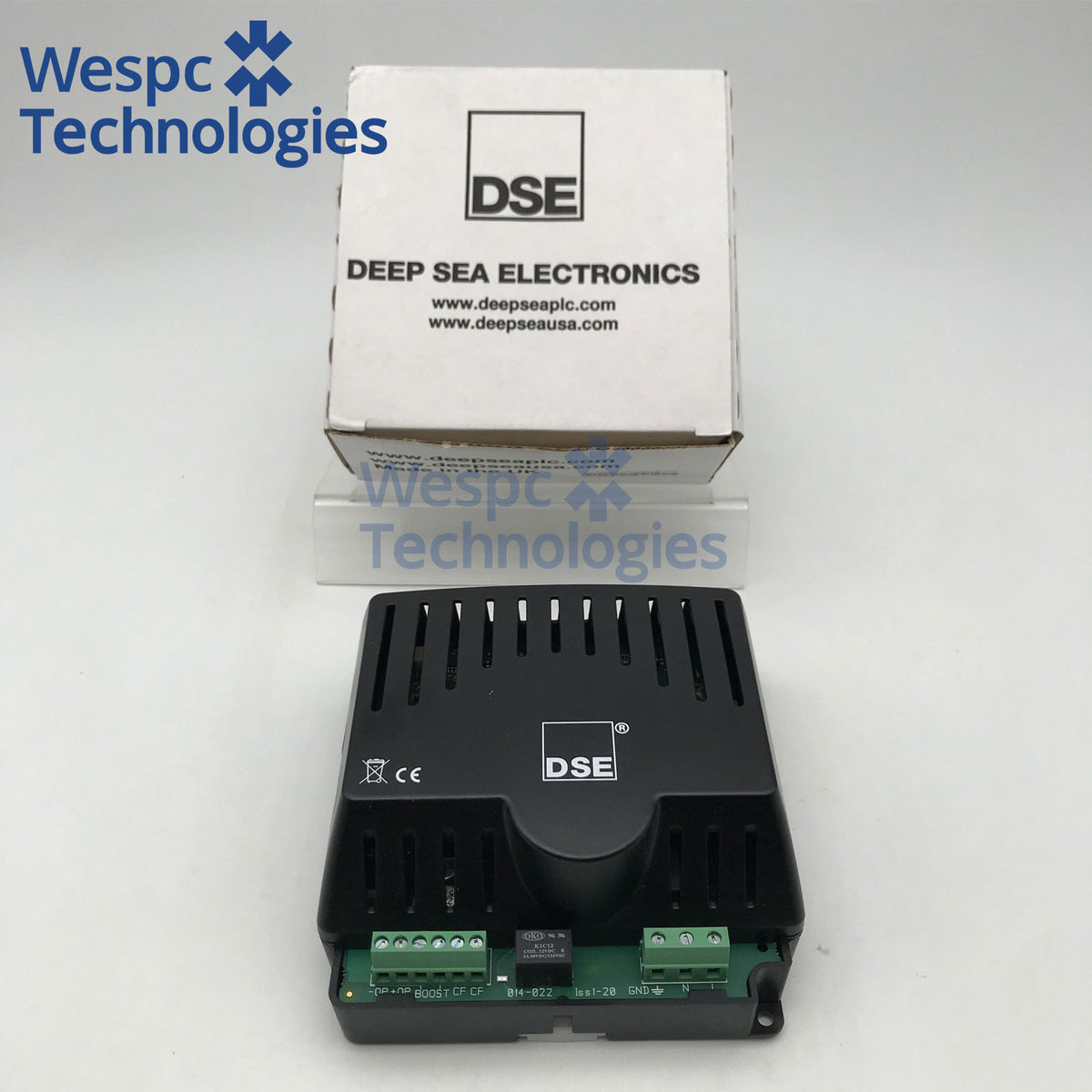

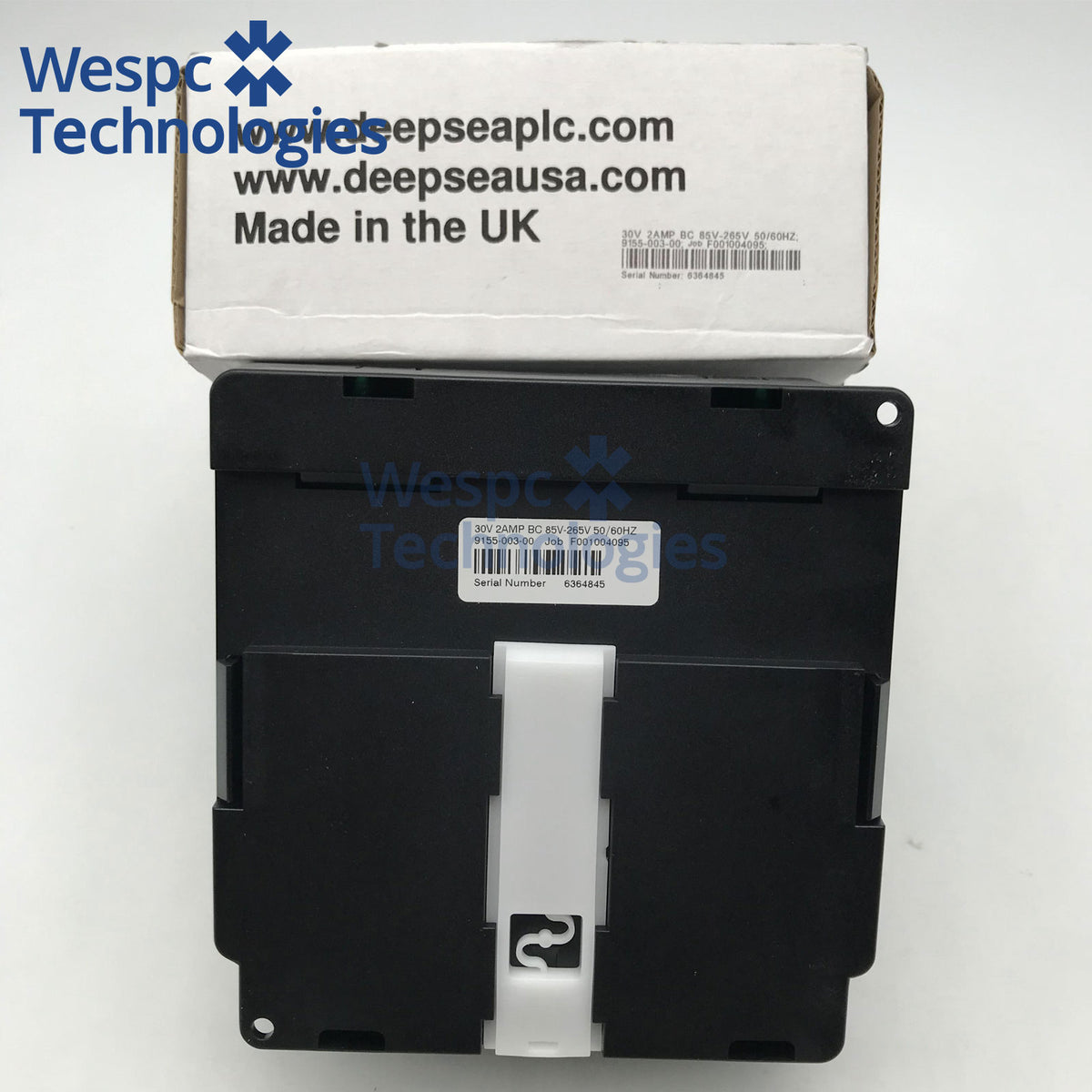

Original DSE9155 30V 2A Battery Charger Multi-Stage Float & Boost Charge Wide AC Input for Special Genset Battery Systems
Overview The DSE9155 30 volt 2 amp Switch-Mode Battery Charger keeps batteries charged to their maximum capacity at all times. It is designed for permanent battery connection and can be DIN rail or chassis mounted. The charger includes a normal or overload condition LED indicator on the front to assist with status identification, operates during cranking and running and accepts multiple AC voltage connections.
Specification
Model: DSE9155
Brand: Deep Sea Electronics (DSE), Series: DSEPower DSE91XX
Type: Multi-Stage Switch Mode Battery Charger
AC Input: 85–265V AC, 48–64Hz
DC Output: 30V DC, 2A continuous
Float Voltage: 34.3V DC
Protection: Short circuit, over current, over voltage, reverse polarity
Dimension: 136mm × 140mm × 63mm (5.4” x 5.5” x 2.5”)
Application: Special diesel genset, marine equipment, engine pump set, custom standby power 30V battery charging
Warranty: 12 months genuine factory warranty
KEY BENEFITS
•Suitable for a wide range of battery types
•No moving parts for longer battery charger life
•Switched mode design
•Charge fail output
•Minimum 80% efficiency throughout full operating range
