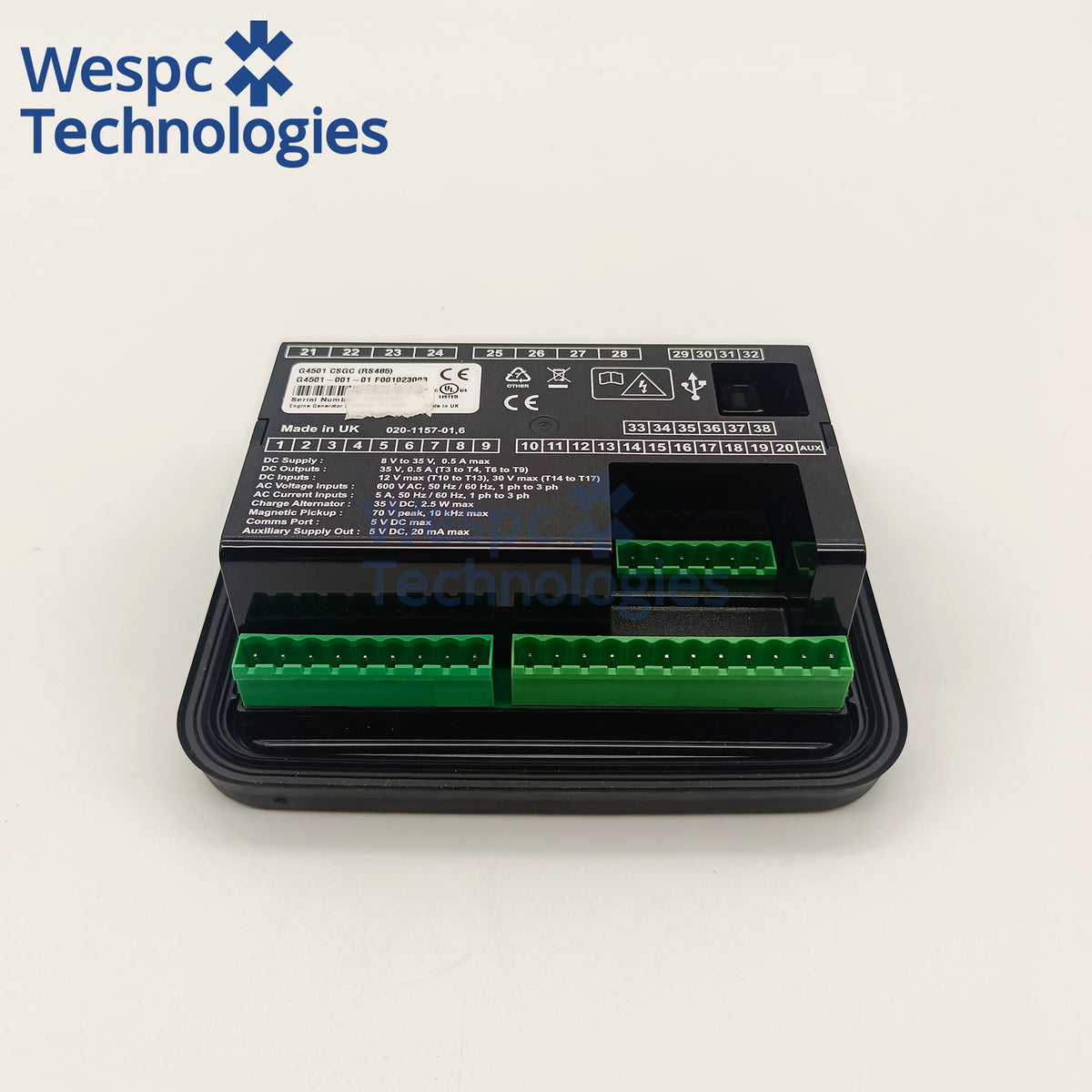

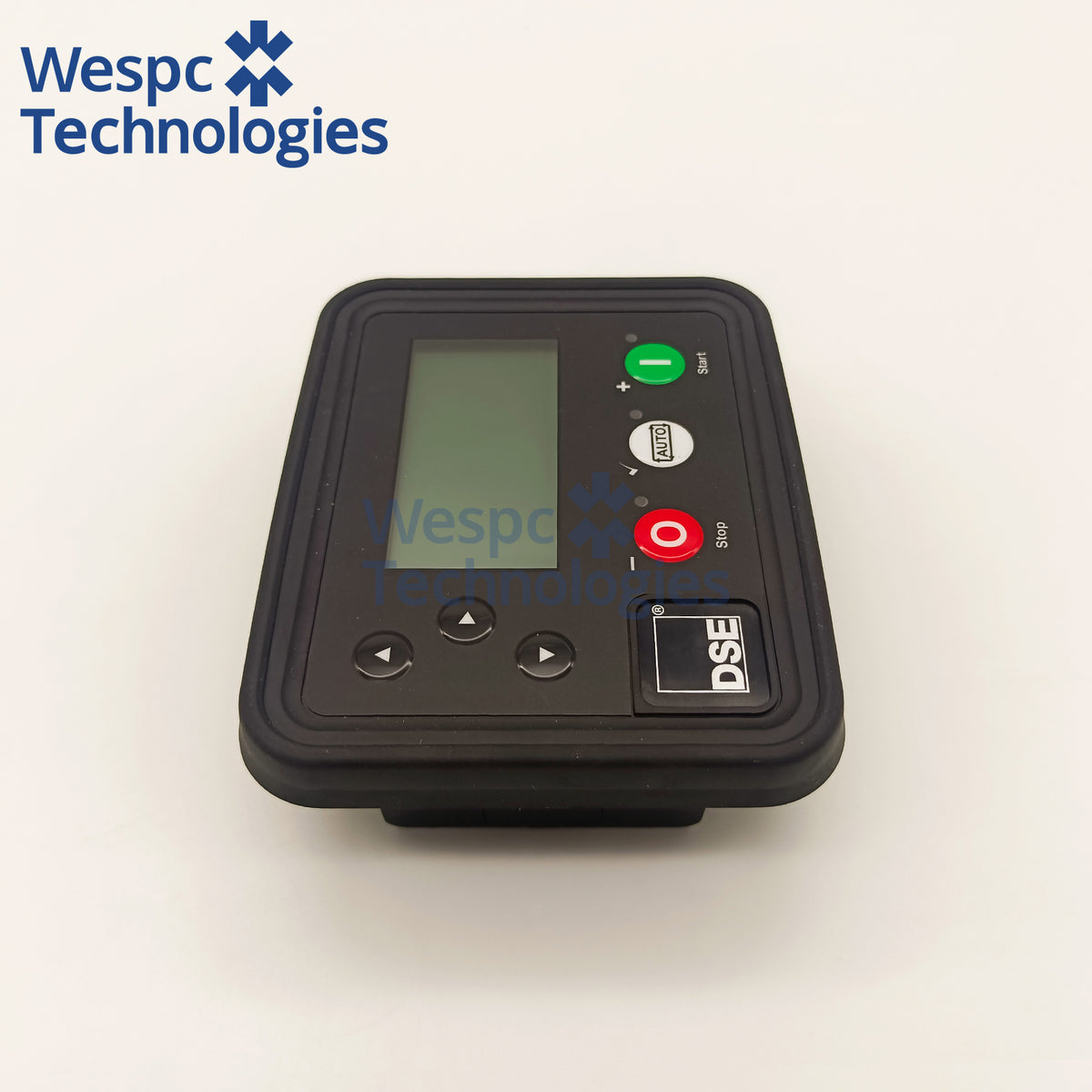

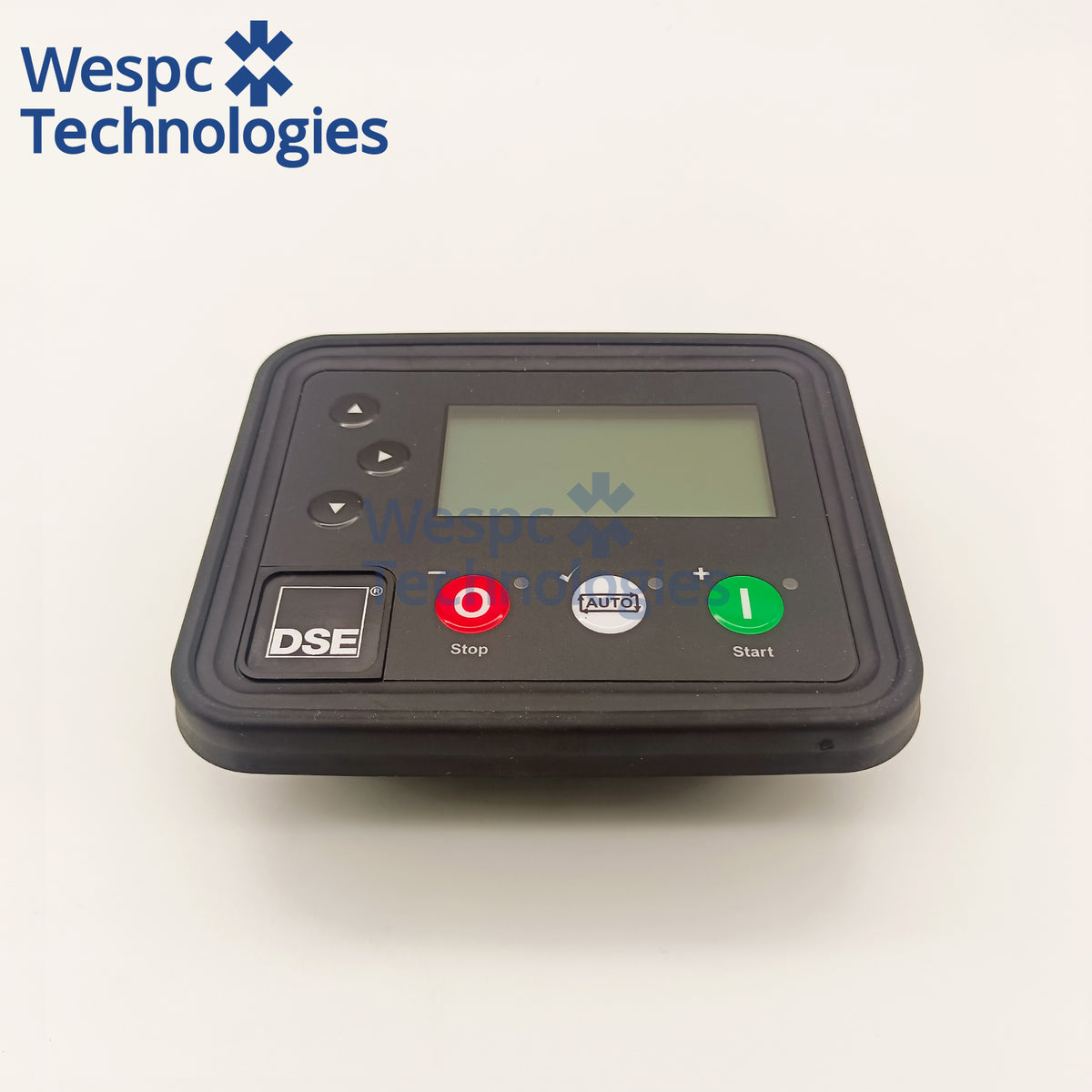

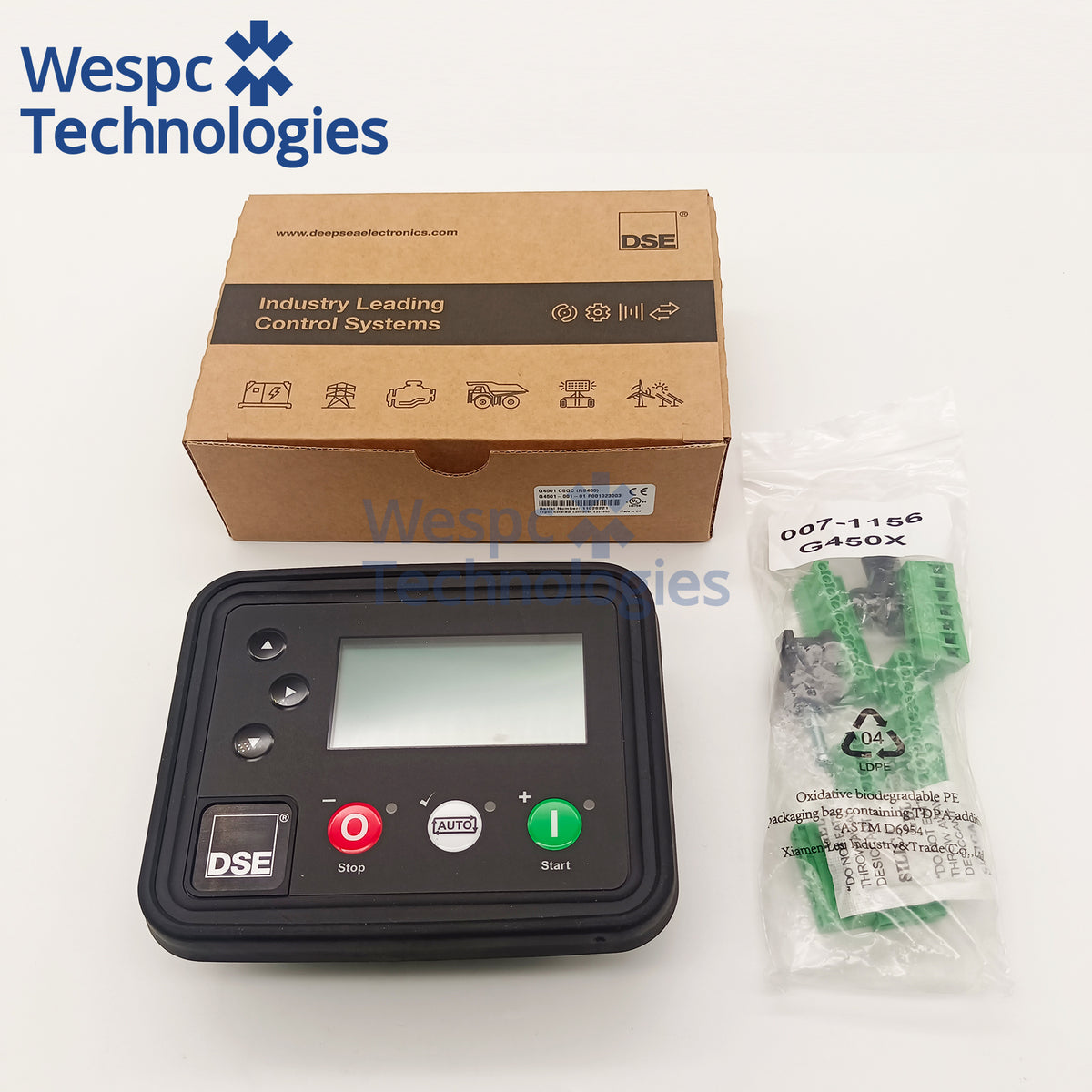

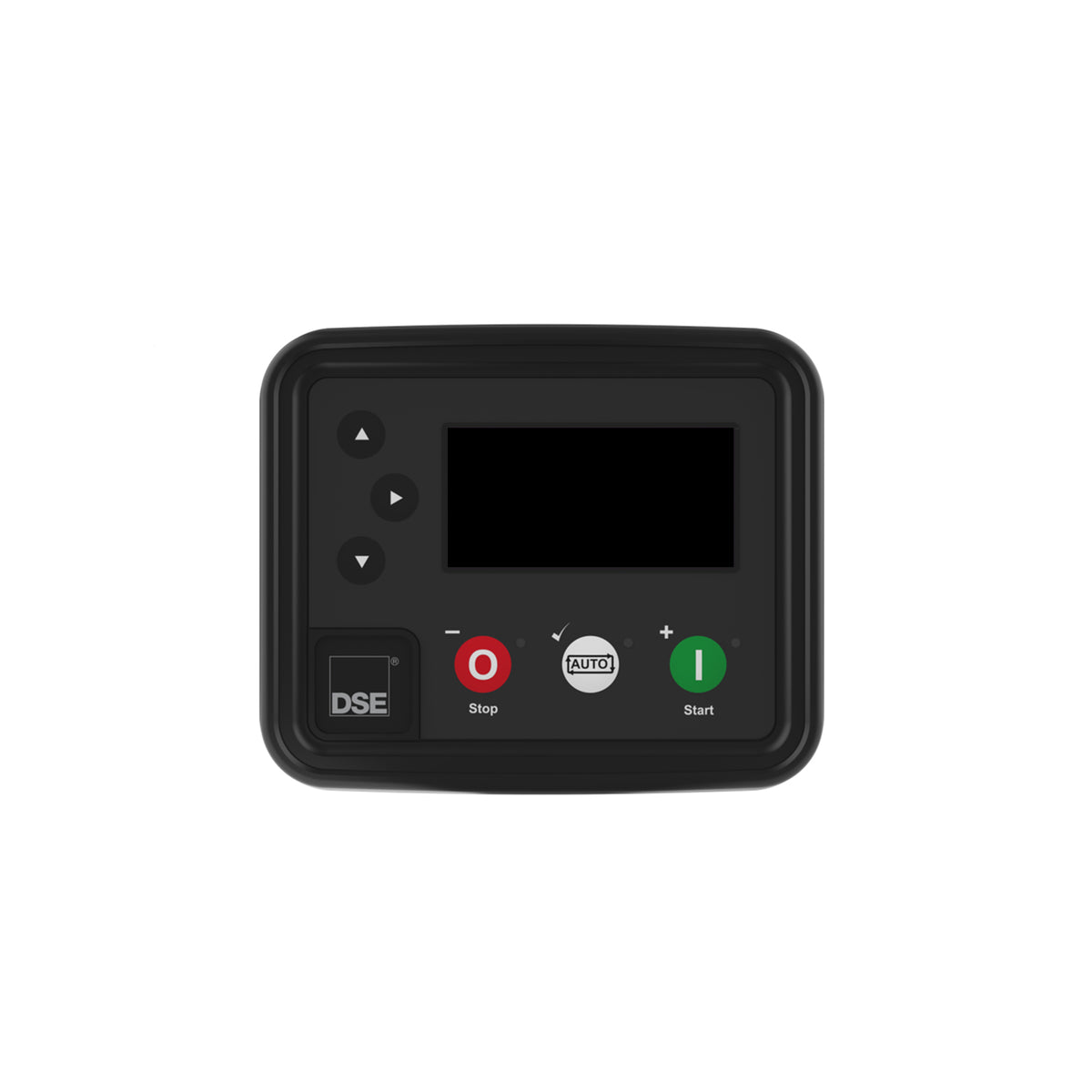

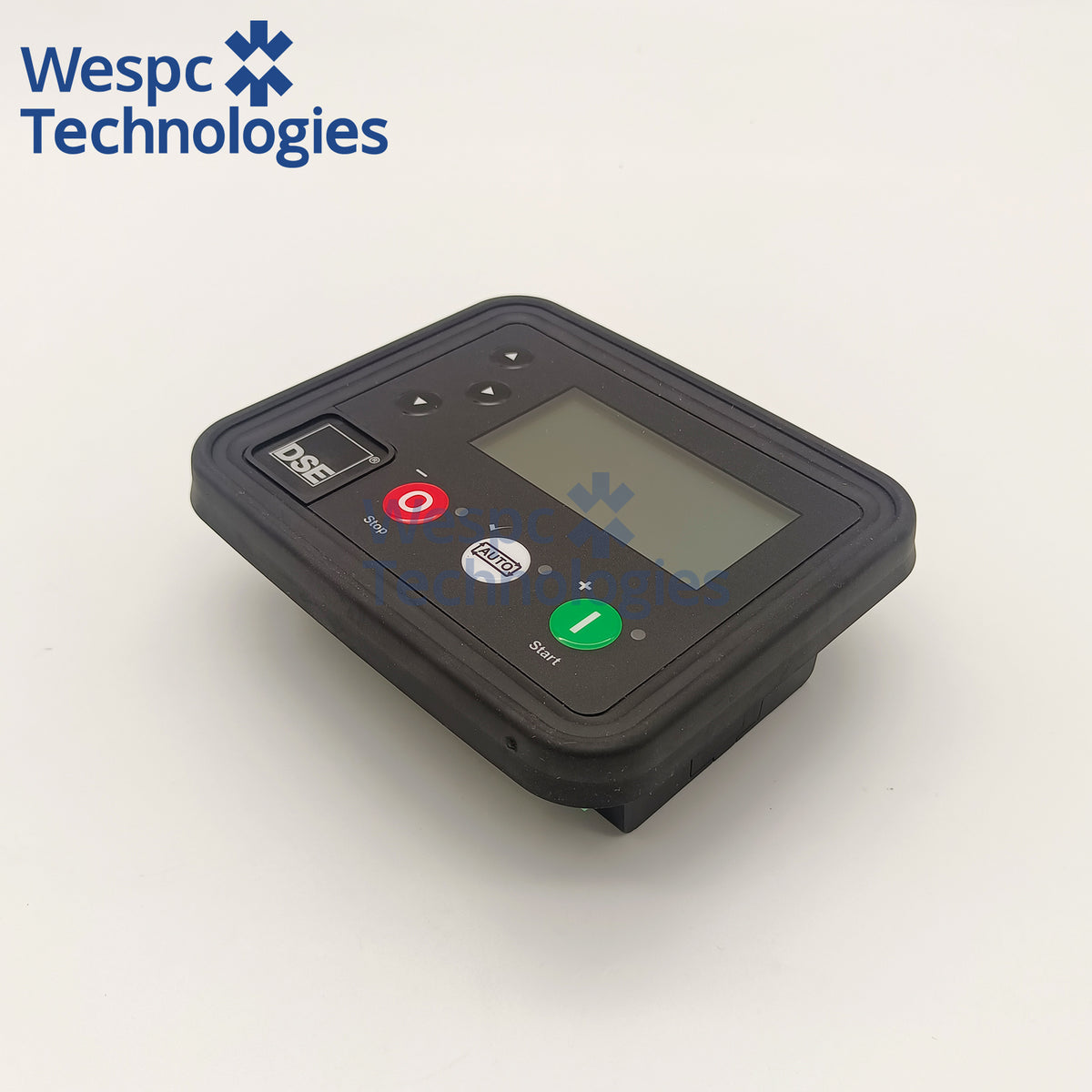

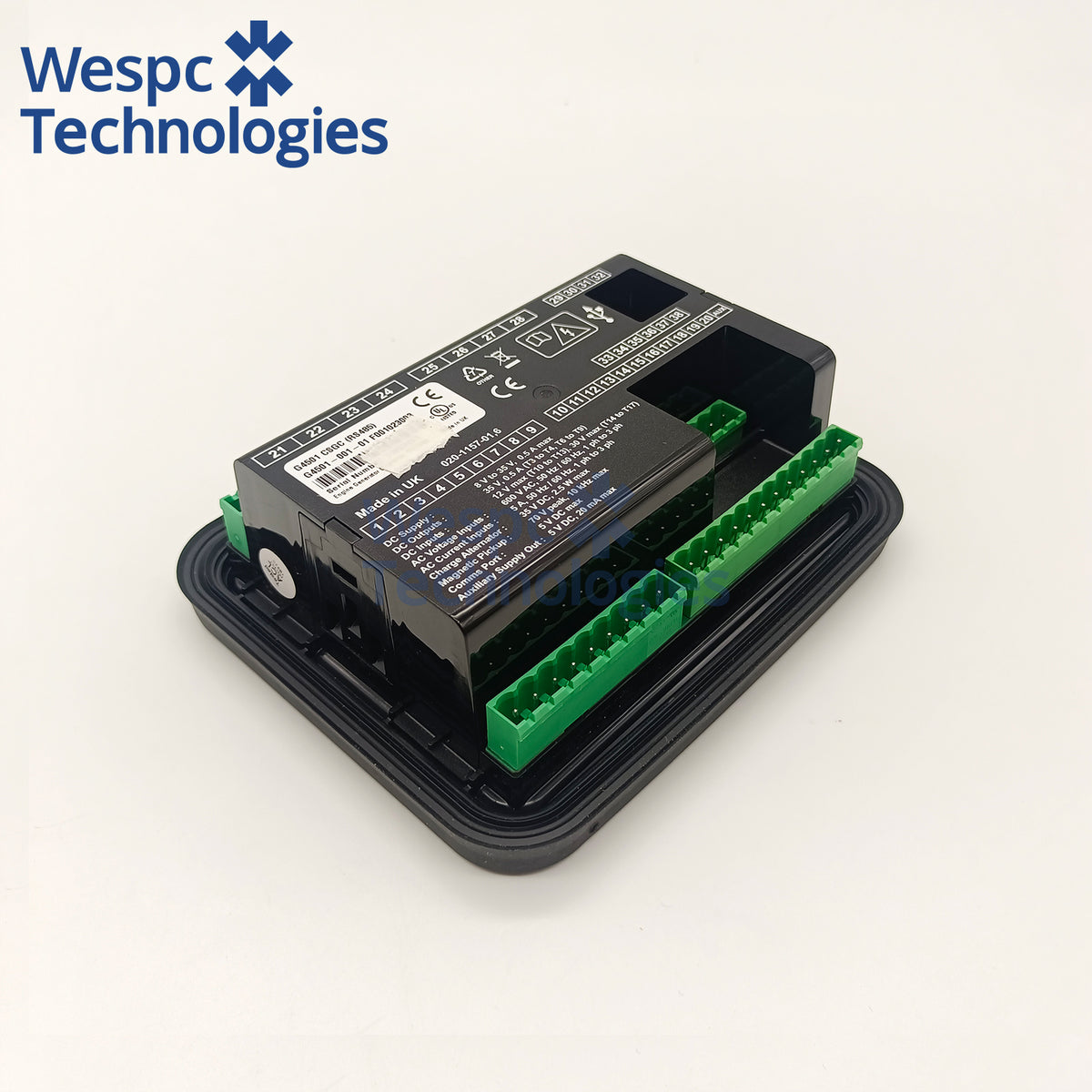

Original Deep Sea DSEG4501 Compact Single Genset Controller G4501-01 AMF / Remote Start Genset Controller
Original Deep Sea DSEG4501 Compact Single Genset Controller G4501-01 AMF / Remote Start Genset Controller
Precio habitual
$625.00 USD
Precio habitual
$0.00 USD
Precio de oferta
$625.00 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Genuine Deep Sea DSEG4501 (G4501-01) Compact Single Genset Controller with Isolated RS485 Modbus RTU AMF & Remote Start Switchable
Overview
The DSEG4500 Compact Single Genset Controller and DSEG4501 Compact Single Genset Controller with RS485 are part of the next-generation DSEG-Series platform, designed for versatility and performance. User-configurable for Remote Start (RS) or Automatic Mains (Utility) Failure (AMF) applications, they offer a robust feature set tailored to single genset operations. Selected features include real-time monitoring of generator and load power, engine speed, oil pressure, coolant temperature, frequency, voltage, current, power, and fuel level. All critical data is displayed on a dedicated multi-line, text and icon high-resolution screen.
The DSEG4500 and DSEG4501 support both electronic J1939 (CAN) and non-electronic (alternator frequency sensing) engines, making them compatible with a wide range of fuel types including diesel, gas, and petrol. A generous number of flexible inputs, outputs, and protection features ensure adaptability for diverse applications.
Overview
The DSEG4500 Compact Single Genset Controller and DSEG4501 Compact Single Genset Controller with RS485 are part of the next-generation DSEG-Series platform, designed for versatility and performance. User-configurable for Remote Start (RS) or Automatic Mains (Utility) Failure (AMF) applications, they offer a robust feature set tailored to single genset operations. Selected features include real-time monitoring of generator and load power, engine speed, oil pressure, coolant temperature, frequency, voltage, current, power, and fuel level. All critical data is displayed on a dedicated multi-line, text and icon high-resolution screen.
The DSEG4500 and DSEG4501 support both electronic J1939 (CAN) and non-electronic (alternator frequency sensing) engines, making them compatible with a wide range of fuel types including diesel, gas, and petrol. A generous number of flexible inputs, outputs, and protection features ensure adaptability for diverse applications.
Specification
- Model: DSEG4501, Part No: G4501-01
- Brand: Deep Sea Electronics (DSE), Original
- Type: Compact Single Genset Controller, configurable AMF / Remote Start
- Supply Voltage: DC 8V ~ 35V, survives 0V dropout ≥50ms
- Voltage Sensing: 15V–415V AC L-N, up to 720V phase-phase, frequency 3.5–75Hz
- Speed Detection: Alternator frequency sensing, CAN J1939
- Outputs: 6 positive switching DC outputs (0.5A each)
- Measurement: True RMS V, A, kW, kVA, kVAr, PF, running hours
- Protection: Overspeed, low oil pressure, high coolant temp, over/under voltage, overload, charge fail
- Communication: USB for configuration, CAN J1939, isolated RS485 Modbus RTU
- Dimension: 140 × 113 × 43 mm
- Panel Cutout: 118 × 92 mm
- Max panel thickness: 8 mm
- Operating Temp: -30℃ ~ +70℃
- Compatible replacement: DSE4520 MKII, DSE4620
- Application: Single standby diesel/gas genset, backup power, rental generator
- Warranty: 12 months genuine factory warranty
