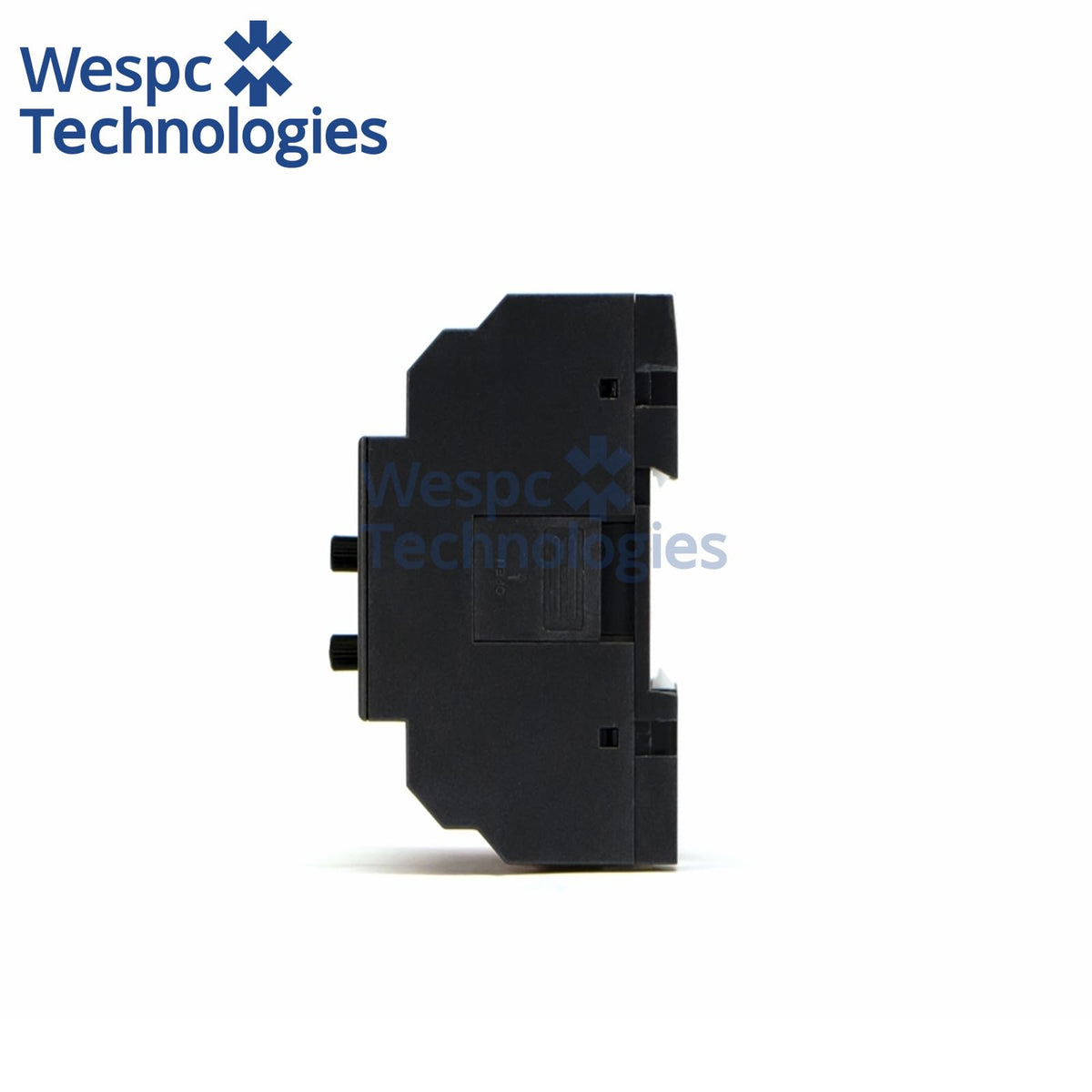

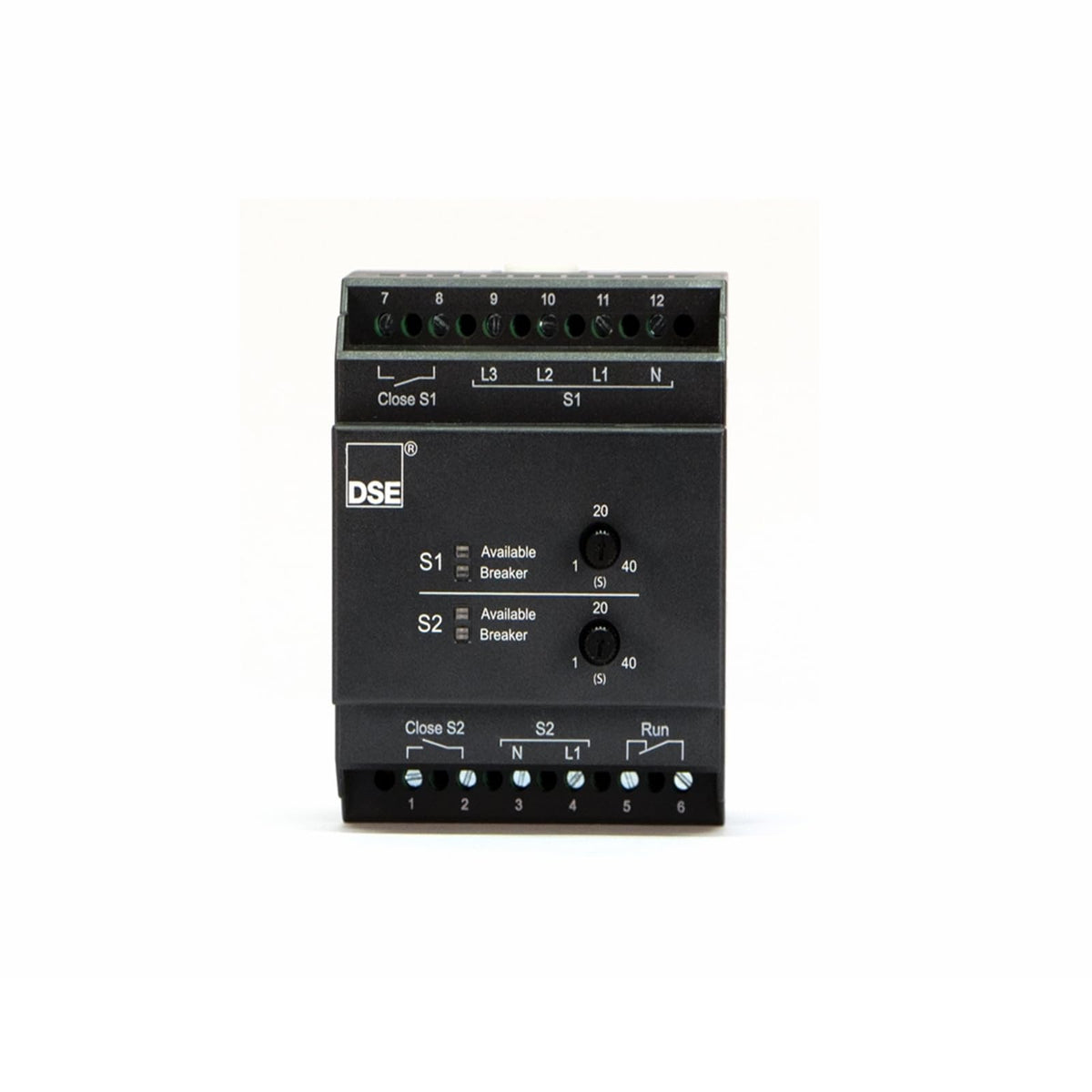

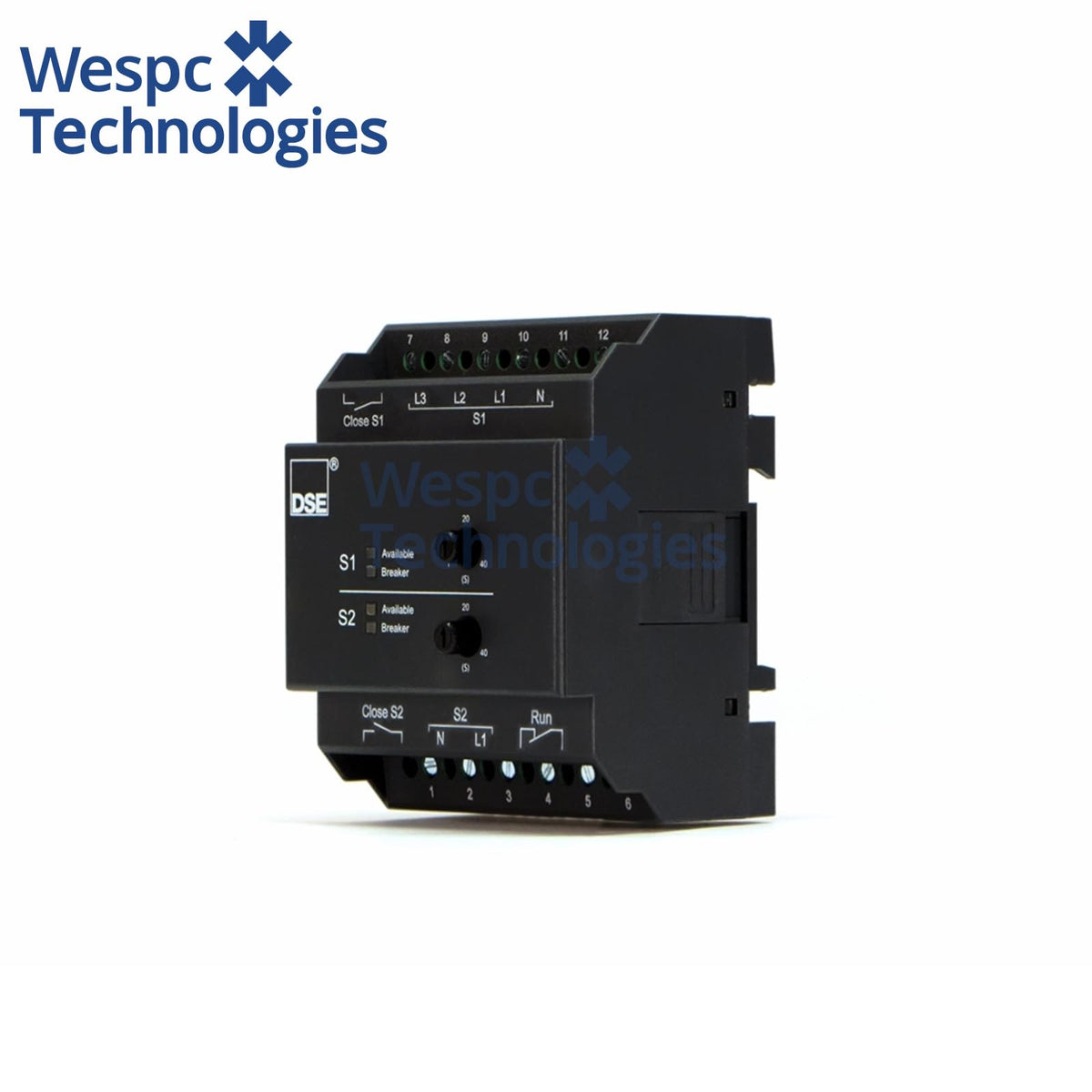

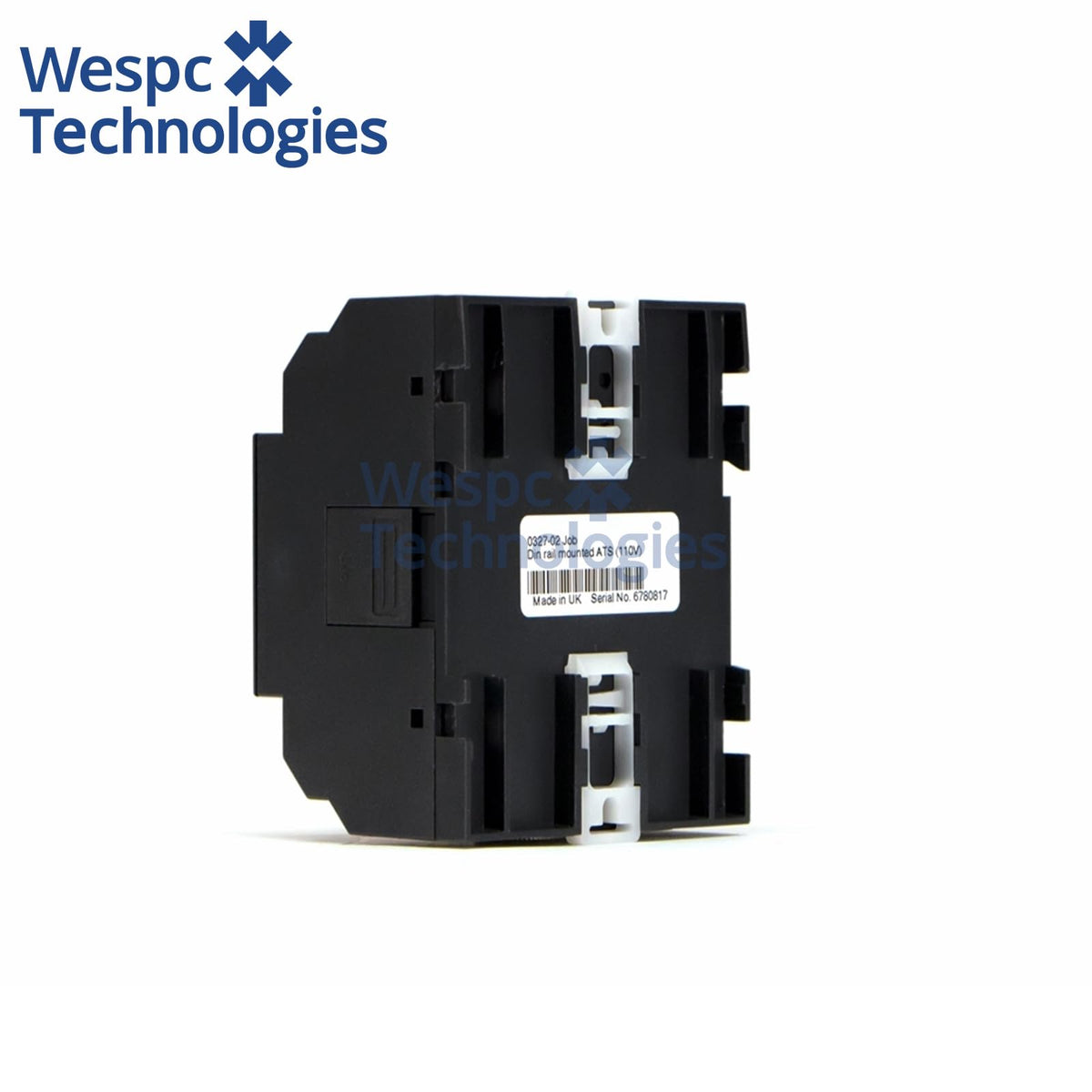

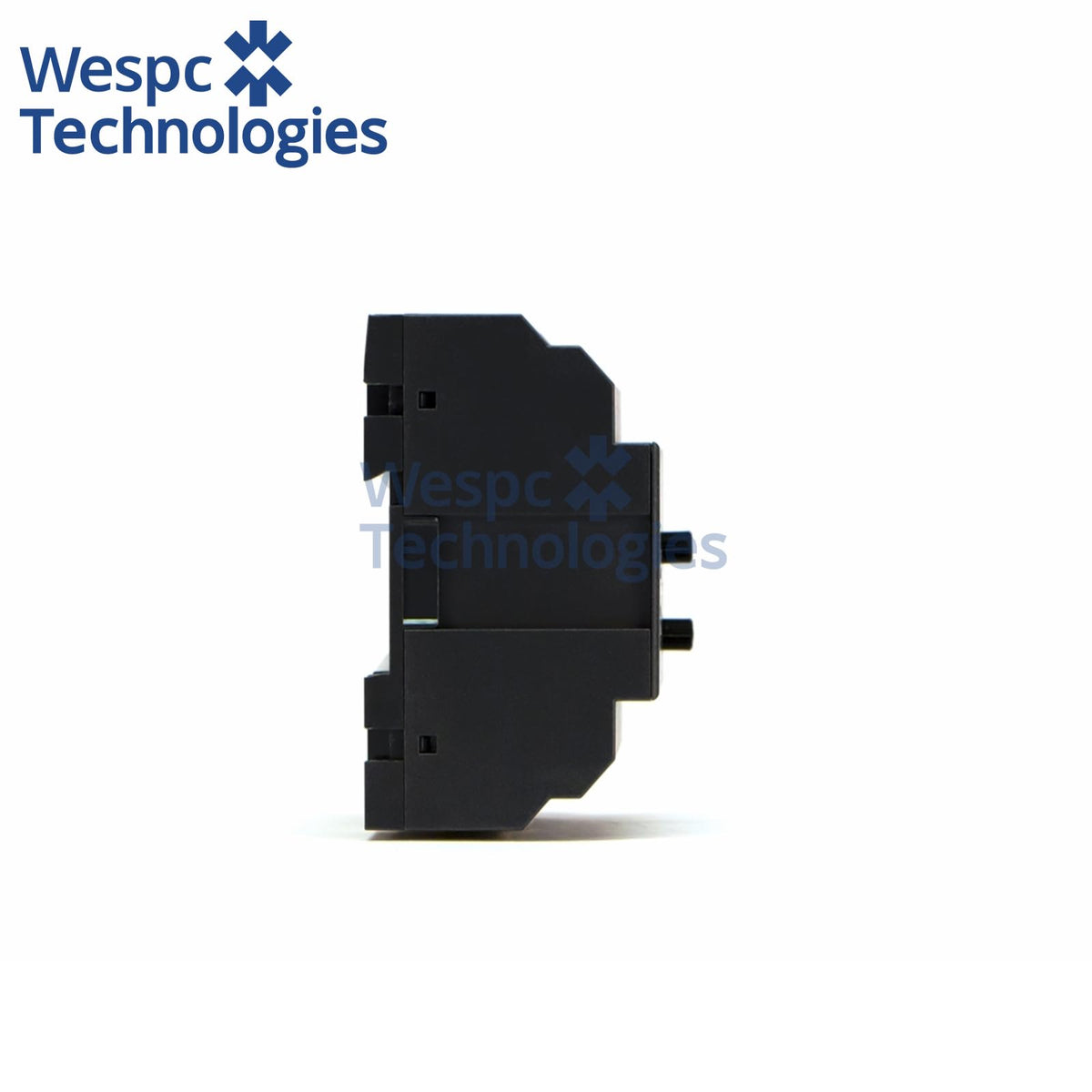

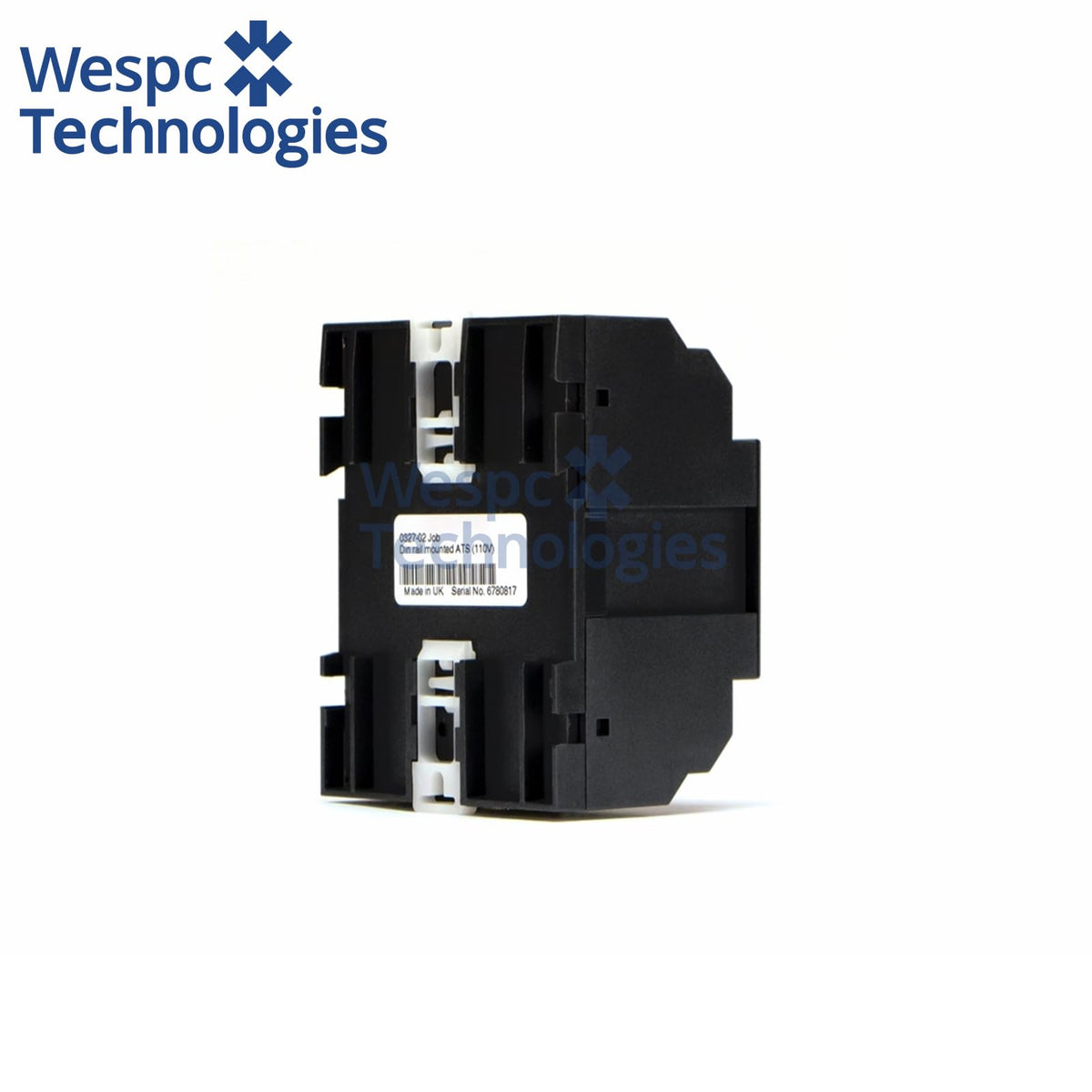

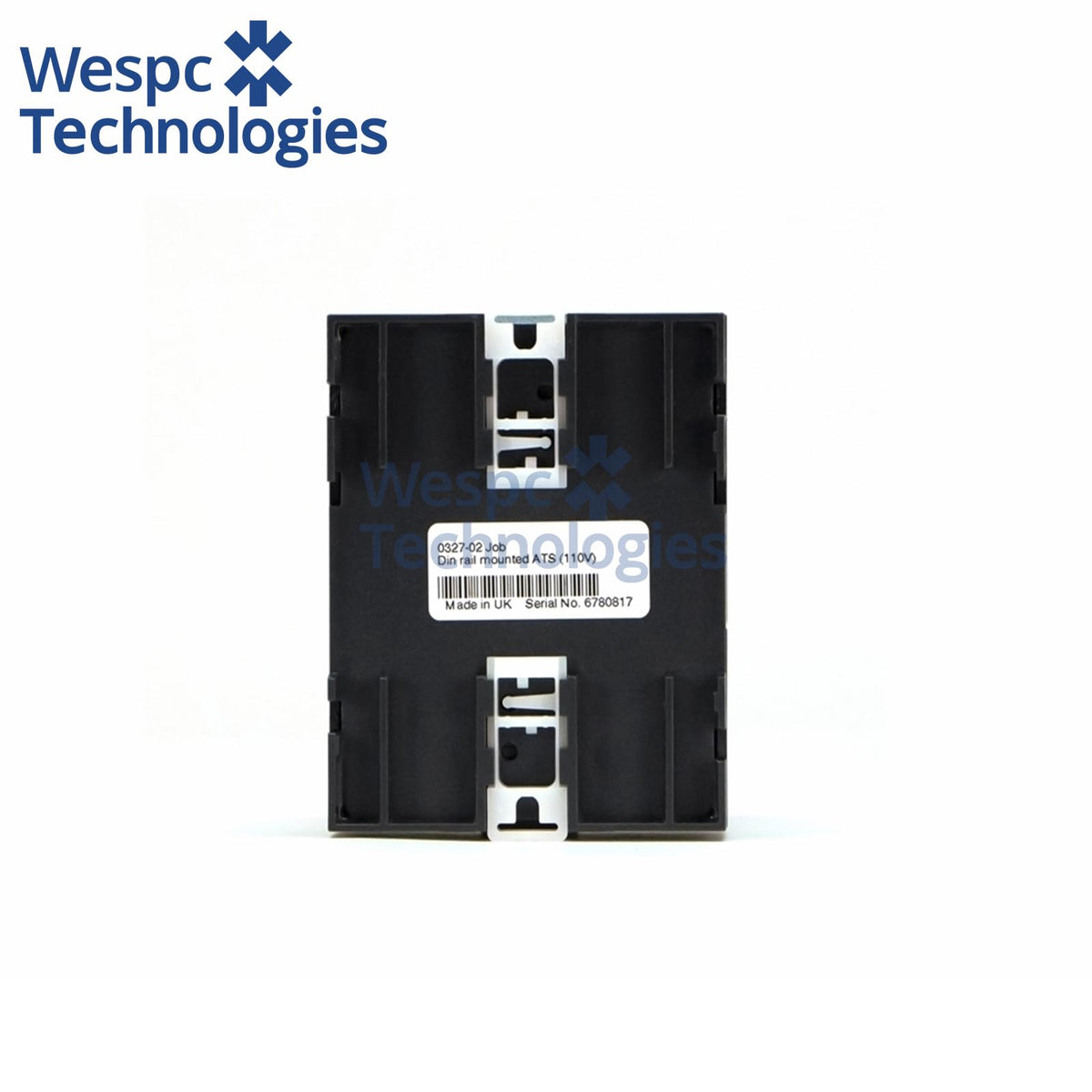

Original DeepSea DSE327 ATS Automatic Transfer Switch Controller Dual Source Mains Genset Transfer Module

Original DeepSea DSE327 ATS Automatic Transfer Switch Controller Dual Source Mains Genset Transfer Module

$356.00 USD
$580.00 USD $356.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Original Deep Sea DSE327 transfer switch module voltage monitoring adjustable timer mains to genset automatic load switch

Overview:
The DSE327 is an Automatic Transfer Switch Control Module designed to monitor the voltage of an incoming AC supply from two different sources. This could be from both generator or mains (utility), or a combination of both. The module monitors S1 (Source 1) and in the event of a failure issues a start command to S2 (Source 2). The DSE327 can be ordered in 110 V and 230 V variants.


Specification

  • Model: DSE327
  • Brand: Deep Sea Electronics (DSE), Original
  • Part variants: 0327-01 (230V), 0327-02 (110V), 0327-03 (230V, 10s fixed delay)
  • Function: Single phase dual-source ATS auto transfer control
  • Measurement: True RMS voltage sensing, frequency range 50–70Hz
  • Relay outputs: S1 close, S2 close, Run relay, volt-free contact 8A@250VAC
  • Mounting: DIN rail mounting
  • Dimension: 72 mm x 90.5 mm x 65 mm
  • Indication: Front panel LED for S1 available, S2 available, breaker status, run
  • Application: Mains-genset ATS, dual utility supply switch, small standby power panel
  • Warranty: 12 months genuine factory warranty
PRODUCT VARIANTS
0327-01 - 327 Auto Transfer Switch Control Module (230 Volt)
0327-02 - 327 Auto Transfer Switch Control Module (110 Volt)
0327-03 - 327 Auto Transfer Switch Control Module (230 Volt - 10 Second Delay)
