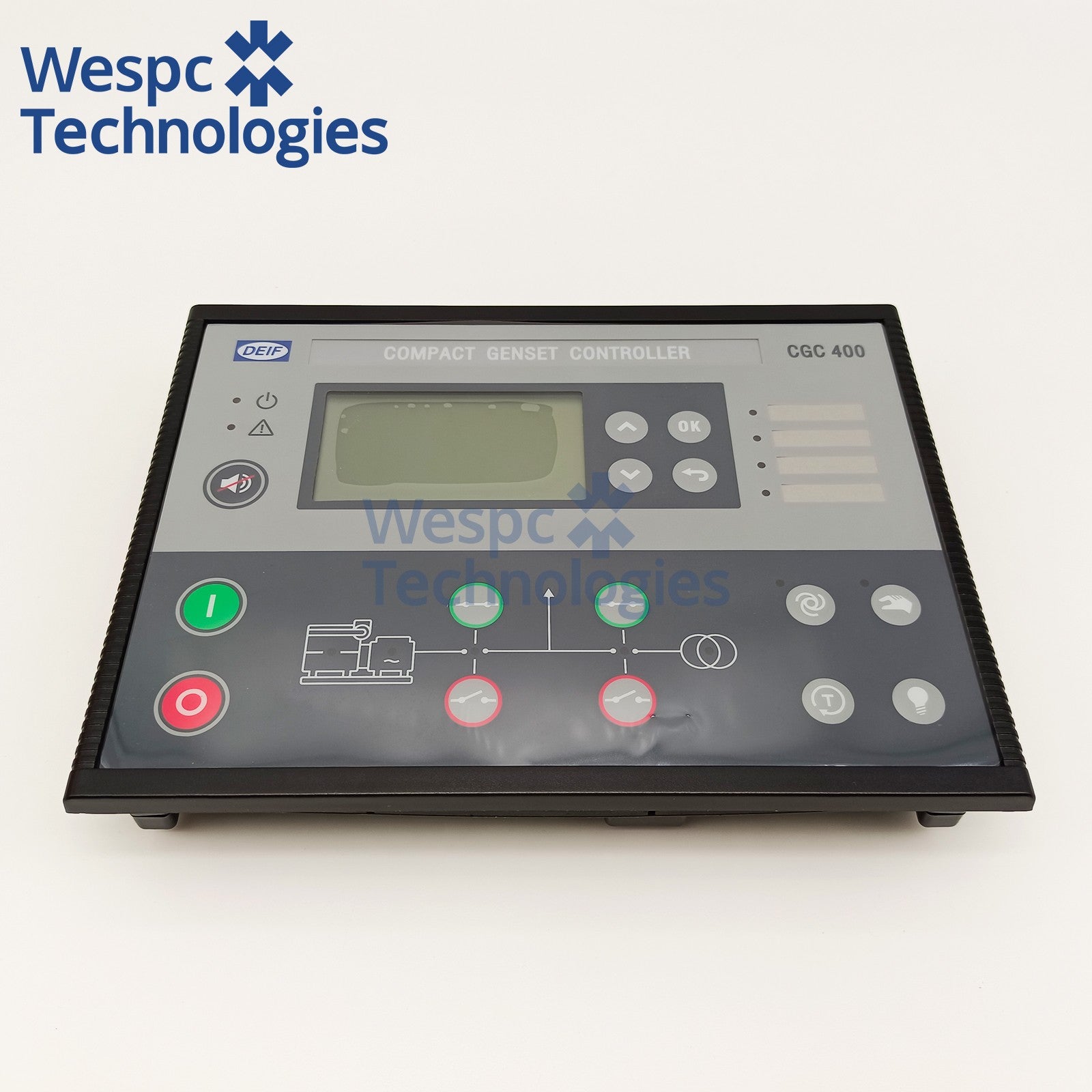

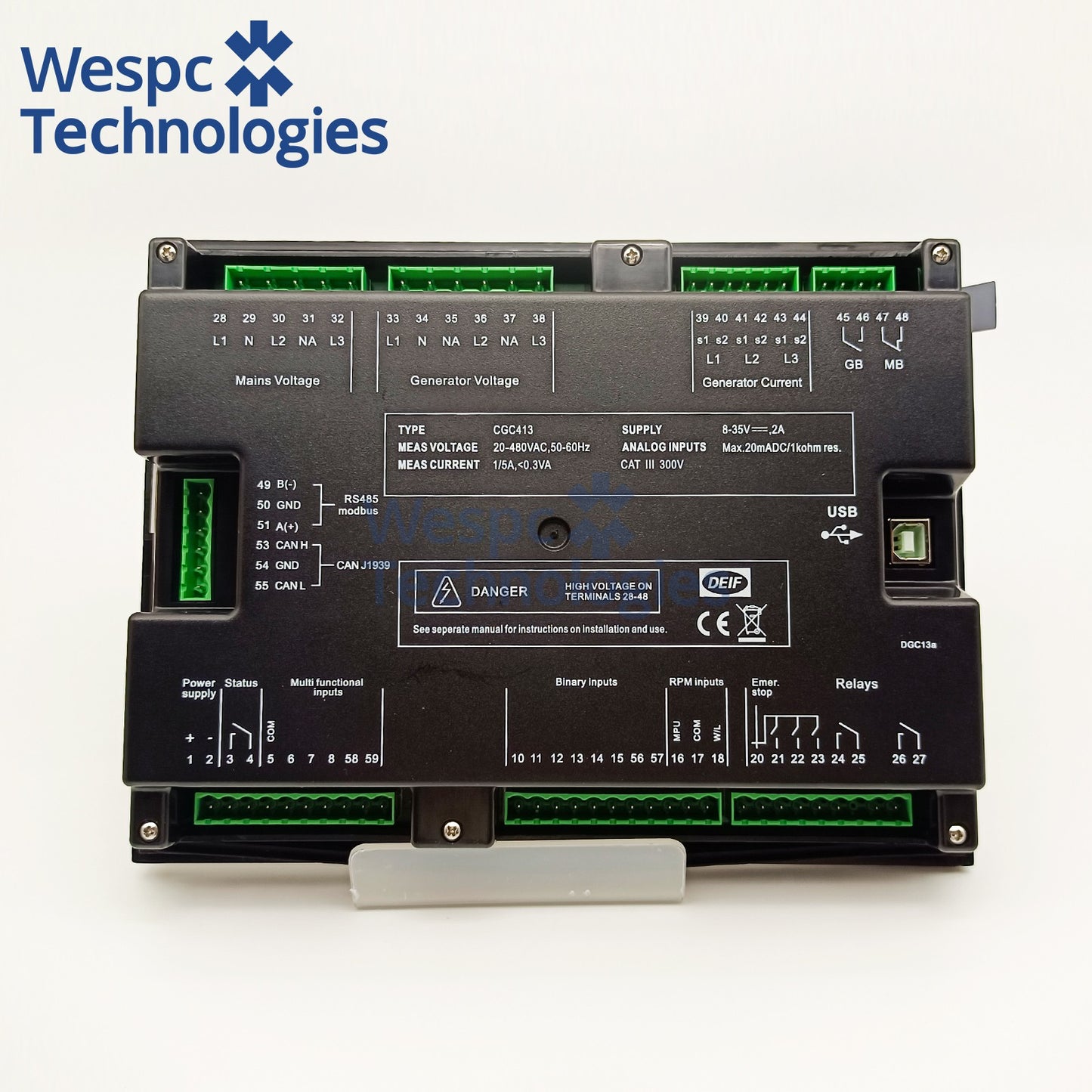

Original DEIF CGC413 Compact Genset AMF Controller Auto Start Control Module For Diesel Generator Replacement Spare Part

Name: Original DEIF CGC413 Compact Genset AMF Controller Auto Start Control Module For Diesel Generator Replacement Spare Part
Brand: Wespc Technologies
SKU: CGC413
Price: 360.00 USD
Availability: InStock

$360.00 USD

~~$0.00 USD~~ $360.00 USD

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Cantidad

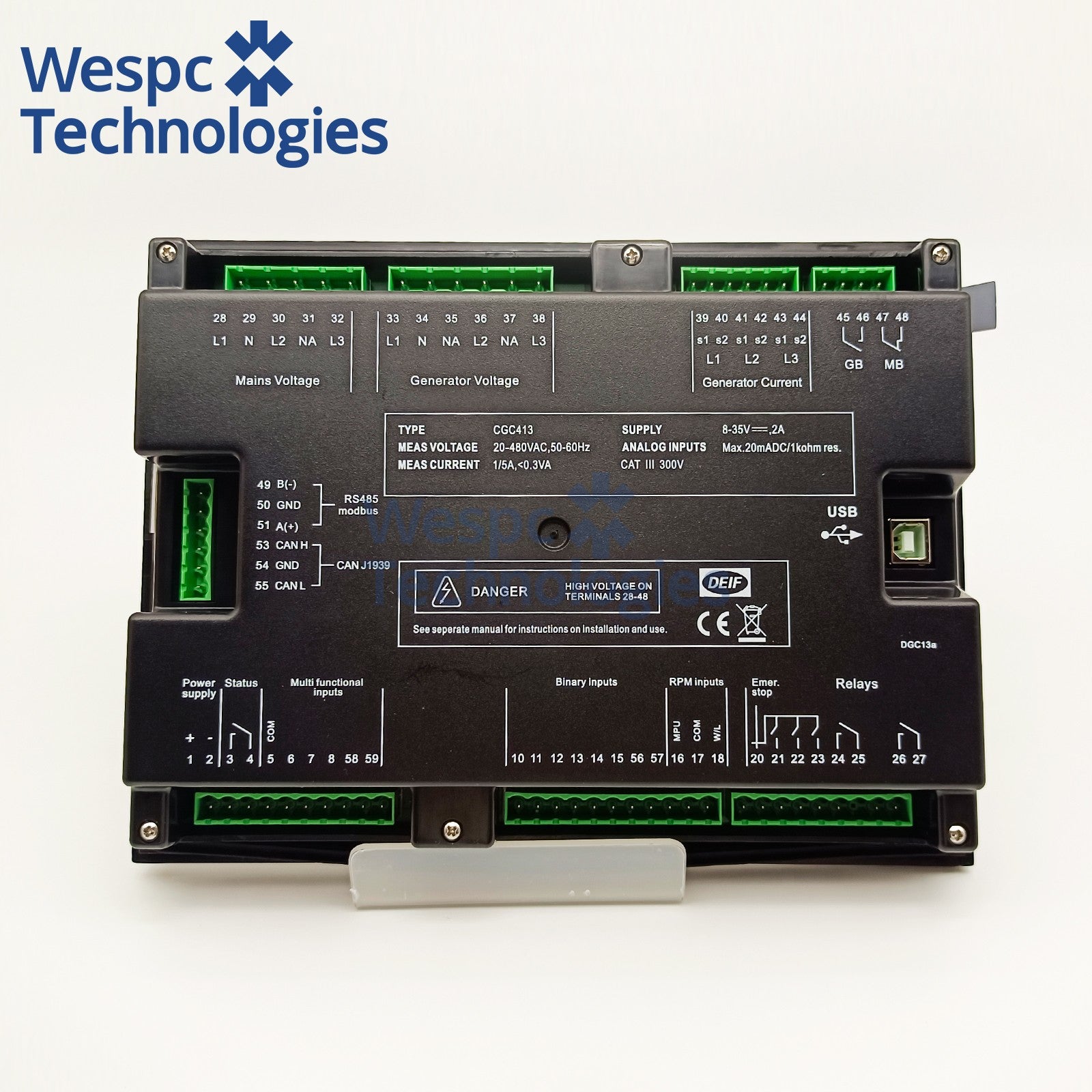

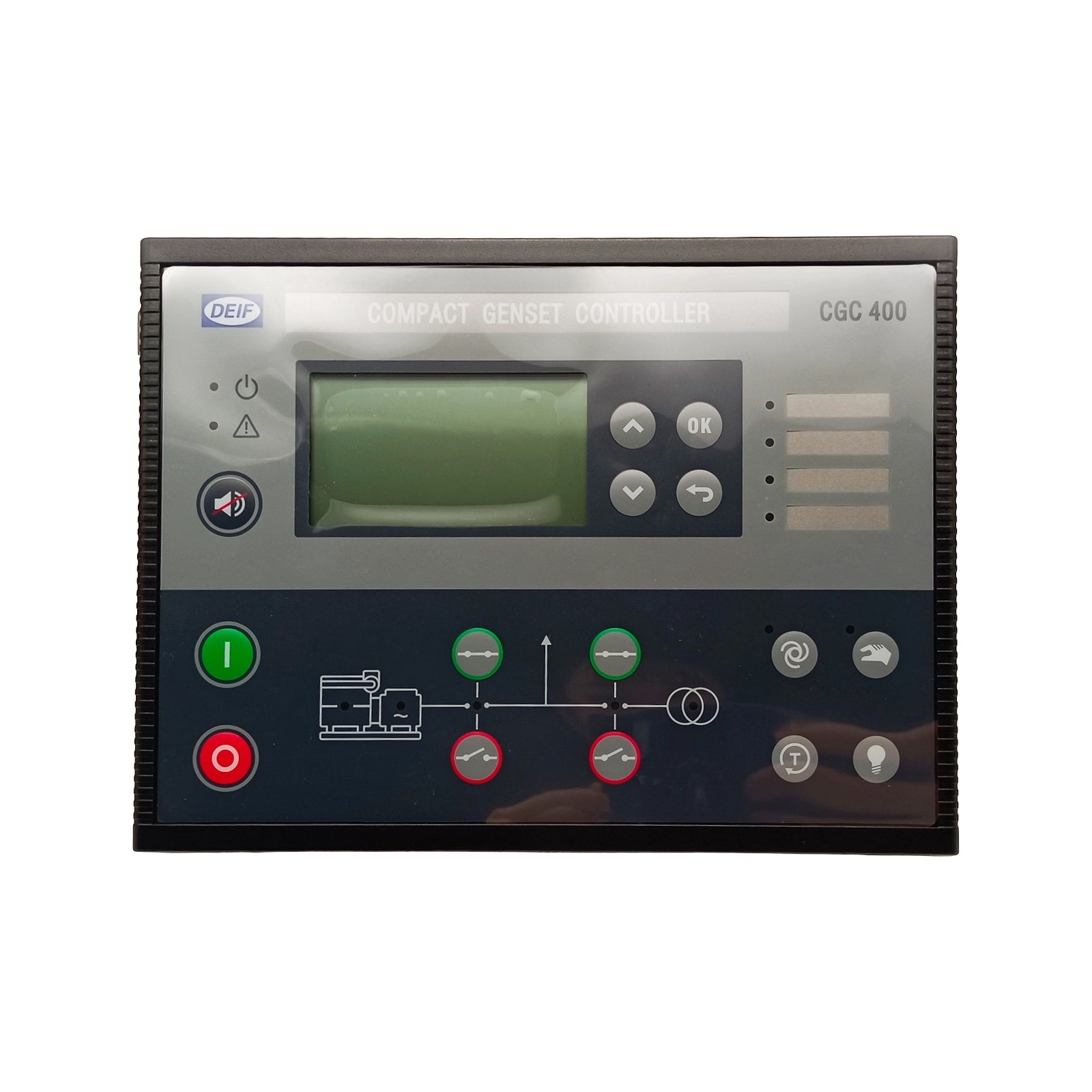

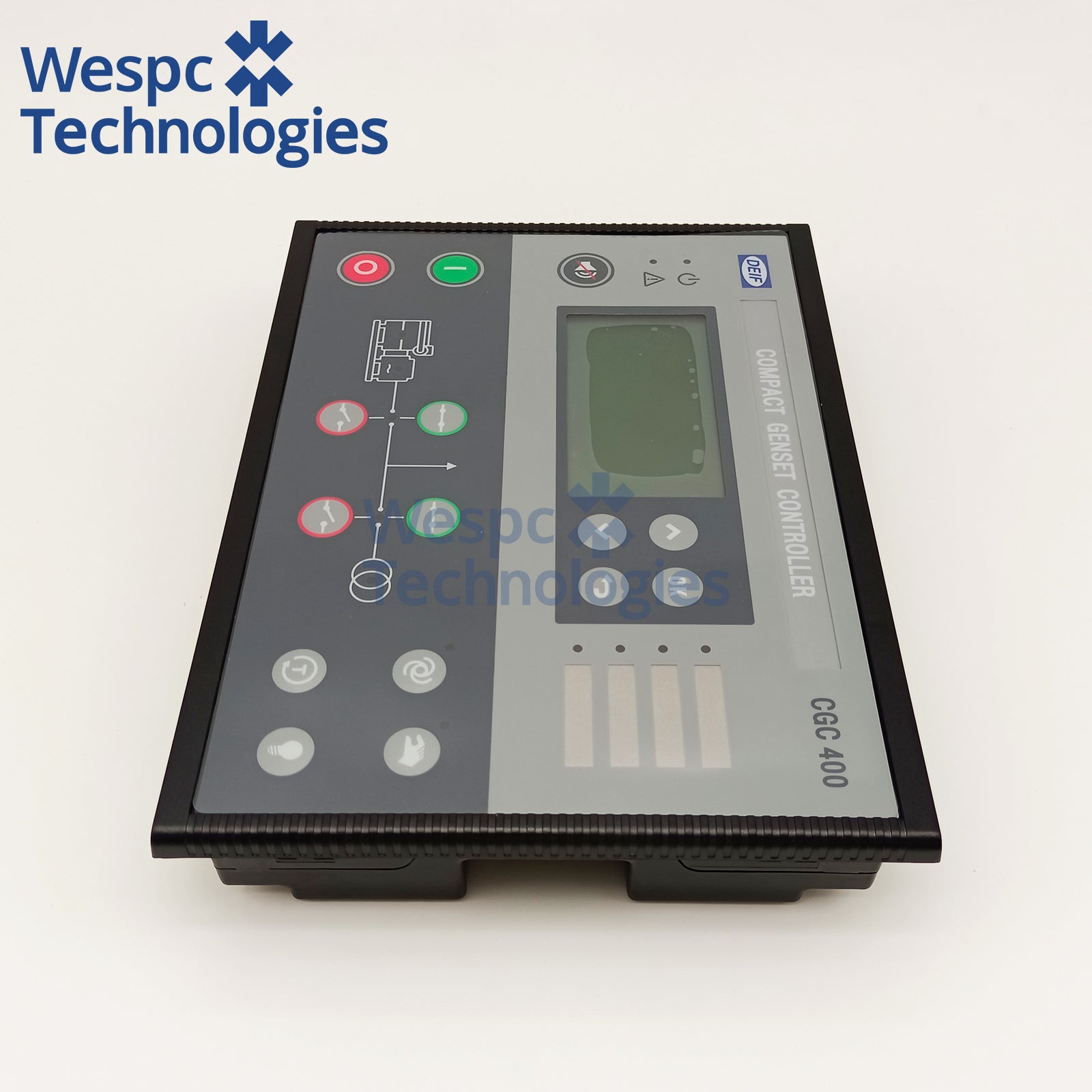

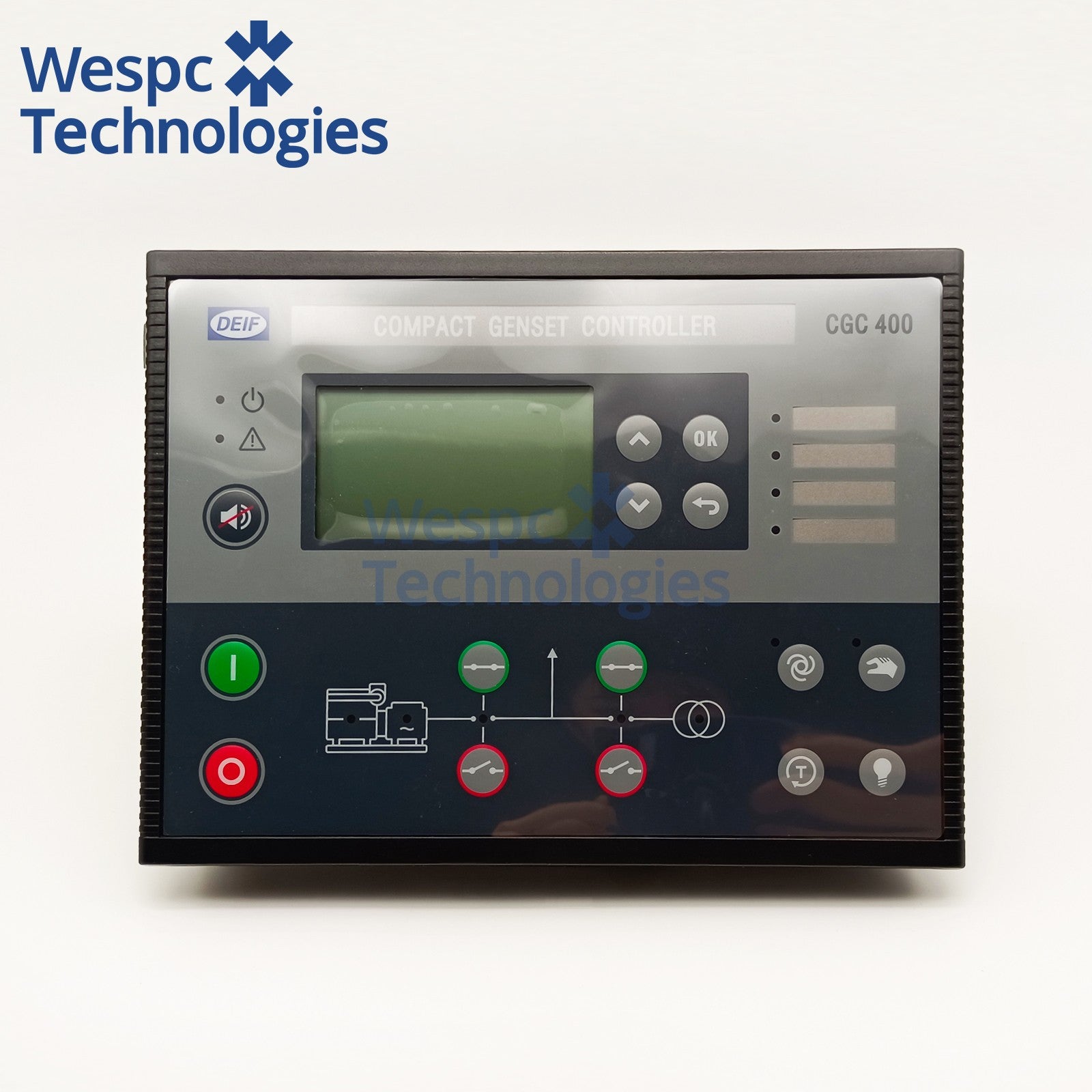

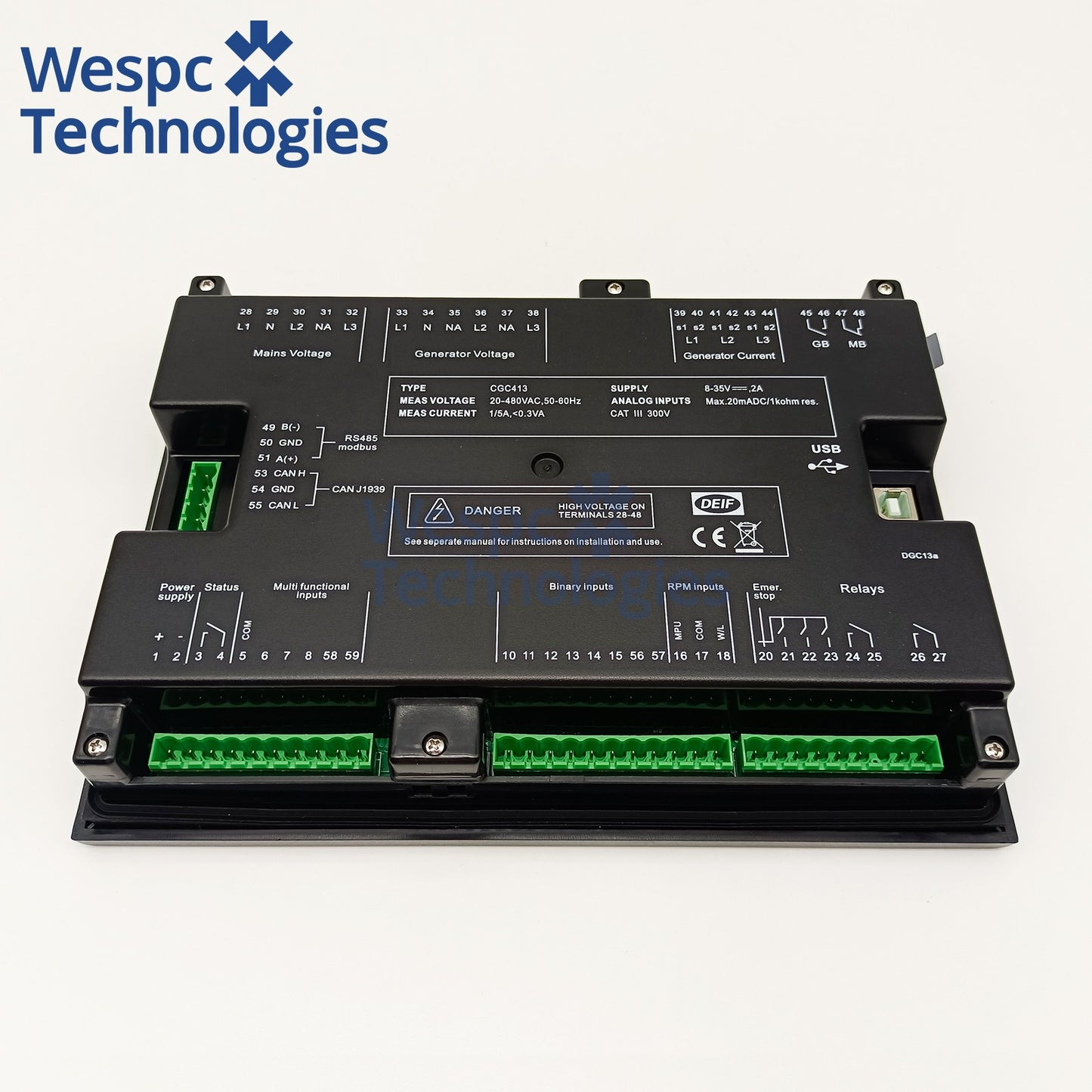

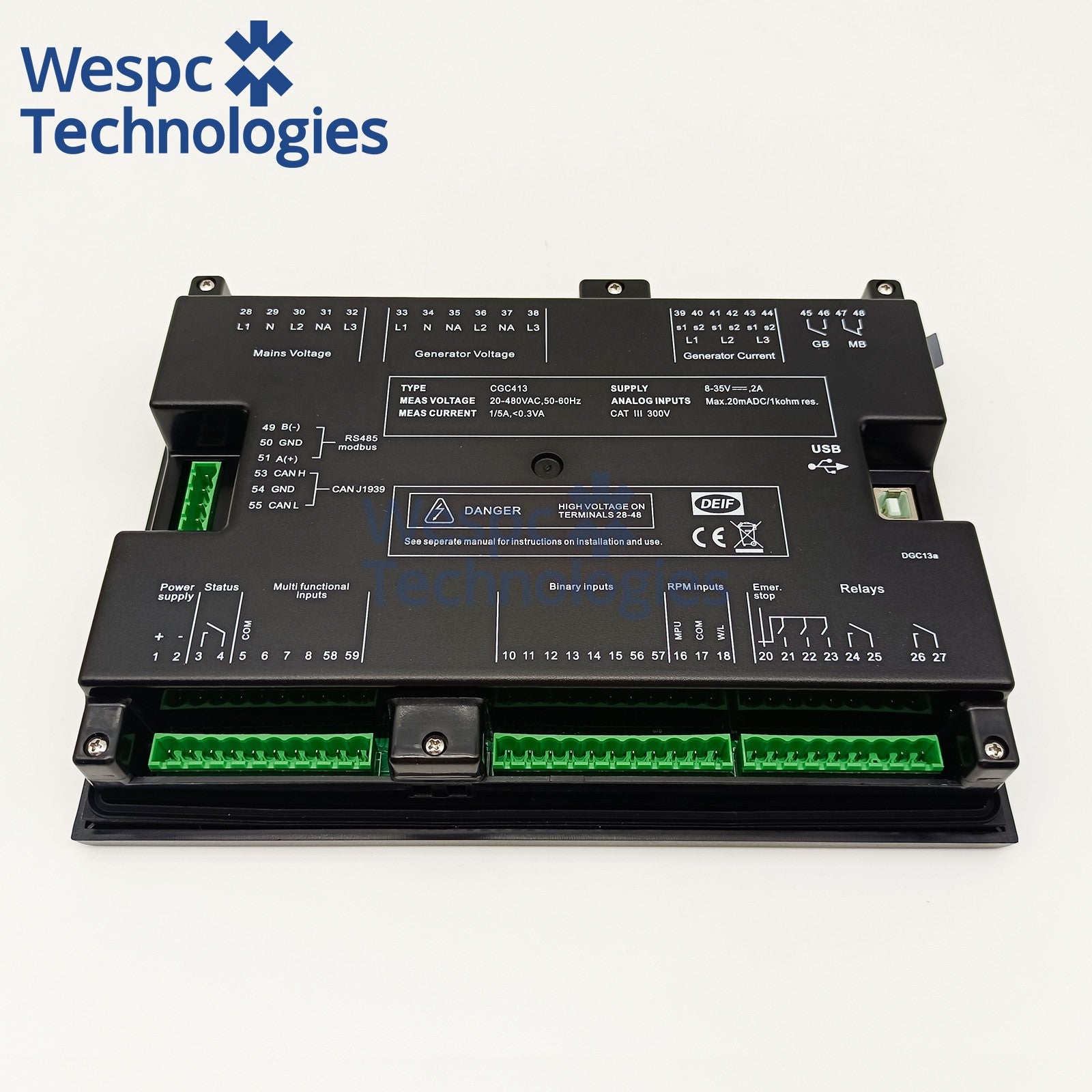

Genuine DEIF CGC413 Compact Genset Controller CGC 400 AMF Generator Controller

Cross Reference Model Distinction

· Model: CGC413 (AMF version, with mains monitoring & ATS auto transfer)
· Standalone model without AMF: CGC412 (no mains sampling, only single unit auto start)
· Series: CGC400 compact genset controller series
· Matching debug software: DEIF Utility Windows configuration tool
· Optional communication: External RS485 expansion, Ethernet module

Product Specifications

· Model: Genuine DEIF CGC413 Compact AMF Genset Controller
· Power Supply: DC8~36V Universal 12/24V Diesel Engine Battery
· Measurement: True RMS 3P Mains + 3P Generator Voltage Sampling
· Core Functions: AMF Automatic Mains Failure ATS Transfer, J1939 CAN ECU Communication, 13 Digital Inputs / 8 Relay Outputs, RS485 Modbus RTU, Multi-Language LCD, Full Electrical & Mechanical Multi-Protection, Fault History Storage
· Versions: Made in Denmark Genuine Original / Generic Aftermarket Compatible, Fully Drop-In Interchangeable
· Mounting: 122×74mm Embedded Panel Installation, IP54 Front Panel
· Net Weight: 1.1KG

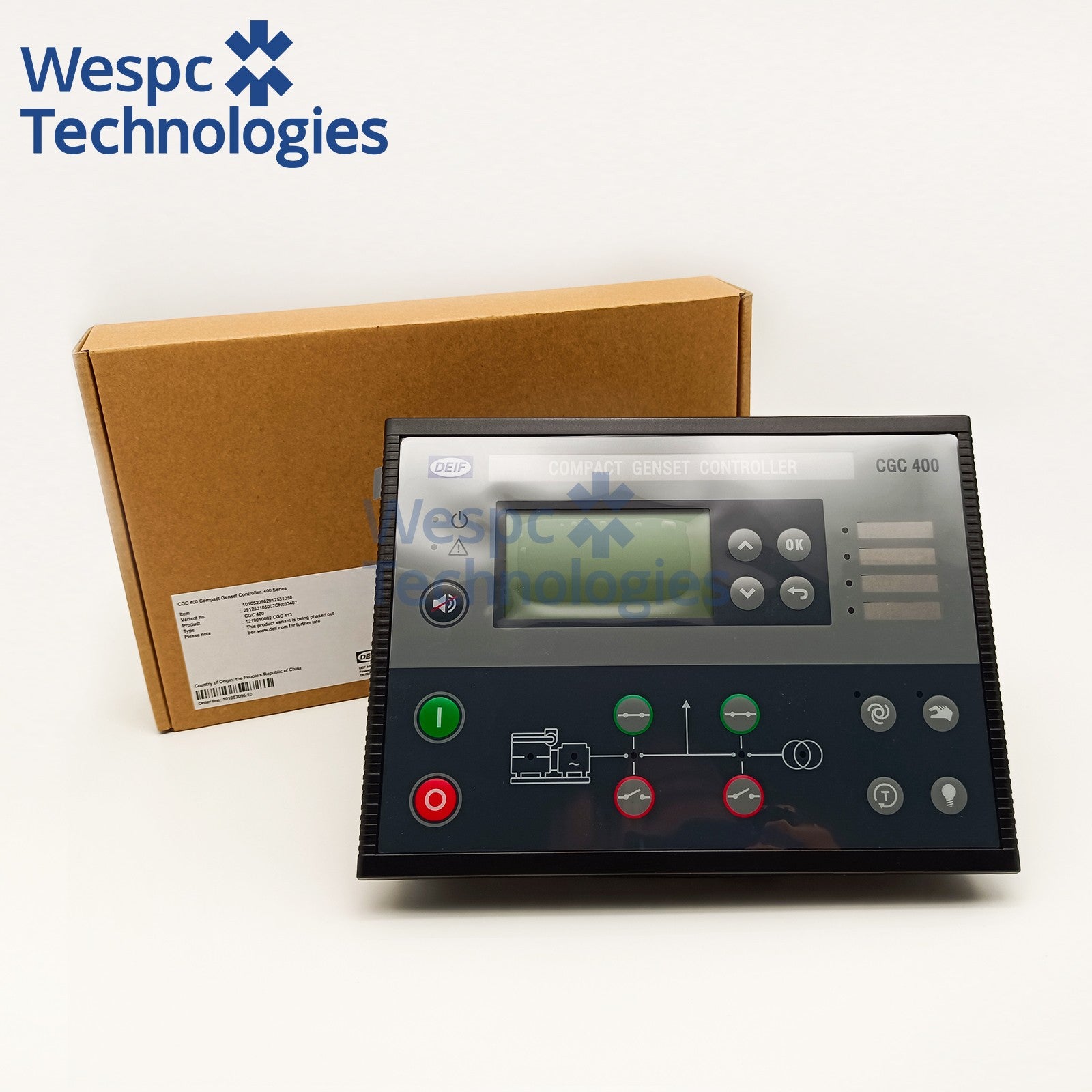

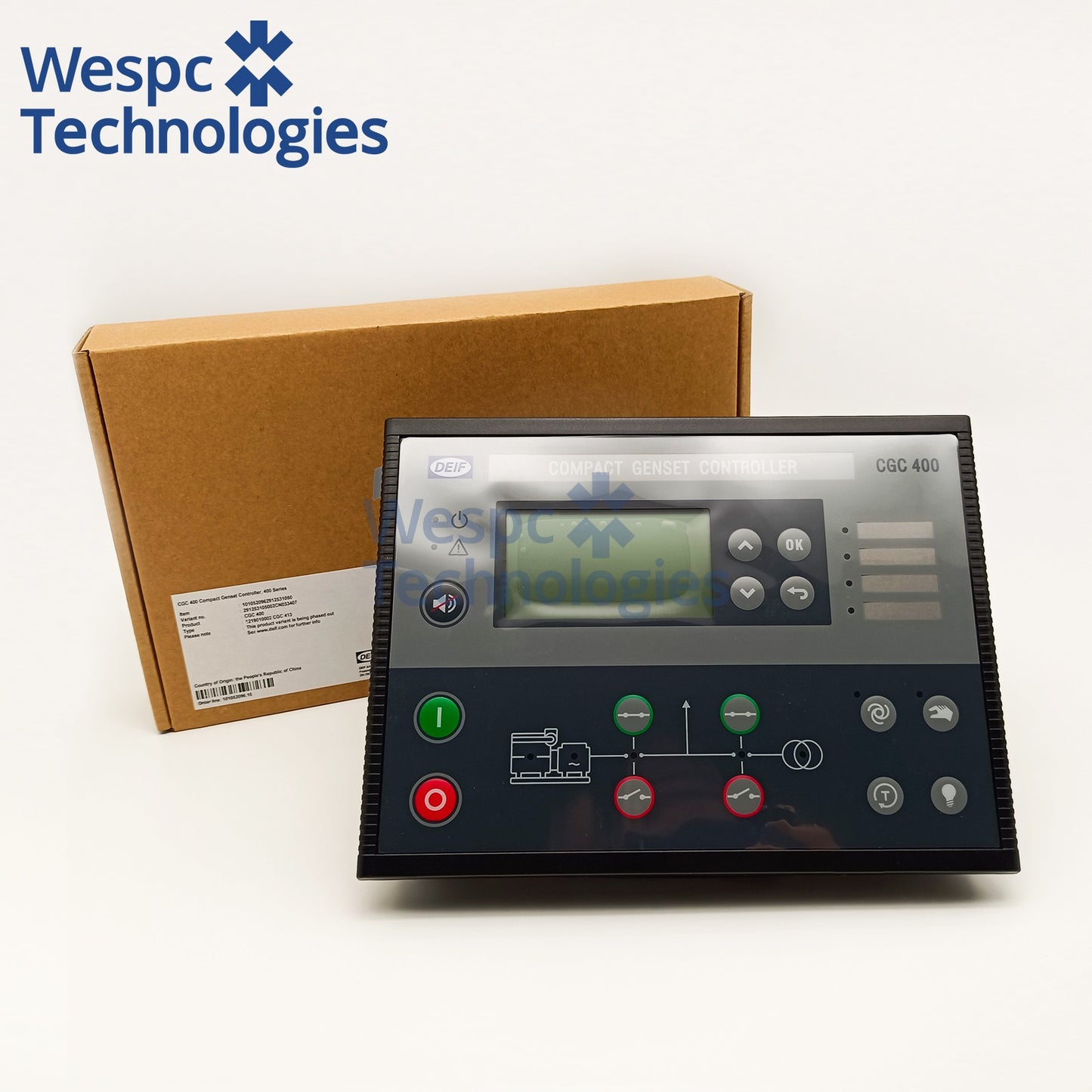

· Package：Carton Packaging
· Warranty: 6 Months Factory Warranty

Complete Protection Functions

· Engine mechanical protection: Low oil pressure shutdown, high coolant temperature, low fuel level, emergency stop, loss of speed
· Generator electrical protection: Over/under voltage, over/under frequency, overcurrent, reverse power, three-phase unbalance
· Grid mains protection: Mains loss, mains over/undervoltage, mains over/under frequency
· Extra protection: ECU communication fault, sensor open circuit, startup failure

Mechanical & Environmental Parameters

· Overall Dimension: 144mm × 104mm × 42mm
· Panel Cutout Size: 122mm × 74mm standard cabinet embedded hole
· Operating Temperature: -30℃ ~ +70℃; Storage Temp: -40℃ ~ +85℃
· Relative Humidity: ≤95% non-condensing, IEC 60068-2-30 certified
· Vibration Resistance: Industrial genset anti-shock standard 20G
· Front Panel Grade: IP54 dustproof & moisture-proof

Wide Application Range

Single standby AMF diesel/gas generator sets for data center, hospital, telecom base station, commercial building backup power
ABS certified marine auxiliary gensets, industrial small park standby power units
Old genset controller aging, screen failure, lack J1939 ECU communication, unable ATS auto transfer replacement
DEIF genset OEM complete set supporting, global power rental fleet & maintenance shop genuine spare parts stocking

Common Equipment Failures Solved

· Old controller without AMF function, cannot auto start when mains power fails and switch ATS load
· No J1939 CAN communication, unable to read electronic engine fault codes
· Insufficient I/O ports, need extra relay cabinet to realize auxiliary equipment control
· No Modbus communication, cannot upload running data to remote BMS monitoring system
· Original DEIF controller discontinued, need drop-in compatible replacement
